language TOYOTA COROLLA HATCHBACK 2019 Accessories, Audio & Navigation (in English)

3TABLE OF CONTENTS
COROLLA_H/B_Navi_U
1
2
3
4
5
6
7
8
9
4-3. Media operation USB memory ...................... 131
iPod/iPhone ........................ 133
Bluetooth
® audio ................ 136
AUX .................................... 139
4-4. Audio/visual remote controls Steering switches .............. 141
4-5. Setup Audio settings .................... 143
4-6. Tips for operating the audio/visual system
Operating information......... 145
5-1. Voice command system oper- ation
Voice command system ..... 156
Natural language understanding ......................................... 159
Command list ..................... 160
5-2. Mobile Assistant operation Mobile Assistant ................. 165
6-1. Information display Receiving weather information......................................... 168
Data services settings ........ 170
7-1. Rear view monitor system Rear view monitor system .. 172
Rear view monitor system pre- cautions............................ 174
Things you should know..... 1798-1. Phone operation (Hands-free
system for cellular phones)
Quick reference.................. 182
Some basics ...................... 183
Placing a call using the
Bluetooth
® hands-free system
......................................... 187
Receiving a call using the
Bluetooth
® hands-free system
......................................... 190
Talking on the Bluetooth
®
hands-free system ........... 191
Bluetooth
® phone message
function ............................ 194
8-2. Setup Phone settings ................... 198
8-3. What to do if... Troubleshooting ................. 208
9-1. Toyota Entune overview Functional overview ........... 214
Type A: Function achieved by using a smart phone or DCM......................................... 216
Type B: Function achieved by using DCM and the system......................................... 220
Type C: Function achieved by using DCM ....................... 222
Type D: Function achieved by using DCM and a smart phone......................................... 224
5Voice command system
6Information
7Peripheral monitoring
system
8Phone
9Toyota Entune

181-1. Basic function
COROLLA_H/B_Navi_U
Press the “MENU” button, then
select “Setup” to display the
“Setup” screen. The items
shown on the “Setup” screen
can be set.
Entune Audio PlusSelect to change the selected
language, operation sound
settings, etc. ( P. 5 6 )
Select to set Bluetooth
®
device and Bluetooth
® sys-
tem settings. ( P. 4 0 )
Select to set audio settings.
( P.143)
Select to set the phone
sound, contacts, message
settings, etc. ( P.198)
Select to set the voice set- tings. (
P.60)
Select to set vehicle informa-
tion. ( P.61)
Select to set Wi-Fi
® connec-
tion settings.
*1, 2 (  P. 4 8 )
Select to set Toyota Entune
App Suite Connect settings.
*2
( P.232)
*1: Vehicles with DCM
*2: This function is not made avail-
able in some countries or areas.
Entune Premium Audio
Select to change the selected
language, operation sound
settings, etc. ( P.56)
“Setup” screen
“Setup” screen
A
B
C
D
E
F
G
H
A

562-3. Other settings
COROLLA_H/B_Navi_U
2-3.Other settings
1Press the “MENU” button.
2 Select “Setup”.
 If the general settings screen
is not displayed, select “Gen-
eral”.
3 Select the desired items to
be set.
 “Clock”
Select to change the time zone and
select “On” or “Off” or “Auto”
*1 for daylight saving time, automatic
adjustment of the clock, etc.
(
 P. 5 7 )
 “Language”
Select to change the language. The
language setting of Apple CarPlay
can only be chan ged on the con-
nected iPhone.
 “Customize Home Screen”
Select to change the display infor-
mation/area on the home screen
and the home screen layout.
( P. 2 9 )
 “Theme Setting”
Select to change the screen theme
setting.
“Beep”
Select to turn the beep sound
on/off.
“Unit of Temperature”*1
Select to change the unit of tem-
perature.
“Units of Measurement”
Select to change the unit of mea-
sure for distance/fuel consumption.
“Auto Change to Screen”*1
Select to set automatic screen
changes from the audio control
screen to the home screen to
on/off. When set to on, the screen
will automatically r eturn to the
home screen from the audio control
screen after 20 seconds.
 “Keyboard Layout”
Select to change the keyboard lay-
out.
“Delete Keyboard History”
General settings
Settings are available for
clock, operation sounds,
etc.
Displaying the general
settings screen
General settings screen

582-3. Other settings
COROLLA_H/B_Navi_U
(P. 5 8 )
Select to set the 24 hour time
format on/off.
When set to off, the clock is
displayed in 12 hour time for-
mat.
*: Entune Premium Audio only
1 Select “Time Zone”.
2 Select the desired time zone.
 Entune Premium Audio only:
If “Auto” is selected, the time
zone is selected automatically
by current vehicle position.
When “Auto Adjust by GPS” is
turned off, the clock can be
manually adjusted.
1 Select “Auto Adjust by GPS”
to set to off.
2 Adjust the clock manually.
Select “+” to set the time for-
ward one hour and “-” to set
the time back one hour.
Select “+” to set the time for-
ward one minute and “-” to set the time back one minute.
Select to round to the nearest
hour.
e.g.
1:00 to 1:29
 1:00
1:30 to 1:59  2:00
The driver settings feature will
allow the system to link some
preferences (such as audio pre-
sets, screen theme, language,
etc.) to a paired Bluetooth
®
phone.
1 Display the general settings
screen. ( P. 5 6 )
2 Select “Driver Setting”.
3 Select “Enable This Feature”.
1 Select “Manually Select
Linked Settings”.
Setting the time zone
Manual clock setting
D
A
B
'ULYHUVHWWLQJV
0DQXDOO\VHOHFWOLQNHGVHW
WLQJV
C

155
COROLLA_H/B_Navi_U
5
5
Voice command system
Voice commandsystem
.5-1. Voice command system operation
Voice command system .................................. 156
Natural language under- standing..................... 159
Command list .............. 160
5-2. Mobile Assistant opera- tion
Mobile Assistant .......... 165

1595-1. Voice command system operation
COROLLA_H/B_Navi_U
5
Voice command system
1 Select .
2 Speak to the system.
 Words recognized through
your speech will be displayed.
To confirm the entered text,
select “OK”.
●A keyboard screen will not be dis-
played when the vehicle is being
driven.
●Text message reply with the dicta-
tion function may n ot be available
depending on the type of cellular
phone.
*: Entune Premium Audio with DCM
only. This function is not made
available in some countries or
areas.
Natural language
understanding*
Due to natural language
speech recognition technol-
ogy, this system recognizes
commands when spoken
naturally. (If a Toyota Entune
subscription has been
entered, the system will be
able to connect to the
Toyota Entune center and
the range of naturally spo-
ken English which can be
recognized will be
increased.) However, the
system cannot recognize
every variation of each com-
mand. In some situations, it
is possible to omit the com-
mand for the procedure and
directly state the desired
operation. Not all voice
commands are displayed in
the function menu.
To use this function, a sub-
scription to the Toyota
Entune is necessary. Con-
tact your Toyota dealer for
details.

1605-1. Voice command system operation
COROLLA_H/B_Navi_U

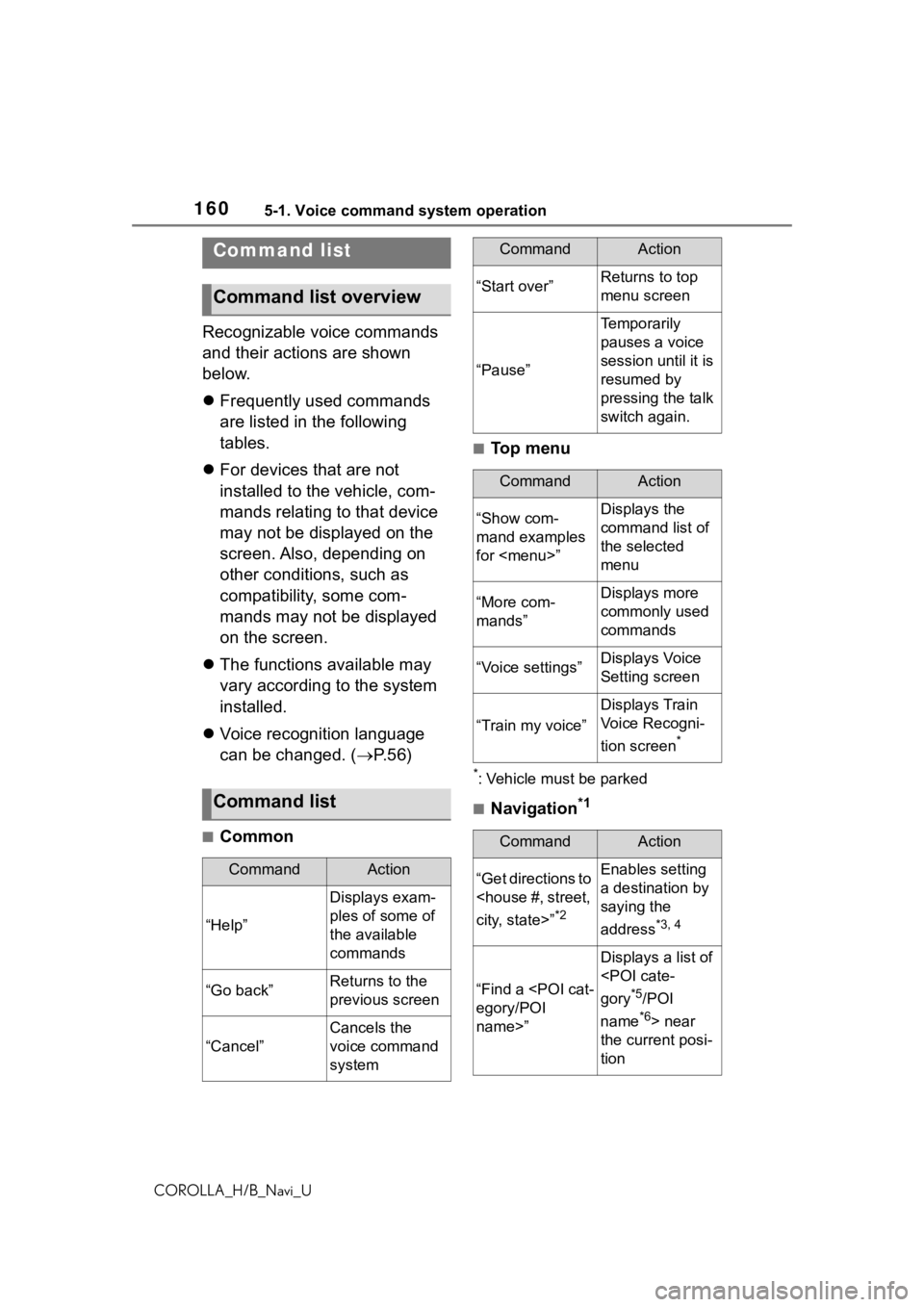

Recognizable voice commands
and their actions are shown
below.
Frequently used commands
are listed in the following
tables.
 For devices that are not
installed to the vehicle, com-
mands relating to that device
may not be displayed on the
screen. Also, depending on
other conditions, such as
compatibility, some com-
mands may not be displayed
on the screen.
 The functions available may
vary according to the system
installed.
 Voice recognition language
can be changed. ( P.56)
■Common
■Top menu
*: Vehicle must be parked
■Navigation*1
Command list
Command list overview
Command list
CommandAction
“Help”
Displays exam-
ples of some of
the available
commands
“Go back”Returns to the
previous screen
“Cancel”
Cancels the
voice command
system
“Start over”Returns to top
menu screen
“Pause”
Temporarily
pauses a voice
session until it is
resumed by
pressing the talk
switch again.
CommandAction
“Show com-
mand examples
for

1615-1. Voice command system operation
COROLLA_H/B_Navi_U
5
Voice command system
*1: Entune Premium Audio only
*2: English and French only
*3: Best recognition results occur when saying the full address
without the zipcode
*4: When the language is set to French, the supported area is
only Quebec Pronvince in
Canada
*5: For example; “Ga s stations”,
“Restaurants”, etc.
*6: Major national brands are always supported. Local brands are also
supported with a subscription to
the Toyota Entune. Contact your
Toyota dealer for details.
*7: When the language is set to French, the supported area is
only Quebec City in Canada
*8: Used when multiple destinations are set on a route
■Phone
“Find a
near my destina-
tion”Displays a list of
near the
destination
“Find a egory> in a
city”
*2
Displays a list of
in a spec-
ified city and
state
*7
“Go home”Displays the
route to home
“Go to favorite
<1-10>”
Sets the location
registered to the
corresponding
favorite number
as the destina-
tion
“Show recent
destinations”
Displays recent
destinations.
Selecting a num-
ber from the list
will start naviga-
tion to the
selected recent
destination.
“Cancel route”Cancels the
route guidance
“Delete destina-
tions”Displays a list of
destination to
delete
*8
“Show egory> icons”
Displays the
specified point of
interest cate-
gory
*5 icons on
the map
CommandAction
CommandAction
“Call ”*
Places a call to
the specified
contact from the
phone book
“Call
”
*
Places a call to
the specified
phone type of
the contact from
the phone book
“Dial number>”Places a call to
the specified
phone number
“Redial”
Places a call to
the phone num-
ber of the latest
outgoing call
“Call back”
Places a call to
the phone num-
ber of latest
incoming call

2068-2. Setup
COROLLA_H/B_Navi_U
■Deleting the voice tag
1 Select “Delete”.
2 Select the desired contact
and select “Delete”.
3 Select “Yes” when the confir-
mation screen appears.
●Multiple data can be selected and
deleted at the same time.
●Voice tags are deleted when the
set language of the system is
changed. ( P. 5 6 )
1 Display the phone settings
screen. ( P.198)
2 Select “Messaging”.
3 Select the desired item to be
set.
Select to set automatic mes-
sage transfer on/off.
Select to set automatic mes-
sage readout on/off.
Select to set updating mes-
sage read status on phone
on/off.
Select to set display of mes-
saging account names on the
message screen on/off.
When set to on, messaging account names used on the
cellular phone will be dis-
played.
Select to set adding the vehi-
cle signature to outgoing
messages on/off.
The vehicle signature can be
edited. (
P.206)
Select to reset all setup
items.
●Depending on the phone, these
functions may not be available.
1 Select “Vehicle Signature”.
2 Select the desired item to be
set.
Select to set adding the vehi-
cle signature to outgoing
messages on/off.
Select to edit the vehicle sig-
nature. ( P.206)
Select to reset all setup
items.
■Editing vehicle signature
1 Select “Edit Vehicle Signa-
ture”.
Message settings screen
A
B
C
D
9HKLFOHVLJQDWXUHVHWWLQJV
E
F
A
B
C

2229-1. Toyota Entune overview
COROLLA_H/B_Navi_U
*: Vehicles with DCM
●Free/Open Source Software Infor-
mation
This product contains Free/Open
Source Software (FOSS).
The license information and/or the
source code of such FOSS can be
found at the following URL.
https://www.toyota.com/
opensource/dcm
●Exposure to radio frequency sig-
nals:
The Toyota Entune system
installed in your vehicle includes a
low power radio transmitter and
receiver. The system receives and
also sends out radio frequency
(RF) signals.
●In August 1996, the Federal Com-
munications Commission (FCC)
adopted RF exposure guidelines
with safety levels for mobile wire-
less phones. Those guidelines are
consistent with the safety stan-
dards previously set by both U.S.
and international standards bod-
ies.
• ANSI (American National Stan- dards Institute) C95.1 [1992]
• NCRP (National Council on Radi-
ation Protection and Measure-
ment) Report 86 [1986]
• ICNIRP (Intern ational Commis-
sion on Non-Ionizing Radiation
Protection) [1996]
●These standards are based on comprehensive and periodic eval-
uations of the relevant scientific lit-
erature. Over 120 scientists,
engineers, and physicians from
universities, government health
agencies, and industry reviewed
the available body of research to
develop the ANSI Standard
(C95.1).
●The design of Toyota Entune sys-
tem complies with the FCC guide-
lines in addition to those
standards.
●Contact with the Toyota Entune
center is dependent upon the
telematics device being in opera-
tive condition, cellular connection
availability, navigation map data,
and GPS satellite signal recep-
tion, which can lim
it the ability to
reach the Toyota Entune center or
receive support. Enrollment and
Telematics Subscription Service
Agreement required. A variety of
subscription terms are available;
charges vary by subscription term
selected.
●The Toyota Entune center offers
support in multiple languages.
●Select Safety Connect-sub-
scribed vehicles are capable of
communicating vehicle informa-
tion. Please see the terms and
conditions for additional details.
Owners who do not wish to have
their vehicle transmit this informa-
tion can opt out at the time of
enrollment or by calling
1-800-331-4331 in the United
States, 1-888-869-6828 in Can-
ada, and 1-877-855-8377 in
Puerto Rico, and following the
prompts for Safety Connect.
●For further details about the ser-
vice, contact your Toyota dealer.
●Toyota Entune functions are not
subject to section 255 of the Tele-
communications Act and the sys-
tem is not TTY compatible.
●Certification
Type C: Function
achieved by using
DCM
*
The functionality of Safety
Connect is made possible
by the use of a DCM.
For details, refer to
“OWNER’S MANUAL”.
