display TOYOTA COROLLA HATCHBACK 2019 Accessories, Audio & Navigation (in English)

19
WI-FI HOTSPOT SETUP*
STEP
2
STEP
4
STEP
3
STEP
5
Scroll down to "Wi-Fi" and turn "ON"
by selecting "Wi-Fi Hotspot: OFF."
Make sure "Wi-Fi" is on.
Select the Wi-Fi network name of the vehicle.
Turn your vehicle into a hotspot. Connect to Wi-Fi!
Features• 4G LTE Wi-Fi Powered by Verizon• Easily connect up to 5 devices• Verizon plan customers can add Wi-Fi Connect into their current pla\
n.
STEP
1
Press [MENU] on the faceplate, then select "Setup" on display screen.
Once the multimedia system connects to the internet, the system displays the name of the Wi-Fi Hotspot when it's discoverable.
* Standard on Entune™ 3.0 Audio (excl C-HR), Audio Plus, and Premium Audio. Trial up to 2 G\
B within 6 months.** iPhone is used only as an example other mobile devices may show sligh\
tly different viewable image.
On your smartphone go to “Settings.” Tap “Wi-Fi."
ENABLE WI-FI ON DEVICE**
Wi-Fi trial is included for the first 6 months or 2GB of data usage whichever comes first.

22
To enable Entune™ 3.0 Remote Connect, you must authenticate and initialize your services \
via the
multimedia system.
Standard on:
Entune™ 3.0 Audio Plus and Entune™ 3.0 Premium Audio.
* If you opted-in for Entune™ 3.0 Remote Connect you should have received an email with a 6-digit authorization code. If you have not received your authorization code via\
email, please call
1-800-331-4331 for assistance.
STEP
2
STEP
3
STEP
4
STEP
5
Select "Remote Service" icon.Enter the 6 character authorization code*
you received via email to enable remote
services.
Select "Submit."The vehicle has been successfully
authorized for remote services.
Select "OK."
STEP
1
Press [APPS] on the faceplate, then select "Communications" on display screen.
All apps and data services are subject to change at any time without notice. Connected services may vary by vehicle. Remote & Service Connect not available on 2018–2019 Sienna, Mirai and 2019 C-HR. (Remote Start/Stop N/A on vehicles equipped with Manual Transmission.)
Available on Entune™ 3.0 Audio Plus and Premium Audio only. (Remote Start/Stop N/A on vehicles equipped with Manual Transmission.)
Remote & Service Connect not available on 2018–2019 Sienna, Mirai and 2019 C-HR. (Remote Start/Stop N/A on vehicles equipped with Manual Transmission.)
REMOTE APP AUTHORIZATION

23

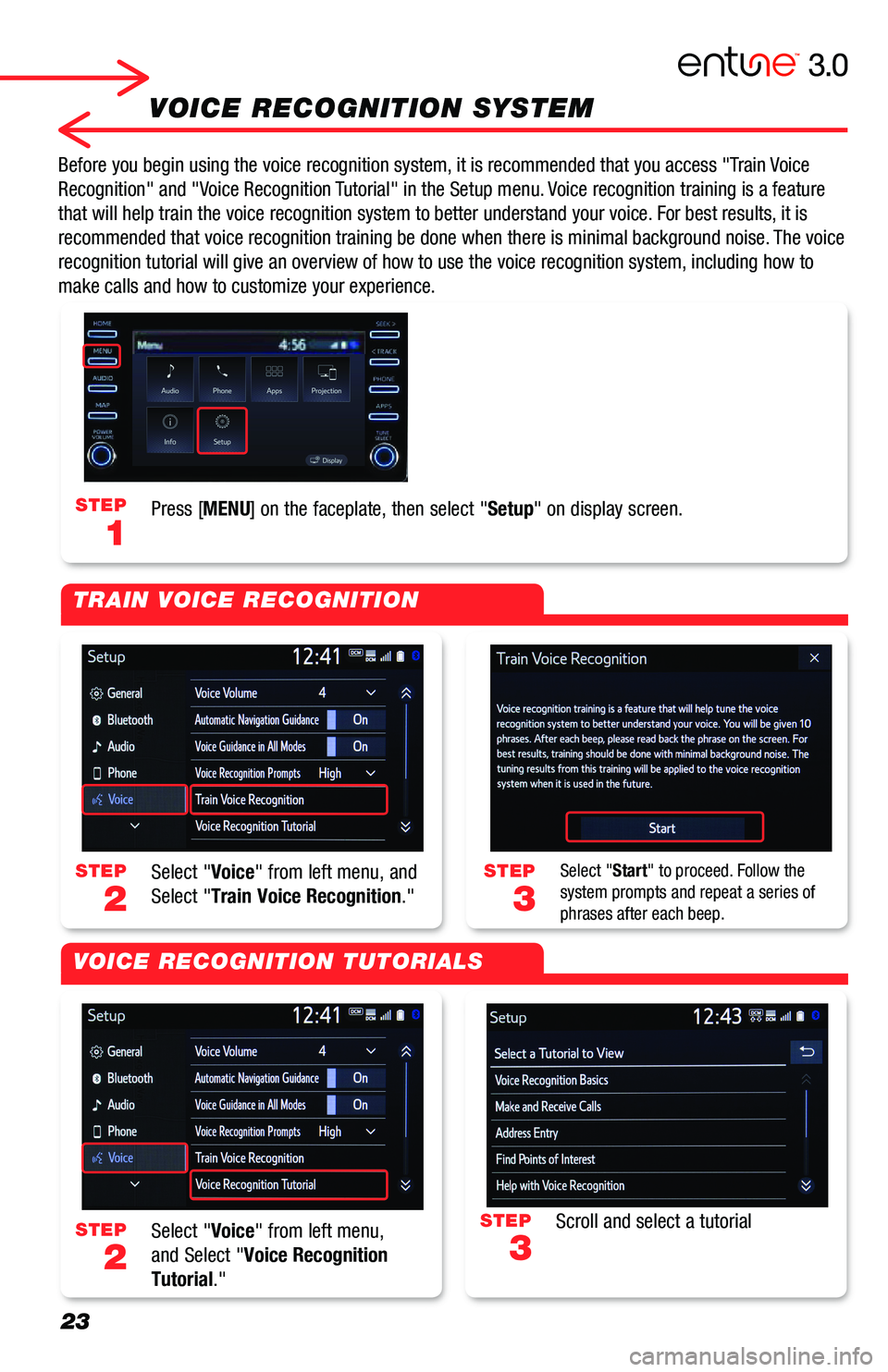

VOICE RECOGNITION SYSTEM
Before you begin using the voice recognition system, it is recommended that you access "Train Voice
Recognition" and "Voice Recognition Tutorial" in the Setup menu. Voice recognition training is a feature
that will help train the voice recognition system to better understand your\
voice. For best results, it is
recommended that voice recognition training be done when there is minimal background noise. The voice
recognition tutorial will give an overview of how to use the voice recognition system, including how to
make calls and how to customize your experience.
STEP
2
STEP
2
STEP
3
STEP
3
STEP
1
Select "Voice" from left menu, and
Select "Train Voice Recognition."
Select "Voice" from left menu,
and Select "Voice Recognition
Tutorial."
Select "Start" to proceed. Follow the system prompts and repeat a series of phrases after each beep.
Scroll and select a tutorial
Press [MENU] on the faceplate, then select "Setup" on display screen.
TRAIN VOICE RECOGNITION
VOICE RECOGNITION TUTORIALS

25
DESTINATION INPUT: DYNAMIC NAVIGATION
You can input your destination by
• SEARCH: Search by any keyword input, list related dynamic candidacy.
• Favorites: Search by using your saved favorites
• Dest Assist: Using Destination Assist Service
(see Destination Assist Service Page 7)
• Recent: From a list of recent destinations
• Emergency: From a list with Police or nearby Hospitals
• Contacts: From your address book imported from connected smartphone
or other devices
• Address: Input an address
• Point of Interest: From a point of interest listed nearby or selected area.
STEP
3
STEP
5
STEP
2
STEP
4
STEP
1
Select State/Province.NOTE: Please see page 31 SEARCH AREA for more detail.
Enter Street Name, the system will show a list when you type a few letters. Select Street.
Scroll and select "Address."
Enter City Name, the system will show a list when you type a few letters. Select City.
Press [MENU] on the faceplate, then select "Destination" on display screen.
BY ADDRESS
ENTUNE™ 3.0 PREMIUM AUDIO

26
DESTINATION INPUT: DYNAMIC NAVIGATION
STEP
1
STEP
7
STEP
9
STEP
3
STEP
2
STEP
6
STEP
8
Push talk switch on the steering wheel.
Confirm Destination. Select "Go" on display screen to proceed. You can touch "Save" to your Favorites for easy access next time.
Select "OK" to start guidance. Select "3 Routes" to see 3 different routes, see page 31 for detail.
Say "Start Guidance," or "Go there," or "Yes" to set a destination.Say "Get direction to <...>" exact address starting from House Number, Street Name, City Name, States.
Enter House Number, the system will show the list when you type a few numbers. Select House Number.
The system optimizes the route by the cloud and sets the destination.
BY ADDRESS (cont.)
ADDRESS BY VOICE RECOGNITION
ENTUNE™ 3.0 PREMIUM AUDIO
Dynamic Search and Dynamic POI: When you see this icon . Searching candidate data is
downloading to your system from the cloud.

27
DESTINATION INPUT: DYNAMIC POI
STEP
3
STEP
5
STEP
7
STEP
2
STEP
4
STEP
6
STEP
1
Change State/Province. Then select a method to search.
The system lists up all related POI names. Closer points start at top of list.
The system optimize route by the cloud.(Dynamic Navigation), and set destination.
Scroll and select "Point of Interest."
When you select "Name,"Enter a POI name and select "Search."
Confirm Destination. Select "Go Directly" to start the guidance.
BY POI
BY POI [NAME]
Press [MENU] on the faceplate, then select "Destination" on display screen.
ENTUNE™ 3.0 PREMIUM AUDIO

30
SET HOME
STEP
3
STEP
5
STEP
7
STEP
2
STEP
4
STEP
6
Select "Save Home."
The system shows the address input,select "Enter" to proceed.
Your home is set.
Scroll down and select "Navigation," then select "Home."
Select Address and input your home address (refer DESTINATION INPUT BY ADDRESS see page 25).
Confirm the address and select "OK."
Tip: Select "Name" to edit the name.
SET HOME
STEP
1
Press [MENU] on the faceplate, then select "SET UP" on display screen.
ENTUNE™ 3.0 PREMIUM AUDIO

31
ADDITIONAL NAVIGATION FEATURES
One of three routes may be chosen for the trip: Quick- is the easiest route, usually the fastestShort- is the most direct based upon driven mileageAlternate- is the second fastest route
Once the address has been input, select a desired route preference for the trip. By selecting the system will display time, distance, toll roads, ferry and freeway information.
In the navigation screen, on right side menu, select to access "Map Options." Select Map Mode to change the mode.ン
Prior to inputting the desired address, select the
State/Province by selecting The system is only capable of searching for an address within one state or province at a time.
[Menu] > "Destination" > select "Emergency." Select emergency category to see a list.
EMERGENCY
ROUTE PREFERENCE & 3 ROUTES INFORMATION
SCREEN CONFIGURATIONS
SEARCH AREA
ENTUNE™ 3.0 PREMIUM AUDIO

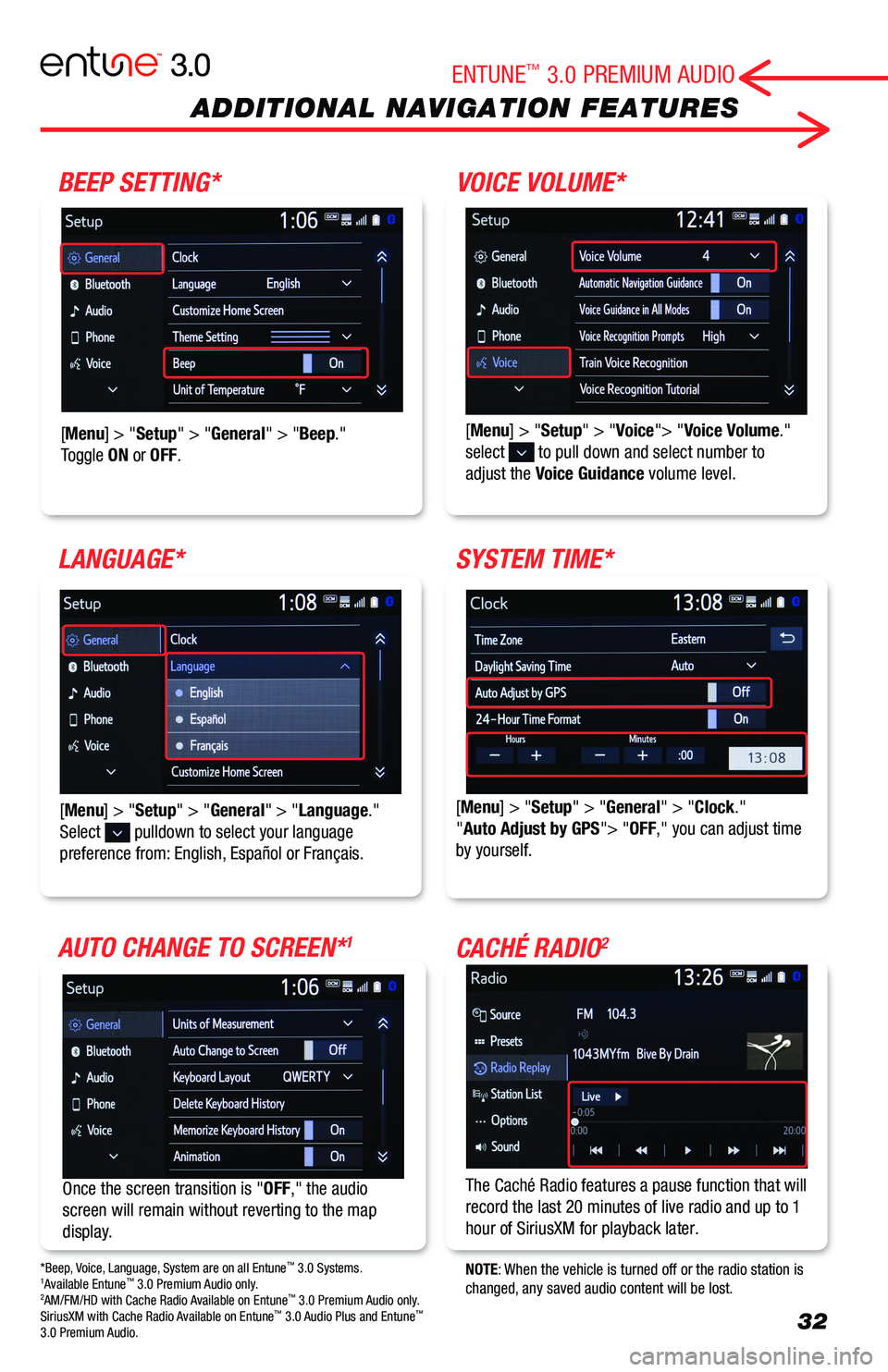

32
ADDITIONAL NAVIGATION FEATURES
[Menu] > "Setup" > "General" > "Clock.""Auto Adjust by GPS"> "OFF," you can adjust time by yourself.
Once the screen transition is "OFF," the audio screen will remain without reverting to the map display.
[Menu] > "Setup" > "Voice"> "Voice Volume."select to pull down and select number to adjust the Voice Guidance volume level.
[Menu] > "Setup" > "General" > "Beep."Toggle ON or OFF.
[Menu] > "Setup" > "General" > "Language."Select pulldown to select your language preference from: English, Español or Français.
BEEP SETTING*
LANGUAGE*
AUTO CHANGE TO SCREEN*1
VOICE VOLUME*
SYSTEM TIME*
CACHÉ RADIO2
The Caché Radio features a pause function that will record the last 20 minutes of live radio and up to 1 hour of SiriusXM for playback later.
NOTE: When the vehicle is turned off or the radio station is changed, any saved audio content will be lost.*Beep, Voice, Language, System are on all Entune™ 3.0 Systems. 1Available Entune™ 3.0 Premium Audio only.2AM/FM/HD with Cache Radio Available on Entune™ 3.0 Premium Audio only. SiriusXM with Cache Radio Available on Entune™ 3.0 Audio Plus and Entune™ 3.0 Premium Audio.
ENTUNE™ 3.0 PREMIUM AUDIO

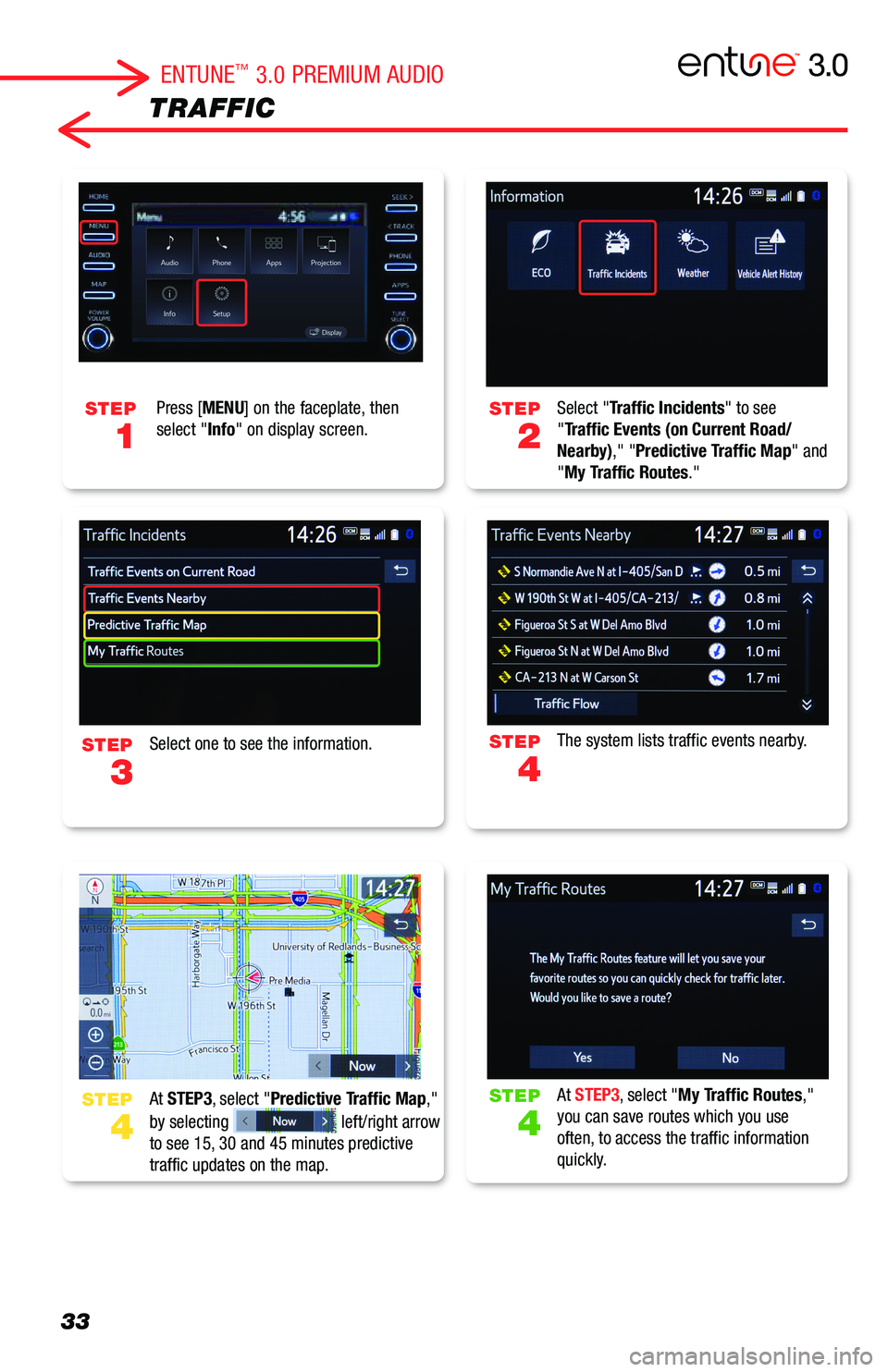

33
TRAFFIC
Select "Traffic Incidents" to see "Traffic Events (on Current Road/Nearby)," "Predictive Traffic Map" and "My Traffic Routes."
The system lists traffic events nearby.
At STEP3, select "My Traffic Routes,"you can save routes which you use often, to access the traffic information quickly.
Select one to see the information.
At STEP3, select "Predictive Traffic Map,"
by selecting left/right arrow to see 15, 30 and 45 minutes predictive traffic updates on the map.
STEP
1
STEP
2
STEP
4
STEP
4
Press [MENU] on the faceplate, then select "Info" on display screen.
STEP
STEP
3
4
ENTUNE™ 3.0 PREMIUM AUDIO
