TOYOTA COROLLA HATCHBACK 2019 Warranties & Maintenance Guides (in English)

50
95,000 miles or 114 months

Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires

Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2

Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2

Tighten nuts and bolts on chassis and body

Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
100,000 miles or 120 months

Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine coolant4
Replace engine oil and oil filter2
Rotate tires

Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots

Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6

Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE

51
105,000 miles or 126 months

Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following: _Ball joints and dust covers _ Engine coolant5
_Brake lines and hoses _ Exhaust pipes and mountings
_Cabin air filter _ Radiator and condenser
_Drive belts _ Steering gear
_Drive shaft boots _ Steering linkage and boots
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten the life of the cabin air filter. Replacement may be needed if you notice reduced air flow from the air conditioner and heater or if the windows fog easily when you use the “Fresh” mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace engine oil and oil filter2

Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:
Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

52
110,000 miles or 132 months

Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)

Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires

Visually inspect brake linings/drums and brake pads/discs
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots

Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8

Tighten nuts and bolts on chassis and body
Dealer Service verification:
Date:Mileage:
115,000 miles or 138 months

Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)

Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires

Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0W-16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2

Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace engine oil and oil filter2

Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:Replace engine oil and oil filter2
Dealer Service verification:
Date:Mileage:
Maintenance Log
MAINTENANCE LOG
MAINTENANCE

53
120,000 miles or 144 months
Add Toyota EFI Tank Additive or equivalent (Hawaii and Puerto Rico only)

Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Replace spark plugs4
Rotate tires
Inspect the following: _Ball joints and dust covers
_Brake lines and hoses
_
Brake linings/drums and brake pads/discs5
_Drive belts
_Drive shaft boots
_Engine coolant6
_Exhaust pipes and mountings
Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:8
Replace transmission fluid or oil
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or door-to-door delivery use:Replace continuously variable transmission (CV T ) fluid
Dealer Service verification:
Date:Mileage:
1 inspect sealed transmissions, transfer cases and differentials for signs of leakage. if any leakage from a sealed component is suspected, it is recommended that you have the sealed component inspected by a toyota dealer. inspect power steering fluid (if equipped) and brake fluid level/condition. inspect engine and inverter (if equipped) coolant level/condition/freezing point. Your dealer may recommend services (Dealer-recommended Maintenance) based on inspection results.2 reset the oil replacement reminder light (

54
T
he following descriptions are
provided to give you a better
understanding of the maintenance
items that should be performed on your
vehicle. The scheduled maintenance log
indicates at which mileage/time intervals
each item should be performed. Please
note that many maintenance items should
be performed only by a qualified technician.
For further information on maintenance
items you can perform yourself, see the
“Vehicle Maintenance and Care” and
“Do-It-Yourself Maintenance” sections
of the Owner’s Manual.
Ball Joints and Dust Covers
Check the suspension and steering
linkage ball joints for looseness and
damage. Check all dust covers for
deterioration and damage. Replace
any deteriorated or damaged parts.
A qualified technician should perform
these operations.
Brake Lines and Hoses
Visually inspect for proper installation.
Check for chafing, cracks, deterioration
and signs of leakage. Replace any
deteriorated or damaged parts. A qualified
technician should perform these operations.
Brake Linings/Drums and
Brake Pads/Discs
Check the brake linings (shoes) and
drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check
the pads for excessive wear and the discs
for runout, excessive wear and fluid
leakage. Replace any deteriorated or
damaged parts. A qualified technician
should perform these operations.
Cabin Air Filter
Replace at specified intervals. Driving in
heavy traffic, on dirt roads or in urban,
desert or dusty areas may shorten filter’s
life. More frequent replacement may
be necessary.
Drive Belts
Inspect for cracks, excessive wear and
oiliness. Check the belt tension and adjust
if necessary. Replace the belts if they
are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps for
cracks, deterioration and damage. Replace
any deteriorated or damaged parts and, if
necessary, repack the grease. A qualified
technician should perform these operations.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log
MAINTENANCE

55

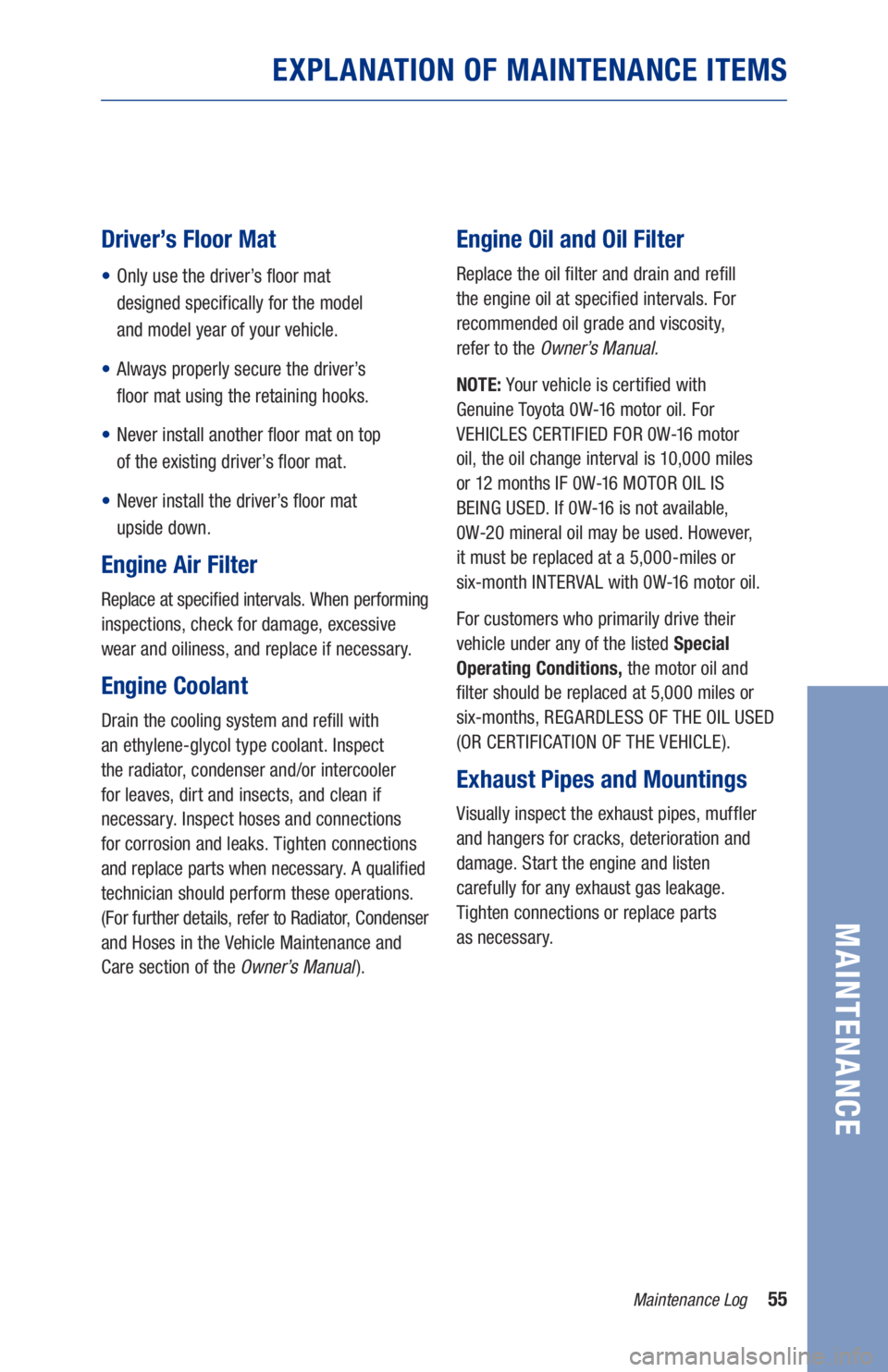

Driver’s Floor Mat
•
Only use the driver’s floor mat
designed specifically for the model
and model year of your vehicle.
•
Always properly secure the driver’s
floor mat using the retaining hooks.
•
Never install another floor mat on top
of the existing driver’s floor mat.
•
Never install the driver’s floor mat
upside down.
Engine Air Filter
Replace at specified intervals. When performing
inspections, check for damage, excessive
wear and oiliness, and replace if necessary.
Engine Coolant
Drain the cooling system and refill with
an ethylene-glycol type coolant. Inspect
the radiator, condenser and/or intercooler
for leaves, dirt and insects, and clean if
necessary. Inspect hoses and connections
for corrosion and leaks. Tighten connections
and replace parts when necessary. A qualified
technician should perform these operations.
(For further details, refer to Radiator, Condenser
and Hoses in the Vehicle Maintenance and
Care section of the Owner’s Manual).
Engine Oil and Oil Filter
Replace the oil filter and drain and refill
the engine oil at specified intervals. For
recommended oil grade and viscosity,
refer to the Owner’s Manual.
NOTE: Your vehicle is certified with
Genuine Toyota 0W-16 motor oil. For
VEHICLES CERTIFIED FOR 0W-16 motor
oil, the oil change interval is 10,000 miles
or 12 months IF 0W-16 MOTOR OIL IS
BEING USED. If 0W-16 is not available,
0W-20 mineral oil may be used. However,
it must be replaced at a 5,000-miles or
six-month INTERVAL with 0W-16 motor oil.
For customers who primarily drive their
vehicle under any of the listed Special
Operating Conditions, the motor oil and
filter should be replaced at 5,000 miles or
six-months, REGARDLESS OF THE OIL USED
(OR CERTIFICATION OF THE VEHICLE).
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler
and hangers for cracks, deterioration and
damage. Start the engine and listen
carefully for any exhaust gas leakage.
Tighten connections or replace parts
as necessary.
EXPLANATION OF MAINTENANCE ITEMS
Maintenance Log
MAINTENANCE

56
EXPLANATION OF MAINTENANCE ITEMS
Fuel Lines and Connections,
Fuel Tank Band and Fuel Tank
Vapor Vent System Hoses
Visually inspect for corrosion, damage,
cracks, and loose or leaking connections.
Tighten connections or replace parts
as necessary.
Fuel Tank Cap Gasket
Visually inspect for cracks, deterioration
and damage and replace if necessary.
Nuts and Bolts on Chassis
and Body
Re-tighten the seat-mounting bolts and
front /rear suspension member retaining
bolts to specified torque.
Radiator and Condenser
Inspect for debris, corrosion and signs
of damage. Have any problem repaired
immediately by a qualified technician.
Spark Plugs
Replace at specified intervals. Install new
plugs of the same type as originally
equipped. A qualified technician should
perform this operation.
Steering Gear
Inspect for signs of leakage. If you
discover any leakage, have it repaired
immediately by a qualified technician.
Steering Linkage and Boots
With the vehicle stopped, check for
excessive freeplay in the steering wheel.
Inspect the linkage for bending and
damage and the dust boots for
deterioration, cracks and damage. Replace
any damaged parts. A qualified technician
should perform these operations.
Tire Rotation
Tires should be rotated according to the
instructions in the Owner’s Manual. When
rotating tires, check for damage and
uneven wear. Replace if necessary.
Transmission Fluid or Oil
Inspect or replace at specified intervals.
When performing inspections, check each
component for signs of leakage. If you
discover any leakage, have it repaired by
a qualified technician immediately.
Vacuum Pump for Brake Booster
Inspect or replace at specified intervals.
A qualified technician should perform
this operation.
Wiper Blades
The wiper blades should not show any
signs of cracking, splitting, wear,
contamination or deformation. The wiper
blades should clear the windshield without
streaking or skipping.
Maintenance Log
MAINTENANCE

57

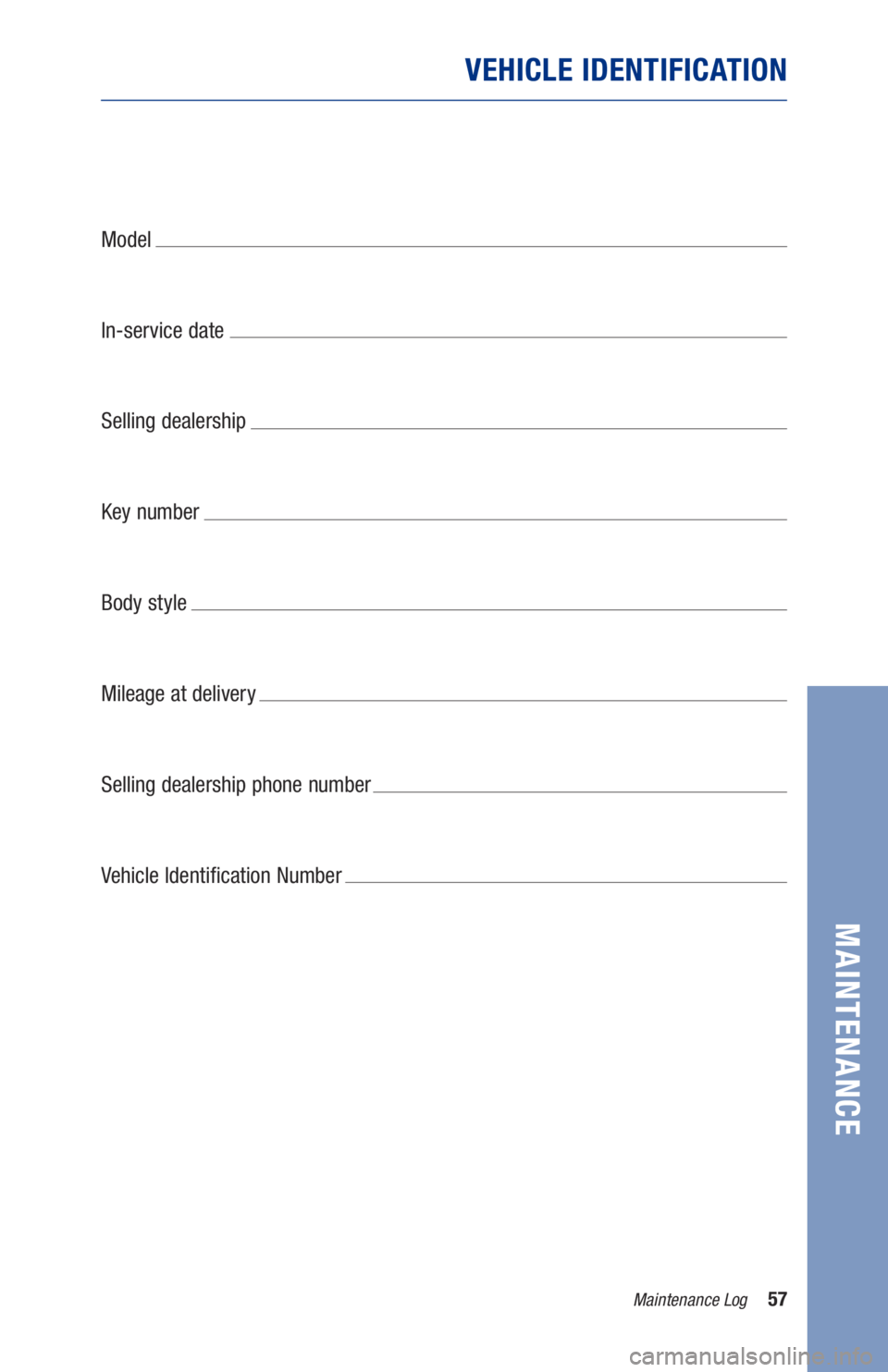

Model
In-service date
Selling dealership
Key number
Body style
Mileage at delivery
Selling dealership phone number
Vehicle Identification Number


VEHICLE IDENTIFICATION
Maintenance Log
MAINTENANCE

58

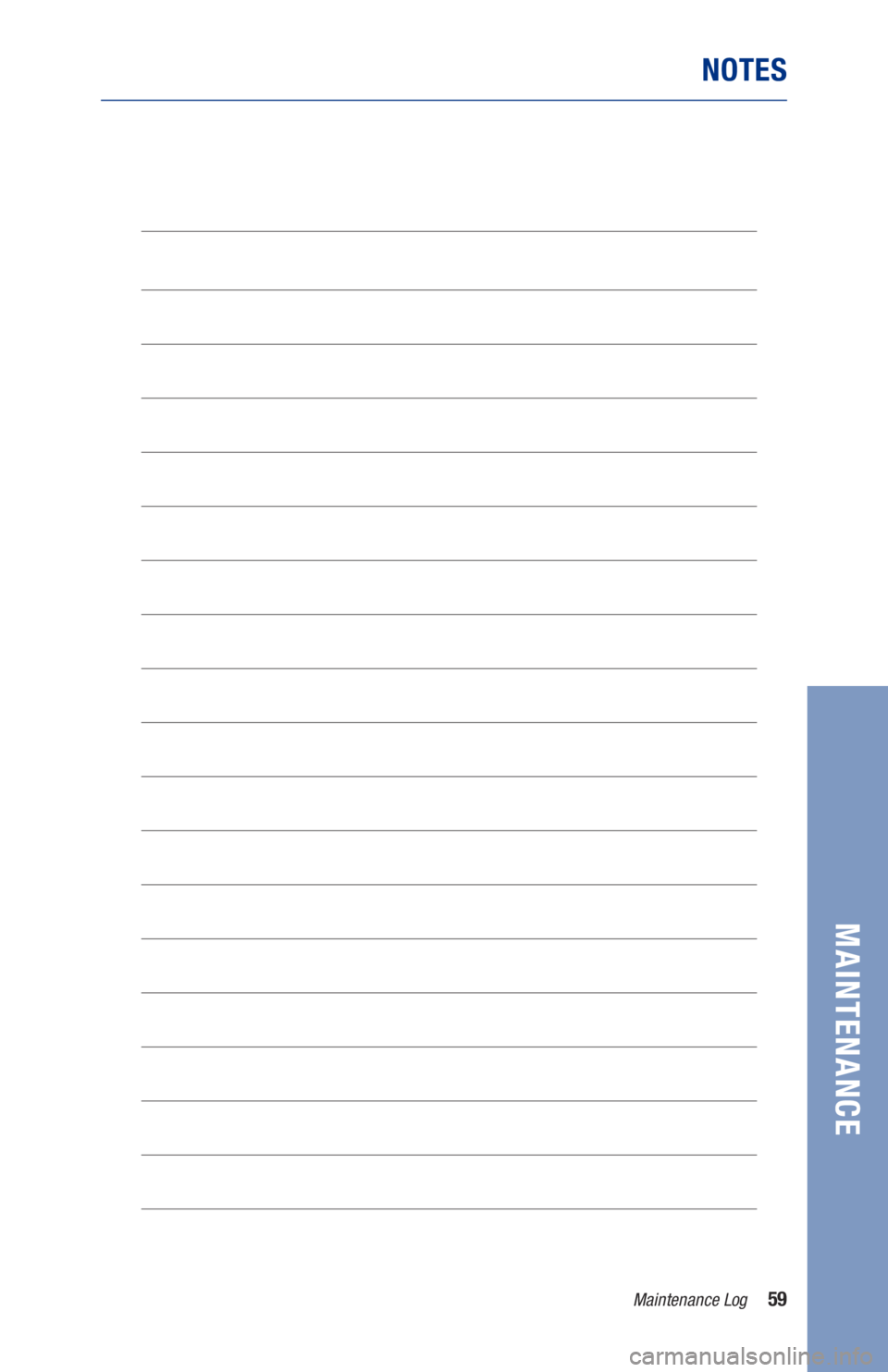

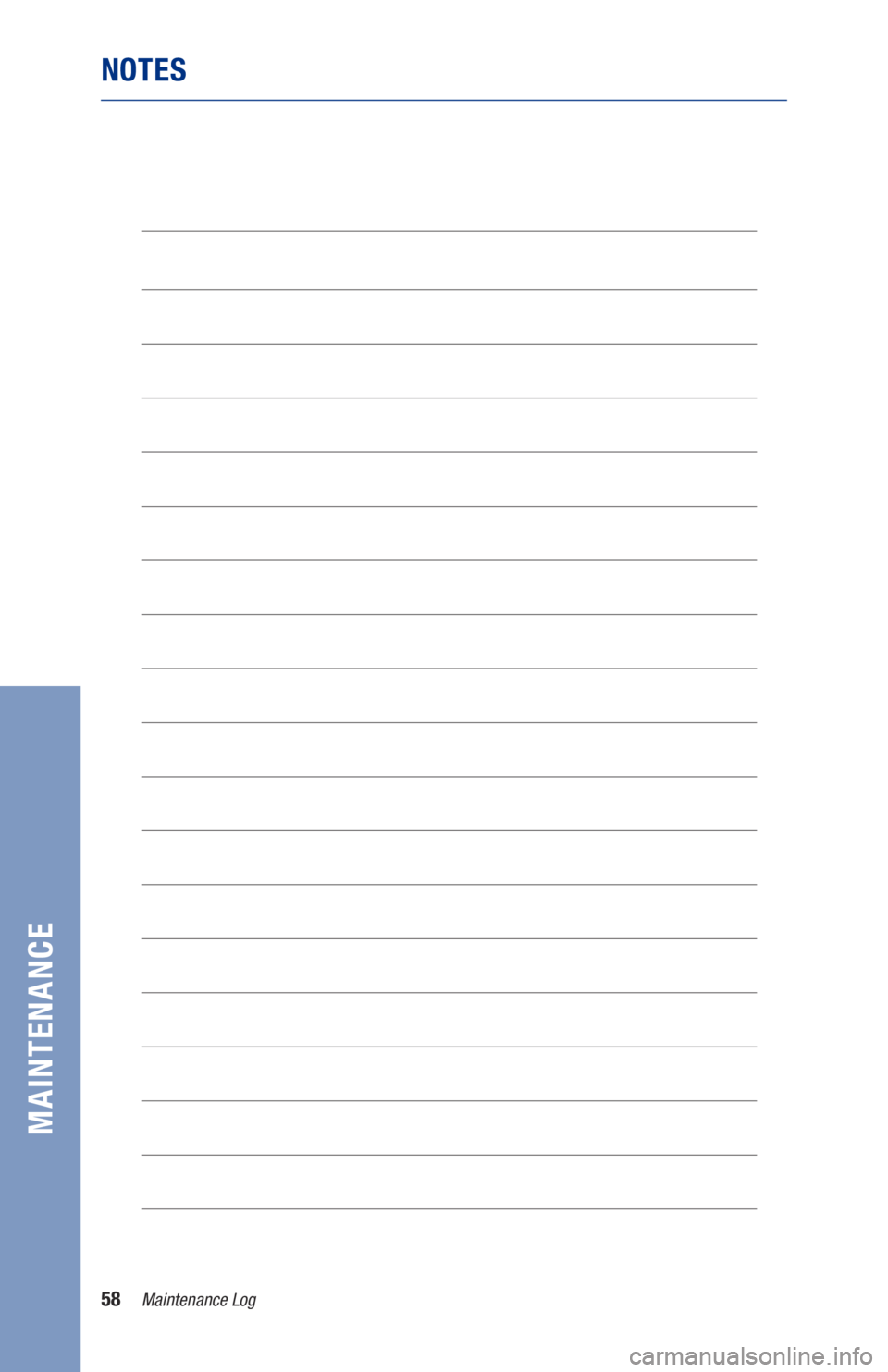

NOTES
Maintenance Log
MAINTENANCE

59

NOTES
Maintenance Log
MAINTENANCE
