TPMS TOYOTA COROLLA HATCHBACK 2020 Owners Manual (in English)

1
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 21
Audio 18
Auto lock/unlock
1,2 12
Blind Spot Monitor 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet-12V DC 19
Qi Wireless charger 19
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Folding rear 16
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15Vehicle Stability Control (VSC)/
TRAC OFF switch 22
USB charge-port 18
USB media port 20
Windows-Power 14
Windshield wipers & washers 12
Floor mat installation 47
Rear door child safety locks 41
Safety Connect 43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
™ 46-47
Tire Pressure Monitoring
(warning) System (TPMS) 42
Tire repair kit & tools 45Automatic High Beams (AHB) 39
Dynamic Radar Cruise Control (DRCC)
or Full-Speed Range DRCC 36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 32-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ 2.0 (TSS 2.0) 24
Road Sign Assist (RSA) 40
Sensors 25
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 48-50
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

42
SAFETY & EMERGENCY FEATURES

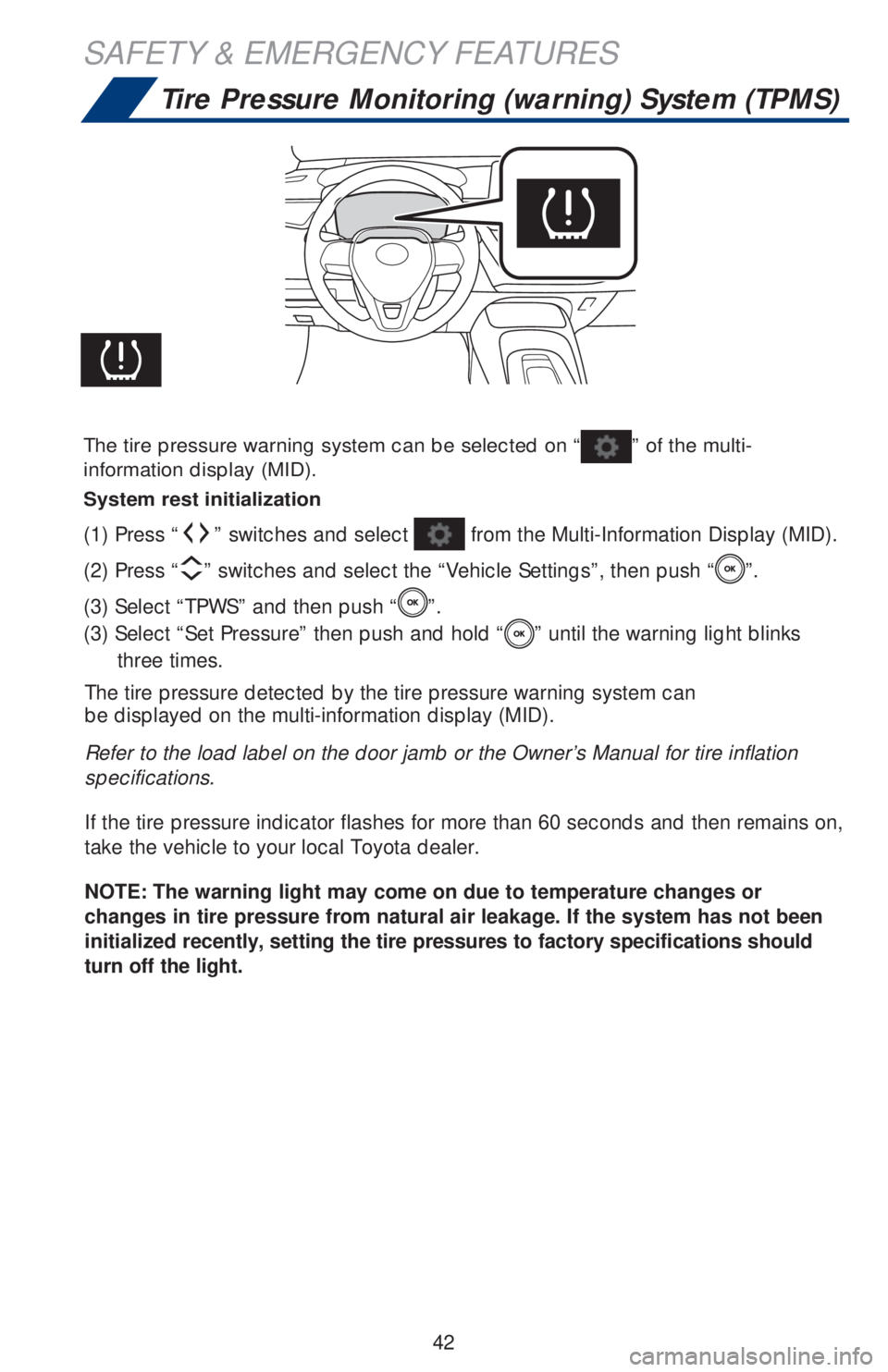

Tire Pressure Monitoring (warning) System (TPMS)
The tire pressure detected by the tire pressure warning system can
be displayed on the multi-information display (MID).
Refer to the load label on the door jamb or the Owner’s Manual for tire inflation
specifications.
If the tire pressure indicator flashes for more than 60 seconds and then remains on,
take the vehicle to your local Toyota dealer.
NOTE: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not been
initialized recently, setting the tire pressures to factory specifications should
turn off the light.
The tire pressure warning system can be selected on “” of the multi-
information display (MID).
System rest initialization
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select the “Vehicle Settings”, then push “”.
(3) Select “TPWS” and then push “
”.
(3) Select “Set Pressure” then push and hold “
” until the warning light blinks
three times.
