check engine TOYOTA COROLLA HATCHBACK 2020 Owners Manual (in English)

5
Security indicator
Smart Key system indicator
SPORT mode indicator4
Turn signal indicator
Vehicle Stability Control (VSC) OFF
indicator1
Rear passengers’ seat belt reminder
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
For details, refer to “Indicators and warning lights,” Section 2, 2020 Owner’s Manual.
Airbag SRS warning1
iMT indicator (orange/green)1,4
Low fuel level warning
Low engine oil pressure warning
Low outside temperature indicator
Low tire pressure warning1
Malfunction/Check engine indicator1
Parking brake indicator2
Pre-Collision System (PCS) warning1,2
Lane Tracing Assist (LTA)4/
Lane Departure Alert (LDA) indicator
(white/green/orange
3)
High coolant temperature warning
Auto EPB OFF indicator1,4
Automatic High Beam (AHB) indicator
Blind Spot Monitor (BSM) indicator4
BSM outside rear view mirror indicators1,4
Brake hold operated indicator1,2
Brake hold standby indicator1
Brake system warning1
Brake system warning (yellow indicator)1
Charging system warning1
ECO driving indicator light1,4
Driver’s and front passenger’s seat belt
reminder (alarm will sound if speed is over
12 mph)
Electric power steering system warning
(red/yellow indicator)1
Front fog light indicator4
Fuel tank door position
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC) indicator/
DRCC SET indicator
Headlight low/high beam
indicators
Brake Override System/Drive-Start
Control warning
1
If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Anti-lock Brake System (ABS) warning1
“AIR BAG ON/OFF” indicator1
Slip indicator1,3
Indicator symbols

7
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

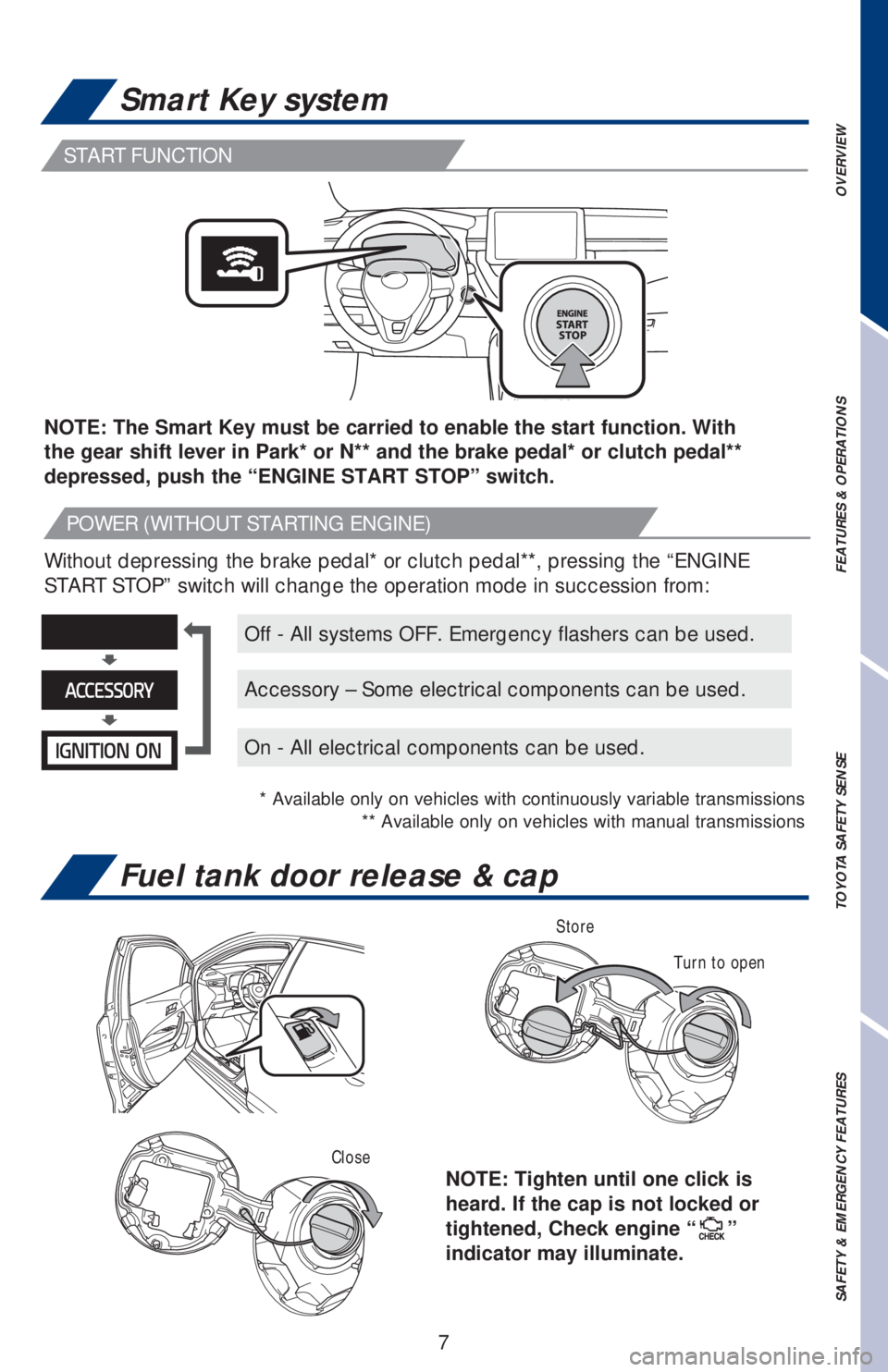

Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With
the gear shift lever in Park* or N** and the brake pedal* or clutch pedal**
depressed, push the “ENGINE START STOP” switch.
Without depressing the brake pedal* or clutch pedal**, pressing the “ENGINE
START STOP” switch will change the operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Fuel tank door release & cap
NOTE: Tighten until one click is
heard. If the cap is not locked or
tightened, Check engine “
”
indicator may illuminate.
Turn to open
Store
Close
* Available only on vehicles with continuously variable transmissions
** Available only on vehicles with manual transmissions
