INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 8
Keyless entry
1,2 6
Smart Key system 7
OVERVIEW
FEATURES & OPERATIONSFEATURES & OPERATIONS (continued)
TOYOTA SAFETY SENSE™ 2.0 (TSS 2.0)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating 21
Audio 18
Auto lock/unlock
1,2 12
Blind Spot Monitor 23
Bottle holders 14
Continuously variable transmission 9
Cup holders 15
Door locks 14
Driving mode select 22
Electric parking brake 10
Lights
1 & turn signals 13
Manual transmission 9
Multi-Information Display (MID) 11
Power outlet-12V DC 19
Qi Wireless charger 19
Rear view monitor system 23
Seat adjustments-Front 16
Seat heaters 20
Seats-Folding rear 16
Seats-Head restraints 16
Steering lock release 15
Steering wheel switches &
telephone controls (Bluetooth
®) 17
Tilt & telescopic steering wheel 15Vehicle Stability Control (VSC)/
TRAC OFF switch 22
USB charge-port 18
USB media port 20
Windows-Power 14
Windshield wipers & washers 12
Floor mat installation 47
Rear door child safety locks 41
Safety Connect 43
Seat belts 41
Seat belts-Shoulder belt anchor 41
Spare tire & tools 44
Star Safety System
™ 46-47
Tire Pressure Monitoring
(warning) System (TPMS) 42
Tire repair kit & tools 45Automatic High Beams (AHB) 39
Dynamic Radar Cruise Control (DRCC)
or Full-Speed Range DRCC 36-38
Lane Departure Alert with
Steering Assist (LDA w/SA) 28-31
Lane Tracing Assist (LTA) 32-35
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense
™ 2.0 (TSS 2.0) 24
Road Sign Assist (RSA) 40
Sensors 25
PAIRING BLUETOOTH® PHONE FOR
THE FIRST TIME 48-50
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

2
OVERVIEW

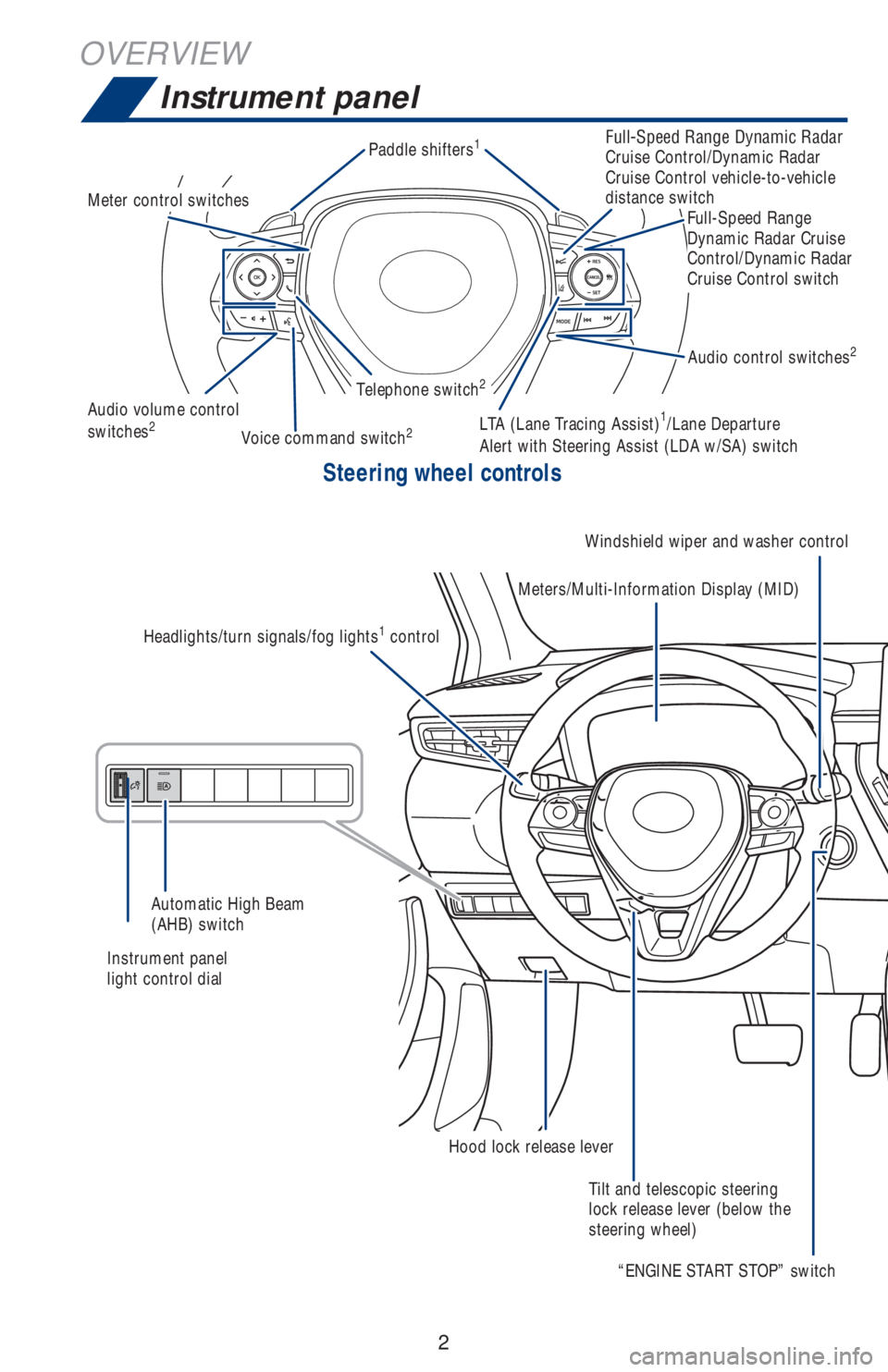

Instrument panel
Steering wheel controls
Windshield wiper and washer control
Tilt and telescopic steering
lock release lever (below the
steering wheel)
Audio volume control
switches2
Audio control switches2
Meter control switches
Instrument panel
light control dial
“ENGINE START STOP” switch
Hood lock release lever
Meters/Multi-Information Display (MID)
Automatic High Beam
(AHB) switchPaddle shifters
1
Telephone switch2
Voice command switch2
&ULL
3PEED2ANGE$YNAMIC2ADAR
Cruise Control/Dynamic Radar
Cruise Control vehicle-to-vehicle
distance switch
LTA (Lane Tracing Assist)
1/Lane Departure
Alert with Steering Assist (LDA w/SA) switch
Full-Speed Range
Dynamic Radar Cruise
Control/Dynamic Radar
Cruise Control switch
Headlights/turn signals/fog lights1 control

4
OVERVIEW
Instrument cluster
Tachometer
Tachometer
TachometerSpeedometer
Speedometer
Speedometer Outside temperature
Outside temperature
Outside temperature Engine coolant temperature gauge
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button
Odometer/Trip meter
display change button Odometer and trip meter display
Odometer and trip meter displayShift position
indicator
Shift position indicator
Shift position indicatorFuel gauge
Fuel gauge
Fuel gaugeClock
Clock
Clock Multi-Information Display (MID)
Multi-Information Display (MID)
Multi-Information Display (MID)Odometer and
trip meter display
Engine coolant
temperature gauge
Engine coolant
temperature gauge 4.2-inch display
7-inch display (Analog speedometer)
7-inch display (Digital speedometer)
Service indicators and reminders

10
FEATURES & OPERATIONS

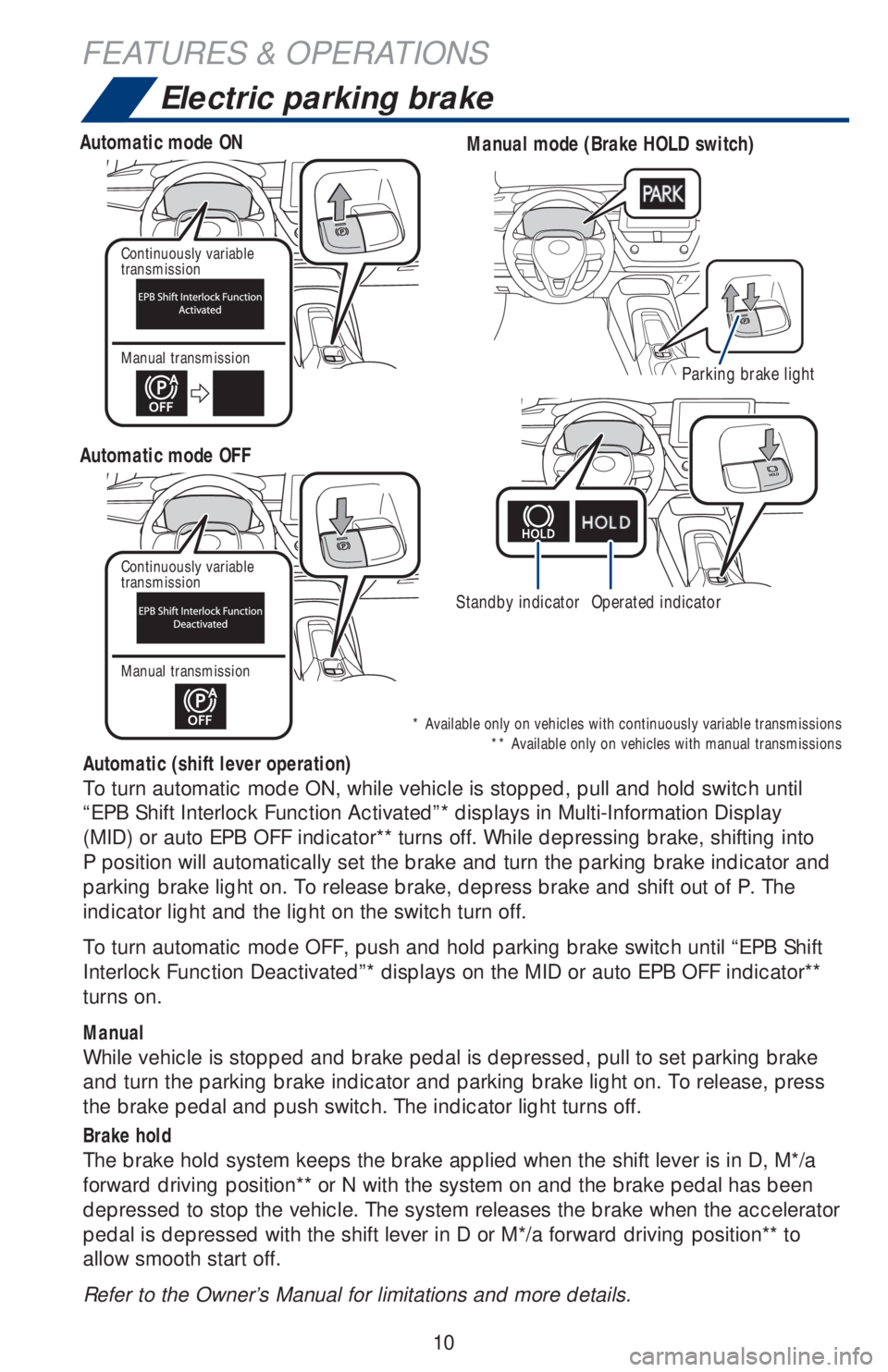

Electric parking brake
Driver side
Driver side
Automatic mode ON
Automatic mode OFF
Manual mode (Brake HOLD switch)
Standby indicatorOperated indicator
Parking brake light
Continuously variable
transmission
Continuously variable
transmission
Manual transmission
Manual transmission
* Available only on vehicles with continuously variable transmissions
** Available only on vehicles with manual transmissions
Automatic (shift lever operation)
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated”* displays in Multi-Information Display
(MID) or auto EPB OFF indicator** turns off. While depressing brake, shifting into
P position will automatically set the brake and turn the parking brake indicator and
parking brake light on. To release brake, depress brake and shift out of P. The
indicator light and the light on the switch turn off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated”* displays on the MID or auto EPB OFF indicator**
turns on.
Manual
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator light turns off.
Brake hold
The brake hold system keeps the brake applied when the shift lever is in D, M*/a
forward driving position** or N with the system on and the brake pedal has been
depressed to stop the vehicle. The system releases the brake when the accelerator
pedal is depressed with the shift lever in D or M*/a forward driving position** to
allow smooth start off.
Refer to the Owner’s Manual for limitations and more details.

11
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURESDriving assist system status display areaDriving assist system status display area
Content display areaContent display area
Push “” or “” and “” on steering wheel to change and select information in
the following:

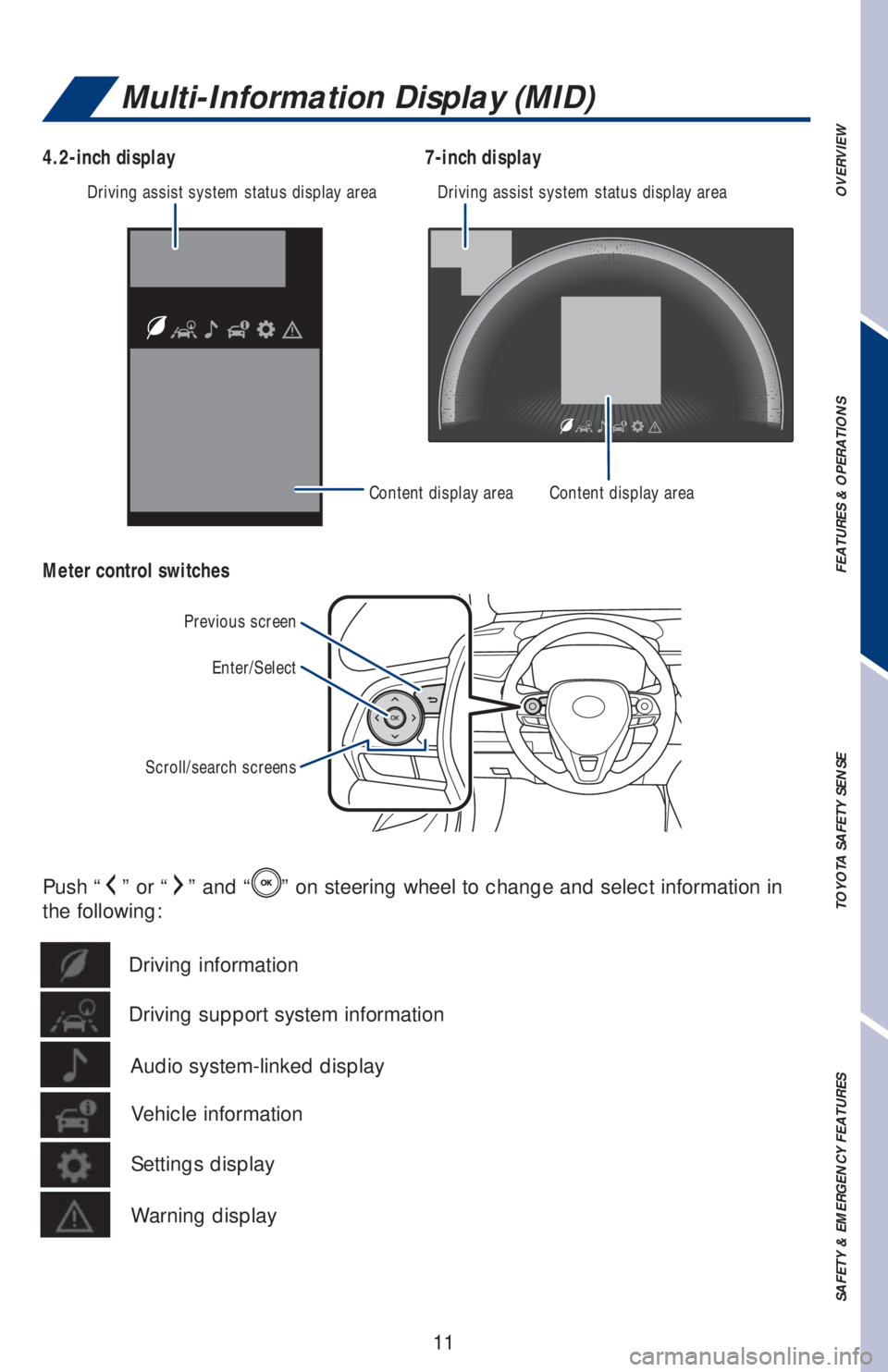

Multi-Information Display (MID)
4.2-inch display
Meter control switches7-inch display
Previous screen
Enter/Select
Scroll/search screens
Driving support system information Driving information
Vehicle information Audio system-linked display
Settings display
Warning display

15
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

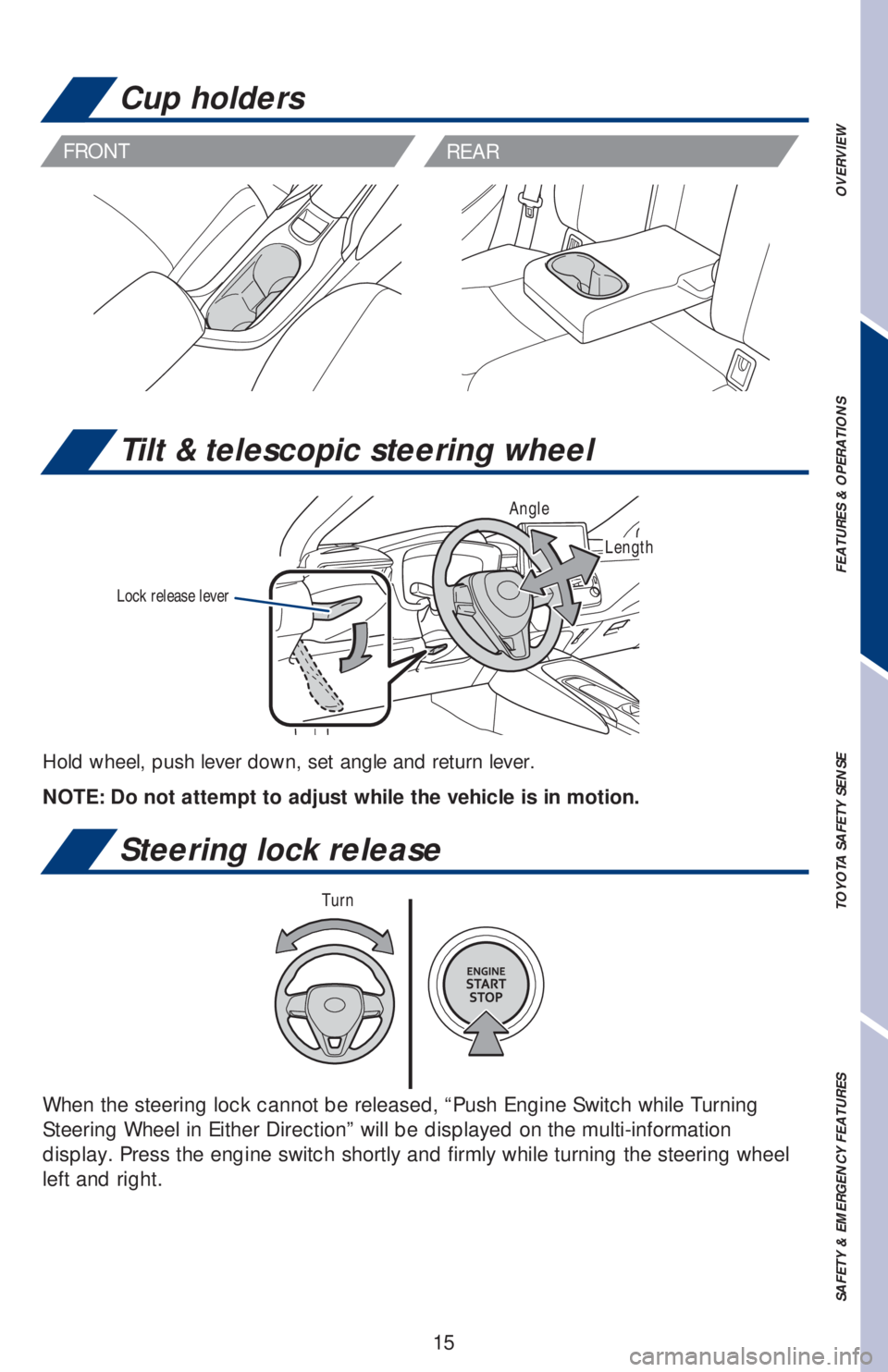

Tilt & telescopic steering wheel
Hold wheel, push lever down, set angle and return lever.


NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Steering lock release
When the steering lock cannot be released, “Push Engine Switch while Turning
Steering Wheel in Either Direction” will be displayed on the multi-information
display. Press the engine switch shortly and firmly while turning the steering wheel
left and right.
Turn
FRONT
REAR
Cup holders
Angle
Length

18
Audio
FEATURES & OPERATIONS
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you. Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volumeTurn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system Seek station/
track/file
select Access
HOME screen
Access
MENU screen
Access
Toyota Apps
screen
Access
MAP screen
USB charge-port
(Charge-only)
The engine switch must be in the “ACCESSORY” or “IGNITION ON” mode for use.

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button and
select “Display” on the screen. Select “Camera” to adjust the screen contrast and
brightness.
Refer to the Owner’s Manual and the Navigation Owner‘s Manual for limitations and
more details on this system.
The system is designed to use radar sensors to detect vehicles traveling in the
Corolla Hatchback’s blind spot and advises the driver of the vehicles’ presence via
the outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Indicators Outside rear view mirror indicators
Meter control switchesOutside rear view mirror indicators
Blind Spot Monitor (if equipped)

25
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Radar sensorCamera sensor
Sensors
TSS 2.0 combines an in-vehicle camera mounted in front of the inside rear view mirror
and a radar mounted in the front grill. These sensors support the driver assist systems.
The Pre-Collision System uses a radar sensor and camera sensor to help detect a
vehicle or pedestrian or bicyclist in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control performance that
this system can provide, do not overly rely on this system. This system will not prevent
collisions or lessen collision damage or injury in every situation. Do not use PCS
instead of normal braking operations under any circumstances. Do not attempt to test
the operation of the Pre-Collision System yourself, as the system may not operate or
engage, possibly leading to an accident. In some situations, such as when driving in
inclement weather such as heavy rain, fog, snow or a sandstorm or while driving on a
curve and for a few seconds after driving on a curve, a vehicle or pedestrian or bicyclist
may not be detected by the radar and camera sensors, preventing the system from
operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situations in which the
system may not operate properly.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision is high, a buzzer
will sound and a warning message will be displayed on the Multi-Information Display
(MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide additional braking
force using Brake Assist. This system may prime the brakes and may apply greater
braking force in relation to how strongly the brake pedal is depressed.
Pre-Collision System with
Pedestrian Detection (PCS w/PD)

27
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

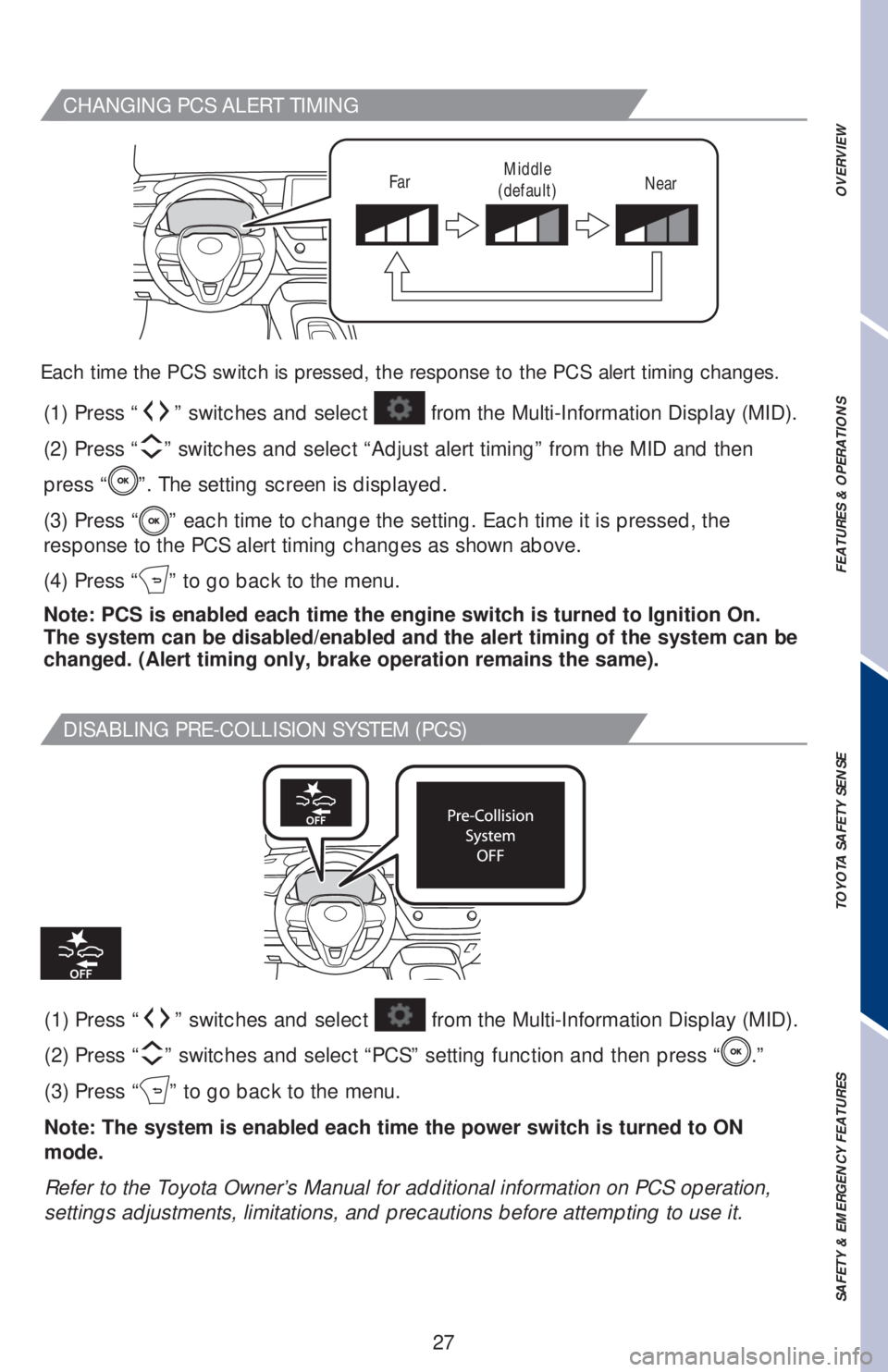

CHANGING PCS ALERT TIMING
DISABLING PRE-COLLISION SYSTEM (PCS)
Each time the PCS switch is pressed, the response to the PCS alert timing changes.
FarMiddle
(default)Near
(1) Press “” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select “Adjust alert timing” from the MID and then
press “
”. The setting screen is displayed.
(3) Press “
” each time to change the setting. Each time it is pressed, the
response to the PCS alert timing changes as shown above.
(4) Press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
(1) Press “
” switches and select from the Multi-Information Display (MID).
(2) Press “
” switches and select “PCS” setting function and then press “.”
(3) Press “
” to go back to the menu.
Note: The system is enabled each time the power switch is turned to ON
mode.
Refer to the Toyota Owner’s Manual for additional information on PCS operation,
settings adjustments, limitations, and precautions before attempting to use it.
