navigation TOYOTA COROLLA HATCHBACK 2020 Owners Manual (in English)

3
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES
Emergency flasher switch
Brake hold switch
Seat heater switch1
Parking brake switch Brake hold switchVSC OFF switch
VSC OFF switch “SPORT” mode
switch
1
“iMT” (Intelligent
Manual Transmission)
switch
1
Qi Wireless charger switch1Seat heater switch1
With a continuously
variable transmission
With a manual
transmission
Parking brake switch
1
If equipped.2
For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.
Audio system1,2/
Navigation system1,2
Air conditioning/heating
controls

17
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

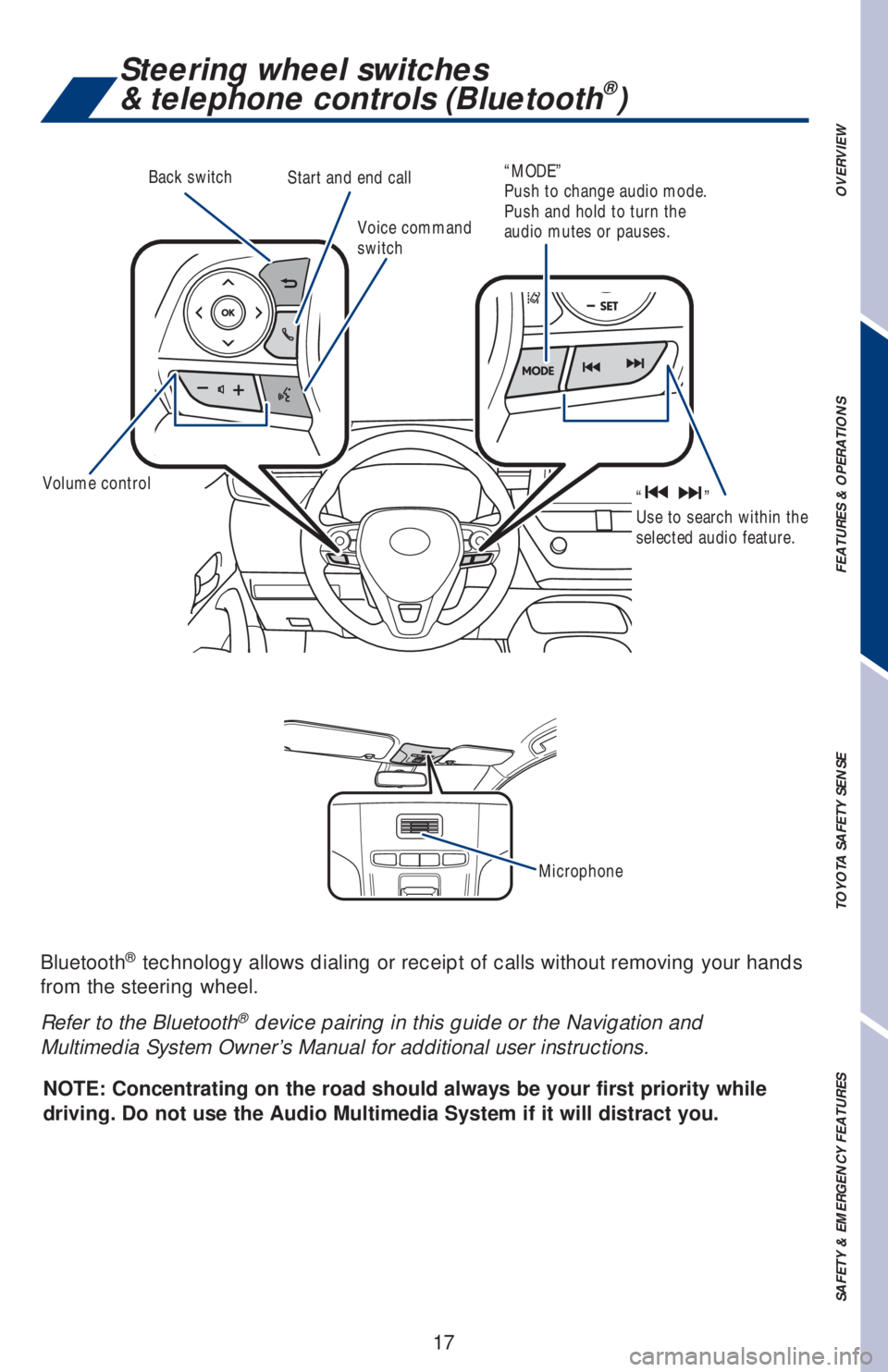

Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
Back switch
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
Volume controlVoice command
switch Start and end call
“MODE”
Push to change audio mode.
Push and hold to turn the
audio mutes or pauses.
“ ”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)
Microphone

18

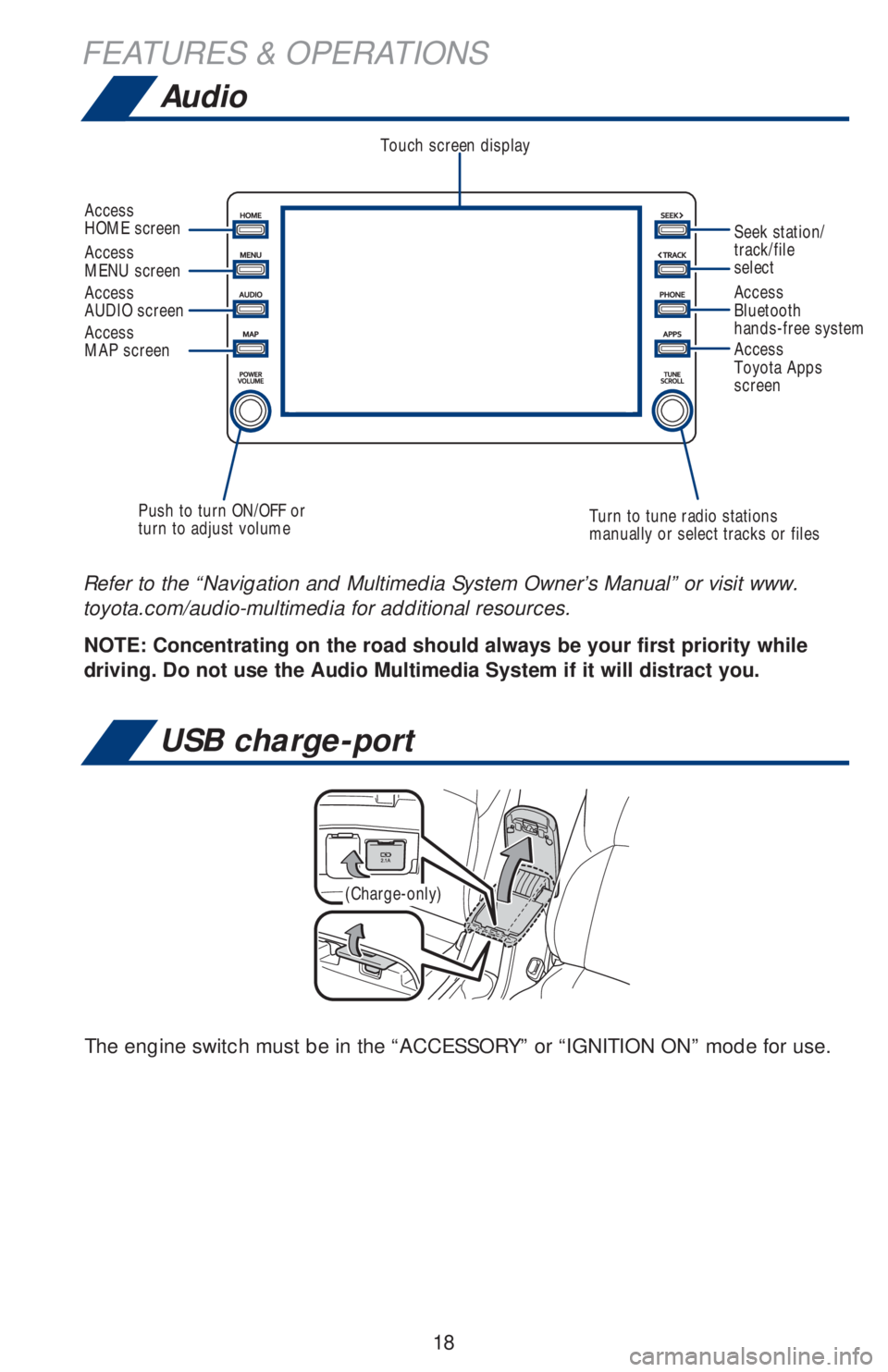

Audio
FEATURES & OPERATIONS
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you. Refer to the “Navigation and Multimedia System Owner’s Manual” or visit www.
toyota.com/audio-multimedia for additional resources.
Touch screen display
Access
AUDIO screen
Push to turn ON/OFF or
turn to adjust volumeTurn to tune radio stations
manually or select tracks or filesAccess
Bluetooth
hands-free system Seek station/
track/file
select Access
HOME screen
Access
MENU screen
Access
Toyota Apps
screen
Access
MAP screen
USB charge-port
(Charge-only)
The engine switch must be in the “ACCESSORY” or “IGNITION ON” mode for use.

23
OVERVIEW FEATURES & OPERATIONS TOYOTA SAFETY SENSE SAFETY & EMERGENCY FEATURES

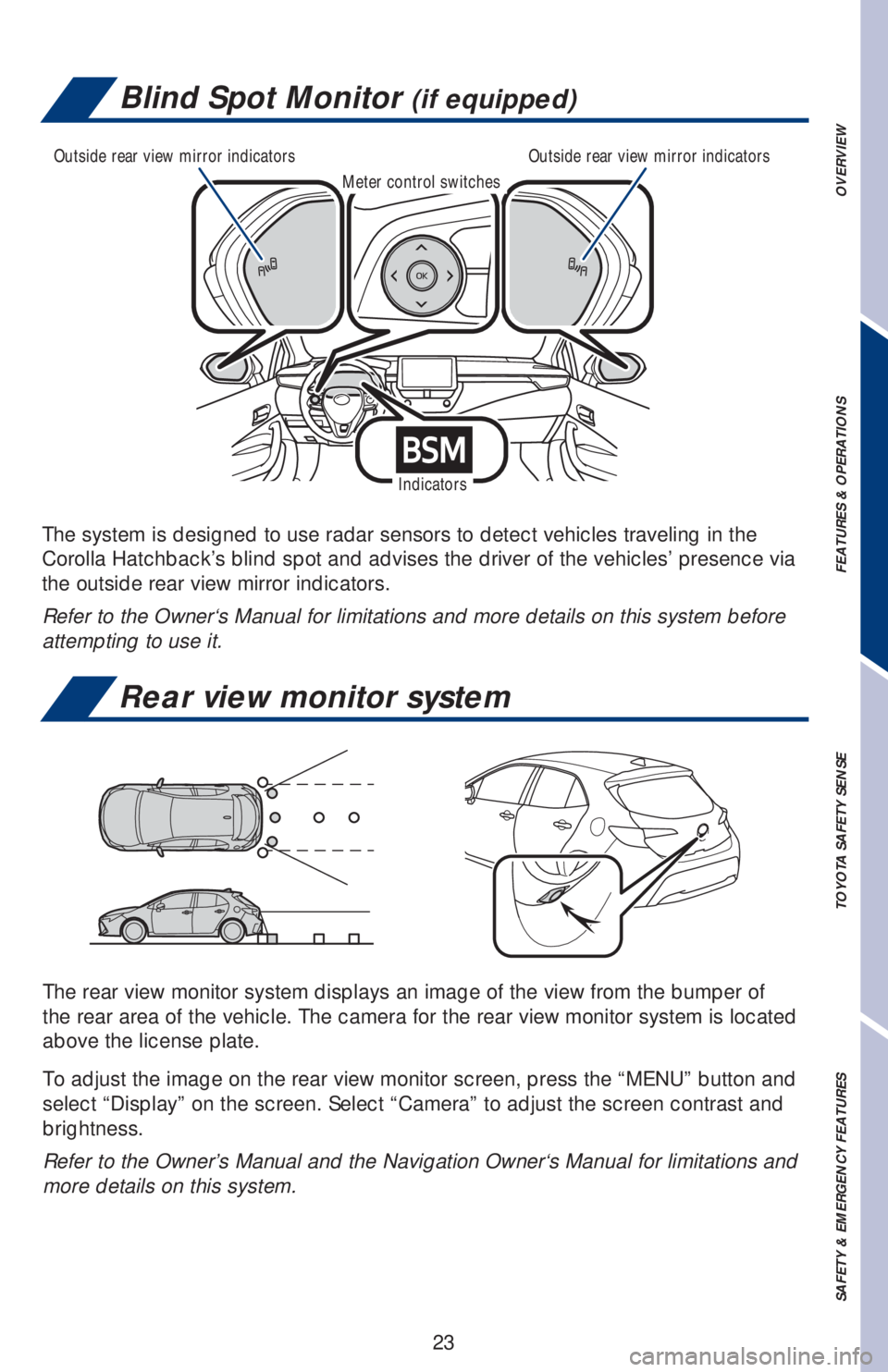

Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU” button and
select “Display” on the screen. Select “Camera” to adjust the screen contrast and
brightness.
Refer to the Owner’s Manual and the Navigation Owner‘s Manual for limitations and
more details on this system.
The system is designed to use radar sensors to detect vehicles traveling in the
Corolla Hatchback’s blind spot and advises the driver of the vehicles’ presence via
the outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Indicators Outside rear view mirror indicators
Meter control switchesOutside rear view mirror indicators
Blind Spot Monitor (if equipped)
