sat nav TOYOTA COROLLA HATCHBACK 2022 Owners Manual (in English)

69
1
1-3. Emergency assistance
For safety and security
1-3.Emergency assistance
*1: If equipped
*2: Operates within the eCall coverage.
The system name differs depending
on the country.
Microphone
“SOS” button*
Indicator lights
Speaker
*: This button is intended for communi-
cation with the eCall system operator.
Other SOS buttons available in other
systems of a motor vehicle do not
relate to the device and are not
intended for communication with the
eCall system operator.
■Automatic Emergency Calls
If any airbag deploys, the system is
designed to automatically call the
eCall control center.* The answer-
ing operator receives the vehicle’s
location, the time of the incident
and the vehicle VIN, and attempts
to speak with the vehicle occupants
to assess the situation. If the occu-
pants are unable to communicate,
the operator automatically treats
the call as an emergency and con-
tacts the nearest emergency ser-
vices provider (112 system etc.) to
describe the situation and request
that assistance be sent to the loca-
tion.
*: In some cases, th e call cannot be
made. ( P.70)
■Manual Emergency Calls
In the event of an emergency, press
the “SOS” button to call the eCall
control center.* The answering
operator will dete rmine your vehi-
cle’s location, assess the situation,
and dispatch the necessary assis-
eCall*1, 2
eCall is a telematics service
that uses Global Navigation
Satellite System (GNSS) data
and embedded cellular tech-
nology to enable the following
emergency calls to be made:
Automatic emergency calls
(Automatic Collision Notifica-
tion) and manual emergency
calls (by pressing the “SOS”
button). This service is
required by European Union
Regulations.
System components
Emergency Notification Ser-
vices

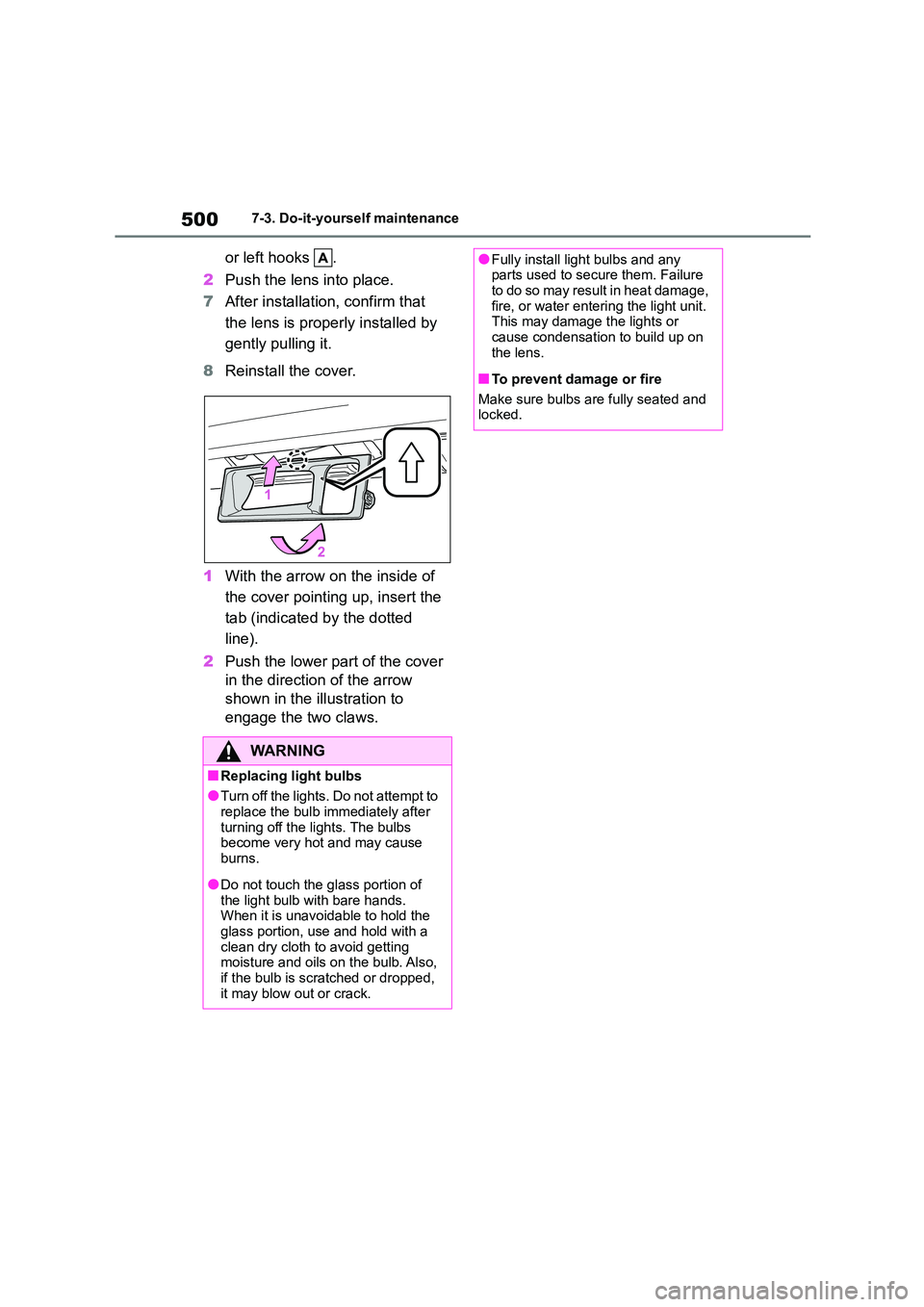

5007-3. Do-it-yourself maintenance
or left hooks .
2 Push the lens into place.
7 After installation, confirm that
the lens is properly installed by
gently pulling it.
8 Reinstall the cover.
1 With the arrow on the inside of
the cover pointing up, insert the
tab (indicated by the dotted
line).
2 Push the lower part of the cover
in the direction of the arrow
shown in the illustration to
engage the two claws.
WA R N I N G
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights. The bulbs
become very hot and may cause
burns.
●Do not touch the glass portion of
the light bulb with bare hands. When it is unavoidable to hold the
glass portion, use and hold with a
clean dry cloth to avoid getting moisture and oils on the bulb. Also,
if the bulb is scratched or dropped,
it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure
to do so may result in heat damage,
fire, or water entering the light unit. This may damage the lights or
cause condensation to build up on
the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

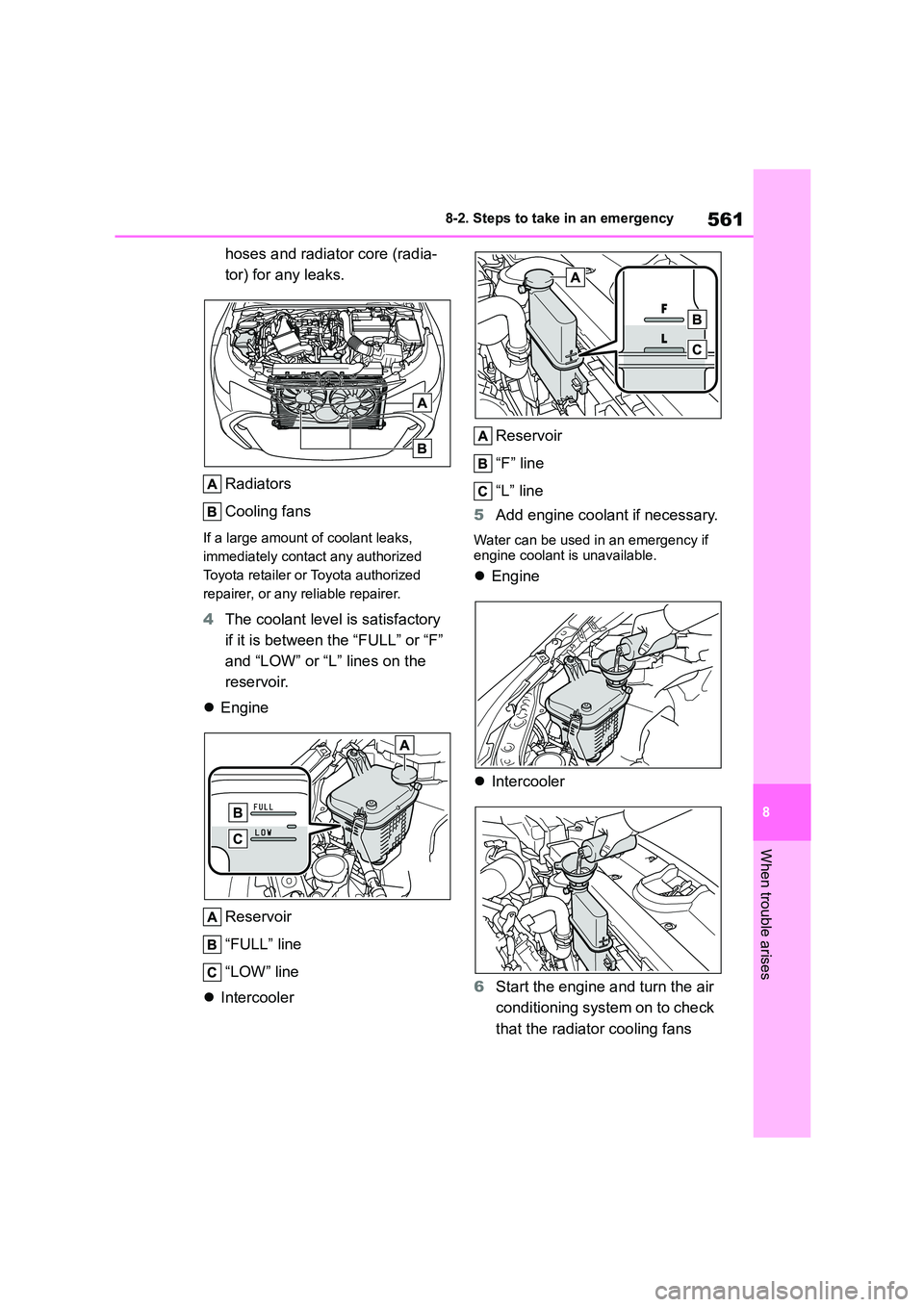

561
8
8-2. Steps to take in an emergency
When trouble arises
hoses and radiator core (radia-
tor) for any leaks.
Radiators
Cooling fans
If a large amount of coolant leaks,
immediately contact any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
4 The coolant level is satisfactory
if it is between the “FULL” or “F”
and “LOW” or “L” lines on the
reservoir.
 Engine
Reservoir
“FULL” line
“LOW” line
 Intercooler
Reservoir
“F” line
“L” line
5 Add engine coolant if necessary.
Water can be used in an emergency if engine coolant is unavailable.
 Engine
 Intercooler
6 Start the engine and turn the air
conditioning system on to check
that the radiator cooling fans
