start stop button TOYOTA COROLLA HATCHBACK 2022 Owners Manual (in English)

1383-2. Opening, closing and locking the doors
■Electronic key battery-saving func-
tion
When battery-saving mode is set, bat-
tery depletion is minimized by stopping
the electronic key from receiving radio waves.
Press twice while pressing and
holding . Confirm that the electronic
key indicator flashes 4 times.
While the battery-saving mode is set,
the smart entry & start system cannot be used. To cancel the function, press any
of the electronic key buttons.
■Conditions affecting operation
The smart entry & start system uses
weak radio waves. In the following situa- tions, the communication between the
electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from
operating properly. (Ways of coping:  P.554)
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that gen-
erates strong radio waves or electrical
noise
●When carrying a portable radio, cellu-
lar phone, cordless phone or other wireless communication device
●When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum
foil inside
• Metallic wallets or bags •Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When other wirele ss keys (that emit
radio waves) are being used nearby
●When carrying the electronic key
together with the following devices that emit radio waves
• Another vehicle’s electronic key or a
wireless key that emits radio waves • Personal computers or personal digi-
tal assistants (PDAs)
• Digital audio players • Portable game systems
●If window tint with a metallic content or metallic objects are attached to the
rear window
●When the electronic key is placed
near a battery charger or electronic
devices
●When the vehicle is parked in a pay
parking spot where radio waves are emitted
If the doors cannot be locked/unlocked
using the smart entry & start system, lock/unlock the doors by performing any
of the following:
●Bring the electronic key close to either
front door handle and operate the
entry function.
●Operate the wireless remote control.
If the doors cannot be locked/unlocked using the above methods, use the
mechanical key. ( P.555)
If the engine cannot be started using the smart entry & start system refer
to P.555.
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas),
the system may not operate properly
in the following cases: • The electronic key is too close to the
window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.

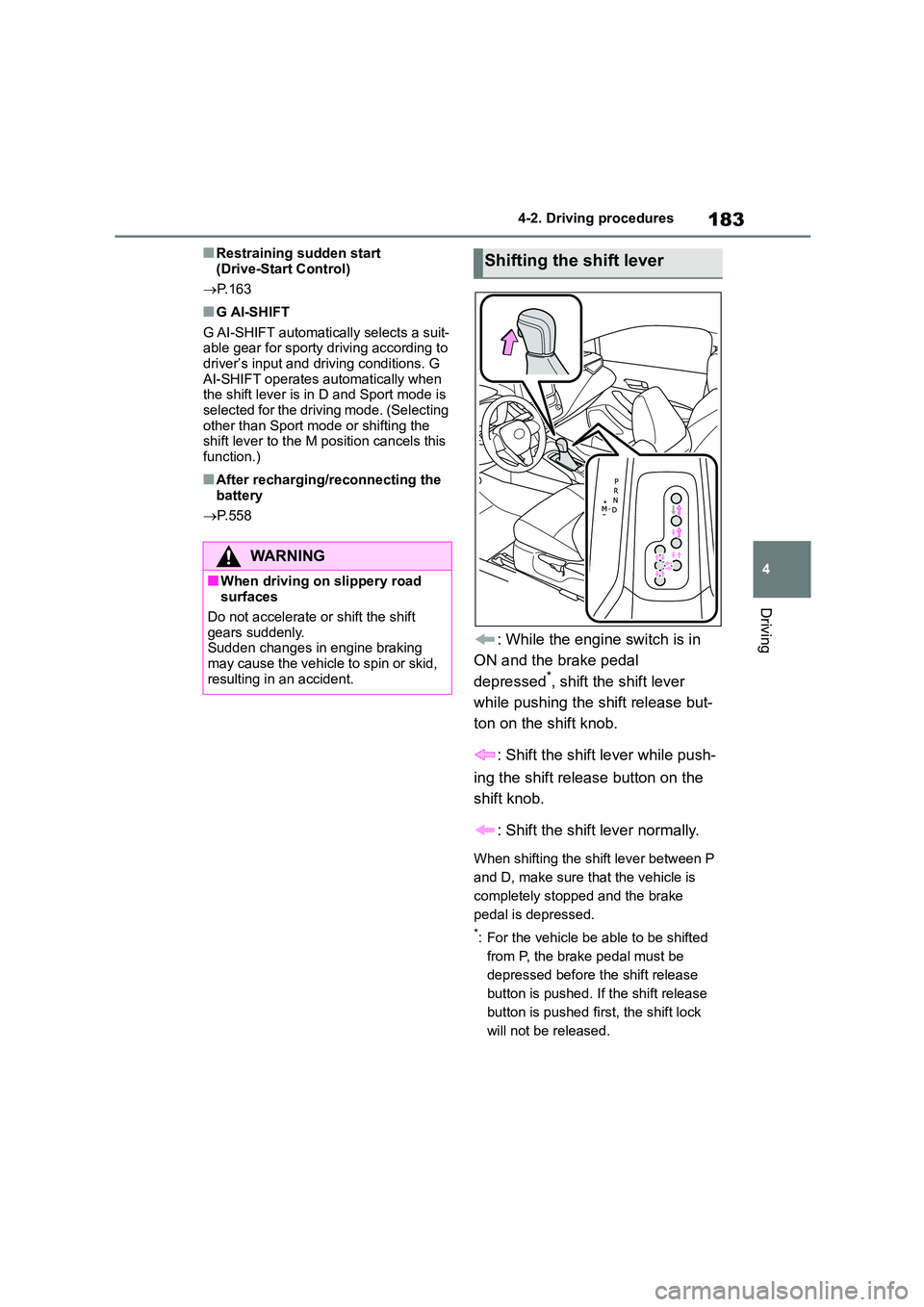

183
4
4-2. Driving procedures
Driving
■Restraining sudden start
(Drive-Start Control)
 P.163
■G AI-SHIFT
G AI-SHIFT automatically selects a suit-
able gear for sporty driving according to driver’s input and driving conditions. G
AI-SHIFT operates automatically when
the shift lever is in D and Sport mode is selected for the driving mode. (Selecting
other than Sport mode or shifting the
shift lever to the M position cancels this function.)
■After recharging/reconnecting the
battery
 P.558
: While the engine switch is in
ON and the brake pedal
depressed*, shift the shift lever
while pushing the shift release but-
ton on the shift knob.
: Shift the shift lever while push-
ing the shift release button on the
shift knob.
: Shift the shift lever normally.
When shifting the shift lever between P
and D, make sure that the vehicle is
completely stopped and the brake
pedal is depressed.
*: For the vehicle be able to be shifted
from P, the brake pedal must be
depressed before the shift release
button is pushed. If the shift release
button is pushed first, the shift lock
will not be released.
WA R N I N G
■When driving on slippery road surfaces
Do not accelerate or shift the shift
gears suddenly. Sudden changes in engine braking
may cause the vehicle to spin or skid,
resulting in an accident.
Shifting the shift lever

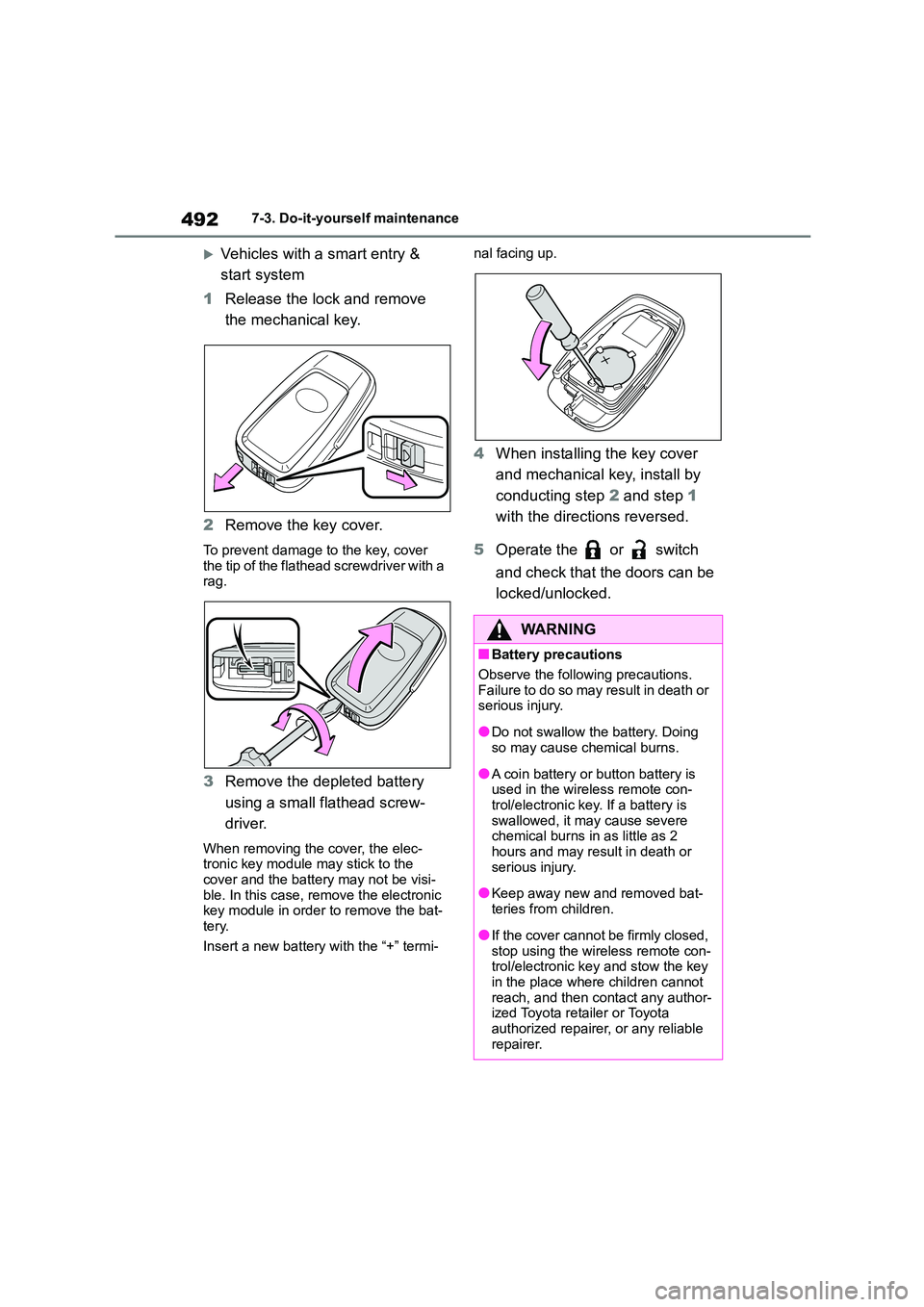

4927-3. Do-it-yourself maintenance
Vehicles with a smart entry &
start system
1 Release the lock and remove
the mechanical key.
2 Remove the key cover.
To prevent damage to the key, cover
the tip of the flathead screwdriver with a rag.
3 Remove the depleted battery
using a small flathead screw-
driver.
When removing the cover, the elec- tronic key module may stick to the
cover and the battery may not be visi-
ble. In this case, remove the electronic key module in order to remove the bat-
tery.
Insert a new battery with the “+” termi-
nal facing up.
4 When installing the key cover
and mechanical key, install by
conducting step 2 and step 1
with the directions reversed.
5 Operate the or switch
and check that the doors can be
locked/unlocked.
WA R N I N G
■Battery precautions
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●Do not swallow the battery. Doing
so may cause chemical burns.
●A coin battery or button battery is
used in the wireless remote con- trol/electronic key. If a battery is
swallowed, it ma y cause severe
chemical burns in as little as 2 hours and may result in death or
serious injury.
●Keep away new and removed bat-
teries from children.
●If the cover cannot be firmly closed,
stop using the wireless remote con-
trol/electronic key and stow the key in the place where children cannot
reach, and then contact any author-
ized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.

595Alphabetical Index
Warning message ...................... 520
Display change button ............. 90, 96
Distance until next engine oil change
................................................. 90, 96
Do-it-yourself maintenance ......... 466
Door
Double locking system ................. 80
Door lock
Back door ................................... 124
Key ............................................. 120
Side doors .................................. 119
Smart entry & start system......... 136
Wireless remote control ............. 116
Doors
Back door ................................... 124
Door glasses .............................. 151
Door lock ............................ 119, 124
Open door warning buzzer. 121, 123
Outside rear view mirrors ........... 148
Rear door child-protectors ......... 123
Side doors .................................. 119
Double locking system .................. 80
Drive distance ............................... 103
Drive information .......................... 103
Drive-start control ........................ 163
Driving
Break-in tips ............................... 163
Correct driving posture................. 31
Driving mode select switch ........ 355
Procedures................................. 161
Winter drive tips ......................... 363
Driving information display ......... 100
Driving range ........................ 101, 102
Driving support system information
display ......................................... 103
Dynamic radar cruise control ...... 260
Warning message ...................... 269
Dynamic radar cruise control with
full-speed range ......................... 249
Warning message ...................... 258
E
eCall ................................................. 69
“SOS” button ................................ 69
Eco Driving Indicator............ 102, 109
Eco Driving Indicator Light ..........102
Elapsed time.................................. 103
Electric Power Steer ing (EPS) ..... 357
Warning light ..............................514
Electronic key ............................... 114
Battery-saving function...............137
If the electronic key does not operate
properly .................................... 554
Replacing the battery ................. 490
Electronic roof sunshade
Jam protection function .............. 155
Operation ...................................154
Emergency brake signal .............. 357
Emergency flashers...................... 502
Emergency tire puncture .............522
Emergency, in case of
If a warning buzzer sounds ........ 511
If a warning light turns on ........... 511
If a warning message is displayed
.................................................520
If the battery is discharged ......... 556
If the electronic key does not operate
properly .................................... 554
If the engine will not start ........... 552
If the vehicle is submerged or water
on the road is rising..................504
If you have a flat tire ........... 522, 539
If you lose your keys ..................554
If you think something is wrong .. 509
If your vehicle becomes stuck .... 563
If your vehicle has to be stopped in
an emergency ..........................502
If your vehicle needs to be towed
.................................................505
If your vehicle overheats ............ 560
Engine
ACCESSORY mode .. ................. 181
Compartment .............................472
Engine switch .....................177, 178
Fuel pump shut off system .........510
Hood...........................................470
How to start the engine ...... 177, 178
Identification number ..................568
If the engine will not start ........... 552

599Alphabetical Index
Meters .................................... 89, 93
Multi-information display .............. 99
Settings ...................................... 104
Warning lights ............................ 511
Warning message ...................... 520
Mirrors
Inside rear view mirror ............... 147
Outside rear view mirror defoggers
......................................... 424, 429
Outside rear view mirrors ........... 148
Vanity mirrors ............................. 456
MP3 disc ........................................ 375
Multidrive ...................................... 182
If the shift lever cannot be shifted
from P ...................................... 184
M mode ...................................... 184
Multi-information display
Audio system-linked display....... 103
Clock ...................................... 91, 97
Cruise control ..................... 271, 273
Driving information display ......... 100
Driving support system information
display ..................................... 103
Dynamic radar cruise control ..... 260
Dynamic radar cruise control with
full-speed range ....................... 249
Eco Driving Indicator .................. 102
Fuel economy ............................ 101
LDA (Lane Departure Alert with
steering control) ....................... 245
LTA (Lane-Tracing Assist) .......... 237
Menu icons................................... 99
Meter control switches ............... 100
Navigation system-linked display103
Settings ...................................... 104
Stop & Start system information 105
Tire pressure .............................. 481
Vehicle information display ........ 103
Warning message ...................... 520
N
Navigation system-linked display
............................................. 103, 106
O
Odometer ................................... 90, 96
Odometer and trip meter display
Display change button............ 90, 96
Display items ..........................90, 96
Oil
Engine oil ...................................569
Manual transmission ..................571
Open tray ....................................... 441
Opener
Back door ...........................126, 127
Fuel filler door ....... ..................... 211
Hood...........................................470
Outside rear view mirrors
Adjustment ................................. 148
BSM (Blind Spot Monitor)........... 288
Folding ....................................... 149
Outside rear view mirror defoggers
.........................................424, 429
RCTA function ............................ 312
Outside temperature.................89, 93
Overheating ...................................560
P
Panoramic moon roof
Door lock linked panoramic moon
roof operation ...........................155
Jam protection function .............. 155
Operation ...................................154
Parking assist sensors (Toyota park-
ing assist-sensor).......................303
Parking brake
Operation ...................................189
Parking brake engaged warning
buzzer ......................................191
Warning light ..............................517
Warning message ...................... 191
Parking Support Brake function (for
rear-crossing vehicles) .............. 327
Function .....................................327
Parking Support Brake function
(rear-crossing vehicles) .............317

601Alphabetical Index
Head restraints........................... 144
Properly sitting in the seat............ 31
Seat heaters............................... 434
Secondary Collision Brake .......... 357
Sensor
Automatic headlight system ....... 195
Automatic High Beam system .... 199
BSM (Blind Spot Monitor) .......... 288
Inside rear view mirror ............... 148
Kick sensor ................................ 129
LDA (Lane Departure Alert with
steering control) ....................... 241
LTA (Lane Tracing Assist) .......... 231
Parking Support Brake function
(rear-crossing vehicles) ........... 327
Parking Support Brake function
(static objects) ......................... 325
Radar sensor ..................... 213, 300
Rain-sensing windshield wipers . 208
RCTA.......................................... 313
Toyota parking assist-sensor ..... 303
Shift lever
If the shift lever cannot be shifted
from P ...................................... 184
Manual transmission .................. 186
Multidrive.................................... 182
Shift lock system .......................... 184
Side airbags .................................... 37
Side mirrors
Adjustment ................................. 148
BSM (Blind Spot Monitor) .......... 288
Folding ....................................... 149
RCTA function ............................ 312
Side turn signal lights
Turn signal lever ........................ 189
Side windows................................ 151
S-IPA (Simple Intelligent Parking
Assist System)
Function ..................................... 329
Smart entry & start system
Antenna location ........................ 136
Entry functions ................... 119, 125
Starting the engine ..................... 178
Snow tires ..................................... 363
Spare tire ....................................... 539
Inflation pressure........................573
Storage location ......................... 540
Spark plug .....................................570
Specifications ............................... 566
Speed limiter ................................. 273
Warning message ...................... 275
Speedometer ............................. 89, 93
Steering lock
Column lock release........... 177, 179
Steering lock system warning mes-
sage .........................................179
Steering wheel
Adjustment ................................. 146
Heated steering wheel ...............434
Meter control switches ...............100
Stop & Start system
System information display ........ 105
Warning light ..............................515
Stop & Start system information dis-
play ..............................................105
Stop lights
Emergency brake signal............. 357
Replacing light bulbs ..................497
Storage features ...........................439
Stuck
If the vehicle becomes stuck ...... 563
Sun visors .....................................456
Sunshade
Panoramic moon roof ................. 154
Switches
Activating the Adaptive High-beam
System .....................................202
Airbag manual on-off switch ......... 46
Audio remote control switches ... 369
Automatic High Beam system ....199
Brake Hold switch ...................... 192
Cruise control switch ..................271
Display change button............ 90, 96
Door lock switches .....................122
Driving mode select switch.........355
Dynamic radar cruise control switch
.................................................261
Dynamic radar cruise control with
full-speed range switch ............249

602Alphabetical Index
Electronic roof sunshade switches
................................................. 154
Emergency flashers switch ........ 502
Engine switch ..................... 177, 178
Heated steering wheel switch .... 434
Ignition switch .................... 177, 178
Light switches ............................ 195
LTA (Lane-Tracing Assist) switch236
Meter control switches ............... 100
Outside rear view mirror switches
................................................. 148
Panoramic moon roof switches .. 154
Parking brake switch .................. 189
PKSB (Parking Support Brake)
switch....................................... 318
Power door lock switch .............. 122
Power window switches ............. 151
RCTA switch............................... 312
Rear window and outside rear view
mirror defoggers switch ........... 427
Seat heater switches.................. 434
“SOS” button ................................ 69
Speed limitter switch .................. 273
Stop & Start cancel switch ......... 287
Talk switch.................................. 396
Telephone switch ....................... 396
Toyota parking assist-sensor switch
................................................. 304
Vehicle-to-vehicle distance switch
......................................... 249, 261
VSC OFF switch ........................ 358
Window lock switch .................... 153
Windshield wiper and washer switch
................................................. 206
T
Tachometer ............................... 89, 93
Tail lights
Light switch ................................ 195
Replacing light bulbs .................. 497
Talk switch .................................... 396
Telephone switch.......................... 396
Theft deterrent system
Alarm............................................ 81
Double locking system ................. 80
Engine immobilizer system .......... 79
Tire inflation pressure ..................485
Maintenance data....................... 573
Warning light ..............................515
Tire pressure warning system
Function .....................................481
Initializing ...................................483
Installing tire pressure warning
valves and transmitters ............482
Registering ID codes .................. 484
Warning light ..............................515
Tires
Chains ........................................364
Checking .................................... 479
Emergency tire puncture repair kit
.................................................522
If you have a flat tire ........... 522, 539
Inflation pressure........................485
Replacing ...................................539
Rotating tires ..............................480
Size ............................................573
Snow tires .................................. 363
Spare tire.................................... 539
Tire pressure warning system .... 481
Warning light ..............................515
Tools ......................................524, 540
Top tether anchorages ................... 63
To w i n g
Emergency towing...................... 505
Towing capacity ..........................566
Towing eyelet .............................507
Trailer towing ..............................170
Toyota parking assist-sensor
Function .....................................303
Warning message .............. 306, 322
Toyota Safety Sense
Adaptive High-beam System...... 201
Automatic High Beam ................199
Dynamic radar cruise control ..... 260
Dynamic radar cruise control with
full-speed range .......................249
LDA (Lane Departure Alert with
steering control) .......................241
LTA (Lane Tracing Assist) ........... 231
