Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We
are proud of the advanced engineering and quality construction of each vehicle we
build.
This Owner ’s Manual explains the features of your new Toyota. Please read it and
follow the instructions carefully so that you can enjoy many years of safe motoring.
When it comes to service, remember that your Toyota dealer knows your vehicle
best and is interested in your complete satisfaction. He will provide quality mainte-
nance and any other assistance you may require.
Please leave this Owner’s Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of
printing. However, because of Toyota’s policy of continual product improve-
ment, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
©1999 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in
part, without the written permission of Toyota Motor Corporation.

ECHO_U
702000 ECHO (OM52411U)

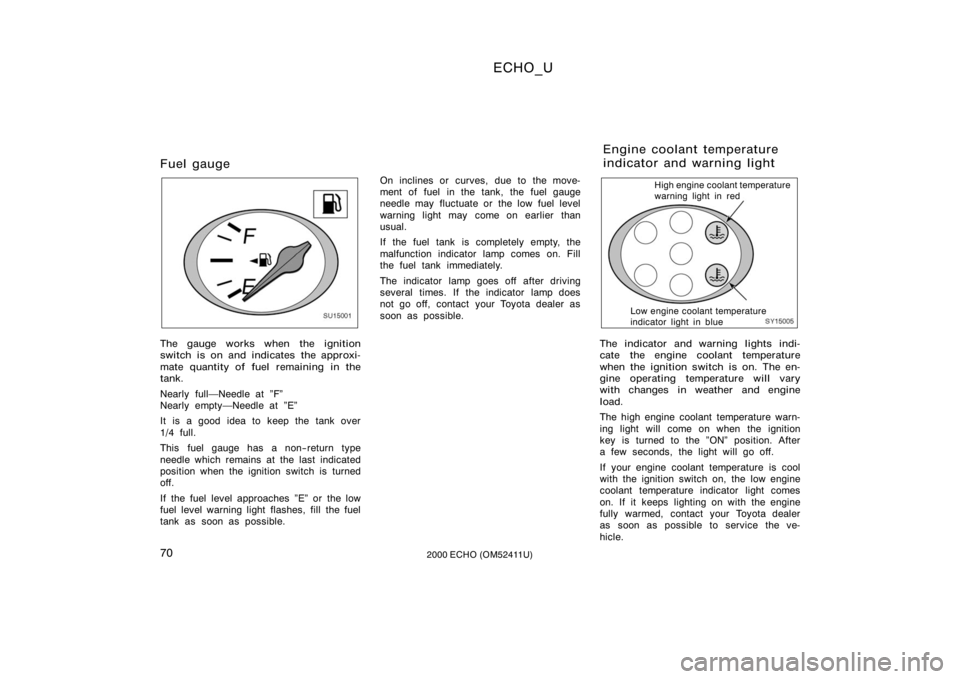

Fuel gauge
SU15001
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly fullNeedle at "F"
Nearly emptyNeedle at "E"
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non−return type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches "E" or the low
fuel level warning light flashes, fill the fuel
tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
SY15005
High engine coolant temperature
warning light in red
Low engine coolant temperature
indicator light in blue
The indicator and warning lights indi-
cate the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
The high engine coolant temperature warn-
ing light will come on when the ignition
key is turned to the "ON" position. After
a few seconds, the light will go off.
If your engine coolant temperature is cool
with the ignition switch on, the low engine
coolant temperature indicator light comes
on. If it keeps lighting on with the engine
fully warmed, contact your Toyota dealer
as soon as possible to service the ve-
hicle.
Engine coolant temperature
in d icat o r an d war n in g lig h t

ECHO_U
722000 ECHO (OM52411U)
3. Trip meter reset knobIt can reset thetwo trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B. (a) If parking brake
is off, stop
immediately and
contact Toyota
dealer.
(b) Fasten driver ’s seat belt.
If the indicator or
buzzer comes on...
(d) Stop and check.
(e) Take vehicle to Toyota dealer.
(f) Fill up tank. (type A)
(type B)
(Indicator and buzzer)Do this.
(c) Fasten front
passenger ’s
seat belt.
(g) Stop and check.
(h) Take vehicle to
Toyota dealer.
(i) Close all doors.
(j) Take vehicle to
Toyota dealer
immediately.
(type A)
(type B)
(k) Add washer
fluid.
If the indicator or
buzzer comes on... Do this.
(l)
Stop and check.
(in red)
Service reminder indicators
and warning buzzers

ECHO_U
902000 ECHO (OM52411U)
Sound balance adjustment function
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push CTRL /
MODE" repeatedly until FAd" appears on
the display. Then turn the knob to adjust
the front/rear balance.
The display will show the range from
FAd−F7" to FAd−R7".
For left/right adjustment, push CTRL /
MODE" repeatedly until BAL" appears on
the display. Then turn the knob to adjust
the left/right balance.
The display will show the range from
BAL−L7" to BAL−R7".
AUX (Auxiliary button)
This button is used to operate each player
when a cassette tape player, compact disc
player or compact disc auto changer is
equipped with this radio player.
With cassette tape player
Push "AUX" to switch from radio to cas-
sette operation. If the audio system is off,
you can turn on the cassette player by
pushing "AUX". In both cases, a cassette
must already be loaded in the player.With compact disc player or compact
disc auto changer
Push AUX" to switch from radio to com-
pact disc operation. If the audio system is
off, you can turn on the compact disc
player by pushing AUX". In both cases,
a disc must already be loaded in the
player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push AUX", the
system c
hanges to the automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If WAIT" appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1" appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up−side down. Clean the
disc or insert it correctly.
If Err 2" appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc. If Err 3" or Err 4" appears on the
display,
it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEn" appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC
Compact disc auto changer only
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the button marked with the double−D
symbol. The double−D symbol will appear
on the display. Push the button again to
turn off Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.

ECHO_U
922000 ECHO (OM52411U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCAN" until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
SCAN" again.
To scan all the frequencies:
Quickly push and release SCAN". If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push SCAN" again.
Compact disc player
There are two scan featuresyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.Scanning the tracks on a disc:
Quickly push and release SCAN". SCAN"
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
SCAN" again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Compact disc auto changer only
Scanning the first track of all the discs in
the magazine:
Push SCAN" until you hear a beep.

·SCAN" will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the SCAN" again. If the player has
scanned all the di scs, it will stop scan-
ning.
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the  " or  " under the SEEK".
Do this again to find another station. Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
FF 1" or REW 1" will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until REW
3" appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.

ECHO_U
932000 ECHO (OM52411U)
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. ST" appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly. TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.

ECHO_U
962000 ECHO (OM52411U)
For high−pitch tone adjustment, push
CTRL / MODE" repeatedly until TRE"
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
TRE −5" to TRE 5".
Sound balance adjustment function
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push CTRL /
MODE" repeatedly until FAd" appears on
the display. Then turn the knob to adjust
the front/rear balance.
The display will show the range from
FAd−F7" to FAd−R7".
For left/right adjustment, push CTRL /
MODE" repeatedly until BAL" appears on
the display. Then turn the knob to adjust
the left/right balance.
The display will show the range from
BAL−L7" to BAL−R7".CD (Compact Disc)
Push CD" to switch from radio or cas-
sette operation to compact disc operation.
If the audio system is off, you can turn
on the compact disc player by pushing
CD". In both cases, a disc must already
be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push CD", the
system c
hanges to the automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If WAIT" appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1" appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up−side down. Clean the
disc or insert it correctly.
If Err 2" appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc. If Err 3" or Err 4" appears on the
display,
it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEn" appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC
Compact disc auto changer only
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the button marked with the double−D
symbol. The double−D symbol will appear
on the display. Push the button again to
turn off Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.

ECHO_U
982000 ECHO (OM52411U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold SCAN" until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
SCAN" again.
To scan all the frequencies:
Quickly push and release SCAN". If you
hear a beep, you held the button too long,
and the radio will scan the preset sta-
tions. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again. To select a
station, push SCAN" again.
Compact disc player
There are two scan featuresyou can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.Scanning the tracks on a disc:
Quickly push and release SCAN". SCAN"
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, you
held the button too long, and the player
will scan the first track of all the discs in
the magazine. To select a track, push
SCAN" again. If the player scanned all
the tracks on the disc, it will stop scan-
ning.
Compact disc auto changer only
Scanning the first track of all the discs in
the magazine:
Push SCAN" until you hear a beep.

·SCAN" will appear on the display
and the player will perform the first track
of the next disc. To select a disc, push
the SCAN" again. If the player has
scanned all the di scs, it will stop scan-
ning.
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease the  " or  " under the SEEK".
Do this again to find another station. Cassette Player
By using this button, you can skip up or
down to a different track.
You can skip up to nine tracks at a time.
Push the up or down side of the button.
FF 1" or REW 1" will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button ten times, the skip
feature will be turned off.
When counting the number of tracks you
want to rewind, remember to count the
current track as well. For example, if you
want to rewind to a song that is two be-
fore the song you are listening to, push
on the down side of the button until REW
3" appears on the display.
If you have pushed the track button more
than you wanted to, push the other side
of the button. The track number will be
reduced.
The track number you select is not valid
if it is higher than the number of tracks
remaining on the current cassette side.
After the beginning of the tape is
reached, the player will automatically
start playing the same side.

ECHO_U
992000 ECHO (OM52411U)
After the end of the tape is reached,
the player will automatically reverse
sides and start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track button
to work correctly. In addition, the feature
may not work well with some spoken
word, live, or classical recordings.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. ST" appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push TAPE" to switch from radio or com-
pact disc operation to cassette operation.
If the audio system is off, you can turn
on the cassette player by pushing TAPE".
In both cases, a cassette must already be
loaded in the player. TRACK (Track up/down button):
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the track button until
the number of the track you want to listen
to appears on the display. If you want to
return to the beginning of the current
track, push the down side of the button
one time, quickly.
TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.

ECHO_U
1022000 ECHO (OM52411U)
CONTROL / MODE (Audio control and
mode adjustment)
Manual tone adjustment function
This knob is used to adjust the tone
manually.
For low−pitch tone adjustment, push
CONTROL / MODE" repeatedly until
BAS" appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
BAS −5" to BAS 5".
For middle−pitch tone adjustment, push
CONTROL / MODE" repeatedly until MId"
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from MId
−5" to MId 5".
For high−pitch tone adjustment, push
CONTROL / MODE" repeatedly until
TRE" appears on the display. Then turn
the knob to suit your preference.
The display will show the range from
TRE −5" to TRE 5".
Sound balance adjustment function
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.For front/rear adjustment, push CONTROL
/ MODE" repeatedly until FAd" appears
on the display. Then turn the knob to
adjust the front/rear balance.
The display will show the range from
FAd−F7" to FAd−R7".
For left/right adjustment, push CONTROL
/ MODE" repeatedly until BAL" appears
on the display. Then turn the knob to
adjust the left/right balance.
The display will show the range from
BAL−L7" to BAL−R7".
CD (Compact Disc)
Push CD" to switch from radio or cas-
sette operation to compact disc operation.
If the audio system is off, you can turn
on the compact disc player by pushing
CD". In both cases, a disc must already
be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push CD", the
system c
hanges to the automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages. If WAIT" appears on the display,
it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1" appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up−side down. Clean the
disc or insert it correctly.
If Err 2" appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc.
If Err 3" or Err 4" appears on the
display, it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEn" appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
