Indicator symbols on the instrument panel
(type A)
(type B)
(type A)
(type B)
Brake system warning light∗
Driver ’s seat belt reminder light∗
Discharge warning light∗
Malfunction indicator lamp∗
Low oil pressure warning light∗
Anti-lock brake system warning light∗
Open door warning light∗
SRS warning light∗
Low windshield washer fluid level warning light∗
Low fuel level warning light∗
Turn signal indicator lights
Headlight high beam indicator light
Overdrive−off indicator light
Low engine coolant temperature indicator light
(in blue)∗
High engine coolant temperature warning light
(in red)∗
Front passenger ’s seat belt reminder light∗

ECHO_U
692000 ECHO (OM52411U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature indicator and warning light 70
. . . . . . . . . .
Odometer and two trip meters 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 72
. . . . . . . . . . . . . . .
SECTION 1− 5

ECHO_U
702000 ECHO (OM52411U)
Fuel gauge
SU15001
The gauge works when the ignition
switch is on and indicates the approxi-
mate quantity of fuel remaining in the
tank.
Nearly fullNeedle at "F"
Nearly emptyNeedle at "E"
It is a good idea to keep the tank over
1/4 full.
This fuel gauge has a non−return type
needle which remains at the last indicated
position when the ignition switch is turned
off.
If the fuel level approaches "E" or the low
fuel level warning light flashes, fill the fuel
tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
SY15005
High engine coolant temperature
warning light in red
Low engine coolant temperature
indicator light in blue
The indicator and warning lights indi-
cate the engine coolant temperature
when the ignition switch is on. The en-
gine operating temperature will vary
with changes in weather and engine
load.
The high engine coolant temperature warn-
ing light will come on when the ignition
key is turned to the "ON" position. After
a few seconds, the light will go off.
If your engine coolant temperature is cool
with the ignition switch on, the low engine
coolant temperature indicator light comes
on. If it keeps lighting on with the engine
fully warmed, contact your Toyota dealer
as soon as possible to service the ve-
hicle.
Engine coolant temperature
in d icat o r an d war n in g lig h t

ECHO_U
712000 ECHO (OM52411U)
If the high engine coolant temperature
warning light flashes, your engine is too
hot. If your vehicle overheats, stop your
vehicle and allow the engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and−go traffic.
Towing a trailer
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See "If your ve-
hicle overheats" in Section 4.
Odometer and two trip meters
SU15003
This meter displays the odometer and
two trip meters.
1. OdometerIt shows the total distance the vehicle has been driven.
2. Two trip metersThey show two differ- ent distances independently driven
since the last time each trip meter was
set to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.

ECHO_U
752000 ECHO (OM52411U)
The light does not come on with the
ignition key turned to ON", or remains
on.
The light comes on while driving.
If the light lit during driving goes out and
does not come on again, it is a normal
operation.
(i) Open Door Warning Light
This light remains on until all the doors
and back door are completely closed. (j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the "ON" position.
After about 6 seconds, the light will go
off. This means the system of the air-
bag and front seat belt pretensioners
are operating properly.
The warning light system monitors the air-
bag sensor assemblies, front airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the "ON" posi-
tion or remains on.
The light comes on or flashes while
driving.(k) Low Windshield Washer Fluid Level
Warning Light
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see "Adding washer fluid" in Section 7−3.)
The light operates to warn that the engine
is almost overheating.
(l) High Engine Coolant Temperature Warning Light
The light operates to warn that the engine
is almost overheating.
The light will come on when the ignition
key is turned to the "ON" position. After
a few seconds, the light will go off.
If it flashes while you are driving, stop the
vehicle and check your engine. For de-
tailed instructions, see "If your vehicle
overheats" in Section 4.NOTICE
Continued driving with the light on
could result in engine overheating.
(m) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver ’s door with
the ignition key in the "ACC" or "LOCK"
position.

ECHO_U
802000 ECHO (OM52411U)

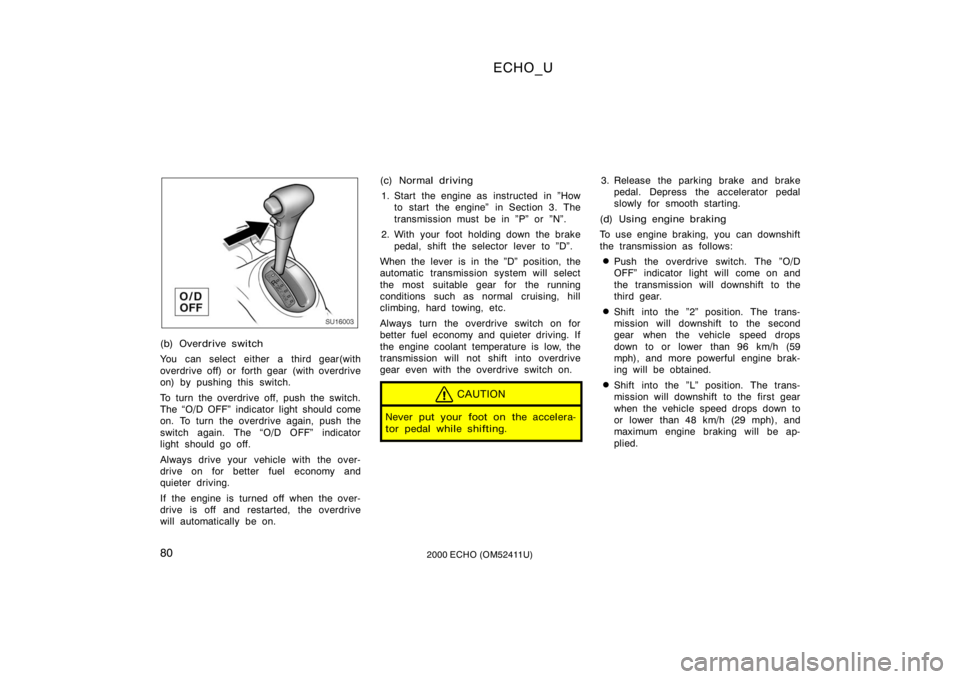

SU16003
(b) Overdrive switch
You can select either a third gear(with
overdrive off) or forth gear (with overdrive
on) by pushing this switch.
To turn the overdrive off, push the switch.
The O/D OFF" indicator light should come
on. To turn the overdrive again, push the
switch again. The O/D OFF" indicator
light should go off.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on.(c) Normal driving
1. Start the engine as instructed in "How to start the engine" in Section 3. The
transmission must be in "P" or "N".
2. With your foot holding down the brake pedal, shift the selector lever to "D".
When the lever is in the "D" position, the
automatic transmission system will select
the most suitable gear for the running
conditions such as normal cruising, hill
climbing, hard towing, etc.
Always turn the overdrive switch on for
better fuel economy and quieter driving. If
the engine coolant temperature is low, the
transmission will not shift into overdrive
gear even with the overdrive switch on.
CAUTION
Never put your foot on the accelera-
tor pedal while shifting.
3. Release the parking brake and brake pedal. Depress the accelerator pedal
slowly for smooth starting.
(d) Using engine braking
To use engine braking, you can downshift
the transmission as follows:
Push the overdrive switch. The "O/D
OFF" indicator light will come on and
the transmission will downshift to the
third gear.
Shift into the "2" position. The trans-
mission will downshift to the second
gear when the vehicle speed drops
down to or lower than 96 km/h (59
mph), and more powerful engine brak-
ing will be obtained.
Shift into the "L" position. The trans-
mission will downshift to the first gear
when the vehicle speed drops down to
or lower than 48 km/h (29 mph), and
maximum engine braking will be ap-
plied.

ECHO_U
1482000 ECHO (OM52411U)
Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has high−speed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are high−speed capability tires or
not before driving at such speeds.
Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a
longer stopping distance, and it
may pull to one side when the
brakes are applied. Also, the park-
ing brake will not hold the vehicle
securely.
Winter driving tips
Make sure you have a proper freeze
protection of engine coolant.
Your coolant must contain ethylene−glycol
type coolant for a proper corrosion protection
of aluminum components. Use "TOYOTA
Long Life Coolant" or equivalent.
See Section 7−2 for details about coolant
type selection.
NOTICE
Do not use alcohol type antifreeze or
plain water alone.
When it is extremely cold, we recommend
to use 60% solution for your Toyota, to
provide protection down to about −50°C
(−58 °F). Do not use more than 70% solu-
tion for better coolant performance.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 7−3 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge. Make sure the engine oil viscosity is
suitable for the cold weather.
See Section 7−2 for recommended viscos-
ity. Leaving a heavy summer oil in your
vehicle during winter months may cause
harder starting. If you are not sure about
which oil to use, call your Toyota deal-
erhe will be pleased to help.
Keep the door locks from freezing.
Squirt lock de−icer or glycerine into the
locks to keep them from freezing. To open
a frozen lock, try heating the key before
inserting it.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.

ECHO_U
1552000 ECHO (OM52411U)
5. Start your engine in the normal way.After starting, run it at about 2000 rpm
for several minutes with the accelerator
pedal lightly depressed.
6. Carefully disconnect the cables in the exact reverse order: the negative cable
and then the positive cable.
7. Carefully dispose of the battery cover clothsthey may now contain sulfuric
acid.
8. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is
not apparent (for example, lights left on),
you should have it checked. If your engine stalls while driving...
1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Try starting the engine again.
If the engine will not start, see "If your
vehicle will not start".
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.
If your engine coolant temperature
gauge indicates overheating, if you ex-
perience a loss of power, or if you hear
a loud knocking or pinging noise, the
engine has probably overheated. You
should follow this procedure...
1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the transmission in "P"
(automatic) or neutral (manual) and ap-
ply the parking brake. Turn off the air
conditioning if it is being used.
2. If coolant or steam is boiling out of the radiator or reservoir,stop the engine.
Wait until the steam subsides before
opening the hood. If there is no coolant
boiling over or steam, leave the engine
running and make sure the electric
cooling fan is operating. If it is not,
turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
If your engine stalls while
driving If your vehicle overheats

ECHO_U
1562000 ECHO (OM52411U)
3. Look for obvious coolant leaks from theradiator, hoses,and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.
4. If the coolant is leaking, stop the en-gine immediately. Call a Toyota dealer
for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the en-
gine is running. Fill it about half full.
CAUTION
Do not attempt to remove the radiator
cap when the engine and radiator are
hot. Serious injury could result from
scalding hot fluid and steam blown
out under pressure.
6. After the engine coolant temperaturehas cooled to normal, again check the
coolant level in the reservoir. If neces-
sary, bring it up to half full again. Seri-
ous coolant loss indicates a leak in the
system. You s hould have it checked as
soon as possible at your Toyota dealer.
If you have a flat tire
1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place well away from
the traffic. Avoid stopping on the center
divider of a highway. Park on a level
spot with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in "P" (automatic) or
reverse (manual).
4. Have everyone get out of the vehicle on the side away from traffic.
5. Read the following instructions thor- oughly.
CAUTION
When jacking, be sure to observe the
following to reduce the possibility of
personal injury:
Follow jacking instructions.
Do not put any part of your body
under the vehicle supported by the
jack. Personal injury may occur.
Do not start or run the engine while
your vehicle is supported by the
jack.

ECHO_U
1792000 ECHO (OM52411U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the "HOT" or "COLD"
range depending on the fluid temperature.
See Section 7−2 for additional information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See engine exhaust cautions in
Section 2.)Be on the alert for changes in perfor-
mance, sounds, and visual tip−offs that
indicate service is needed. Some impor-
tant clues are as follows:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)
Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)
Flat−looking tire; excessive tire squeal
when cornering; uneven tire wear
Vehicle pulls to one side when driving
straight on a level road
Strange noises related to suspension
movement
Loss of brake effectiveness; spongy
feeling brake or clutch pedal;pedal al-
most touches floor; vehicle pulls to one
side when braking
Engine coolant temperature continually
higher than normalIf you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?
