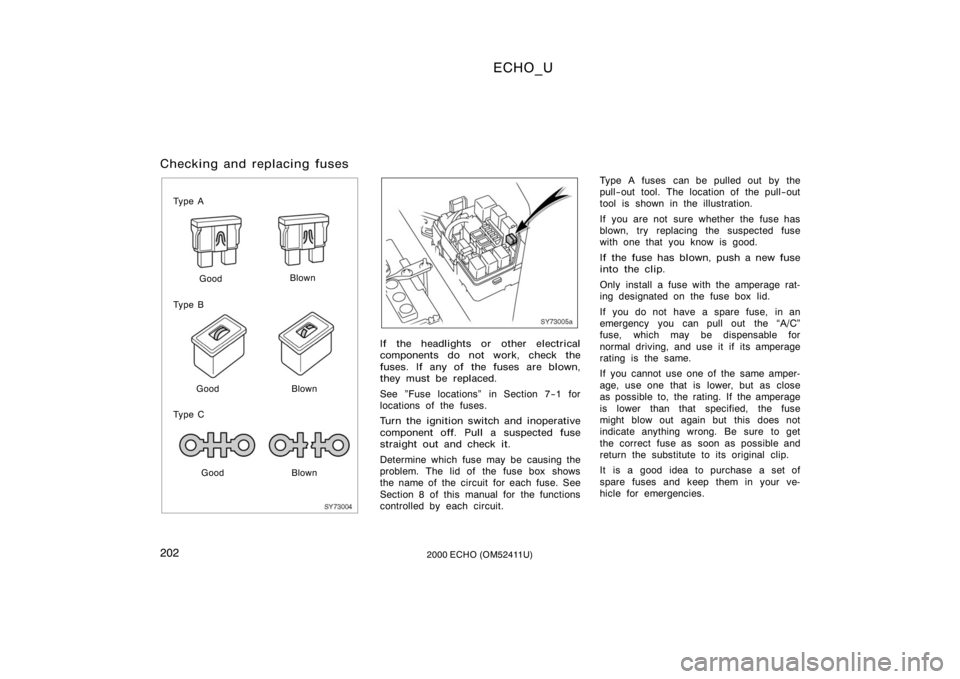

Checking and replacing fuses
SY73004
Ty p e AGood Blown
Ty p e B
Good Blown
Ty p e C
Good Blown
SY73005a
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See "Fuse locations" in Section 7−1 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull a suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 of this manual for the functions
controlled by each circuit. Type A fuses can be pulled out by the
pull−out tool. The location of the pull−out
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the A/C"
fuse, which may be dispensable for
normal driving, and use it if its amperage
rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
as possible to, the rating. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.

ECHO_U
2142000 ECHO (OM52411U)
SU81003
Fuse box
13. WIPER 20 A: Windshield wipers and
washer, rear window wipers and wash-
er
14. ECU−IG 7.5 A: Anti−lock brake system,
electric cooling fan
15. D/L 25 A: Power door lock system
16. ECU−B 7.5 A: Rear fog lights, SRS
airbag system
17. OBD 7.5 A: On−board diagnosis sys-
tem
18. TAIL 7.5 A: Tail lights, parking lights,
license plate lights, radio, headlight
beam level control, illuminations 19. HAZ 10 A:
Turn signal lights, emergen-
cy flashers
20. STOP 10 A: Stop lights, high mounted
stop light, anti−lock brake system, shift
lock system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses (type B)
21. HTR SUB1 50 A: Air conditioning sys-
tem (PTC 1)
22. RDI 30 A: Electric cooling fans
23. AM1 50 A: "ACC", "GAUGE", "WIPER",
and "ECU−IG fuses
24. POWER 30 A: Power windows
25. HTR 40 A: Air conditioning system
26. DEF 30 A: Rear window defogger sys-
tem.
Fuses (type C)
27. MAIN 60 A: "EFI", "DOME", "HORN",
"ST", "AM2", "H−LP LH", and "H−LP
RH" fuse
28. ALT 100 or 120 A: "ECU−B", "TAIL",
"D/L", "OBD", "A.C", "HTR", "POWER",
"STOP" and FL DEF" fuses
29. ABS 60 A: Anti−lock brake system
