PANIC" SWITCH
Pushing the PANIC" switch for 2 sec-
onds blows the horn intermittently and
flashes the headlight and tail lights.
The PANIC" switch is used to deter the
vehicle theft when you witness anyone at-
tempting to brake into or damage your
vehicle.
The alarm will last for one minute. To stop
this in the midway, push the PANIC"
switch once again, unlock any door with
the key or transmitter, open the trunk with
the key or turn the ignition key or turn the
ignition key from the LOCK" to ON" posi-
tion.To cancel the PANIC" mode, unlock any
door with the key or wireless remote con-
trol transmitter, open the trunk with the
key from the LOCK" to ON" position.
The PANIC" mode does not work when
the key is inserted in the ignition switch.
WIRELESS REMOTE CONTROL TRANS-
MITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instruction in order not to cause
damage on the transmitter.Do not leave the transmitter on the
places where the temperature becomes
high such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 2 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance.
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The batteries may have been con-
sumed. Check the batteries in the
transmitter. To replace the batteries,
see Replacing transmitter batteries".
Replacing transmitter batteries
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
Replace the transmitter battery by the fol-
lowing procedures:

ECHO_U
142000 ECHO (OM52411U)
After replacing battery, check that the
transmitter operates properly. if the
transmitter still does not operate prop-
erly, contact your Toyota dealer.
If you lose your transmitter, contact
your Toyota dealer as soon as possible
to avoid the possibility of theft, or an
accident. (See If you lose your wire-
less remote control transmitter" in Sec-
tion 4.)This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference
to radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
−Reorient or relocate the receiving an-
tenna.
−Increase the separation between the
equipment and receiver.
−Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
−Consult the dealer or an experienced
radio / TV technician for help.CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

ECHO_U
372000 ECHO (OM52411U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
Installation of electronic items such
as a mobile two−way radio, cassette
tape player or compact disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
SU13019
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If either
of the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the "ON" posi-
tion, or remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or can not be pulled out due to a
malfunction or activation of the preten-
sioner.
The front seat belt pretensioner assem-
bly or surrounding area has been dam-
aged.
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that did not cause the seat
belt pretensioners to operate.
The front seat belt pretensioner assem-
bly is scratched, cracked, or otherwise
damaged.

ECHO_U
442000 ECHO (OM52411U)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, front passen-
ger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing any of these may cause sud-
den SRS airbag inflation or disable
the system, which could result in
death or serious injury.
Failure to follow these instructions
can result in death or serious inju-
ries.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS airbag system in some cases.
 Installation of electronic items such
as a mobile two−way radio, cassette
tape player or compact disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
SU13017
This SRS airbag system has a service
reminder indicator to inform the driver of
operating problems. If either of the
following conditions occurs, this indicates
a malfunction of the airbags. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the "ON" posi-
tion, or remains on.
The light comes on or flashes while
driving.

ECHO_U
742000 ECHO (OM52411U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on in the following
cases.
a. The fuel tank is completely empty. (See
"Fuel gauge" in Section 1−5 for instruc-
tions.)
b. The fuel tank cap is not tightened se-
curely. (See "Fuel tank cap" in Section
1−2 for instructions.)
c. There is a problem somewhere in your
engine or automatic transmission electrical
system.If it comes on while you are driving in
case c, have your vehicle checked/re-
paired by your Toyota dealer as soon as
possible.
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(g) Low Oil Pressure Warning Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.
NOTICE
Do not drive the vehicle with the
warning light oneven for one block.
It may ruin the engine.
(h) "ABS" Warning Light
The light comes on with the ignition key
turned to "ON". If the anti−lock brake sys-
tem works properly, the light goes out
after a few seconds. Thereafter, if the
system malfunctions, the light comes on.
When the "ABS" warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the ABS" warning light is on (and
the brake system warning light is off), the
anti−lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If the following conditions occur, this
indicates a malfunction somewhere in
the parts monitored by the warning
light system. Contact your Toyota deal-
er as soon as possible to service the
vehicle.

ECHO_U
782000 ECHO (OM52411U)
SY16001
"START"Starter motor on. The key
will return to the "ON" position when
released.
For starting tips, see Section 3.
"ON"Engine on and all accessories
on.
This is the normal driving position.
"ACC"Accessories such as the radio
operate, but the engine is off.
If you leave the key in the "ACC" or
"LOCK" position and open the driver’s
door, a buzzer will remind you to remove
the key.
"LOCK"Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.You must push in the key to turn the key
from "ACC" to the "LOCK" position. On
vehicles with an automatic transmission,
the selector lever must be put in the "P"
position before pushing the key.
When starting the engine, the key may
seem stuck at the "LOCK" position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
CAUTION
For manual transmission:
Never remove the key when the ve-
hicle is moving, as this will lock the
steering wheel and result in loss of
steering control.
NOTICE
Do not leave the key in the "ON"
position if the engine is not running.
The battery will discharge and the
ignition could be damaged.
Ignition switch with steering
lock

ECHO_U
862000 ECHO (OM52411U)

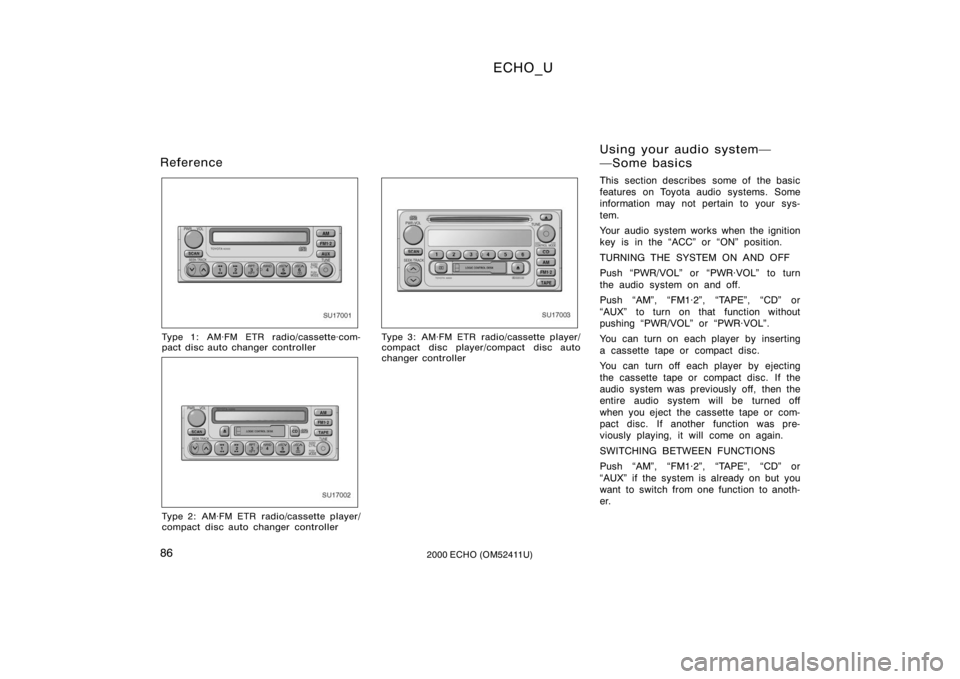

SU17001
Type 1: AM·FM ETR radio/cassette·com-
pact disc auto changer controller
SU17002
Type 2: AM·FM ETR radio/cassette player/
compact disc auto changer controller
SU17003
Type 3: AM·FM ETR radio/cassette player/
compact disc player/compact disc auto
changer controller
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ACC" or ON" position.
TURNING THE SYSTEM ON AND OFF
Push PWR/VOL" or PWR·VOL" to turn
the audio system on and off.
Push AM", FM1·2", TAPE", CD" or
AUX" to turn on that function without
pushing PWR/VOL" or PWR·VOL".
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push AM", FM1·2", TAPE", CD" or
AUX" if the system is already on but you
want to switch from one function to anoth-
er.
ReferenceUsing your audio system
Some basics

ECHO_U
872000 ECHO (OM52411U)
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange, and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
To remove the antenna, carefully turn it
counterclockwise.
To lower the power antenna, turn off the
audio system by pushing PWR/VOL" or
PWR·VOL", or turn the ignition key to
LOCK".
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should be to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.

ECHO_U
892000 ECHO (OM52411U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button: Tune in
the desired station (see TUNE" knob or
SEEK" button). Push and hold down the
button until you hear a beepthis will set
the station to the button. The button num-
ber will appear on the display.
To tune in to a preset station: Push the
button for the station you want. The but-
ton number and station frequency will ap-
pear on the display.
These systems can store one AM and two
FM stations for each button (The display
will show AM", FM1" or FM2" when you
push AM" FM1·2").
(Program)
Push
" to select the other side of a
cassette tape. The display indicates which
side is currently selected (
" indicates
top side,
" indicates bottom side).
Auto−reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
(Reverse/Fast forward buttons)
Cassette Player
Push the fast forward button to fast for-
ward a cassette tape. FF" will appear on
the display. Push the reverse button to
rewind a tape. REW" will appear on the
display.
To stop the tape while it is fast forward-
ing, push the fast forward button or
TAPE"; to stop the tape while it is re-
winding, push the reverse button or
TAPE".
If a tape side rewinds completely, the cas-
sette player will stop and then play that
same side. If a tape fast forwards com-
pletely, the cassette player will play the
other side of the tape, using the auto−re-
verse feature.
Compact Disc Player
If you want to fast forward or reverse
through a compact disc track, push and
hold in the fast forward or reverse button.
When you release the button, the compact
disc player will resume playing. AM
Push AM" to turn on the radio and select
the AM band. AM" will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing AM". Also, push
AM" to switch from cassette or compact
disc operation to radio operation.
CTRL / MODE (Audio control and mode
adjustment)
Manual tone adjustment function
This knob is used to adjust the tone
manually.
For low−pitch tone adjustment, push
CTRL / MODE" repeatedly until BAS"
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
BAS −5" to BAS 5".
For high−pitch tone adjustment, push
CTRL / MODE" repeatedly until TRE"
appears on the display. Then turn the
knob to suit your preference.
The display will show the range from
TRE −5" to TRE 5".

ECHO_U
902000 ECHO (OM52411U)
Sound balance adjustment function
This knob is also used to adjust the
sound balance between the front and rear,
and the right and left speakers.
For front/rear adjustment, push CTRL /
MODE" repeatedly until FAd" appears on
the display. Then turn the knob to adjust
the front/rear balance.
The display will show the range from
FAd−F7" to FAd−R7".
For left/right adjustment, push CTRL /
MODE" repeatedly until BAL" appears on
the display. Then turn the knob to adjust
the left/right balance.
The display will show the range from
BAL−L7" to BAL−R7".
AUX (Auxiliary button)
This button is used to operate each player
when a cassette tape player, compact disc
player or compact disc auto changer is
equipped with this radio player.
With cassette tape player
Push "AUX" to switch from radio to cas-
sette operation. If the audio system is off,
you can turn on the cassette player by
pushing "AUX". In both cases, a cassette
must already be loaded in the player.With compact disc player or compact
disc auto changer
Push AUX" to switch from radio to com-
pact disc operation. If the audio system is
off, you can turn on the compact disc
player by pushing AUX". In both cases,
a disc must already be loaded in the
player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played. Each time you push AUX", the
system c
hanges to the automatic changer.
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
If WAIT" appears on the display, it indi-
cates that the inside of the player unit
may be too hot due to the very high ambi-
ent temperature. Remove the disc or mag-
azine from the player and allow the player
to cool down.
If Err 1" appears on the display, it
indicates the disc is dirty, damaged, or it
was inserted up−side down. Clean the
disc or insert it correctly.
If Err 2" appears on the display, it
indicates no disc is loaded inside the
magazine. Insert a disc. If Err 3" or Err 4" appears on the
display,
it indicates there is a trouble in-
side the system. Eject the disc or maga-
zine. Set the disc or magazine again.
If OPEn" appears on the display, it
indicates the compact disc auto changer
lid is open. Close the compact disc auto
changer lid.
If the malfunction is not rectified, take
your vehicle to your Toyota dealer.
DISC
Compact disc auto changer only
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen to
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the button marked with the double−D
symbol. The double−D symbol will appear
on the display. Push the button again to
turn off Dolby  B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
