OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals64
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Windshield wipers and washer 66
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1− 4

ECHO_U
662000 ECHO (OM52411U)
Instrument panel light control
SU14006
To adjust the brightness of the instru-
ment panel lights, turn the knob.
Interior light
SU14007
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
"ON"Keeps the light on all the time.
"OFF"Turns the light off.
"DOOR"Turns the light on when any of
the door is opened. The light remains on
for a certain time after all the doors are
closed. When all the doors are locked or
the ignition switch is turned to "ACC" or
"ON" after all the doors are closed, the
light fades out.
SU14010
Type A
SU14011
Type B
Windshield wipers and
washer

ECHO_U
672000 ECHO (OM52411U)
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the "ON" position.
Ty p e A Lever position
Speed setting
Position 1Slow
Position 2Fast
For a single sweep of the windshield,
push the lever up and release it.
Ty p e B
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. To squirt washer fluid, pull the lever
toward you.
With interval adjuster: If the windshield
wipers are off, they will operate a couple
of times after the washer squirts.
For instructions on adding washer fluid,
see "Adding washer fluid" in Section 7−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Rear window defogger

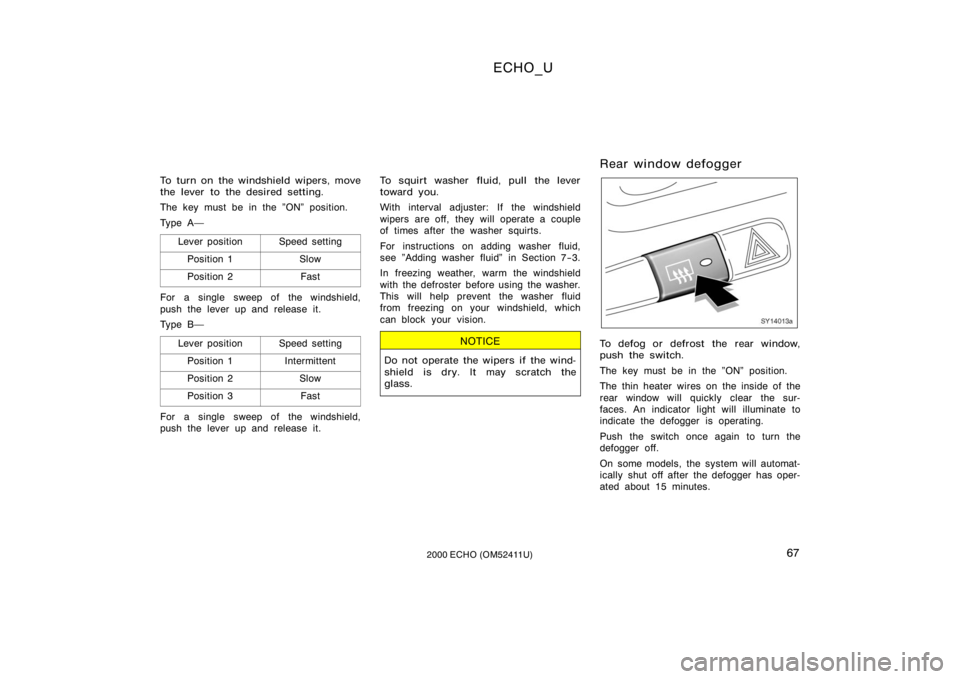

SY14013a
To defog or defrost the rear window,
push the switch.
The key must be in the "ON" position.
The thin heater wires on the inside of the
rear window will quickly clear the sur-
faces. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
On some models, the system will automat-
ically shut off after the defogger has oper-
ated about 15 minutes.

ECHO_U
2142000 ECHO (OM52411U)
SU81003
Fuse box
13. WIPER 20 A: Windshield wipers and
washer, rear window wipers and wash-
er
14. ECU−IG 7.5 A: Anti−lock brake system,
electric cooling fan
15. D/L 25 A: Power door lock system
16. ECU−B 7.5 A: Rear fog lights, SRS
airbag system
17. OBD 7.5 A: On−board diagnosis sys-
tem
18. TAIL 7.5 A: Tail lights, parking lights,
license plate lights, radio, headlight
beam level control, illuminations 19. HAZ 10 A:
Turn signal lights, emergen-
cy flashers
20. STOP 10 A: Stop lights, high mounted
stop light, anti−lock brake system, shift
lock system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses (type B)
21. HTR SUB1 50 A: Air conditioning sys-
tem (PTC 1)
22. RDI 30 A: Electric cooling fans
23. AM1 50 A: "ACC", "GAUGE", "WIPER",
and "ECU−IG fuses
24. POWER 30 A: Power windows
25. HTR 40 A: Air conditioning system
26. DEF 30 A: Rear window defogger sys-
tem.
Fuses (type C)
27. MAIN 60 A: "EFI", "DOME", "HORN",
"ST", "AM2", "H−LP LH", and "H−LP
RH" fuse
28. ALT 100 or 120 A: "ECU−B", "TAIL",
"D/L", "OBD", "A.C", "HTR", "POWER",
"STOP" and FL DEF" fuses
29. ABS 60 A: Anti−lock brake system
