ªPANICº SWITCH
Pushing the ªPANICº switch blows the
horn intermittently and flashes the
headlight and tail lights.
The ªPANICº switch is used to deter the
vehicle theft when you witness anyone at-
tempting to brake into or damage your
vehicle.
The alarm will last for one minute. To stop
this in the midway, push the ªPANICº
switch once again, unlock any door with
the key or transmitter, open the trunk with
the key or turn the ignition key or turn the
ignition key from the ªLOCKº to ªONº posi-
tion.To cancel the ªPANICº mode, unlock any
door with the key or wireless remote con-
trol transmitter, open the trunk with the
key from the ªLOCKº to ªONº position.
The ªPANICº mode does not work when
the key is inserted in the ignition switch.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instruction in order not to cause
damage on the transmitter.
Do not leave the transmitter on the
places where the temperature becomes
high such as on the dashboard.

Do not disassemble it.

Avoid knocking it hard against other
objects or dropping it.

Avoid putting it in water.
You can use up to 2 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance.

Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.

The batteries may have been con-
sumed. Check the batteries in the
transmitter. To replace the batteries,
see ªReplacing transmitter batteriesº.
Replacing transmitter batteries
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
When replacing the transmitter bat- tery, be careful not to lose the com-ponents.
Replace the transmitter battery by the fol-
lowing procedures:

2001MY ECHO (U) L/O0008
132001 ECHO (OM52440U)
SU12051
1. Using a coin or equivalent, open thetransmitter case.
SU12058
2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.
SU12059
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
Make sure the positive side and negative side of the transmitter bat-tery should be faced correctly.
Be careful not to bend the electrode
of the transmitter battery insertionand that dust or oils do not adhereto the transmitter case.
Close the transmitter case securely.

2001MY ECHO (U) L/O0008
142001 ECHO (OM52440U)
After replacing battery, check that the
transmitter operates properly. if the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See ªIf you lose your wireless re-
mote control transmitterº in Section 4.)

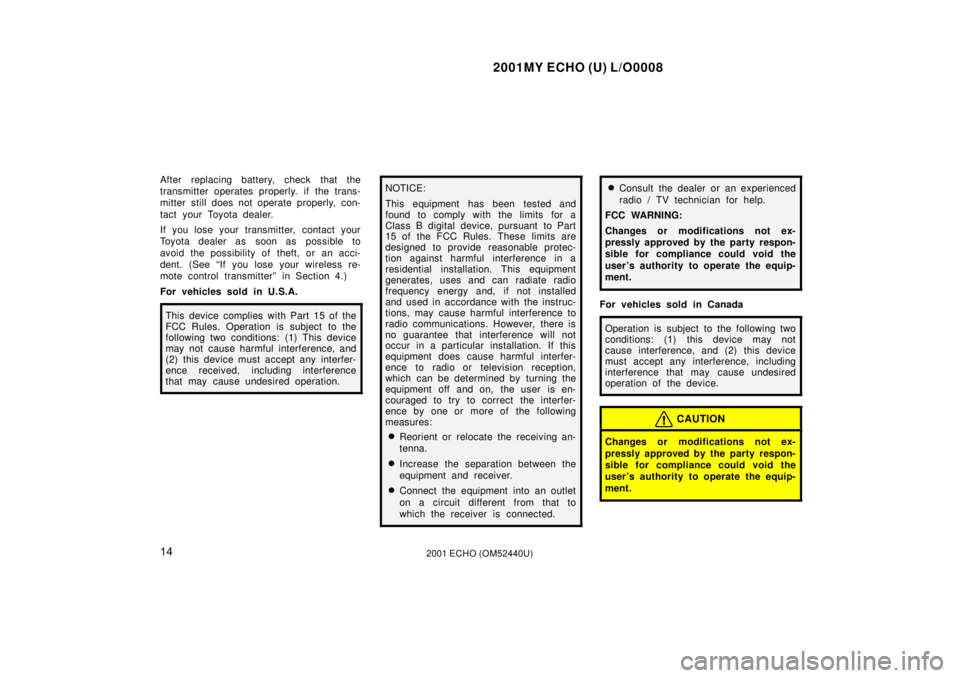

For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:

Reorient or relocate the receiving an-
tenna.

Increase the separation between the
equipment and receiver.

Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.

Consult the dealer or an experienced
radio / TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.

2001MY ECHO (U) L/O0008
202001 ECHO (OM52440U)
Theft deterrent system

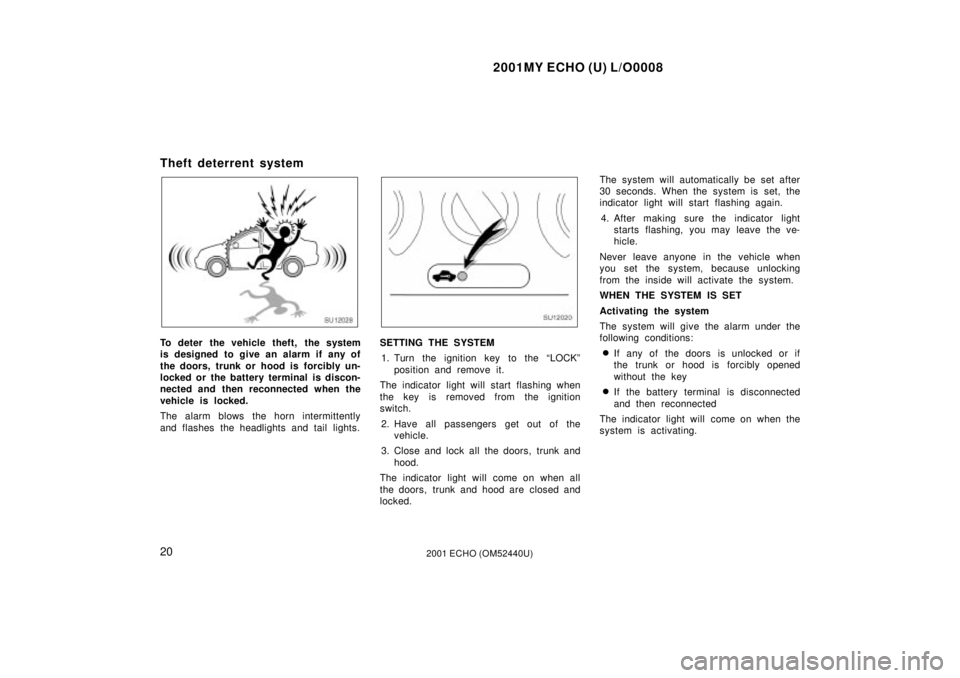

SU12028
To deter the vehicle theft, the system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
SU12020
SETTING THE SYSTEM1. Turn the ignition key to the ªLOCKº position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch.
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will give the alarm under the
following conditions:
If any of the doors is unlocked or if
the trunk or hood is forcibly opened
without the key

If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activating.

2001MY ECHO (U) L/O0008
212001 ECHO (OM52440U)
If any of the doors are unlocked without
the key and the key is not in the ignition
switch, all the doors will be automatically
locked again.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
ªActivating the systemº.
Stopping the alarm
The alarm will be stopped by the following
three ways:

Turn the ignition key from the ªLOCKº
to ªONº position.

Unlock any of the doors with the key.

Open the trunk with the key.CANCELLING THE SYSTEM
The system will be cancelled by the
above mentioned 3 ways.
If the tail lights come on for 2 seconds,
the theft deterrent system has been
alarmed. Check to see if there is any
abnormality on your vehicle.
TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The doors should be locked with the
key. Be sure to wait until the indicator
light goes off or starts flashing.
3. Unlock any door from the inside. The system s hould activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors, trunk and hood. When testing on
the hood, also check that the system
is activated when the battery terminal
is disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
Fuel tank cap
SU12057
This indicates that the fuel filler door
is on the left side of your vehicle.

2001MY ECHO (U) L/O0008
462001 ECHO (OM52440U)
NOTICE
Do not disconnect the battery cablesbefore contacting your Toyota dealer.
SRS side airbags

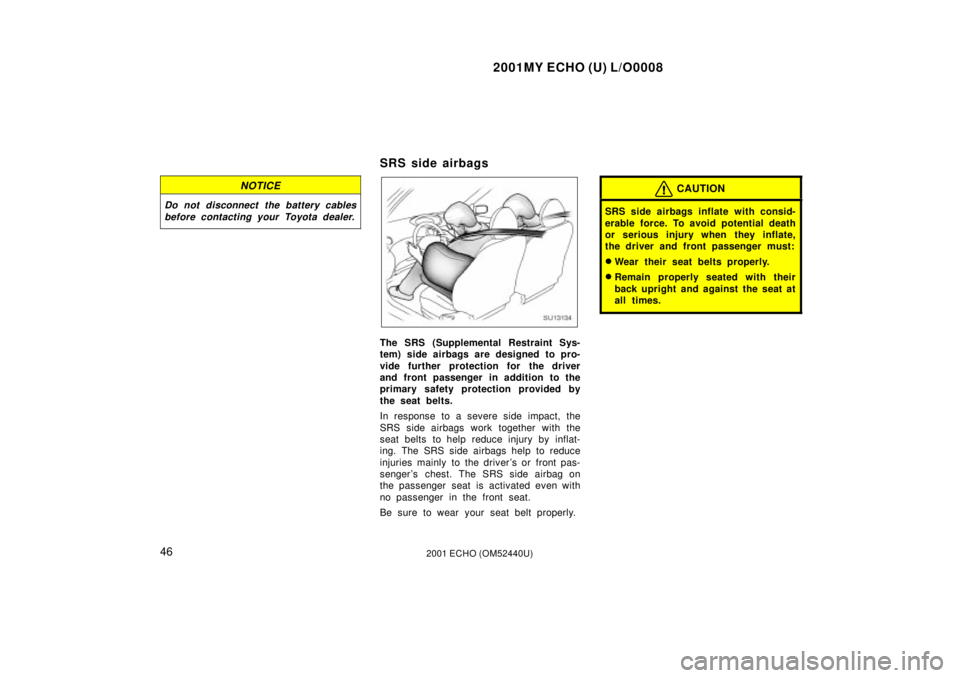

SU13134
The SRS (Supplemental Restraint Sys-
tem) side airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe side impact, the
SRS side airbags work together with the
seat belts to help reduce injury by inflat-
ing. The SRS side airbags help to reduce
injuries mainly to the driver's or front pas-
senger 's chest. The SRS side airbag on
the passenger seat is activated even with
no passenger in the front seat.
Be sure to wear your seat belt properly.
CAUTION
SRS side airbags inflate with consid-
erable force. To avoid potential death
or serious injury when they inflate,
the driver and front passenger must:

Wear their seat belts properly.

Remain properly seated with their
back upright and against the seat at
all times.

2001MY ECHO (U) L/O0008
512001 ECHO (OM52440U)
SU13128
In the following cases, contact your Toyota
dealer as soon as possible:

The SRS side airbags have been in-
flated.

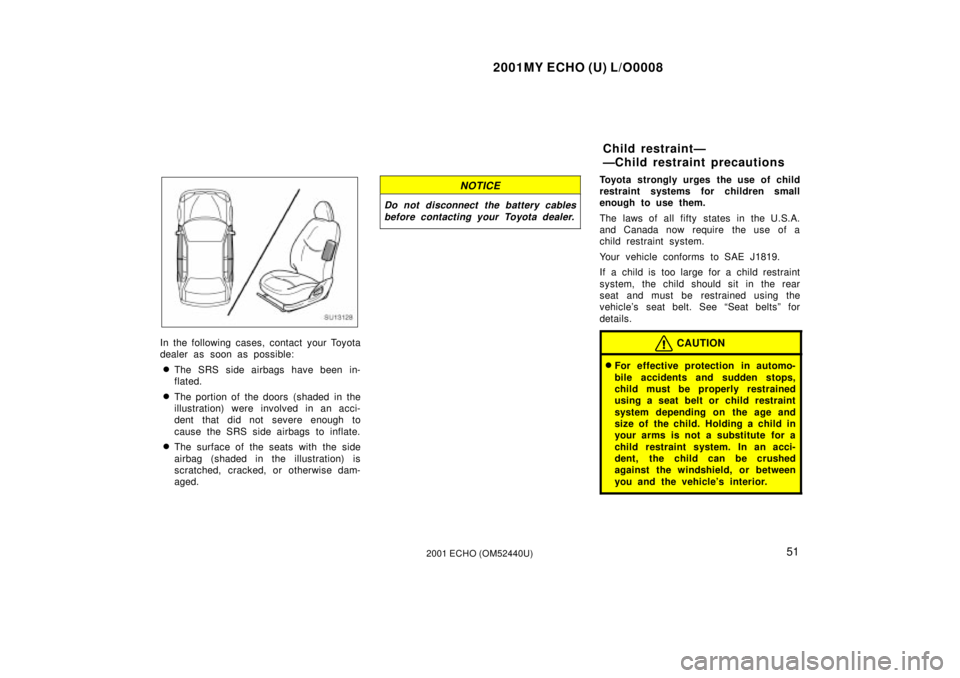

The portion of the doors (shaded in the
illustration) were involved in an acci-
dent that did not severe enough to
cause the SRS side airbags to inflate.

The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
NOTICE
Do not disconnect the battery cablesbefore contacting your Toyota dealer.
Toyota strongly urges the use of child
restraint systems for children small
enough to use them.
The laws of all fifty states in the U.S.A.
and Canada now require the use of a
child restraint system.
Your vehicle conforms to SAE J1819.
If a child is too large for a child restraint
system, the child s hould sit in the rear
seat and must be restrained using the
vehicle's seat belt. See ªSeat beltsº for
details.
CAUTION

For effective protection in automo-
bile accidents and sudden stops,
child must be properly restrained
using a seat belt or child restraint
system depending on the age and
size of the child. Holding a child in
your arms is not a substitute for a
child restraint system. In an acci-
dent, the child can be crushed
against the windshield, or between
you and the vehicle's interior.
Child restraintÐ
ÐChild restraint precautions

2001MY ECHO (U) L/O0008
722001 ECHO (OM52440U)
Headlights and turn signals
SP14001
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1ÐParking, tail, license plate,
side marker and instrument panel lights
Position 2ÐHeadlights and all of the
above
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver 's door is opened if you
remove the key with the headlights and
tail lights left on.
NOTICE
To prevent the battery from being dis-charged, do not leave the lights onfor a long period when the engine isnot running.
Daytime running light system
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the ªOFFº position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for driving
at night.
Vehicles for the U. S. A.: The headlights
automatically turn to full intensity in the
twilight even with the light switch in the
ªOFFº position.
SP14014
High±Low beamsÐ For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)ÐPull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to ªOFFº.

2001MY ECHO (U) L/O0008
732001 ECHO (OM52440U)
SP14015
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the ªONº position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.
Emergency flashers
SU14014
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-charged, do not leave the switch onlonger than necessary when the en-gine is not running.

2001MY ECHO (U) L/O0008
762001 ECHO (OM52440U)
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop±and±
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE

To prevent the battery from beingdischarged, turn the switch onwhen the engine is running.

When cleaning the inside of the
rear window, be careful not toscratch or damage the heater wiresor connectors.
