Power steering fluid level
Check the level through the reservoir. The
level should be in the ªHOTº or ªCOLDº
range depending on the fluid temperature.
See Section 7±2 for additional information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See engine exhaust cautions in
Section 2.)Be on the alert for changes in perfor-
mance, sounds, and visual tip±offs that
indicate service is needed. Some impor-
tant clues are as follows:

Engine missing, stumbling, or pinging

Appreciable loss of power

Strange engine noises

A leak under the vehicle (however, wa-
ter dripping from the air conditioning
after use is normal.)

Change in exhaust sound (This may
indicate a dangerous carbon monoxide
leak. Drive with the windows open and
have the exhaust system checked im-
mediately.)

Flat±looking tire; excessive tire squeal
when cornering; uneven tire wear

Vehicle pulls to one side when driving
straight on a level road

Strange noises related to suspension
movement

Loss of brake effectiveness; spongy
feeling brake or clutch pedal; pedal al-
most touches floor; vehicle pulls to one
side when braking

Engine coolant temperature continually
higher than normalIf you notice any of these clues, take your
vehicle to your Toyota dealer as soon as
possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the ve-
hicle unchecked. It could result in se-
rious vehicle damage and possibly
personal injury.
Does your vehicle need
repairing?

2001MY ECHO (U) L/O0008
1842001 ECHO (OM52440U)

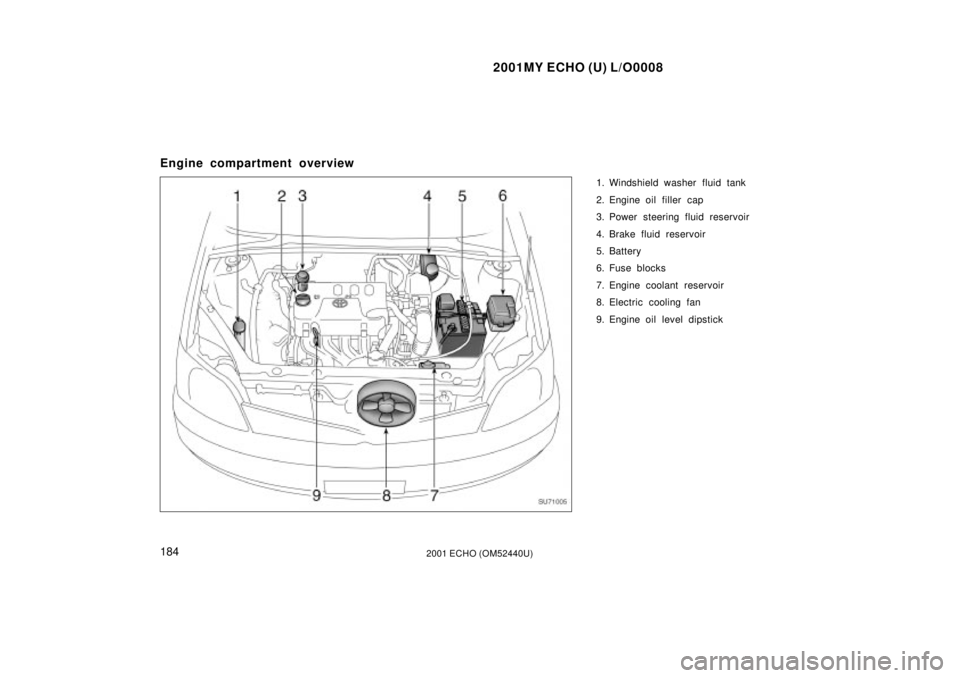

Engine compartment overview
1. Windshield washer fluid tank
2. Engine oil filler cap
3. Power steering fluid reservoir
4. Brake fluid reservoir
5. Battery
6. Fuse blocks
7. Engine coolant reservoir
8. Electric cooling fan
9. Engine oil level dipstick
SU71005

2001MY ECHO (U) L/O0008
1872001 ECHO (OM52440U)
Do not allow dirt or anything elseto fall through the spark plugholes.
Use only spark plugs of the speci-fied type. Using other types will
cause engine damage, loss of per-formance or radio noise.
Do not overfill automatic transmis-sion fluid, or the transmissioncould be damaged.
Do not drive with the air cleanerfilter removed, or excessive enginewear could result. Also backfiring
could cause a fire in the enginecompartment.
Be careful not to scratch the glasssurface with the wiper frame.
When closing the engine hood,check to see that you have not for-gotten any tools, rags, etc.
Parts and tools
Here is a list of parts and tools you will
need on performing do±it±yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
Checking the engine oil level
Parts (if level is low):

Engine oil API grade SJ,
ªEnergy±Conservingº or ILSAC multi-
grade having viscosity proper for your
climate
Tools:

Rag or paper towel

Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):

ªTOYOTA Long Life Coolantº or equiva-
lent
See Section 7±2 for details about cool-
ant type selection.

Demineralized or distilled water
Tools:

Funnel (only for adding coolant)
Checking brake fluid
Parts (if level is low):

SAE J1703 or FMVSS No.116 DOT 3
brake fluid Tools:

Rag or paper towel

Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):

Automatic transmission fluid
DEXRON)II or III
Tools:

Rag or paper towel

Funnel (only for adding fluid)
Checking battery condition
Tools:

Warm water

Baking soda

Grease

Conventional wrench (for terminal
clamp bolts)
Checking and replacing fuses
Parts (if replacement is necessary):

Genuine Toyota fuse or equivalent with
same amperage rating as original
Adding washer fluid
Parts:

Water

Washer fluid containing antifreeze (for
winter use)

2001MY ECHO (U) L/O0008
1912001 ECHO (OM52440U)
DO±IT±YOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 193
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 194
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking power steering fluid 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire pressure 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Checking and replacing tires 197
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 199
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 200
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 201
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7± 2

2001MY ECHO (U) L/O0008
1952001 ECHO (OM52440U)
Remove and replace the reservoir cap by
hand. Fill the brake fluid to the dotted
line. This brings the fluid to the correct
level when you put the cap back on.
Use only newly opened brake fluid. Once
opened, brake fluid absorbs moisture from
the air, and excess moisture can cause a
dangerous loss of braking.
CAUTION
Take care when filling the reservoir
because brake fluid can harm your
eyes and damage painted surfaces. If
fluid gets in your eyes, flush your
eyes with clean water immediately. If
you still feel uncomfortable with your
eyes, go to the doctor.
NOTICE
If you spill some of the fluid, be sure to wash it off with water to preventit from damaging the parts or paint.
Checking power steering fluid
SU72009Open
Close
Check the fluid level through the reser-
voir. If necessary, add automatic trans-
mission fluid DEXRON II or III.
If the vehicle has been driven around 80
km/h (50 mph) for 20 minutes (a little
more in frigid temperatures), the fluid is
hot (60 CÐ80 C or 140 FÐ175 F). You
may also check the level when the fluid
is cold (about room temperature,
10 CÐ30 C or 50 FÐ85 F) if the engine
has not been run for about five hours.

2001MY ECHO (U) L/O0008
1962001 ECHO (OM52440U)
SU72010
If cold O.K.
If cold add
If hot O.K.
If hot add
a. Clean all dirt from outside of the reser-
voir tank.
b. Remove the rubber cap. c. Remove the reservoir cap by turning it counterclockwise and wipe the dipstick
clean.
d. Reinstall the reservoir cap.
e. Remove the reservoir cap again and look at the fluid level. If the fluid is
cold, the lever should be in the ªCOLDº
range on the dipstick. Similarly, if it is
hot, the fluid level should be in the
ªHOTº range. If the level is at the low
side of either range, add automatic
transmission fluid DEXRON II or III to
bring the level within the range. f. After replacing the reservoir cap and
rubber cap, visually check the steering
box case, vane pump and hose con-
nections for leaks or damage.
CAUTION
The reservoir tank may be hot so be
careful not to burn yourself.
NOTICE
Avoid overfilling, or the power steer-
ing could be damaged.
Checking tire pressure
SU72005
Keep your tire pressures at the proper
level.
The recommended cold tire pressures, tire
size and the vehicle capacity weight are
given in Section 8. They are also on the
tire pressure label as shown.
You should check the tire pressures every
two weeks, or at least once a month. And
do not forget the spare!
Incorrect tire pressure can reduce tire
life and make your vehicle less safe to
drive.

2001MY ECHO (U) L/O0008
2162001 ECHO (OM52440U)
CLUTCH
Pedal free play, mm (in.):5Ð15 (0.2Ð0.6)
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1.9 (2.0, 1.7)
Oil type: Gear oil API GL±4 or GL±5
Recommended oil viscosity: SAE 75W±90
AUTOMATIC TRANSAXLE Automatic transmission
Fluid capacity (drain and ref ill),
L (qt., Imp. qt.): 2.9 (3.1, 2.6)
Fluid type: Automatic transmission fluid Type
T±IV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
ªScheduled Maintenance Guideº or
ªOwner 's Manual Supplementº. When
changing the automatic transmission fluid,
use only Toyota Genuine ATF Type T±IV
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Type T±IV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
55 (2.2)
Pedal free play, mm (in.): 1Ð3 (0.04Ð0.12)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6Ð9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
