Page 143 of 230
2001MY ECHO (U) L/O0008
1392001 ECHO (OM52440U)

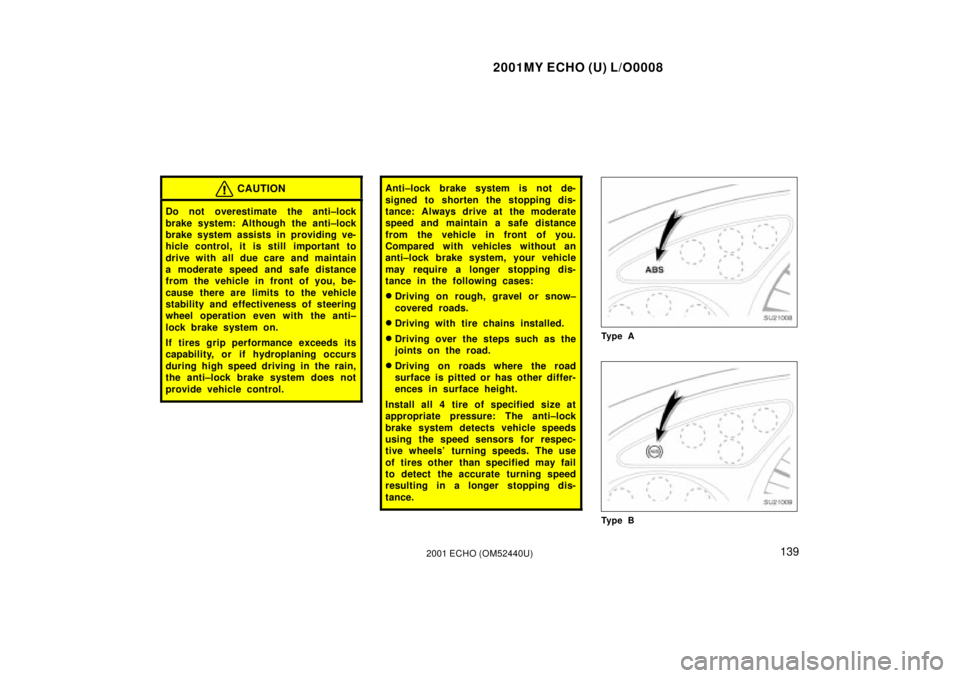

CAUTION
Do not overestimate the anti±lock
brake system: Although the anti±lock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti±
lock brake system on.
If tires grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the anti±lock brake system does not
provide vehicle control.
Anti±lock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at the moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
anti±lock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow±
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tire of specified size at
appropriate pressure: The anti±lock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels' turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed
resulting in a longer stopping dis-
tance.
SU21008
Ty p e A
SU21009
Ty p e B
Page 155 of 230
2001MY ECHO (U) L/O0008
1512001 ECHO (OM52440U)
Getting more kilometers/mileage from a
liter/gallon of fuel is easy±just take it
easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See Section
7±2 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.
Avoid lengthy warm±up idling. Once
the engine is running smoothly, begin
drivingÐbut gently. Remember, howev-
er, that on cold winter days this may
take a little longer.
Always keep the automatic transmis-
sion overdrive turned on. Driving with
the overdrive off will reduce the fuel
economy. (For details, see ªAutomatic
transmissionº in Section 1±6.)
Accelerate slowly and smoothly.
Avoid jackrabbit starts. Get into high
gear as quickly as possible.
Avoid long engine idling. If you have
a long wait and you are not in traffic,
it is better to turn off the engine and
start again later.
Avoid engine lugging or over±rev-
ving. Use a gear position suitable for
the road on which you are travelling.
Avoid continuous speeding up and
slowing down. Stop±and±go driving
wastes fuel.
Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or
take advantage of through streets to
avoid traffic lights. Keep a proper dis-
tance from other vehicles to avoid sud-
den braking. This will also reduce wear
on your brakes.
Avoid heavy traffic or traffic jams
whenever possible.
Do not rest your foot on the clutch
or brake pedal. This causes needless
wear, overheating and poor fuel econo-
my.
Maintain a moderate speed on high-
ways. The faster you drive,the greater
the fuel consumption. By reducing your
speed, you will cut down on fuel con-
sumption.
Keep the front wheels in proper
alignment. Avoid hitting the curb and
slow down on rough roads. Improper
alignment not only causes faster tire
wear but also puts an extra load on
the engine, which, in turn, wastes fuel.
Keep the bottom of your vehicle free
from mud, etc. This not only lessens
weight but also helps prevent corro-
sion.
Keep your vehicle tuned±up and in
top shape. A dirty air cleaner,
improper valve clearance, dirty plugs,
dirty oil and grease,brakes not
adjusted, etc. all lower engine
performance and contribute to poor fuel
economy. For longer life of all parts
and lower operating costs, keep all
maintenance work on schedule, and if
you often drive under severe
conditions, see that your vehicle
receives more frequent maintenance.
(For scheduled maintenance
information, please refer to the
ªScheduled Maintenance Guideº or
ªOwner 's Manual Supplementº.)
How to save fuel and make
your vehicle last longer, too
Page 162 of 230
2001MY ECHO (U) L/O0008
1582001 ECHO (OM52440U)
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the engine is running, keep
hands and clothing away from the
moving fan and engine drive belts.
4. If the coolant is leaking, stop the en-gine immediately. Call a Toyota dealer
for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the en-
gine is running. Fill it about half full.
CAUTION
Do not attempt to remove the radiator
cap when the engine and radiator are
hot. Serious injury could result from
scalding hot fluid and steam blown
out under pressure.
6. After the engine coolant temperaturehas cooled to normal, again check the
coolant level in the reservoir. If neces-
sary, bring it up to half full again. Seri-
ous coolant loss indicates a leak in the
system. You s hould have it checked as
soon as possible at your Toyota dealer.
If you have a flat tireÐ
1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place well away from
the traffic. Avoid stopping on the center
divider of a highway. Park on a level
spot with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission in ªPº (automatic) or
reverse (manual).
4. Have everyone get out of the vehicle on the side away from traffic.
5. Read the following instructions thor- oughly.
CAUTION
When jacking, be sure to observe the
following to reduce the possibility of
personal injury:
Follow jacking instructions.
Do not put any part of your body
under the vehicle supported by the
jack. Personal injury may occur.
Do not start or run the engine while
your vehicle is supported by the
jack.
Page 169 of 230
2001MY ECHO (U) L/O0008
1652001 ECHO (OM52440U)

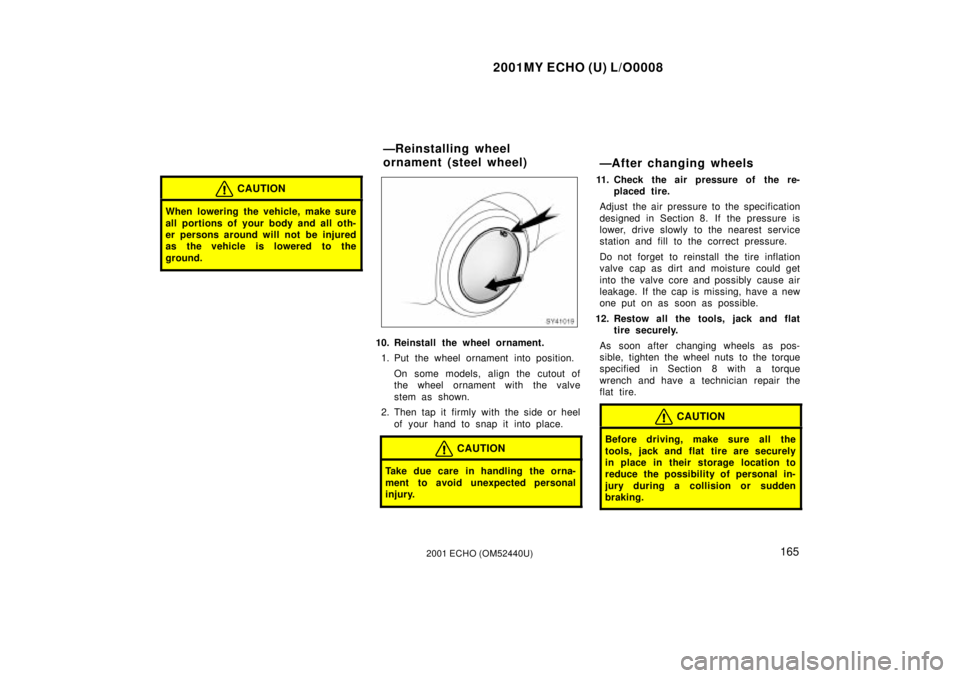

CAUTION
When lowering the vehicle, make sure
all portions of your body and all oth-
er persons around will not be injured
as the vehicle is lowered to the
ground.
SY41019
10. Reinstall the wheel ornament.1. Put the wheel ornament into position.
On some models, align the cutout of
the wheel ornament with the valve
stem as shown.
2. Then tap it firmly with the side or heel of your hand to snap it into place.
CAUTION
Take due care in handling the orna-
ment to avoid unexpected personal
injury.
ÐAfter changing wheels
11. Check the air pressure of the re- placed tire.
Adjust the air pressure to the specification
designed in Section 8. If the pressure is
lower, drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
12. Restow all the tools, jack and flat tire securely.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified in Section 8 with a torque
wrench and have a technician repair the
flat tire.
CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or s udden
braking.
ÐReinstalling wheel
ornament (steel wheel)
Page 183 of 230
2001MY ECHO (U) L/O0008
1792001 ECHO (OM52440U)
If you are a skilled do±it±yourself
mechanic, the Toyota service manuals are
recommended. Please be aware that
do±it±yourself maintenance can affect your
warranty coverage. See ªOwner 's Warranty
Information Bookletº or ªOwner 's Manual
Supplementº for the details.
General maintenance
Listed below are the general maintenance
items that should be performed as fre-
quently as specified. In addition to check-
ing the items listed, if you notice any
unusual noise, smell or vibration, you
should investigate the cause or take your
vehicle to your Toyota dealer or a quali-
fied service shop immediately. It is recom-
mended that any problem you notice be
brought to the attention of your dealer or
the qualified service shop for their advice.
CAUTION
Make these checks only where ade-
quate ventilation can be obtained if
you run the engine.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Tire pressure
Check the pressure with a gauge every
two weeks, or at least once a month. See
Section 7±2 for additional information.Tire surface and wheel nuts
Check the tires carefully for cuts, damage
or excessive wear. See Section 7±2 for
additional information. When checking the
tires, make sure no nuts are missing, and
check the nuts for looseness. Tighten
them if necessary.
Tire rotation
Rotate the tries according to the
maintenance schedule. (For scheduled
maintenance information, please refer to
the ªScheduled Maintenance Guideº or
ªOwner 's Manual Supplementº.)
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Page 195 of 230
2001MY ECHO (U) L/O0008
1912001 ECHO (OM52440U)
DO±IT±YOURSELF MAINTENANCE
Engine and Chassis
Checking the engine oil level192
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 193
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking brake fluid 194
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Checking power steering fluid 195
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire pressure 196
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Checking and replacing tires 197
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotating tires 198
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Installing snow tires and chains 199
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 200
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Aluminum wheel precautions 201
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7± 2
Page 200 of 230
2001MY ECHO (U) L/O0008
1962001 ECHO (OM52440U)
SU72010
If cold O.K.
If cold add
If hot O.K.
If hot add
a. Clean all dirt from outside of the reser-
voir tank.
b. Remove the rubber cap. c. Remove the reservoir cap by turning it counterclockwise and wipe the dipstick
clean.
d. Reinstall the reservoir cap.
e. Remove the reservoir cap again and look at the fluid level. If the fluid is
cold, the lever should be in the ªCOLDº
range on the dipstick. Similarly, if it is
hot, the fluid level should be in the
ªHOTº range. If the level is at the low
side of either range, add automatic
transmission fluid DEXRON II or III to
bring the level within the range. f. After replacing the reservoir cap and
rubber cap, visually check the steering
box case, vane pump and hose con-
nections for leaks or damage.
CAUTION
The reservoir tank may be hot so be
careful not to burn yourself.
NOTICE
Avoid overfilling, or the power steer-
ing could be damaged.
Checking tire pressure
SU72005
Keep your tire pressures at the proper
level.
The recommended cold tire pressures, tire
size and the vehicle capacity weight are
given in Section 8. They are also on the
tire pressure label as shown.
You should check the tire pressures every
two weeks, or at least once a month. And
do not forget the spare!
Incorrect tire pressure can reduce tire
life and make your vehicle less safe to
drive.
Page 201 of 230
2001MY ECHO (U) L/O0008
1972001 ECHO (OM52440U)
Low tire pressure results in excessive
wear, poor handling, reduced fuel econo-
my, and the possibility of blowouts from
overheated tires. Also, low tire pressure
can cause poor sealing of the tire bead.
If the tire pressure is excessively low,
there is the possibility of wheel deforma-
tion and/or tire separation.
High tire pressure produces a harsh ride,
handling problems,excessive wear at the
center of the tire tread, and a greater
possibility of tire damage from road haz-
ards.
If a tire frequently needs ref illing, have it
checked by your Toyota dealer.
The following instructions for checking
tire pressure should be observed:
The pressure should be checked only
when the tires are cold. If your ve-
hicle has been parked for at least 3
hours and has not been driven for
more than 1.5 km or 1 mile since, you
will get an accurate cold tire pressure
reading.
Always use a tire pressure gauge.
The appearance of a tire can be mis-
leading. Besides, tire pressures that
are even just a few pounds off can
degrade ride and handling.
Take special care when adding air to
the compact spare tire. The smaller
tire size can gain pressure very quick-
ly. Add compressed air in small quanti-
ties and check the pressure often until
it reaches the specified pressure.
Do not bleed or reduce tire pressure
after driving. It is normal for the tire
pressure to be higher after driving.
Never exceed the vehicle capacity
weight. The passenger and luggage
weight should be located so that the
vehicle is balanced.
Be sure to reinstall the tire inflation
valve caps. Without the valve caps,
dirt or moisture could get into the valve
core and cause air leakage. If the caps
have been lost, have new ones put on
as soon as possible.
Checking and replacing tires
Tread wear indicator
CHECKING YOUR TIRES
Check the tires tread for the tread wear
indicators. If the indicators show, re-
place the tires.
The tires on your Toyota have built±in
tread wear indicators to help you know
when the tires need replacement. When
the tread depth wears to 1.6 mm (0.06
in.) or less, the indicators will appear. If
you can see the indicators in two or more
adjacent grooves, the tire should be re-
placed. The lower the tread, the higher
the risk of skidding.
The effectiveness of snow tires is lost
if the tread wears down below 4 mm
(0.16 in.).
Page 203 of 230
2001MY ECHO (U) L/O0008
1992001 ECHO (OM52440U)
When rotating tires, check for uneven
wear and damage. Abnormal wear is usu-
ally caused by incorrect tire pressure, im-
proper wheel alignment, out±of±balance
wheels, or severe braking.
CAUTION
Do not include a compact spare tire
when rotating the tires. It is designed
for temporary use only.
WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select the same
size, construction and load capacity as
the original tires on your Toyota.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.CAUTION
Do not drive with the snow tires
incorrectly inflated.
Never drive over 120 km/h (75 mph)
with any type of snow tires.
TIRE CHAIN SELECTION
Use the tire chains of correct size and
type.
Use SAE Class ªSº type radial tire chains
except radial cable chains or V±bar type
chains.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check them
before installing chains.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5Ð1.0 km
(1/4Ð1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
Installing snow tires and
chains
Page 221 of 230
2001MY ECHO (U) L/O0008
2172001 ECHO (OM52440U)
Tires
Tire size:Compact spare tireT115/70D14
Except compact spare tire P175/65R14 81S
Tire pressure, kPa (kgf/cm
2 or bar, psi):
Compact spare tire 420 (4.2, 60)
Except compact spare tire 220 (2.2, 32)
Wheel size: Compact spare tire14 x 4T
Except compact Spare tire 14 x 5.5J
14 x 5.5JJ
Wheel nut torque, N´m (kgf´m, ft´lbf):
103 (10.5, 76)
Fuses
SU81001
Engine room J/B
Fuses (type A)1. H±LP (RH) 10 A: Right±hand headlight
2. H±LP (LH) 10 A: Left±hand headlight
3. ST 30 A: Starter system
4. AM2 15 A: Starter system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, engine immobiliser system,
discharge warning system
5. HORN 15 A: Horn
6. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
SU81002
Instrument panel J/B
7. DOME 15 A: Clock, radio, interior light,
gauges of meters, wireless remote con-
trol system
8. SPARE 15 A: Spare
9. SPARE 30 A: Spare
10. GAUGE 10 A: Back±up lights, charging
system, air c onditioning system, power
window system, gauges of meters
11. ACC 15 A: Clock, radio, outside rear
view mirror system, cigarette lighter
12. A/C 7.5 A: Air conditioning system
