oil type TOYOTA ECHO 2002 1.G Owners Manual

2002MY ECHO (U) L/O0109
1332002 ECHO (OM52463U)
INFORMATION BEFORE DRIVING YOUR
TOYOTA
Breakin period134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Fuel 134
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Operation in foreign countries 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Threeway catalytic converter 136
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust cautions 138
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Facts about engine oil consumption 138
. . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Brake pad wear limit indicators 142
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your Toyota’s identification 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft prevention labels 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Suspension and chassis 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Types of tires 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 2

2001MY ECHO (U) L/O0008
1502002 ECHO (OM52463U)
Do not drive in excess of the speed
limit. Even if the legal speed limit
permits it, do not drive over 140
km/h (85 mph) unless your vehicle
has highspeed capability tires.
Driving over 140 km/h (85 mph) may
result in tire failure, loss of control
and possible injury. Be sure to con-
sult a tire dealer to determine
whether the tires on your vehicle
are highspeed capability tires or
not before driving at such speeds.
Do not continue normal driving
when the brakes are wet. If they are
wet, your vehicle will require a
longer stopping distance, and it
may pull to one side when the
brakes are applied. Also, the park-
ing brake will not hold the vehicle
securely.
Winter driving tips
Make sure you have a proper freeze
protection of engine coolant.
Your coolant must contain ethyleneglycol
type coolant for a proper corrosion
protection of aluminum components. Use
“TOYOTA Long Life Coolant” or equivalent.
See Section 72 for details about coolant
type selection.
NOTICE
Do not use alcohol type antifreeze or
plain water alone.
When it is extremely cold, we recommend
to use 60% solution for your Toyota, to
provide protection down to about 50°C
(58 °F). Do not use more than 70% solu-
tion for better coolant performance.
Check the condition of the battery and
cables.
Cold temperatures reduce the capacity of
any battery, so it must be in top shape
to provide enough power for winter start-
ing. Section 73 tells you how to visually
inspect the battery. Your Toyota dealer
and most service stations will be pleased
to check the level of charge. Make sure the engine oil viscosity is
suitable for the cold weather.
See Section 72 for recommended viscos-
ity. Leaving a heavy summer oil in your
vehicle during winter months may cause
harder starting. If you are not sure about
which oil to use, call your Toyota deal-
er—he will be pleased to help.
Keep the door locks from freezing.
Squirt lock deicer or glycerine into the
locks to keep them from freezing. To open
a frozen lock, try heating the key before
inserting it.
Use a washer fluid containing an anti-
freeze solution.
This product is available at your Toyota
dealer and most auto parts stores. Follow
the manufacturer ’s directions for how
much to mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.

2002MY ECHO (U) L/O0109
1892002 ECHO (OM52463U)
Do not allow dirt or anything else
to fall through the spark plugholes.
 Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
 Do not overfill automatic transmis-
sion fluid, or the transmission
could be damaged.
 Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
 Be careful not to scratch the glass
surface with the wiper frame.
 When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Parts and tools
Here is a list of parts and tools you will
need on performing doityourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
Engine oil API grade SJ
“EnergyConserving”, SL
“EnergyConserving” or ILSAC
multigrade having viscosity proper for
your climate
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):
“TOYOTA Long Life Coolant” or equiva-
lent
See Section 72 for details about cool-
ant type selection.
Demineralized or distilled water
Tools:
Funnel (only for adding coolant)
CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING POWER STEERING FLUID
Parts (if level is low):
Automatic transmission fluid
DEXRON®II or III
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING BATTERY CONDITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Genuine Toyota fuse or equivalent with
same amperage rating as original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use)

2001MY ECHO (U) L/O0008
1942002 ECHO (OM52463U)

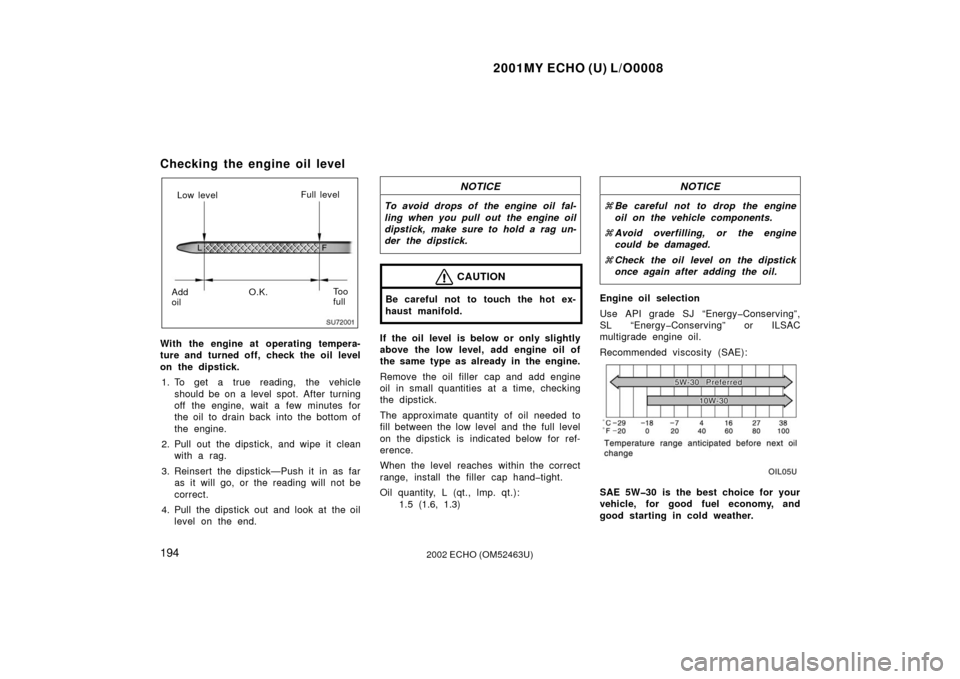

Checking the engine oil level
SU72001
Low levelFull level
Add
oil O.K.
To o
full
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
1. To get a true reading, the vehicle should be on a level spot. After turning
off the engine, wait a few minutes for
the oil to drain back into the bottom of
the engine.
2. Pull out the dipstick, and wipe it clean with a rag.
3. Reinsert the dipstick—Push it in as far as it will go, or the reading will not be
correct.
4. Pull the dipstick out and look at the oil level on the end.
NOTICE
To avoid drops of the engine oil fal-
ling when you pull out the engine oil
dipstick, make sure to hold a rag un-
der the dipstick.
CAUTION
Be careful not to touch the hot ex-
haust manifold.
If the oil level is below or only slightly
above the low level, add engine oil of
the same type as already in the engine.
Remove the oil filler cap and add engine
oil in small quantities at a time, checking
the dipstick.
The approximate quantity of oil needed to
fill between the low level and the full level
on the dipstick is indicated below for ref-
erence.
When the level reaches within the correct
range, install the f iller cap handtight.
Oil quantity, L (qt., lmp. qt.): 1.5 (1.6, 1.3)
NOTICE
Be careful not to drop the engine
oil on the vehicle components.
 Avoid overfilling, or the engine
could be damaged.
 Check the oil level on the dipstick
once again after adding the oil.
Engine oil selection
Use API grade SJ “EnergyConserving”,
SL “EnergyConserving” or ILSAC
multigrade engine oil.
Recommended viscosity (SAE):
OIL05U
SAE 5W30 is the best choice for your
vehicle, for good fuel economy, and
good starting in cold weather.

2002MY ECHO (U) L/O0109
2172002 ECHO (OM52463U)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.150.25 (0.0060.010)
Exhaust 0.250.35 (0.0100.014)
Spark plug type: DENSO K16RU
NGK BKR5EYA
Spark plug gap, mm(in.): 0.8 (0.031)
Drive belt tension measured with Bor-
roughs drive belt tension gauge No.
BT3373F (used belt), lbf: Generator belt 100 20
Power steering pump belt 65 10 ENGINE LUBRICATION
Oil capacity (drain and ref
ill), L (qt., Imp.
qt.):
With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
Oil grade: API grade SJ “EnergyConserving”, SL
“EnergyConserving” or ILSAC multi-
grade engine oil is recommended.

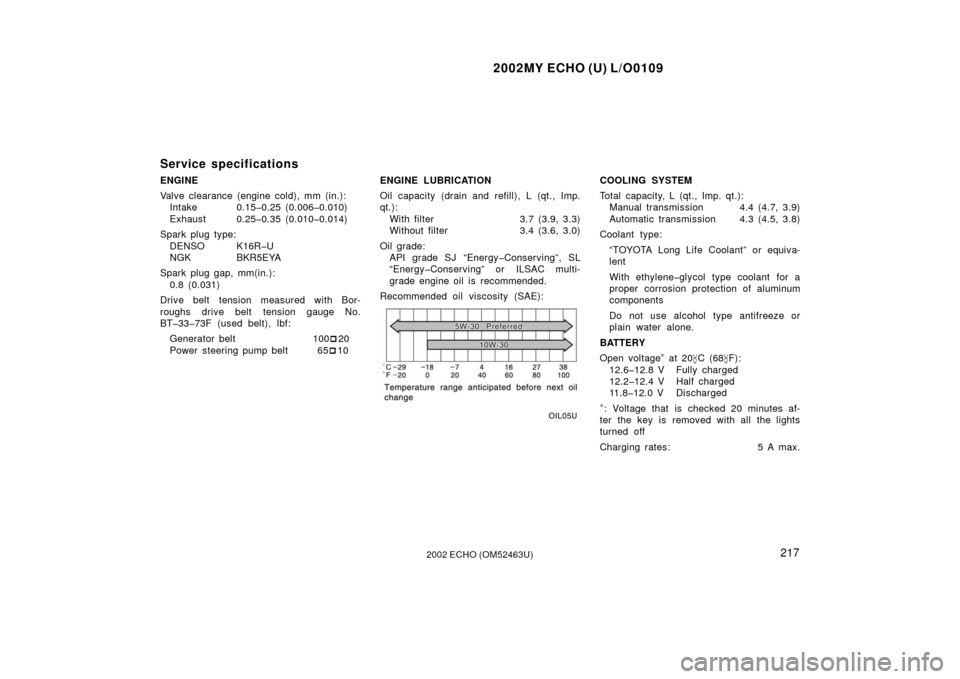

Recommended oil viscosity (SAE):
OIL05U
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.): Manual transmission 4.4 (4.7, 3.9)
Automatic transmission 4.3 (4.5, 3.8)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethyleneglycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.612.8 V Fully charged
12.212.4 V Half charged
11.812.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.

2001MY ECHO (U) L/O0008
2182002 ECHO (OM52463U)
CLUTCH
Pedal free play, mm (in.):5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1.9 (2.0, 1.7)
Oil type: Gear oil API GL4 or GL5
Recommended oil viscosity: SAE 75W90
AUTOMATIC TRANSAXLE Automatic transmission
Fluid capacity (drain and ref ill),
L (qt., Imp. qt.): 2.9 (3.1, 2.6)
Fluid type: Automatic transmission fluid Type
TIV
Change automatic transmission fluid only
as necessary. Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only Toyota Genuine ATF Type TIV
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Type TIV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
BRAKES
Minimum pedal clearance when depressed
with the pressure of 490 N (50 kgf, 110
lbf) with the engine running, mm (in.):
55 (2.2)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 6—9 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

2001MY ECHO (U) L/O0008
2262002 ECHO (OM52463U)
A
Adding washer fluid209
. . . . . . . . . . . . . . . .
Adjustment
Front seats 26
. . . . . . . . . . . . . . . . . . . . . . .
Seat belt 32
. . . . . . . . . . . . . . . . . . . . . . . . .
Air conditioning system 120
. . . . . . . . . . . . .
Airbags 40
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aluminum wheel precautions 203 . . . . . . . .
Antiglare inside rear view mirror 71 . . . . .
Antilock brake system warning light 82
. . . . . . . . . . . . . . . . . . . . . .
Antitheft steering column lock 88 . . . . . . .
Appearance care Cleaning the interior 177
. . . . . . . . . . . . . .
Protecting your Toyota from
corrosion 174
. . . . . . . . . . . . . . . . . . . . . .
Washing and waxing 175
. . . . . . . . . . . . . .
Automatic transmission
Driving with a automatic transmission 89
. . . . . . . . . . . . . . . . . . . .
Shift pattern 89
. . . . . . . . . . . . . . . . . . . . . .
Shift speed 89
. . . . . . . . . . . . . . . . . . . . . . .
Auxiliary box 130
. . . . . . . . . . . . . . . . . . . . . .
Auxiliary catch, Engine hood 19
. . . . . . . . .
B
Battery
Checking battery condition 206 . . . . . . . .
Gas caution 206 . . . . . . . . . . . . . . . . . . . . .
Handling safety 206 . . . . . . . . . . . . . . . . . .
Recharging precautions 207 . . . . . . . . . . .
Winter driving tips 150 . . . . . . . . . . . . . . . . Before starting the engine 148
. . . . . . . . . . .
Brake pad wear indicators 142 . . . . . . . . . . .
Brake system 139 . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 82 . . . . . . . . . .
Brakes Fluid level 194 . . . . . . . . . . . . . . . . . . . . . . .
Pad wear indicators 142 . . . . . . . . . . . . . .
Parking 94 . . . . . . . . . . . . . . . . . . . . . . . . . .
Breakin tips 134 . . . . . . . . . . . . . . . . . . . . . .
Brightness control 76 . . . . . . . . . . . . . . . . . . .
C
Car audio system 95
. . . . . . . . . . . . . . . . . . .
Carbon monoxide caution 138
. . . . . . . . . . .
Checking and replacing fuses 208 . . . . . . . .
Checking brake fluid 197
. . . . . . . . . . . . . . . .
Checking the engine oil level 194 . . . . . . . .
Checking the radiator 197
. . . . . . . . . . . . . . .
Child restraint Child restraint system 54
. . . . . . . . . . . . .
Installation 56
. . . . . . . . . . . . . . . . . . . . . . .
Precautions 53
. . . . . . . . . . . . . . . . . . . . . .
Types of child restraint system 55 . . . . . .
Cigarette lighter and ashtray 128
. . . . . . . . .
Cleaning the interior 177
. . . . . . . . . . . . . . . .
Clock 128
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cold weather Operation 150
. . . . . . . . . . . . .
Controls, Instrument panel 2,4
. . . . . . . . . .
Cooling system
Coolant level 196
. . . . . . . . . . . . . . . . . . . .
Engine overheating 159
. . . . . . . . . . . . . . .
Radiator and reservoir 196
. . . . . . . . . . . . Radiator cap
159
. . . . . . . . . . . . . . . . . . . . .
Winter driving tips 150
. . . . . . . . . . . . . . . .
Corrosion prevention 174
. . . . . . . . . . . . . . .
Cup holders 131
. . . . . . . . . . . . . . . . . . . . . . .
D
Defogger, Rear window 77
. . . . . . . . . . . . . .
Dimmer switch, Headlight 74
. . . . . . . . . . . .
Dinghy towing 151
. . . . . . . . . . . . . . . . . . . . .
Directional signals 74
. . . . . . . . . . . . . . . . . .
Discharge warning light 82
. . . . . . . . . . . . . .
Doityourself maintenance
Parts and tools 189
. . . . . . . . . . . . . . . . . . .
Service precautions 187
. . . . . . . . . . . . . .
Does your vehicle need repairing? 183 . . .
Driving Automatic transmission 89
. . . . . . . . . . . .
Driving tips 149,150
. . . . . . . . . . . . . . . . . .
Manual transmission 93
. . . . . . . . . . . . . .
Driving tips
Driving tips in various conditions 149
. . . . . . . . . . . . . . . . . . . . .
Driving with a
automatic transmission 89
. . . . . . . . . .
Driving with a manual transmission 93
. . . . . . . . . . . . .
Economical driving 153
. . . . . . . . . . . . . . .
Good driving practice 89,93
. . . . . . . . . . .
Winter driving tips 150
. . . . . . . . . . . . . . . .
During Breakin 134
. . . . . . . . . . . . . . . . . . . . . . . .

2002MY ECHO U L/O0109
2002 ECHO (OM52463U)
Publication No. OM52463U
Part No. 01999-52463
Printed in Japan 01010900
( U)
Quick index
If a service reminder indicator or warning buzzer comes on 82 . . . . . . . .
 If your vehicle will not start 156 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
 If your engine stalls while driving 159 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 If your vehicle overheats 159 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
 If you have a flat tire 160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
 If your vehicle needs to be towed 168 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 Tips for driving during break-in period 134 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 How to start the engine 148 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
 General maintenance 181 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
 Complete index 225 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . .
Gas station information
Fuel type:
UNLEADED gasoline, Octane Rating 87 (Research Octane Number 91)
or higher
See page 134 for detailed information.
Fuel tank capacity:
45 L (11.9 gal., 9.9 lmp.gal.)
Engine oil:
API grade SJ “EnergyConserving”, SL “EnergyConserving” or ILSAC
multigrade engine oil is recommended.
See page 194 for detailed information.
Automatic transmission fluid: Automatic transmission fluid Type TIV
See page 218 for detailed information.
Tire information: See pages 199 through 203.
Tire pressure: See page 219.
U3
I
