230

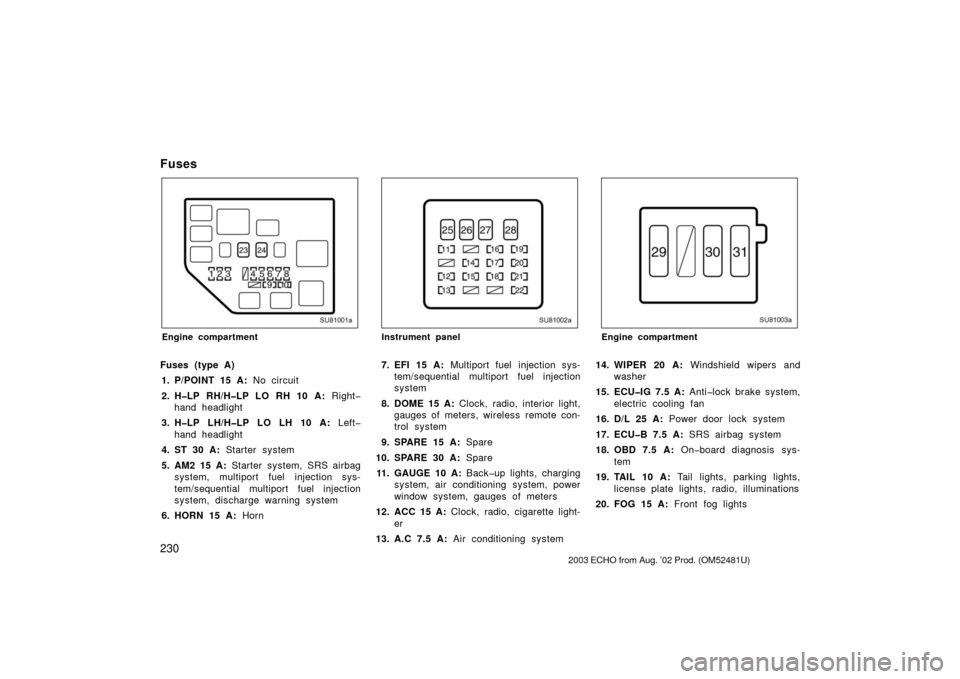

Fuses
SU81001a
Engine compartment
Fuses (type A)1. P/POINT 15 A: No circuit
2. H LP RH/H LP LO RH 10 A: Right
hand headlight
3. H LP LH/H LP LO LH 10 A: Left
hand headlight
4. ST 30 A: Starter system
5. AM2 15 A: Starter system, SRS airbag
system, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, discharge warning system
6. HORN 15 A: Horn
SU81002a
Instrument panel
7. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
8. DOME 15 A: Clock, radio, interior light,
gauges of meters, wireless remote con-
trol system
9. SPARE 15 A: Spare
10. SPARE 30 A: Spare
11. GAUGE 10 A: Back up lights, charging
system, air c onditioning system, power
window system, gauges of meters
12. ACC 15 A: Clock, radio, cigarette light-
er
13. A.C 7.5 A: Air conditioning system
SU81003a
Engine compartment
14. WIPER 20 A: Windshield wipers and
washer
15. ECU IG 7.5 A: Anti lock brake system,
electric cooling fan
16. D/L 25 A: Power door lock system
17. ECU B 7.5 A: SRS airbag system
18. OBD 7.5 A: On board diagnosis sys-
tem
19. TAIL 10 A: Tail lights, parking lights,
license plate lights, radio, illuminations
20. FOG 15 A: Front fog lights
2003 ECHO from Aug. ’02 Prod. (OM52481U)
231
21. HAZ 10 A: Turn signal lights, emergen-
cy flashers
22. STOP 10 A: Stop lights, high mounted
stop light, anti lock brake system, shift
lock system, multiport fuel injection
system/s equential multiport fuel injec-
tion system
Fuses (type B)
23. HTR SUB1 50 A: Air conditioning sys-
tem (PTC 1)
24. RDI 30 A: Electric cooling fan
25. AM1 40 A: “ACC”, “GAUGE”, “WIPER”,
and “ECU IG” fuses
26. POWER 30 A: Power windows
27. HTR 40 A: Air conditioning system
28. DEF 30 A: Rear window defogger sys-
tem.
Fuses (type C)
29. MAIN 60 A: “EFI”, “DOME”, “HORN”,
“ST”, “AM2”, “H LP LH”, and “H LP
RH” fuse
30. ALT 100 or 120 A: “ECU B”, “TAIL”,
“D/L”, “OBD”, “A.C”, “HTR”, “POWER”,
“STOP” and “FL DEF” fuses
31. ABS 60 A: Anti lock brake system
2003 ECHO from Aug. ’02 Prod. (OM52481U)
