Page 16 of 241
12
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
SU12026
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlight and tail lights.
The “PANIC” switch is used to deter the
vehicle theft when you witness anyone at-
tempting to brake into or damage your
vehicle.
The alarm will last for one minute. To stop
this in the midway, push the “PANIC”
switch once again, unlock any door with
the key or transmitter, open the trunk with
the key or turn the ignition key from the
“LOCK” to “ON” position.To cancel the “PANIC” mode, unlock any
door with the key or wireless remote con-
trol transmitter, open the trunk with the
key from the “LOCK” to “ON” position.
The “PANIC” mode does not work when
the key is inserted in the ignition switch.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instruction in order not to cause
damage on the transmitter.Do not leave the transmitter on the
places where the temperature becomes
high such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 2 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
Page 45 of 241
41

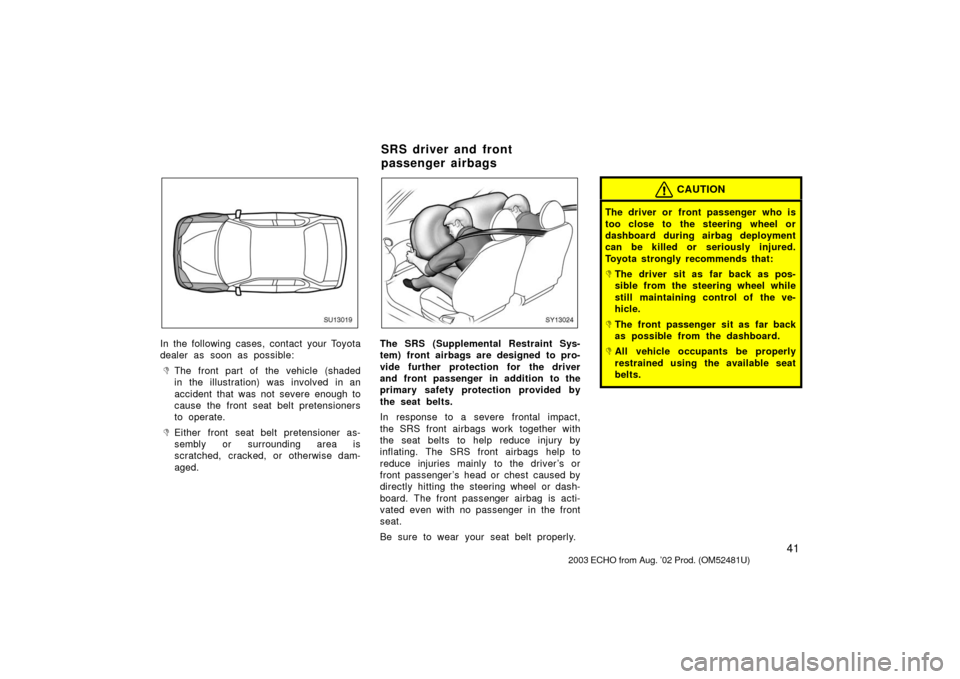

SU13019
In the following cases, contact your Toyota
dealer as soon as possible:
The front part of the vehicle (shaded
in the illustration) was involved in an
accident that was not severe enough to
cause the front seat belt pretensioners
to operate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise dam-
aged.
SY13024
The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help to
reduce injuries mainly to the driver ’s or
front passenger ’s head or chest caused by
directly hitting the steering wheel or dash-
board. The front passenger airbag is acti-
vated even with no passenger in the front
seat.
Be sure to wear your seat belt properly.
CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
SRS driver and front
passenger airbags
Page 50 of 241
46

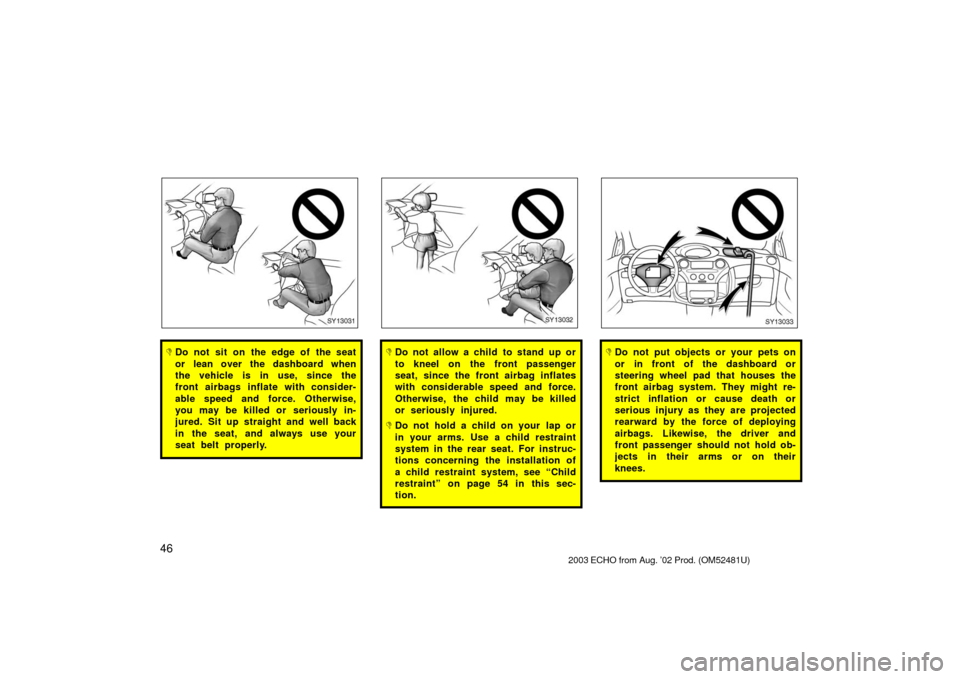

SY13031
Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use, since the
front airbags inflate with consider-
able speed and force. Otherwise,
you may be killed or seriously in-
jured. Sit up straight and well back
in the seat, and always use your
seat belt properly.
SY13032
Do not allow a child to stand up or
to kneel on the front passenger
seat, since the front airbag inflates
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint” on page 54 in this sec-
tion.
SY13033
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
front airbag system. They might re-
strict inflation or cause death or
serious injury as they are projected
rearward by the force of deploying
airbags. Likewise, the driver and
front passenger should not hold ob-
jects in their arms or on their
knees.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
Page 51 of 241
47
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover or front pas-
senger airbag cover, front passen-
ger airbag or airbag sensor assem-
bly. Doing any of these may cause
sudden SRS front airbag inflation or
disable the system, which could re-
sult in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile two way radio,
cassette tape player or compact
disc player
Modification of the suspension sys-
tem
Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
SP13504
This SRS front airbag system has a
service reminder indicator to inform the
driver of operating problems. If either of
the following conditions occurs, this
indicates a malfunction of the airbags.
Contact your Toyota dealer as soon as
possible to service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.
2003 ECHO from Aug. ’02 Prod. (OM52481U)
