TOYOTA ECHO 2004 1.G User Guide
Manufacturer: TOYOTA, Model Year: 2004, Model line: ECHO, Model: TOYOTA ECHO 2004 1.GPages: 262, PDF Size: 4.99 MB
Page 11 of 262
32004 ECHO from Aug. ’03 Prod. (OM52526U)
1. Headlight and turn signal switches
2. Wiper and washer switches
3. Rear window defogger switch
4. Emergency flasher switch
5. Clock
6. Air conditioning controls
7. Security indicator light/Front passen-
ger ’s seat belt reminder light
8. Car audio
9. Cigarette lighter/Power outlet
10. Ashtray/Coin box
11. Ignition switch
12. Tilt steering lock release lever
13. Power rear view mirror control switches
14. Instrument panel light control knob
SU11002a
Page 12 of 262
42004 ECHO from Aug. ’03 Prod. (OM52526U)
SU11015
1. Service reminder indicators and
indicator lights
2. Speedometer3. Fuel gauge
4. Odometer and two trip meters5. Trip meter reset knob
Instrument cluster overview
Ty p e A
Page 13 of 262
52004 ECHO from Aug. ’03 Prod. (OM52526U)
SU11014
1. Service reminder indicators and
indicator lights
2. Speedometer3. Fuel gauge
4. Odometer and two trip meters5. Trip meter reset knob Ty p e B
Page 14 of 262
62004 ECHO from Aug. ’03 Prod. (OM52526U)

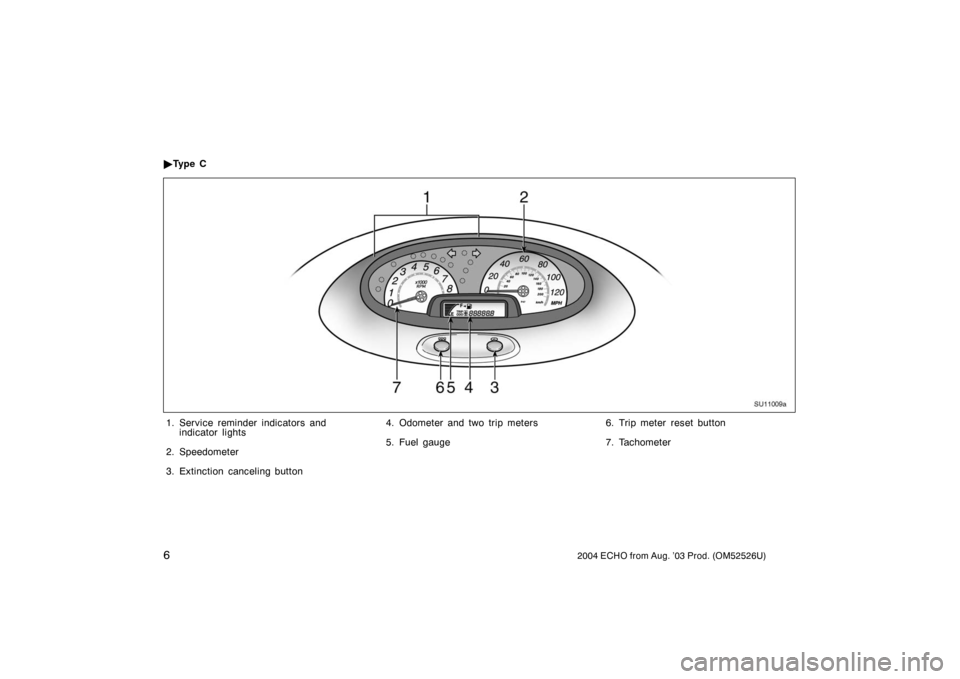

SU11009a
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Extinction canceling button4. Odometer and two trip meters
5. Fuel gauge6. Trip meter reset button
7. Tachometer Ty p e C
Page 15 of 262
72004 ECHO from Aug. ’03 Prod. (OM52526U)
Indicator symbols on the instrument panel
orBrake system warning light∗
1
Driver ’s seat belt reminder light∗
1
Discharge warning light∗
1
Malfunction indicator lamp∗
1
Low engine oil pressure warning light∗
1
Anti-lock brake system warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning light∗
1
Low fuel level warning light∗
1
(Type A)
Turn signal indicator lights
Headlight high beam indicator light
Overdrive−off indicator light
Low engine coolant temperature indicator light
(in blue)∗
2
High engine coolant temperature warning light
(in red)∗
1
Front passenger ’s seat belt reminder light∗
1
Open door warning light∗
1
or
Low fuel level indicator light∗
1
(Type B)
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 90 in Section 1−6.
∗
2: For details, see “Engine coolant temperature indicator and
warning light” on page 87 in Section 1−6.
Page 16 of 262
82004 ECHO from Aug. ’03 Prod. (OM52526U)
Page 17 of 262
92004 ECHO from Aug. ’03 Prod. (OM52526U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 2
Page 18 of 262
102004 ECHO from Aug. ’03 Prod. (OM52526U)

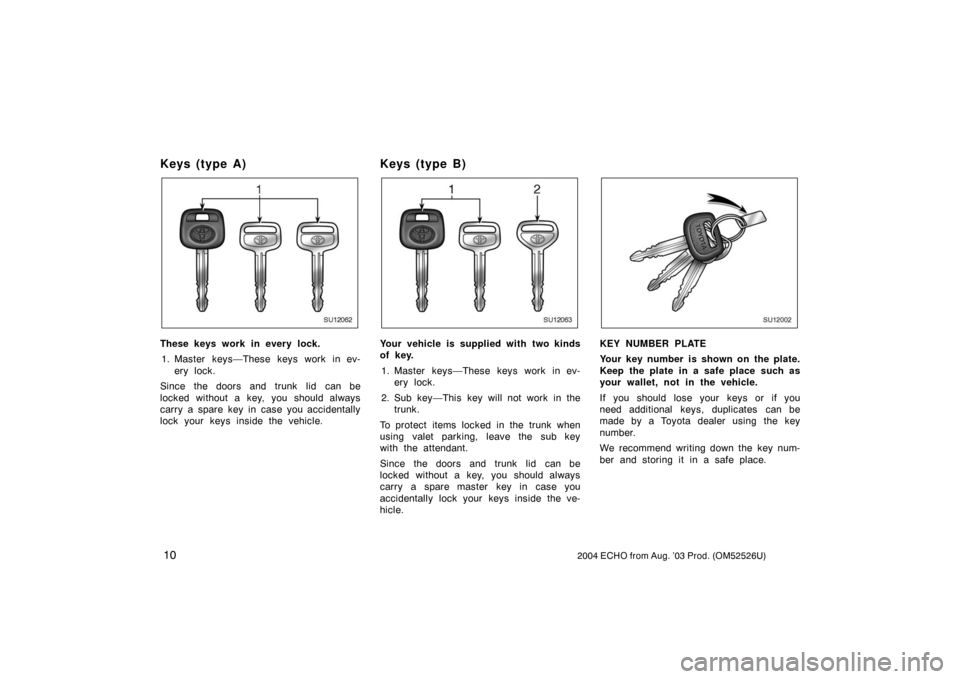

Keys (type A)
SU12062
These keys work in every lock.
1. Master keys—These keys work in ev-
ery lock.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare key in case you accidentally
lock your keys inside the vehicle.
Keys (type B)
SU12063
Your vehicle is supplied with two kinds
of key.
1. Master keys—These keys work in ev-
ery lock.
2. Sub key—This key will not work in the
trunk.
To protect items locked in the trunk when
using valet parking, leave the sub key
with the attendant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
SU12002
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Page 19 of 262
112004 ECHO from Aug. ’03 Prod. (OM52526U)
Side doors—
SY12008
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—All
the doors lock and unlock simultaneously
with either front door. In the driver’s door
lock, turning the key once will unlock the
driver’s door and twice in succession will
unlock all the doors simultaneously.
SY12009
LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the knob down.
To unlock: Pull the knob up.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock sys-
tem—Doors cannot be locked when either
front door is open and the key is in the
ignition.
SU12005
Vehicles with power windows (driver’s
side)
SU12006
Vehicles with power windows (passen-
ger’s side)
Page 20 of 262
122004 ECHO from Aug. ’03 Prod. (OM52526U)

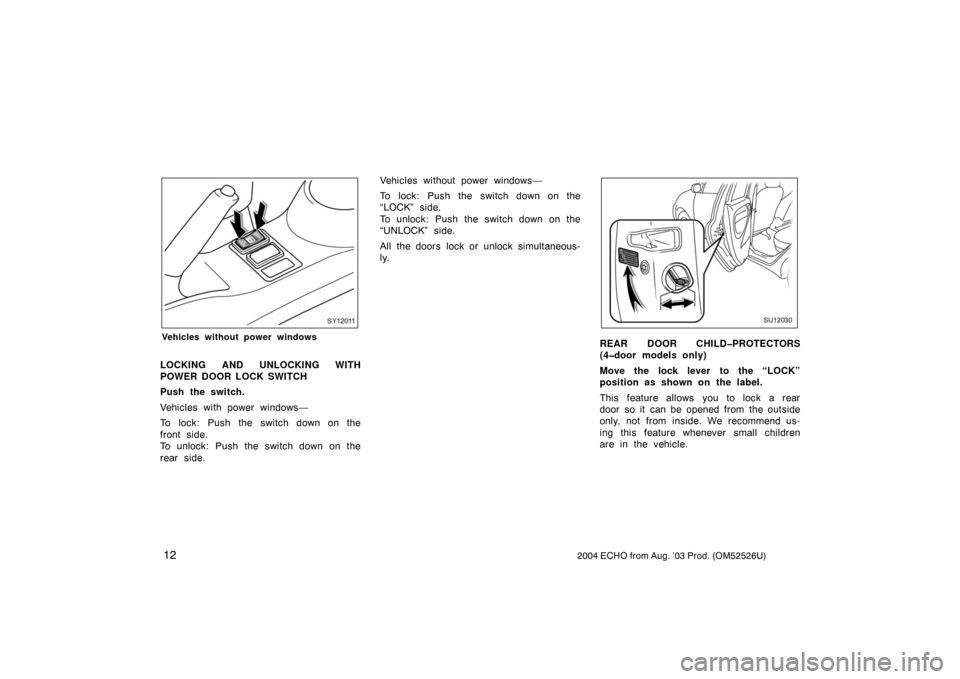

SY12011
Vehicles without power windows
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
Vehicles with power windows—
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.Vehicles without power windows—
To lock: Push the switch down on the
“LOCK” side.
To unlock: Push the switch down on the
“UNLOCK” side.
All the doors lock or unlock simultaneous-
ly.
SU12030
REAR DOOR CHILD PROTECTORS
(4 door models only)
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
