42005 ECHO from Aug. ’04 Prod. (OM52636U)
SU11015
1. Service reminder indicators andindicator lights
2. Speedometer 3. Fuel gauge
4. Odometer and two trip meters
5. Trip meter reset knob
Instrument cluster overview
Ty p e A
Page 13 of 268
52005 ECHO from Aug. ’04 Prod. (OM52636U)
SU11014
1. Service reminder indicators andindicator lights
2. Speedometer 3. Fuel gauge
4. Odometer and two trip meters
5. Trip meter reset knob
Ty p e B
Page 14 of 268
62005 ECHO from Aug. ’04 Prod. (OM52636U)
SU11009b

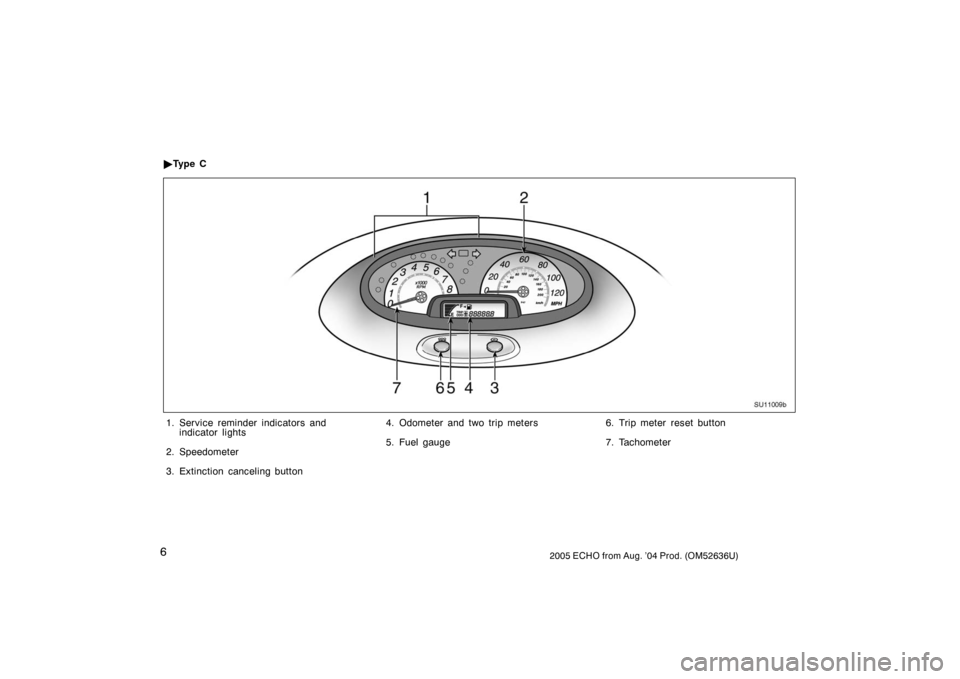

1. Service reminder indicators andindicator lights
2. Speedometer
3. Extinction canceling button 4. Odometer and two trip meters
5. Fuel gauge
6. Trip meter reset button
7. Tachometer
Ty p e C
Page 93 of 268
852005 ECHO from Aug. ’04 Prod. (OM52636U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Engine coolant temperature indicator and warning light 87
. . . . . . . . . .
Tachometer 88
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Odometer and two trip meters 89
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 90
. . . . . . . . . . . . . . .
SECTION 1 6
Page 97 of 268
892005 ECHO from Aug. ’04 Prod. (OM52636U)
Odometer and two trip meters
SU15003a
Ty p e A
SH15006
Ty p e B

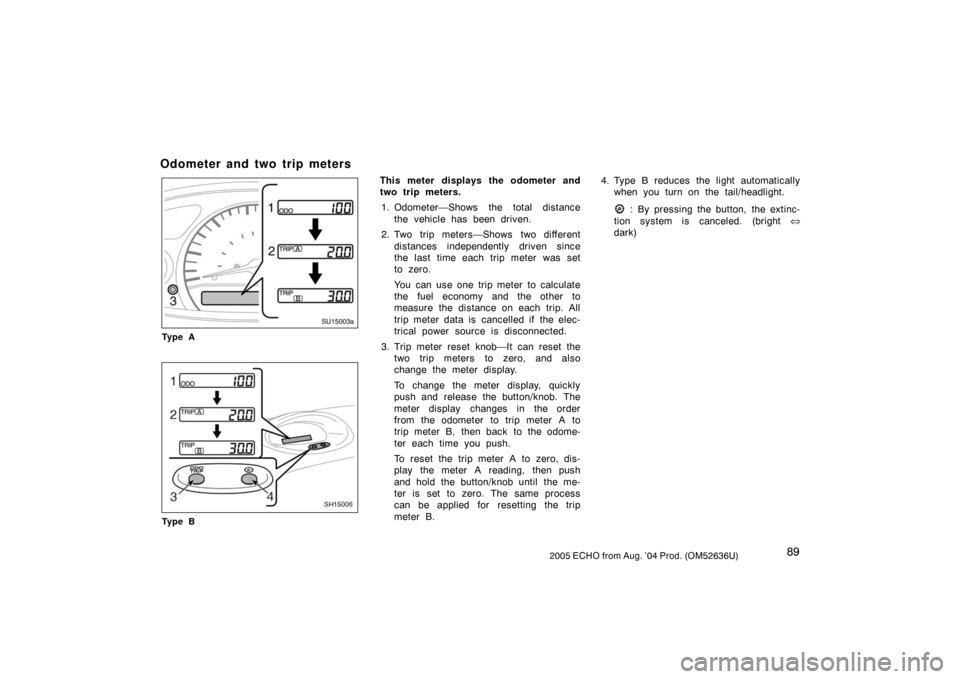

This meter displays the odometer and
two trip meters.1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Shows two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
3. Trip meter reset knob—It can reset the two trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the button/knob. The
meter display changes in the order
from the odometer to trip meter A to
trip meter B, then back to the odome-
ter each time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the button/knob until the me-
ter is set to zero. The same process
can be applied for resetting the trip
meter B. 4. Type B reduces the light automatically
when you turn on the tail/headlight.
: By pressing the button, the extinc-
tion system is canceled. (bright ⇔
dark)
Page 239 of 268
2312005 ECHO from Aug. ’04 Prod. (OM52636U)
If air loss occurs while driving, do not
continue driving. Driving even a short
distance can damage a tire beyond
repair.
An y ti res wh i ch are over 6 years
old must be checked by a qualified
technician even if damage is not
obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This applies also to the spare tire and
tires stored for future use.
REPLACING YOUR TIRES
When replacing a tire, use a tire of
the same size and construction,
and the same or greater load ca-
pacity as the originally installed
tires.
Using any other size or type of tire
may seriously affect handling, ride,
speedometer/odometer calibration,
ground clearance, and clearance be-
tween the body and tires or snow
chains.Check that the maximum load of the
replaced tire is greater than 1/2 of the
Gross Axle Weight Ratings (GAWR)
of either the front axle or the rear
axle, whichever is greater. As for the
maximum load of the tire, see the load
limit at maximum cold tire inflation
pressure mentioned on the sidewall
of the tire, and as for the Gross Axle
Weight Ratings (GAWR), see the Cer-
tification Label. For details about the
sidewall of the tire and the Certifica-
tion Label, see pages 157 and 155.
CAUTION
Observe the following instruc-
tions. Otherwise, an accident
may occur resulting in death or
serious injuries.
Do not mix radial, bias belted,
or bias ply tires on your ve-
hicle, as this may cause dan-
gerous handling characteris-
tics resulting in loss of control.
Do not use tires other than the
manufacturer’s recommended
size, as this may cause danger-
ous handling characteristics
resulting in loss of control.
Toyota recommends all four tires,
or at least both of the front or rear
tires be replaced at a time as a set.
S ee “I f you hav e a fl at tire” in Section
4 for tire change procedure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect ve-
hicle handling and tire life. Wheels
can get out of balance with regular
use and should therefore be balanced
occasionally.
When replacing a tubeless tire, the
air valve should also be repl aced
w i t h a new on e.
