812007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

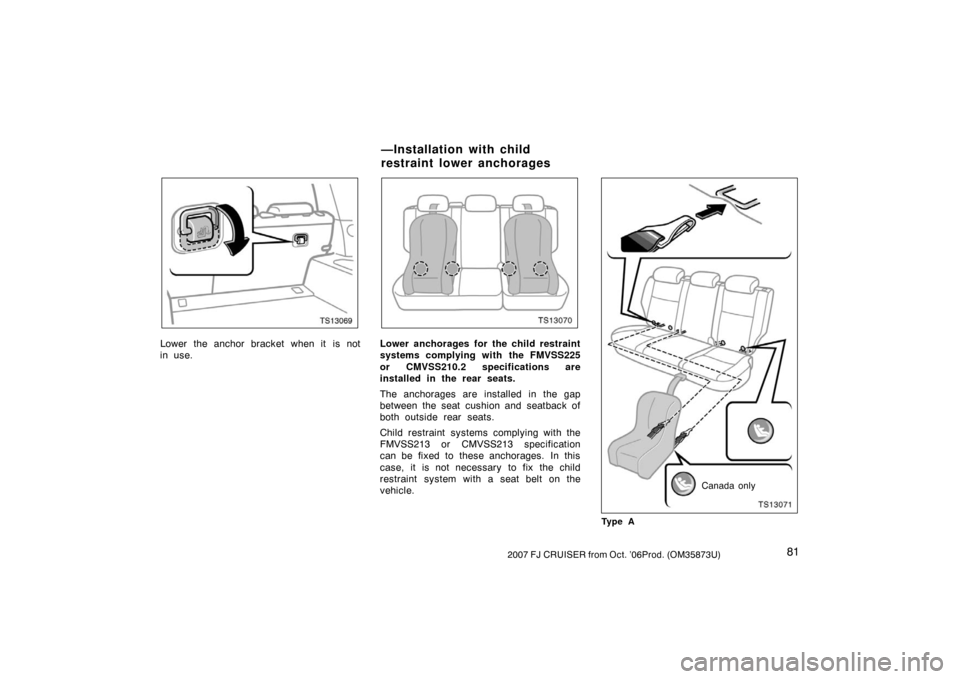

TS13069
Lower the anchor bracket when it is not
in use.
TS13070
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seats.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.TS13071
Canada only
Ty p e A
—Installation with child
restraint lower anchorages

822007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

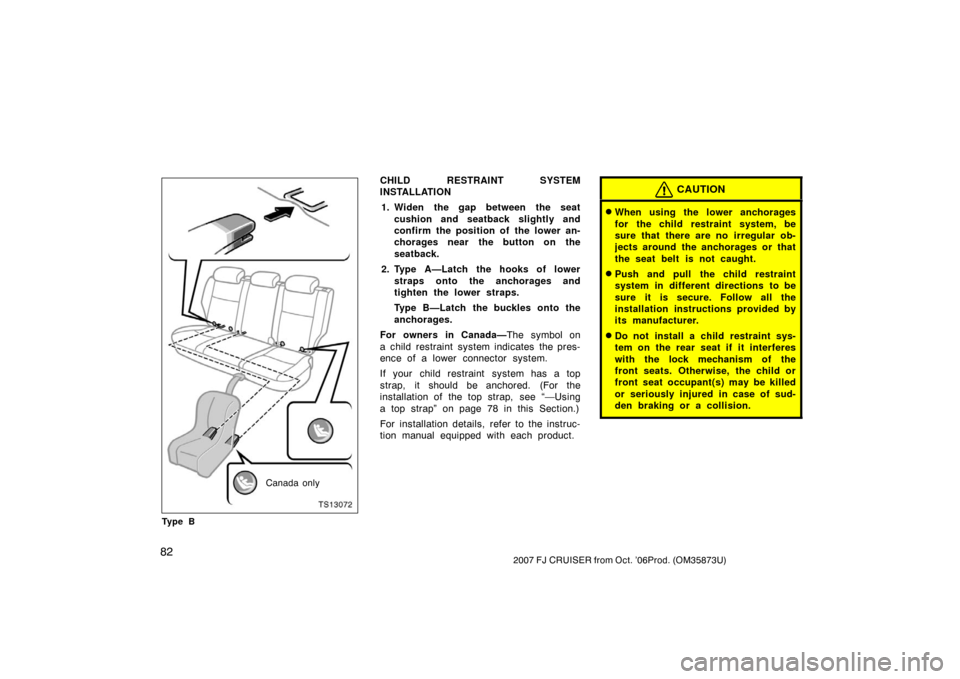

TS13072
Canada only
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 78 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

832007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside rear view mirrors 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirror 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
SECTION 1 4

842007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

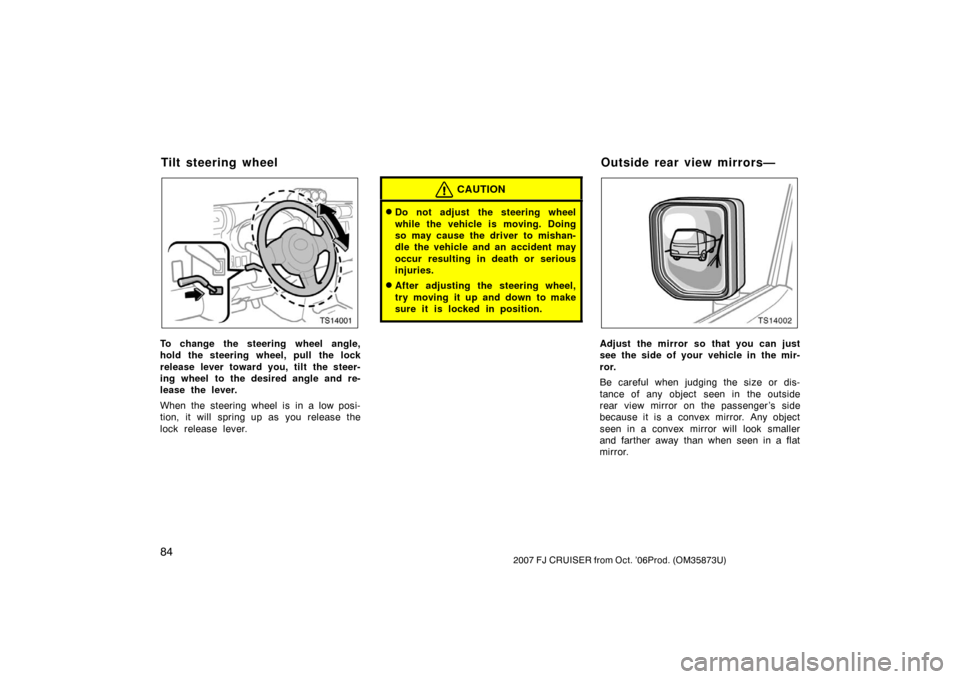

TS14001
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
TS14002
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt steering wheelOutside rear view mirrors—

852007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
TS14003a
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

862007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

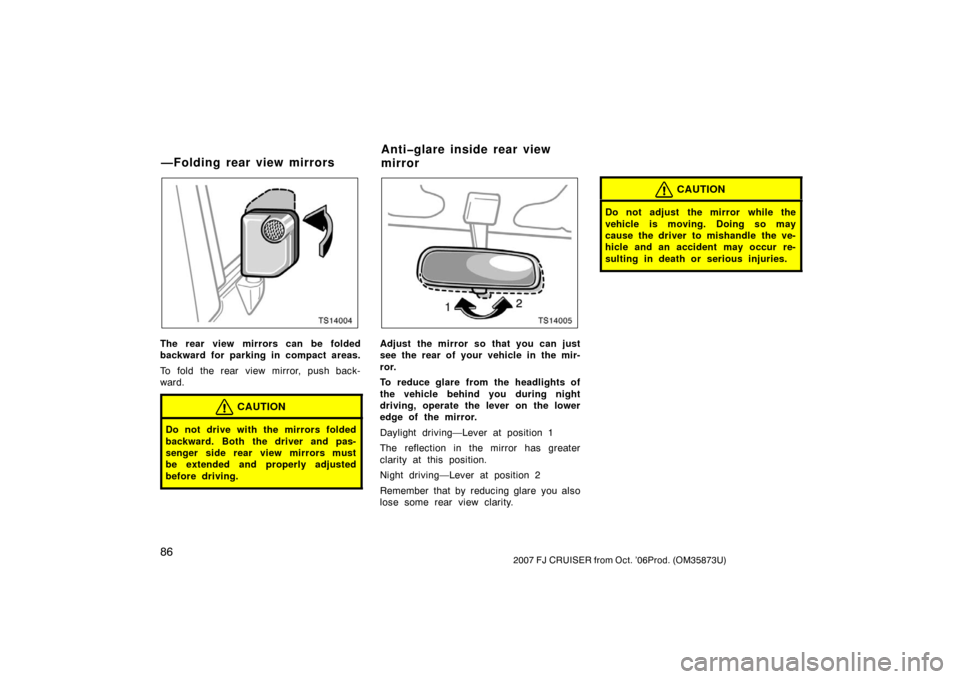

TS14004
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
TS14005
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
—Folding rear view mirrorsAntiglare inside rear view
mirror

872007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
TS14007
To use the vanity mirror, swing down
the sun visor.
Vanity mirror

882007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

892007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals90
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Instrument panel light control 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Luggage compartment light 93
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 94
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window wiper and washer 95
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back window defogger 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
SECTION 1 5

902007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
TS15001
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker, illumination (on some
models) and instrument panel lights
Position 2—Headlights and all of the
above
Automatic light cut off system
Position 1—
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position.Position 2—
The lights automatically turn off after 30
seconds when all the side doors, back
door and back window are closed with the
ignition key in the “ACC” or “LOCK” posi-
tion.
If the “LOCK” switch of the wireless re-
mote control transmitter is pushed twice
simultaneously, the lights automatically
turn off immediately.
The time before the headlights turn off
can be changed. For details, contact your
Toyota dealer.
If the driver ’s door is kept open, the lights
automatically turn off after 30 minutes.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light (DRL) system (all
models sold in Canada and some mod-
els sold in U.S.A.)
The Daytime Running Light (DRL) system
can make it easier for others to see the
front of your vehicle during the day. The
DRL system can be helpful in many differ-
ent driving conditions, but they can be
especially helpful in the short periods after
dawn and before sunset.
The DRL system will make your headlights
come on at a reduced brightness when:
The ignition is on with the engine run-
ning.
The knob is in the “OFF” position or
position 1.
The parking brake is released.
To turn off the DRL system, twist the knob
to position 2 or turn the ignition switch off.
Headlights and turn signals
