TOYOTA FJ CRUISER 2007 1.G Owners Manual

2612007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
CAUTION
When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
 Have the wheel nuts tightened
with torque wrench to 113 N·m
(11.5 kgf·m, 85 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
TS40016a
Aluminum wheel
TS40015
Steel wheel
11. Reinstall the wheel ornament.
Put the wheel ornament into position
and then tap it firmly with the side or
heel of your hand to snap it into place.
CAUTION
Take due care in handling the
ornament to avoid unexpected
personal injury.
 Do not attach a heavily dam-
aged plastic wheel ornament.
It may fly off the wheel and
cause accidents while the ve-
hicle is moving.
NOTICE
Steel wheel: To prevent damage
to the wheel ornament, do not
attach it to the wheel on the
back door.
—Reinstalling wheel ornament

2622007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
12.Check the air pressure of the re-placed tire.
Adjust the air pressu re to the specifi-
cation designated on page 320 in
Section 8. If the pressure is lower,
drive slowly to the nearest service
station and fill to the correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into th e valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
13.Restow all the tools, jack and flat tire securely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified on page 320 in Sec-
tion 8 with a torque wrench. Have a
technician repair the flat tire.CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
If your vehicle is equipped with the
“AUTO LSD” system, you can use it in
this situation. (For details, see “AUTO
LSD system” on page 127 in Section
17.)
If your vehicle is equipped with the
rear differential lock system, you can
use it in this situation. (For details, see
“Rear differential lock system” on page
132 in Section 17.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
—After changing wheels If your vehicle becomes stuck

2632007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
 Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
TS40017
(a) Towing with wheel lift type truck—
—From front
—From rear
(b) Using flat bed truck
Twowheel drive models
TS40018
(a) Towing with wheel lift type truck— —From front
—From rear
(b) Using flat bed truck
Fourwheel drive models
If your vehicle needs to be
towed—

2642007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” on page 265 in this Section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.Twowheel drive models—
(a) Towing with wheel lift type truck
From front—
Use a towing dolly under the
rear wheels.
NOTICE
Never tow a vehicle from the front
with the rear wheels on the ground,
as this may cause serious damage to
the transmission.
From rear— Place the ignition key in the
“ACC” position.
NOTICE
 When lifting wheels, take care to
ensure adequate ground clearance
for towing at the opposite end of
the raised vehicle. Otherwise, the
bumper and/or underbody of the
towed vehicle will be damaged dur-
ing towing.
 Do not tow with the key removed or
in the “LOCK” position, as the
steering lock mechanism is not
strong enough to hold the front
wheels straight while towing.
(b) Using flat bed truck Fourwheel drive models—
(a) Towing with wheel lift type truck
FULLTIME FOURWHEEL DRIVE
MODELS
Use a towing dolly under the wheels not
lifted by the truck.
PARTTIME FOURWHEEL DRIVE
MODELS
From front—
Use a towing dolly under the
rear wheels.
NOTICE
Never tow a vehicle from the front
with the rear wheels on the ground,
as this may cause serious damage to
the transmission.
From rear— We recommend using a tow-
ing dolly under the front wheels. If you do
not use a towing dolly, place the ignition
key in the “ACC” position, put the trans-
mission in “N” and the transfer in “H2”.

2652007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
NOTICE
When lifting wheels, take care to
ensure adequate ground clearance
for towing at the opposite end of
the raised vehicle. Otherwise, the
bumper and/or underbody of the
towed vehicle will be damaged dur-
ing towing.
 Do not tow with the key removed or
in the “LOCK” position when tow-
ing from the rear without a towing
dolly. The steering lock mechanism
is not strong enough to hold the
front wheels straight.
(b) Using flat bed truck
TS40019
(c) Towing with sling type
truck
All models—
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
TS40020
Front
TS40021
Rear
—Emergency towing

2662007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to the emergency towing eyelets
under the front of the vehicle or the
left emergency towing eyelet under the
rear of the vehicle. Use extreme caution
when towing vehicles.
Vehicles with an automatic transmis-
sion, use only the front towing eyelet
when towing your vehicle.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
 Vehicles with an automatic trans-
mission, never tow a vehicle from
the rear with four wheels on the
ground. This may cause serious
damage to the transmission.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard− surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).
Four −wheel drive models—On part −time
four −wheel drive models, put the transfer
in “H2”. On full −time four −wheel drive
models, unlock the center differential.
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.

2672007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
Before emergency towing, check that
the eyelet is not broken or damaged
and that the installation bolts are not
loose.
Fasten the towing cable or chain se-
curely to the eyelet.
Do not jerk the eyelet. Apply steady
and even force.
To avoid damaging the eyelet, do not
pull from the side or at a vertical
angle. Always pull straight ahead.
CAUTION
If the emergency towing eyelet is
used to get out when your vehicle
becomes struck in mud, sand or oth-
er condition from which the vehicle
cannot be driven out under its own
power, make sure to observe the pre-
cautions mentioned below. Otherwise,
excessive stress will be put on the
eyelet and the towing cable or chain
may break, causing serious injury or
damage.
If the towing vehicle can hardly
move, do not forcibly continue the
towing. Contact your Toyota dealer
or a commercial tow truck service
for assistance.
Tow the vehicle as straight ahead
as possible.
Keep away from the vehicle during
towing.
The following methods are effective to
get out when your vehicle is struck in
mud, sand or other condition from
which the vehicle cannot be driven out
under its own power. Use extreme cau-
tion when towing vehicles. In addition,
keep away from the vehicles and towing
cable or chain when towing.
Remove the soil and sand in the front
and the back of the tires.
Place a stone or wood under the tires.
—Emergency towing eyelet
precautions— Tip s fo r to win g a st u ck
vehicle

2682007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

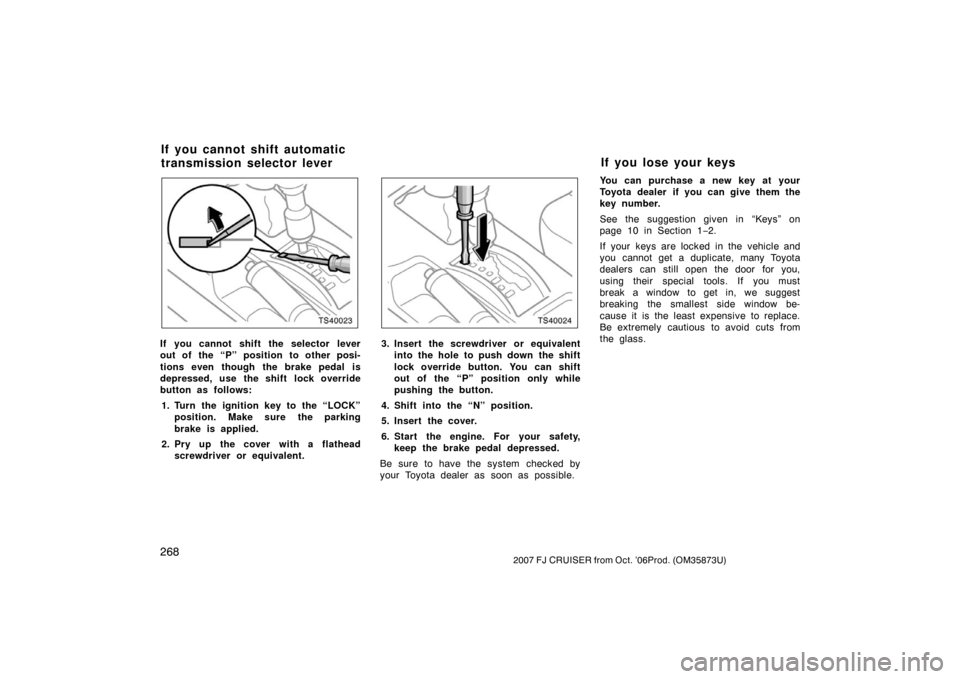

TS40023
If you cannot shift the selector lever
out of the “P” position to other posi-
tions even though the brake pedal is
depressed, use the shift lock override
button as follows:1. Turn the ignition key to the “LOCK” position. Make sure the parking
brake is applied.
2. Pry up the cover with a flathead screwdriver or equivalent.
TS40024
3. Insert the screwdriver or equivalentinto the hole to push down the shift
lock override button. You can shift
out of the “P” position only while
pushing the button.
4. Shift into the “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible. You can purchase a new key at your
Toyota dealer if you can give them the
key number.
See the suggestion given in “Keys” on
page 10 in Section 1
−2.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
If you cannot shift automatic
transmission selector lever If you lose your keys

2692007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
You can purchase a new wireless re-
mote control transmitter at your Toyota
dealer.
Have the registered identification numbers
of your transmitters deleted from your ve-
hicle by your Toyota dealer as soon as
possible to avoid the possibility of theft or
an accident. Then, have the identification
number of your new transmitter registered.
At the same time, you must bring all of
the remaining transmitters to have them
registered again as well.
You can use the wireless remote control
system with the new transmitter. Contact
your Toyota dealer for detailed information.
If you lose your wireless
remote control transmitter

2702007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
