TOYOTA FJ CRUISER 2007 1.G Owners Manual

3112007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
TS73004
2. Release the bulb retaining springand remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.
TS73005
3. Install the rubber cover as shown and fit it securely on the boss. Plug
in the connector.
Make sure the rubber cover fits securely
on the connector and the headlight body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
TS73006
TS73007
—Front turn signal/parking
and front side marker lights

3122007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
If either the left or right outside rear
view mirror illumination light burns out,
contact your Toyota dealer.
NOTICE
Do not try to replace the outside rear
view mirror illumination light bulbs by
yourself. You may damage the ve-

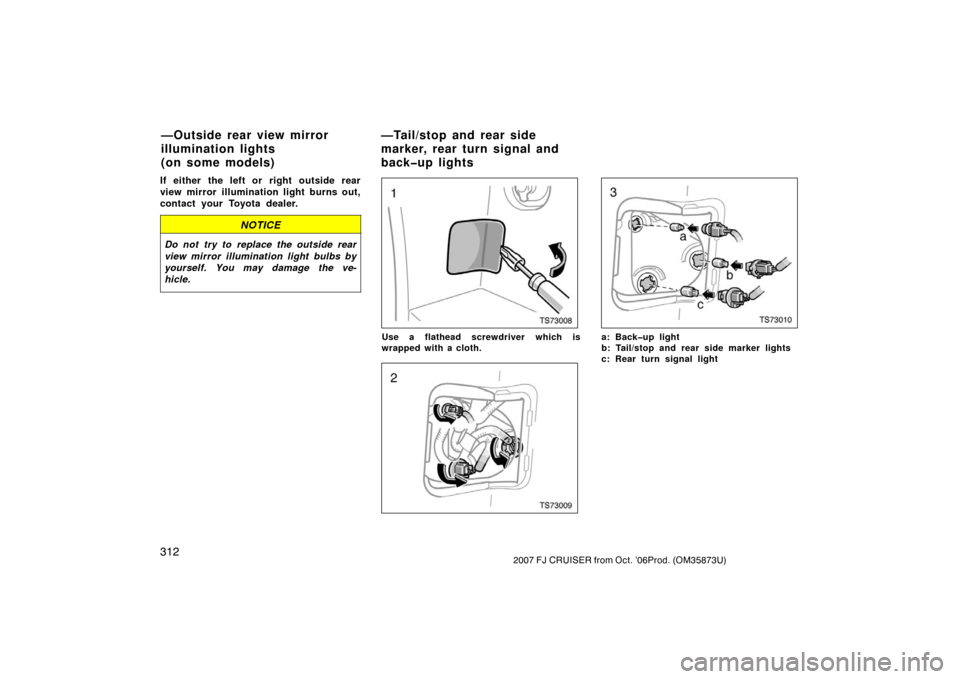

hicle.TS73008
Use a flathead screwdriver which is
wrapped with a cloth.
TS73009
TS73010
a: Backup light
b: Tail/stop and rear side marker lights
c: Rear turn signal light
—Outside rear view mirror
illumination lights
(on some models)—Tail/stop and rear side
marker, rear turn signal and
backup lights

3132007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
TS73011
Use a Phillipshead screwdriver.
TS73012
—License plate lights

3142007 FJ CRUISER from Oct. ’06Prod. (OM35873U)

3152007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
SPECIFICATIONS
Specifications
Dimensions and weights316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Engine 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 316
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 317
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 320
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 321
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

3162007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
Overall length mm (in.) 4670 (183.9)
Overall width mm (in.) 1905 (75.0)
Overall height
∗1mm (in.) 1810 (71.3)∗2
mm (in.) 1830 (72.0)∗3
Wheelbase mm (in.) 2690 (105.9)
Front tread mm (in.) 1605 (63.2)
Rear tread mm (in.) 1605 (63.2)
Vehicle capacity weight
(occupants + luggage)
kg (lb.) 540 (1190)
Towing capacity
(trailer weight + cargo weight) kg (lb.) 2268 (5000)
∗1: Unladen vehicle∗2: Two −wheel drive models∗
3: Four −wheel drive models Model:
4.0L V6 (1GR −FE)
Type: 6 cylinder V type, 4 cycle, gasoline
Bore and stroke, mm (in.): 94.0 95.0 (3.70 3.74)
Displacement, cm
3 (cu. in.):
3956 (241.4) Fuel type:
Select premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher for optimum
engine performance.
Fuel tank capacity, L (gal., Imp. gal.): 72 (19.0, 15.8)
Dimensions and weights EngineFuel

3172007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.29—0.39 (0.011—0.015)
Spark plug type:
DENSO K20HR −U11
NGK LFR6C11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and ref ill), L (qt., Imp.
qt.):
With filter 5.2 (5.5, 4.6)
Without filter 4.9 (5.2, 4.3)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details. COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
With manual transmission
9.4 (9.9, 8.3)
With automatic transmission 9.8 (10.4, 8.6)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.
Service specifications

3182007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
BATTERY
Open voltage
∗ at 20C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af- ter the key is removed with all the
lights turned off
Charging rates: 5 A max.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSMISSION
Oil capacity, L (qt., Imp. qt.): 1.8 (1.9, 1.6)
Oil type: Gear Oil API GL−4 or GL−5
Recommended oil viscosity: SAE 75W −90 AUTOMATIC TRANSMISSION
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 3.0 (3.2, 2.6)
Fluid type: Toyota Genuine ATF WS
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF WS” (ATF
JWS3324 or NWS9638) to aid in assuring
optimum transmission performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
WS” may cause deterioration in shift
quality, locking up of your transmission
accompanied by vibration, and ultimate-
ly damage the automatic transmission
of your vehicle.
Please contact your Toyota dealer for fur-
ther details. TRANSFER (fulltime four wheel drive
models)
Oil capacity, L (qt., Imp. qt.):
1.4 (1.5, 1.2)
Oil type: Hypoid gear oil API GL −5
Recommended oil viscosity: SAE 75W −90
TRANSFER (parttime four wheel drive
models)
Oil capacity, L (qt., Imp. qt.): 1.0 (1.1, 0.9)
Oil type: Hypoid gear oil API GL −3
Recommended oil viscosity: SAE 75W −90
DIFFERENTIAL
Oil capacity, L (qt., Imp. qt.): Front
Full −time four −wheel drive models
1.4 (1.5, 1.2)
Part −time four −wheel drive models
1.5 (1.6, 1.3)
Rear Without rear differential lock
3.0 (3.2, 2.6)
With rear differential lock 2.9 (3.1, 2.6)

3192007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
Oil type:Hypoid gear oil API GL −5
Recommended oil viscosity: FrontFull −time four −wheel drive models
Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90
Part −time four −wheel drive models
SAE 75W −90
Rear Above −18 C (0 F)
SAE 90
Below −18 C (0 F)
SAE 80W or 80W −90
CHASSIS LUBRICATION
Propeller shafts: SpidersLithium base chassis grease, NLGI
No.2
Slide yokes Molybdenum −disulfide lithium base
chassis grease, NLGI No.2 or lithium
base multipurpose grease, NLGI No.2 BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
54 (2.1)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when depressed
with the force of 196 N (20 kgf, 44.1 lbf): 5—7 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

3202007 FJ CRUISER from Oct. ’06Prod. (OM35873U)
Tire size, cold tire inflation pressure and wheel size:Ti r e siz e
Cold tire inflation pressure kPa (kgf/cm2 or bar, psi)Wheel size
FrontRearSpare
P265/70R17 113S220 (2.2, 32)220 (2.2, 32)220 (2.2, 32)17  7 1/ 2J
NOTE: For a complete information on tires (e.g. replacing ti res or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions”, pages 297 through 304 in Section 7 −2.
Wheel nut torque, N·m (kgf·m, ft·lbf): 11 3 ( 11 . 5 , 8 5 )
Tires
