TOYOTA FJ CRUISER 2008 1.G Owners Manual

102 1−7. Safety information
CAUTION
 Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a colli−
sion.
 To correctly attach a child restraint system to the anchorages
When using the lower anchorages, be sure that there are no foreign objects
around the anchorages and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child in the event of a sudden stop or
accident.

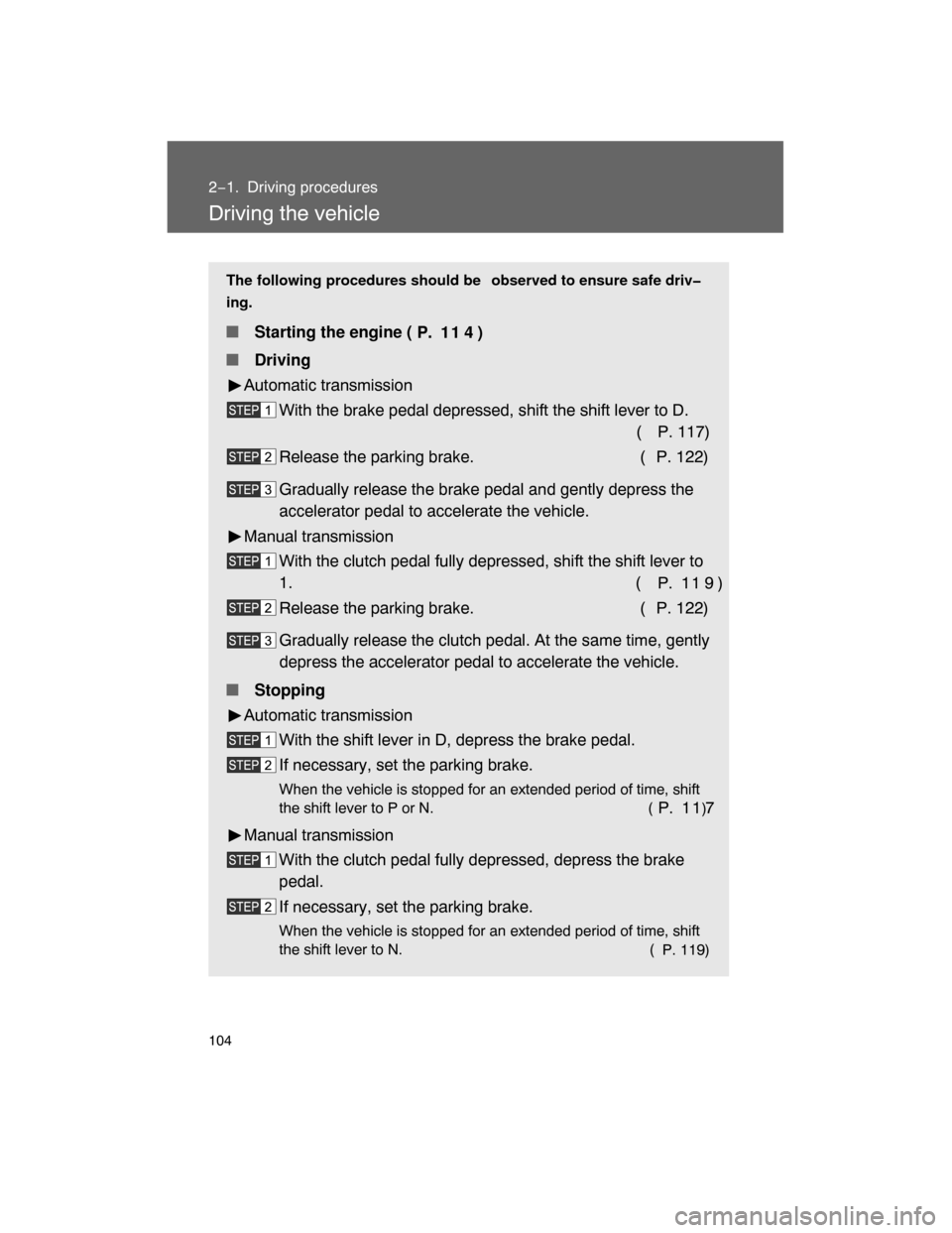

104
2−1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv
ing.
 Starting the engine (
P. 114)
 Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D.
( P. 117)
Release the parking brake. ( P. 122)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission
With the clutch pedal fully depressed, shift the shift lever to
1. (
P. 119)
Release the parking brake. ( P. 122)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
 Stopping
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to P or N. (
P. 1 1 7)
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to N. (
P. 119)

105
2−1. Driving procedures
2
When driving
Starting on a steep uphill
Automatic transmission
With the brake pedal depressed, firmly set the parking brake
and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully

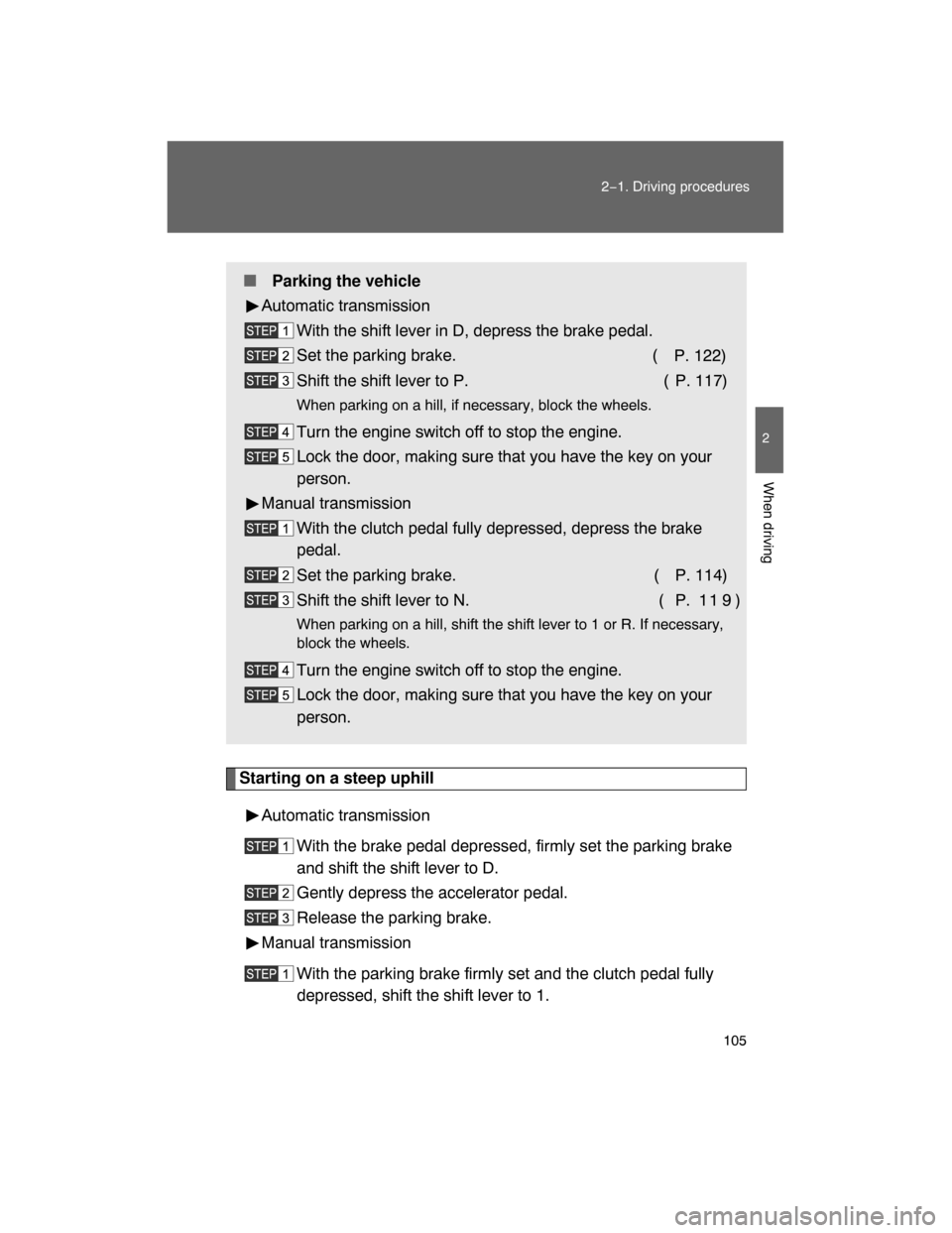

depressed, shift the shift lever to 1.  Parking the vehicle
Automatic transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake. (
P. 122)
Shift the shift lever to P. ( P. 117)
When parking on a hill, if necessary, block the wheels.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake. ( P. 114)
Shift the shift lever to N. ( P. 1 1 9 )
When parking on a hill, shift the shift lever to 1 or R. If necessary,
block the wheels.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.

106 2−1. Driving procedures
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
 Driving in the rain
 Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged−up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
 Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
 Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
 For the first 200 miles (300 km):
Avoid sudden stops.
For the first 500 miles (800 km):
Do not tow a trailer.
 For the first 1000 miles (1600 km):
Do not drive at extremely high speeds.
Avoid sudden acceleration.
Do not drive continuously in the low gears.
Do not drive at a constant speed for extended periods.
 Drumin disc type parking brake system
Your vehicle has a drum−in−disc type parking brake system. This type of
brake system needs bedding−down of the brake shoes periodically or when−
ever the parking brake shoes and/or drum are replaced. Have your Toyota
dealer perform the bedding down.
 Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. (
P. 364)

107
2−1. Driving procedures
2
When driving
 Normal characteristics after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a
fuel evaporation leakage check and, it does not indicate a malfunction.
CAUTION
 When starting the vehicle
Vehicles with an automatic transmission, always keep your foot on the brake
pedal while stopped with the engine running. This prevents the vehicle from
creeping.
 When driving the vehicle
 Do not drive if you are unfamiliar with the location of the brake and accel−
erator pedals to avoid depressing the wrong pedal.
Accidentally depressing the accelerator pedal instead of the brake pedal
will result in sudden acceleration that may lead to an accident that could
result in death or serious injury.
 Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may
cause a fire if there is any flammable material nearby.
 Vehicles with an automatic transmission, do not let the vehicle roll back−
wards while the shift lever is in a driving position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
 If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the back door and glass hatch are closed. Large amounts of
exhaust in the vehicle can cause driver drowsiness and an accident,
resulting in death or a serious health hazard. Have the vehicle inspected
by your Toyota dealer immediately.
 Do not under any circumstances shift the shift lever to P, R or N (automatic
transmission) or R (manual transmission) while the vehicle is moving.
Doing so can cause significant damage to the transmission system and
may result in a loss of vehicle control.

108 2−1. Driving procedures
CAUTION
 When driving the vehicle
 Do not shift the shift lever to N while the vehicle is moving.
Doing so may cause the engine brake to not operate properly and lead to
an accident.
 Do not turn the engine off while driving.
The power steering and brake booster systems will not operate properly if
the engine is not running.
 Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. (
P. 1 1 8120)
When stopped on an inclined surface, use the brake pedal and parking
brake to prevent the vehicle from rolling backward or forward and causing
an accident.
 Do not adjust the position of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents
that may result in death or serious injury.
 Always check that all passengers’ arms, heads or other parts of their bod−
ies are not outside the vehicle, as this may result in death or serious injury.

Do not drive in excess of the speed limit. Even if the legal speed limit per−
mits it, do not drive over 85 mph (140 km/h) unless your vehicle has high−
speed capability tires. Driving over 85 mph (140 km/h) may result in tire
failure, loss of control and possible injury. Be sure to consult a tire dealer
to determine whether the tires on your vehicle are high−speed capability
tires or not before driving at such speeds.

109
2−1. Driving procedures
2
When driving
CAUTION
 When driving on slippery road surfaces
 Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle, resulting in an accident.
Sudden changes in engine speed, such as engine braking caused by up−
shifting or down−shifting, may cause the vehicle to skid, resulting in an
accident.
 After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected, resulting in
an accident.
 When shifting the shift lever
 Vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
 When the vehicle is stopped
 Do not race the engine.
If the vehicle is in any gear other than P (automatic transmission only) or
N, the vehicle may accelerate suddenly and unexpectedly, and may cause
an accident.
 Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
 Vehicles with an automatic transmission, always keep a foot on the brake
pedal while the engine is running to prevent an accident caused by the
vehicle moving.

110 2−1. Driving procedures
CAUTION
 When the vehicle is parked
 Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following.
Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
The temperature inside the vehicle may cause the plastic lenses and
plastic material of eye glasses to deform or crack.
Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehi−
cle’s electrical components.
 Always apply the parking brake, shift the shift lever to P (automatic trans−
mission only), stop the engine and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
 Do not touch the exhaust pipe while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.
 Do not leave the engine running in an area with snow build−up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle. This may lead
to death or a serious health hazard.
 Exhaust gases
Exhaust gases include harmful carbon monoxide (CO) that is colorless and
odorless. Inhaling exhaust gases may lead to death or a serious health haz−
ard.
 If the vehicle is in a poorly ventilated area, stop the engine. In a closed
area, such as a garage, exhaust gases may collect and enter the vehicle.
This may lead to death or a serious health hazard.
 The exhaust should be checked occasionally. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.
Failure to do so may allow exhaust gases to enter the vehicle, resulting in
death or a serious health hazard.

111
2−1. Driving procedures
2
When driving
CAUTION
 When taking a nap in the vehicle
Always turn the engine off. Otherwise, you may accidentally move the shift
lever or depress the accelerator pedal, which could cause an accident or fire
due to engine overheating. Additionally, if the vehicle is parked in a poorly
ventilated area, exhaust gases may collect and enter the vehicle, leading to
death or a serious health hazard.
 When braking the vehicle
 When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and may cause one
side of the vehicle to brake differently than the other side. Also the parking
brake may not securely hold the vehicle.
 If the power brake assist function does not operate, do not follow other
vehicles closely and avoid downhills or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the
pedal than usual. Braking distance may also increase.
 Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power−assisted
brakes.
 The brake system consists of 2 individual hydraulic systems: If one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and braking distance
becomes longer.
Do not drive your vehicle with only a single brake system. Have your
brakes fixed immediately.

112 2−1. Driving procedures
NOTICE
 When driving the vehicle
Vehicles with a manual transmission
Do not rest your foot on the clutch pedal while driving.
Doing so may cause clutch trouble.
 Do not use any gears other than the first gear when starting off and mov−
ing forward.
Doing so may damage the clutch.
 Do not use the clutch to hold the vehicle when stopping on an uphill grade.
Doing so may damage the clutch.
Vehicles with an automatic transmission
Do not use the accelerator pedal or depress accelerator and brake pedals
together to hold the vehicle on a hill.
 When parking the vehicle
Vehicles with an automatic transmission: Always put the shift lever in P.
Failure to do so may cause the vehicle to move or the vehicle may acceler−
ate suddenly if the accelerator pedal is accidentally depressed.
 Avoiding damage to vehicle parts
 Do not turn the steering wheel fully in either direction and hold it there for a
long time.
Doing so may damage the power steering pump.
 When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
If you hear a squealing or scraping noise while driving (brake pad wear
limit indicators)
Have the brake pads checked and replaced by your Toyota dealer as soon
as possible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or that of the brake discs are exceeded.
