346 5−2. Steps to take in an emergency
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
85 ft⋅lbf (113 N⋅m, 11.5 kgf⋅m)
Reinstall the wheel ornament.
Aluminum wheel

5
When trouble arises
347 5−2. Steps to take in an emergency
Steel wheel
Stowing the flat tire, jack and all tools
Install the flat tire in the reverse order of removal.
Tightening torque:
65 ft⋅lbf (88 N⋅m, 8.9 kgf⋅m)
Stow the tools and jack securely.
CAUTION
Using the jack
Improper use of the jack may lead to death or injuries due to the vehicle
suddenly falling off the jack.
Do not use the jack for any purpose other than replacing tires or install−
ing and removing tire chains.
Only use the jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, an d do not use other jacks for replac−
ing tires on this vehicle.
Always check that the jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the
jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a hei
ght greater than that required to
replace the tire.

348 5−2. Steps to take in an emergency
CAUTION
Using the jack
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle will be injured.
Using the jack handle
Tighten all the square head bolts securely to prevent the extension parts
from coming apart unexpectedly.
Replacing a flat tire
Observe the following precautions to reduce the risk of injury.
Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
Never use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a seri−
ous accident. Remove any oil or grease on the wheel bolts or wheel
nuts.
Have the wheel nuts tightened with a torque wrench to 85 ft⋅lbf (113
N⋅m, 11.5 kgf⋅m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheels may fall off, which could lead to an accident causing death
or serious injury.
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.

5
When trouble arises
349 5−2. Steps to take in an emergency
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled cor−
rectly.
Replace the grommets for the tire pressure warning valves and trans−
mitters as well.
To avoid damaging the tire pressure warning valves and transmit
ters
Do not use liquid sealants on flat tires.
To prevent damage to the wheel ornament (vehicles with a steel
wheel)
Do not attach wheel ornament to the wheel on the back door.

350
5−2. Steps to take in an emergency

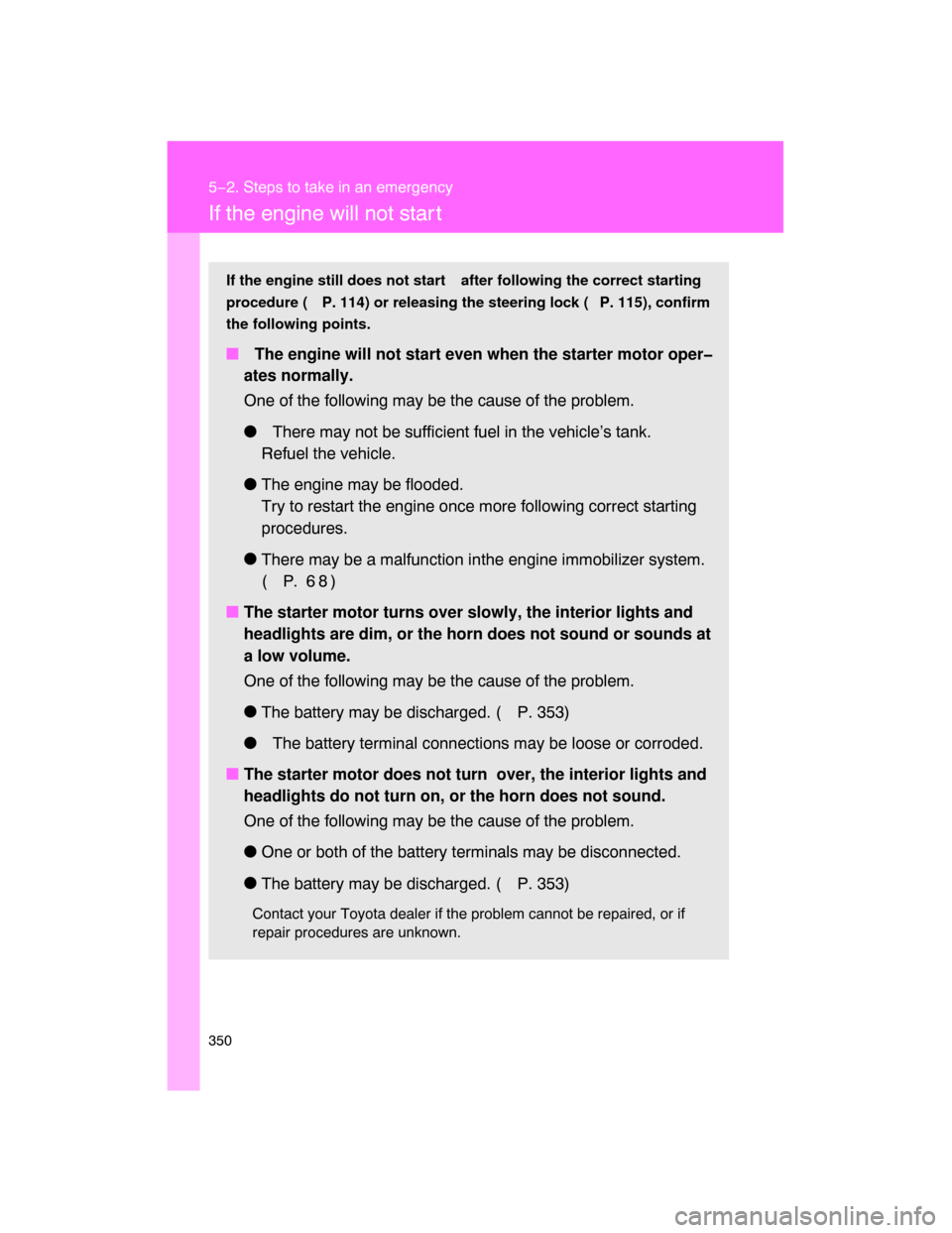

If the engine will not star t
If the engine still does not start after following the correct starting
procedure ( P. 114) or releasing the steering lock ( P. 115), confirm
the following points.
 The engine will not start even when the starter motor oper
ates normally.
One of the following may be the cause of the problem.
 There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine once more following correct starting
procedures.

There may be a malfunction inthe engine immobilizer system.
(P. 6 8 )

The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.

The battery may be discharged. ( P. 353)
 The battery terminal connections may be loose or corroded.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.

One or both of the battery terminals may be disconnected.

The battery may be discharged. ( P. 353)
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
351
5−2. Steps to take in an emergency

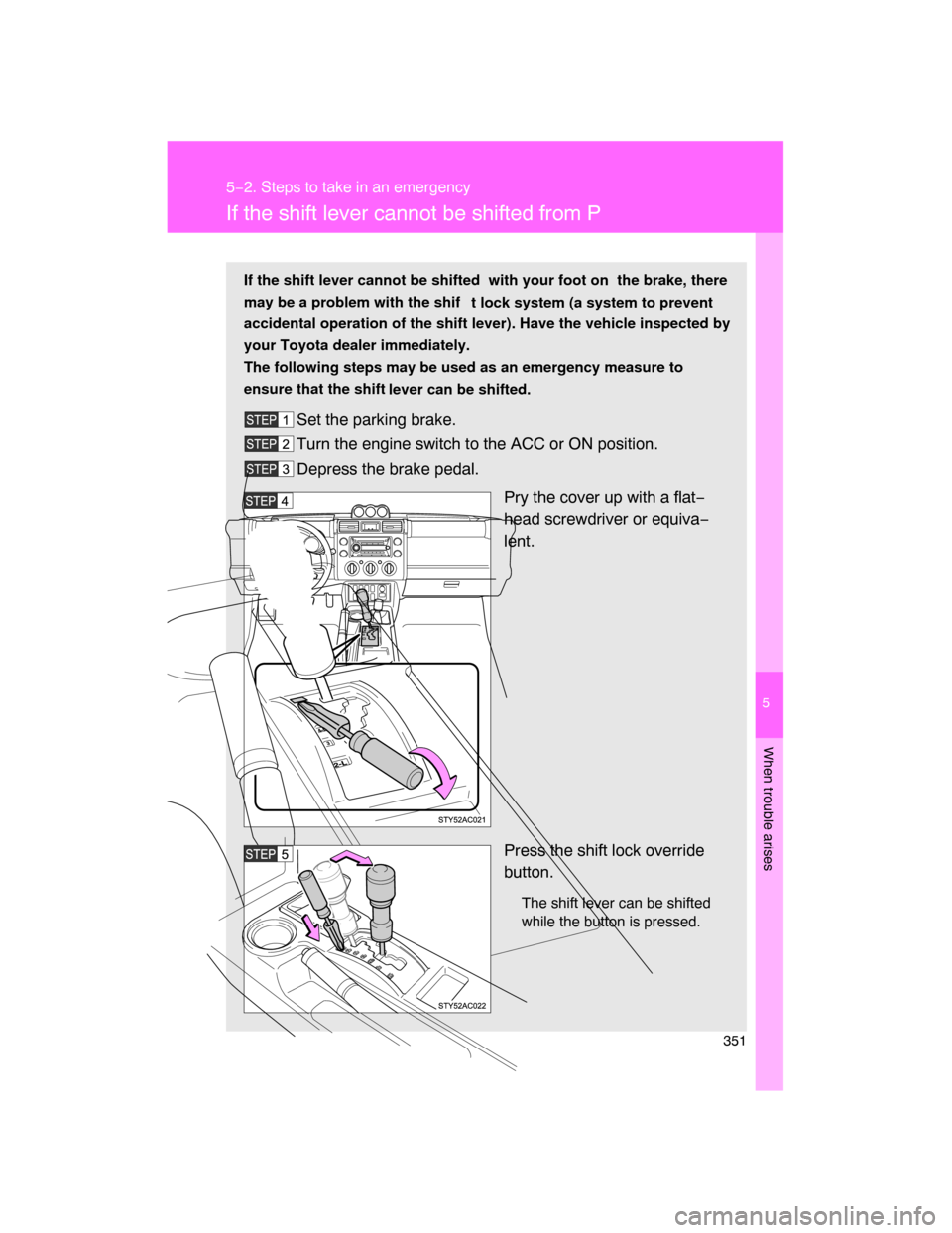

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shif
t lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift
lever can be shifted.
Set the parking brake.
Turn the engine switch to the ACC or ON position.
Depress the brake pedal.
Pry the cover up with a flat−
head screwdriver or equiva−
lent.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.

352
5−2. Steps to take in an emergency
If you lose your keys
 If you lose all your master keys.
You cannot make new keys; the whole engine immobilizer system must be
replaced. New genuine Toyota keys can be made by your Toyota dealer using
one of the master keys and the
key number stamped on your key
number plate. ( P. 28)

5
When trouble arises
353
5−2. Steps to take in an emergency

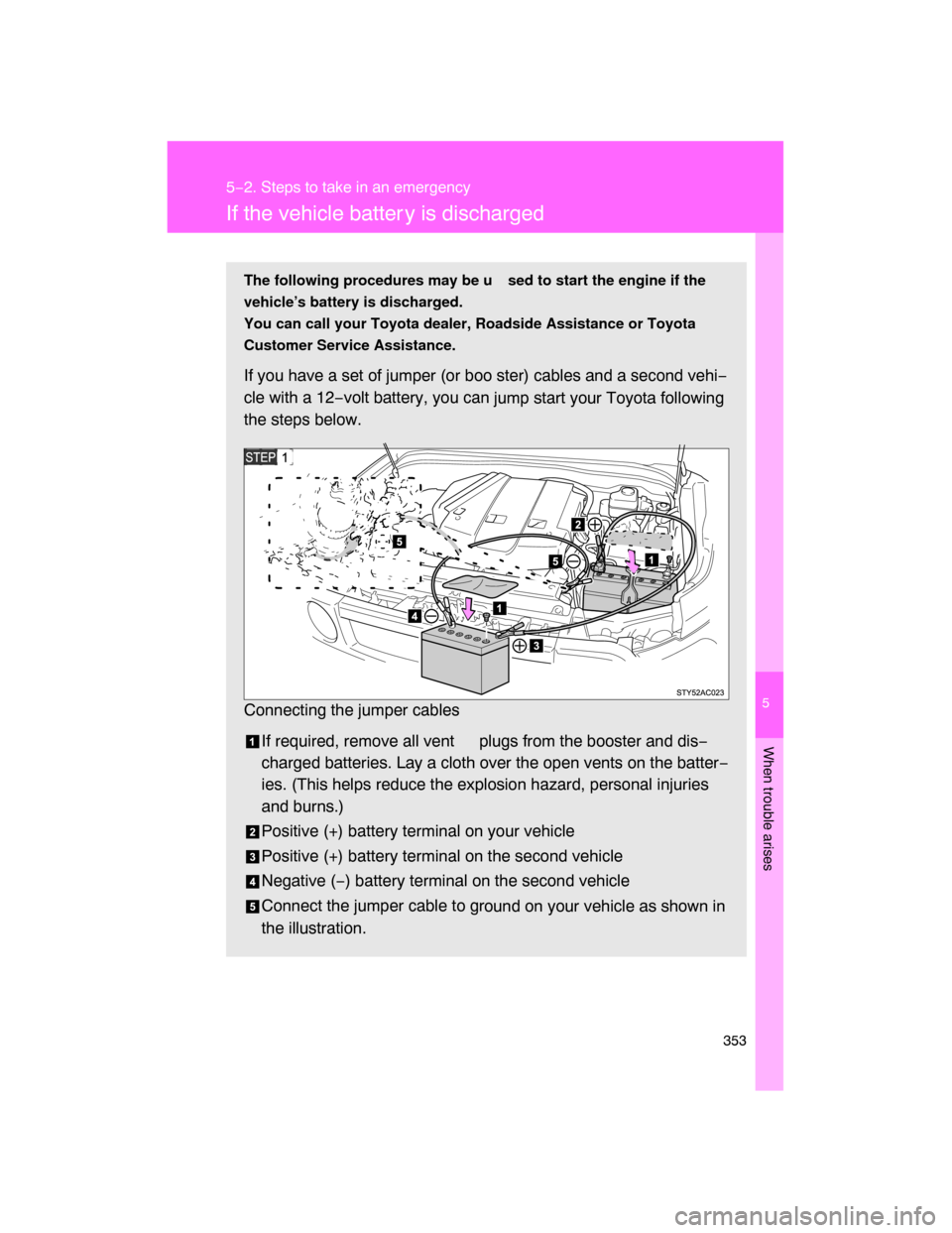

If the vehicle batter y is discharged
The following procedures may be u sed to start the engine if the
vehicle’s battery is discharged.
You can call your Toyota dealer, Roadside Assistance or Toyota
Customer Service Assistance.
If you have a set of jumper (or boo ster) cables and a second vehi−
cle with a 12−volt battery, you can
jump start your Toyota following
the steps below.
Connecting the jumper cables
If required, remove all vent plugs from the booster and dis−
charged batteries. Lay a cloth over the open vents on the batter−
ies. (This helps reduce the explosion hazard, personal injuries
and burns.)
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (−) battery terminal on the second vehicle
Connect the jumper cable to gr
ound on your vehicle as shown in
the illustration.

354 5−2. Steps to take in an emergency
 Avoiding a discharged battery
 Turn off the headlights and the audio system while the engine is turned
off.

Turn off any unnecessary electrical components when the vehicle is run−
ning at a low speed for an extended period, such as in heavy traffic, etc.
CAUTION
 Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam−
mable gas that may be emitted from the battery.
 Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi−
nal.
 Do not allow the jumper cables to come into contact with the “+” and “−” ter−
minals.

Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at
that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start
the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con−
nected.
If removed, replace all the battery vent plugs.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.

5
When trouble arises
355 5−2. Steps to take in an emergency
CAUTION
 Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre−
cautions when handling the battery.
 When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
 Do not lean over the battery.
In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
 Always wash your hands after handling the battery support, terminals, and
other battery−related parts.

Do not allow children near the battery.
NOTICE
 To prevent damaging the vehicle
Do not pull− or push−start the vehicle, because the three−way catalytic con−
verter may overheat and become a fire hazard.
 When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan
or any of the belts when connecting or disconnecting them.
