radio TOYOTA FJ CRUISER 2008 1.G Owners Manual

1
2
3
4
5
6
7
3
24. Using other driving
systems ........................... 136
Cruise control ...................... 136
Intuitive parking assist......... 139
Four−wheel drive system
(4WD models with a manual
transmission) .................... 144
Four−wheel drive system
(4WD models with an
automatic transmission) .... 146
Active traction control
system .............................. 148
AUTO LSD system (2WD
models) ............................. 150
Rear differential lock
system .............................. 152
Clutch start cancel switch
(vehicles with a manual
transmission) .................... 155
Driving assist systems ........ 156
25. Driving information ........... 160
Off−road precautions ........... 160
Cargo and luggage ............. 165
Vehicle load limits ............... 168
Winter driving tips ............... 169
Trailer towing ...................... 172
Dinghy towing ..................... 182
31. Using the air conditioning
system and defogger...... 184
Air conditioning system ....... 184
Rear window defogger ........ 19032. Using the audio system ... 191
Audio system types ............ 191
Using the radio ................... 194
Using the CD player ........... 200
Playing back MP3 and
WMA discs ....................... 208
Optimal use of the audio
system .............................. 217
Operating the sub woofer ... 220
Changing display color
(type B only) ..................... 221
Using the AUX adapter....... 222
Using the steering wheel
audio switches.................. 224
33. Using the interior lights ... 226
Interior lights list ................. 226
 Interior lights.................... 227
34. Using the storage
features ........................... 228
List of storage features ....... 228
Glove box ......................... 228
Cup holders (front) ........... 229
Cup holders (rear) ............ 232
Bottle holders ................... 233
Auxiliary box ..................... 234
35. Other interior features ..... 235
Sun visors........................... 235
Vanity mirror ....................... 236
Clock .................................. 237
Outside temperature
display .............................. 238
Power outlet (12V DC) ....... 239
Power outlet
(if 115V AC equipped) ...... 240
Armrest ............................... 246
3Interior features

22
For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip−
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non−genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non−genuine Toyota products.
Modification with non−genuine Toyota products could affect its performance,
safety or durability, and may even
violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
Installation of a mobile twoway radio system
As the installation of a mobile two−way radio system in your vehicle could
affect electronic systems such as the multiport fuel injection system/sequen−
tial multiport fuel injection system, cruise control system, anti−lock brake sys−
tem, SRS airbag system and seat belt pretensioner system, be sure to check
with your Toyota dealer for precautionary measures or special instructions
regarding installation.

31
1−2. Opening, closing and locking the doors
1
Before driving
 Key battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the key is not used.) If the wireless remote control function does not
operate, the battery may be depleted. Replace the battery when necessary.
(P. 301)
Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
Conditions affecting operation
The wireless remote control function may not operate normally in the follow−
ing situations.
Near a TV tower, radio station, electr ic power plant, airport or other facil−
ity that generates strong radio waves
 When carrying a portable radio, cell ular phone or other wireless commu−
nication device
Conditions affecting operation
When multiple wireless keys are in the vicinity
When the wireless key has come into contact with, or is covered by a
metallic object
 When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such as
a personal computer
 Customization that can be configured at Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features
P. 386)

32 1−2. Opening, closing and locking the doors
Certification for wireless remote control
For vehicles sold in U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer−
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How−
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
 Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ−
ing interference that may cause undesired operation of the device.

84 1−7. Safety information
CAUTION
 Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing
death or serious injury.
 Installation, removal, disassembly and repair of the SRS airbags.

Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front and rear pil−
lars or roof side rails.
 Repairs or modifications of the front
fender, front bumper, or side of the
occupant compartment.
Installation of snow plows, winches, etc. to the front grille (bull bars, kan−
garoo bar etc.).
 Modifications to the vehicle’s suspension system.
Installation of electronic devices such as mobile two−way radios or CD
players.
 Modifications to your vehicle for a person with a physical disability.

142 2−4. Using other driving systems
 Sensor detection information
 Certain vehicle conditions and the surrounding environment may affect
the ability of a sensor to correctly detect an obstacle. Particular instances
where this may occur are listed below.
There is dirt, snow or ice on a sensor.
A sensor is frozen.
A sensor is covered in any way.
The vehicle is leaning considerably to one side.
On an extremely bumpy road, on an incline, on gravel, or on grass.
The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles, or other loud noises producing
ultrasonic waves.
There is another vehicle equipped with parking assist sensors in the
vicinity.
A sensor is coated with a sheet of spray or heavy rain.
The vehicle is equipped with a fender pole or radio antenna.
A bumper or sensor receives a strong impact.
The vehicle is approaching a tall or right−angled curb.
In harsh sunlight or intense cold weather.
The area directly under the bumpers is not detected.
Objects lower than the sensors or thin stakes etc. may be detected ini−
tially, but as they draw closer, they may cease to be detected.
A towing hitch is mounted to the vehicle.
A non−genuine Toyota suspension (lowered suspension etc.) is
installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by a sensor to be closer
than they are.
 The shape of the obstacle may prevent a sensor from detecting it. Pay
particular attention to the following obstacles:
Wires, fences, ropes, etc.
Cotton, snow and other materials that absorb radio waves
Sharply−angled objects
Low obstacles
Tall obstacles with upper sections projecting outwards in the direction
of your vehicle

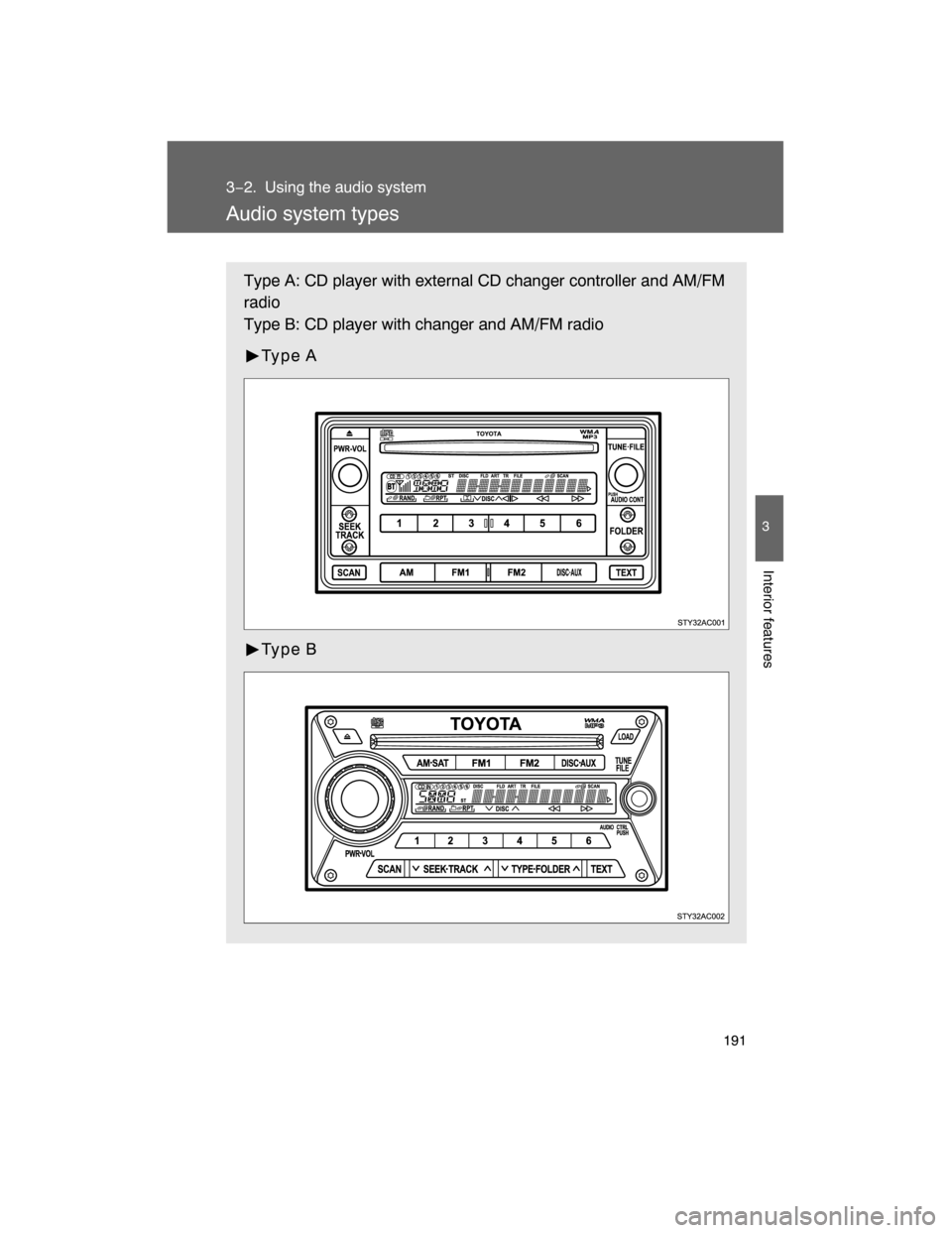

191
3
Interior features
3−2. Using the audio system
Audio system types
Type A: CD player with external CD changer controller and AM/FM
radio
Type B: CD player with changer and AM/FM radio
Type A
Type B

192 3−2. Using the audio system
 Welcome function (type B only)
When you turn the engine switch to the ACC or ON position, “FJ CRUISER”
will appear scrolling on the display. A
nd then “FJammer” will appear for 6
seconds.
While this function is operating, the display is illuminated with full intensity
and the instrument panel light control dial is disabled. However, you can turn
off the display illumination by pushing the .
 Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
Ti t l ePage
Using the radioP. 194
Using the CD playerP. 200
Playing back MP3 and WMA discsP. 208
Optimal use of the audio systemP. 217
Operating the sub wooferP. 220
Changing display colorP. 221
Using the AUX adapterP. 222
Using the steering wheel audio switchesP. 224

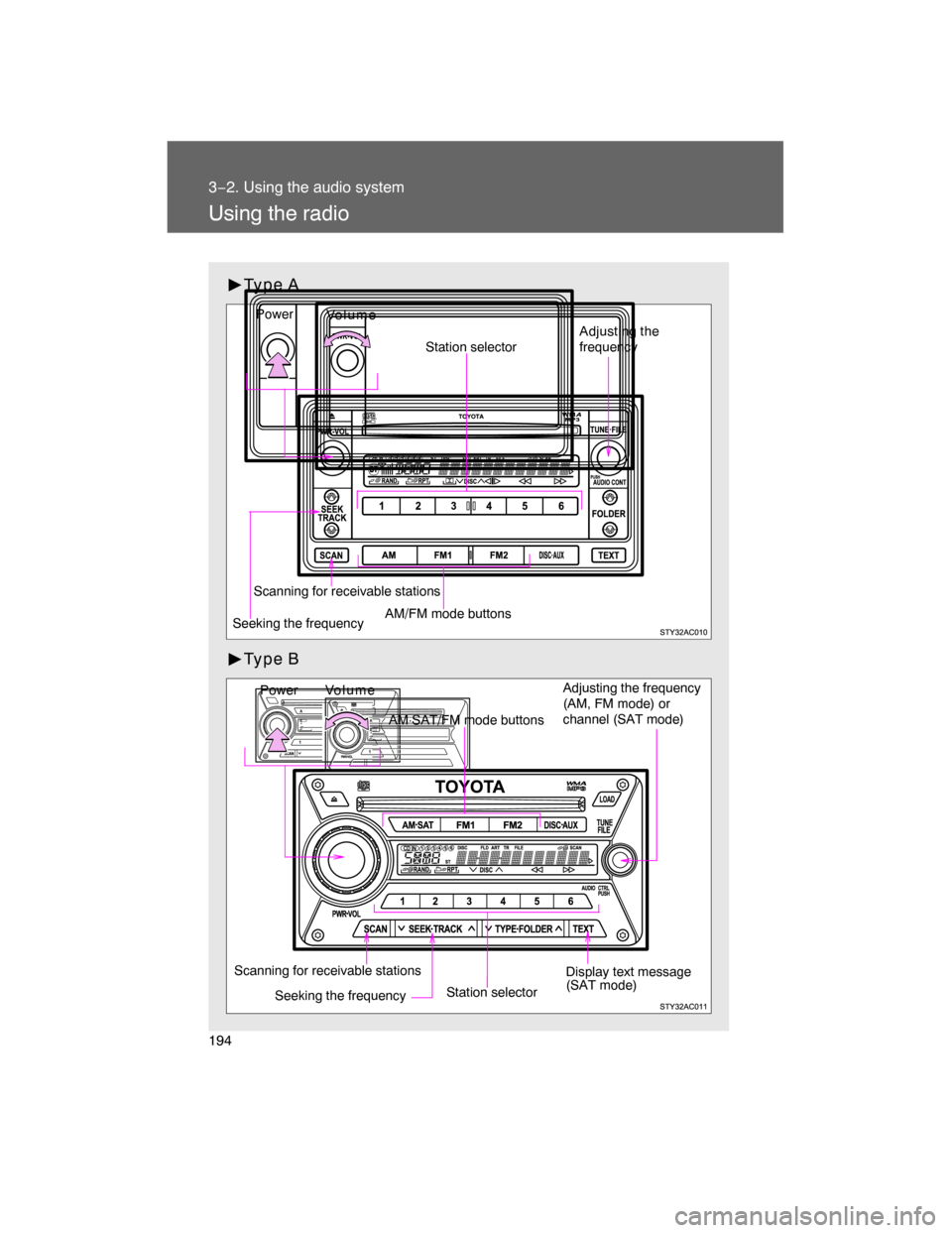

194
3−2. Using the audio system
Using the radio
Type A
Type B
Vo l u m e
Station selector
Seeking the frequencyAdjusting the
frequency
AM/FM mode buttons
Scanning for receivable stations
Power
Vo l u m e
Scanning for receivable stations
Station selector
Seeking the frequencyAdjusting the frequency
(AM, FM mode) or
channel (SAT mode)
AM⋅SAT/FM mode buttons
Power
Display text message
(SAT mode)

195
3−2. Using the audio system
3
Interior features
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning or or
pressing “
” or “
” on or .
Press and hold the button (from or
to or
) that the station is to be set to until you hear a beep.
Scanning radio stations (excluding XM® Satellite Radio)
 Scanning the preset radio stations
Press and hold or until you hear a beep.
Preset stations will be played for 5 seconds each.
When the desired station is reached, press the button once
again.
 Scanning all radio stations within range
Press or .
All stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button once
again.
XM® Satellite Radio (type B)
 Receiving XM
® Satellite Radio
Press and select the XM
® band.
The display changes as follows each time is pressed.
AM
SAT1 SAT2
SAT3
