Page 3 of 24
1
INDEX
Engine maintenance 7Fuel tank door release and cap6Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel2-3
Keyless entry16
Accessory meter 13Air Conditioning/Heating 16Audio 14-15Auto LSD (Limited Slip Differential) 18Automatic Transmission 8Bottle holders-Rear seat 19Clock 16Cruise control 17Cup holders 18Door-Back 13Four-wheel drive 9Intuitive parking assist 17Light control-Instrument panel17Lights1& turn signals 12Manual Transmission 8Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 10Seats-Folding rear seats 11Seats-Head restraints 10Seats-Removing rear seats 11Tilt steering wheel 8Windows 13
Windshield wipers & washers 12
Door locks 20Seat belts 20Seat belts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Warning System 21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on this and other customizable
options.
Page 4 of 24
OVERVIEW
Instrument panel
2
Power rearview mirror controls*
Instrument panel light control
Headlight and turn signal control
Wiper and washer controls
Back window defogger button
Emergency flasher button
Audio system
Clock
Front passenger occupant classification indicator
Front passenger seat belt reminder light
Air Conditioning controls
Rear differential lock button
*
Active traction control switch*
Sub woofer ON-OFF button*
Power outlet
AUX audio jack
Steering wheel
controls (if equipped)

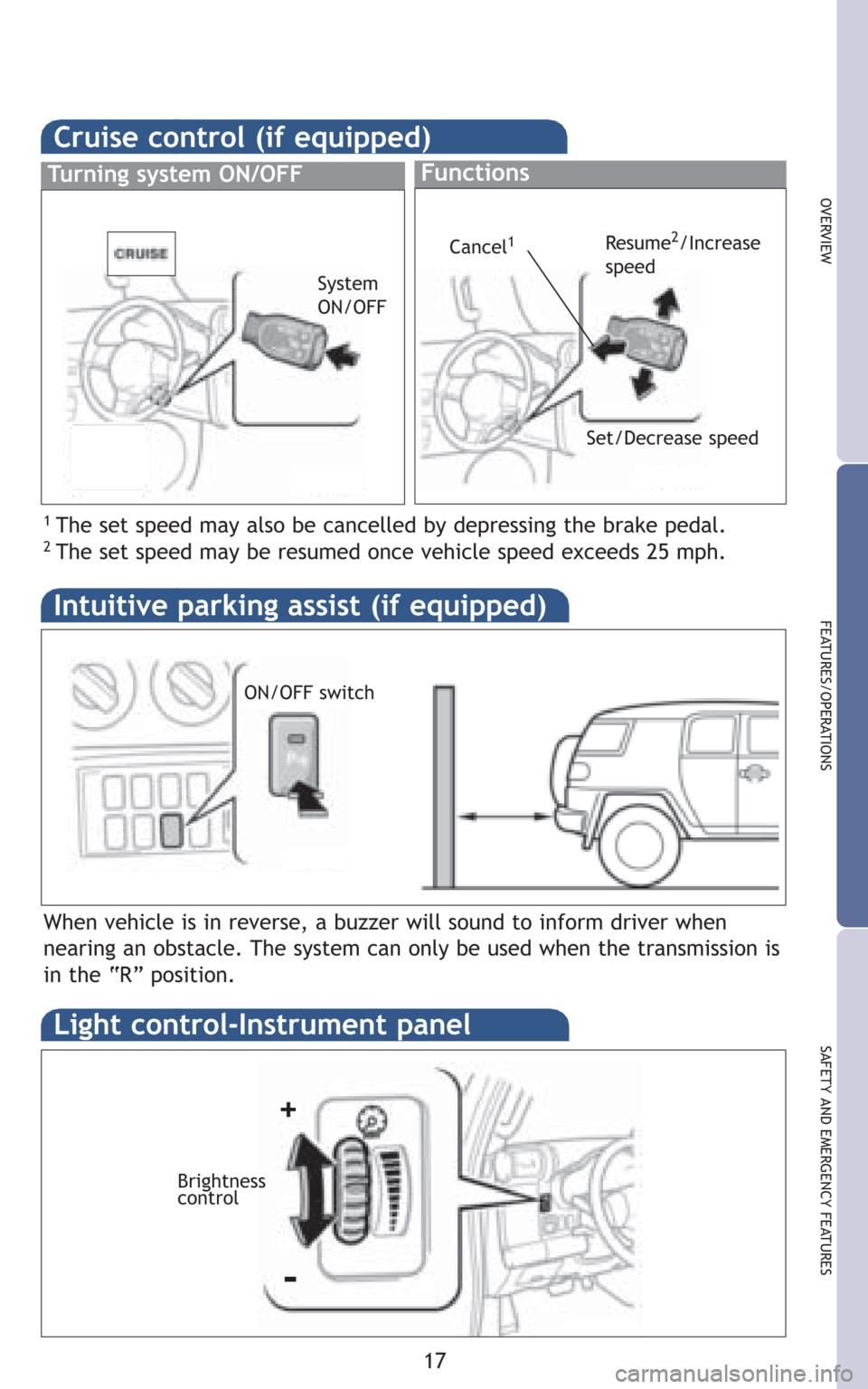

Page 19 of 24
17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURESLight control-Instrument panel
Brightness
control
+
-
When vehicle is in reverse, a buzzer will sound to inform driver when
nearing an obstacle. The system can only be used when the transmission is
in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFFFunctions
System
ON/OFFResume
2/Increase
speed
Set/Decrease speedCancel1
Page 21 of 24
19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bottle holders-Rear seat
Power outlet-12V DC
ON/OFF switch
Luggage compartment Push Instrument panel
The illumination changes according to the maximum available capacity.
•Green and Yellow115V AC/400W
•Yellow115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Indicator
Power outlet-115V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.
