key TOYOTA FJ CRUISER 2008 1.G Quick Reference Guide

1
INDEX
Engine maintenance 7Fuel tank door release and cap6Hood release 7Indicator symbols 4-5Instrument cluster 4Instrument panel2-3
Keyless entry16
Accessory meter 13Air Conditioning/Heating 16Audio 14-15Auto LSD (Limited Slip Differential) 18Automatic Transmission 8Bottle holders-Rear seat 19Clock 16Cruise control 17Cup holders 18Door-Back 13Four-wheel drive 9Intuitive parking assist 17Light control-Instrument panel17Lights1& turn signals 12Manual Transmission 8Parking brake 10Power outlet-12V DC 19Power outlet-115V AC 19Seat adjustments-Front 10Seats-Folding rear seats 11Seats-Head restraints 10Seats-Removing rear seats 11Tilt steering wheel 8Windows 13
Windshield wipers & washers 12
Door locks 20Seat belts 20Seat belts-Shoulder belt anchor 20Spare tire & tools 21
Tire Pressure Warning System 21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on this and other customizable
options.

OVERVIEW

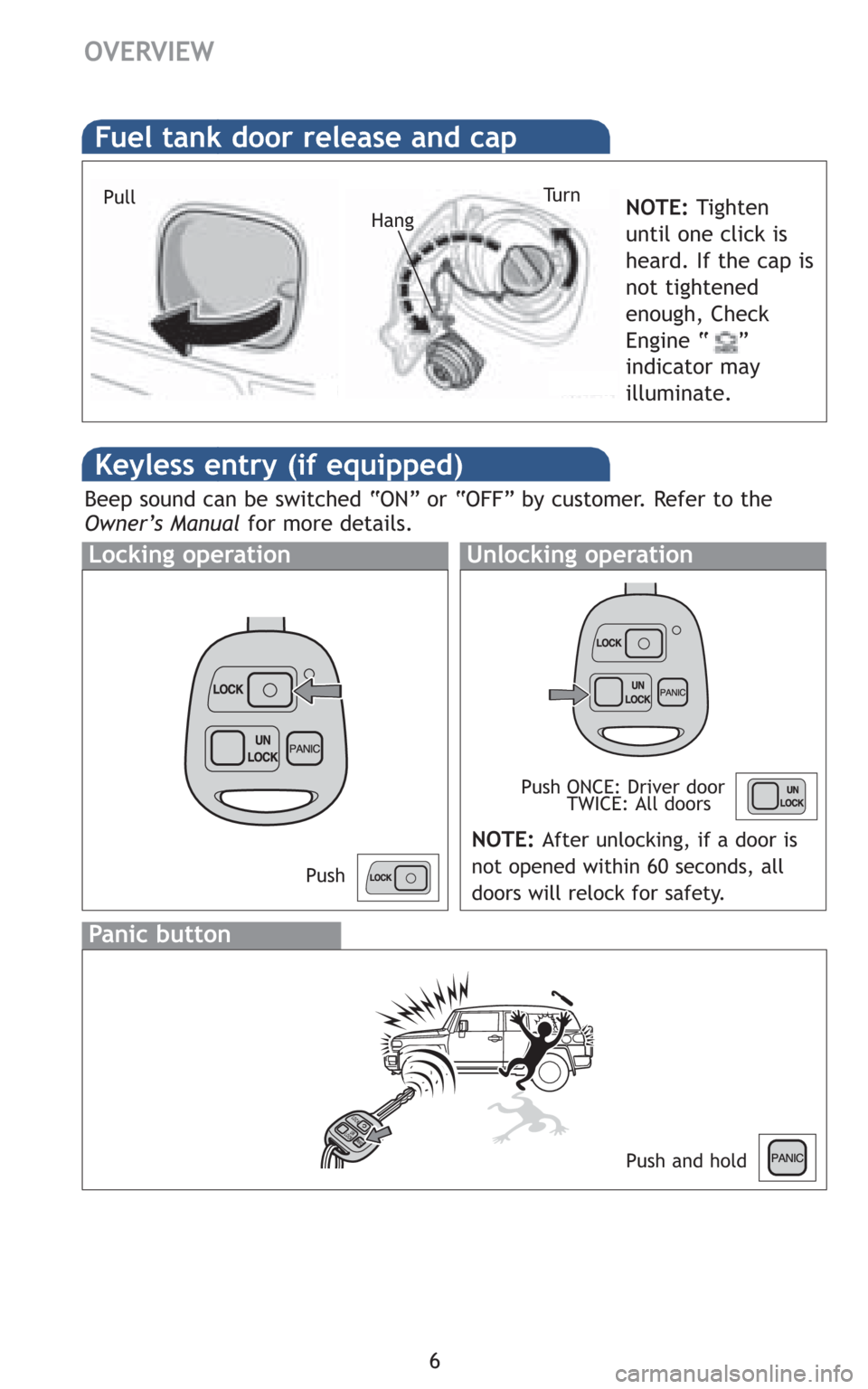

Fuel tank door release and cap
6
PullTu r n
HangNOTE:Tighten
until one click is
heard. If the cap is
not tightened
enough, Check
Engine “ ”
indicator may
illuminate.
Keyless entry (if equipped)
Beep sound can be switched “ON” or “OFF” by customer. Refer to the
Owner’s Manualfor more details.
NOTE:
After unlocking, if a door is
not opened within 60 seconds, all
doors will relock for safety.
Panic button
N
U
K
C O L K C
O LC I
N
A P
Locking operationUnlocking operation
Push
Push and hold Push ONCE: Driver door
TWICE: All doors

FEATURES/OPERATIONS
8

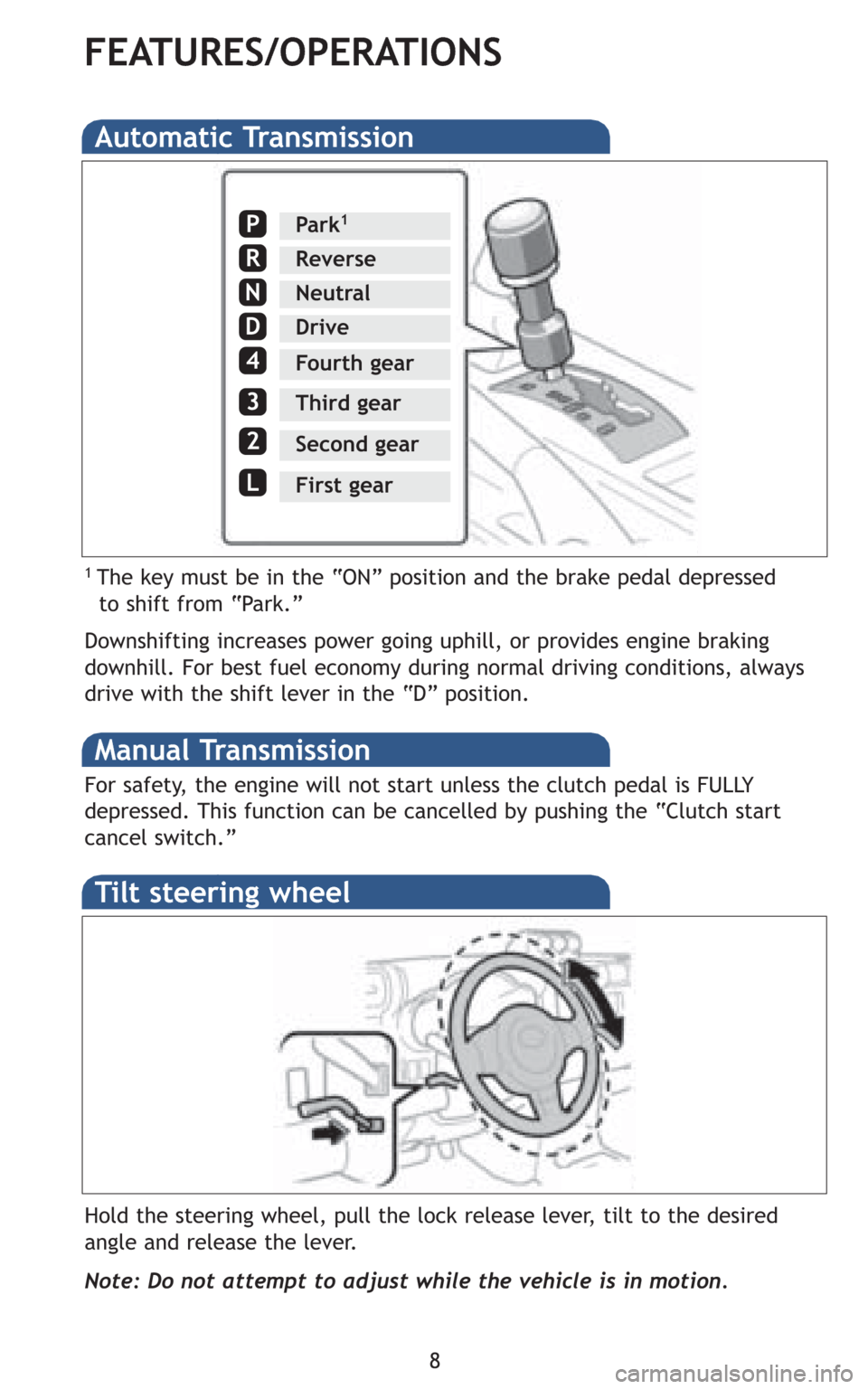

Automatic Transmission
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear
Manual Transmission
For safety, the engine will not start unless the clutch pedal is FULLY
depressed. This function can be cancelled by pushing the “Clutch start
cancel switch.”
Tilt steering wheel
Hold the steering wheel, pull the lock release lever, tilt to the desired
angle and release the lever.
Note: Do not attempt to adjust while the vehicle is in motion.
1 The key must be in the “ON” position and the brake pedal depressed
to shift from “Park.”

12
FEATURES/OPERATIONS
Windshield wipers & washers
Rear (if equipped)Front
Interval
wipe
Slow
Fast
Pull to wash and wipe Adjust intervalWash and wipe
Wipe
Interval wipe
Wash and wipe
NOTE: Rear wiper and washer
operate only when back window is
fully closed.
Lights & turn signals
Headlights
High beam flasher Low beam Headlights
-Automatic light cutoff system Automatically turns lights off after 30
seconds when all doors are closed with the key in “ACC” or “LOCK.”
Lights may also be turned off by pushing lock button on remote twice.
-Daytime Running Light system (DRL) (if equipped) Automatically turns
on the headlights at a reduced intensity.
Parking lights
High beam
Turn signals
Right turn
Lane change
Lane change
Left turn

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

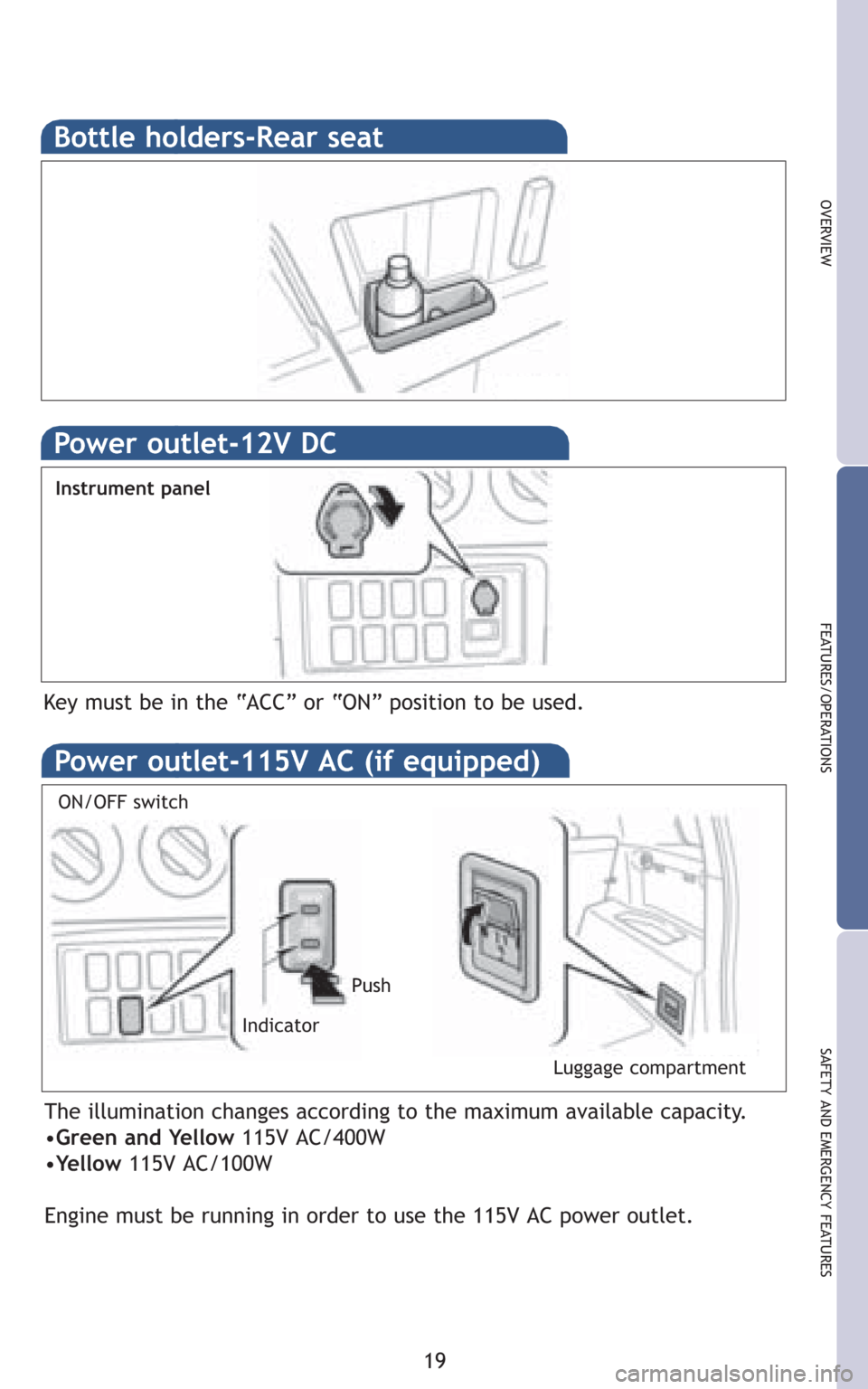

Bottle holders-Rear seat
Power outlet-12V DC
ON/OFF switch
Luggage compartment Push Instrument panel
The illumination changes according to the maximum available capacity.
•Green and Yellow115V AC/400W
•Yellow115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Indicator
Power outlet-115V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.
