TOYOTA FJ CRUISER 2009 1.G Owners Manual

321
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

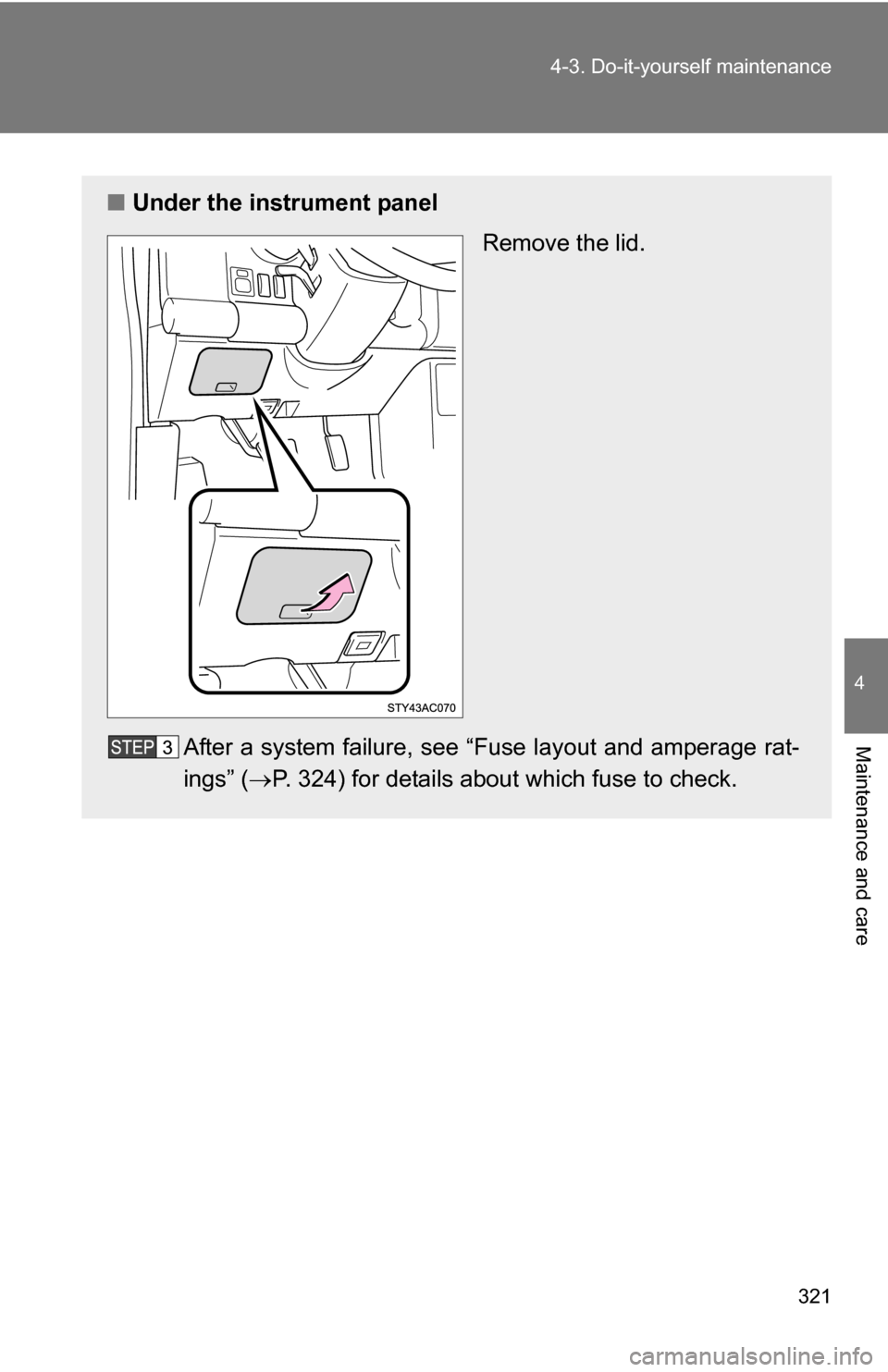

Under the instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat-
ings” ( P. 324) for details about which fuse to check.

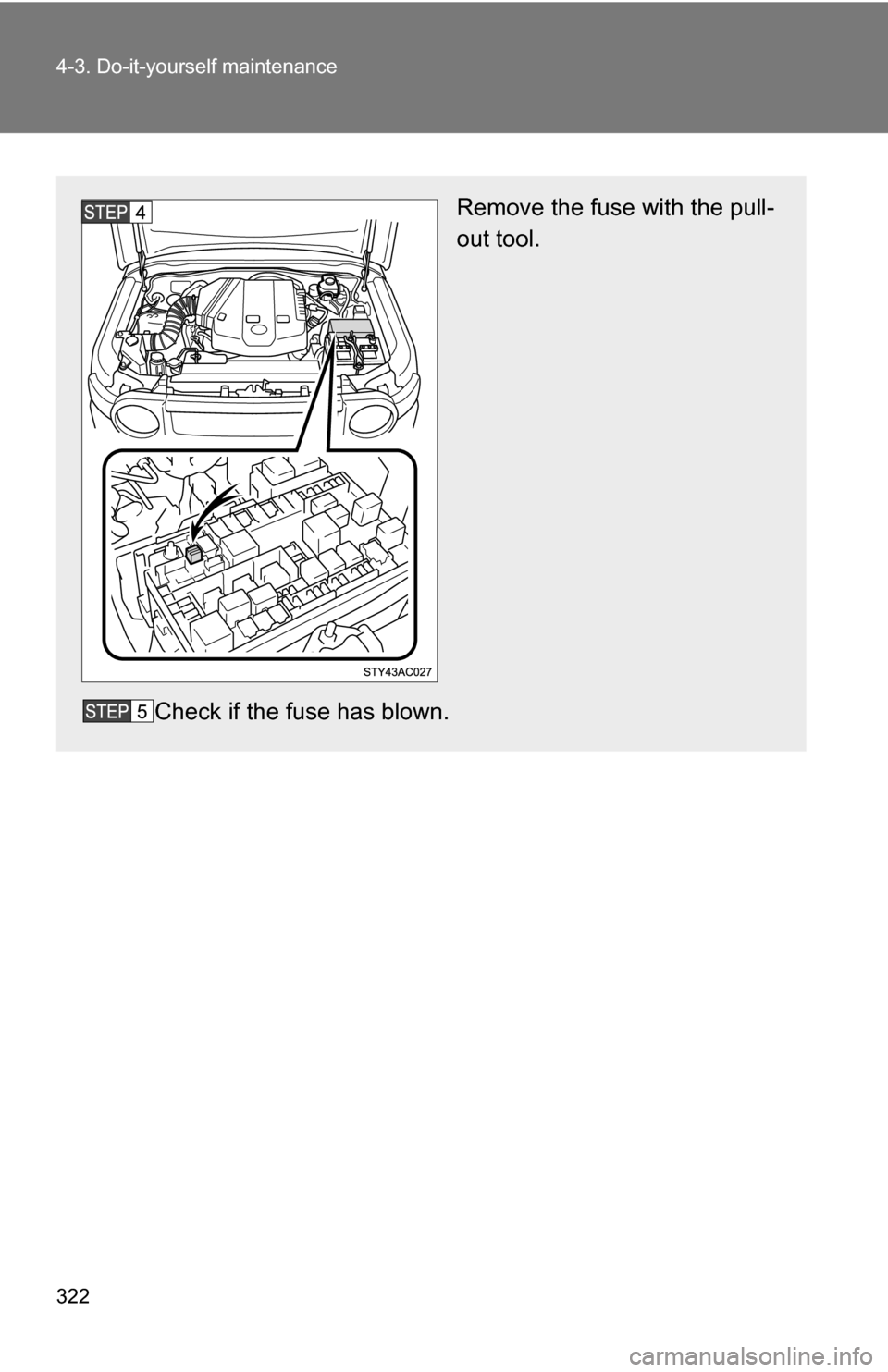

322 4-3. Do-it-yourself maintenance
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.

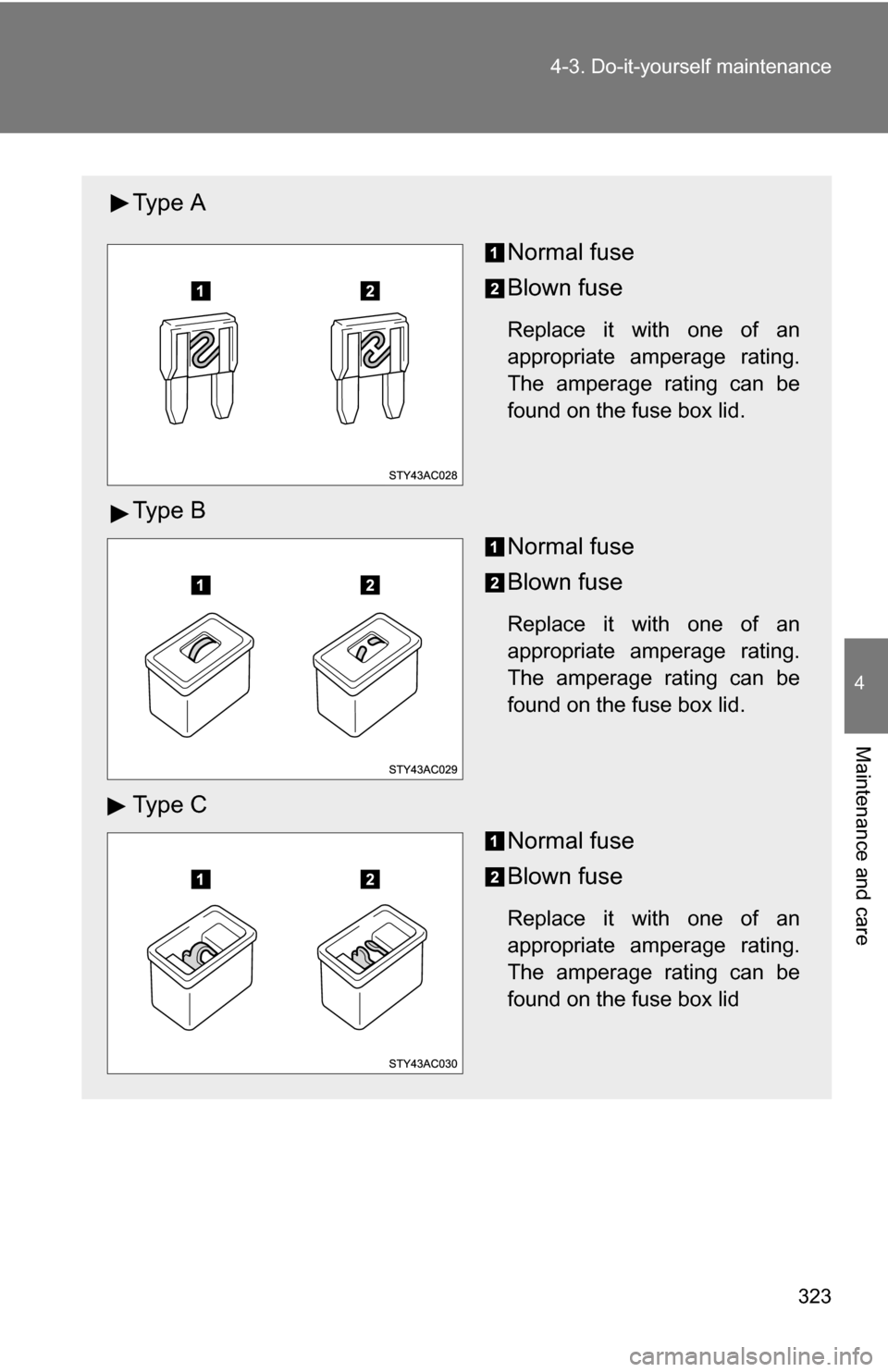

323
4-3. Do-it-yourself maintenance
4
Maintenance and care
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid

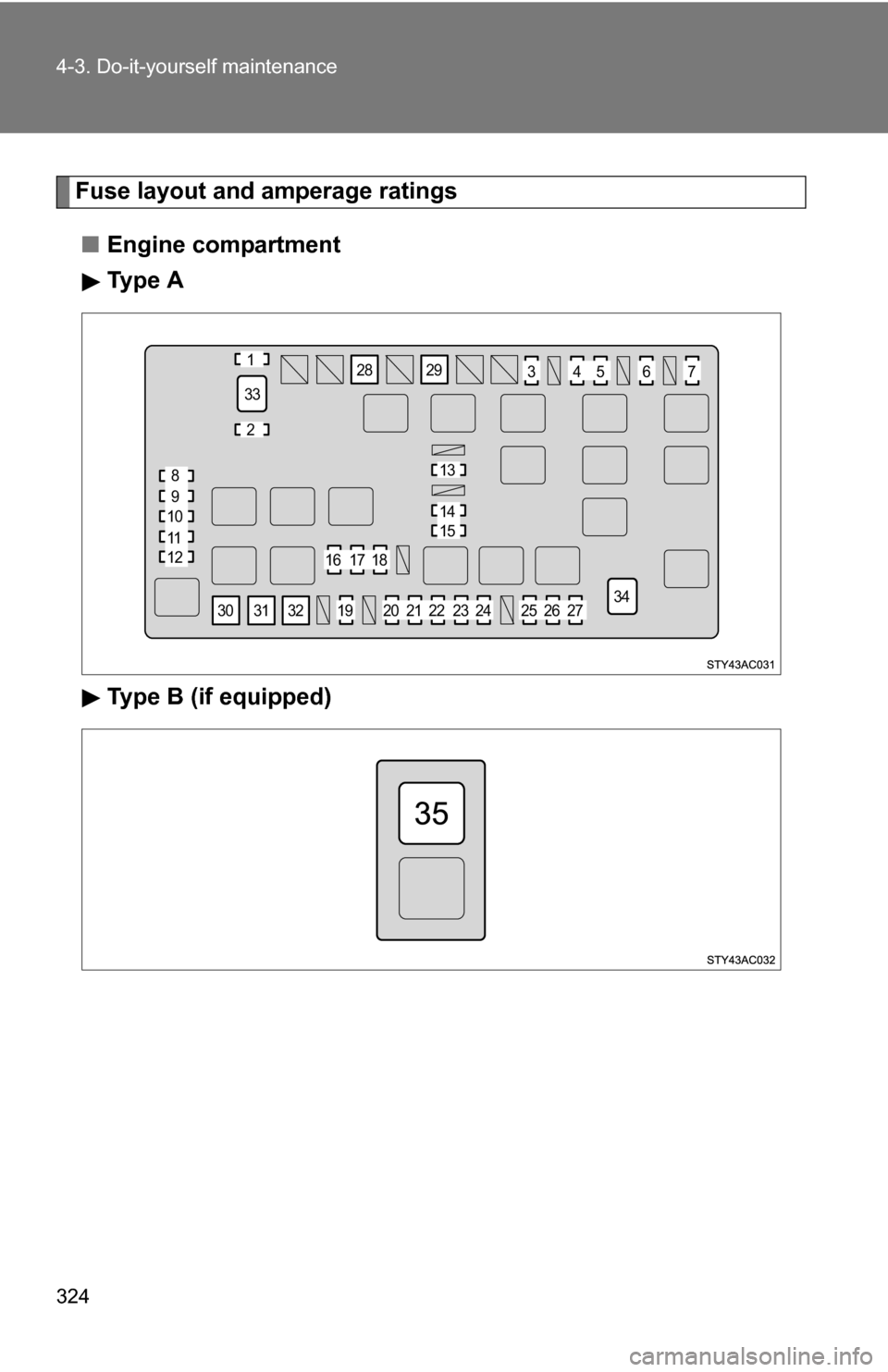

324 4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings■ Engine compartment
Ty p e A
Type B (if equipped)
32 34
3130 16 17 18
14
15 13
19 20 22 2321 24 25 2726
33
28 29
54
367
2
8
9
10
12 11 1

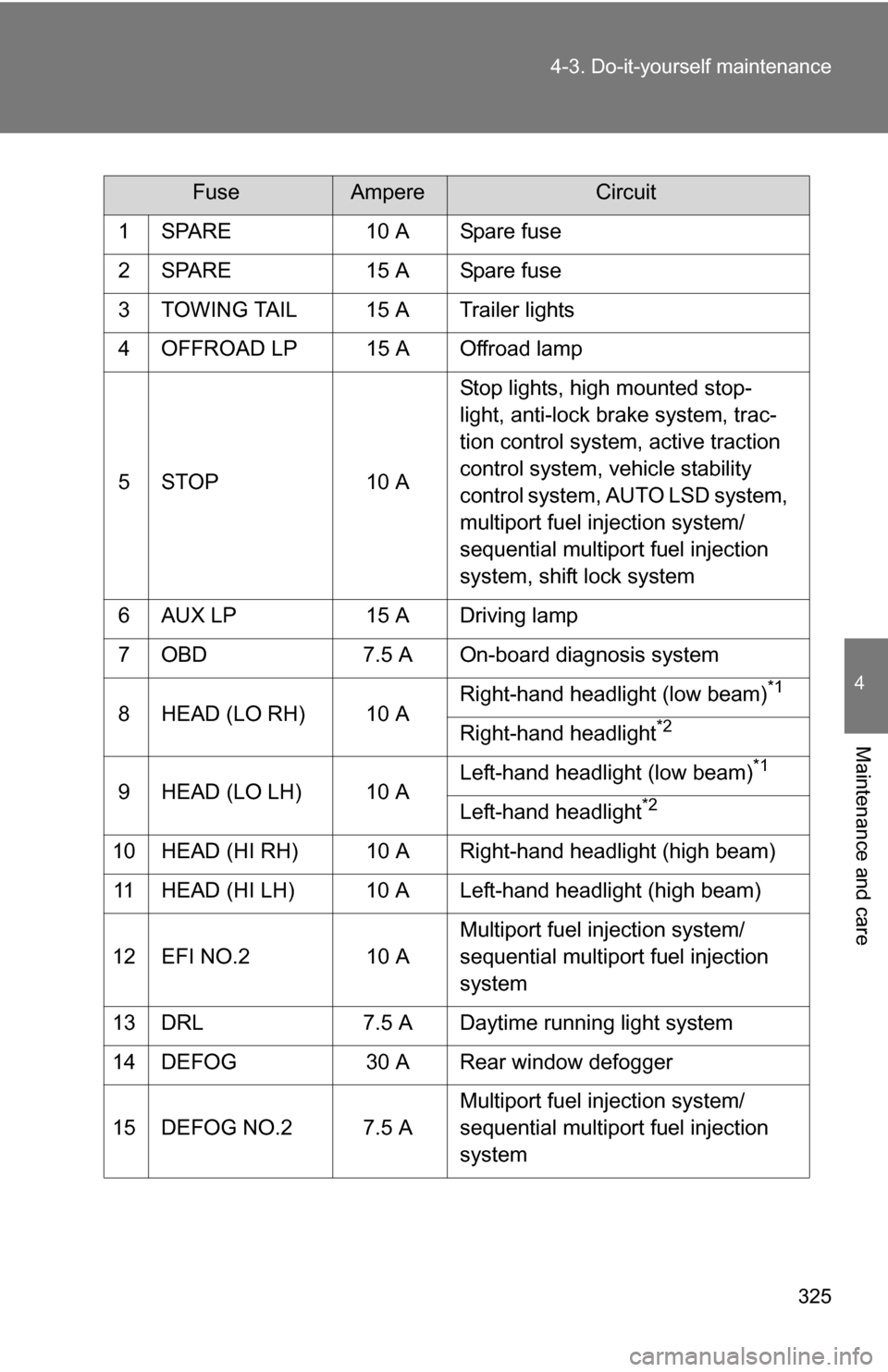

325
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
1 SPARE 10 A Spare fuse
2 SPARE 15 A Spare fuse
3 TOWING TAIL 15 A Trailer lights
4 OFFROAD LP 15 A Offroad lamp
5 STOP 10 A Stop lights, high mounted stop-
light, anti-lock brake system, trac-
tion control system, active traction
control system, vehicle stability
control system, AUTO LSD system,
multiport fuel injection system/
sequential multiport fuel injection
system, shift lock system
6 AUX LP 15 A Driving lamp
7 OBD 7.5 A On-board diagnosis system
8 HEAD (LO RH) 10 A Right-hand headlight (low beam)
*1
Right-hand headlight*2
9 HEAD (LO LH) 10 ALeft-hand headlight (low beam)
*1
Left-hand headlight*2
10 HEAD (HI RH) 10 A Right-hand headlight (high beam)
11 HEAD (HI LH) 10 A Left-hand headlight (high beam)
12 EFI NO.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
13 DRL 7.5 A Daytime running light system
14 DEFOG 30 A Rear window defogger
15 DEFOG NO.2 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system

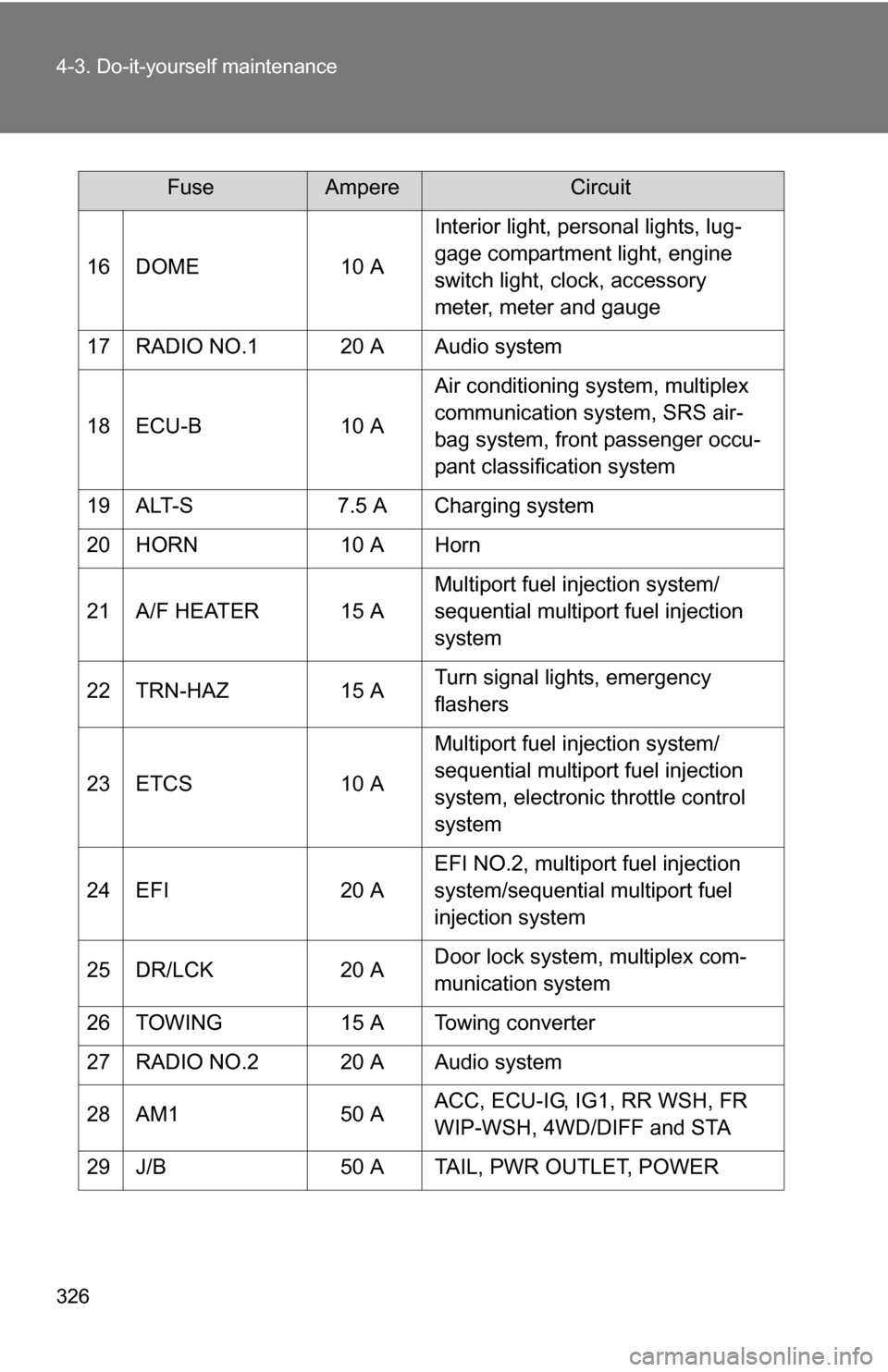

326 4-3. Do-it-yourself maintenance
16 DOME10 AInterior light, personal lights, lug-
gage compartment light, engine
switch light, clock, accessory
meter, meter and gauge
17 RADIO NO.1 20 A Audio system
18 ECU-B 10 AAir conditioning system, multiplex
communication system, SRS air-
bag system, front passenger occu-
pant classification system
19 ALT-S 7.5 A Charging system
20 HORN 10 A Horn
21 A/F HEATER 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
22 TRN-HAZ 15 ATurn signal lights, emergency
flashers
23 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
24 EFI 20 AEFI NO.2, multiport fuel injection
system/sequential multiport fuel
injection system
25 DR/LCK 20 ADoor lock system, multiplex com-
munication system
26 TOWING 15 A Towing converter
27 RADIO NO.2 20 A Audio system
28 AM1 50 AACC, ECU-IG, IG1, RR WSH, FR
WIP-WSH, 4WD/DIFF and STA
29 J/B 50 A TAIL, PWR OUTLET, POWER
FuseAmpereCircuit

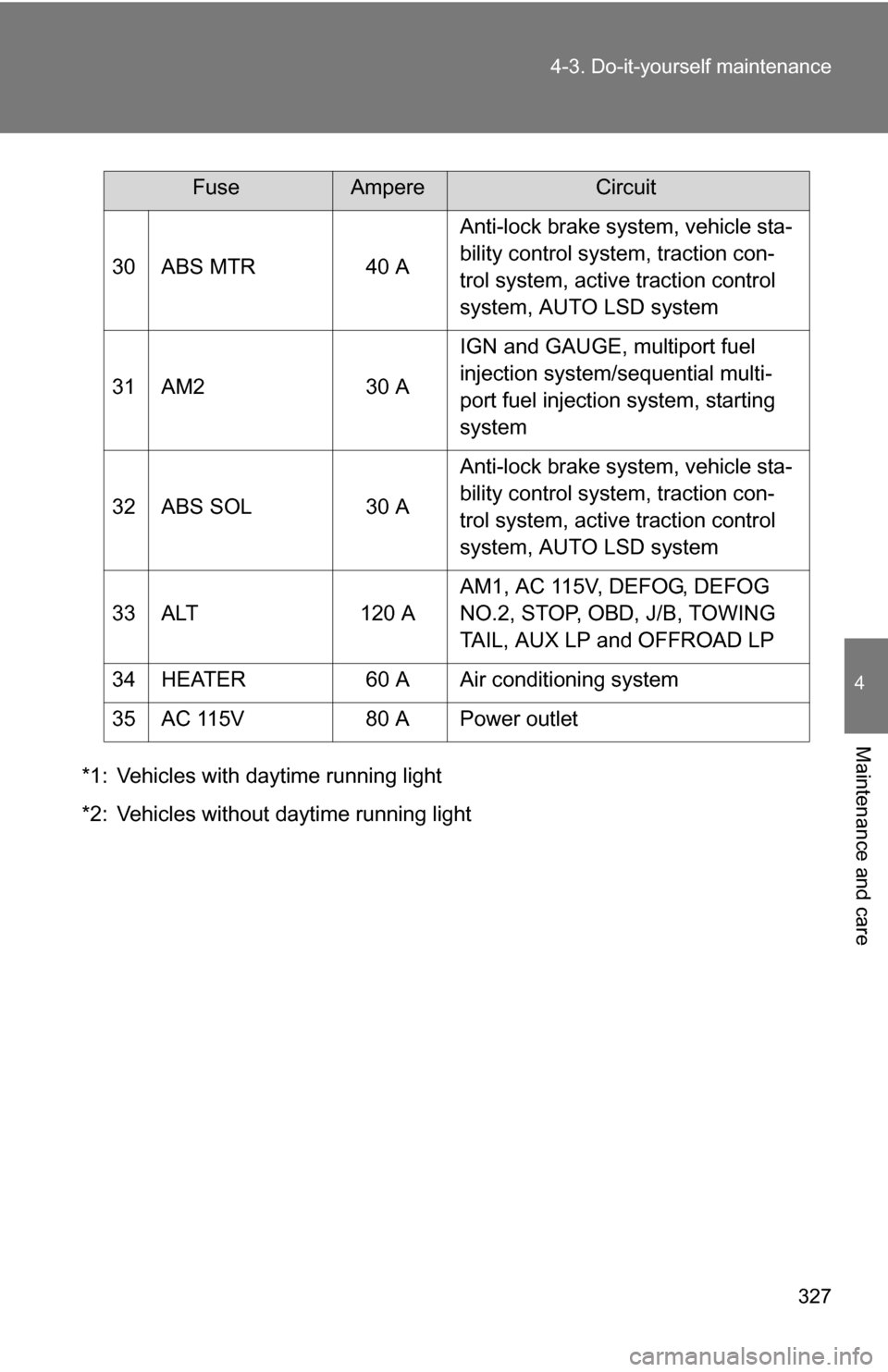

327
4-3. Do-it-yourself maintenance
4
Maintenance and care
*1: Vehicles with daytime running light
*2: Vehicles without daytime running light
30 ABS MTR
40 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system
31 AM2 30 AIGN and GAUGE, multiport fuel
injection system/sequential multi-
port fuel injection system, starting
system
32 ABS SOL 30 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system
33 ALT 120 AAM1, AC 115V, DEFOG, DEFOG
NO.2, STOP, OBD, J/B, TOWING
TAIL, AUX LP and OFFROAD LP
34 HEATER 60 A Air conditioning system
35 AC 115V 80 A Power outlet
FuseAmpereCircuit

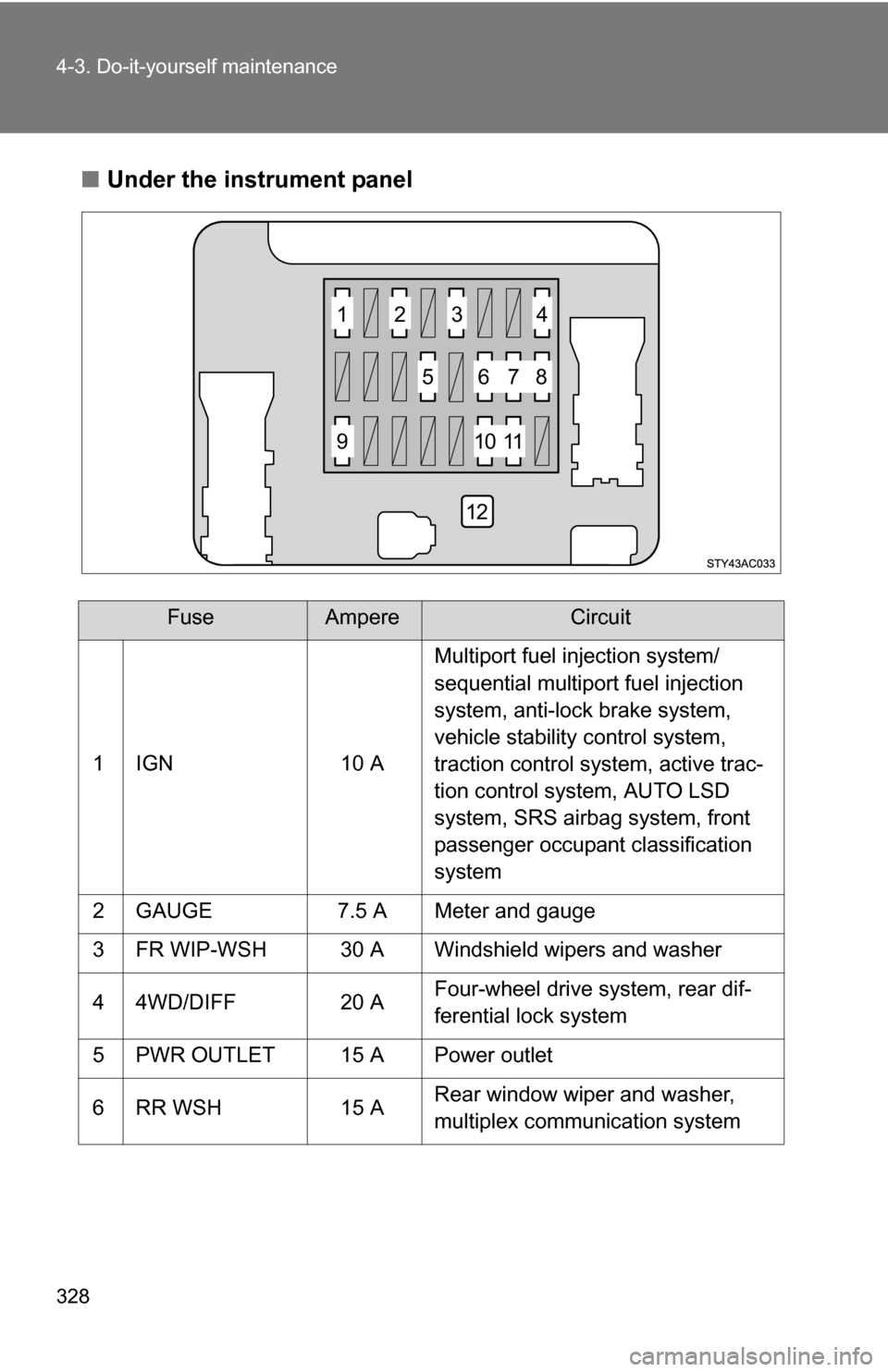

328 4-3. Do-it-yourself maintenance
■Under the instrument panel
FuseAmpereCircuit
1 IGN 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, anti-lock brake system,
vehicle stability control system,
traction control system, active trac-
tion control system, AUTO LSD
system, SRS airbag system, front
passenger occupant classification
system
2 GAUGE 7.5 A Meter and gauge
3 FR WIP-WSH 30 A Windshield wipers and washer
4 4WD/DIFF 20 A Four-wheel drive system, rear dif-
ferential lock system
5 PWR OUTLET 15 A Power outlet
6 RR WSH 15 A Rear window wiper and washer,
multiplex communication system
1
5678
91011
12
23 4

329
4-3. Do-it-yourself maintenance
4
Maintenance and care

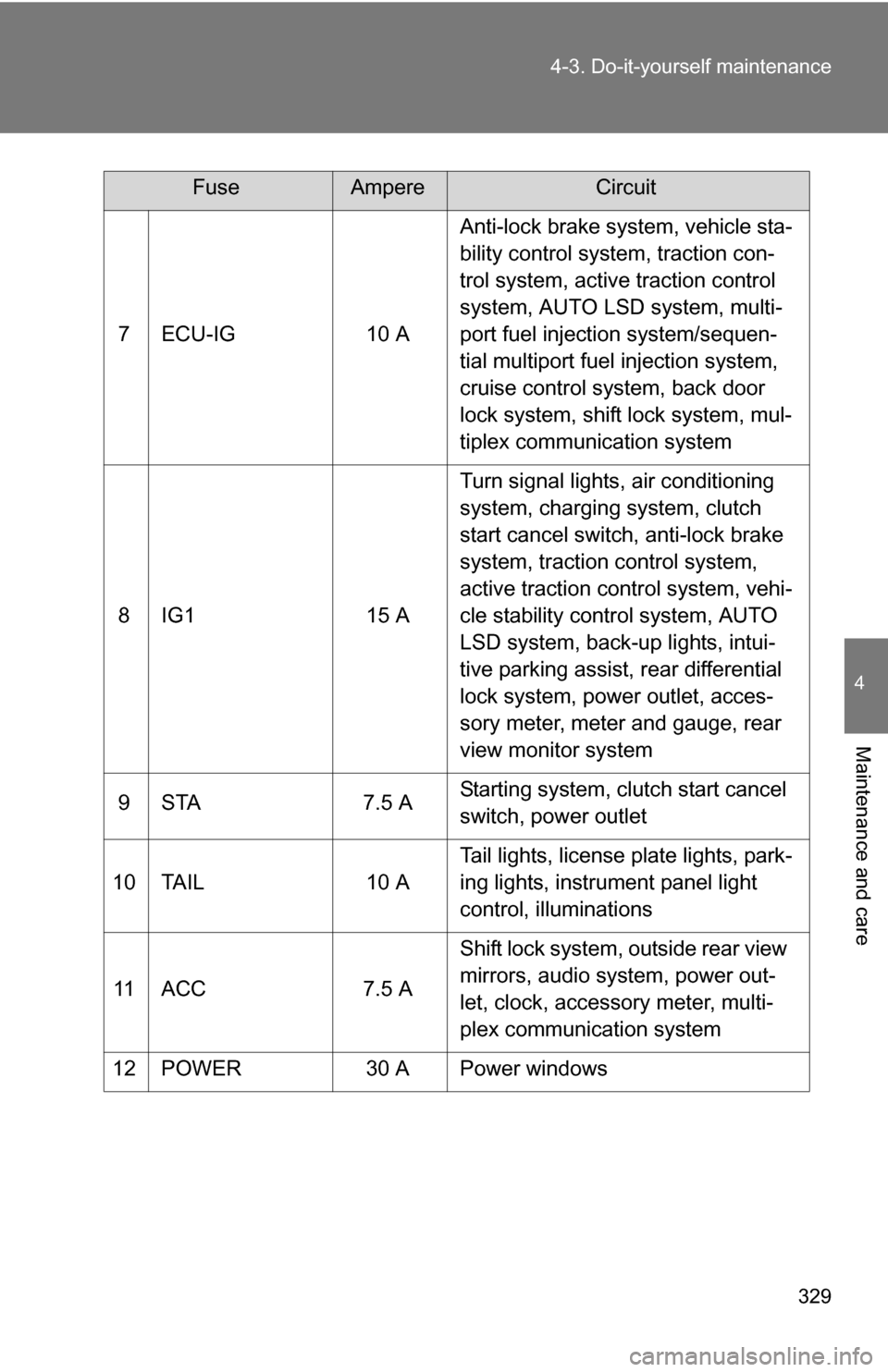

7 ECU-IG
10 AAnti-lock brake system, vehicle sta-
bility control system, traction con-
trol system, active traction control
system, AUTO LSD system, multi-
port fuel injection system/sequen-
tial multiport fuel injection system,
cruise control system, back door
lock system, shift lock system, mul-
tiplex communication system
8 IG1 15 ATurn signal lights, air conditioning
system, charging system, clutch
start cancel switch, anti-lock brake
system, traction control system,
active traction control system, vehi-
cle stability control system, AUTO
LSD system, back-up lights, intui-
tive parking assist, rear differential
lock system, power outlet, acces-
sory meter, meter and gauge, rear
view monitor system
9 STA 7.5 AStarting system, clutch start cancel
switch, power outlet
10 TAIL 10 ATail lights, license plate lights, park-
ing lights, instrument panel light
control, illuminations
11 A C C 7 . 5 AShift lock system, outside rear view
mirrors, audio system, power out-
let, clock, accessory meter, multi-
plex communication system
12 POWER 30 A Power windows
FuseAmpereCircuit

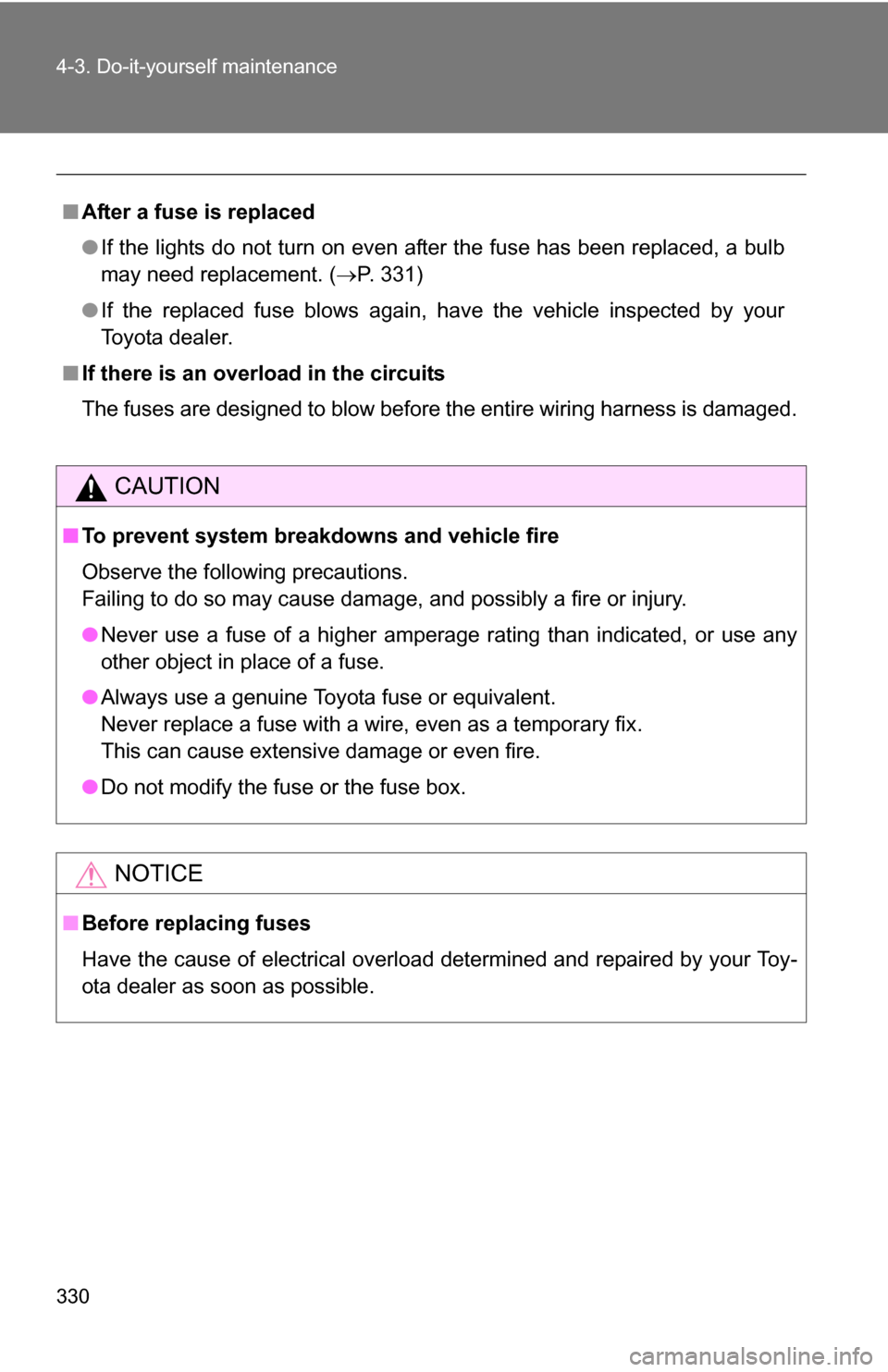

330 4-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 331)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify the fuse or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy-
ota dealer as soon as possible.
