air filter TOYOTA FJ CRUISER 2009 1.G Owners Manual

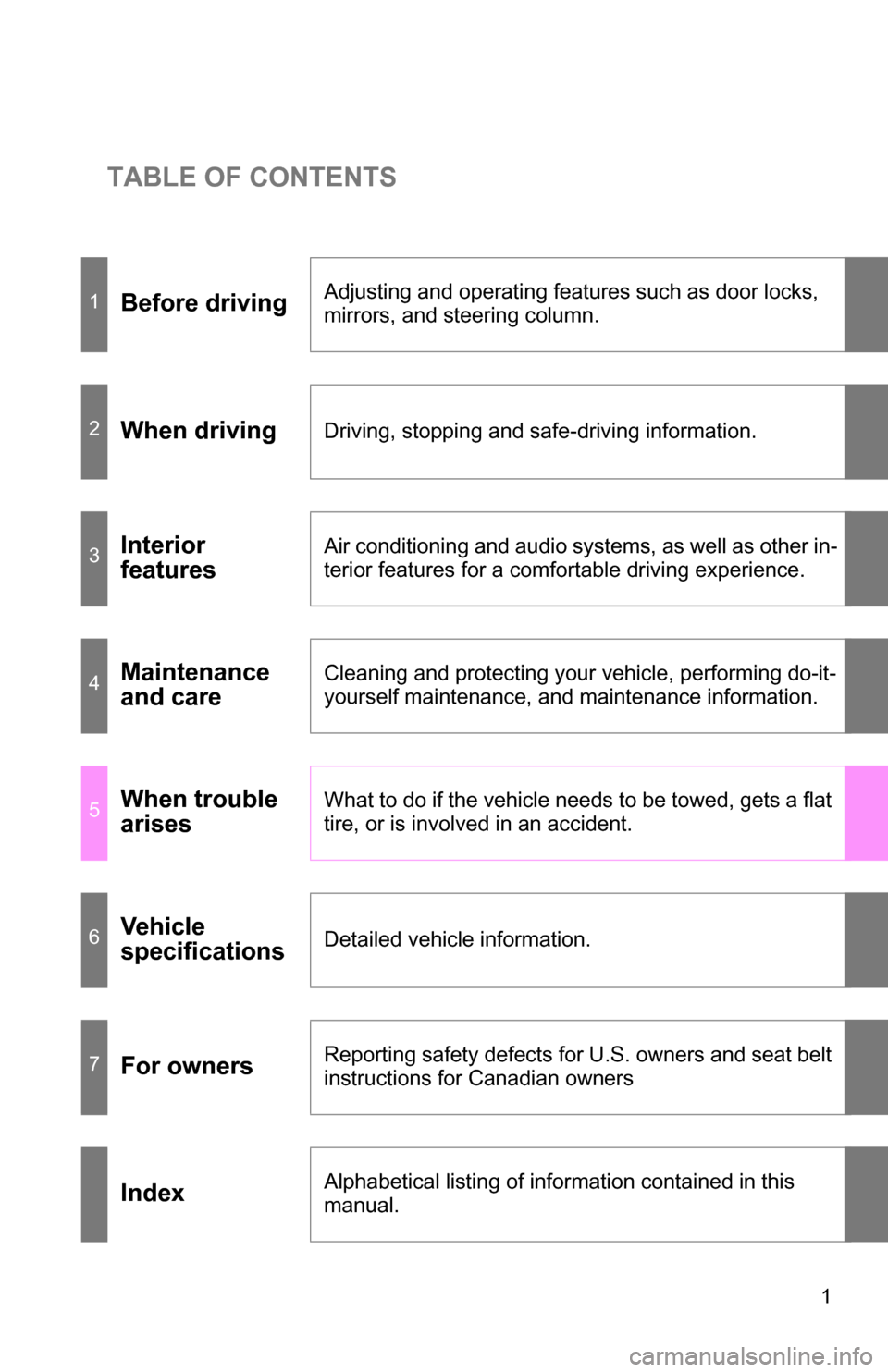

TABLE OF CONTENTSIndex
4
3-5. Other interior featuresSun visors .......................... 250
Vanity mirrors ..................... 251
Clock .................................. 252
Outside temperature display .............................. 253
Power outlet (12V DC) ....... 254
Power outlet (if 115V AC equipped) ......................... 255
Armrest............................... 261
Floor mat ............................ 262
Luggage storage box (vehicles without sub
woofer) ............................. 263
Luggage compartment features ............................ 264
Compass ............................ 267
4-1. Maintenance and care Cleaning and protecting the vehicle exterior ........... 274
Cleaning and protecting the vehicle interior ............ 276
4-2. Maintenance Maintenance requirements .................... 279
General maintenance ......... 281
Emission inspection and maintenance (I/M)
programs .......................... 284
4-3. Do-it-yourself maintenance Do-it-yourself service precau-tions ................................. 285 Hood ................................... 289
Engine compartment .......... 290
Tires.................................... 304
Tire inflation pressure ......... 309
Wheels................................ 313
Air conditioning filter ........... 315
Key battery ......................... 318
Checking and replacing
fuses ................................. 320
Light bulbs .......................... 331
5-1. Essential information Emergency flashers ............ 340
If your vehicle needs to be towed ................................ 341
If you think something is wrong ................................ 346
Fuel pump shut off system .............................. 347
Event data recorder ............ 348
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................... 350
If you have a flat tire ........... 360
If the engine will not start .... 372
If the shift lever cannot be shifted from P ................... 373
If you lose your keys ........... 374
If the vehicle battery is discharged ........................ 375
If your vehicle overheats..... 378
If the vehicle becomes stuck ................................. 381
4Maintenance and care
5When trouble arises

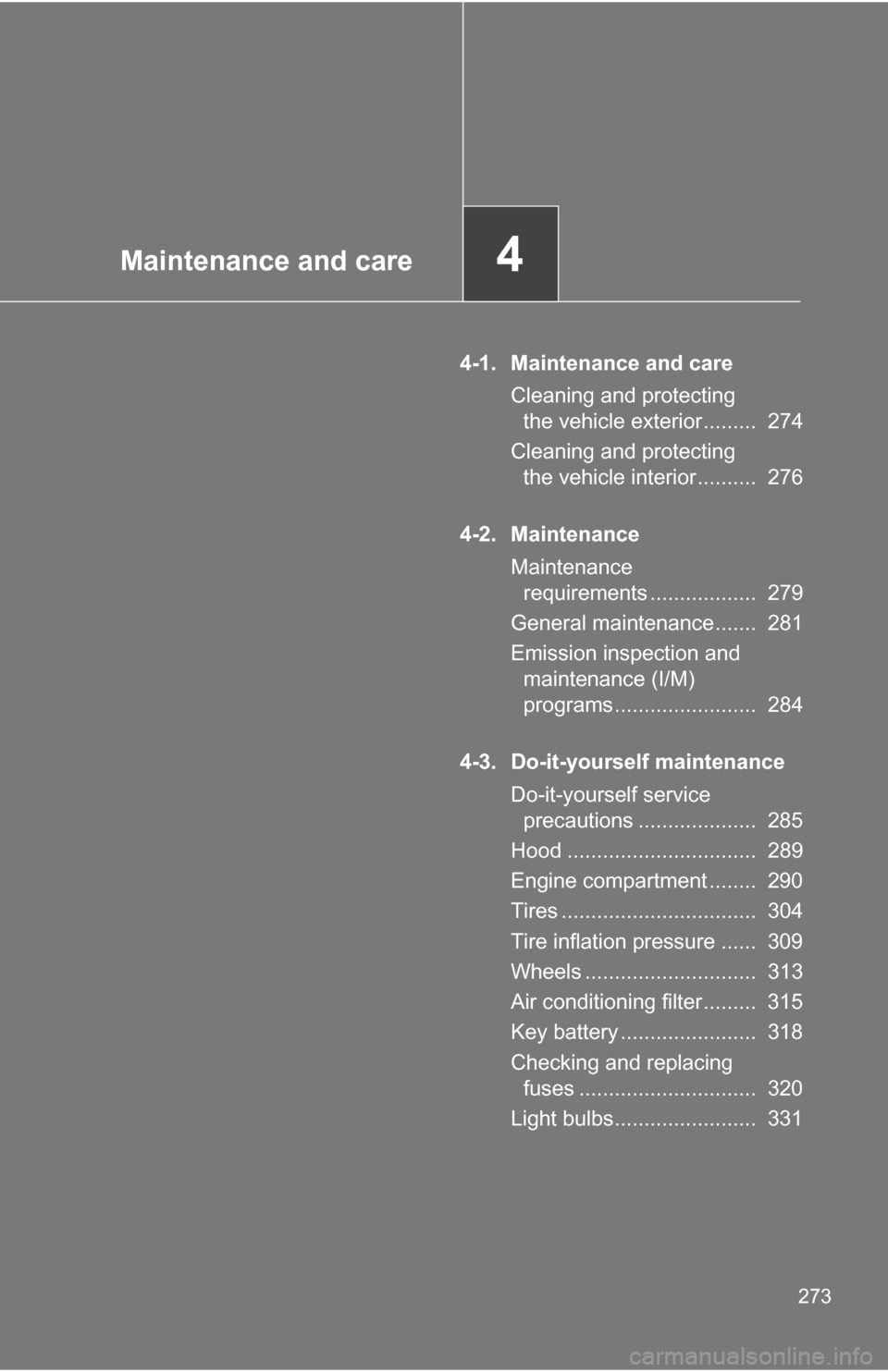

Maintenance and care4
273
4-1. Maintenance and careCleaning and protecting the vehicle exterior ......... 274
Cleaning and protecting the vehicle interior .......... 276
4-2. Maintenance Maintenance requirements .................. 279
General maintenance....... 281
Emission inspection and maintenance (I/M)
programs........................ 284
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................... 285
Hood ................................ 289
Engine compartment ........ 290
Tires ................................. 304
Tire inflation pressure ...... 309
Wheels ............................. 313
Air conditioning filter......... 315
Key battery ....................... 318
Checking and replacing fuses .............................. 320
Light bulbs........................ 331

315
4-3. Do-it-yourself maintenance
4
Maintenance and care

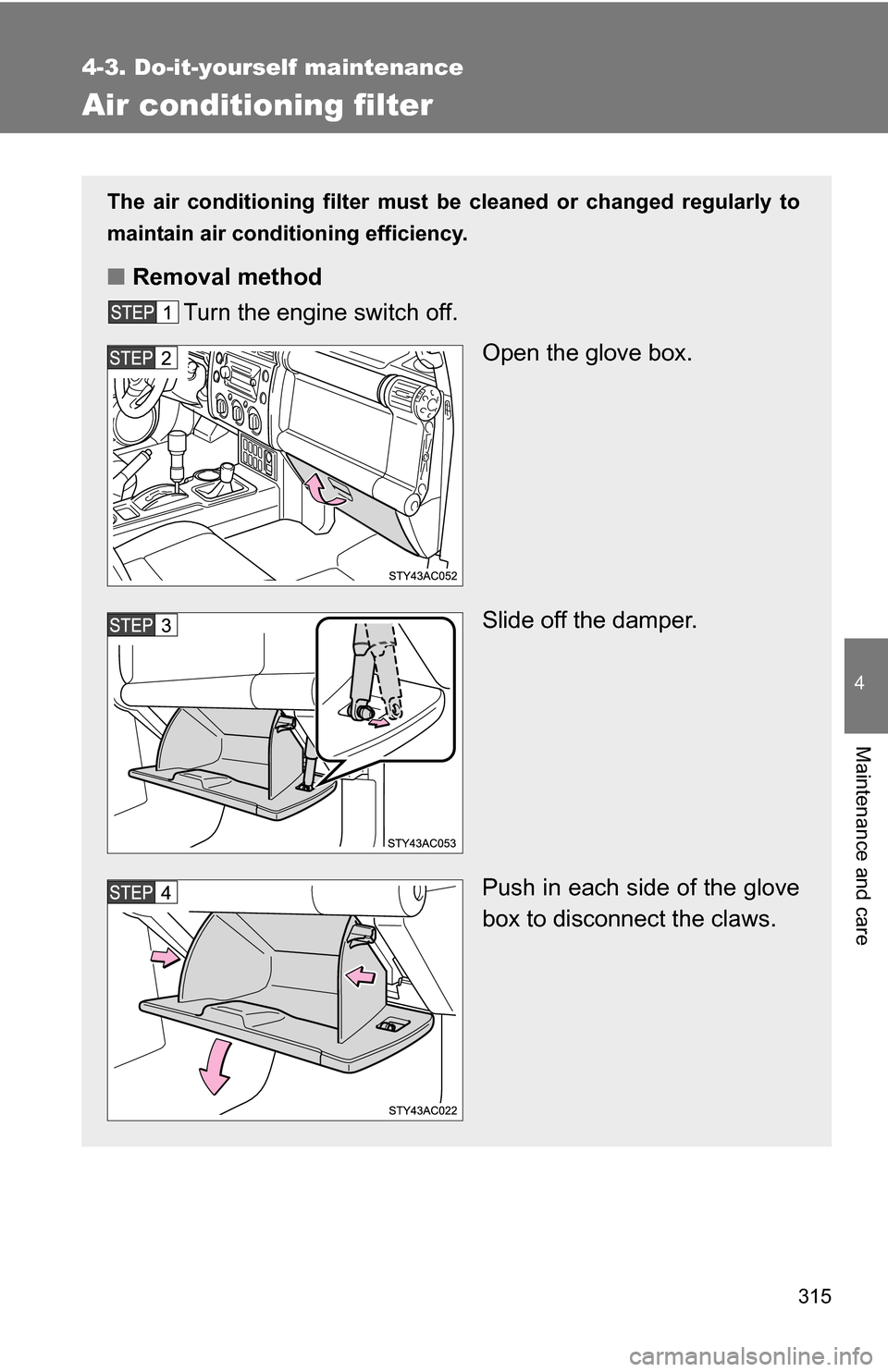

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
■ Removal method
Turn the engine switch off.
Open the glove box.
Slide off the damper.
Push in each side of the glove
box to disconnect the claws.

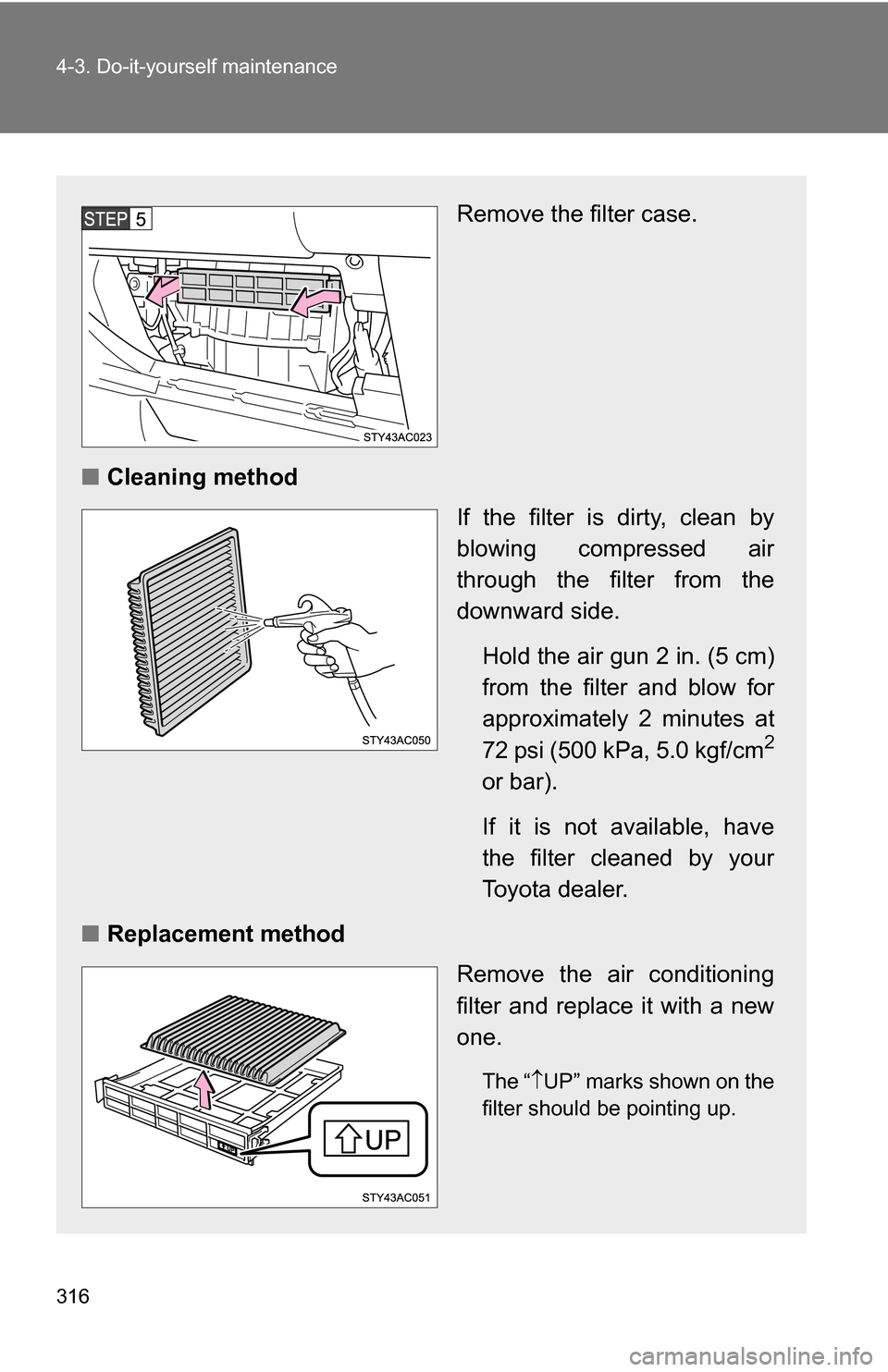

316 4-3. Do-it-yourself maintenance
Remove the filter case.
■ Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm
2
or bar).
If it is not available, have
the filter cleaned by your
Toyota dealer.
■ Replacement method
Remove the air conditioning
filter and replace it with a new
one.
The“  UP” marks shown on the
filter should be pointing up.

317
4-3. Do-it-yourself maintenance
4
Maintenance and care
■

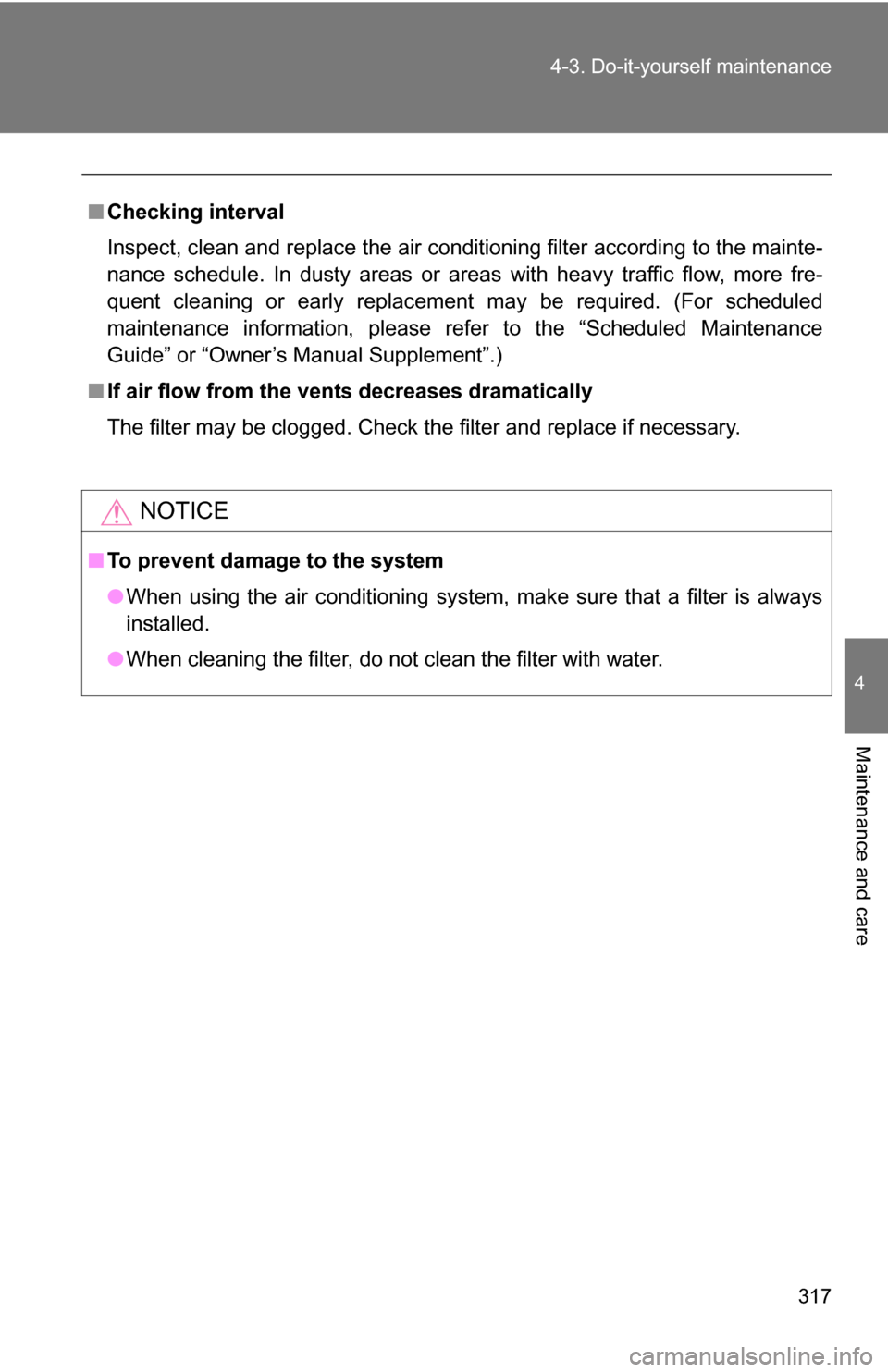

Checking interval
Inspect, clean and replace the air conditioning filter according to the mainte-
nance schedule. In dusty areas or areas with heavy traffic flow, more fre-
quent cleaning or early replacement may be required. (For scheduled
maintenance information, please refer to the “Scheduled Maintenance
Guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■To prevent damage to the system
●When using the air conditioning system, make sure that a filter is always
installed.
● When cleaning the filter, do not clean the filter with water.

418

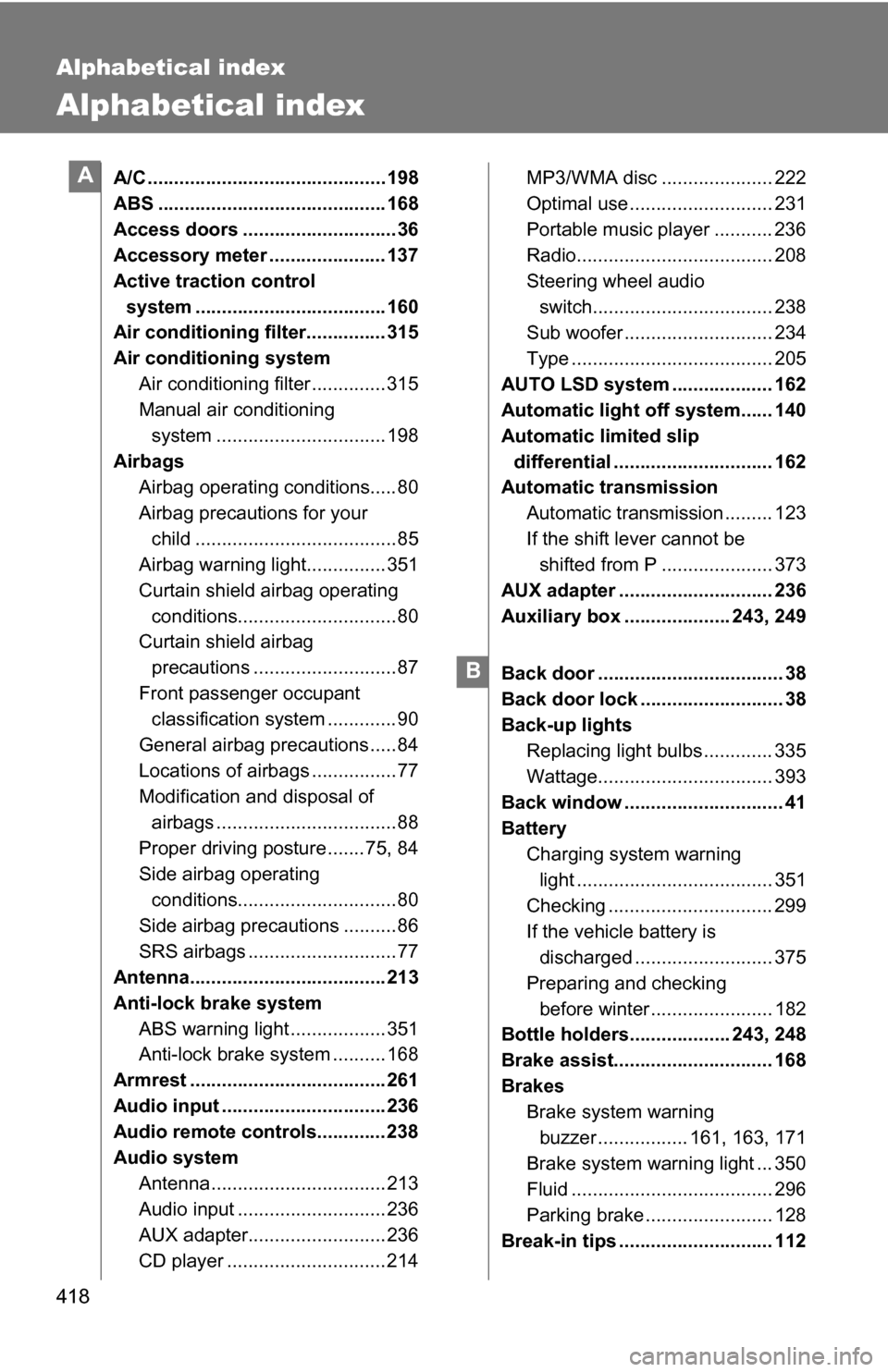

Alphabetical index
Alphabetical index
A/C ............................................. 198
ABS ........................................... 168
Access doors .............................36
Accessory meter ...................... 137
Active traction control system .................................... 160
Air conditioning filter............... 315
Air conditioning system
Air conditioning filter .............. 315
Manual air conditioning system ................................ 198
Airbags Airbag operating conditions.....80
Airbag precautions for your
child ......................................85
Airbag warning light............... 351
Curtain shield airbag operating
conditions..............................80
Curtain shield airbag
precautions ...........................87
Front passenger occupant classification system .............90
General airbag precautions .....84
Locations of airbags ................77
Modification and disposal of airbags ..................................88
Proper driving posture .......75, 84
Side airbag operating conditions..............................80
Side airbag precautions ..........86
SRS airbags ............................77
Antenna..................................... 213
Anti-lock brake system ABS warning light .................. 351
Anti-lock brake system .......... 168
Armrest ..................................... 261
Audio input ............................... 236
Audio remote controls............. 238
Audio system Antenna ................................. 213
Audio input ............................ 236
AUX adapter.......................... 236
CD player .............................. 214 MP3/WMA disc ..................... 222
Optimal use ........................... 231
Portable music player ........... 236
Radio..................................... 208
Steering wheel audio
switch.................................. 238
Sub woofer ............................ 234
Type ...................................... 205
AUTO LSD system ................... 162
Automatic light off system...... 140
Automatic limited slip differential .............................. 162
Automatic transmission
Automatic transmission ......... 123
If the shift lever cannot be shifted from P ..................... 373
AUX adapter ............................. 236
Auxiliary box .................... 243, 249
Back door ................................... 38
Back door lock ........................... 38
Back-up lights Replacing light bulbs ............. 335
Wattage................................. 393
Back window .............................. 41
Battery Charging system warning
light ..................................... 351
Checking ............................... 299
If the vehicle battery is discharged .......................... 375
Preparing and checking before winter ....................... 182
Bottle holders................... 243, 248
Brake assist.............................. 168
Brakes Brake system warning
buzzer ................. 161, 163, 171
Brake system warning light ... 350
Fluid ...................................... 296
Parking brake ........................ 128
Break-in tips ............................. 112A
B
