TOYOTA FJ CRUISER 2011 1.G Quick Reference Guide

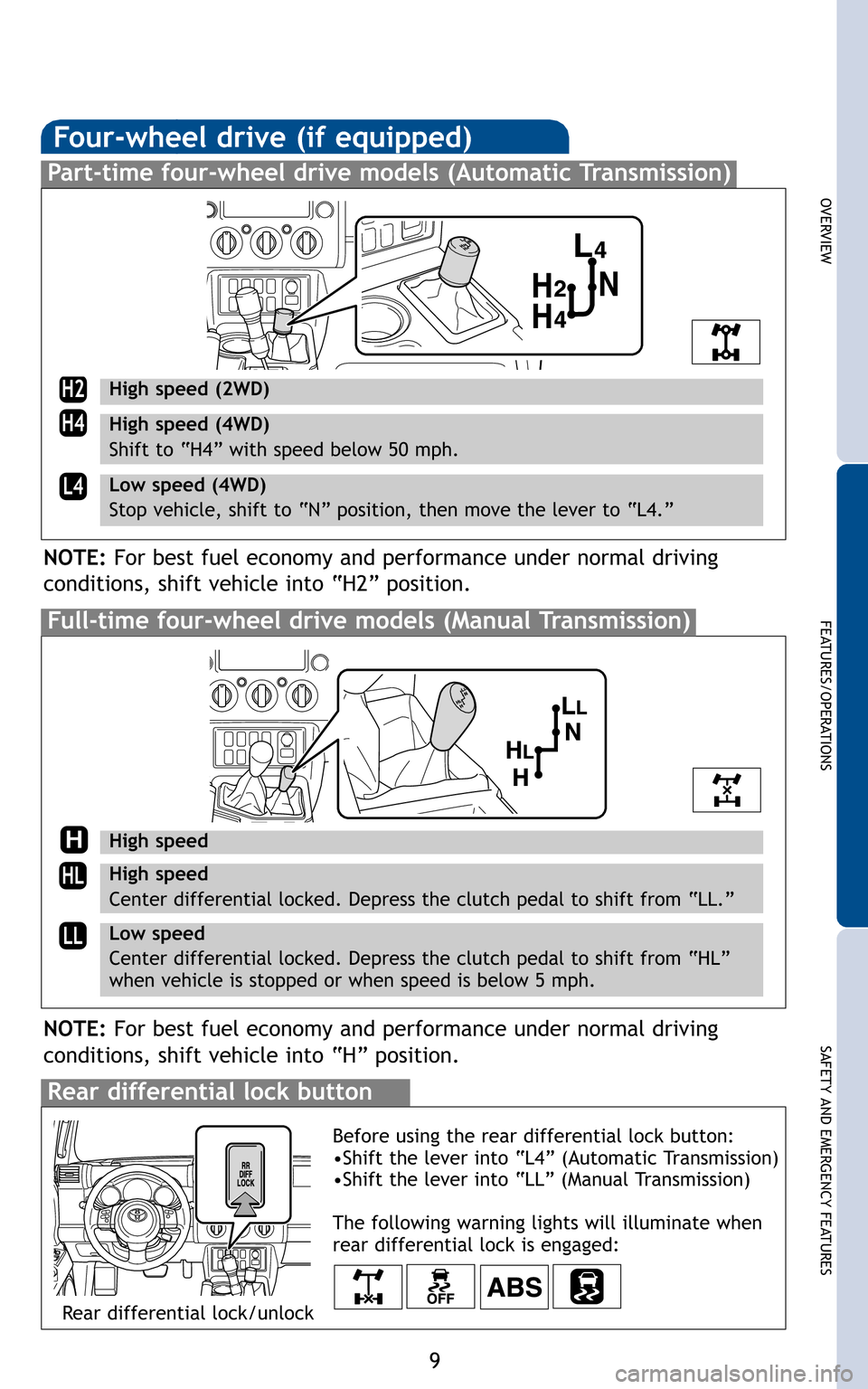

Four-wheel drive (if equipped)
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES



Full-time four-wheel drive models (Manual Transmission)
Part-time four-wheel drive models (Automatic Transmission)
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N” position, then move the lever to “L4.”
Rear differential lock button
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H2” position.
Rear differential lock/unlock
Low speed
Center differential locked. Depress the clutch pedal to shift from “HL”
when vehicle is stopped or when speed is below 5 mph.



Before using the rear differential lock button:
•Shift the lever into “L4” (Automatic Transmission)
•Shift the lever into “LL” (Manual Transmission)
The following warning lights will illuminate when
rear differential lock is engaged:
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H” position.
High speed
High speed
Center differential locked. Depress the clutch pedal to shift from “LL.”
Text_414844M2.qxd 11/2/10 4:11 PM Page 9

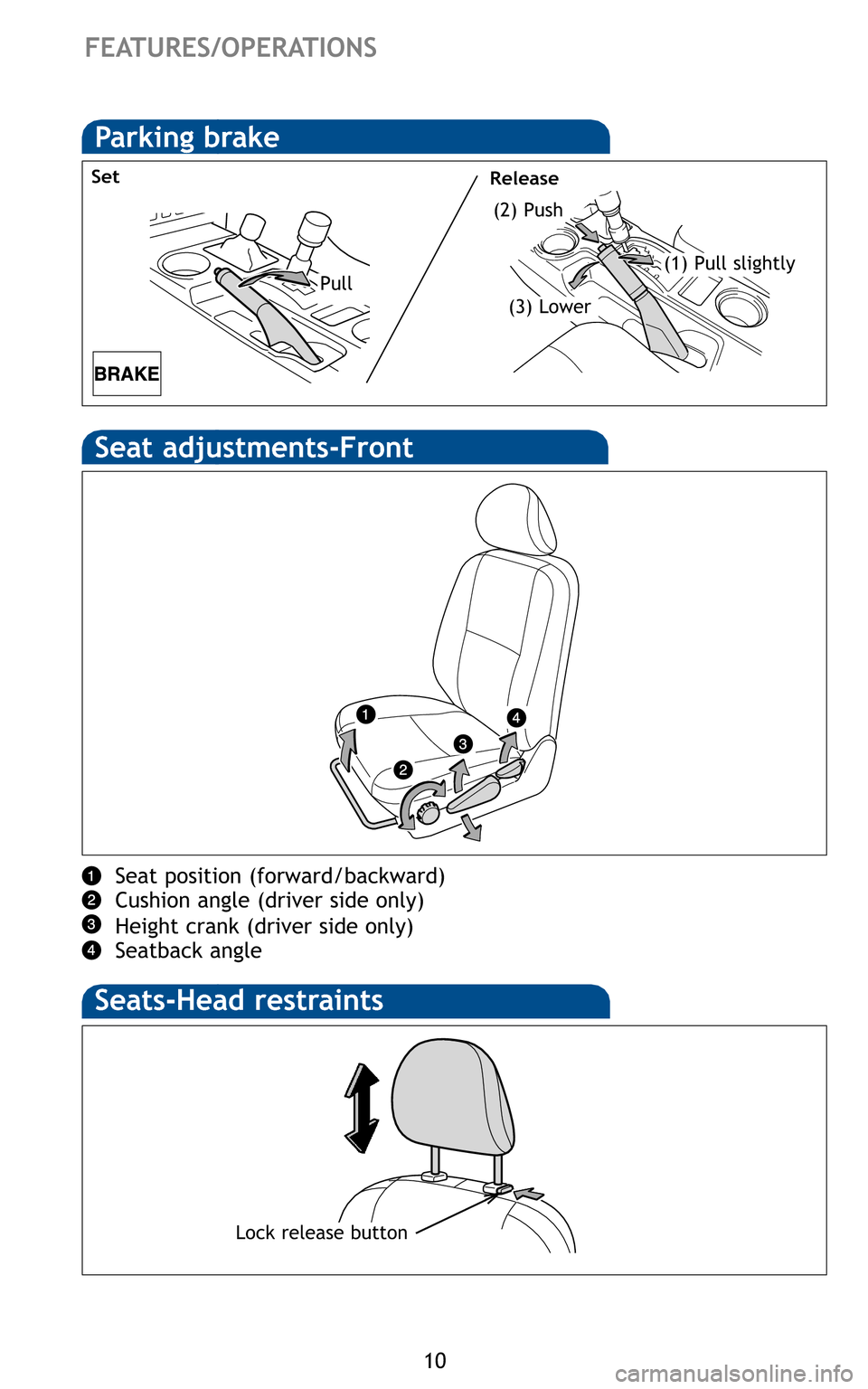

FEATURES/OPERATIONS
Seats-Head restraints
10
Lock release button
Seat adjustments-Front
Seat position (forward/backward)
Cushion angle (driver side only)
Height crank (driver side only)
Seatback angle
ReleaseSet
Pull(1) Pull slightly
(2) Push
(3) Lower
Parking brake
Text_414844M2.qxd 11/2/10 4:11 PM Page 10

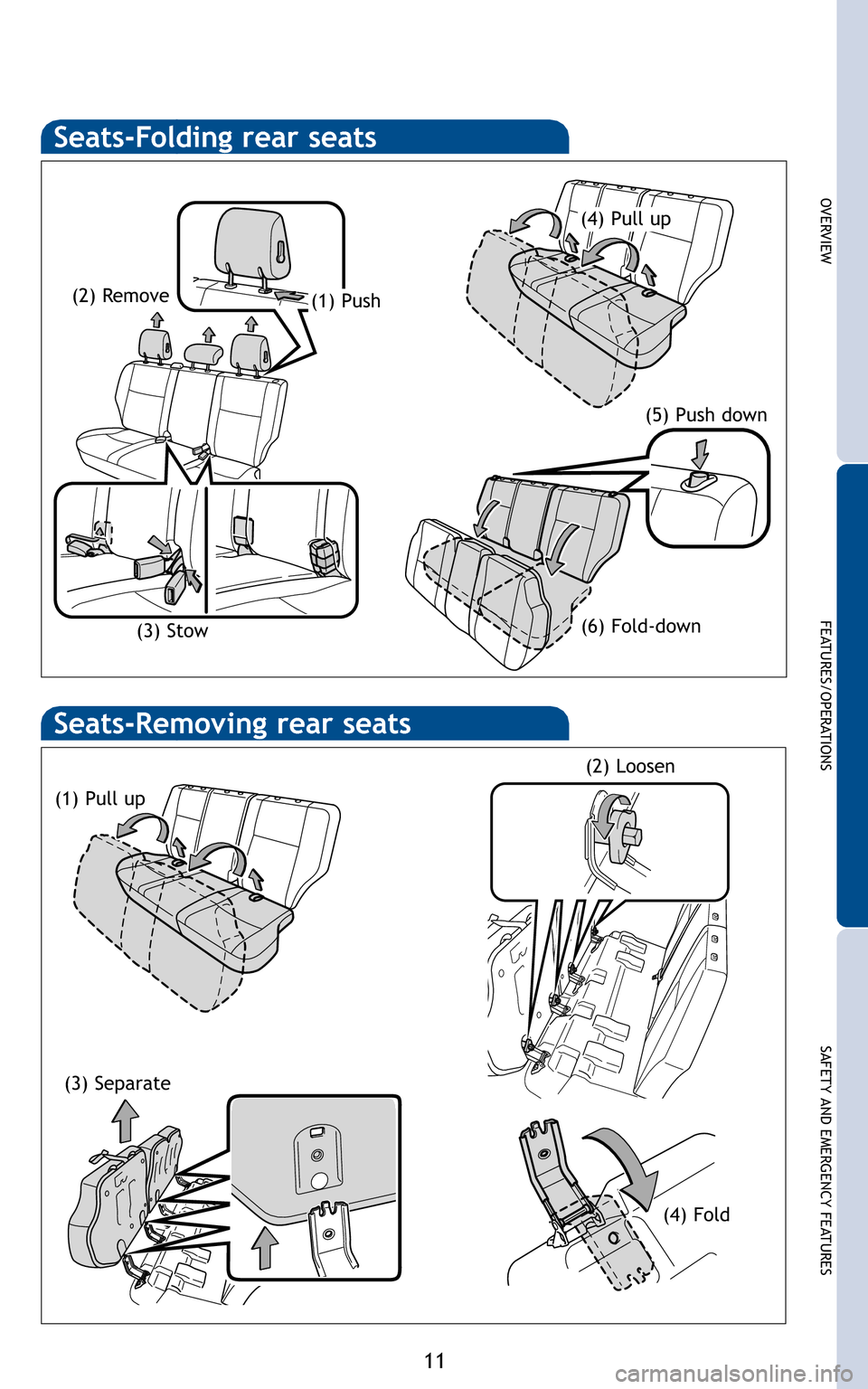

Seats-Folding rear seats
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seats-Removing rear seats
(1) Push
(2) Remove
(3) Stow (6) Fold-down (5) Push down
(1) Pull up
(2) Loosen
(3) Separate
(4) Fold
(4) Pull up
Text_414844M2.qxd 11/2/10 4:11 PM Page 11

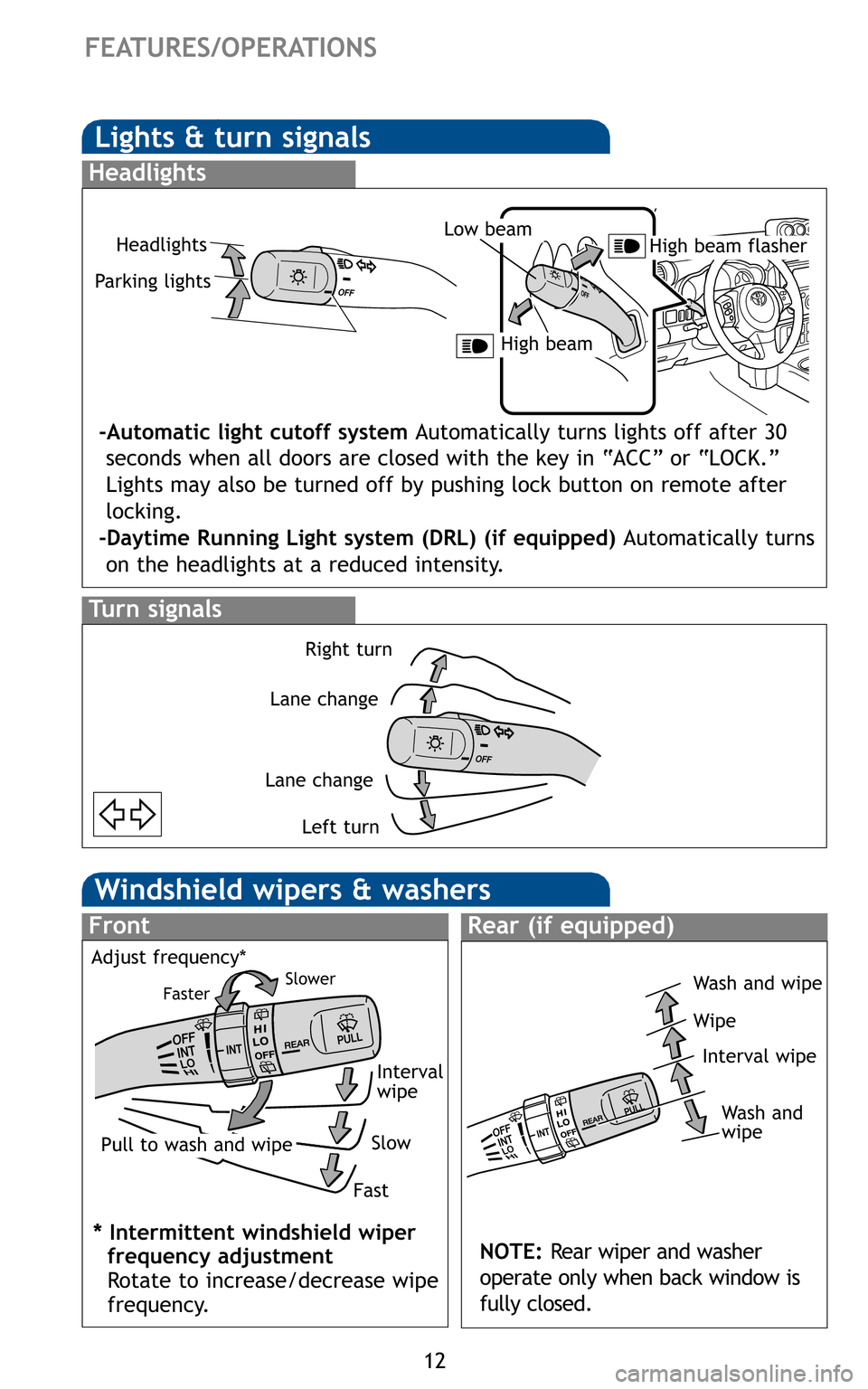

12
FEATURES/OPERATIONS
Windshield wipers & washers
Rear (if equipped)Front
Interval
wipe
Slow
Fast
Pull to wash and wipe
Adjust frequency*
NOTE:
Rear wiper and washer
operate only when back window is
fully closed.
Lights & turn signals
Headlights
High beam flasherLow beam
Headlights
-Automatic light cutoff system Automatically turns lights off after 30
seconds when all doors are closed with the key in “ACC” or “LOCK.”
Lights may also be turned off by pushing lock button on remote after
locking.
-Daytime Running Light system (DRL) (if equipped) Automatically turns
on the headlights at a reduced intensity.
Parking lights
High beam
Turn signals
Right turn
Lane change
Lane change Left turn
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe
frequency.
Wash and wipe
Wipe
Interval wipe
Wash and
wipeFaster Slower
Text_414844M2.qxd 11/2/10 4:11 PM Page 12

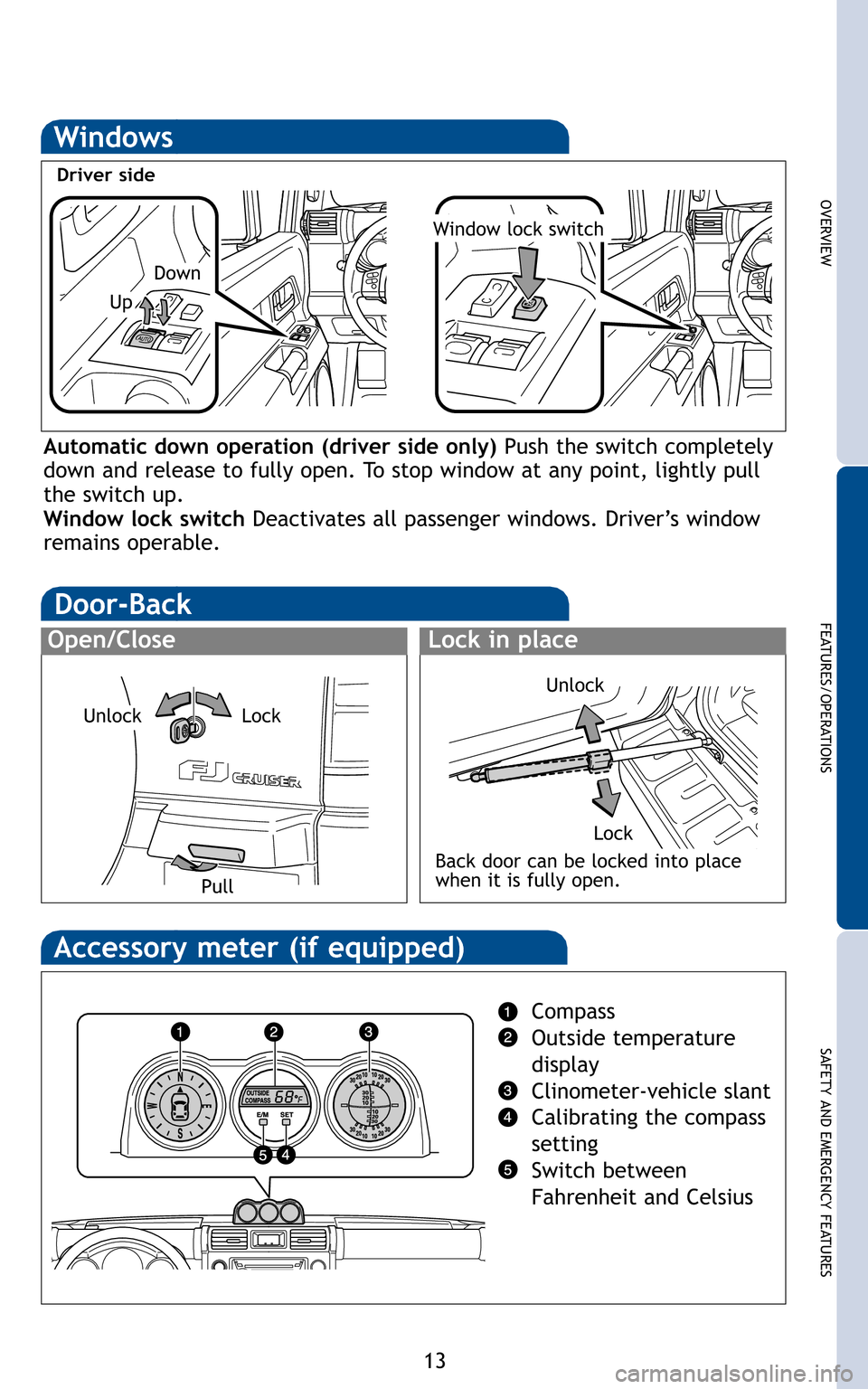

13
Door-Back
Open/CloseLock in place
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
UnlockLock
Pull Unlock
Lock
Back door can be locked into place
when it is fully open.
Windows
Driver side
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window at any point, lightly pull
the switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Window lock switch
Accessory meter (if equipped)
Compass
Outside temperature
display
Clinometer-vehicle slant
Calibrating the compass
setting
Switch between
Fahrenheit and Celsius
Text_414844M2.qxd 11/2/10 4:11 PM Page 13

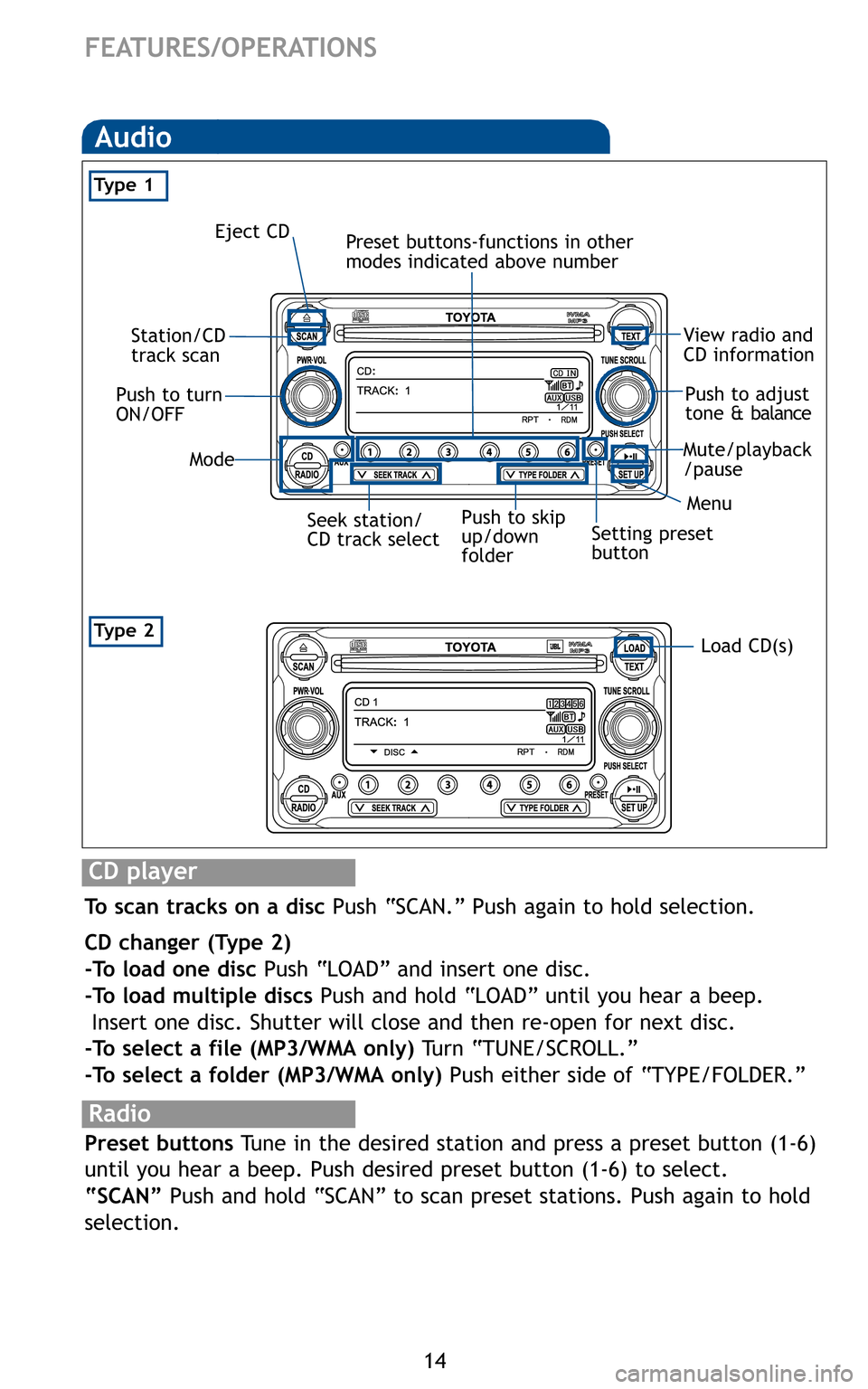

3\b
\fE\bTURES/OPER\bTIONS

Type2
Viewradio and
C\f information
Eject
C\f
Push toturn
ON/OFF Push
toadjust
tone &balance
Push toskip
up/down
folder
Seek
station/
C\f track select
Station/C\f
track
scan
Mode
LoadC\f(s)
Preset
buttonsfunctions inother
modes indicated abovenumber
Type1

Toscan tracks onadisc Push “SCAN.” Pushagain tohold selection.
CD changer (Type2)
To load onedisc Push “LOA\f” andinsert onedisc.
To load multiple discsPushandhold “LOA\f” untilyouhear abeep.
Insert onedisc. Shutter willclose andthen reopen fornext disc.
To select afile (MP3/WM\b only)Turn“TUNE/SCROLL.”
To select afolder (MP3/WM\b only)Pusheither sideof“TYPE/FOL\fER.”
Menu
Mute/playback
/pause
Setting preset
button
Text_414844M2_r1.qxd:414844_FJ Text 11/\b/10 11:\b8 AM Page 14

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio OFF.>>
Steering wheel switches
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to
the USB port, you can listen to music from the portable audio device or
USB memory through the vehicle’s speaker system while in USB mode.
AUX port/USB port
Volume control
Clock
H- Hour set
M- Minute set
Text_414844M2.qxd 11/2/10 4:11 PM Page 15

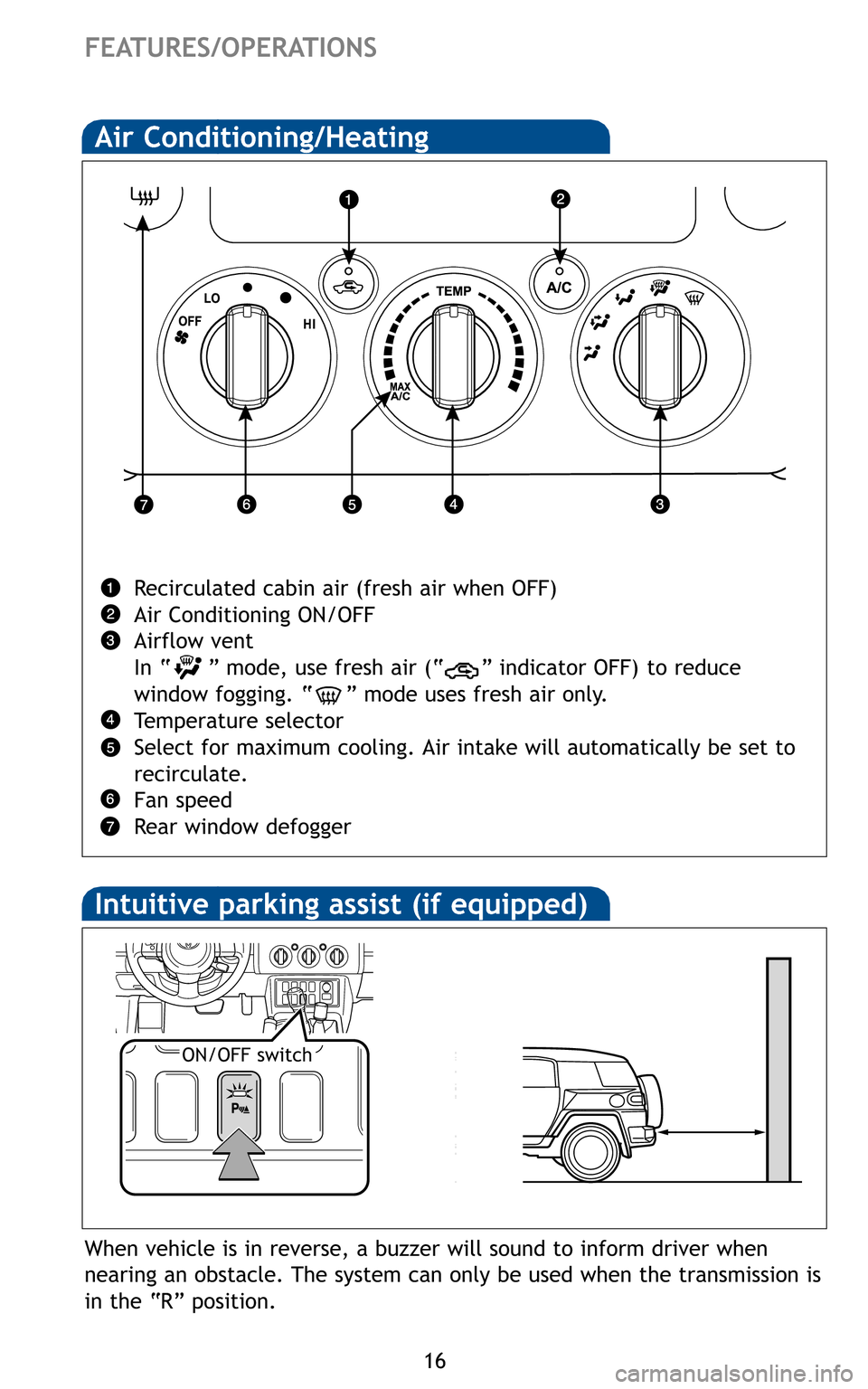

When vehicle is in reverse, a buzzer will sound to inform driver when
nearing an obstacle. The system can only be used when the transmission is
in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)
16
FEATURES/OPERATIONS
Air Conditioning/Heating
Recirculated cabin air (fresh air when OFF)
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window fogging. “ ” mode uses fresh air only.
Temperature selector
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Fan speed
Rear window defogger
Text_414844M2.qxd 11/2/10 4:11 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phones),”
Section 3-4 in the
Owner’s Manual , or go to Toyota.LetsTalk.com for more
information about phone connections and compatibility.
Microphone
Audio unit
Steering wheel telephone switches
VolumeEnd call
Start call
Voice command button
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFFFunctions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Telephone controls (Bluetooth®)
Text_414844M2.qxd 11/2/10 4:11 PM Page 17

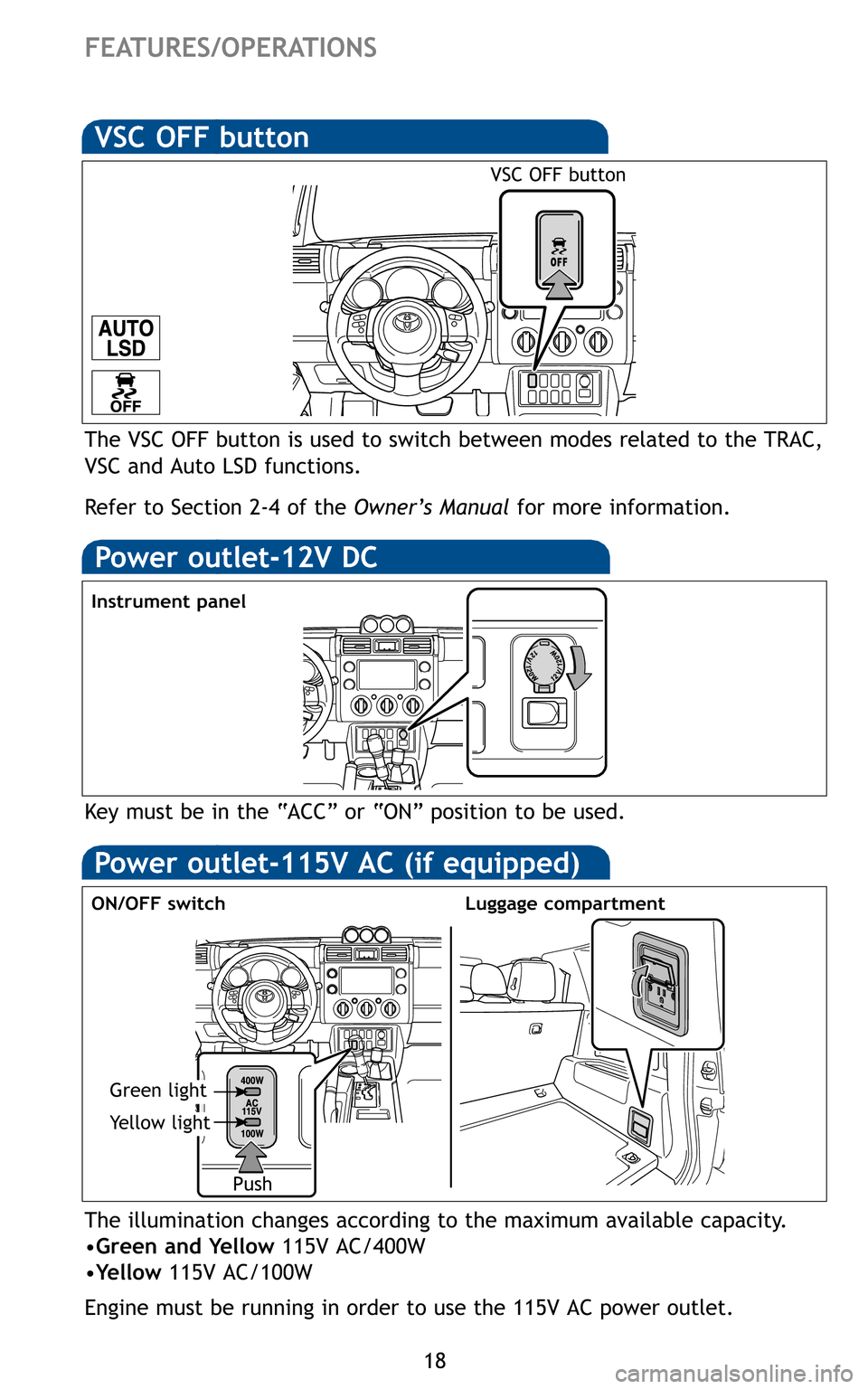

18
Power outlet-12V DC
ON/OFF switch Luggage compartment
Push
Instrument panel
The illumination changes according to the maximum available capacity.
•
Green and Yellow 115V AC/400W
• Yellow 115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Green light
Power outlet-115V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Yellow light
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manualfor more information.
VSC OFF button
VSC OFF button
Text_414844M2.qxd 11/2/10 4:11 PM Page 18
