automatic transmission TOYOTA FJ CRUISER 2012 1.G Owners Manual

TABLE OF CONTENTSIndex
2
1-1. Key informationKeys ..................................... 28
1-2. Opening, closing and locking the doors
Wireless remote control ....... 30
Side doors ............................ 33
Access doors........................ 36
Back door ............................. 38
Glass hatch .......................... 43
1-3. Adjustable components (seats, mirrors, steering
wheel)
Front seats ........................... 47
Rear seats ............................ 49
Head restraints ..................... 55
Seat belts ............................. 58
Steering wheel ..................... 64
Anti-glare inside rear view mirror .................................. 65
Outside rear view mirrors ..... 68
1-4. Opening and closing the windows
Power windows .................... 71
1-5. Refueling Opening the fuel tank cap .... 73 1-6. Theft deterrent system
Engine immobilizer system ................................ 76
Theft prevention labels (U.S.A.)............................... 78
1-7. Safety information Correct driving posture ......... 79
SRS airbags ......................... 81
Front passenger occupant classification system ........... 94
Child restraint systems ......... 99
Installing child restraints ..... 103
2-1. Driving procedures Driving the vehicle .............. 116
Engine (ignition) switch....... 127
Automatic Transmission ..... 130
Manual Transmission ......... 132
Turn signal lever ................. 134
Parking brake ..................... 135
Horn .................................... 137
2-2. Instrument cluster Gauges and meters ............ 138
Indicators and warning lights ................................. 141
Accessory meter ................. 144
1Before driving
2When driving

1
2
3
4
5
6
7
3
2-3. Operating the lights andwipers
Headlight swi tch .................. 146
Windshield wipers and washer .............................. 148
Rear window wiper and washer .............................. 150
2-4. Using other driving systems Cruise control ...................... 151
Intuitive parking assist......... 155
Rear view monitor system... 160
Four-wheel drive system (4WD models with
a manual transmission)..... 164
Four-wheel drive system (4WD models with
an automatic
transmission) .................... 167
Active traction control system .............................. 170
AUTO LSD system (2WD models) ................... 172
Rear differential lock system .............................. 174
Clutch start cancel switch (vehicles with a manual
transmission) .................... 177
Driving assist systems ........ 178
2-5. Driving information Off-road precautions ........... 183
Cargo and luggage ............. 188
Vehicle load limits ............... 192
Winter driving tips ............... 193
Trailer towing ...................... 196
Dinghy towing ..................... 214 3-1. Using the air conditioning
system and defogger
Air conditioning system ...... 218
Rear window defogger ....... 225
3-2. Using the audio system Audio system ...................... 226
Using the radio ................... 230
Using the CD player ........... 237
Playing MP3 and WMA discs ................................. 245
Operating an iPod .............. 252
Operating a USB memory ............................ 259
Optimal use of the audio system .............................. 267
Using the AUX port............. 270
Using the steering wheel audio switches.................. 271
Detachable pole antenna ... 274
3-3. Using the Bluetooth
® audio
system
Bluetooth
® audio system .... 277
Using the Bluetooth® audio
system .............................. 280
Operating a Bluetooth
®
enabled portable player.... 285
Setting up a Bluetooth
®
enabled portable player.... 287
Bluetooth
® audio system
setup ................................ 292
3Interior features

1
2
3
4
5
6
7
5
5-1. Essential informationEmergency flashers ............ 436
If your vehicle needs to be towed ........................... 437
If you think something is wrong ................................ 442
Fuel pump shut off system .............................. 443
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................... 444
If you have a flat tire............ 454
If the engine will not start .... 467
If the shift lever cannot be shifted from P
(vehicles with an
automatic transmission) .... 468
If you lose your keys ........... 469
If the vehicle battery is discharged ........................ 470
If your vehicle overheats ..... 474
If the vehicle becomes stuck ................................. 477
If your vehicle has to be stopped in
an emergency ................... 479 6-1. Specifications
Maintenance data (fuel, oil level, etc.) ........... 482
Fuel information.................. 493
Tire information .................. 496
6-2. Customization Customizable features........ 507
Items to initialize ................. 509
Reporting safety defects for U.S. owners ................ 512
Seat belt instructions for Canadian owners
(in French) ........................ 513
SRS airbag instructions for Canadian owners
(in French) ........................ 515
Abbreviation list ........................ 526
Alphabetical index .................... 528
What to do if... ........................... 537
5When trouble arises6Vehicle specifications
7For owners
Index

12
Automatic transmission
Manual transmission
Shift lever P. 130Front-wheel drive control
lever
 P. 167
Cup holders P. 334
Cup holders
P. 334
Parking brake lever
P. 135
Shift lever P. 132Four-wheel drive control
lever
P. 164
Cup holders

P. 334
Parking brake lever
P. 135
Shift lock override
button
P. 468
Pictorial indexInterior
: If equipped

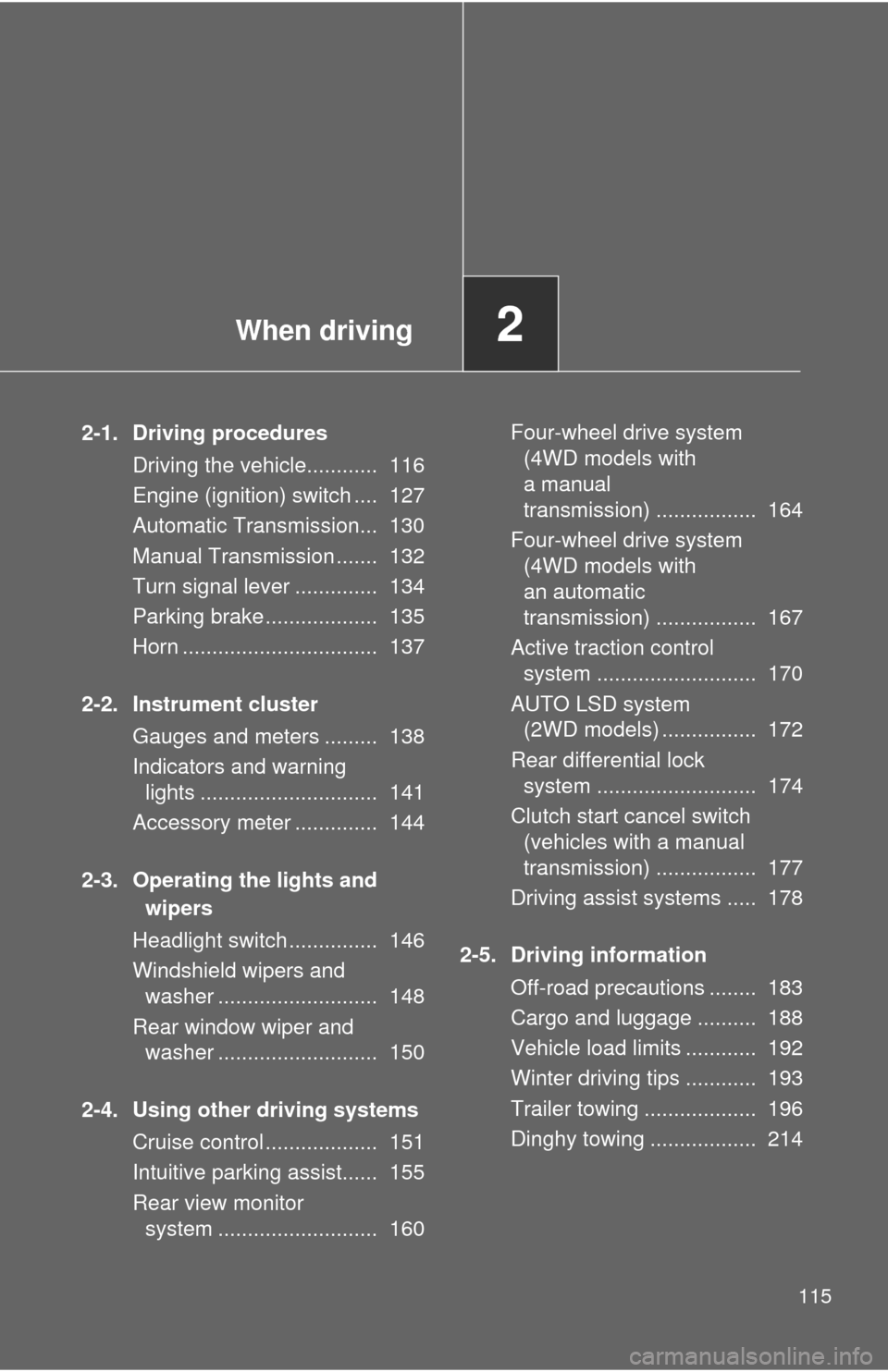

When driving2
115
2-1. Driving proceduresDriving the vehicle............ 116
Engine (ignition) switch .... 127
Automatic Transmission... 130
Manual Transmission ....... 132
Turn signal lever .............. 134
Parking brake ................... 135
Horn ................................. 137
2-2. Instrument cluster Gauges and meters ......... 138
Indicators and warning lights .............................. 141
Accessory meter .............. 144
2-3. Operating the lights and wipers
Headlight switch ............... 146
Windshield wipers and washer ........................... 148
Rear window wiper and washer ........................... 150
2-4. Using other driving systems Cruise control ................... 151
Intuitive parking assist...... 155
Rear view monitor system ........................... 160 Four-wheel drive system
(4WD models with
a manual
transmission) ................. 164
Four-wheel drive system (4WD models with
an automatic
transmission) ................. 167
Active traction control system ........................... 170
AUTO LSD system (2WD models) ................ 172
Rear differential lock system ........................... 174
Clutch start cancel switch (vehicles with a manual
transmission) ................. 177
Driving assist systems ..... 178
2-5. Driving information Off-road precautions ........ 183
Cargo and luggage .......... 188
Vehicle load limits ............ 192
Winter driving tips ............ 193
Trailer towing ................... 196
Dinghy towing .................. 214

116

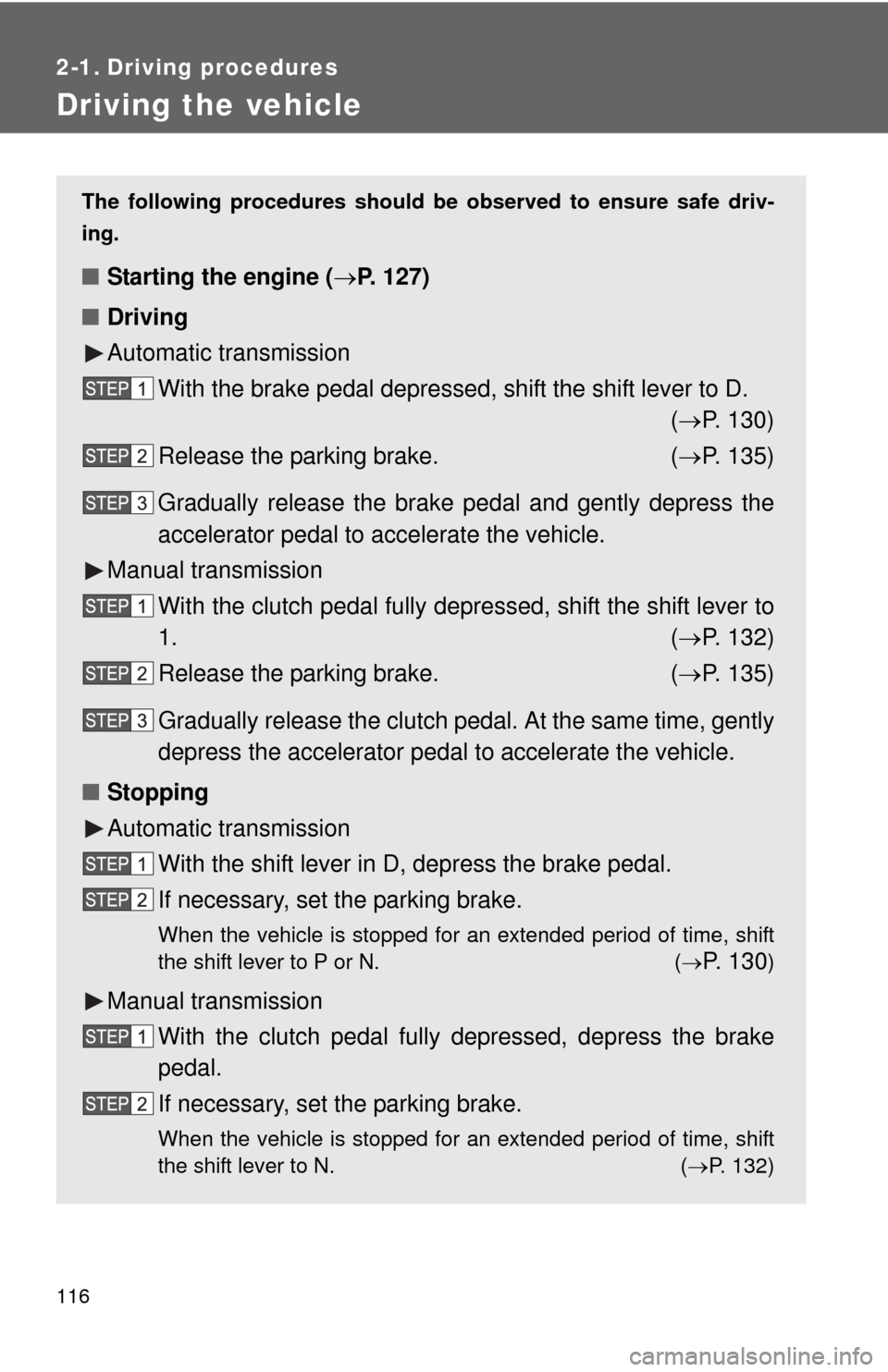

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing.
■ Starting the engine ( P. 127)
■ Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D. ( P. 130)
Release the parking brake. ( P. 135)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission With the clutch pedal fully depressed, shift the shift lever to
1. ( P. 132)
Release the parking brake. ( P. 135)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
■ Stopping
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to P or N. ( 
P. 1 3 0)
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to N. ( P. 132)

117
2-1. Driving procedures
2
When driving
Starting on a steep uphill
Automatic transmission With the brake pedal depressed, firmly set the parking brake
and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
■Parking the vehicle
Automatic transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake. ( P. 135)
Shift the shift lever to P. ( P. 130)
When parking on a hill, if necessary, block the wheels.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake. ( P. 135)
Shift the shift lever to N. ( P. 132)
When parking on a hill, shift the shift lever to 1 or R. If necessary,
block the wheels.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.

119
2-1. Driving procedures
2
When driving
CAUTION
■
When starting the vehicle
Vehicles with an automatic transmission: Always keep your foot on the brake
pedal while stopped with the engine running. This prevents the vehicle from
creeping.
■ When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accel-
erator pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake
pedal will result in sudden acceleration that may lead to an accident
that could result in death or serious injury.
• When backing up, you may twist your body around, leading to a diffi- culty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly, allowing you to depress the brake and accelerator
pedals properly.
• Depress the brake pedal using your right foot. Depressing the brake pedal using your left foot may delay response in an emergency, result-
ing in an accident.
● Do not drive the vehicle over or st op the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may
cause a fire if there is any flammable material nearby.
● Vehicles with an automatic transmission: Do not let the vehicle roll back-
wards while the shift lever is in a driving position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
● If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the back door and glass hatch are closed. Large amounts of
exhaust in the vehicle can cause driver drowsiness and an accident,
resulting in death or a serious health hazard. Have the vehicle inspected
by your Toyota dealer immediately.
● On vehicles with an automatic transmission, do not shift the shift lever to P
while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle\
control.

120 2-1. Driving procedures
CAUTION
■When driving the vehicle
●Do not shift the shift lever to R while the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle\
control.
● Do not shift the shift lever to D (vehicles with an automatic transmission) or
1 (vehicles with a manual transmission) while the vehicle is moving back-
ward.
Doing so can damage the transmission and may result in a loss of vehicle\
control.
● Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
● During normal driving, do not turn off the engine. Turning the engine off
while driving will not cause loss of steering or braking control, but the
power assist to these systems will be lost. This will make it more difficult to
steer and brake, so you should pull over and stop the vehicle as soon as it
is safe to do so.
However, in the event of an emergency, such as if it becomes impossible
to stop the vehicle in the normal way: P. 479
● Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 131133)
● When stopped on an inclined surface, use the brake pedal and parking
brake to prevent the vehicle from rolling backward or forward and causing
an accident.
● Do not adjust the position of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents
that may result in death or serious injury.
● Always check that all passengers’ arms, heads or other parts of their bod-
ies are not outside the vehicle, as this may result in death or serious injury.

121
2-1. Driving procedures
2
When driving
CAUTION
■
When driving the vehicle
●Do not drive in excess of the speed limit. Even if the legal speed limit per-
mits it, do not drive over 85 mph (140 km/h) unless your vehicle has high-
speed capability tires. Driving over 85 mph (140 km/h) may result in tire
failure, loss of control and possible injury. Be sure to consult a tire dealer
to determine whether the tires on your vehicle are high-speed capability
tires or not before driving at such speeds.
■ When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle, resulting in an accident.
● Sudden changes in engine speed, such as engine braking caused by up-
shifting or down-shifting, may cause the vehicle to skid, resulting in an
accident.
● After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected, resulting in
an accident.
■ When shifting the shift lever
Vehicles with an automatic transmission: Be careful not to shift the shift lever
with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
■ When the vehicle is stopped
●Do not race the engine.
If the vehicle is in any gear other than P (automatic transmission only) or
N, the vehicle may accelerate suddenly and unexpectedly, and may cause
an accident.
● Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
● Vehicles with an automatic transmission: In order to prevent accidents due
to the vehicle rolling away, always keep depressing the brake pedal while
the engine is running, and apply the parking brake as necessary.
