231
2-5. Driving information
2
When driving
NOTICE
■
When installing a trailer hitch
Use only the position recommended by your Toyota dealer. Do not install the
trailer hitch on the bumper; this may cause body damage.
■ Do not directly splice trailer lights
Do not directly splice trailer lights. Directly splicing trailer lights may damage
your vehicle’s electrical system and cause a malfunction.

232
2-5. Driving information
Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

233
2-5. Driving information
2
When driving

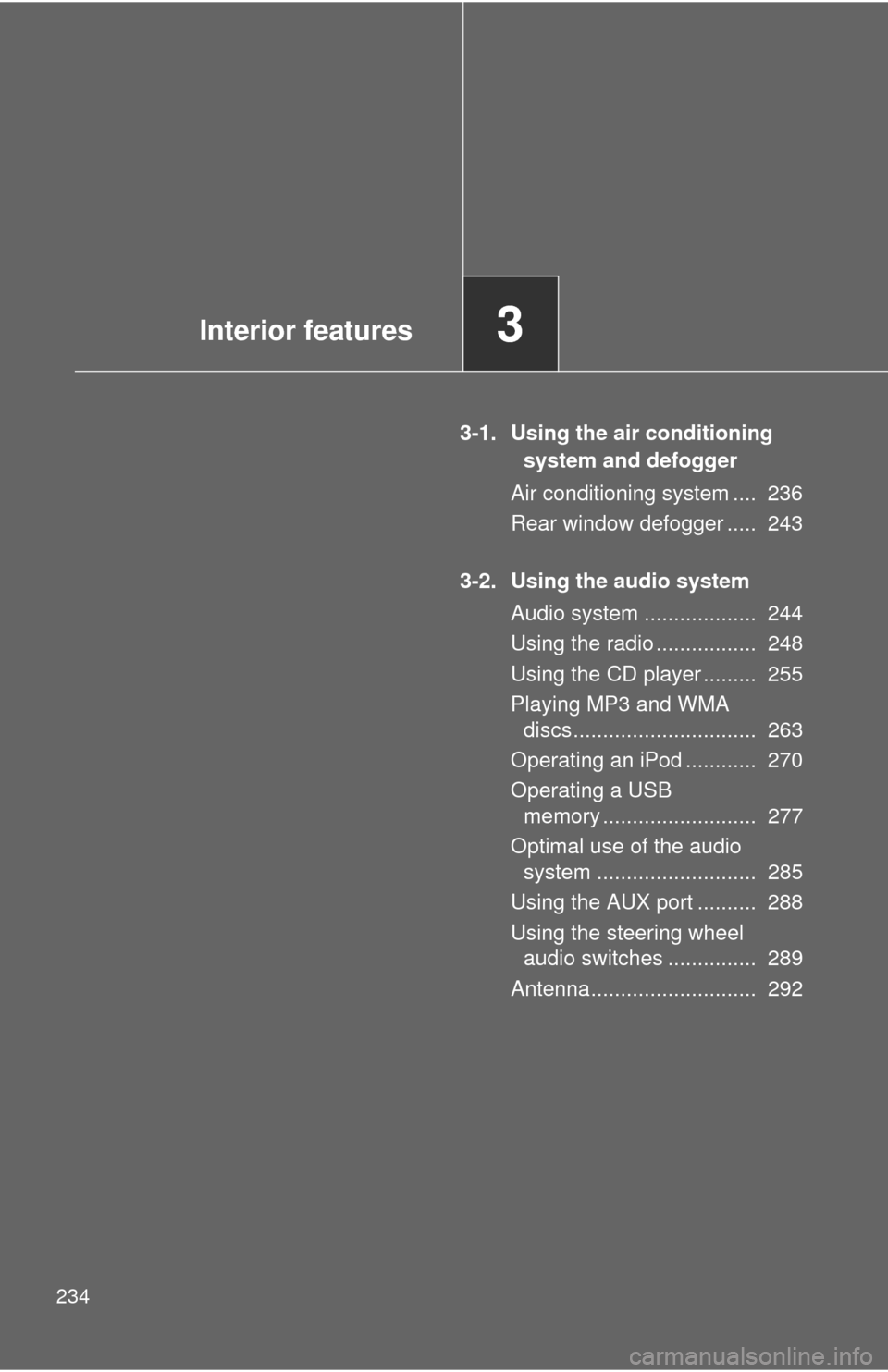

234
3-1. Using the air conditioning system and defogger
Air conditioning system .... 236
Rear window defogger ..... 243
3-2. Using the audio system Audio system ................... 244
Using the radio ................. 248
Using the CD player ......... 255
Playing MP3 and WMA discs............................... 263
Operating an iPod ............ 270
Operating a USB memory .......................... 277
Optimal use of the audio system ........................... 285
Using the AUX port .......... 288
Using the steering wheel audio switches ............... 289
Antenna............................ 292
Interior features3

Interior features3

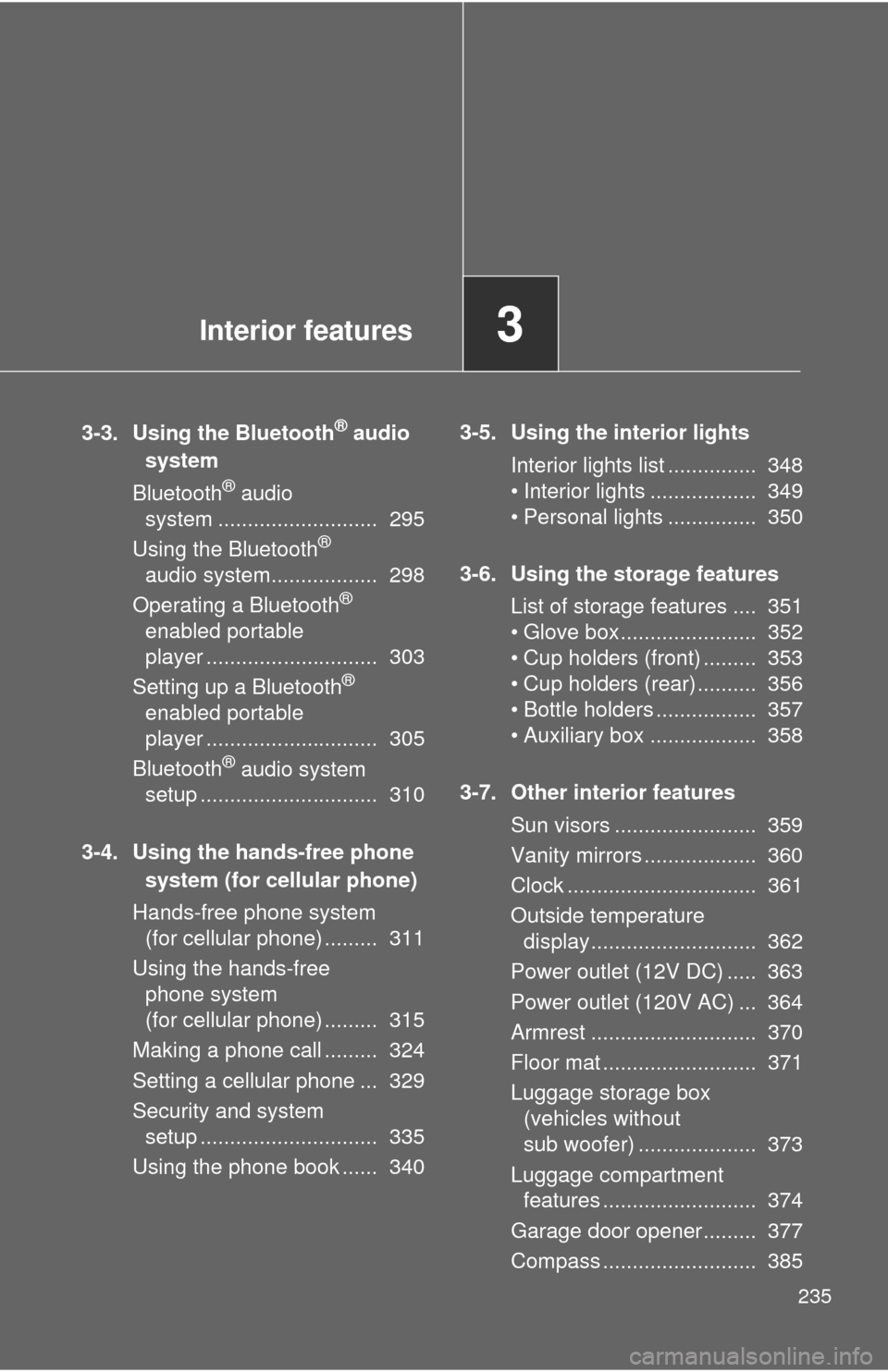

235
3-3. Using the Bluetooth® audio
system
Bluetooth
® audio
system ........................... 295
Using the Bluetooth
®
audio system.................. 298
Operating a Bluetooth
®
enabled portable
player ............................. 303
Setting up a Bluetooth
®
enabled portable
player ............................. 305
Bluetooth
® audio system
setup .............................. 310
3-4. Using the hands-free phone system (for cellular phone)
Hands-free phone system (for cellular phone) ......... 311
Using the hands-free phone system
(for cellular phone) ......... 315
Making a phone call ......... 324
Setting a cellular phone ... 329
Security and system setup .............................. 335
Using the phone book ...... 340 3-5. Using the interior lights
Interior lights list ............... 348
• Interior lights .................. 349
• Personal lights ............... 350
3-6. Using the storage features List of storage features .... 351
• Glove box....................... 352
• Cup holders (front) ......... 353
• Cup holders (rear) .......... 356
• Bottle holders ................. 357
• Auxiliary box .................. 358
3-7. Other interior features Sun visors ........................ 359
Vanity mirrors ................... 360
Clock ................................ 361
Outside temperature display............................ 362
Power outlet (12V DC) ..... 363
Power outlet (120V AC) ... 364
Armrest ............................ 370
Floor mat .......................... 371
Luggage storage box (vehicles without
sub woofer) .................... 373
Luggage compartment features .......................... 374
Garage door opener......... 377
Compass .......................... 385

236
3-1. Using the air conditioning system and defogger
Air conditioning system
Adjusting the settings■ Adjusting the temperature setting
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
For quick cooling, turn the temperature control dial to the
MAX A/C
position. The air conditioning will automatically turn on and the air intake
selector will be set to recirculated air mode.
Outside air or recirculated
air mode switch
Air outlet selection dialAir conditioning
ON/OFF switch
Temperature control dial
Fan speed control dial
A/C

237
3-1. Using the air conditioning system
and defogger
3
Interior features
■Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Set the dial to OFF to turn the fan off.
■ Selecting the air outlets
Set the air outlet selection di al to an appropriate position.
The positions between the air outlet selections shown below can also be
selected for more detailed adjustment.
When the dial is set to , air
flows to the upper body.
When the dial is set to , air
flows to the upper body and feet.
When the dial is set to ,
mainly air flows to the feet.

238 3-1. Using the air conditioning system and defogger
When the dial is set to , air
flows to the feet and the wind-
shield defogger operates.
The air intake selector is automat-
ically set to outside air mode.
To return the recirculated air
mode, press
.
When the dial is set to , air
flows to the windshield and side
windows to defog them.
The air intake selector is automat-
ically set to outside air mode.
In this position, the air intake
selector cannot be changed to the
recirculated air mode.
■Switching between outside air and recirculated air modes
Press .
The mode switches between (outside air mode) and
(recirculated air mode) each ti me the switch is pressed.

239
3-1. Using the air conditioning system
and defogger
3
Interior features
■If the ambient temperature drops while using the recirculated
air mode
The air intake mode automatically changes from recirculated air
mode to outside air mode after a few minutes.
To cancel this function:
Press and hold for longer than 2 seconds.
To reactivate this function:
Turn the engine switch to the LOCK or ACC position.
Adjusting the position of the air outlets
Center outlets Direct air flow to the left or right,
up or down.

240 3-1. Using the air conditioning system and defogger
Right and left side outlets
Direct air flow to the left or right,
up or down.
Opening and closing the right and left side outlets
Open the vent.
Close the vent.
