Owner’s Manual
for AM/FM/HD Radio™ broadcast/CD Player with iPod/
USB/Bluetooth Audio
Display Audio System

5

1QUICK GUIDE13
2AUDIO SYSTEM18
3Bluetooth® HANDS-FREE SYSTEM63
4SETUP81
SPECIFICATIONS / INDEX 109

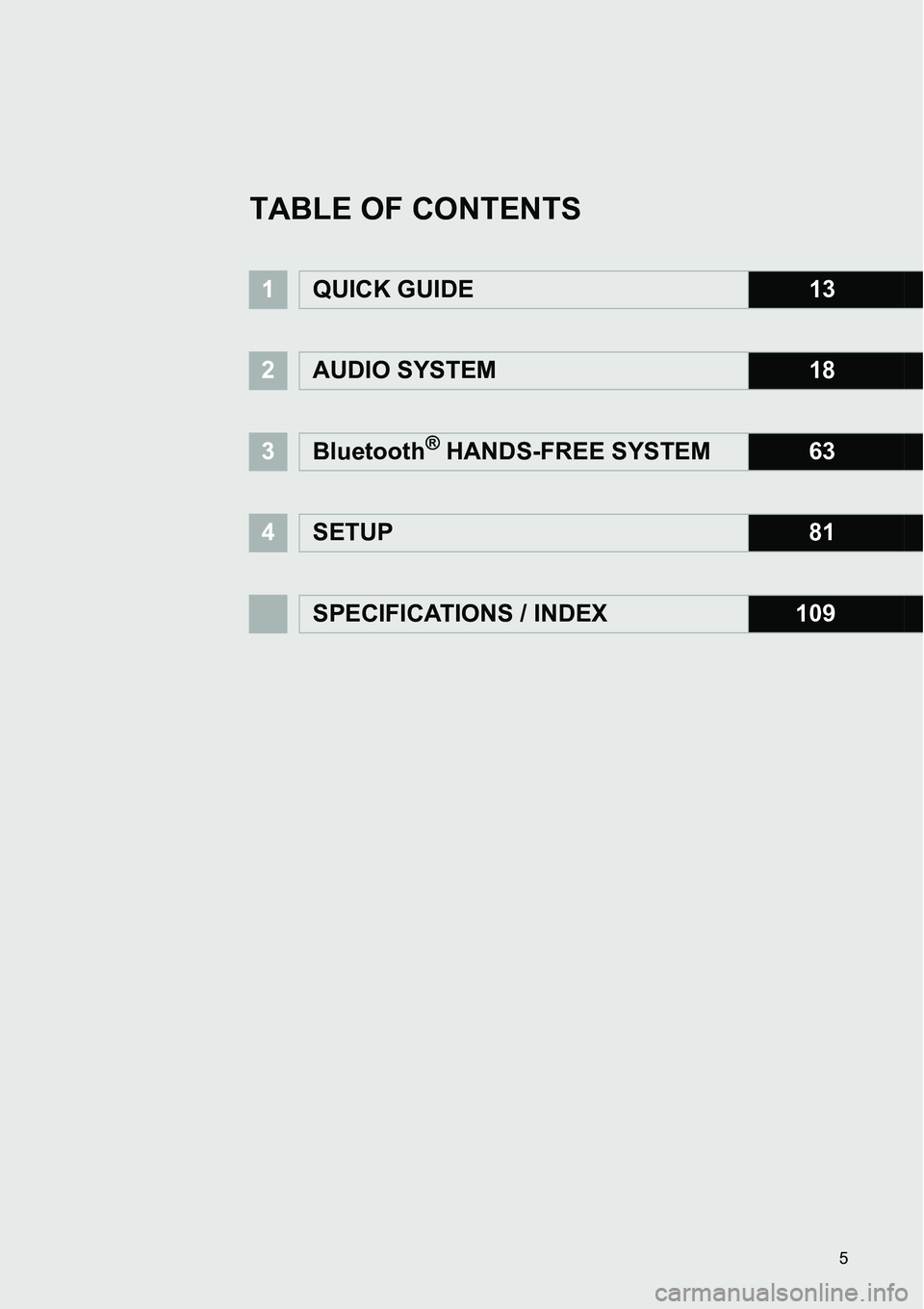

TABLE OF CONTENTS

6
Introduction

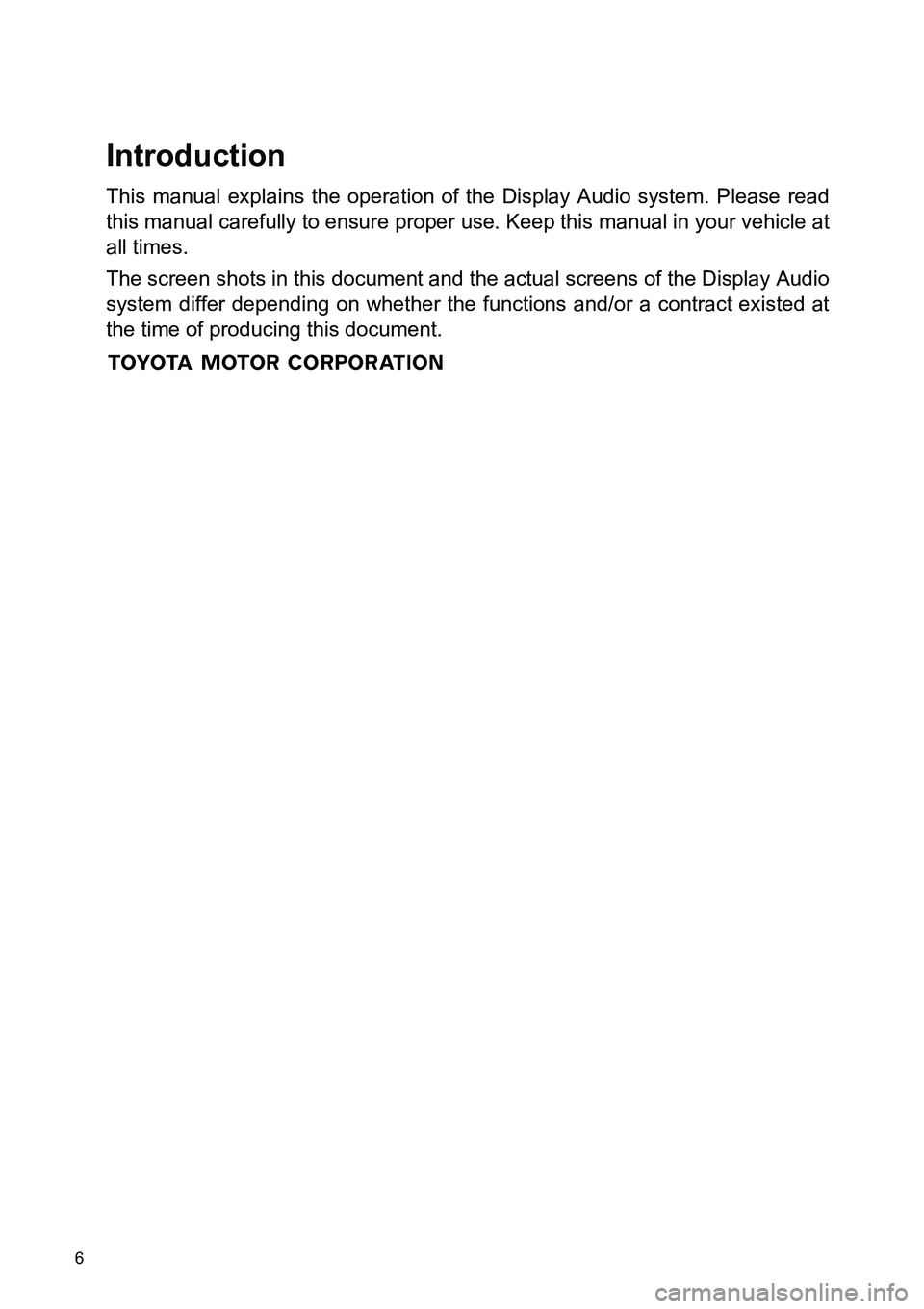

This manual explains the operation of the Display Audio system. Please read
this manual carefully to ensure proper use. Keep this manual in your vehicle at
all times.
The screen shots in this document and the actual screens of the Display Audio
system differ depending on whether the functions and/or a contract existed at
the time of producing this document.

8
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.To use this system in the safest possible
manner, follow all the safety tips shown
below.
Do not use any feature of this system to
the extent it becomes a distraction and
prevents safe driving. The first priority
while driving should always be the safe op-
eration of the vehicle. While driving, be
sure to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Display Audio
system Owner’s manual to make sure you
understand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able screen buttons are dimmed.
IMPORTANT INFORMATION
ABOUT THIS MANUAL
CAUTION
●This is a warning against anything which
may cause injury to people if the warn-
ing is ignored. You are informed about
what you must or must not do in order to
reduce the risk of injury to yourself and
others.
NOTICE
●This is a warning against anything which
may cause damage to the vehicle or its
equipment if the warning is ignored. You
are informed about what you must or
must not do in order to avoid or reduce
the risk of damage to your vehicle and
its equipment.
SAFETY INSTRUCTION
CAUTION
●For safety, the driver should not operate
the Display Audio system while he/she
is driving. Insufficient attention to the
road and traffic may cause an accident.

9

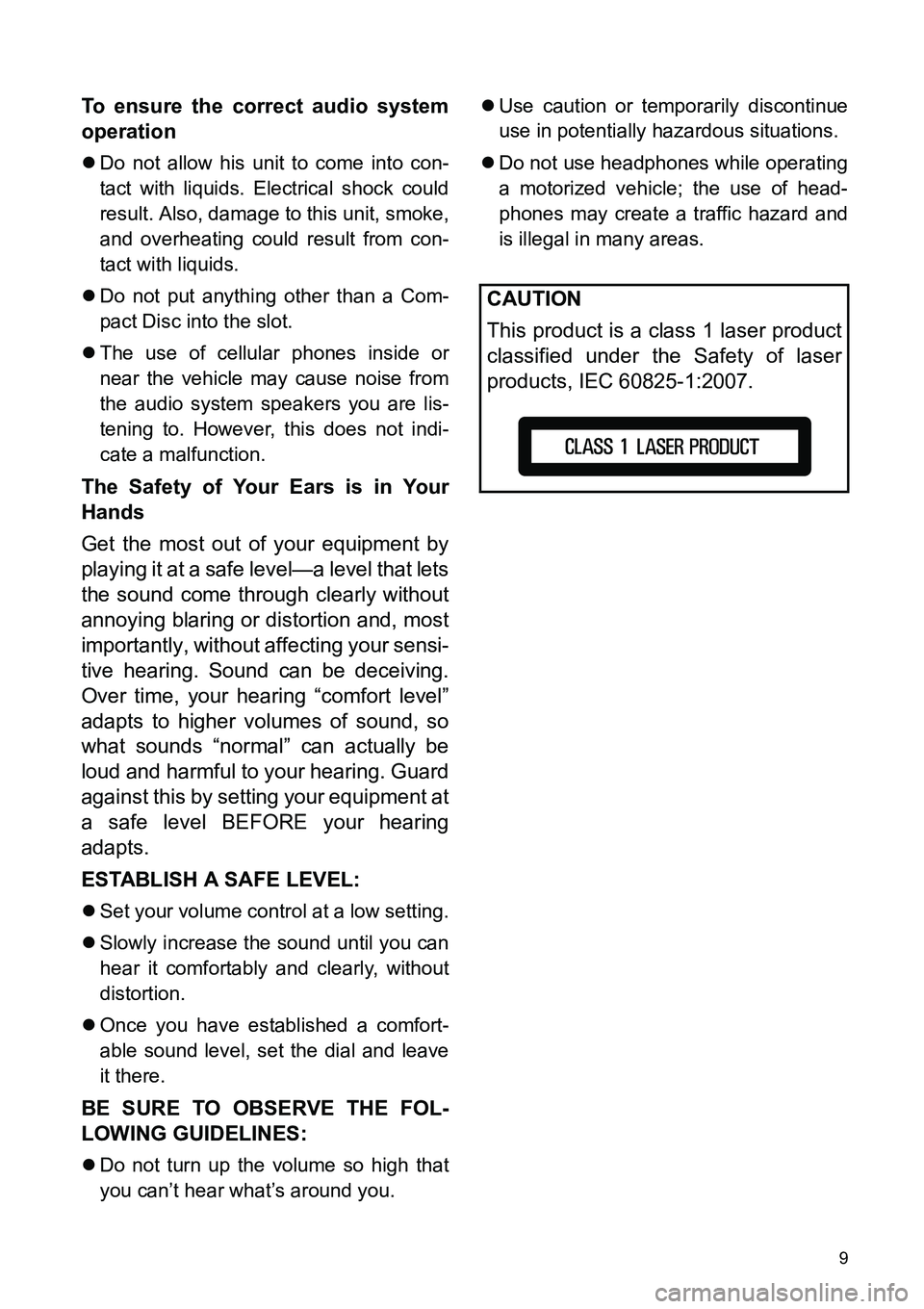

To ensure the correct audio system
operation
zDo not allow his unit to come into con-
tact with liquids. Electrical shock could
result. Also, damage to this unit, smoke,
and overheating could result from con-
tact with liquids.
zDo not put anything other than a Com-
pact Disc into the slot.
zThe use of cellular phones inside or
near the vehicle may cause noise from
the audio system speakers you are lis-
tening to. However, this does not indi-
cate a malfunction.
The Safety of Your Ears is in Your
Hands
Get the most out of your equipment by
playing it at a safe level—a level that lets
the sound come through clearly without
annoying blaring or distortion and, most
importantly, without affecting your sensi-
tive hearing. Sound can be deceiving.
Over time, your hearing “comfort level”
adapts to higher volumes of sound, so
what sounds “normal” can actually be
loud and harmful to your hearing. Guard
against this by setting your equipment at
a safe level BEFORE your hearing
adapts.
ESTABLISH A SAFE LEVEL:
zSet your volume control at a low setting.
zSlowly increase the sound until you can
hear it comfortably and clearly, without
distortion.
zOnce you have established a comfort-
able sound level, set the dial and leave
it there.
BE SURE TO OBSERVE THE FOL-
LOWING GUIDELINES:
zDo not turn up the volume so high that
you can’t hear what’s around you.zUse caution or temporarily discontinue
use in potentially hazardous situations.
zDo not use headphones while operating
a motorized vehicle; the use of head-
phones may create a traffic hazard and
is illegal in many areas.
CAUTION
This product is a class 1 laser product
classified under the Safety of laser
products, IEC 60825-1:2007.

11

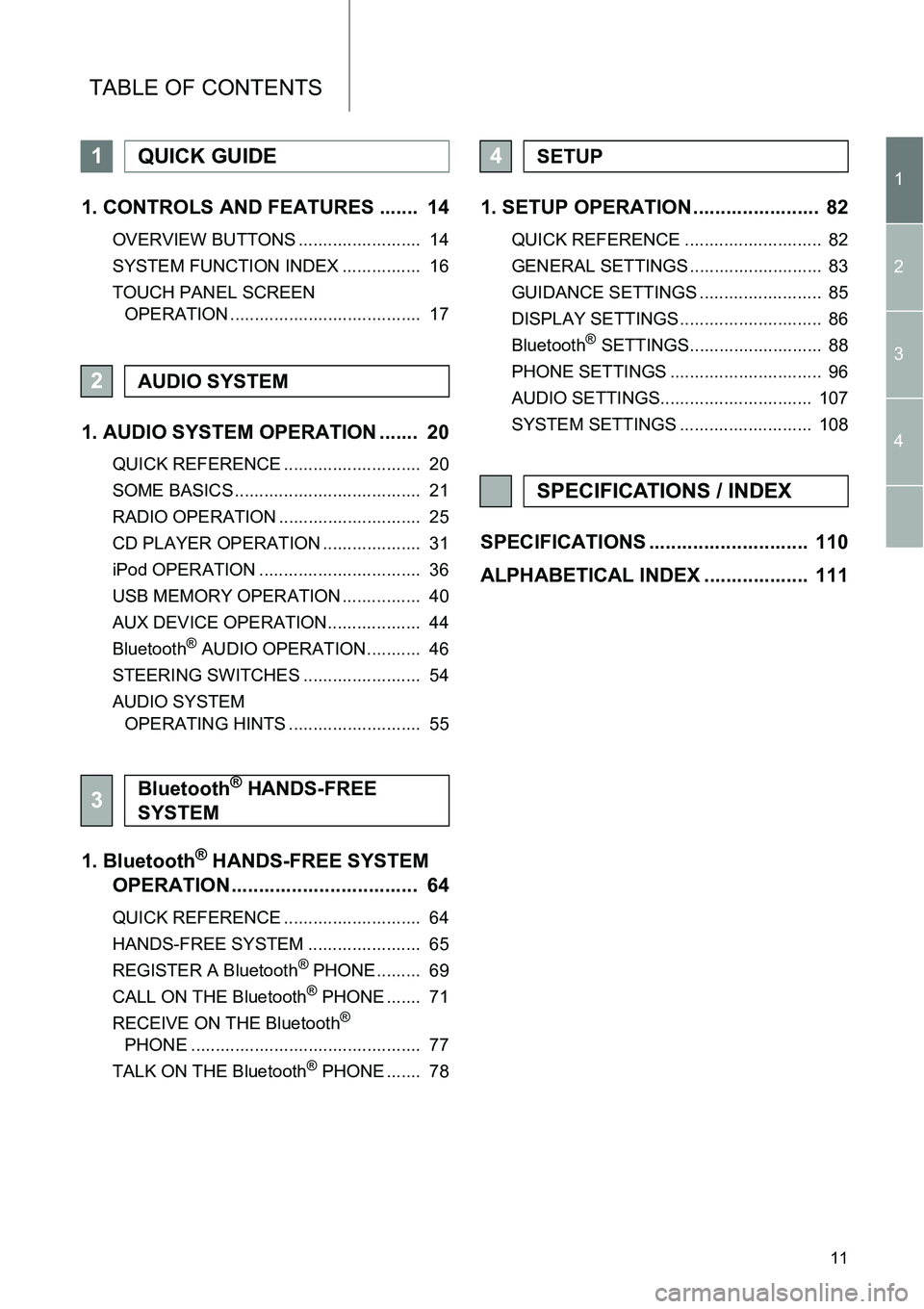

TABLE OF CONTENTS
1
2
3
4
1. CONTROLS AND FEATURES ....... 14
OVERVIEW BUTTONS ......................... 14
SYSTEM FUNCTION INDEX ................ 16
TOUCH PANEL SCREEN
OPERATION ....................................... 17
1. AUDIO SYSTEM OPERATION ....... 20
QUICK REFERENCE ............................ 20
SOME BASICS ...................................... 21
RADIO OPERATION ............................. 25
CD PLAYER OPERATION .................... 31
iPod OPERATION ................................. 36
USB MEMORY OPERATION ................ 40
AUX DEVICE OPERATION................... 44
Bluetooth
® AUDIO OPERATION........... 46
STEERING SWITCHES ........................ 54
AUDIO SYSTEM
OPERATING HINTS ........................... 55
1. Bluetooth® HANDS-FREE SYSTEM
OPERATION.................................. 64
QUICK REFERENCE ............................ 64
HANDS-FREE SYSTEM ....................... 65
REGISTER A Bluetooth
® PHONE......... 69
CALL ON THE Bluetooth® PHONE ....... 71
RECEIVE ON THE Bluetooth®
PHONE ............................................... 77
TALK ON THE Bluetooth
® PHONE ....... 78
1. SETUP OPERATION ....................... 82
QUICK REFERENCE ............................ 82
GENERAL SETTINGS ........................... 83
GUIDANCE SETTINGS ......................... 85
DISPLAY SETTINGS ............................. 86
Bluetooth
® SETTINGS........................... 88
PHONE SETTINGS ............................... 96
AUDIO SETTINGS............................... 107
SYSTEM SETTINGS ........................... 108
SPECIFICATIONS ............................. 110
ALPHABETICAL INDEX ................... 111
1QUICK GUIDE
2AUDIO SYSTEM
3Bluetooth® HANDS-FREE
SYSTEM
4SETUP
SPECIFICATIONS / INDEX

14
1. CONTROLS AND FEATURES
1. OVERVIEW BUTTONS

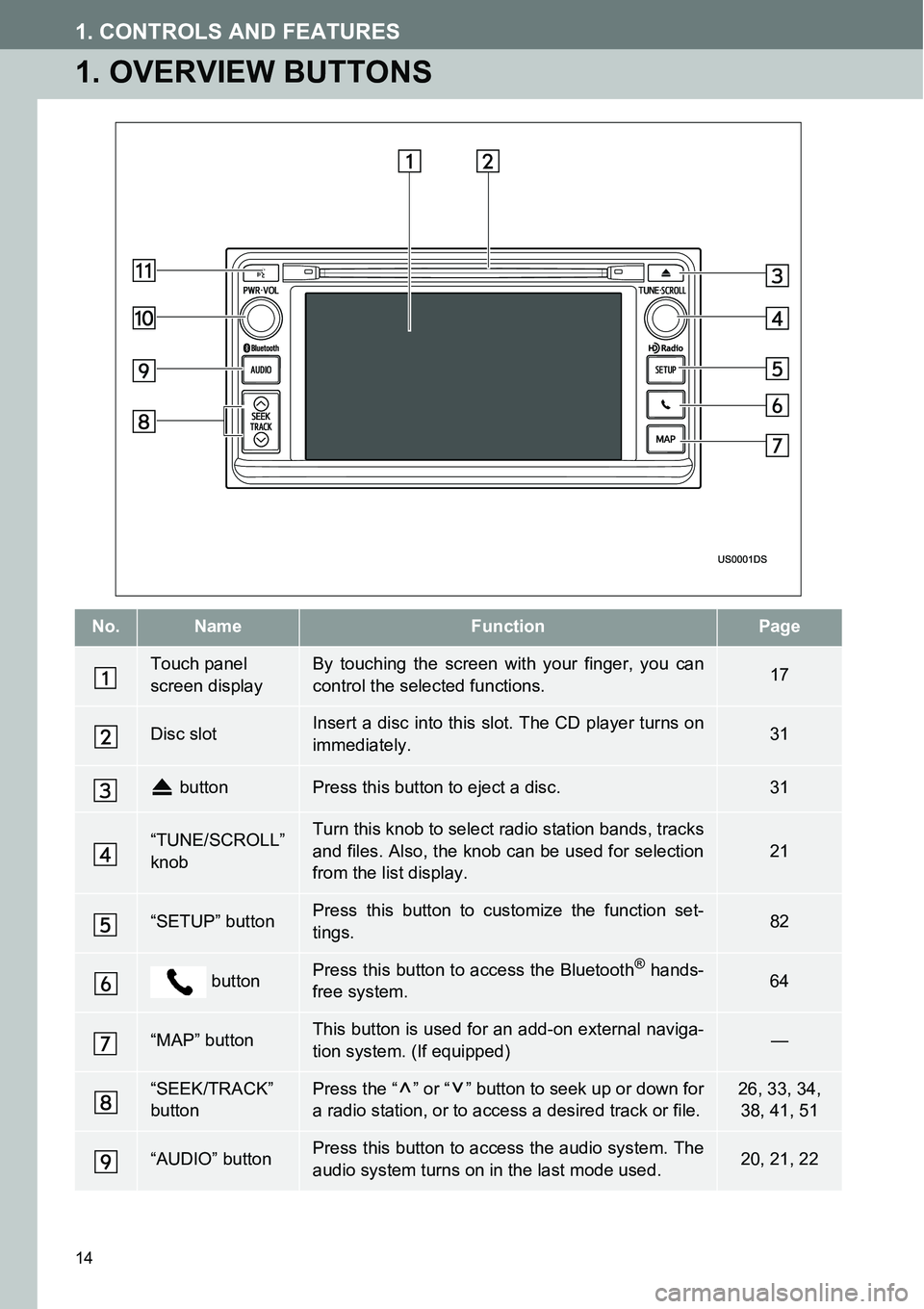

No.NameFunctionPage
Touch panel
screen displayBy touching the screen with your finger, you can
control the selected functions.17
Disc slotInsert a disc into this slot. The CD player turns on
immediately.31
buttonPress this button to eject a disc.31
“TUNE/SCROLL”
knobTurn this knob to select radio station bands, tracks
and files. Also, the knob can be used for selection
from the list display.21
“SETUP” buttonPress this button to customize the function set-
tings.82
buttonPress this button to access the Bluetooth® hands-
free system.64
“MAP” buttonThis button is used for an add-on external naviga-
tion system. (If equipped)—
“SEEK/TRACK”
buttonPress the “ ” or “ ” button to seek up or down for
a radio station, or to access a desired track or file.26, 33, 34,
38, 41, 51
“AUDIO” buttonPress this button to access the audio system. The
audio system turns on in the last mode used.20, 21, 22

15
1. CONTROLS AND FEATURES
1
QUICK GUIDE

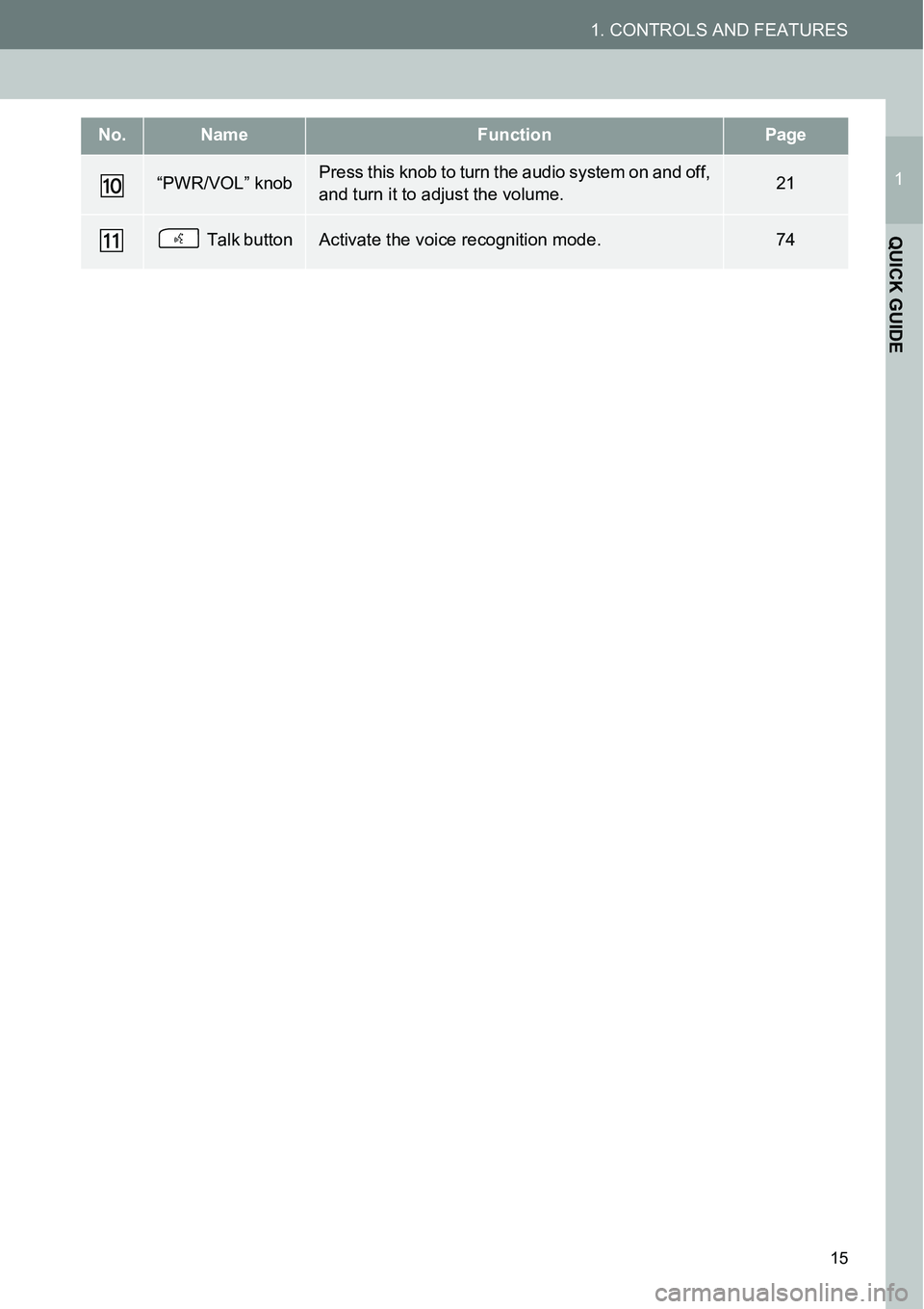

“PWR/VOL” knobPress this knob to turn the audio system on and off,
and turn it to adjust the volume.21
Talk buttonActivate the voice recognition mode.74
No.NameFunctionPage

16
1. CONTROLS AND FEATURES
2. SYSTEM FUNCTION INDEX

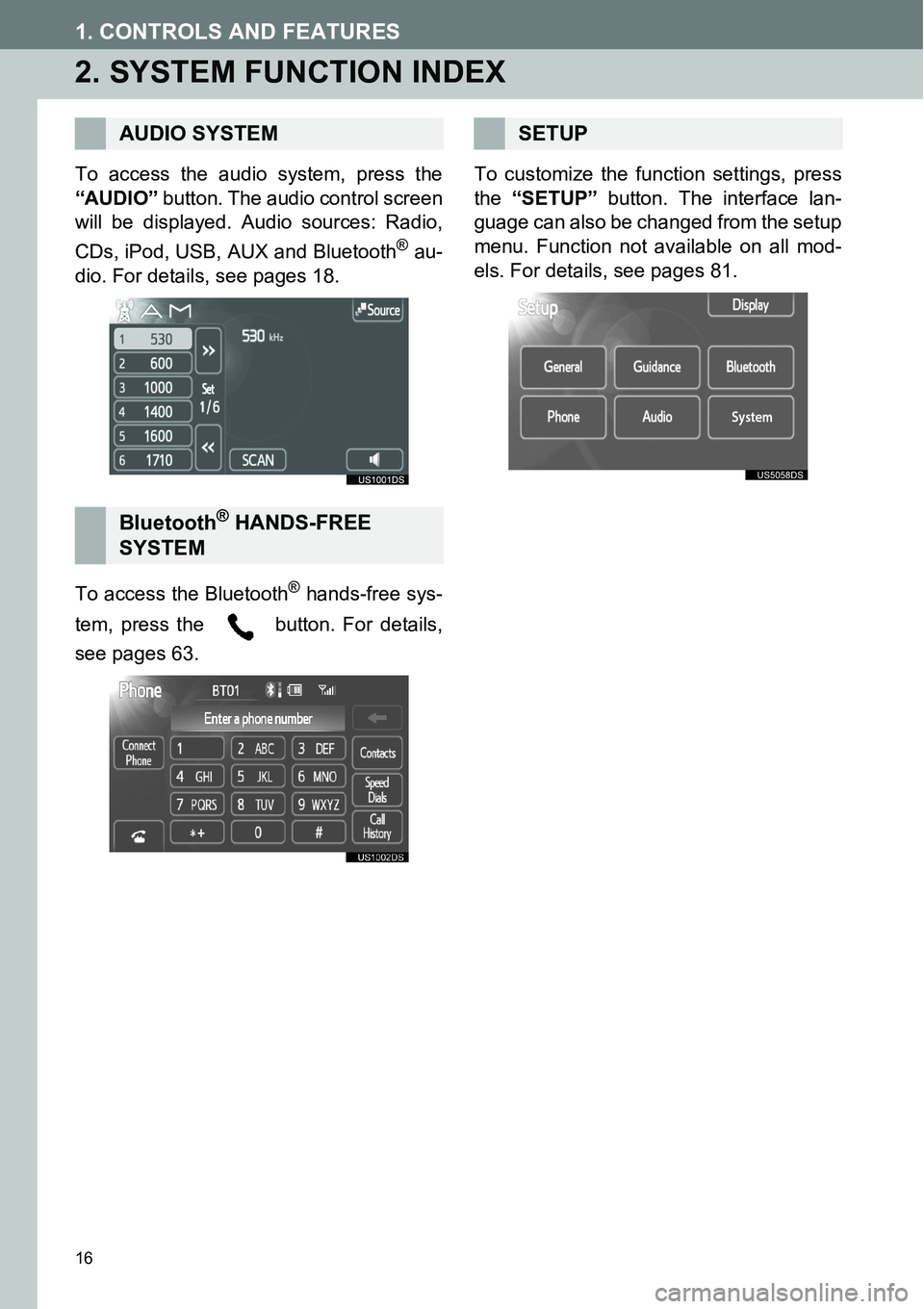

To access the audio system, press the
“AUDIO” button. The audio control screen
will be displayed. Audio sources: Radio,
CDs, iPod, USB, AUX and Bluetooth
® au-
dio. For details, see pages 18.
To access the Bluetooth
® hands-free sys-
tem, press the button. For details,
see pages 63. To customize the func
tion settings, press
the “SETUP” button. The interface lan-
guage can also be changed from the setup
menu. Function not available on all mod-
els. For details, see pages 81.
AUDIO SYSTEM
Bluetooth® HANDS-FREE
SYSTEM
SETUP

18
1. QUICK REFERENCE ..................... 20
2. SOME BASICS .............................. 21
TURNING THE AUDIO SYSTEM ON OR OFF ............................................... 21
CONTROLS USING THE “TUNE/SCROLL” KNOB ............. 21
SWITCHING AUDIO SOURCE.............. 22
SSP (Scion Sound Processing) ............. 22
Sound Controls ...................................... 23
DSP CONTROL ..................................... 24
3. RADIO OPERATION ..................... 25
SWITCHING TO RADIO MODE ............ 25
PRESETTING A STATION .................... 25
SELECTING A STATION....................... 26
RADIO BROADCAST DATA SYSTEM.............................................. 26
TRAFFIC ANNOUNCEMENT ................ 27
USING HD Radio™ TECHNOLOGY ..... 28
4. CD PLAYER OPERATION ............ 31
INSERTING OR EJECTING A DISC ..... 31
SWITCHING TO CD MODE .................. 32
PLAYING AN AUDIO CD ....................... 32
PLAYING A MP3/WMA DISC ................ 34
5. iPod OPERATION ......................... 36
CONNECTING AN iPod......................... 36
SWITCHING TO iPod MODE ................ 36
PLAYING AN iPod ................................. 37

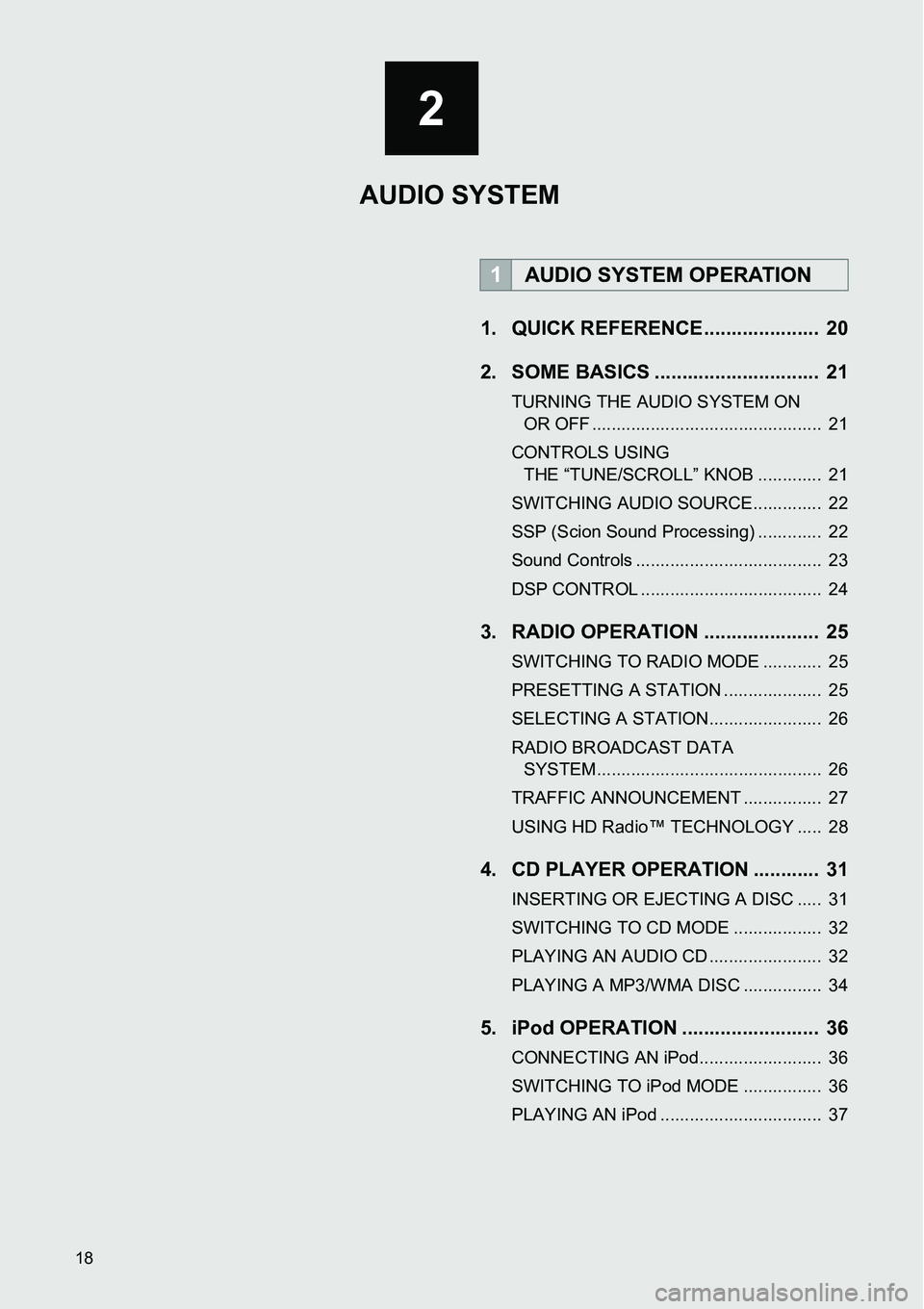

1AUDIO SYSTEM OPERATION
