airbag TOYOTA FR-S 2015 Owners Manual (in English)

TABLE OF CONTENTS
1
1Before drivingAdjusting and operating features such as door locks,
mirrors, and steering column.
2When drivingDriving, stopping and safe-driving information.
3Interior fea-
turesAir conditioning and audio systems, as well as other in-
terior features for a comfortable driving experience.
4Maintenance
and careCleaning and protecting your vehicle, performing do-it-
yourself maintenance, and maintenance information.
5When trouble
arisesWhat to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident.
6Vehicle
specificationsDetailed vehicle information.
7For ownersReporting safety defects for US owners, and seat belt
and SRS airbag instructions for Canadian owners
IndexAlphabetical listing of information contained in this
manual.

TABLE OF CONTENTSIndex
2
1-1. Key information
Keys ..................................... 20
1-2. Opening, closing and
locking the doors and
trunk
Smart key system................. 23
Wireless remote control ....... 37
Doors.................................... 40
Trunk .................................... 42
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ........................... 47
Rear seats ............................ 50
Head restraints ..................... 52
Seat belts ............................. 54
Steering wheel ..................... 61
Anti-glare inside rear view
mirror .................................. 62
Outside rear view mirrors ..... 63
1-4. Opening and closing
the windows
Power windows .................... 66
1-5. Refueling
Opening the fuel tank
cap ..................................... 691-6. Theft deterrent system
Engine immobilizer
system ................................ 73
Alarm .................................... 75
Theft prevention labels
(U.S.A.)............................... 79
1-7. Safety information
Correct driving posture ......... 80
SRS airbag (Supplemental
Restraint System
airbag) ................................ 82
Front passenger occupant
classification system ......... 117
Child restraint systems ....... 125
Installing child restraints ..... 129
2-1. Driving procedures
Driving the vehicle .............. 140
Engine (ignition) switch....... 153
Automatic transmission ...... 162
Manual Transmission ......... 169
Turn signal lever ................. 172
Parking brake ..................... 173
Horn .................................... 174
2-2. Instrument cluster
Gauges and meters ............ 175
Indicators and warning
lights ................................. 179
Multi-information display ..... 183
1Before driving
2When driving

1
2
3
4
5
6
7
5
Reporting safety defects
for U.S. owners ................. 412
Seat belt instructions
for Canadian owners
(in French) ........................ 413
SRS airbag instructions
for Canadian owners
(in French) ........................ 416
Abbreviation list ........................ 438
Alphabetical index ..................... 439
What to do if... ........................... 449
7For owners
Index

8
Pictorial indexInterior
Power outlet
P. 244
Head restraints P. 52
Seat belts P. 54
SRS front passenger
airbag
P. 82
Cup holders
Console tray P. 238
P. 238
SRS side airbags P. 82
Front seats P. 47
Glove box P. 236
SRS curtain shield
airbags
P. 82Child restraint
anchor brackets
P. 129

13
C
BB
Paddle shift switches  P. 165, 167
Cruise control switch P. 196
Horn
SRS driver airbag P. 174
P. 82
Instrument panel light control dial P. 177
Trunk opener P. 42
: If equipped
Manual headlight leveling dial P. 190

15
Installation of a mobile two-way radio system
The installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as:
●Multiport fuel injection system/sequential multiport fuel injection system
●Cruise control system
●Anti-lock brake system
●SRS airbag system
●Seat belt pretensioner system
Be sure to check with your Scion dealer for precautionary measures or spe-
cial instructions regarding installation of a mobile two-way radio system.

17
Scrapping of your Scion
The SRS airbag and seat belt pretensioner devices in your Scion contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Scion dealer
before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These
components may include airbag, seat belt pretensioners, and wireless
remote control batteries.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

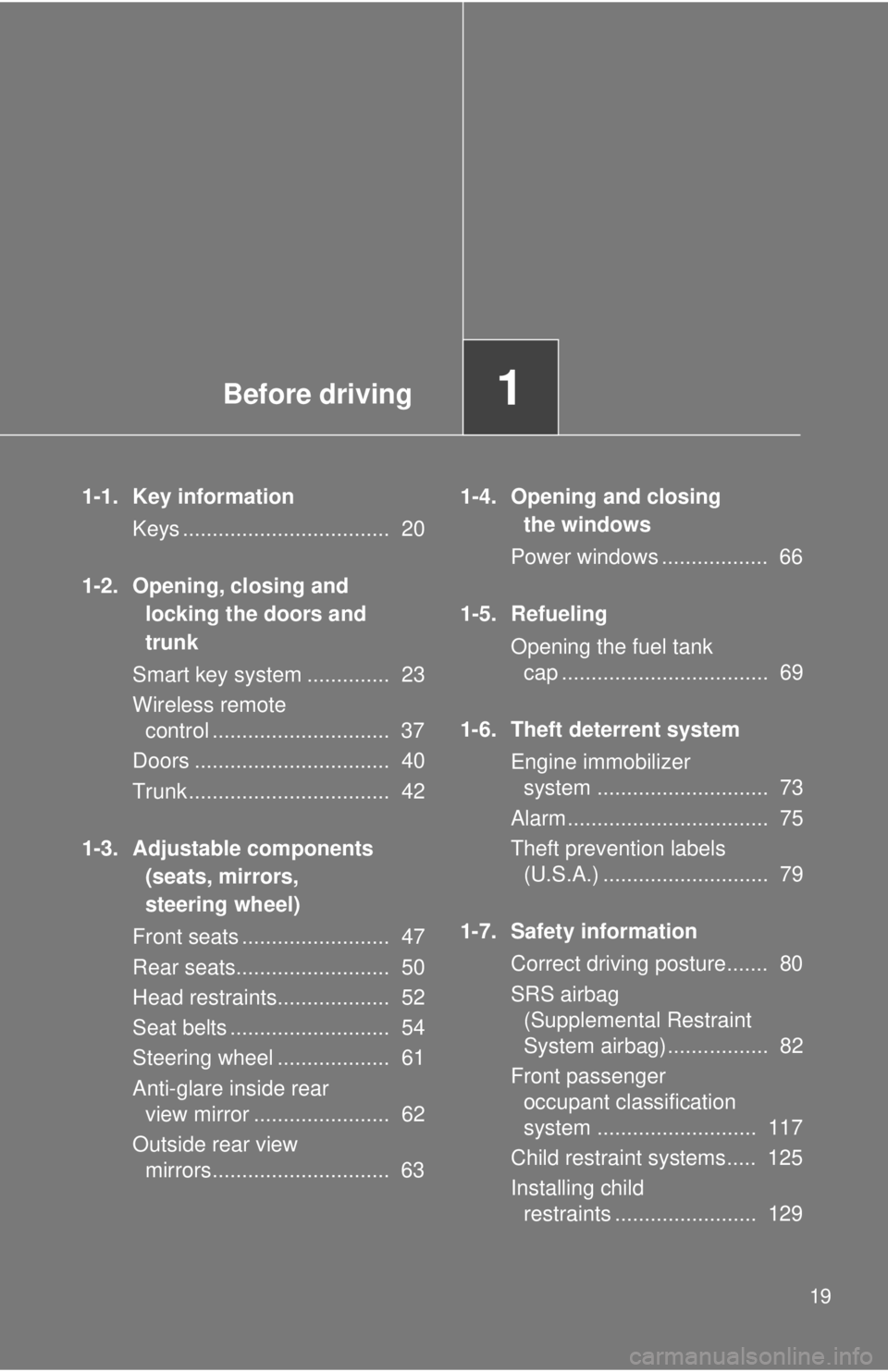

Before driving1
19
1-1. Key information
Keys ................................... 20
1-2. Opening, closing and
locking the doors and
trunk
Smart key system .............. 23
Wireless remote
control .............................. 37
Doors ................................. 40
Trunk .................................. 42
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ......................... 47
Rear seats.......................... 50
Head restraints................... 52
Seat belts ........................... 54
Steering wheel ................... 61
Anti-glare inside rear
view mirror ....................... 62
Outside rear view
mirrors.............................. 631-4. Opening and closing
the windows
Power windows .................. 66
1-5. Refueling
Opening the fuel tank
cap ................................... 69
1-6. Theft deterrent system
Engine immobilizer
system ............................. 73
Alarm.................................. 75
Theft prevention labels
(U.S.A.) ............................ 79
1-7. Safety information
Correct driving posture....... 80
SRS airbag
(Supplemental Restraint
System airbag)................. 82
Front passenger
occupant classification
system ........................... 117
Child restraint systems..... 125
Installing child
restraints ........................ 129

57 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Seat belt pretensioners
●Seat belt pretensioners are not designed to activate in minor frontal or
side impact, in rear impacts or in roll-over accidents.
●The following four components operate simultaneously when the vehicle
is subjected to a severe frontal collision.
• Seat belt pretensioner for driver
• Seat belt pretensioner for front passenger
• SRS front airbag for driver
• SRS front airbag for front passenger*
*: This does not operate while the occupant classification system deter-
mines to deactivate the airbag operation. For details, refer to “Front pas-
senger’s SRS frontal airbag” (P. 90)
●The following two components operate simultaneously when the vehicle
is subjected to a severe collision on the driver’s seat side of the vehicle.
• Seat belt pretensioner for driver
• Side airbag for driver
●The following two components operate simultaneously when the vehicle
is subjected to a severe collision on the front passenger’s seat side of the
vehicle.
• Seat belt pretensioner for front passenger
• Side airbag for front passenger
●Pretensioners are designed to function on a one-time-only basis. In the
event that a pretensioner is activated, both the driver’s and front passen-
ger’s seat belt retractor assemblies must be replaced only by Scion
dealer. When replacing seat belt retractor assemblies for the front seat-
ing positions, use only genuine Scion parts equipped with a force limiter.
●If either front seat belt does not retract or cannot be pulled out due to a
malfunction or activation of the pretensioner, contact your Scion dealer
as soon as possible.
●If the front seat belt retractor assembly or surrounding area has been
damaged, contact your Scion dealer as soon as possible.
●When you sell your vehicle, we urge you to explain to the buyer that it
has seat belt pretensioners by alerting the buyer to the contents of this
section.

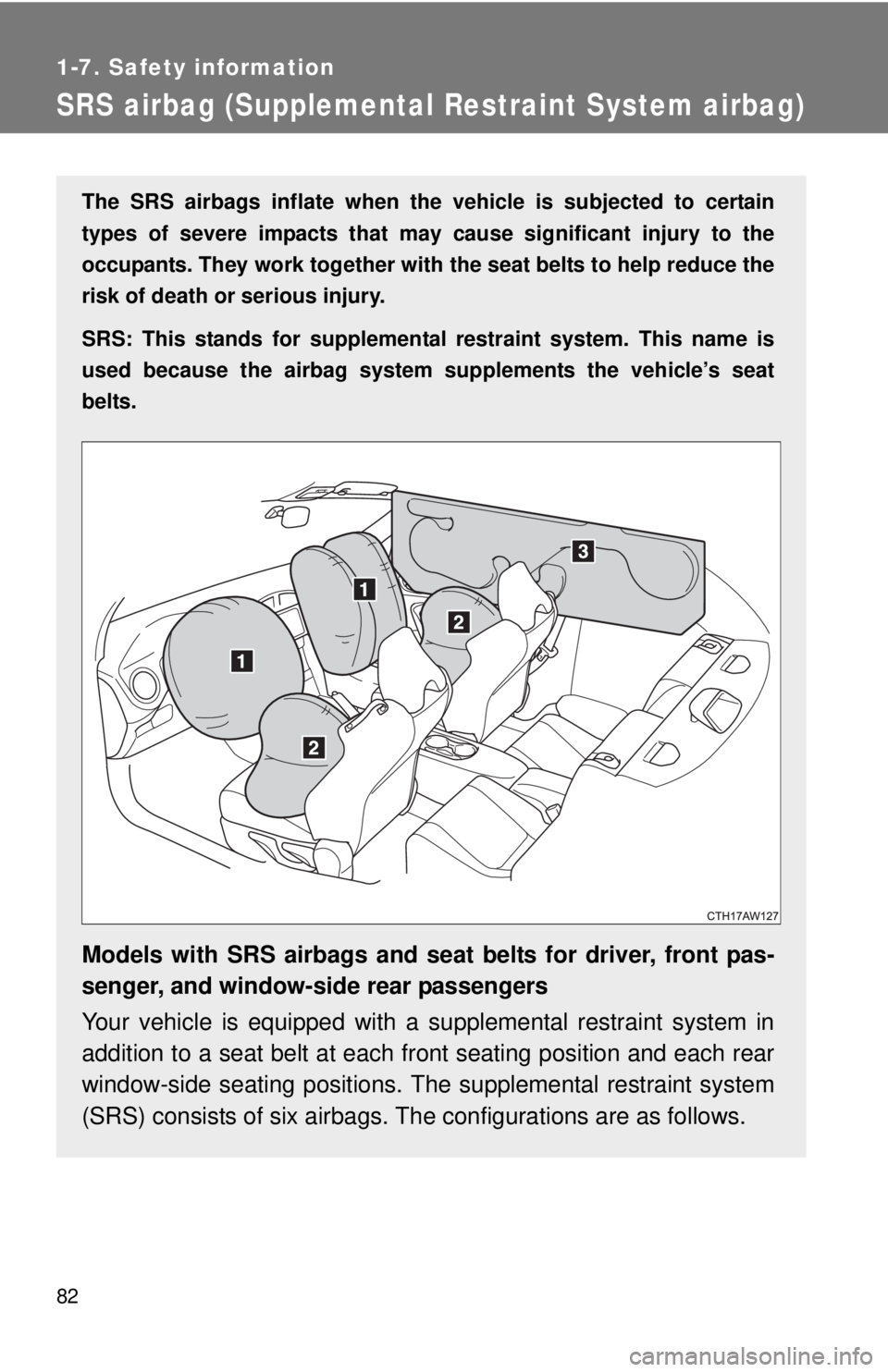

82
1-7. Safety information
SRS airbag (Supplemental Restraint System airbag)
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.
SRS: This stands for supplemental restraint system. This name is
used because the airbag system supplements the vehicle’s seat
belts.
Models with SRS airbags and seat belts for driver, front pas-
senger, and window-side rear passengers
Your vehicle is equipped with a supplemental restraint system in
addition to a seat belt at each front seating position and each rear
window-side seating positions. The supplemental restraint system
(SRS) consists of six airbags. The configurations are as follows.
