TOYOTA FR-S 2015 (in English) User Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
FEATURES/OPERATIONS

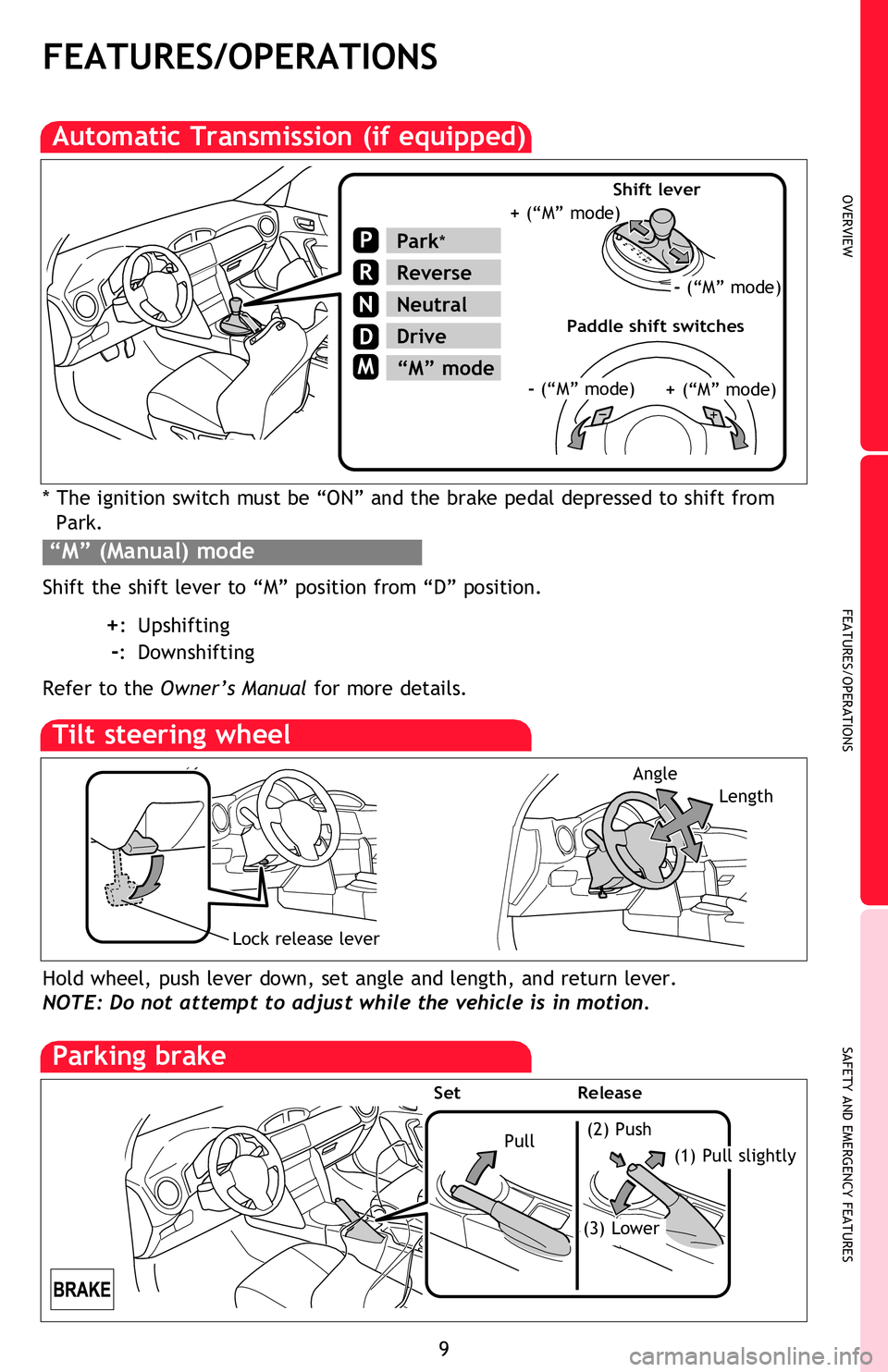

Automatic Transmission (if equipped)
M
Park*
Reverse
Neutral
Drive
“M” mode
Tilt steering wheel
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Parking brakeEngine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
+ (“M” mode)
- (“M” mode)
+ (“M” mode)- (“M” mode)
Paddle shift switches Shift lever
* The ignition switch must be “ON” and the brake pedal depressed to shift from
Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting
-: Downshifting
Refer
to the Owner’s Manual for more details.
“M” (Manual) mode
Lock release lever
Angle
Length
Pull(2) Push
(1) Pull slightly
(3) Lower
Set Release
2015_Scion_FR-s.indd 95/2/14 7:32 PM

10
FEATURES/OPERATIONS
Lights & turn signals
Headlights
Turn signals
Parking lightsHeadlights
Seat adjustments-Front
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seatback lock release
Seats-Fold down rear seats
(1) Pull(2) Fold down
Seats-Head restraints
Height
Lock release button
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 20 mph.
Functions
Turning system ON/OFF
Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed afterlocking.
2015_Scion_FR-s.indd 105/2/14 7:32 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11

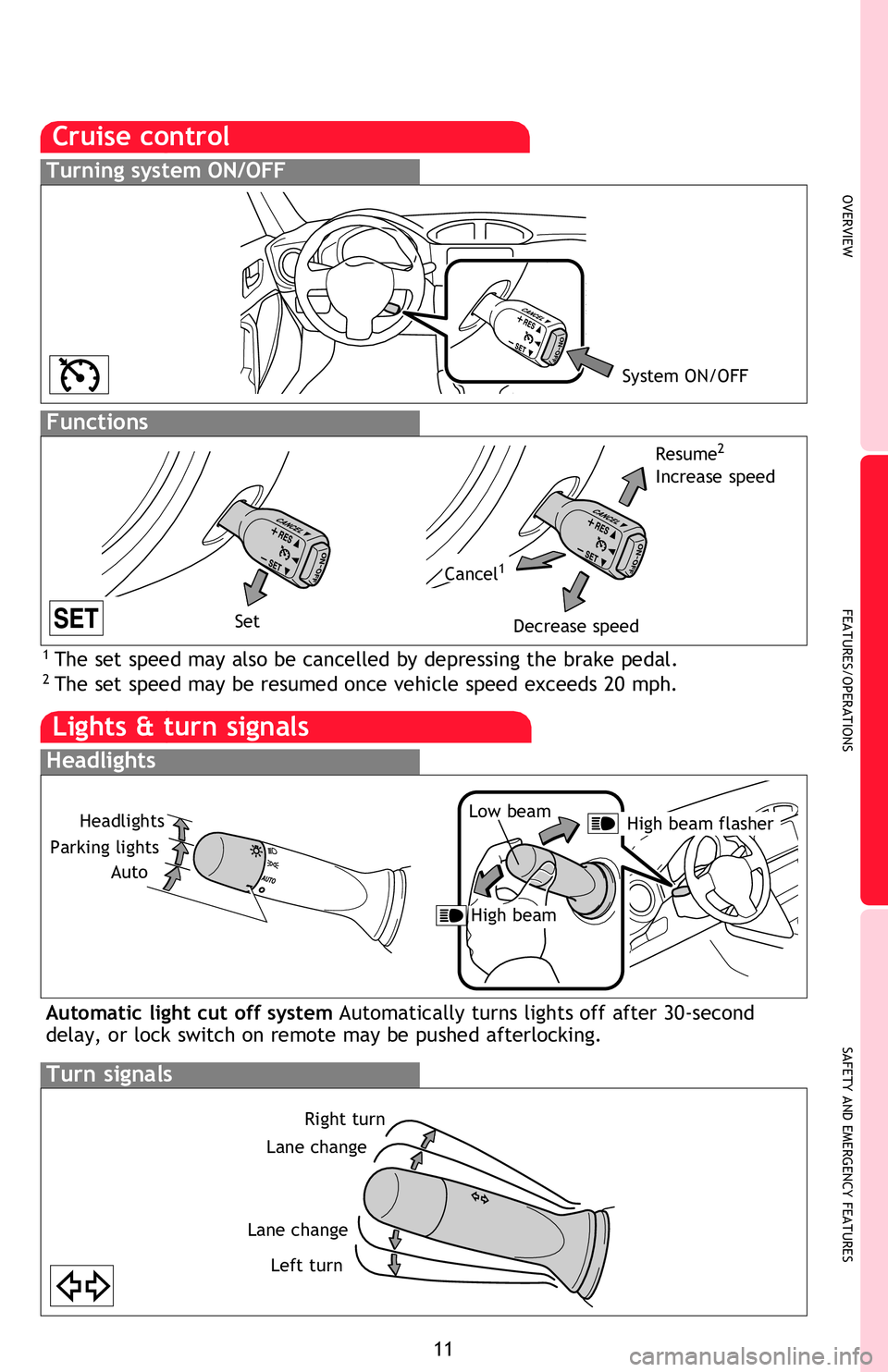

Lights & turn signals
Headlights
Turn signals
Parking lightsLow beam
Headlights
Right turn
Left turn
Lane change
Lane change
High beam
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Seatback lock release
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 20 mph.
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Set
High beam flasher
Turning system ON/OFF
Auto
Automatic light cut off system Automatically turns lights off after 30-second
delay, or lock switch on remote may be pushed afterlocking.
2015_Scion_FR-s.indd 115/2/14 7:32 PM

12
FEATURES/OPERATIONS
Windows
Automatic operation Push the switch completely down or pull it completely up
and release to fully open. To stop window midway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Windshield wipers & washers
Clock
Interval wipe
Slow
FastPull to wash and wipe
Single wipe

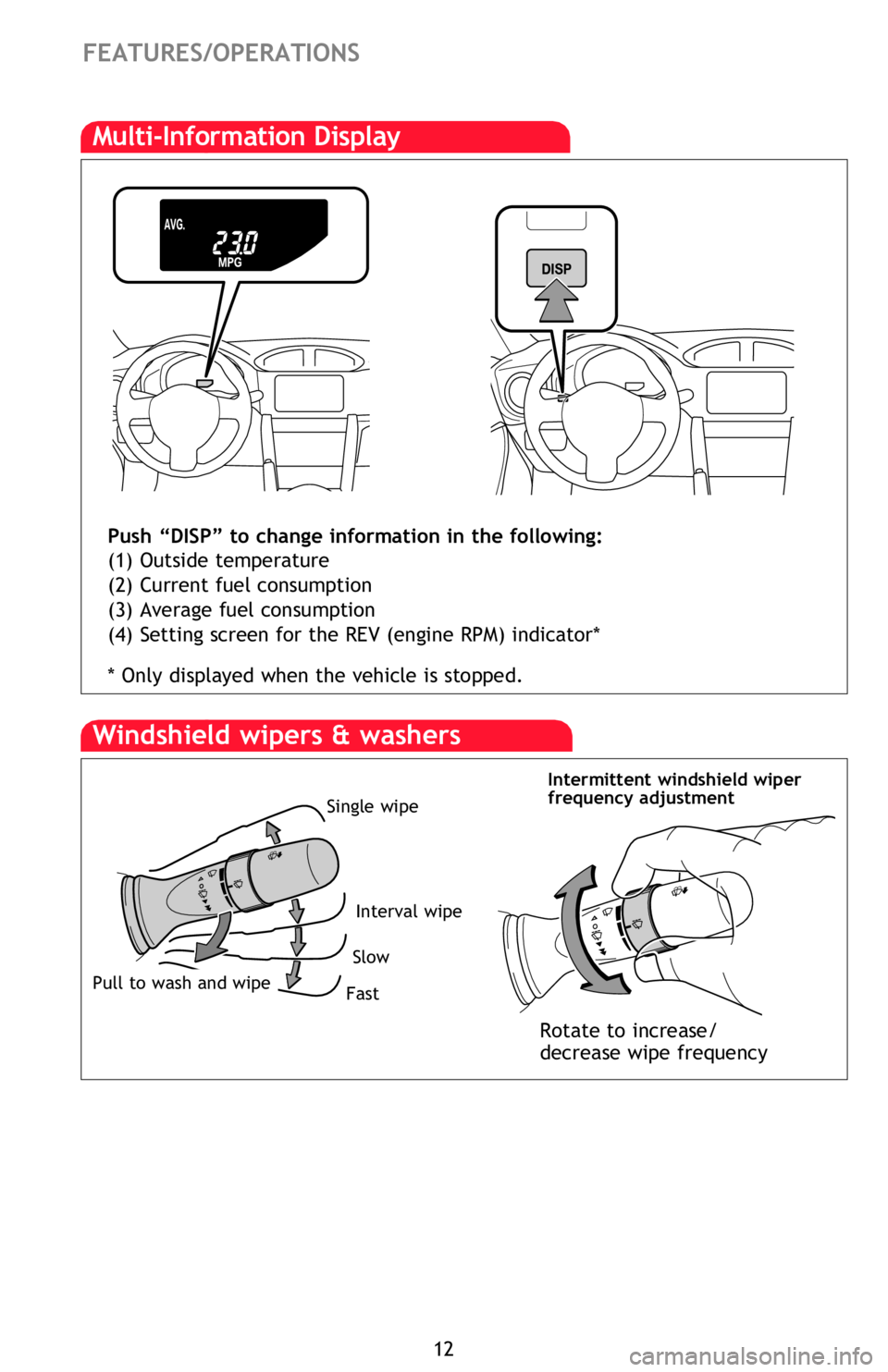

Multi-Information Display
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Current fuel consumption
(3) Average fuel consumption
(4) Setting screen for the REV (engine RPM) indicator*
* Only displayed when the vehicle is stopped.
Driver door window controls
Up
Hour set
Minute set
Round off minutes
Intermittent windshield wiper
frequency adjustment
Rotate to increase/
decrease wipe frequency
2015_Scion_FR-s.indd 125/2/14 7:32 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
13

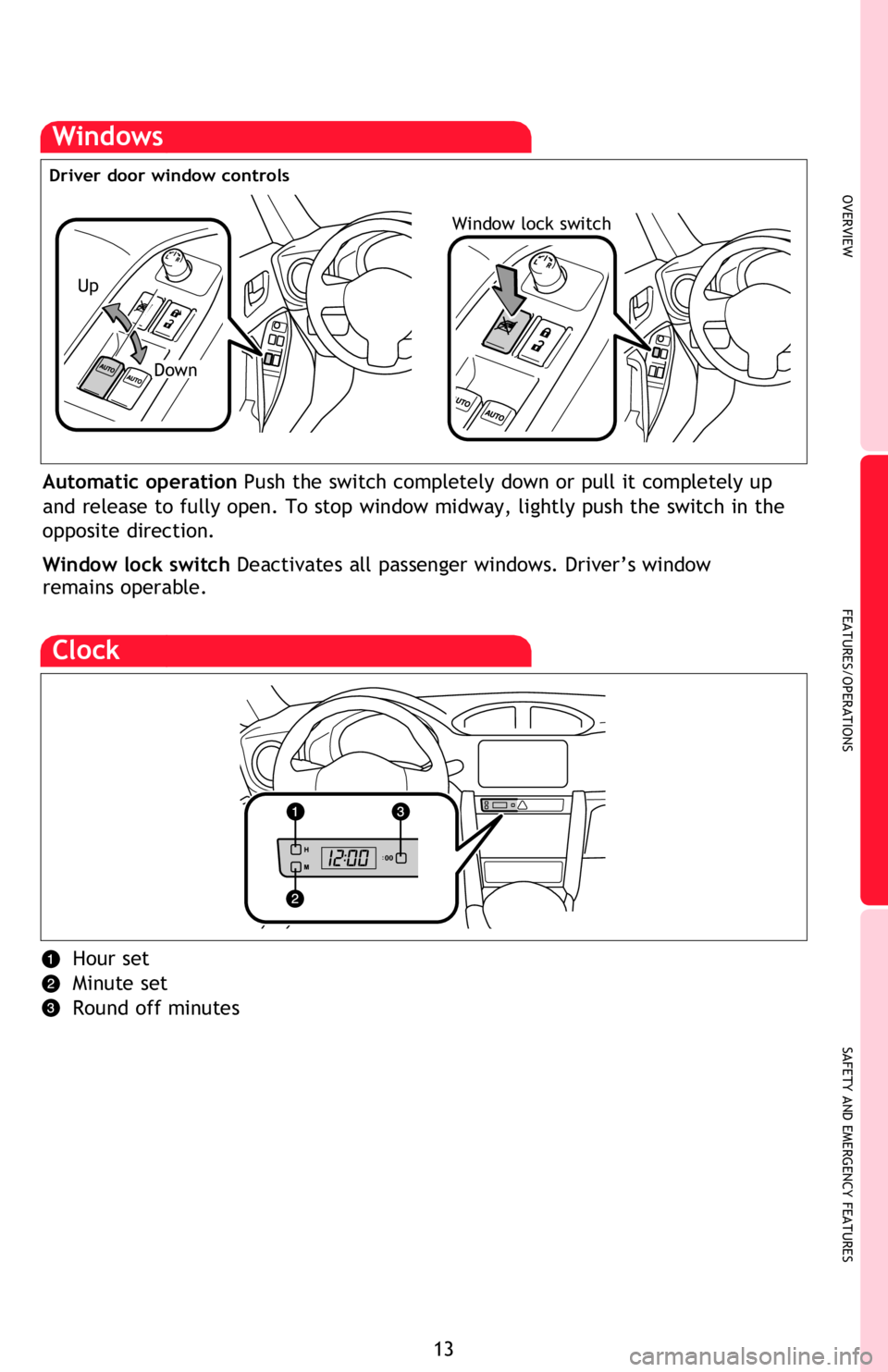

Windows
Automatic operation Push the switch completely down or pull it completely up
and release to fully open. To stop window midway, lightly push the switch in the
opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
00
Clock
Push “DISP” to change information in the following:
(1) Outside temperature
(2) Current fuel consumption
(3) Average fuel consumption
(4) Setting screen for the REV (engine RPM) indicator*
* Only displayed when the vehicle is stopped.
Window lock switch
Driver door window controls
Up
Down
Hour set
Minute set
Round off minutes
Intermittent windshield wiper
frequency adjustment
2015_Scion_FR-s.indd 135/2/14 7:32 PM

14

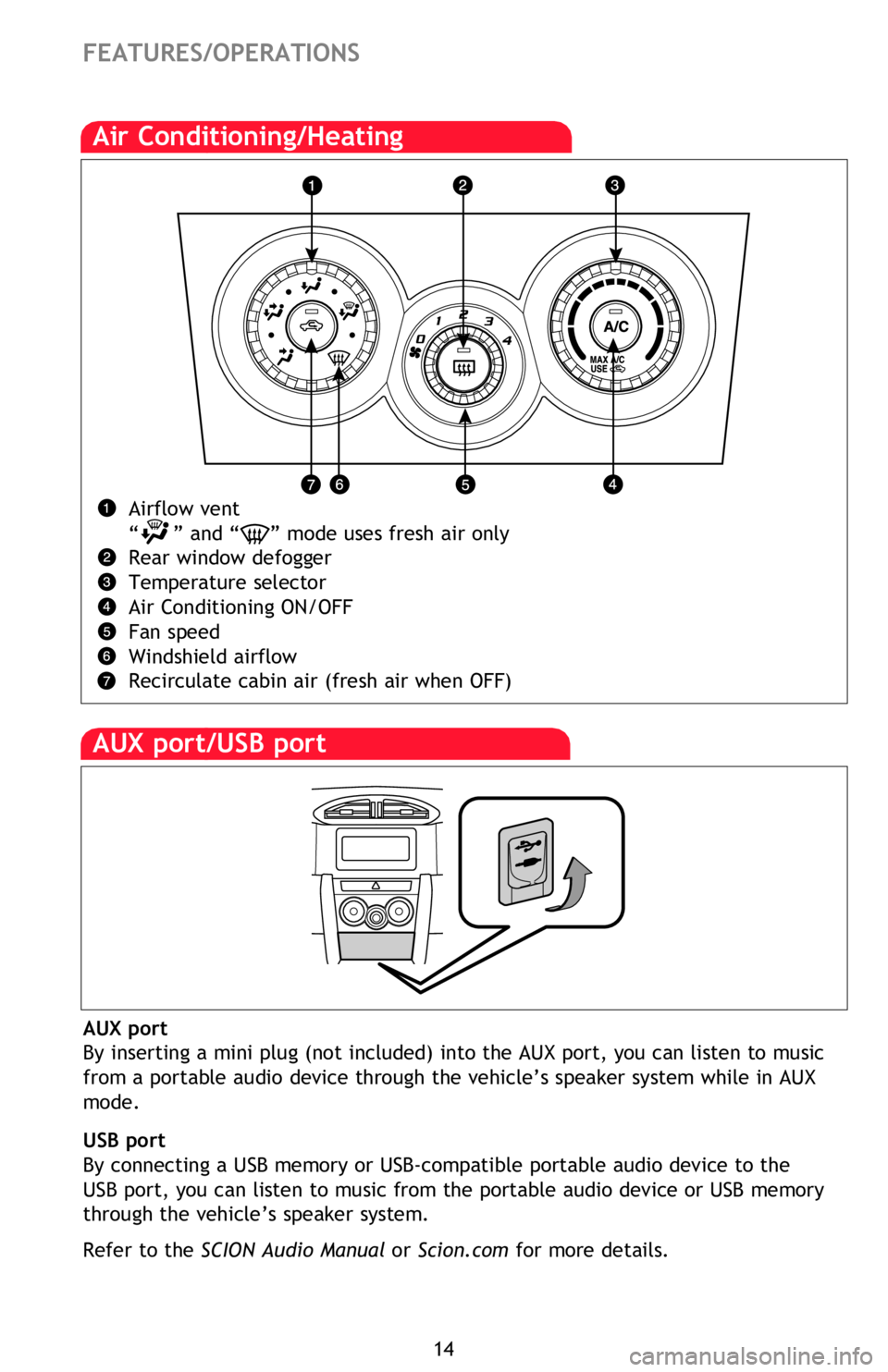

Air Conditioning/Heating
Airflow vent
“ ” and “
” mode uses fresh air only
Rear window defogger
Temperature selector
Air Conditioning ON/OFF
Fan speed
Windshield airflow
Recirculate cabin air (fresh air when OFF)
AUX port/USB port
FEATURES/OPERATIONS
AUX port
By inserting a mini plug (not included) into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
Refer to the SCION Audio Manual or Scion.com for more details.
Cup holders
Power outlets
Designed for car accessories. Ignition switch must be in the “ACC” or “ON”
position to be used.
Console tray
Bottle holder
2015_Scion_FR-s.indd 145/2/14 7:32 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
15
Airflow vent
“ ” and “
” mode uses fresh air only
Rear window defogger
Temperature selector
Air Conditioning ON/OFF
Fan speed
Windshield airflow
Recirculate cabin air (fresh air when OFF)
AUX port
By inserting a mini plug (not included) into the AUX port, you can listen to music
from a portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB memory or USB-compatible portable audio device to the
USB port, you can listen to music from the portable audio device or USB memory
through the vehicle’s speaker system.
Refer to the SCION Audio Manual or Scion.com for more details.

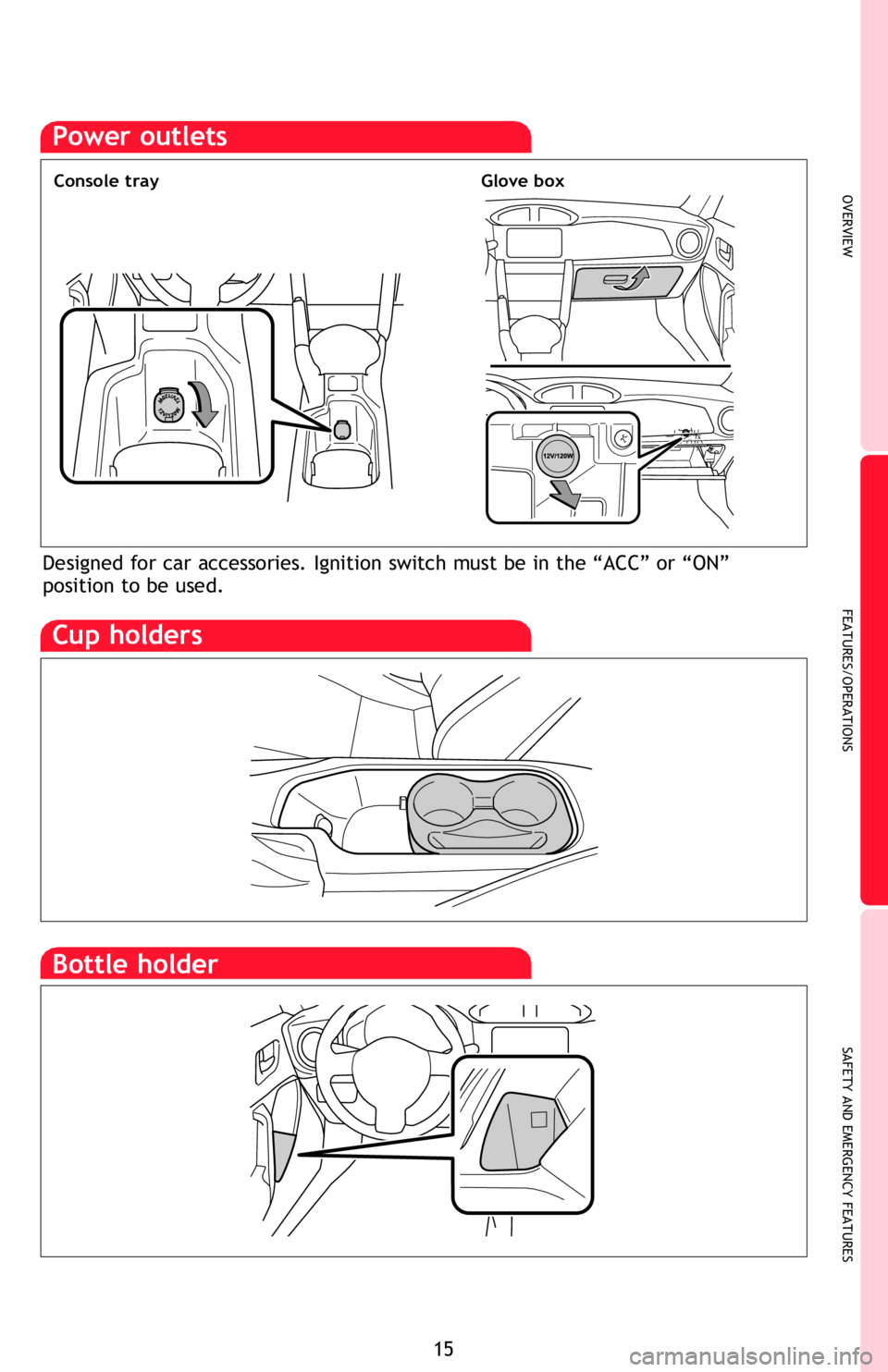

Cup holders
Power outlets
Designed for car accessories. Ignition switch must be in the “ACC” or “ON”
position to be used.
Console trayGlove box
Bottle holder
2015_Scion_FR-s.indd 155/2/14 7:32 PM

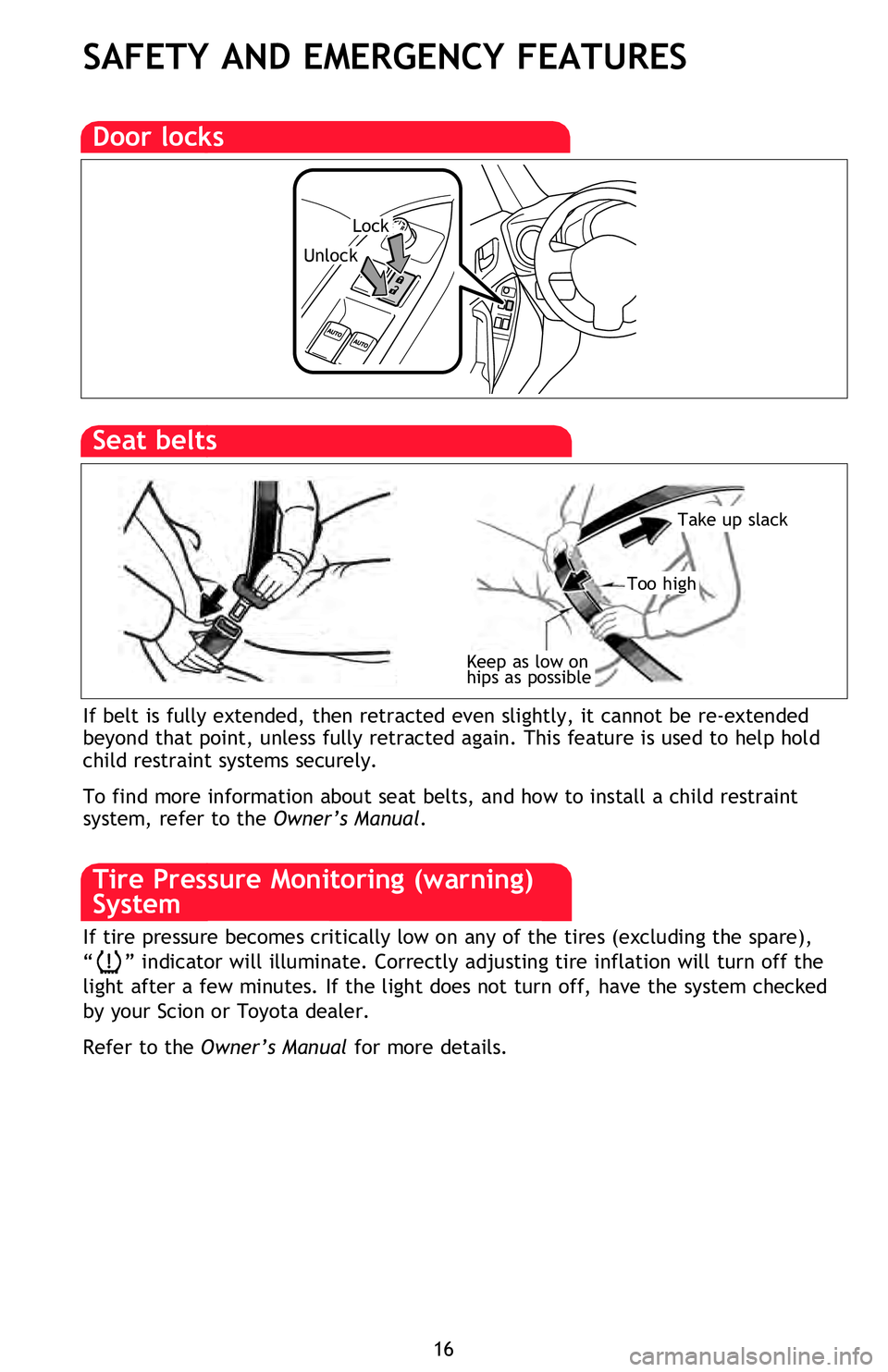

16
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Lock
Unlock
Door locksSpare tire & tools
Tool location
Removing the spare tire
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing procedures.If tire pressure becomes critically low on any of the tires (excluding the spare),
“
” indicator will illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Scion or Toyota dealer.
Refer to the Owner’s Manual for more details.
Tire Pressure Monitoring (warning)
System
2015_Scion_FR-s.indd 165/2/14 7:32 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
If belt is fully extended, then retracted even slightly, it cannot be re-extended
beyond that point, unless fully retracted again. This feature is used to help hold
child restraint systems securely.
To find more information about seat belts, and how to install a child restraint
system, refer to the Owner’s Manual.

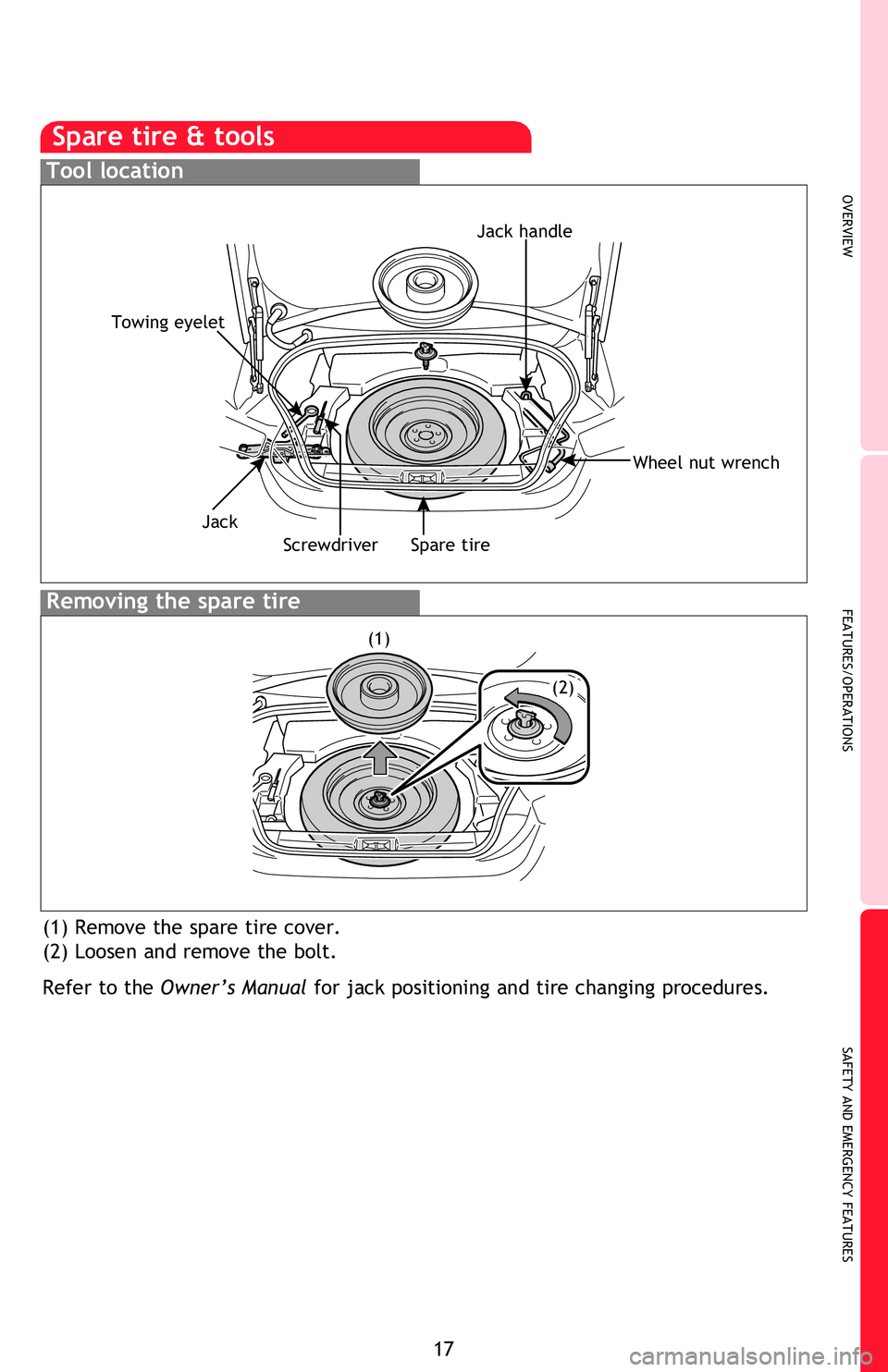

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the spare tire cover.
(2) Loosen and remove the bolt.
Refer to the Owner’s Manual for jack positioning and tire changing procedures.
Towing eyelet
Wheel nut wrench
Jack handle
Spare tire
Jack
(1)
(2)
If tire pressure becomes critically low on any of the tires (excluding the spare),
“
” indicator will illuminate. Correctly adjusting tire inflation will turn off the
light after a few minutes. If the light does not turn off, have the system checked
by your Scion or Toyota dealer.
Refer to the Owner’s Manual for more details.
Screwdriver
2015_Scion_FR-s.indd 175/2/14 7:33 PM

18

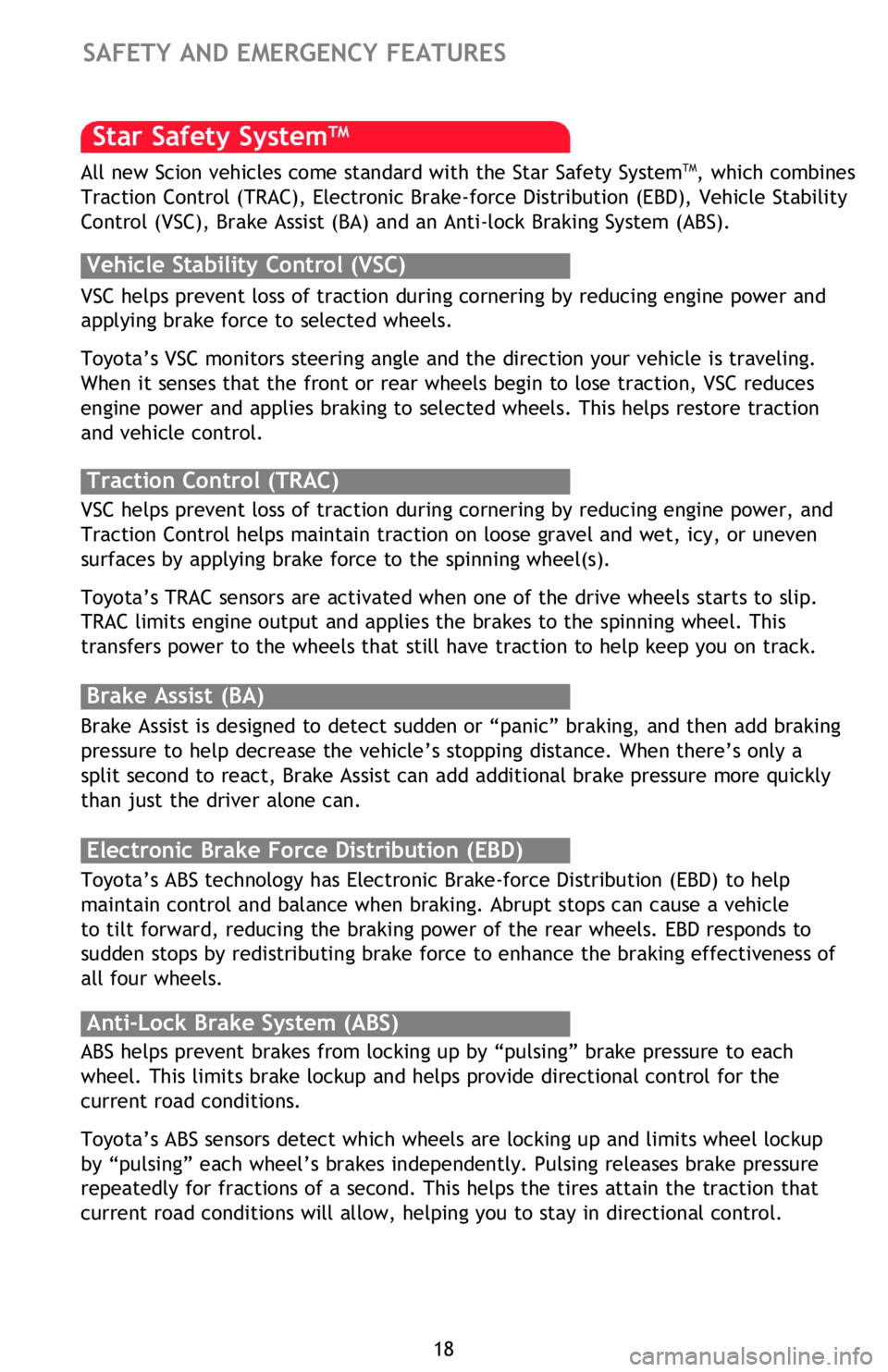

Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control. Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
Each vehicle has model-specific floor mats. Installation is easy.
To keep your floor mat properly positioned, follow these steps:
• Only use floor mats designed for your specific model.
• Use only one floor mat at a time, using the retaining hooks to keep the mat in
place.
• Install floor mats right side up.
Floor mat installation
Smart Stop Technology automatically reduces engine power when the accelerator
and brake pedals are pressed simultaneously under certain conditions.
SST engages when the accelerator is depressed first and the brakes are applied
firmly for longer than one-half second at speeds greater than five miles per hour.
SST doesn’t engage if the brake pedal is depressed before the accelerator pedal,
allowing vehicles to start on a steep hill and safely accelerate without rolling
backward.
SAFETY AND EMERGENCY FEATURES
All new Scion vehicles come standard with the Star Safety SystemTM, which combines
Traction Control (TRAC), Electronic Brake-force Distribution (EBD), Vehicle Stability
Control (VSC), Brake Assist (BA) and an Anti-lock Braking System (ABS).
Smart Stop Technology (SST)
