fuel consumption TOYOTA GR YARIS 2020 Owners Manual

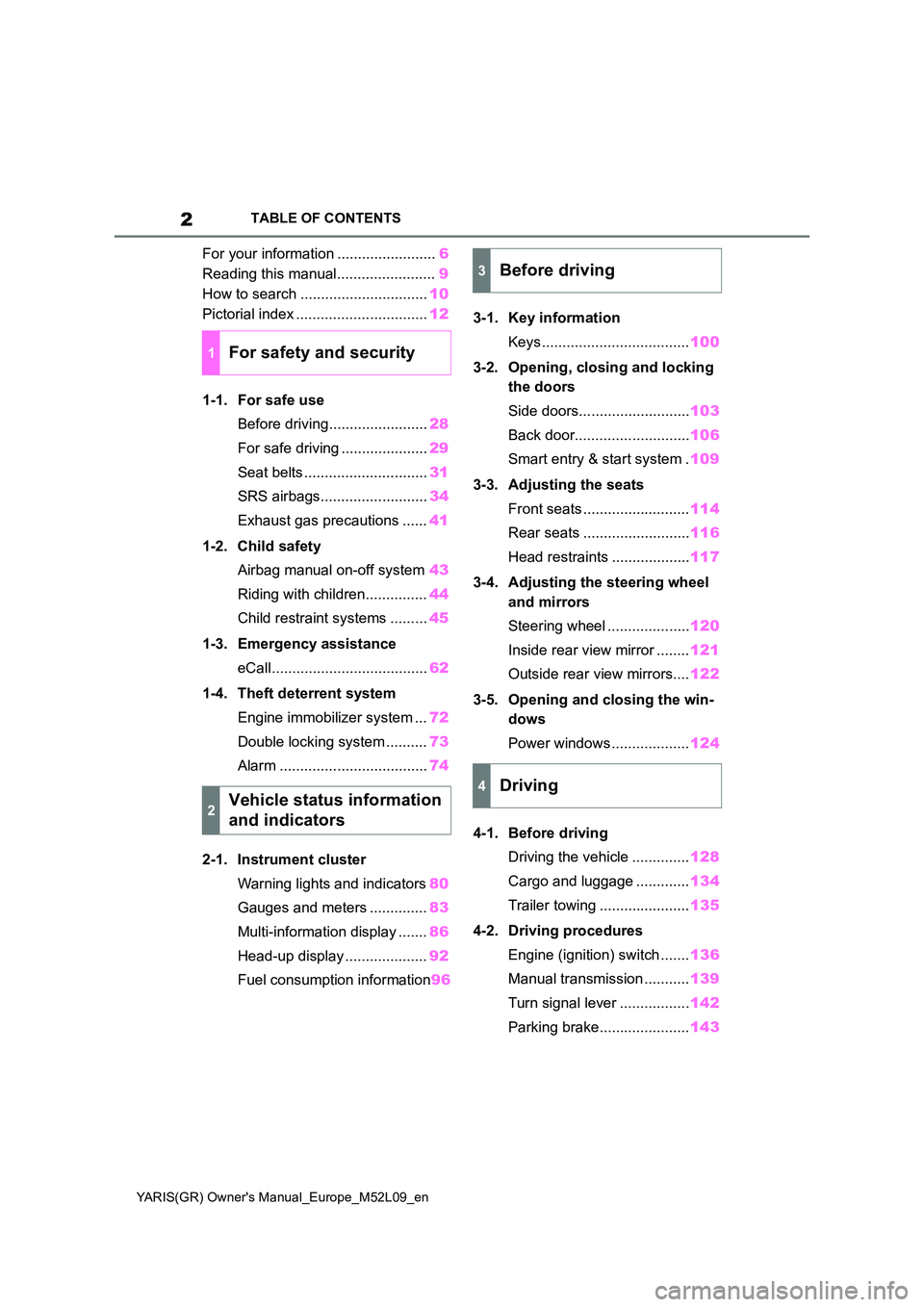

2
YARIS(GR) Owner's Manual_Europe_M52L09_en
TABLE OF CONTENTS
For your information ........................6
Reading this manual........................ 9
How to search ............................... 10
Pictorial index ................................ 12
1-1. For safe use
Before driving........................ 28
For safe driving ..................... 29
Seat belts .............................. 31
SRS airbags.......................... 34
Exhaust gas precautions ...... 41
1-2. Child safety
Airbag manual on-off system 43
Riding with children............... 44
Child restraint systems ......... 45
1-3. Emergency assistance
eCall...................................... 62
1-4. Theft deterrent system
Engine immobilizer system ... 72
Double locking system .......... 73
Alarm .................................... 74
2-1. Instrument cluster
Warning lights and indicators 80
Gauges and meters .............. 83
Multi-information display ....... 86
Head-up display .................... 92
Fuel consumption information 96
3-1. Key information
Keys .................................... 100
3-2. Opening, closing and locking
the doors
Side doors........................... 103
Back door............................ 106
Smart entry & start system . 109
3-3. Adjusting the seats
Front seats .......................... 114
Rear seats .......................... 116
Head restraints ................... 117
3-4. Adjusting the steering wheel
and mirrors
Steering wheel .................... 120
Inside rear view mirror ........ 121
Outside rear view mirrors.... 122
3-5. Opening and closing the win-
dows
Power windows ................... 124
4-1. Before driving
Driving the vehicle .............. 128
Cargo and luggage ............. 134
Trailer towing ...................... 135
4-2. Driving procedures
Engine (ignition) switch ....... 136
Manual transmission ........... 139
Turn signal lever ................. 142
Parking brake...................... 143
1For safety and security
2Vehicle status information
and indicators
3Before driving
4Driving

2

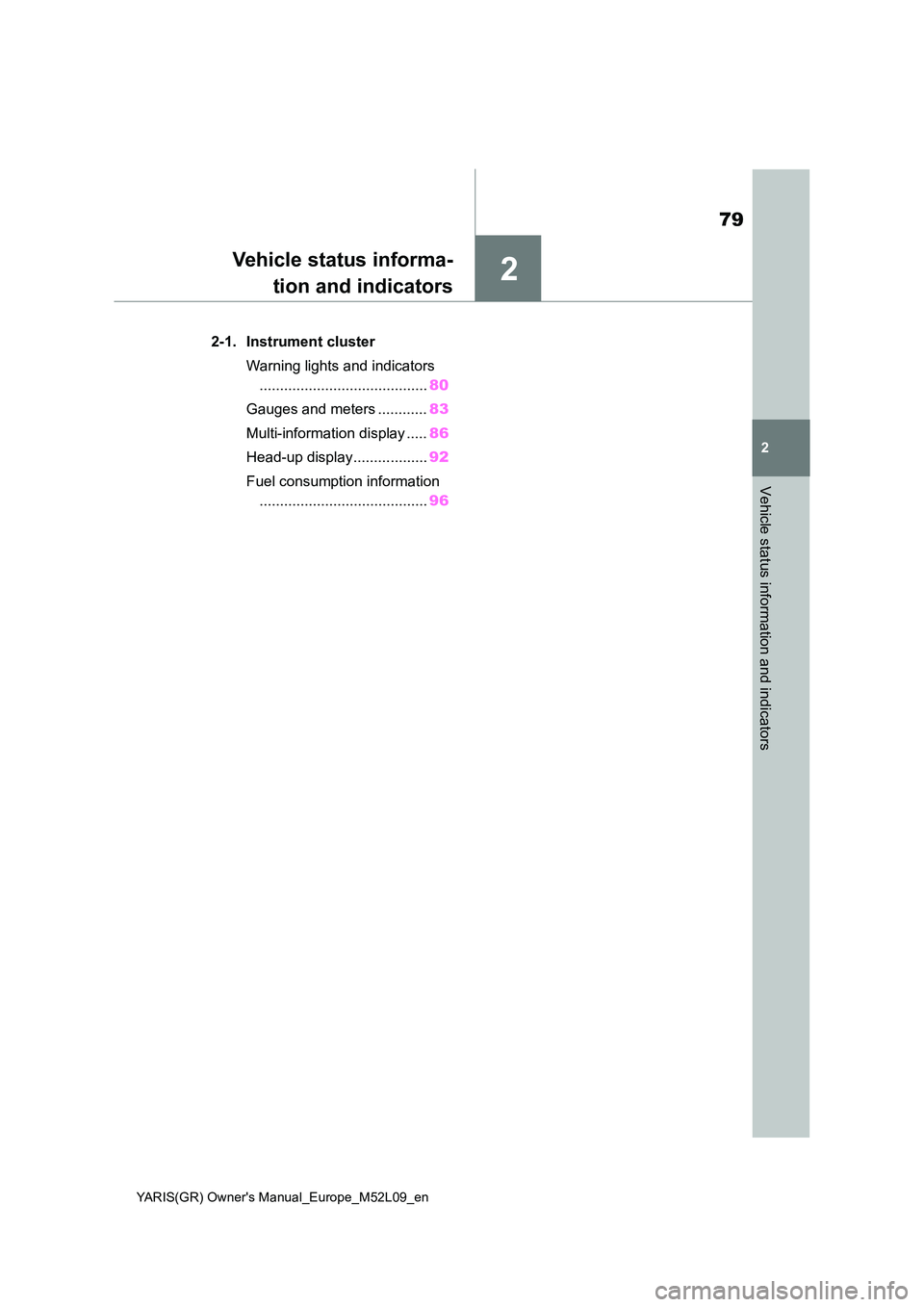

79
YARIS(GR) Owner's Manual_Europe_M52L09_en
2
Vehicle status information and indicators
Vehicle status informa-
tion and indicators
2-1. Instrument cluster
Warning lights and indicators
......................................... 80
Gauges and meters ............ 83
Multi-information display ..... 86
Head-up display.................. 92
Fuel consumption information
......................................... 96

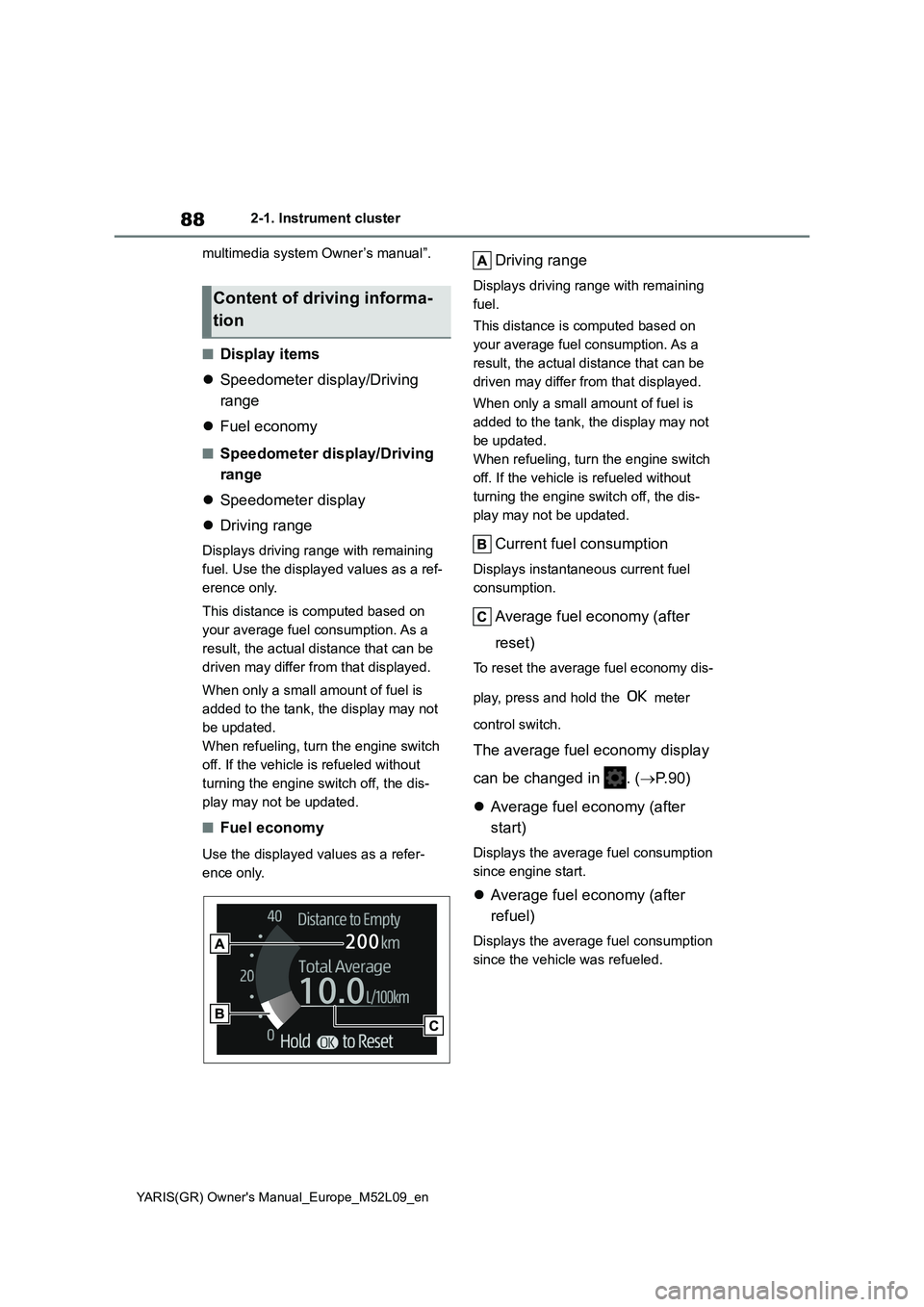

88
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
multimedia system Owner’s manual”.
■Display items
zSpeedometer display/Driving
range
zFuel economy
■Speedometer display/Driving
range
zSpeedometer display
zDriving range
Displays driving range with remaining
fuel. Use the displayed values as a ref-
erence only.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.
■Fuel economy
Use the displayed values as a refer-
ence only.
Driving range
Displays driving range with remaining
fuel.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.
Current fuel consumption
Displays instantaneous current fuel
consumption.
Average fuel economy (after
reset)
To reset the average fuel economy dis-
play, press and hold the meter
control switch.
The average fuel economy display
can be changed in . (→P. 9 0 )
zAverage fuel economy (after
start)
Displays the average fuel consumption
since engine start.
zAverage fuel economy (after
refuel)
Displays the average fuel consumption
since the vehicle was refueled.
Content of driving informa-
tion

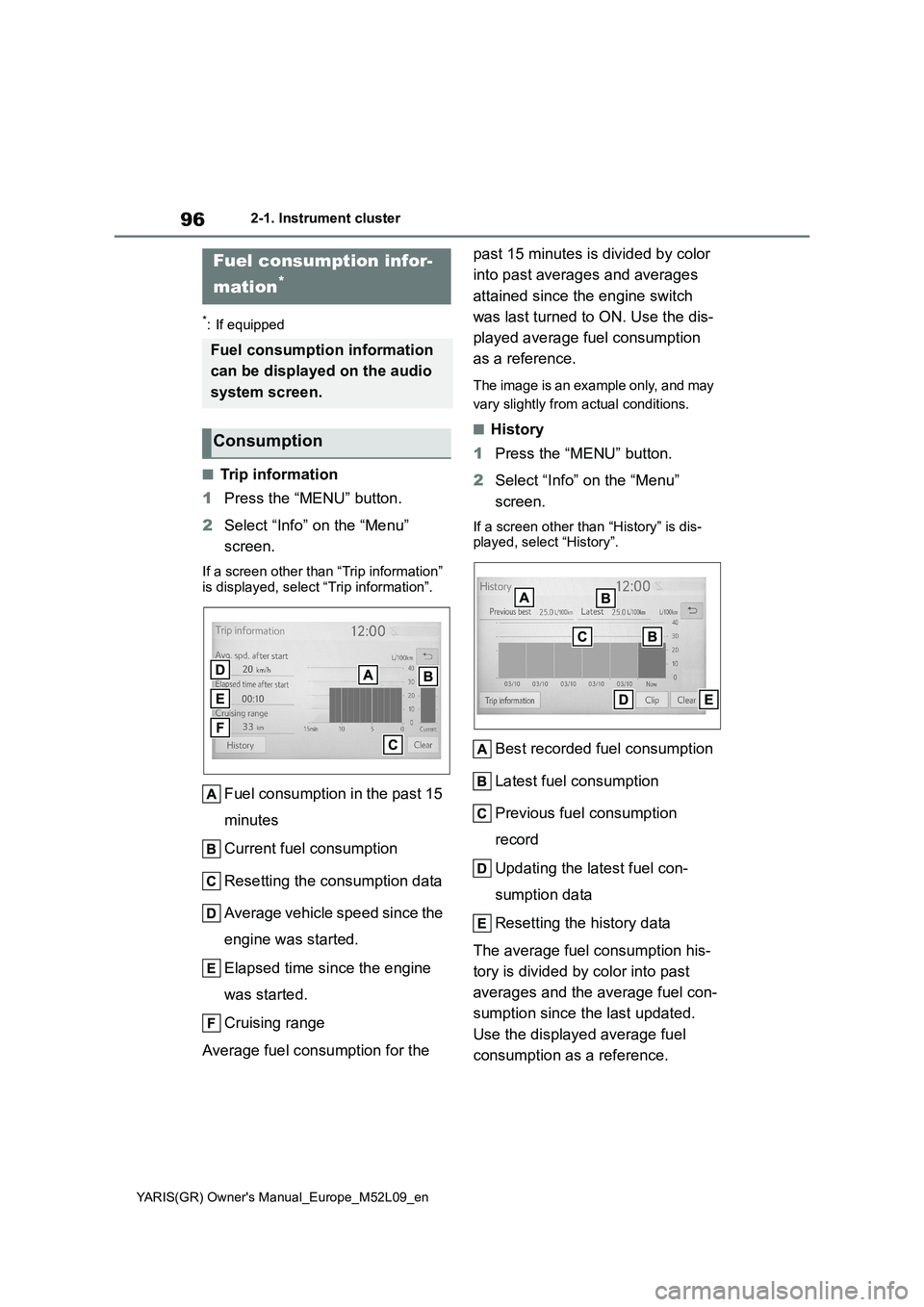

96
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
*: If equipped
■Trip information
1Press the “MENU” button.
2Select “Info” on the “Menu”
screen.
If a screen other than “Trip information”
is displayed, select “Trip information”.
Fuel consumption in the past 15
minutes
Current fuel consumption
Resetting the consumption data
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages
attained since the engine switch
was last turned to ON. Use the dis-
played average fuel consumption
as a reference.
The image is an example only, and may
vary slightly from actual conditions.
■History
1Press the “MENU” button.
2Select “Info” on the “Menu”
screen.
If a screen other than “History” is dis-
played, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption
record
Updating the latest fuel con-
sumption data
Resetting the history data
The average fuel consumption his-
tory is divided by color into past
averages and the average fuel con-
sumption since the last updated.
Use the displayed average fuel
consumption as a reference.
Fuel consumption infor-
mation
*
Fuel consumption information
can be displayed on the audio
system screen.
Consumption

97
2
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
Vehicle status information and indicators
The image is an example only, and may
vary slightly from actual conditions.
■Updating the history data
Update the latest fuel consumption by
selecting “Clip” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be
deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum dis-
tance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on
your average fuel consumption.
As a result, the actual distance that can
be driven may differ from that displayed.

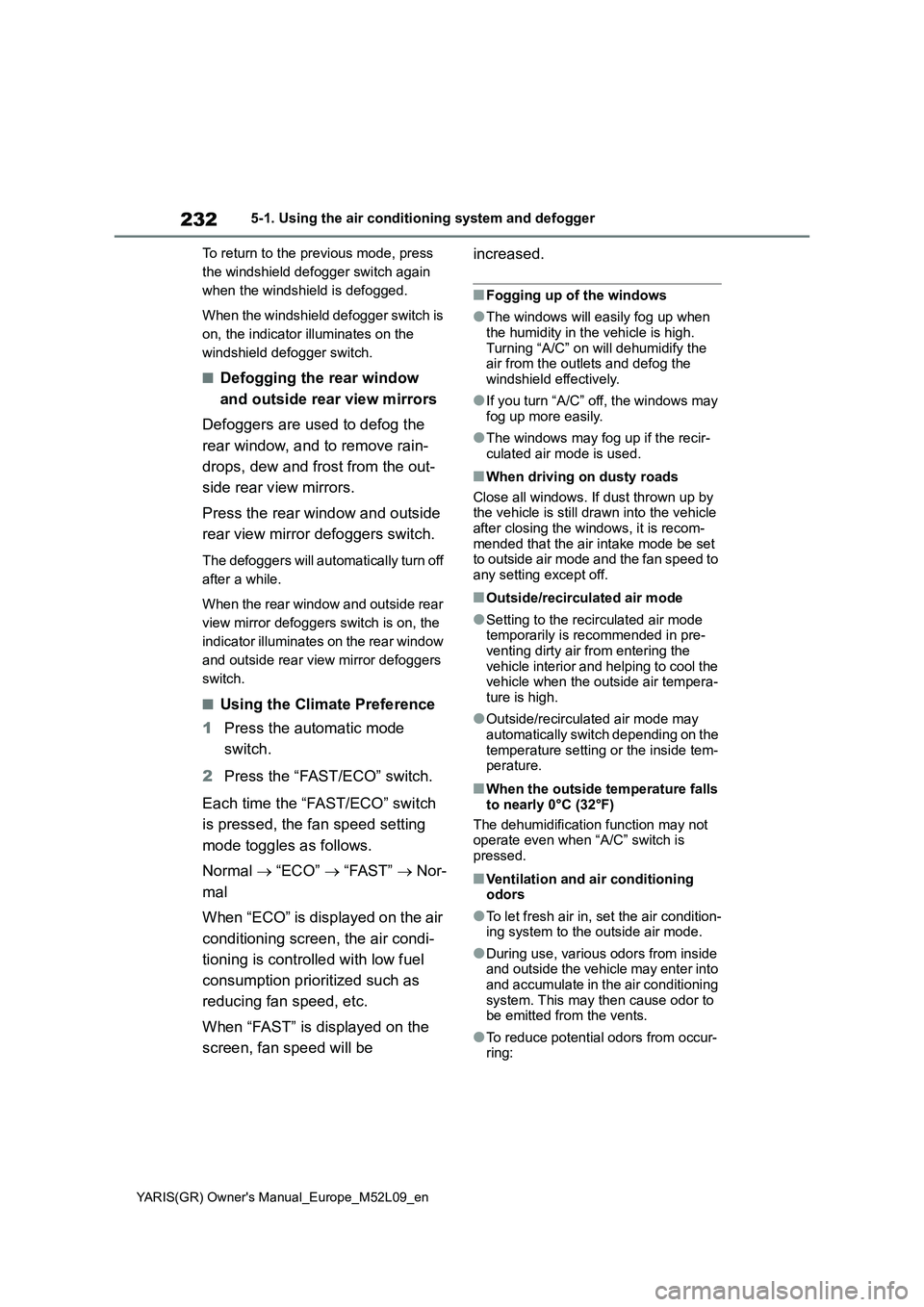

232
YARIS(GR) Owner's Manual_Europe_M52L09_en
5-1. Using the air conditioning system and defogger
To return to the previous mode, press
the windshield defogger switch again
when the windshield is defogged.
When the windshield defogger switch is
on, the indicator illuminates on the
windshield defogger switch.
■Defogging the rear window
and outside rear view mirrors
Defoggers are used to defog the
rear window, and to remove rain-
drops, dew and frost from the out-
side rear view mirrors.
Press the rear window and outside
rear view mirror defoggers switch.
The defoggers will automatically turn off
after a while.
When the rear window and outside rear
view mirror defoggers switch is on, the
indicator illuminates on the rear window
and outside rear view mirror defoggers
switch.
■Using the Climate Preference
1Press the automatic mode
switch.
2Press the “FAST/ECO” switch.
Each time the “FAST/ECO” switch
is pressed, the fan speed setting
mode toggles as follows.
Normal → “ECO” → “FAST” → Nor-
mal
When “ECO” is displayed on the air
conditioning screen, the air condi-
tioning is controlled with low fuel
consumption prioritized such as
reducing fan speed, etc.
When “FAST” is displayed on the
screen, fan speed will be increased.
■Fogging up of the windows
●The windows will easily fog up when
the humidity in the vehicle is high.
Turning “A/C” on will dehumidify the
air from the outlets and defog the
windshield effectively.
●If you turn “A/C” off, the windows may
fog up more easily.
●The windows may fog up if the recir-
culated air mode is used.
■When driving on dusty roads
Close all windows. If dust thrown up by
the vehicle is still drawn into the vehicle
after closing the windows, it is recom-
mended that the air intake mode be set
to outside air mode and the fan speed to
any setting except off.
■Outside/recirculated air mode
●Setting to the recirculated air mode
temporarily is recommended in pre-
venting dirty air from entering the
vehicle interior and helping to cool the
vehicle when the outside air tempera-
ture is high.
●Outside/recirculated air mode may
automatically switch depending on the
temperature setting or the inside tem-
perature.
■When the outside temperature falls
to nearly 0°C (32°F)
The dehumidification function may not
operate even when “A/C” switch is
pressed.
■Ventilation and air conditioning
odors
●To let fresh air in, set the air condition-
ing system to the outside air mode.
●During use, various odors from inside
and outside the vehicle may enter into
and accumulate in the air conditioning
system. This may then cause odor to
be emitted from the vents.
●To reduce potential odors from occur-
ring:

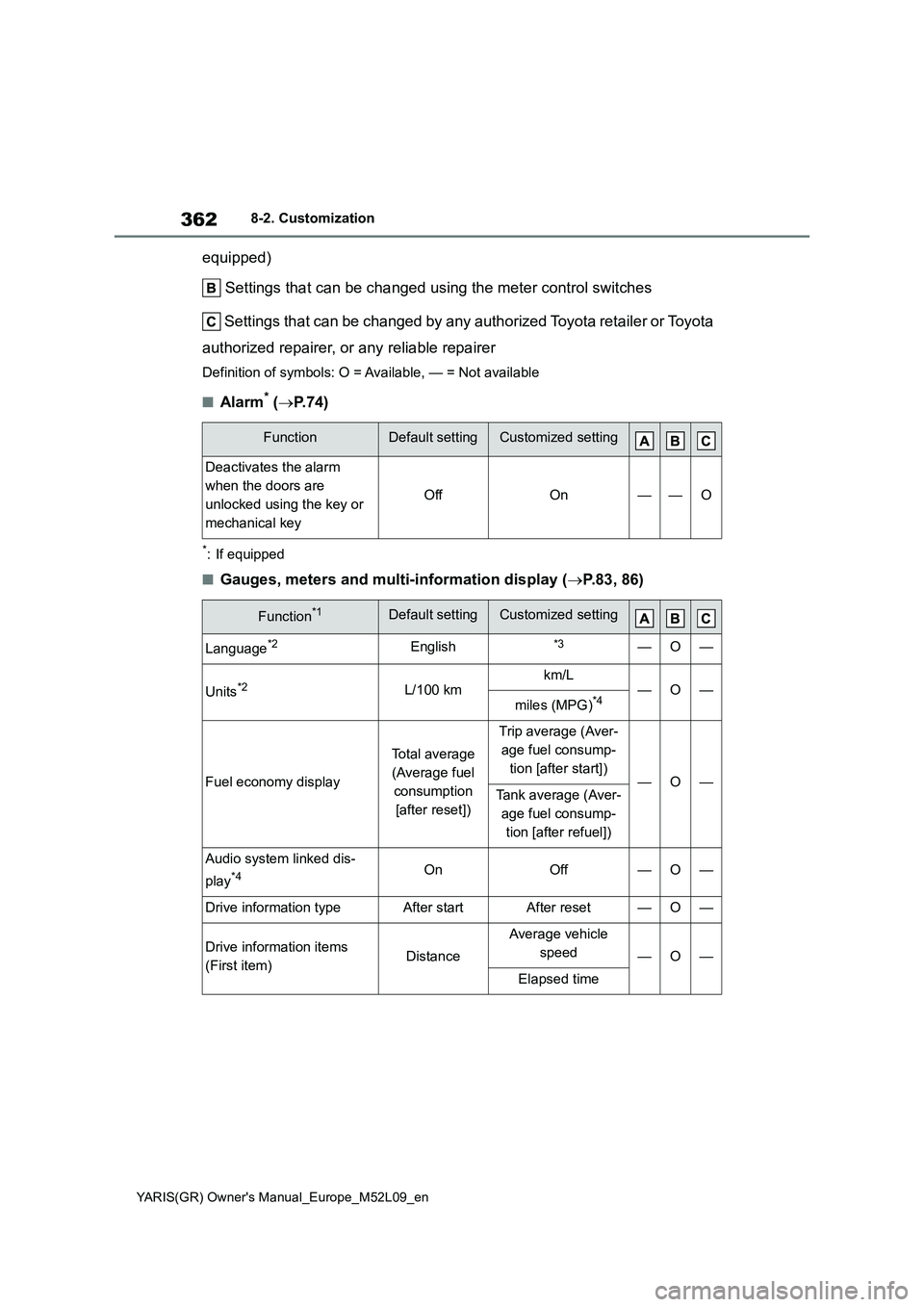

362
YARIS(GR) Owner's Manual_Europe_M52L09_en
8-2. Customization
equipped)
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* (→P.74)
*: If equipped
■Gauges, meters and multi-information display (→P.83, 86)
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])
—O—Tank average (Aver-
age fuel consump-
tion [after refuel])
Audio system linked dis-
play
*4OnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle
speed
—O—
Elapsed time

444
YARIS(GR) Owner's Manual_Europe_M52L09_en
Alphabetical Index
Brake
Emergency brake signal ............ 220
Fluid ........................................... 356
Parking brake ............................. 143
Warning light .............................. 315
Brake assist .................................. 219
Break-in tips .................................. 129
Brightness control
Instrument panel light control ....... 86
BSM (Blind Spot Monitor) ............ 201
Enabling/disabling the Blind Spot
Monitor..................................... 203
C
Card holders ................................. 241
Care ....................................... 248, 251
Aluminum wheels ....................... 248
Exterior....................................... 248
Interior ........................................ 251
Matte paint ................. 254, 258, 261
Seat belts ................................... 251
Chains ........................................... 227
Child restraint system .................... 45
Points to remember...................... 45
Riding with children ...................... 44
Child safety ..................................... 44
Airbag precautions ....................... 38
Battery precautions ............ 276, 344
Child restraint system .................. 45
Heated steering wheel and seat
heater precautions ................... 235
How your child should wear the seat
belt ............................................. 32
Installing child restraints............... 45Power window lock switch.......... 126
Power window precautions ........ 125
Removed electronic key battery pre-
cautions.................................... 296
Seat belt precautions ................... 44
Cleaning................................. 248, 251
Aluminum wheels .......................248
Exterior ....................................... 248
Interior ........................................251
Radar sensor.............................. 155
Seat belts ...................................251
Clock ..........................................83, 85
Condenser ..................................... 274
Consumption screen ...................... 96
Cooling system .............................273
Engine overheating .................... 346
Cruise control
Dynamic radar cruise control ..... 181
Cup holders ...................................240
Current fuel consumption ..............88
Curtain shield airbags ....................34
Customizable features ................. 361
D
Daytime running light system ..... 144
Deck board .................................... 241
Defogger
Outside rear view mirrors ........... 232
Rear window .............................. 232
Windshield.................................. 231
Differential ..................................... 356
Dimensions ...................................350

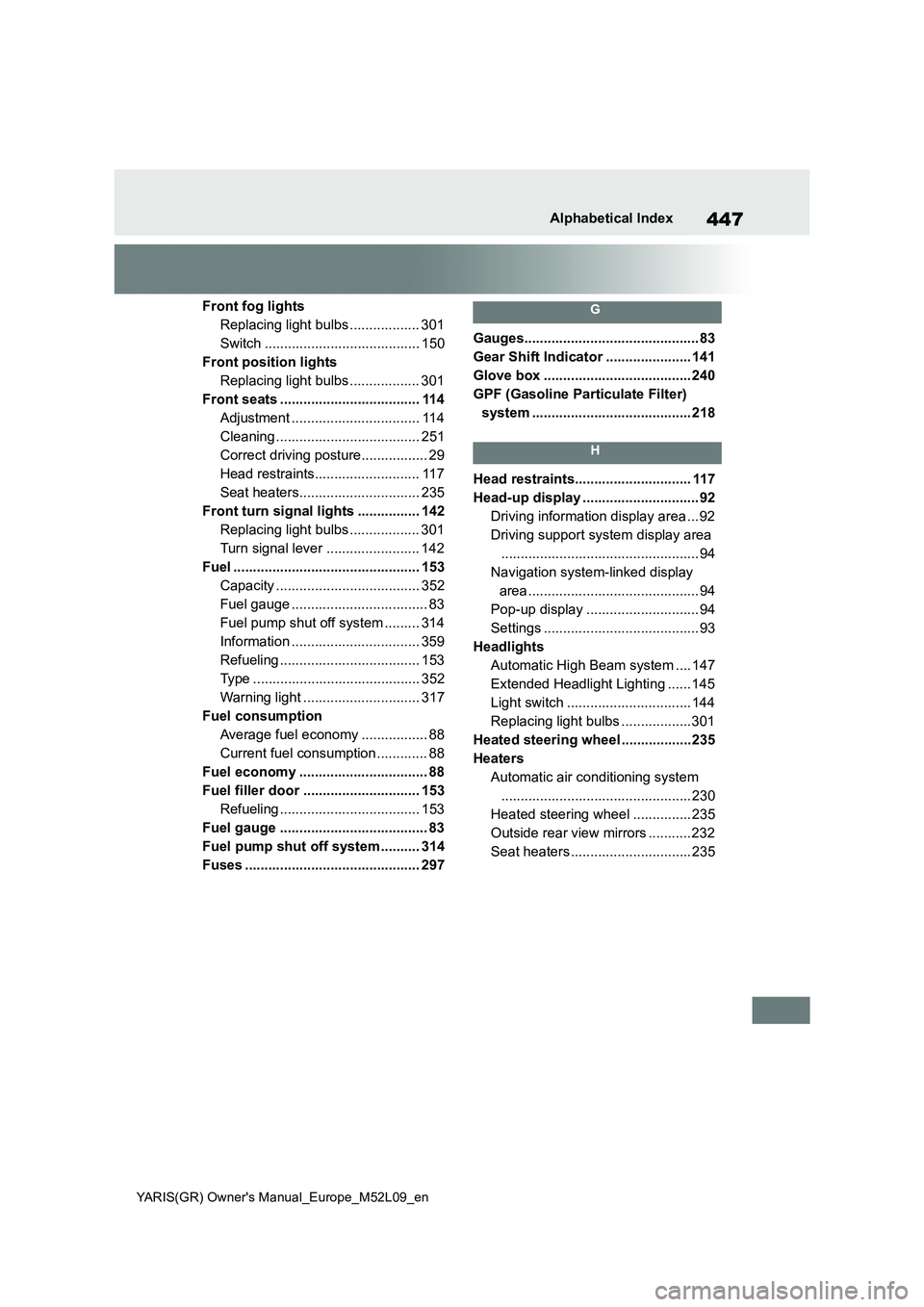

447
YARIS(GR) Owner's Manual_Europe_M52L09_en
Alphabetical Index
Front fog lights
Replacing light bulbs .................. 301
Switch ........................................ 150
Front position lights
Replacing light bulbs .................. 301
Front seats .................................... 114
Adjustment ................................. 114
Cleaning ..................................... 251
Correct driving posture................. 29
Head restraints........................... 117
Seat heaters............................... 235
Front turn signal lights ................ 142
Replacing light bulbs .................. 301
Turn signal lever ........................ 142
Fuel ................................................ 153
Capacity ..................................... 352
Fuel gauge ................................... 83
Fuel pump shut off system ......... 314
Information ................................. 359
Refueling .................................... 153
Type ........................................... 352
Warning light .............................. 317
Fuel consumption
Average fuel economy ................. 88
Current fuel consumption ............. 88
Fuel economy ................................. 88
Fuel filler door .............................. 153
Refueling .................................... 153
Fuel gauge ...................................... 83
Fuel pump shut off system .......... 314
Fuses ............................................. 297G
Gauges............................................. 83
Gear Shift Indicator ...................... 141
Glove box ...................................... 240
GPF (Gasoline Particulate Filter)
system ......................................... 218
H
Head restraints.............................. 117
Head-up display .............................. 92
Driving information display area ...92
Driving support system display area
................................................... 94
Navigation system-linked display
area ............................................ 94
Pop-up display ............................. 94
Settings ........................................ 93
Headlights
Automatic High Beam system .... 147
Extended Headlight Lighting ...... 145
Light switch ................................ 144
Replacing light bulbs ..................301
Heated steering wheel ..................235
Heaters
Automatic air conditioning system
................................................. 230
Heated steering wheel ............... 235
Outside rear view mirrors ........... 232
Seat heaters ............................... 235
