TOYOTA GR YARIS 2021 Owners Manual

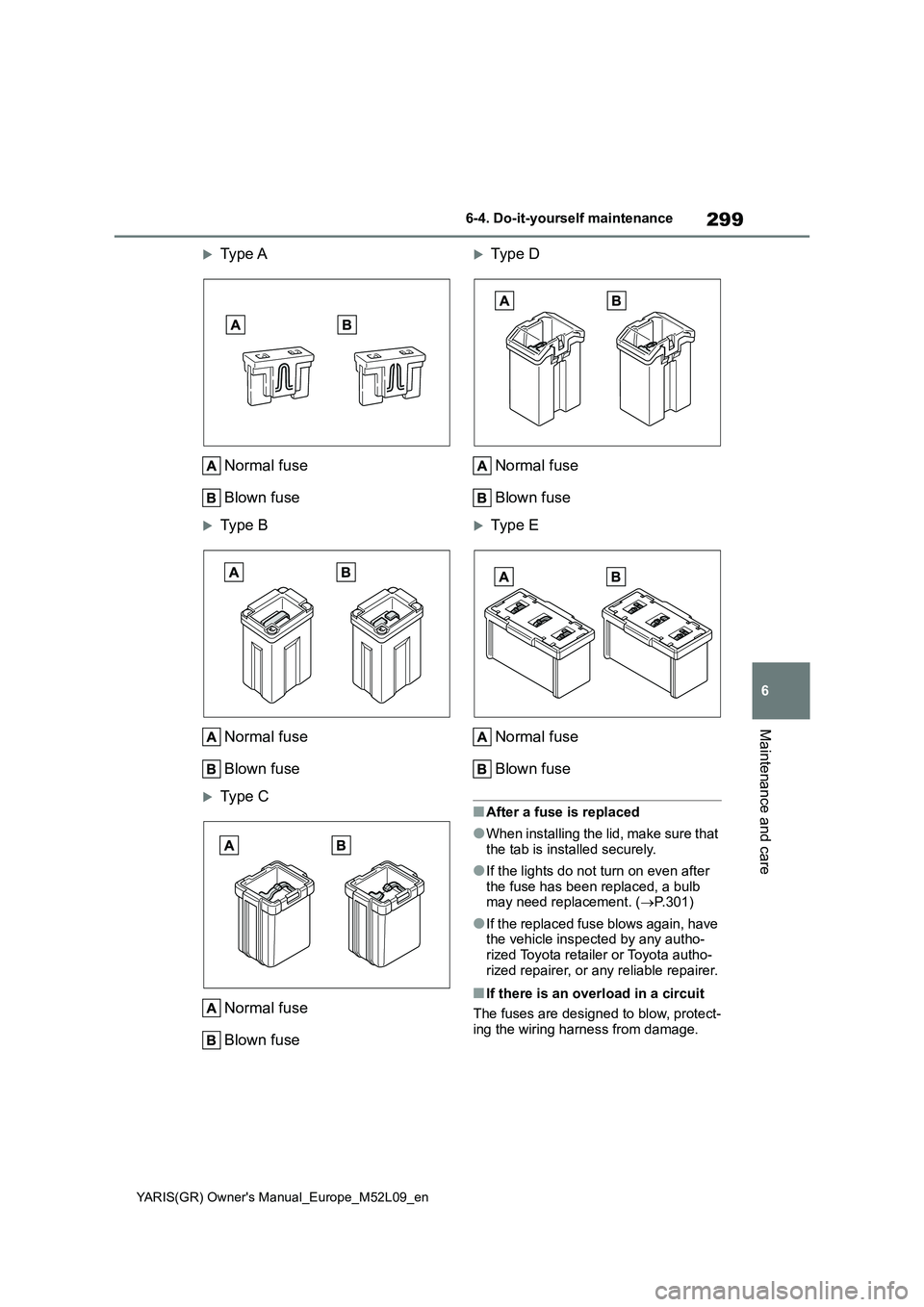

299
6
YARIS(GR) Owner's Manual_Europe_M52L09_en
6-4. Do-it-yourself maintenance
Maintenance and care
Type A
Normal fuse
Blown fuse
Type B
Normal fuse
Blown fuse
Type C
Normal fuse
Blown fuse
Typ e D
Normal fuse
Blown fuse
Typ e E
Normal fuse
Blown fuse
■After a fuse is replaced
●When installing the lid, make sure that
the tab is installed securely.
●If the lights do not turn on even after
the fuse has been replaced, a bulb
may need replacement. (→P.301)
●If the replaced fuse blows again, have
the vehicle inspected by any autho-
rized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
■If there is an overload in a circuit
The fuses are designed to blow, protect-
ing the wiring harness from damage.

300
YARIS(GR) Owner's Manual_Europe_M52L09_en
6-4. Do-it-yourself maintenance
■When replacing light bulbs
Toyota recommends that you use genu- ine Toyota products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-genuine parts of parts not designed
for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions. Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher
amperage rating than that indi- cated, or use any other object in place of a fuse.
●Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload
determined and repaired by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.
■When installing the fuse box cover (Engine compartment)
Press the fuse box cover, when
installing, after aligning all of the claw positions. Otherwise, the claws may be damaged.

301
6
YARIS(GR) Owner's Manual_Europe_M52L09_en
6-4. Do-it-yourself maintenance
Maintenance and care
Check the wattage of the light bulb
to be replaced. (→P.358)
License plate light
■Bulbs that need to be replaced
by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable
repairer
zHeadlightszFront position lights
zFront fog lights
zDaytime running lights
zTurn signal lights
zTail lights
zStop lights
zBack-up light
zRear fog light
zHigh mounted stoplight
■LED light bulbs
The lights other than the License plate
light consist of a number of LEDs. If any
of the LEDs burn out, take your vehicle
to any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer to have the light replaced.
■Condensation build-up on the
inside of the lens
Temporary condensation build-up on the
inside of the headlight lens does not
indicate a malfunction. Contact any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer for more information in the fol-
lowing situations:
●Large drops of water have built up on
the inside of the lens.
●Water has built up inside the head-
light.
■When replacing light bulbs
→P. 3 0 0
■License plate light
1Open the back door until the
license plate light can be seen.
(→P.106)
Light bulbs
You may replace the following
bulbs by yourself. The diffi-
culty level of replacement var-
ies depending on the bulb. As
there is a danger that compo-
nents may be damaged, we
recommend that replacement
is carried out by any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reli-
able repairer.
Preparing for light bulb
replacement
Bulb locations
Replacing light bulbs

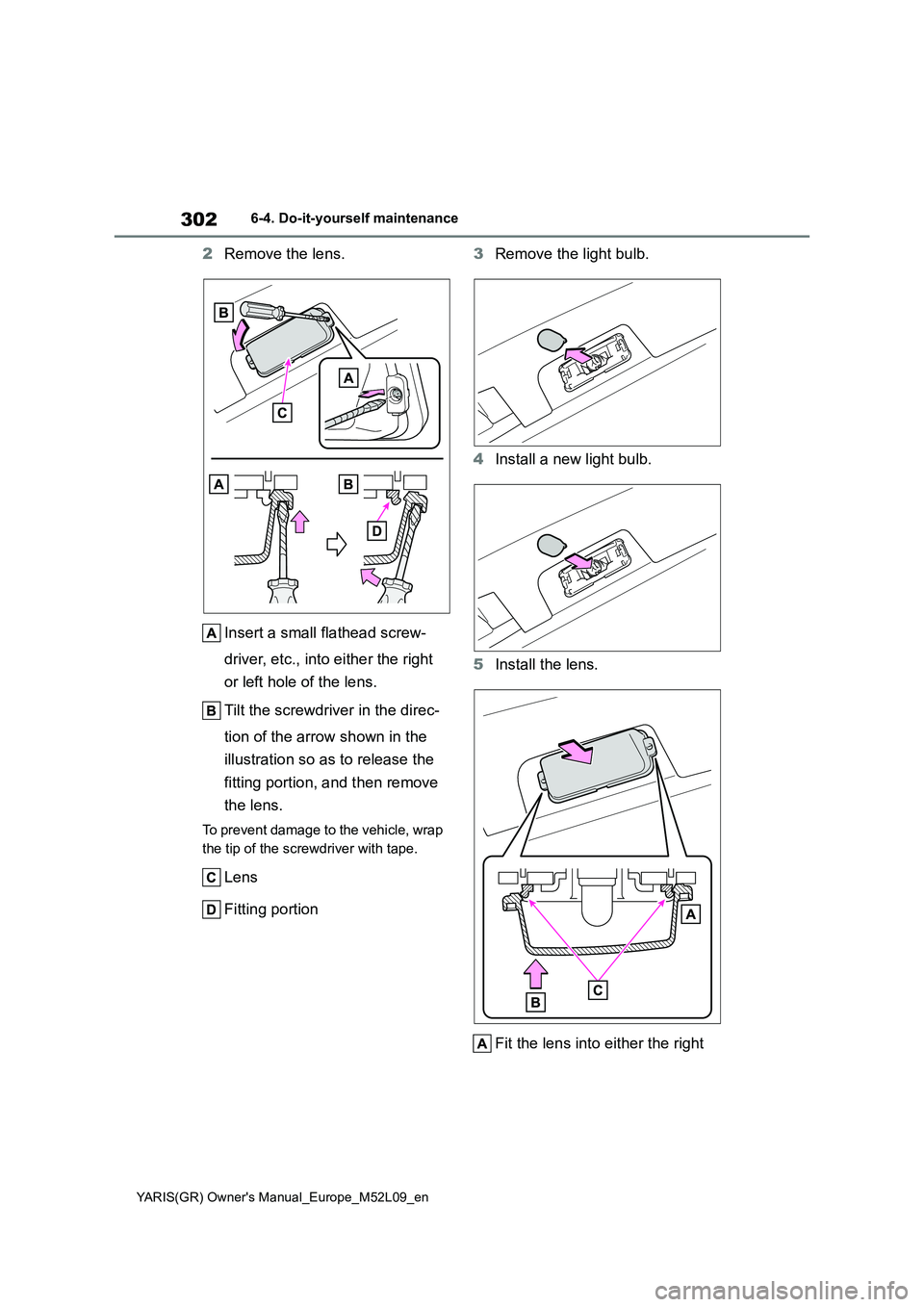

302
YARIS(GR) Owner's Manual_Europe_M52L09_en
6-4. Do-it-yourself maintenance
2Remove the lens.
Insert a small flathead screw-
driver, etc., into either the right
or left hole of the lens.
Tilt the screwdriver in the direc-
tion of the arrow shown in the
illustration so as to release the
fitting portion, and then remove
the lens.
To prevent damage to the vehicle, wrap
the tip of the screwdriver with tape.
Lens
Fitting portion3Remove the light bulb.
4Install a new light bulb.
5Install the lens.
Fit the lens into either the right

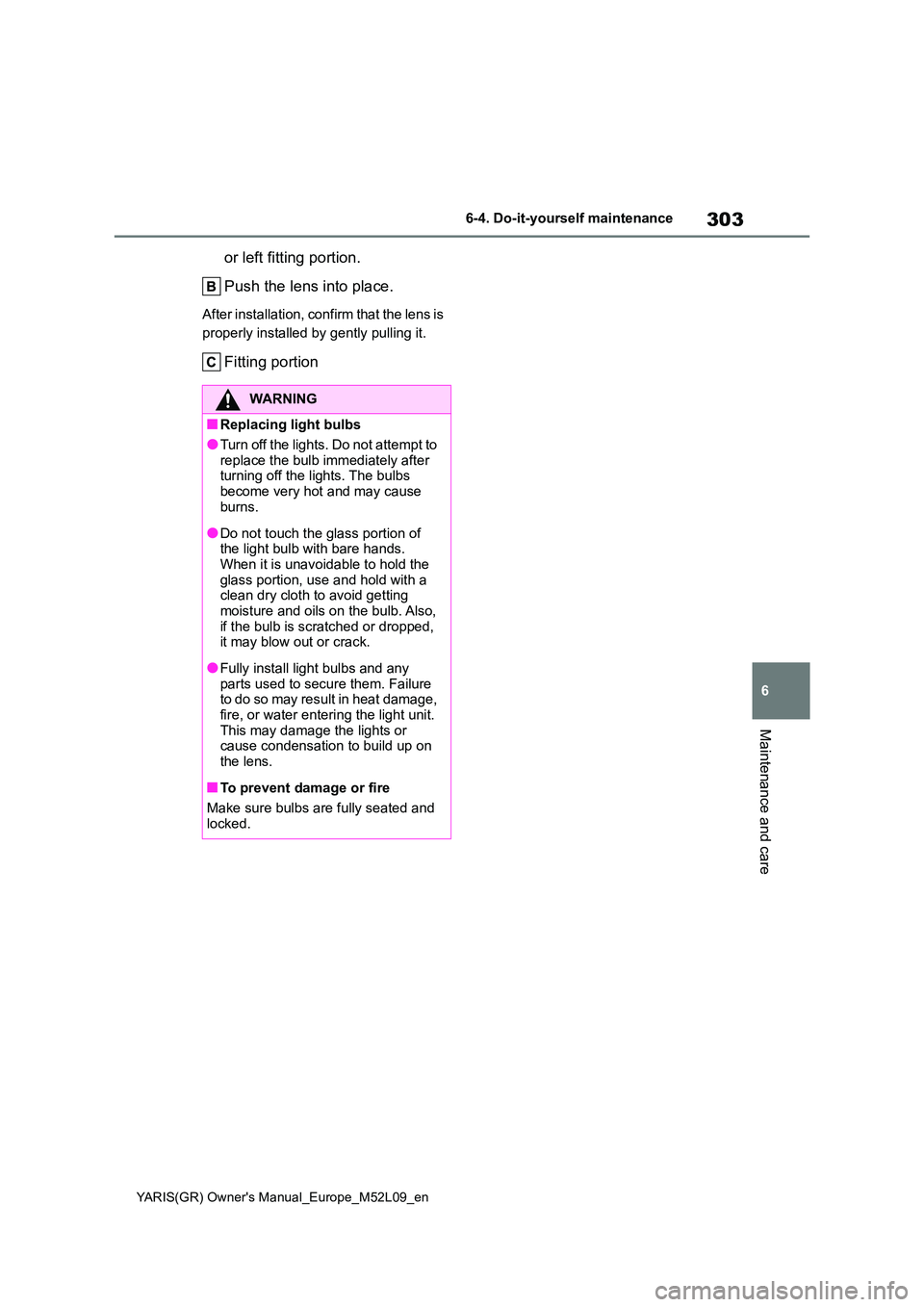

303
6
YARIS(GR) Owner's Manual_Europe_M52L09_en
6-4. Do-it-yourself maintenance
Maintenance and care
or left fitting portion.
Push the lens into place.
After installation, confirm that the lens is
properly installed by gently pulling it.
Fitting portion
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the lights. The bulbs
become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoidable to hold the
glass portion, use and hold with a clean dry cloth to avoid getting moisture and oils on the bulb. Also,
if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result in heat damage,
fire, or water entering the light unit. This may damage the lights or cause condensation to build up on
the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

304
YARIS(GR) Owner's Manual_Europe_M52L09_en
6-4. Do-it-yourself maintenance

7

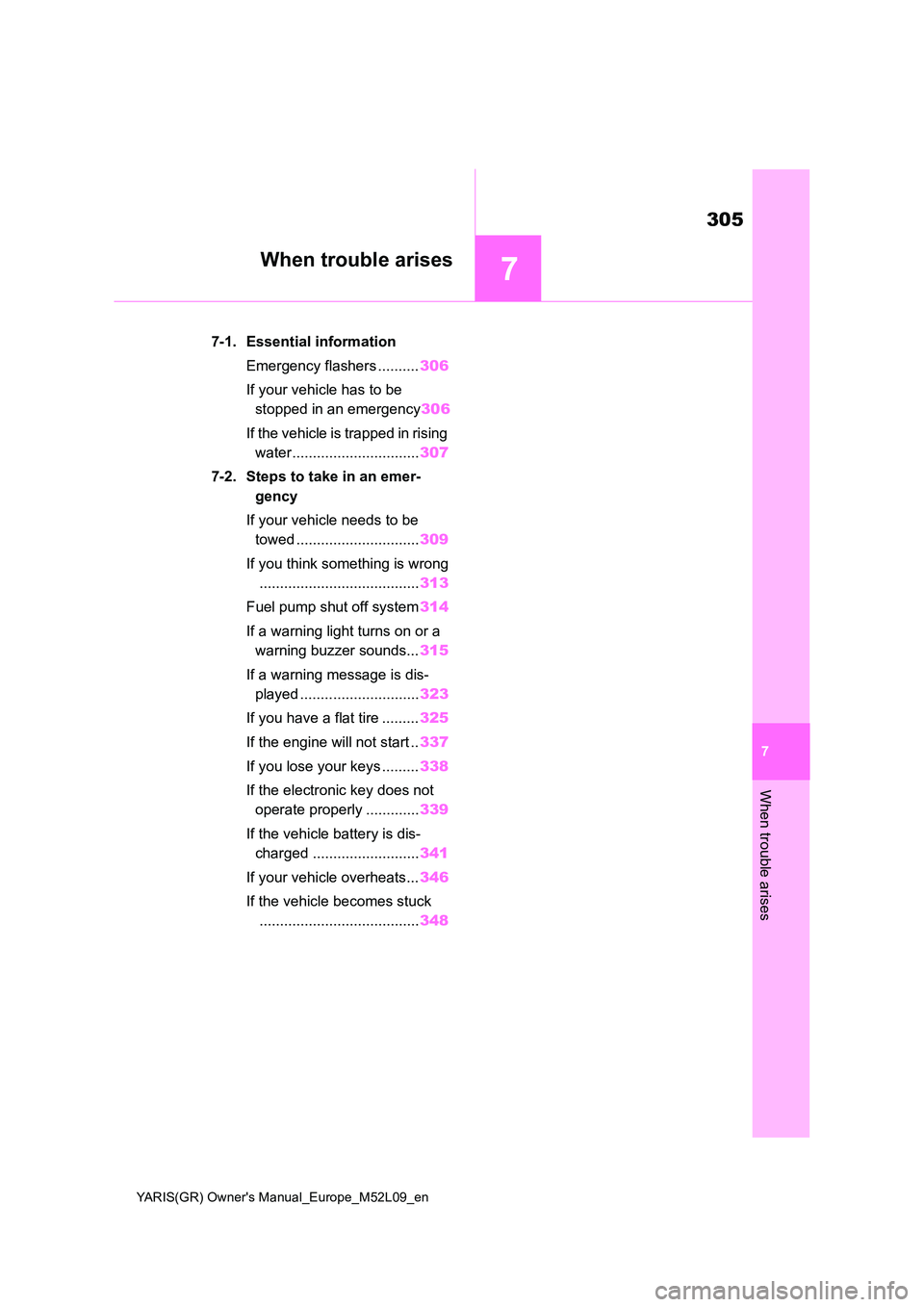

305
YARIS(GR) Owner's Manual_Europe_M52L09_en
7
When trouble arises
When trouble arises
7-1. Essential information
Emergency flashers .......... 306
If your vehicle has to be
stopped in an emergency 306
If the vehicle is trapped in rising
water............................... 307
7-2. Steps to take in an emer-
gency
If your vehicle needs to be
towed .............................. 309
If you think something is wrong
....................................... 313
Fuel pump shut off system 314
If a warning light turns on or a
warning buzzer sounds... 315
If a warning message is dis-
played ............................. 323
If you have a flat tire ......... 325
If the engine will not start .. 337
If you lose your keys ......... 338
If the electronic key does not
operate properly ............. 339
If the vehicle battery is dis-
charged .......................... 341
If your vehicle overheats... 346
If the vehicle becomes stuck
....................................... 348

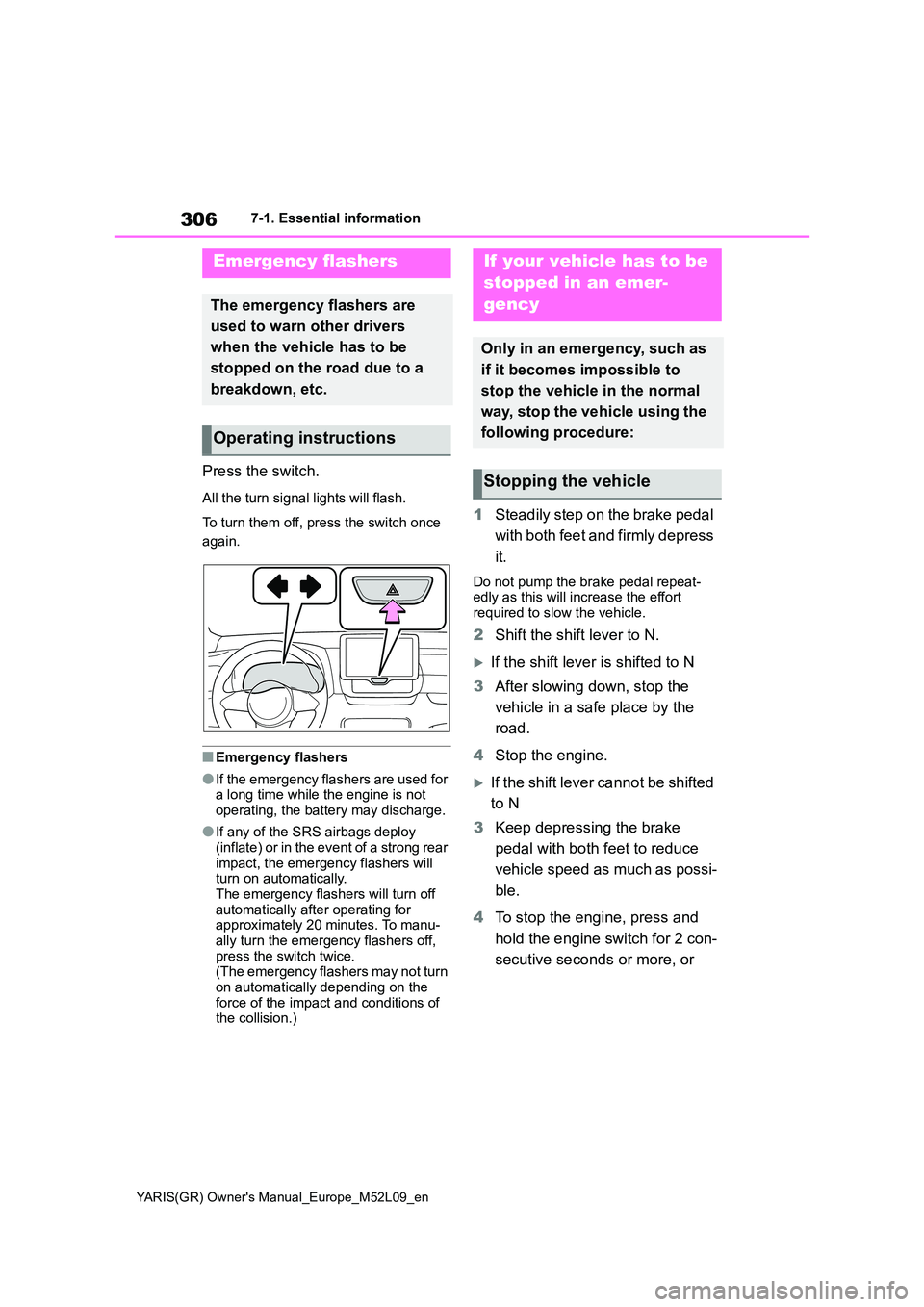

306
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-1. Essential information
7-1.Essential information
Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch once
again.
■Emergency flashers
●If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
●If any of the SRS airbags deploy
(inflate) or in the event of a strong rear impact, the emergency flashers will turn on automatically.
The emergency flashers will turn off automatically after operating for approximately 20 minutes. To manu-
ally turn the emergency flashers off, press the switch twice.(The emergency flashers may not turn
on automatically depending on the force of the impact and conditions of the collision.)
1 Steadily step on the brake pedal
with both feet and firmly depress
it.
Do not pump the brake pedal repeat- edly as this will increase the effort required to slow the vehicle.
2 Shift the shift lever to N.
If the shift lever is shifted to N
3 After slowing down, stop the
vehicle in a safe place by the
road.
4 Stop the engine.
If the shift lever cannot be shifted
to N
3 Keep depressing the brake
pedal with both feet to reduce
vehicle speed as much as possi-
ble.
4 To stop the engine, press and
hold the engine switch for 2 con-
secutive seconds or more, or
Emergency flashers
The emergency flashers are
used to warn other drivers
when the vehicle has to be
stopped on the road due to a
breakdown, etc.
Operating instructions
If your vehicle has to be
stopped in an emer-
gency
Only in an emergency, such as
if it becomes impossible to
stop the vehicle in the normal
way, stop the vehicle using the
following procedure:
Stopping the vehicle

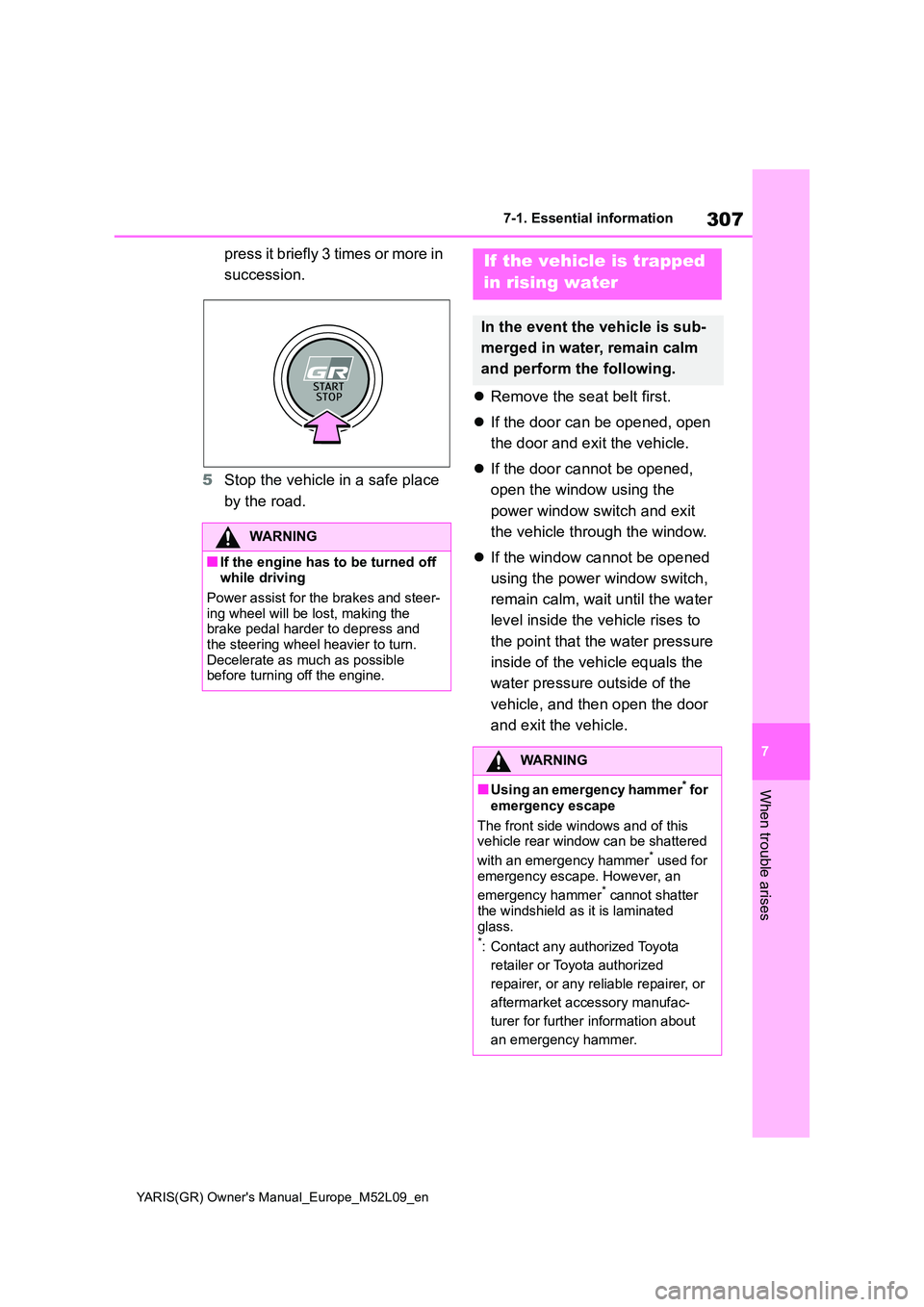

307
7
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-1. Essential information
When trouble arises
press it briefly 3 times or more in
succession.
5 Stop the vehicle in a safe place
by the road.
z Remove the seat belt first.
z If the door can be opened, open
the door and exit the vehicle.
z If the door cannot be opened,
open the window using the
power window switch and exit
the vehicle through the window.
z If the window cannot be opened
using the power window switch,
remain calm, wait until the water
level inside the vehicle rises to
the point that the water pressure
inside of the vehicle equals the
water pressure outside of the
vehicle, and then open the door
and exit the vehicle.
WARNING
■If the engine has to be turned off while driving
Power assist for the brakes and steer-
ing wheel will be lost, making the brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
If the vehicle is trapped
in rising water
In the event the vehicle is sub-
merged in water, remain calm
and perform the following.
WARNING
■Using an emergency hammer* for
emergency escape
The front side windows and of this vehicle rear window can be shattered
with an emergency hammer* used for emergency escape. However, an
emergency hammer* cannot shatter
the windshield as it is laminated glass.*: Contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer, or
aftermarket accessory manufac-
turer for further information about
an emergency hammer.

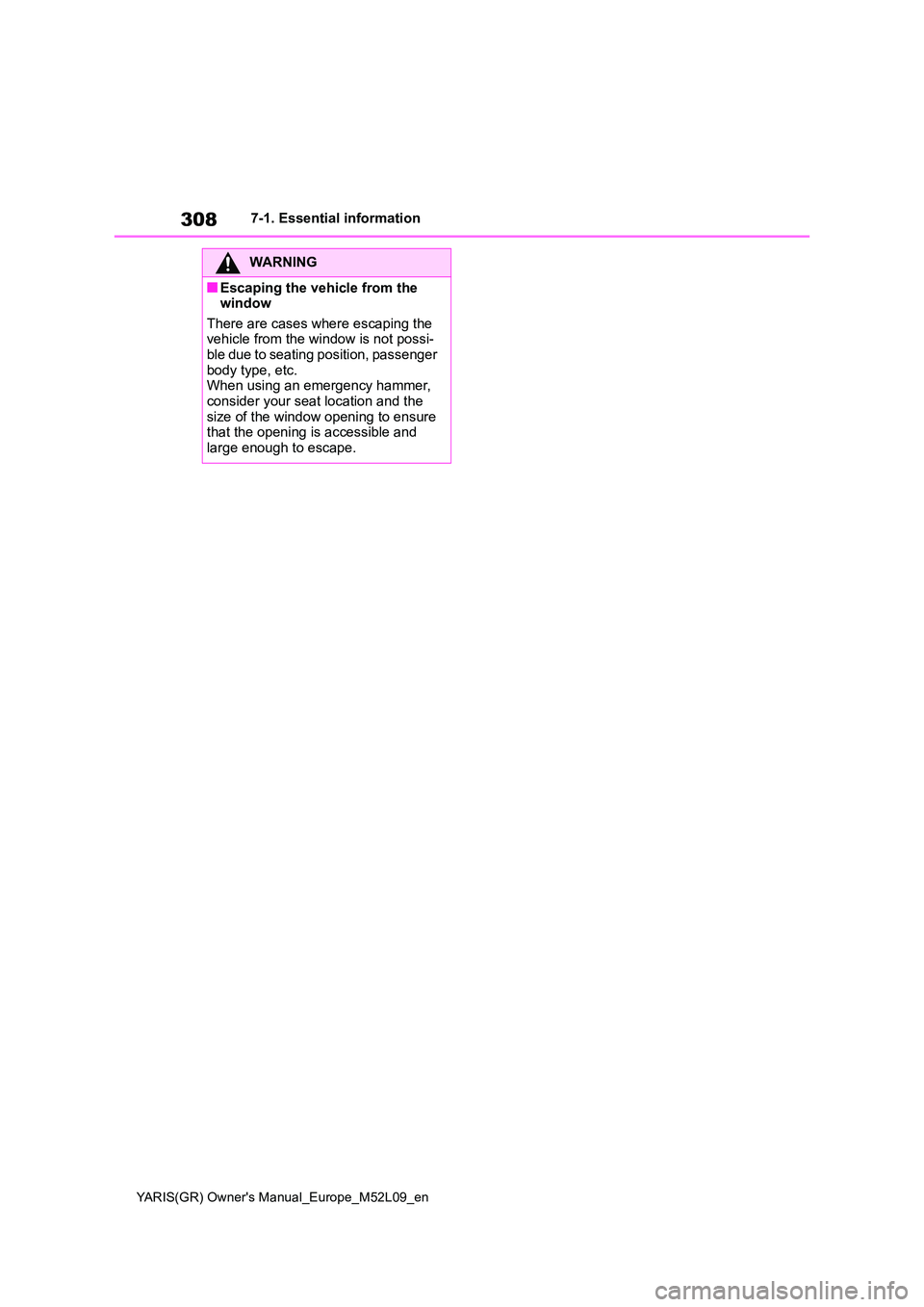

308
YARIS(GR) Owner's Manual_Europe_M52L09_en
7-1. Essential information
WARNING
■Escaping the vehicle from the window
There are cases where escaping the vehicle from the window is not possi-ble due to seating position, passenger
body type, etc. When using an emergency hammer, consider your seat location and the
size of the window opening to ensure that the opening is accessible and large enough to escape.
