TABLE OF CONTENTS
6-4. Do-it-yourself maintenance
Do-it-yourself service precau-
tions .................................. 267
Hood ................................... 268
Positioning a floor jack ........ 270
Engine compartment........... 271
Battery ................................ 275
Tires .................................... 277
Replacing the tire ................ 287
Tire inflation pressure ......... 290
Wheels ................................ 292
Air conditioning filter ........... 293
Wireless remote control/elec-
tronic key battery .............. 295
Checking and replacing fuses
.......................................... 297
Light bulbs .......................... 301
7-1. Essential information
Emergency flashers ............ 306
If your vehicle has to be stopped
in an emergency ............... 306
If the vehicle is trapped in rising
water ................................. 307
7-2. Steps to take in an emergency
If your vehicle needs to be towed
.......................................... 309
If you think something is wrong
.......................................... 313
Fuel pump shut off system.. 314
If a warning light turns on or a
warning buzzer sounds..... 315
If a warning message is dis-
played ............................... 323
If you have a flat tire ........... 325
If the engine will not start .... 337
If you lose your keys ........... 338
If the electronic key does not
operate properly ............... 339
If the vehicle battery is dis-
charged............................. 341
If your vehicle overheats ..... 346
If the vehicle becomes stuck
.......................................... 348
8-1. Specifications
Maintenance data (fuel, oil level,
etc.)................................... 350
Fuel information .................. 359
8-2. Customization
Customizable features ........ 361
8-3. Initialization
Items to initialize ................. 369
8-4. Certifications
Certifications ....................... 370
7When trouble arises
8Vehicle specifications

13
YARIS(GR) Owner's Manual_Europe_M52L09_en
Pictorial index
Refueling method .............................................................................P.154
Fuel type/fuel tank capacity .............................................................P.352
Tires ................................................................................................P.277
Tire size/inflation pressure ...............................................................P.357
Winter tires/tire chains .....................................................................P.226
Checking/rotation/tire pressure warning system ..............................P.277
Coping with flat tires.........................................................................P.325
Hood ................................................................................................P.268
Opening ...........................................................................................P.268
Engine oil .........................................................................................P.352
Coping with overheating ..................................................................P.346
Headlights/front position lights/daytime running lights/turn signal
lights .......................................................................................P.142, 144
Front fog lights...............................................................................P.150
Tail lights/turn signal lights ..................................................P.142, 144
Stop lights
Side turn signal lights ...................................................................P.142
License plate light..........................................................................P.144
Rear fog light ..................................................................................P.150
Back-up light
Shifting the shift position to R ..........................................................P.139
Light bulbs of the exterior lights for driving
(Replacing method: P.301, Watts: P.358)

74
YARIS(GR) Owner's Manual_Europe_M52L09_en
1-4. Theft deterrent system
*: If equipped
■Items to check before locking
the vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make
sure of the following:
z Nobody is in the vehicle.
z The windows are closed before
the alarm is set.
z No valuables or other personal
items are left in the vehicle.
■Setting
Close the door and hood, and lock
all the doors using the entry func-
tion or wireless remote control. The
system will set automatically after
30 seconds.
The indicator light changes from being
on to flashing when the system is set.
■Canceling or stopping
Do one of the following to deacti-
vate or stop the alarms:
z Unlock the doors using the entry
function or wireless remote con-
trol.
z Starting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
■Setting the alarm
The alarm can be set if all the doors are
closed even with the hood open.
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Triggering of the alarm
The alarm may be triggered in the fol- lowing situations: (Stopping the alarm deactivates the
alarm system.)
●The doors are unlocked using the key
or the mechanical key.
Alarm*
The alarm uses light and
sound to give an alert when an
intrusion is detected.
The alarm is triggered in the
following situations when the
alarm is set:
z A locked door is unlocked or
opened in any way other than
using the entry function or
wireless remote control. (The
doors will lock again automati-
cally.)
z The hood is opened.
zThe intrusion sensor (if
equipped) detects something
moving inside the vehicle.
(Example: an intruder breaks a
window and gets into the vehi-
cle.)
Setting/canceling/stopping
the alarm system

81
2
YARIS(GR) Owner's Manual_Europe_M52L09_en
2-1. Instrument cluster
Vehicle status information and indicators
*1: These lights come on when the
engine switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if the lights do not come
on, or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
*2: This light illuminates on the multi-
information display.
The indicators inform the driver of
the operating state of the vehicle’s
various systems.
Low fuel level warning light
( →P.317)
Driver’s and front passen-
ger’s seat belt reminder light
( →P.318)
Rear passengers’ seat
belt reminder lights*2
( →P.318)
Tire pressure warning light*1
( →P.319)
(Orange)
LTA indicator*2 (if equipped)
( →P.319)
(Flashes)
Stop & Start cancel indica-
tor*1 ( →P.319)
(Flashes)
Toyota parking assist-sensor
OFF indicator*1 (if equipped)
( →P.320)
(Flashes)
“RCTA OFF” indicator*1 (if
equipped) ( →P.320)
(Flashes or illuminates)
PCS warning light*1 (if
equipped) ( →P.321)
Slip indicator*1 ( →P.321)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the engine,
this could mean that these systems are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehi- cle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( →P.142)
Tail light indicator ( →P.144)
Headlight high beam indica-
tor ( →P.145)
Automatic High Beam indica-
tor (if equipped) ( →P.147)
Front fog light indicator
( →P.150)
Rear fog light indicator
( →P.150)
PCS warning light*1, 2 (if
equipped) ( →P.164)
Cruise control indicator*3 (if
equipped) ( →P.181)
Dynamic radar cruise control
indicator*3 (if equipped)
( →P.181)
Cruise control “SET” indica-
tor*3 (if equipped) ( →P.181)

82
YARIS(GR) Owner's Manual_Europe_M52L09_en

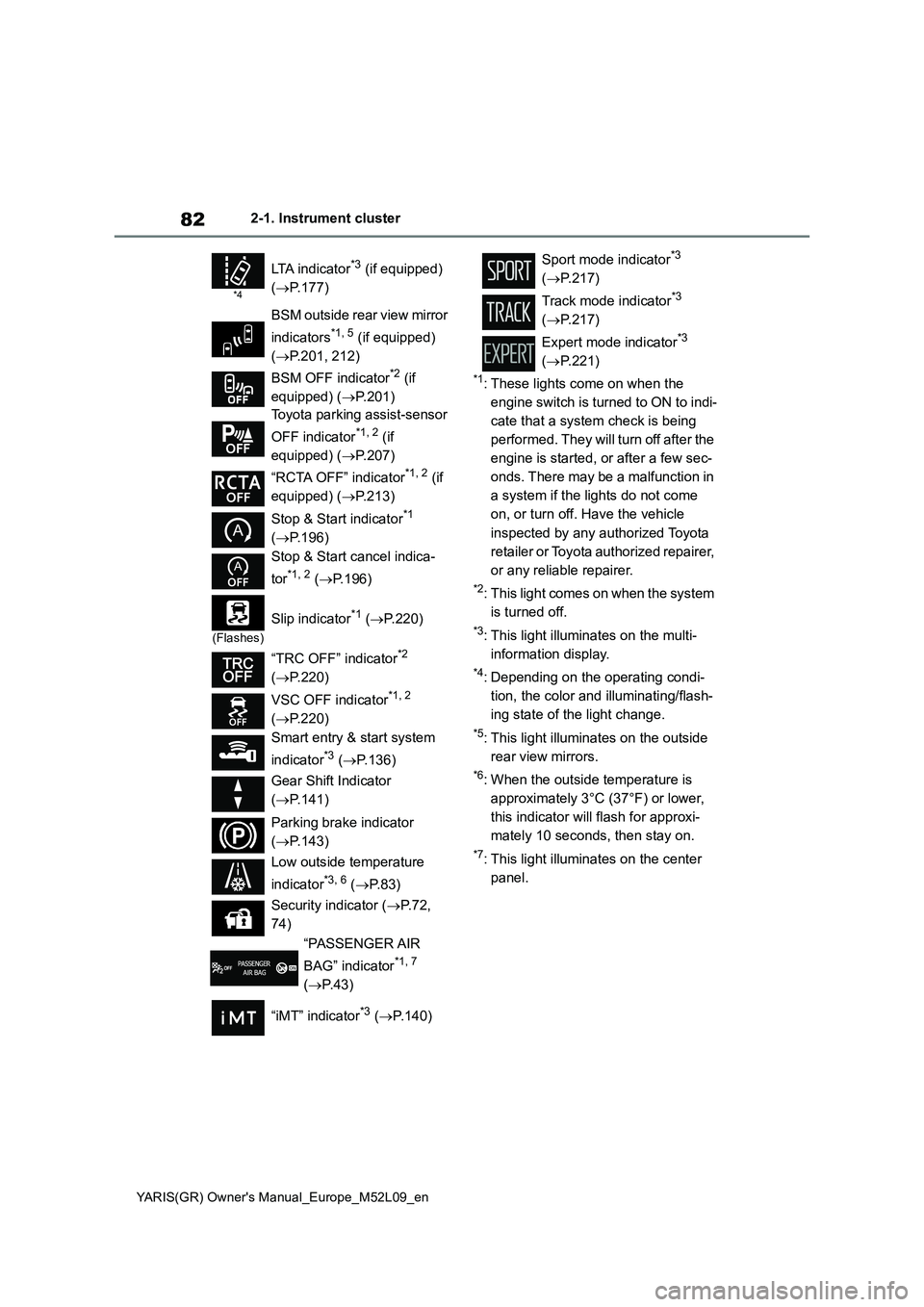

2-1. Instrument cluster
*1: These lights come on when the
engine switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
engine is started, or after a few sec-
onds. There may be a malfunction in
a system if the lights do not come
on, or turn off. Have the vehicle
inspected by any authorized Toyota
retailer or Toyota authorized repairer,
or any reliable repairer.
*2: This light comes on when the system
is turned off.
*3: This light illuminates on the multi-
information display.
*4: Depending on the operating condi-
tion, the color and illuminating/flash-
ing state of the light change.
*5: This light illuminates on the outside
rear view mirrors.
*6: When the outside temperature is
approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.
*7: This light illuminates on the center
panel.
*4
LTA indicator*3 (if equipped)
(→P.177)
BSM outside rear view mirror
indicators
*1, 5 (if equipped)
(→P.201, 212)
BSM OFF indicator
*2 (if
equipped) (→P.201)
Toyota parking assist-sensor
OFF indicator
*1, 2 (if
equipped) (→P.207)
“RCTA OFF” indicator
*1, 2 (if
equipped) (→P.213)
Stop & Start indicator
*1
(→P.196)
Stop & Start cancel indica-
tor
*1, 2 (→P.196)
(Flashes)
Slip indicator*1 (→P.220)
“TRC OFF” indicator
*2
(→P.220)
VSC OFF indicator
*1, 2
(→P.220)
Smart entry & start system
indicator
*3 (→P.136)
Gear Shift Indicator
(→P.141)
Parking brake indicator
(→P.143)
Low outside temperature
indicator
*3, 6 (→P. 8 3 )
Security indicator (→P. 7 2 ,
74)
“PASSENGER AIR
BAG” indicator
*1, 7
(→P.43)
“iMT” indicator
*3 (→P.140)
Sport mode indicator*3
(→P.217)
Track mode indicator
*3
(→P.217)
Expert mode indicator
*3
(→P.221)

112
YARIS(GR) Owner's Manual_Europe_M52L09_en
3-2. Opening, closing and locking the doors
wash the vehicle:
• Place the electronic key in a location 2
m (6 ft.) or more away from the vehi-
cle. (Take care to ensure that the key
is not stolen.)
• Set the electronic key to battery-sav-
ing mode to disable the smart entry &
start system. (→P.110)
●If the electronic key is inside the vehi-
cle and a door handle becomes wet
during a car wash, a message may be
shown on the multi-information dis-
play and a buzzer will sound outside
the vehicle. To turn off the alarm, lock
all the doors.
●The lock sensor may not work prop-
erly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor
and attempt to operate it again.
●A sudden handle operation or a han-
dle operation immediately after enter-
ing the effective range may prevent
the doors from being unlocked. Touch
the door unlock sensor and check that
the doors are unlocked before pulling
the door handle again.
●If there is another electronic key in the
detection area, it may take slightly lon-
ger to unlock the doors after the door
handle is gripped.
■When the vehicle is not driven for
extended periods
●To prevent theft of the vehicle, do not
leave the electronic key within 2 m (6
ft.) of the vehicle.
●The smart entry & start system can be
deactivated in advance. (→P.361)
●Setting the electronic key to battery-
saving mode helps to reduce key bat-
tery depletion. (→P.110)
■To operate the system properly
Make sure to carry the electronic key
when operating the system. Do not get
the electronic key too close to the vehi-
cle when operating the system from the
outside of the vehicle.
Depending on the position and holding
condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the
door lock prevention function may not
operate.)

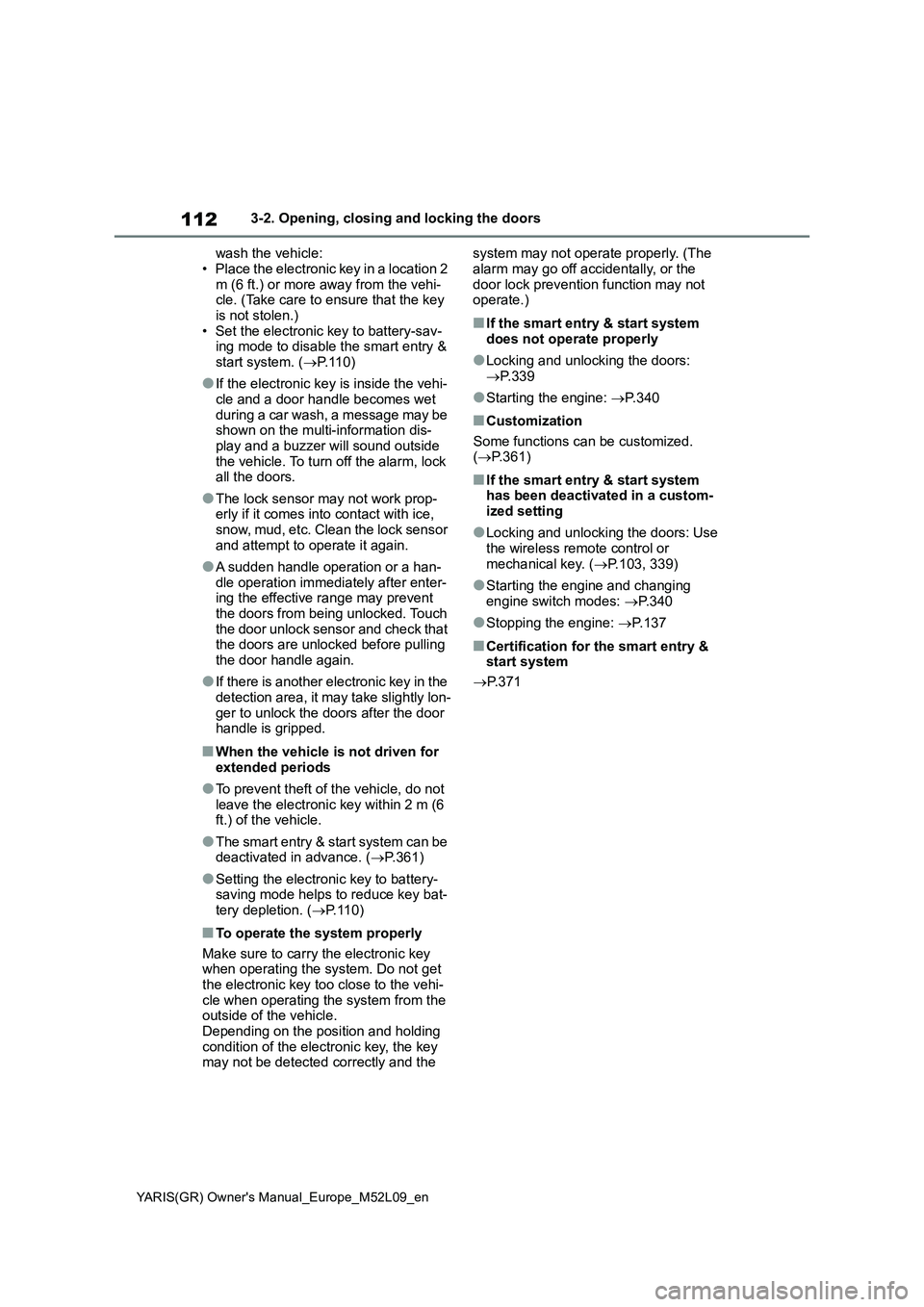

■If the smart entry & start system
does not operate properly
●Locking and unlocking the doors:
→P. 3 3 9
●Starting the engine: →P. 3 4 0
■Customization
Some functions can be customized.
(→P.361)
■If the smart entry & start system
has been deactivated in a custom-
ized setting
●Locking and unlocking the doors: Use
the wireless remote control or
mechanical key. (→P.103, 339)
●Starting the engine and changing
engine switch modes: →P. 3 4 0
●Stopping the engine: →P. 1 3 7
■Certification for the smart entry &
start system
→P. 3 7 1

128
YARIS(GR) Owner's Manual_Europe_M52L09_en
4-1. Before driving
4- 1. B ef ore dr iv in g
■Starting the engine
→P. 1 3 6
■Driving
1While depressing the clutch
pedal, shift the shift lever to 1.
(→P.139)
2Release the parking brake.
(→P.143)
3Gradually release the clutch
pedal. At the same time, gently
depress the accelerator pedal to
accelerate the vehicle.
■Stopping
1While depressing the clutch
pedal, depress the brake pedal.
2If necessary, set the parking
brake.
If the vehicle is to be stopped for an
extended period of time, shift the shift
lever to N. (→P.139)
If the Stop & Start system is enabled,
shifting the shift lever to N and releas-
ing the clutch pedal will stop the engine.
(→P.196)
■Parking the vehicle
1While depressing the clutch
pedal, depress the brake pedal.
2Set the parking brake. (→P.143)
Check that the parking brake indicator is illuminated.
3Shift the shift lever to N.
(→P.139)
If parking on a hill, shift the shift lever to
1 or R and block the wheels as needed.
4Turn the engine switch to OFF
to stop the engine.
5Slowly release the brake pedal.
6Lock the door, making sure that
you have the key on your per-
son.
■Starting off on a steep uphill
1Make sure that the parking
brake is set and shift the shift
lever to 1.
2Lightly depress the accelerator
pedal at the same time as grad-
ually releasing the clutch pedal.
3Release the parking brake.
■Driving in the rain
●Drive carefully when it is raining,
because visibility will be reduced, the
windows may become fogged-up, and
the road will be slippery.
●Drive carefully when it starts to rain,
because the road surface will be
especially slippery.
●Refrain from high speeds when driv-
ing on an expressway in the rain,
because there may be a layer of water
between the tires and the road sur-
face, preventing the steering and
brakes from operating properly.
■Restraining the engine output
(Brake Override System)
●When the accelerator and brake ped-
als are depressed at the same time,
the engine output may be restrained.
●A warning message is displayed on
the multi-information display and
Driving the vehicle
The following procedures
should be observed to ensure
safe driving:
Driving procedure

130
YARIS(GR) Owner's Manual_Europe_M52L09_en
4-1. Before driving
WARNING
●Do not drive the vehicle over or stop the vehicle near flammable
materials. The exhaust system and exhaust gases can be extremely hot. These
hot parts may cause a fire if there is any flammable material nearby.
●During normal driving, do not turn off the engine. Turning the engine off while driving will not cause loss
of steering or braking control, but the power assist to these systems will be lost. This will make it more
difficult to steer and brake, so you should pull over and stop the vehi-cle as soon as it is safe to do so.
However, in the event of an emer- gency, such as if it becomes impos-sible to stop the vehicle in the
normal way: →P. 3 0 6
●Use engine braking (downshift) to
maintain a safe speed when driving down a steep hill.Using the brakes continuously may
cause the brakes to overheat and lose effectiveness. ( →P.139)
●Do not adjust the positions of the steering wheel, the seat, or the inside or outside rear view mirrors
while driving. Doing so may result in a loss of vehicle control.
●Always check that all passengers’ arms, heads or other parts of their
body are not outside the vehicle.
●Do not drive the vehicle off-road.
This is not an AWD vehicle designed for off-road driving. Pro-ceed with all due caution if it
becomes unavoidable to drive off- road.
●Do not drive across a river or through other bodies of water.This may cause electric/electronic
components to short circuit, dam- age the engine or cause other seri-ous damage to the vehicle.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce your ability to control
the vehicle.
●Sudden acceleration, engine brak-
ing due to shifting, or changes in engine speed could cause the vehi-cle to skid.
●After driving through a puddle, lightly depress the brake pedal to
make sure that the brakes are func- tioning properly. Wet brake pads may prevent the brakes from func-
tioning properly. If the brakes on only one side are wet and not func-tioning properly, steering control
may be affected.
■When shifting the shift lever
●Do not shift the shift lever to R while the vehicle is moving forward.Doing so can damage the transmis-
sion and may result in a loss of vehicle control.
●Do not shift the shift lever to a driv-ing position while the vehicle is moving backward.
Doing so can damage the transmis- sion and may result in a loss of vehicle control.
●Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is selected.

131
4
YARIS(GR) Owner's Manual_Europe_M52L09_en
4-1. Before driving
Driving
WARNING

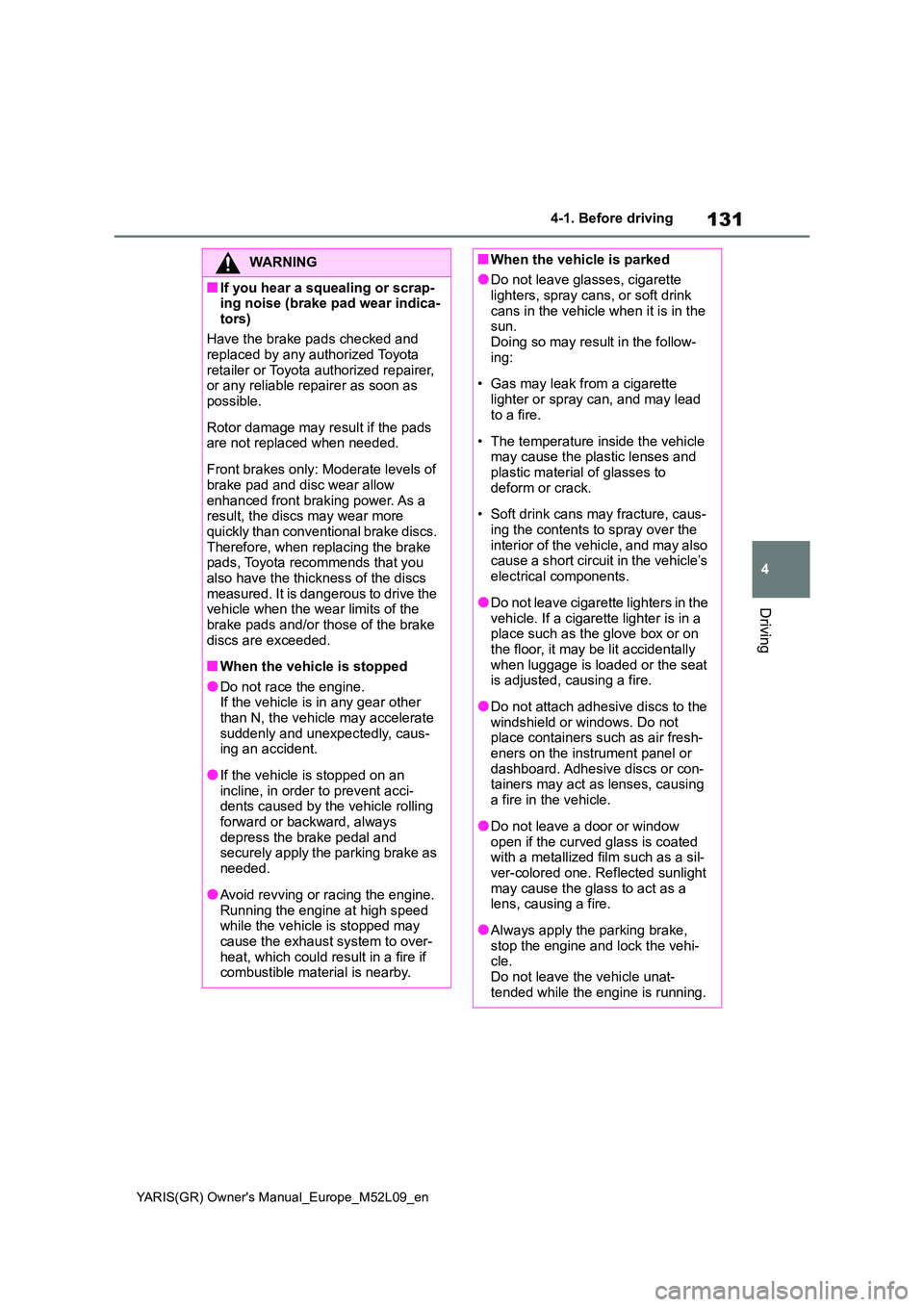

■If you hear a squealing or scrap- ing noise (brake pad wear indica-
tors)
Have the brake pads checked and replaced by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as soon as possible.
Rotor damage may result if the pads are not replaced when needed.
Front brakes only: Moderate levels of brake pad and disc wear allow
enhanced front braking power. As a result, the discs may wear more quickly than conventional brake discs.
Therefore, when replacing the brake pads, Toyota recommends that you also have the thickness of the discs
measured. It is dangerous to drive the vehicle when the wear limits of the brake pads and/or those of the brake
discs are exceeded.
■When the vehicle is stopped
●Do not race the engine. If the vehicle is in any gear other than N, the vehicle may accelerate
suddenly and unexpectedly, caus- ing an accident.
●If the vehicle is stopped on an incline, in order to prevent acci-dents caused by the vehicle rolling
forward or backward, always depress the brake pedal and securely apply the parking brake as
needed.
●Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause the exhaust system to over-
heat, which could result in a fire if combustible material is nearby.
■When the vehicle is parked
●Do not leave glasses, cigarette lighters, spray cans, or soft drink
cans in the vehicle when it is in the sun.Doing so may result in the follow-
ing:
• Gas may leak from a cigarette
lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plastic material of glasses to
deform or crack.
• Soft drink cans may fracture, caus-
ing the contents to spray over the interior of the vehicle, and may also cause a short circuit in the vehicle’s
electrical components.
●Do not leave cigarette lighters in the
vehicle. If a cigarette lighter is in a place such as the glove box or on the floor, it may be lit accidentally
when luggage is loaded or the seat is adjusted, causing a fire.
●Do not attach adhesive discs to the windshield or windows. Do not place containers such as air fresh-
eners on the instrument panel or dashboard. Adhesive discs or con-tainers may act as lenses, causing
a fire in the vehicle.
●Do not leave a door or window
open if the curved glass is coated with a metallized film such as a sil-ver-colored one. Reflected sunlight
may cause the glass to act as a lens, causing a fire.
●Always apply the parking brake, stop the engine and lock the vehi-cle.
Do not leave the vehicle unat- tended while the engine is running.

137
4
YARIS(GR) Owner's Manual_Europe_M52L09_en
4-2. Driving procedures
Driving

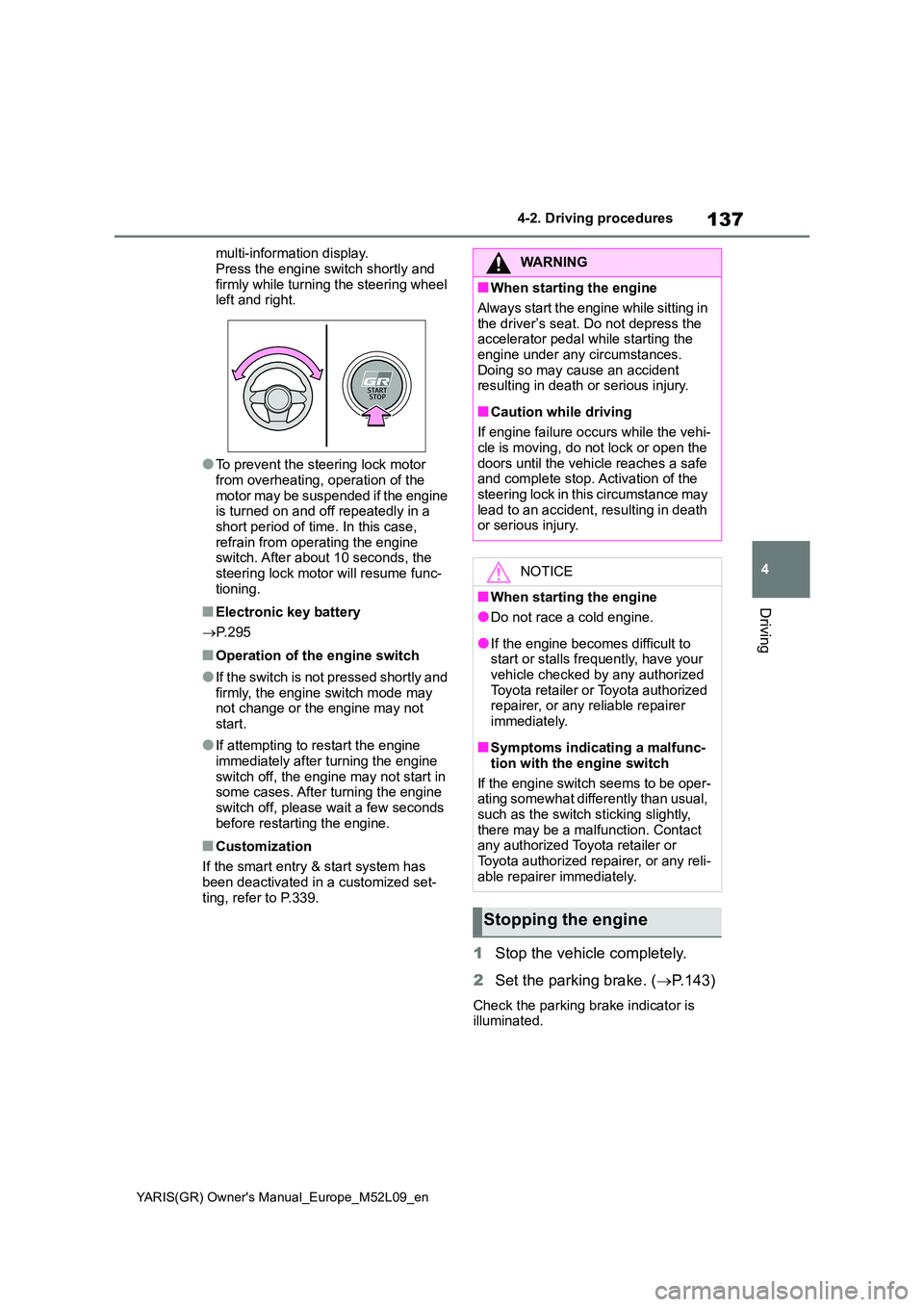

multi-information display.
Press the engine switch shortly and firmly while turning the steering wheel left and right.
●To prevent the steering lock motor from overheating, operation of the
motor may be suspended if the engine is turned on and off repeatedly in a short period of time. In this case,
refrain from operating the engine switch. After about 10 seconds, the steering lock motor will resume func-
tioning.
■Electronic key battery
→ P. 2 9 5
■Operation of the engine switch
●If the switch is not pressed shortly and firmly, the engine switch mode may not change or the engine may not
start.
●If attempting to restart the engine
immediately after turning the engine switch off, the engine may not start in some cases. After turning the engine
switch off, please wait a few seconds before restarting the engine.
■Customization
If the smart entry & start system has
been deactivated in a customized set- ting, refer to P.339.
1 Stop the vehicle completely.
2 Set the parking brake. (→P.143)
Check the parking brake indicator is illuminated.
WARNING
■When starting the engine
Always start the engine while sitting in
the driver’s seat. Do not depress the accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■Caution while driving
If engine failure occurs while the vehi- cle is moving, do not lock or open the
doors until the vehicle reaches a safe and complete stop. Activation of the steering lock in this circumstance may
lead to an accident, resulting in death or serious injury.
NOTICE
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehicle checked by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer
immediately.
■Symptoms indicating a malfunc-
tion with the engine switch
If the engine switch seems to be oper- ating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer immediately.
Stopping the engine
