TOYOTA GT86 2012 Owners Manual

271
3-5. Other interior features
3
Interior features
FT86_EE

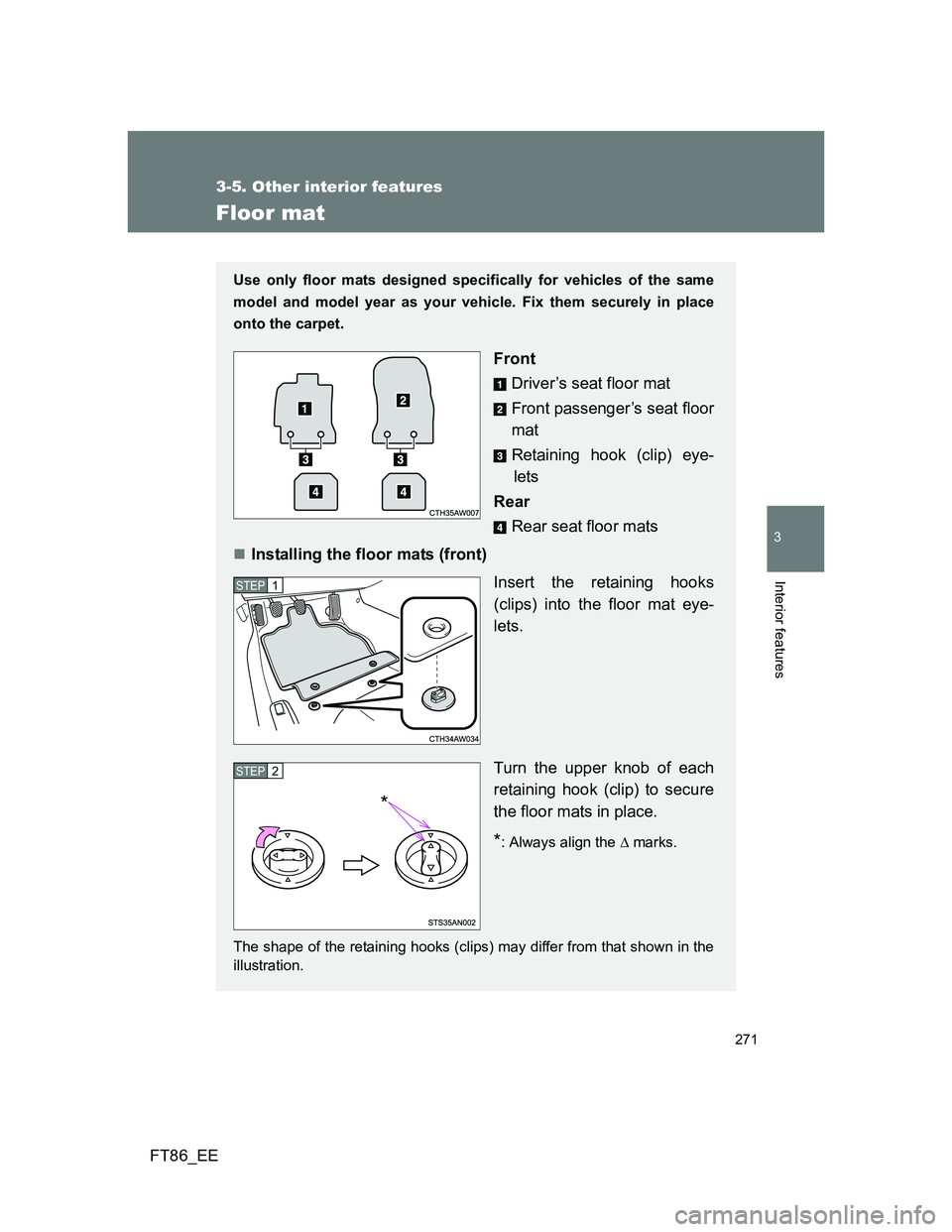

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Front
Driver’s seat floor mat
Front passenger’s seat floor
mat
Retaining hook (clip) eye-
lets
Rear
Rear seat floor mats
Installing the floor mats (front)
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the  marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
STEP 1
STEP 2
*

272 3-5. Other interior features
FT86_EE

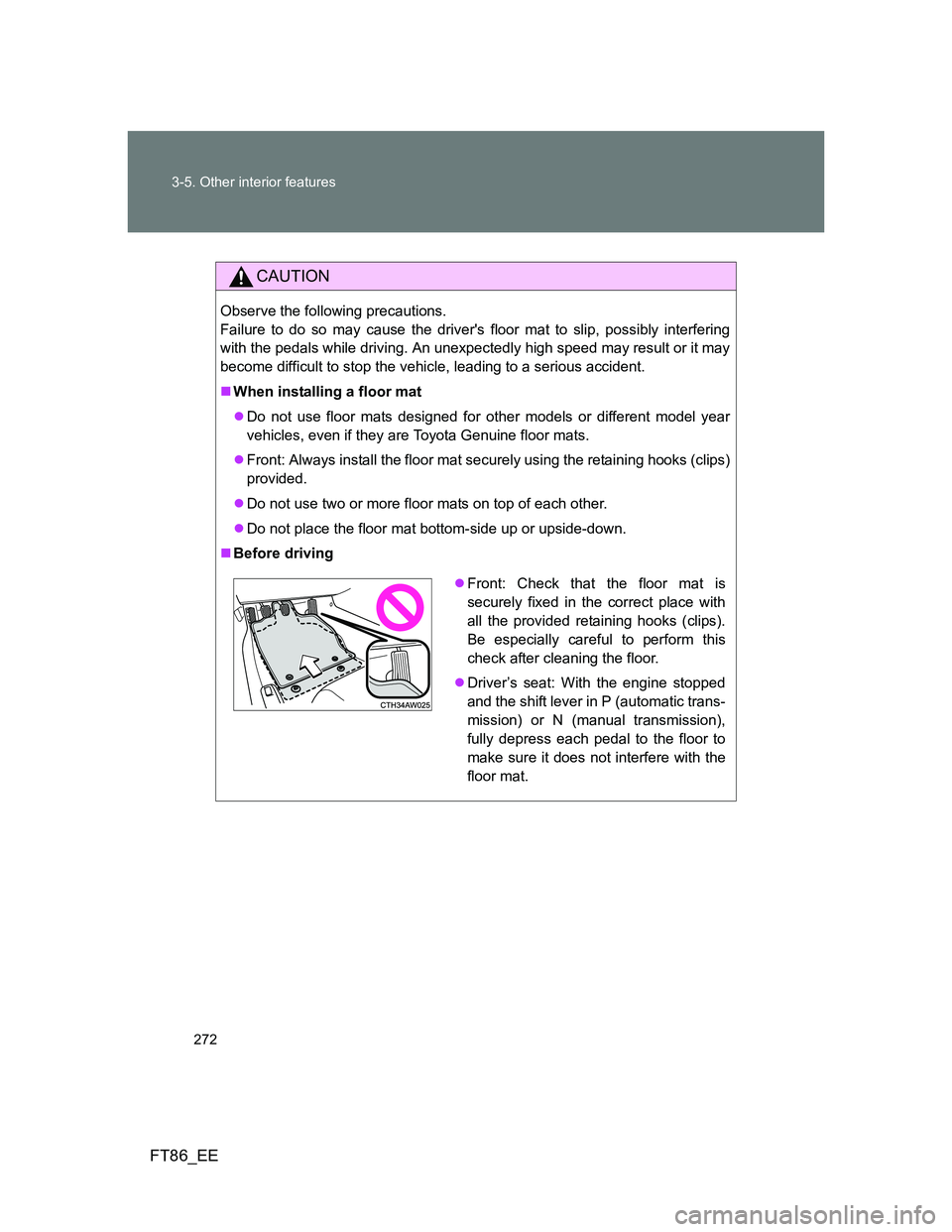

CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing a floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Front: Always install the floor mat securely using the retaining hooks (clips)
provided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Front: Check that the floor mat is
securely fixed in the correct place with
all the provided retaining hooks (clips).
Be especially careful to perform this
check after cleaning the floor.
Driver’s seat: With the engine stopped
and the shift lever in P (automatic trans-
mission) or N (manual transmission),
fully depress each pedal to the floor to
make sure it does not interfere with the
floor mat.

273 3-5. Other interior features
3
Interior features
FT86_EE

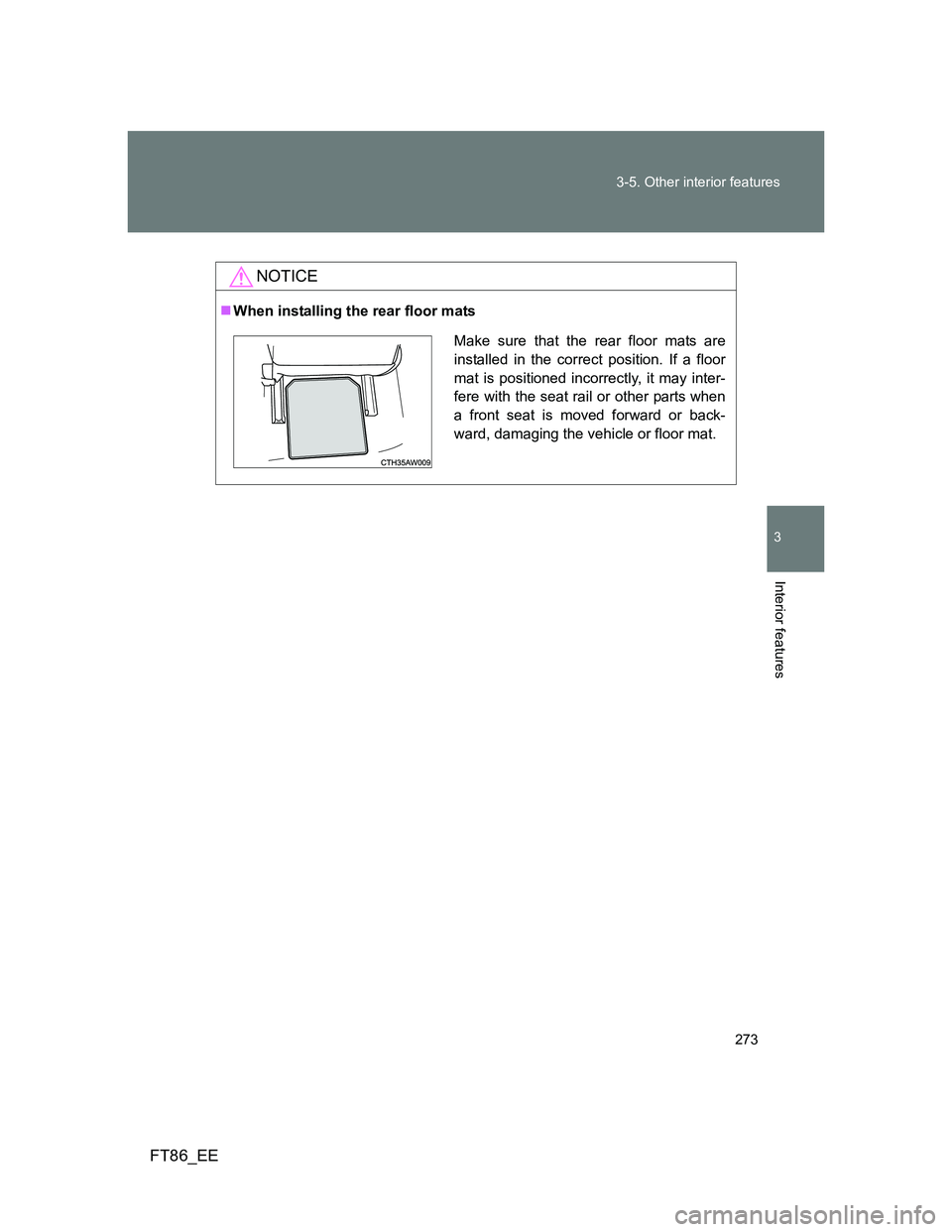

NOTICE
When installing the rear floor mats
Make sure that the rear floor mats are
installed in the correct position. If a floor
mat is positioned incorrectly, it may inter-
fere with the seat rail or other parts when
a front seat is moved forward or back-
ward, damaging the vehicle or floor mat.

274
3-5. Other interior features
FT86_EE

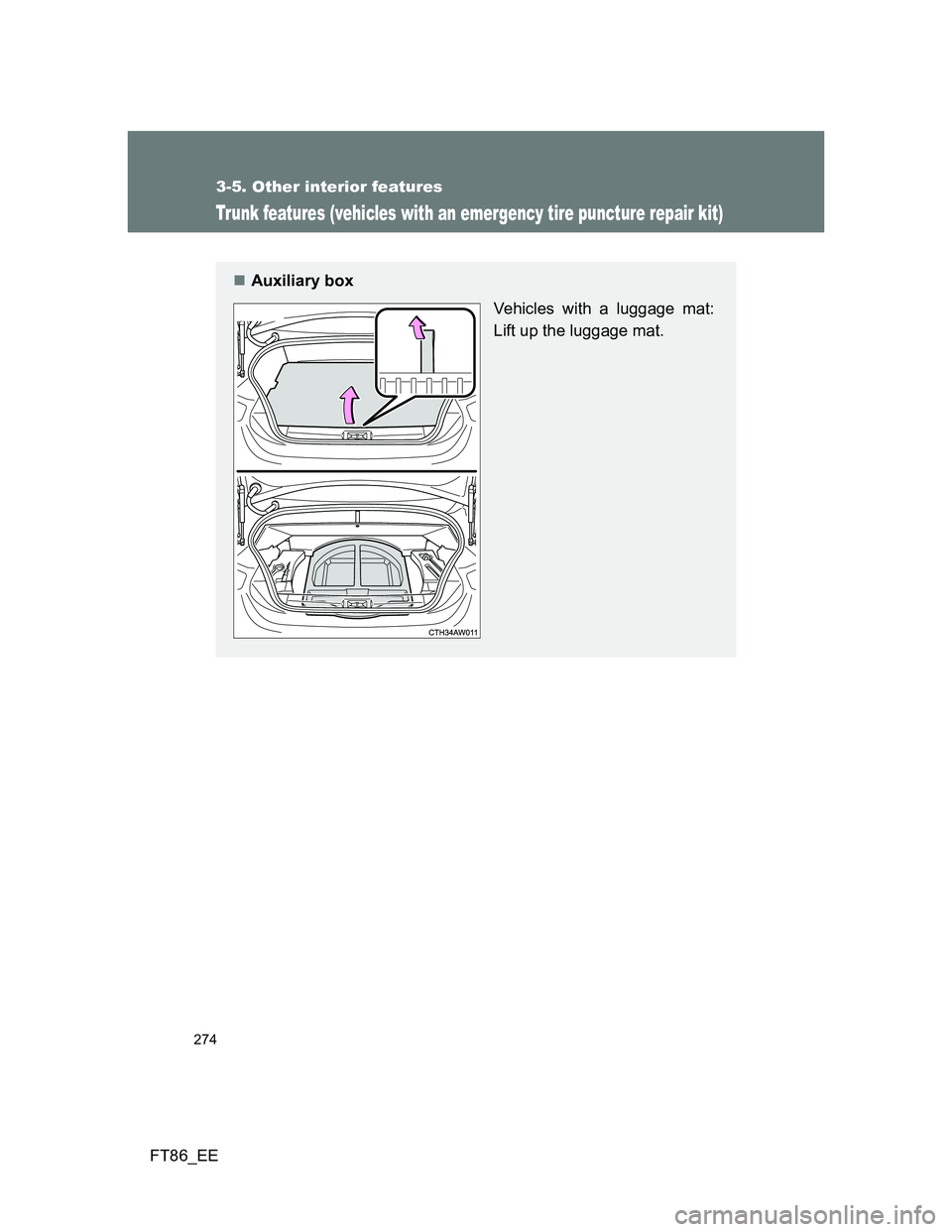

Trunk features (vehicles with an emergency tire puncture repair kit)
Auxiliary box
Vehicles with a luggage mat:
Lift up the luggage mat.

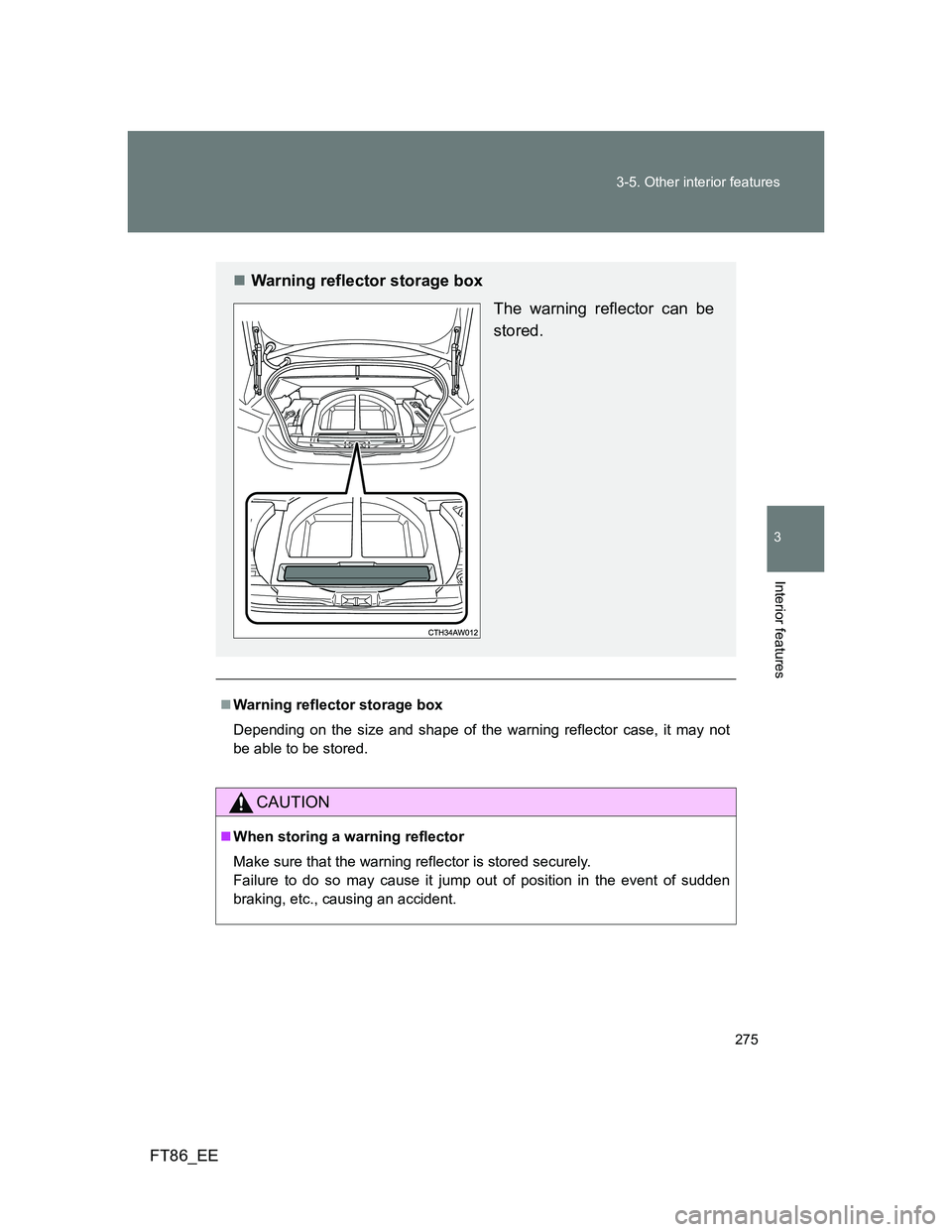

275 3-5. Other interior features
3
Interior features
FT86_EE
Warning reflector storage box
Depending on the size and shape of the warning reflector case, it may not
be able to be stored.
CAUTION
When storing a warning reflector
Make sure that the warning reflector is stored securely.
Failure to do so may cause it jump out of position in the event of sudden
braking, etc., causing an accident.
Warning reflector storage box
The warning reflector can be
stored.

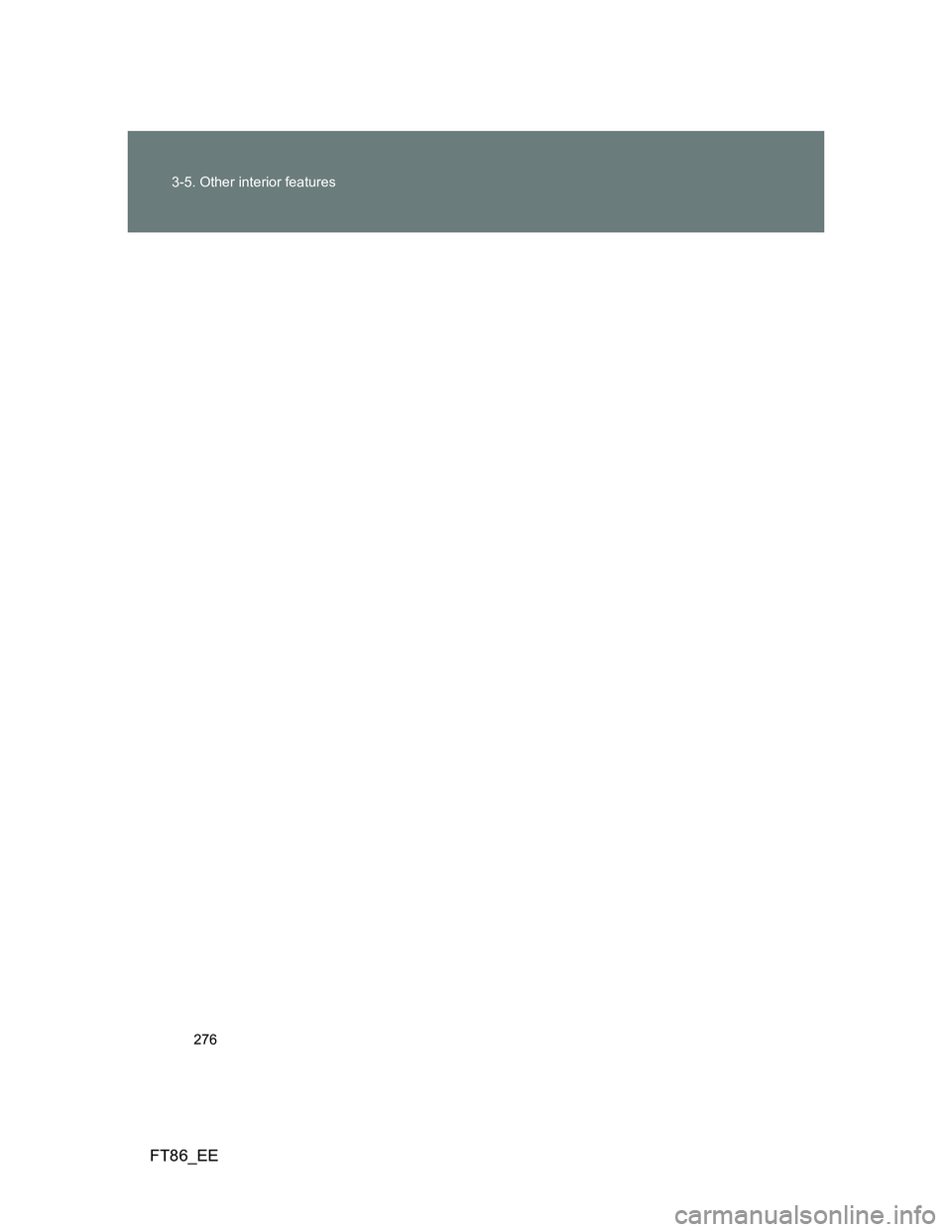

276 3-5. Other interior features
FT86_EE

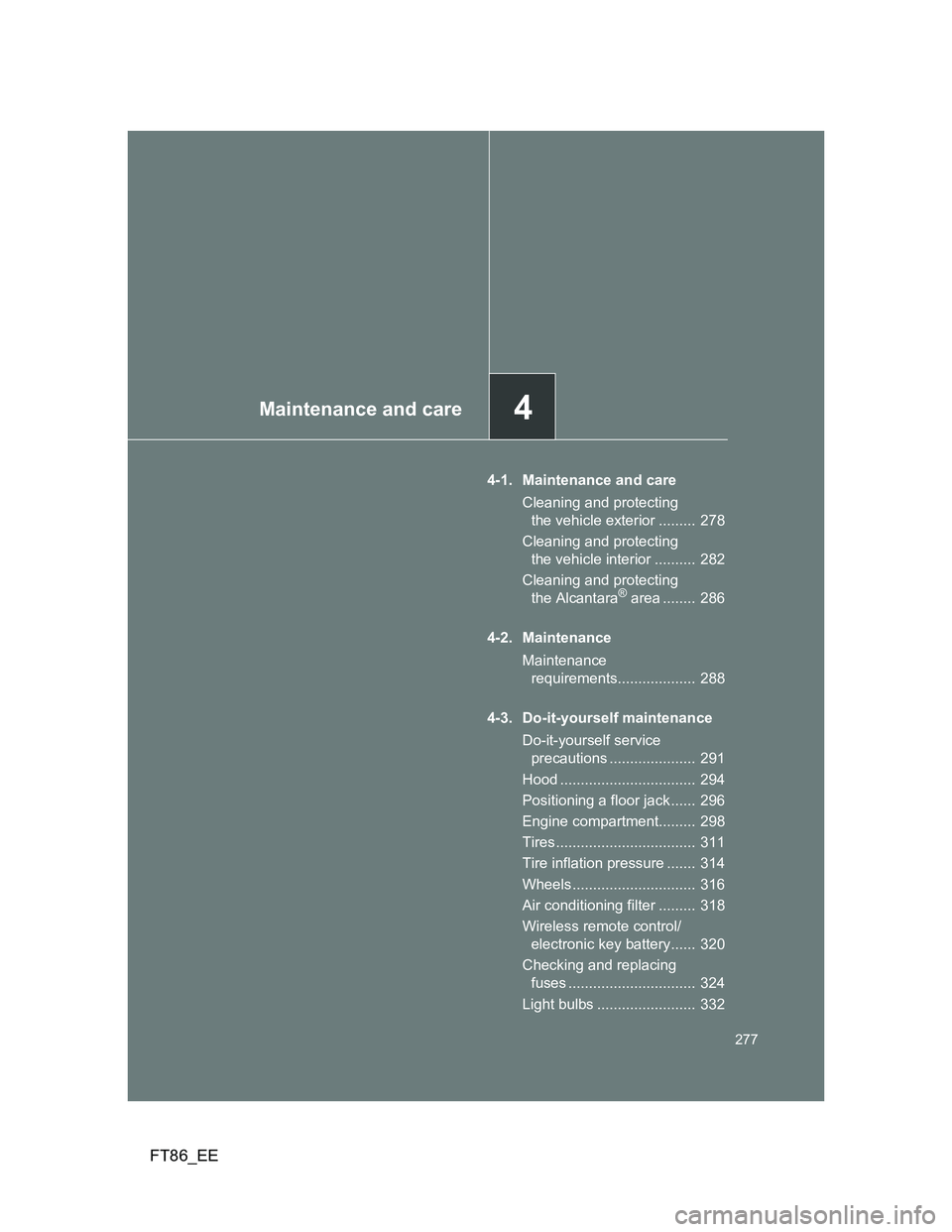

4Maintenance and care
277
FT86_EE
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 278
Cleaning and protecting
the vehicle interior .......... 282
Cleaning and protecting
the Alcantara
® area ........ 286
4-2. Maintenance
Maintenance
requirements................... 288
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 291
Hood ................................. 294
Positioning a floor jack ...... 296
Engine compartment......... 298
Tires .................................. 311
Tire inflation pressure ....... 314
Wheels .............................. 316
Air conditioning filter ......... 318
Wireless remote control/
electronic key battery...... 320
Checking and replacing
fuses ............................... 324
Light bulbs ........................ 332

278
FT86_EE
4-1. Maintenance and care

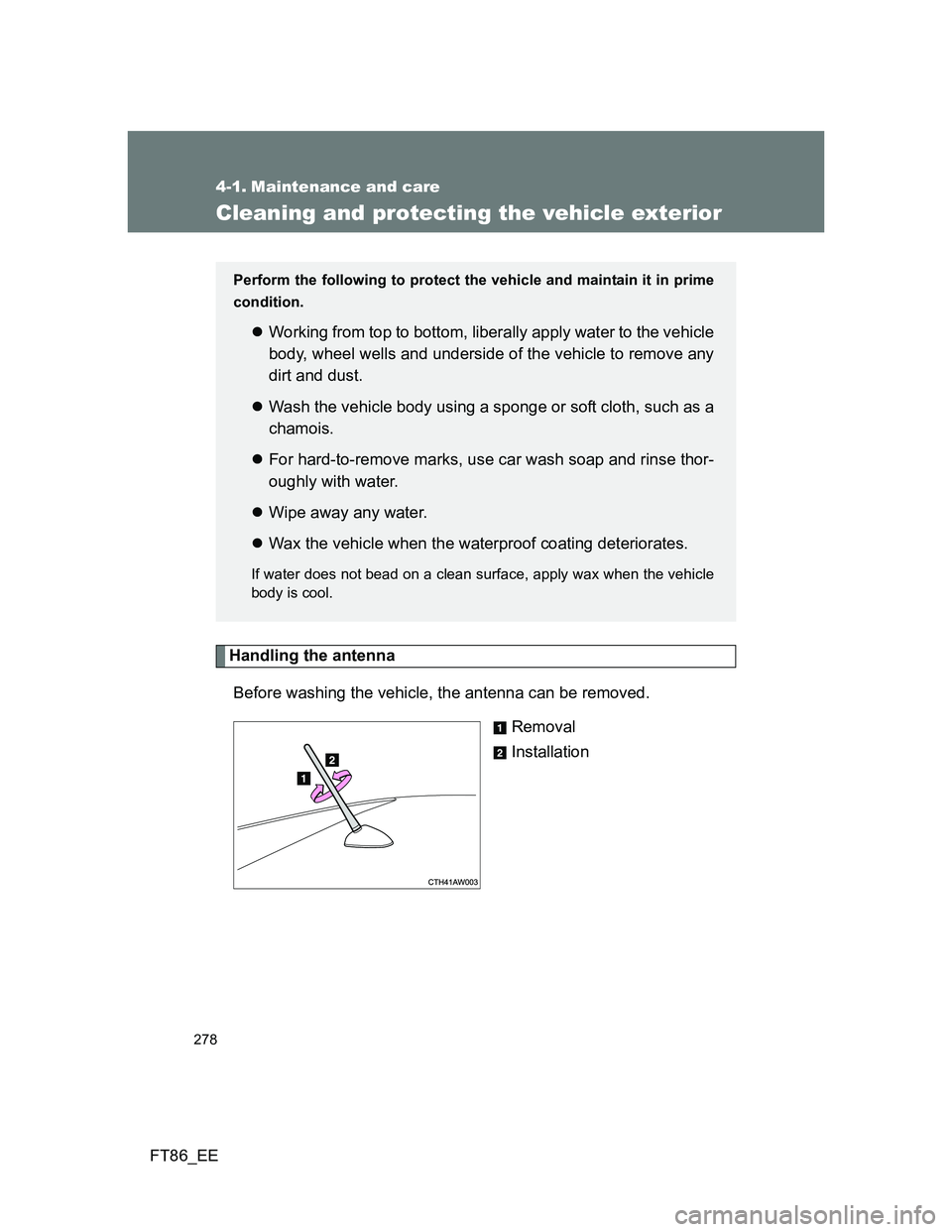

Cleaning and protecting the vehicle exterior
Handling the antenna
Before washing the vehicle, the antenna can be removed.
Removal
Installation
Perform the following to protect the vehicle and maintain it in prime
condition.
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

279 4-1. Maintenance and care
4
Maintenance and care
FT86_EE

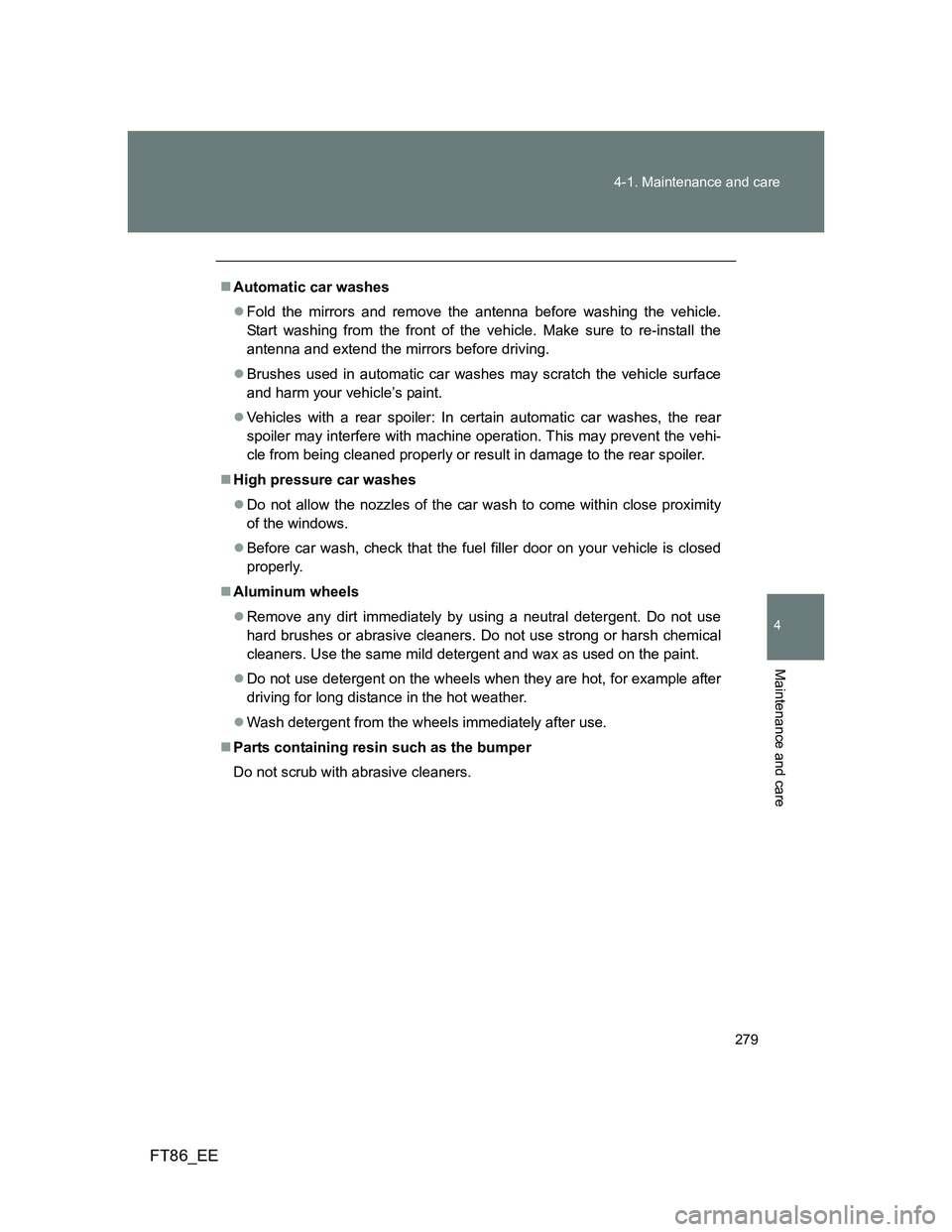

Automatic car washes
Fold the mirrors and remove the antenna before washing the vehicle.
Start washing from the front of the vehicle. Make sure to re-install the
antenna and extend the mirrors before driving.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
Vehicles with a rear spoiler: In certain automatic car washes, the rear
spoiler may interfere with machine operation. This may prevent the vehi-
cle from being cleaned properly or result in damage to the rear spoiler.
High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before car wash, check that the fuel filler door on your vehicle is closed
properly.
Aluminum wheels
Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners. Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Parts containing resin such as the bumper
Do not scrub with abrasive cleaners.

280 4-1. Maintenance and care
FT86_EE

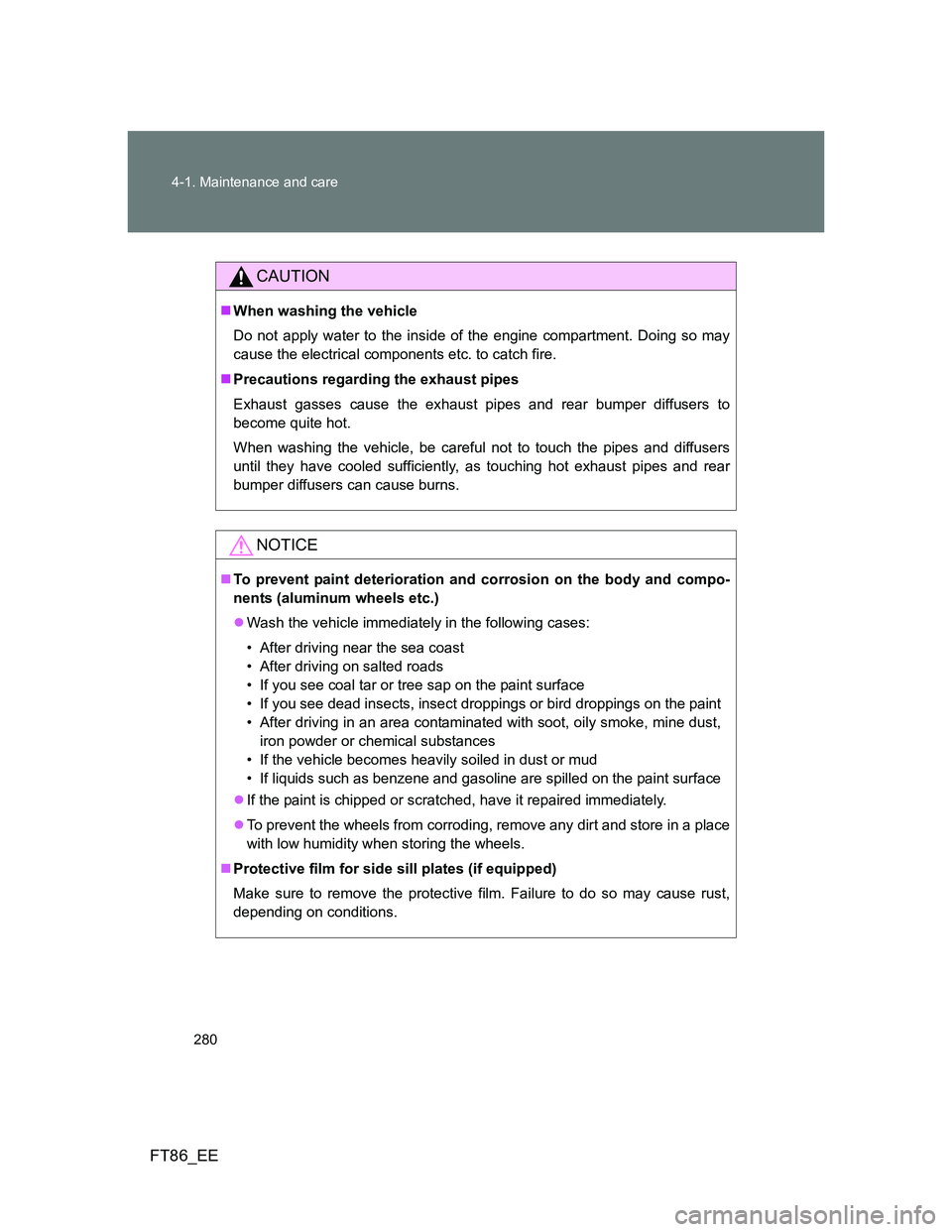

CAUTION
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
Precautions regarding the exhaust pipes
Exhaust gasses cause the exhaust pipes and rear bumper diffusers to
become quite hot.
When washing the vehicle, be careful not to touch the pipes and diffusers
until they have cooled sufficiently, as touching hot exhaust pipes and rear
bumper diffusers can cause burns.
NOTICE
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects, insect droppings or bird droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Protective film for side sill plates (if equipped)
Make sure to remove the protective film. Failure to do so may cause rust,
depending on conditions.
