341 4-3. Do-it-yourself maintenance
4
Maintenance and care

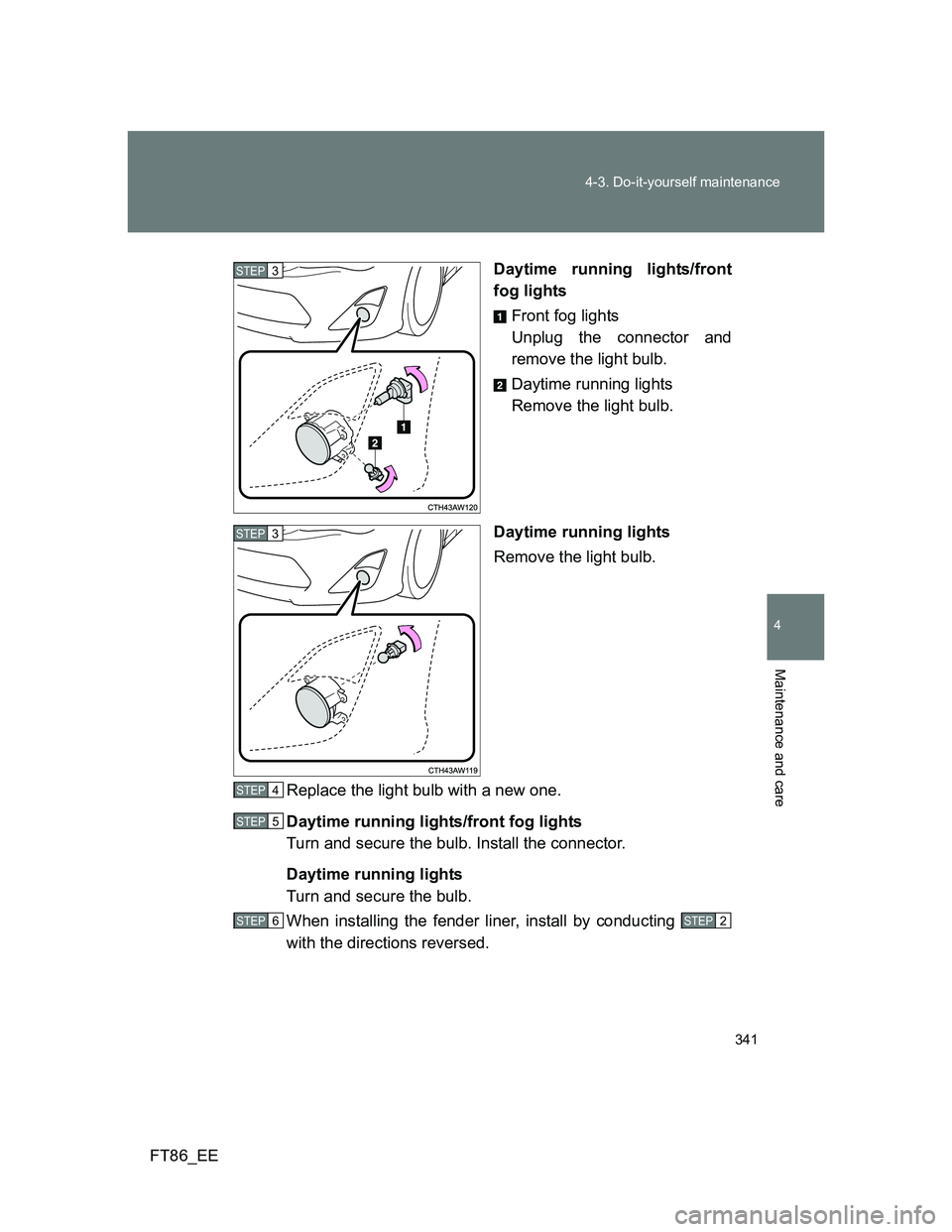

FT86_EEDaytime running lights/front
fog lights
Front fog lights
Unplug the connector and
remove the light bulb.
Daytime running lights
Remove the light bulb.
Daytime running lights
Remove the light bulb.
Replace the light bulb with a new one.
Daytime running lights/front fog lights
Turn and secure the bulb. Install the connector.
Daytime running lights
Turn and secure the bulb.
When installing the fender liner, install by conducting
with the directions reversed.
STEP 3
STEP 3
STEP 5 STEP 4
STEP 5 STEP 5
STEP 5 STEP 6 STEP 5 STEP 2

342 4-3. Do-it-yourself maintenance

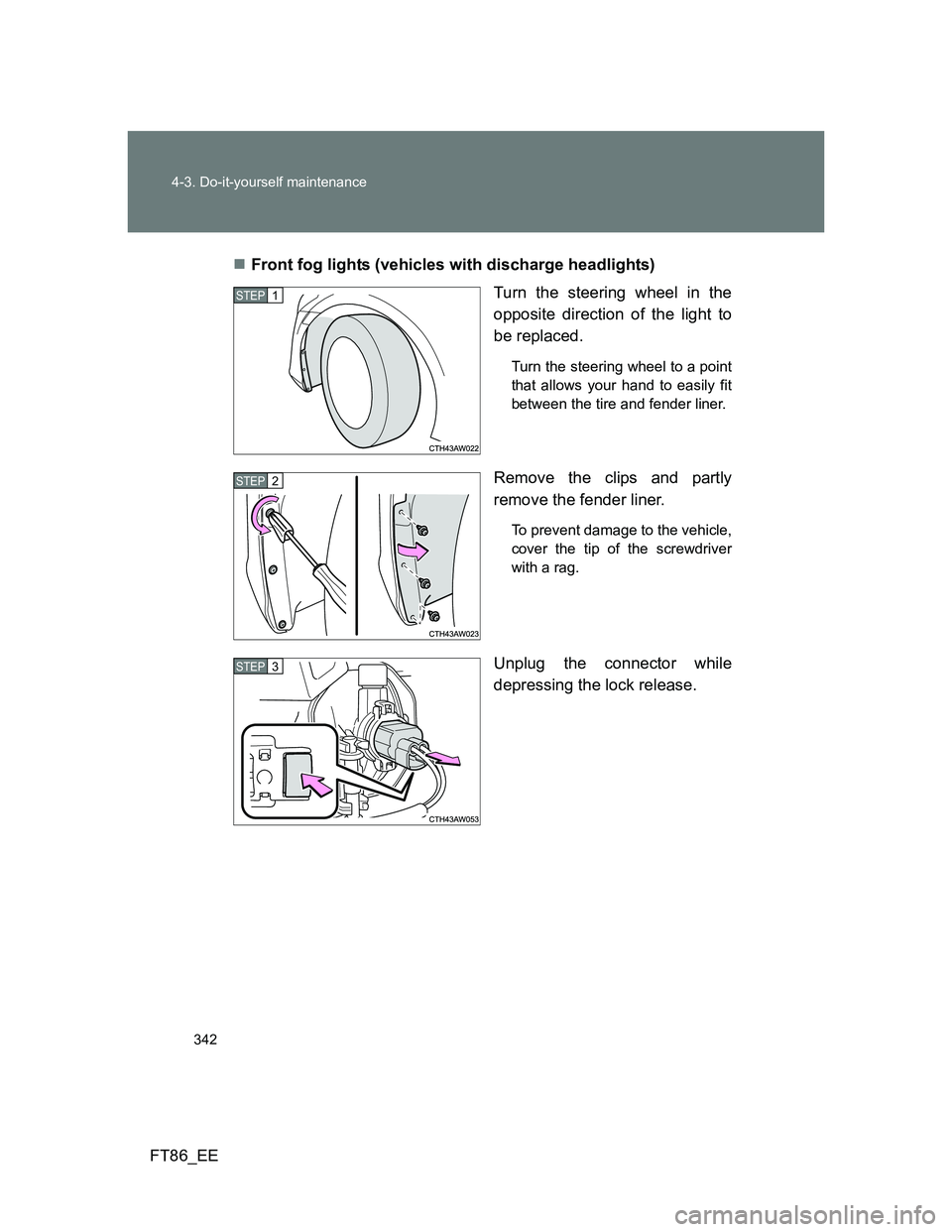

FT86_EEFront fog lights (vehicles with discharge headlights)
Turn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Unplug the connector while
depressing the lock release.
STEP 1
STEP 2
STEP 3

343 4-3. Do-it-yourself maintenance
4
Maintenance and care

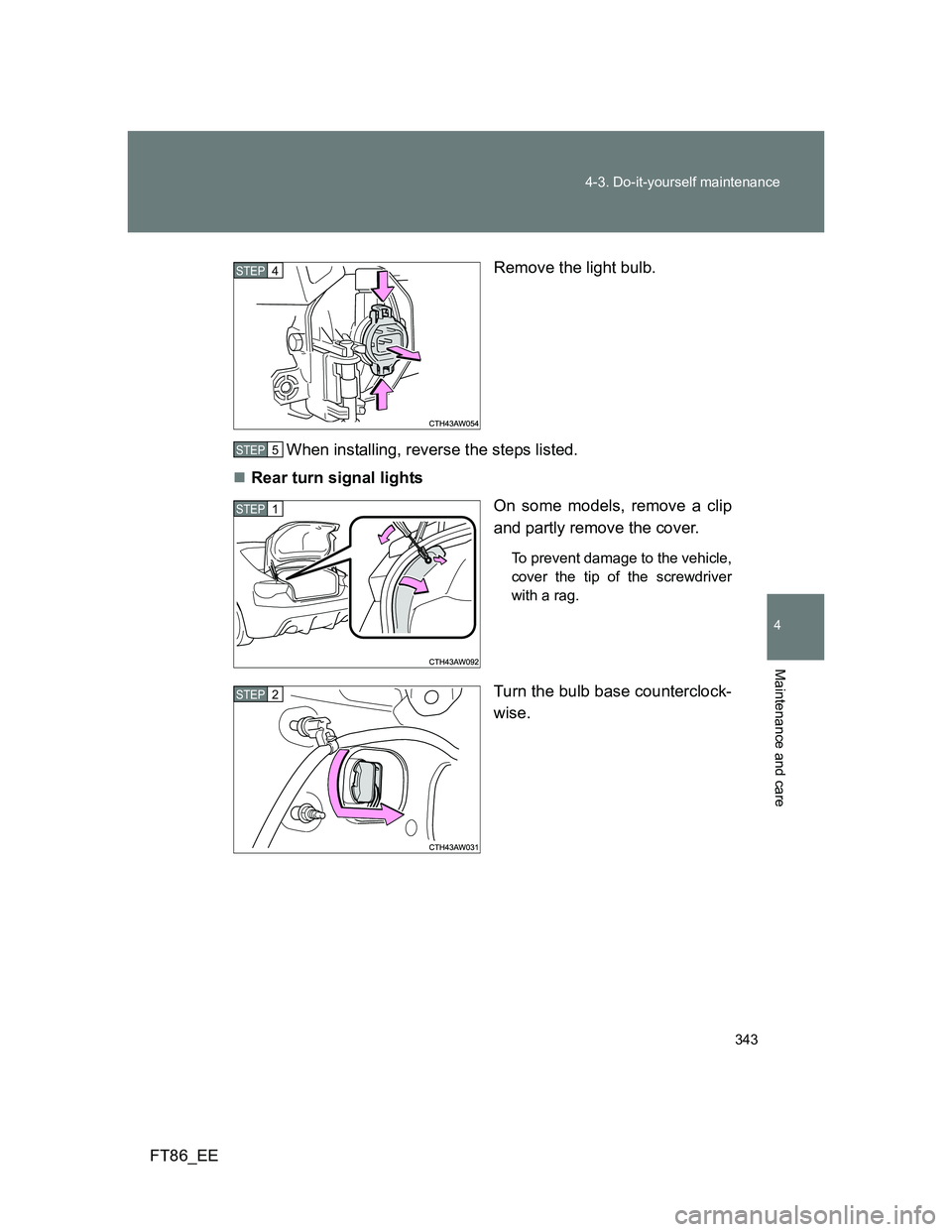

FT86_EERemove the light bulb.
When installing, reverse the steps listed.
Rear turn signal lights
On some models, remove a clip
and partly remove the cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
STEP 4
STEP 5
STEP 1
STEP 2

344 4-3. Do-it-yourself maintenance

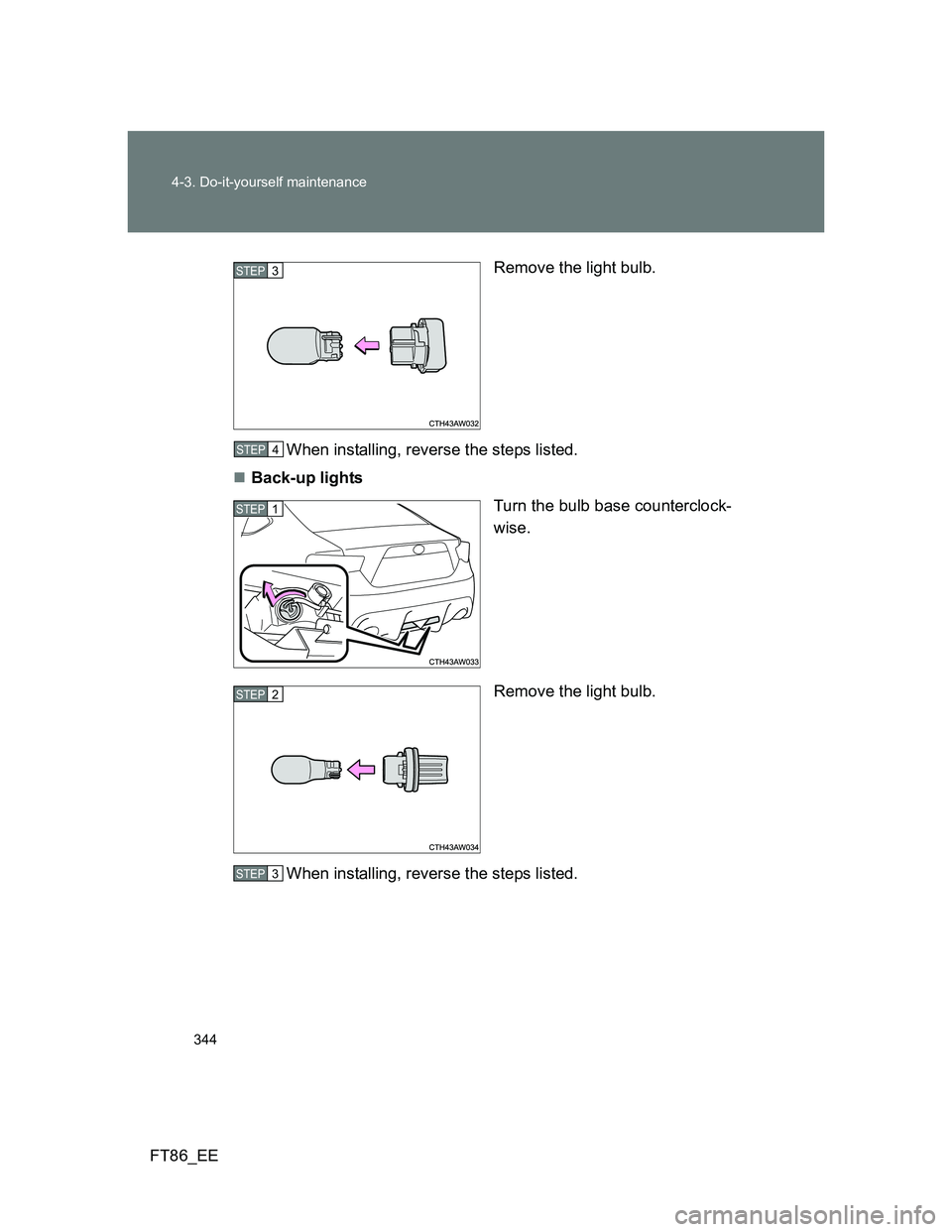

FT86_EERemove the light bulb.
When installing, reverse the steps listed.
Back-up lights
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 3
STEP 4
STEP 1
STEP 3 STEP 2
STEP 3

345 4-3. Do-it-yourself maintenance
4
Maintenance and care

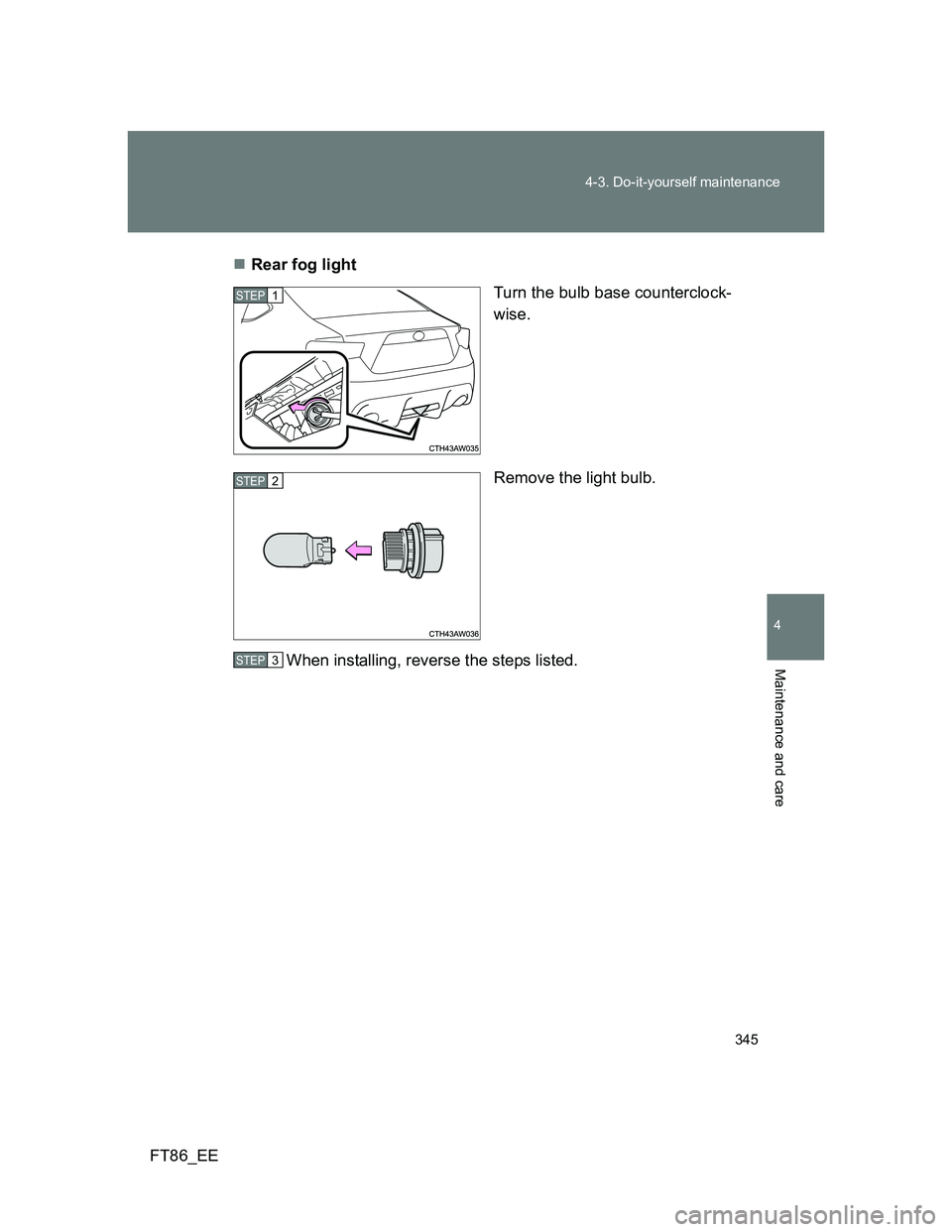

FT86_EERear fog light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 3 STEP 2
STEP 3

346 4-3. Do-it-yourself maintenance

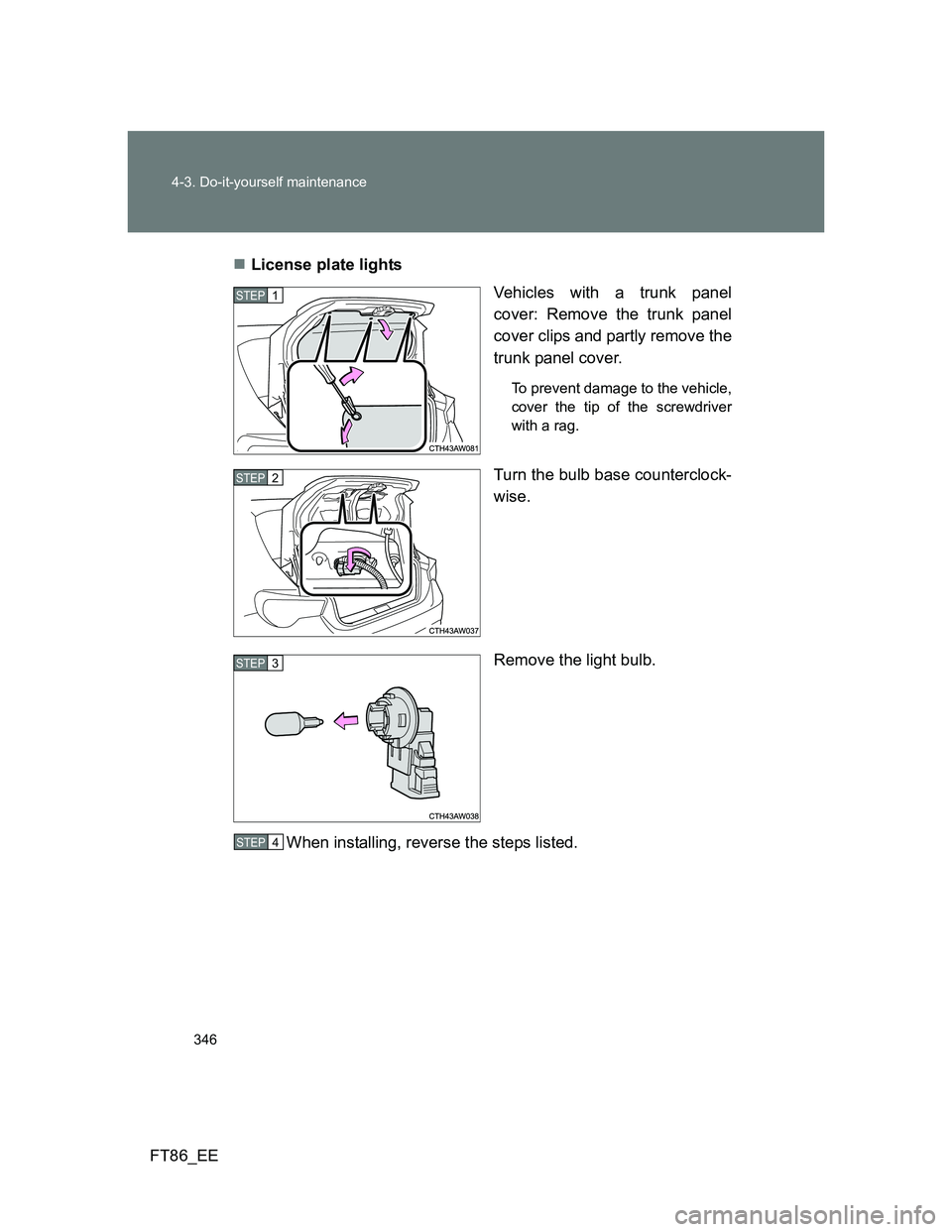

FT86_EELicense plate lights
Vehicles with a trunk panel
cover: Remove the trunk panel
cover clips and partly remove the
trunk panel cover.
To prevent damage to the vehicle,
cover the tip of the screwdriver
with a rag.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 2
STEP 3
STEP 4

347 4-3. Do-it-yourself maintenance
4
Maintenance and care

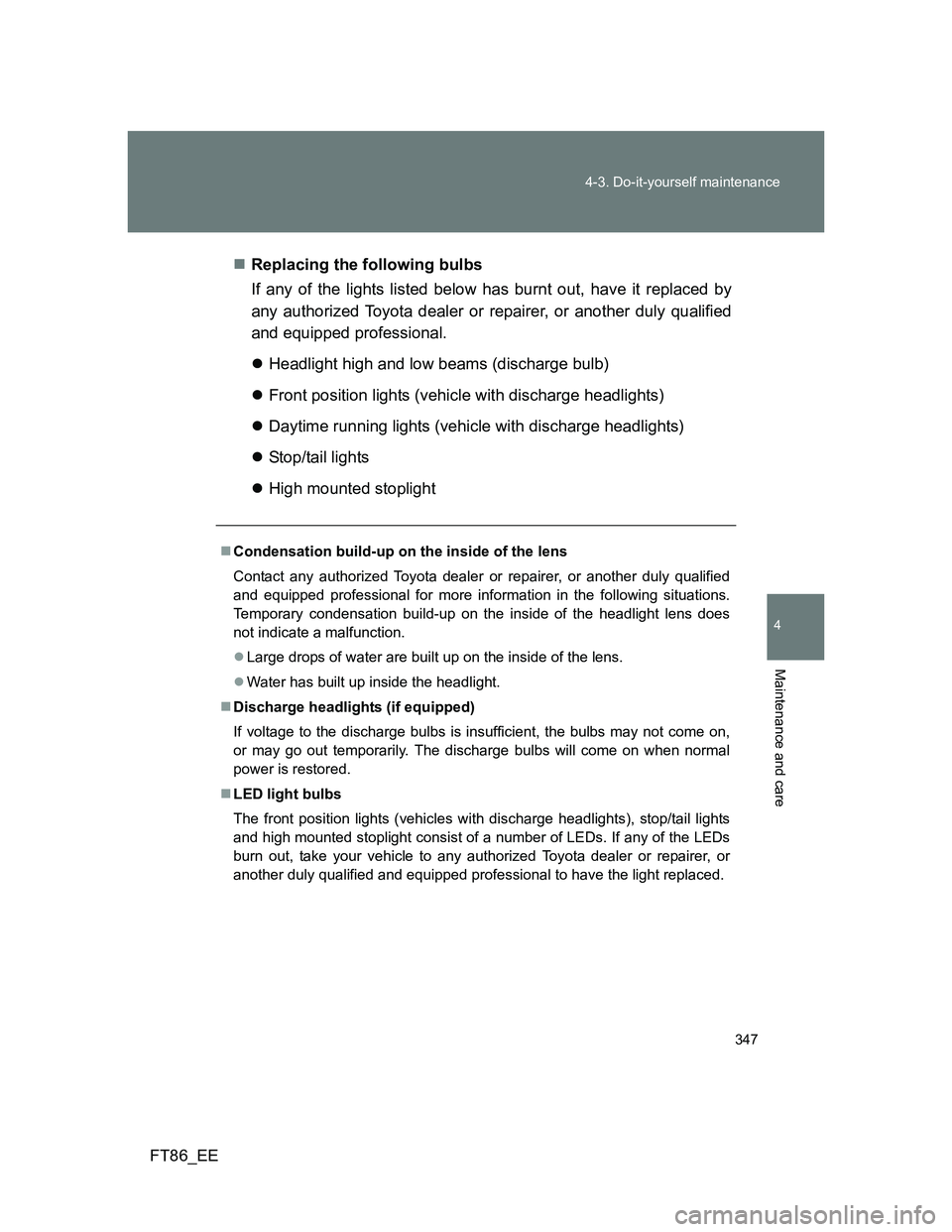

FT86_EEReplacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight high and low beams (discharge bulb)
Front position lights (vehicle with discharge headlights)
Daytime running lights (vehicle with discharge headlights)
Stop/tail lights
High mounted stoplight
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
LED light bulbs
The front position lights (vehicles with discharge headlights), stop/tail lights
and high mounted stoplight consist of a number of LEDs. If any of the LEDs
burn out, take your vehicle to any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional to have the light replaced.

348 4-3. Do-it-yourself maintenance
FT86_EE

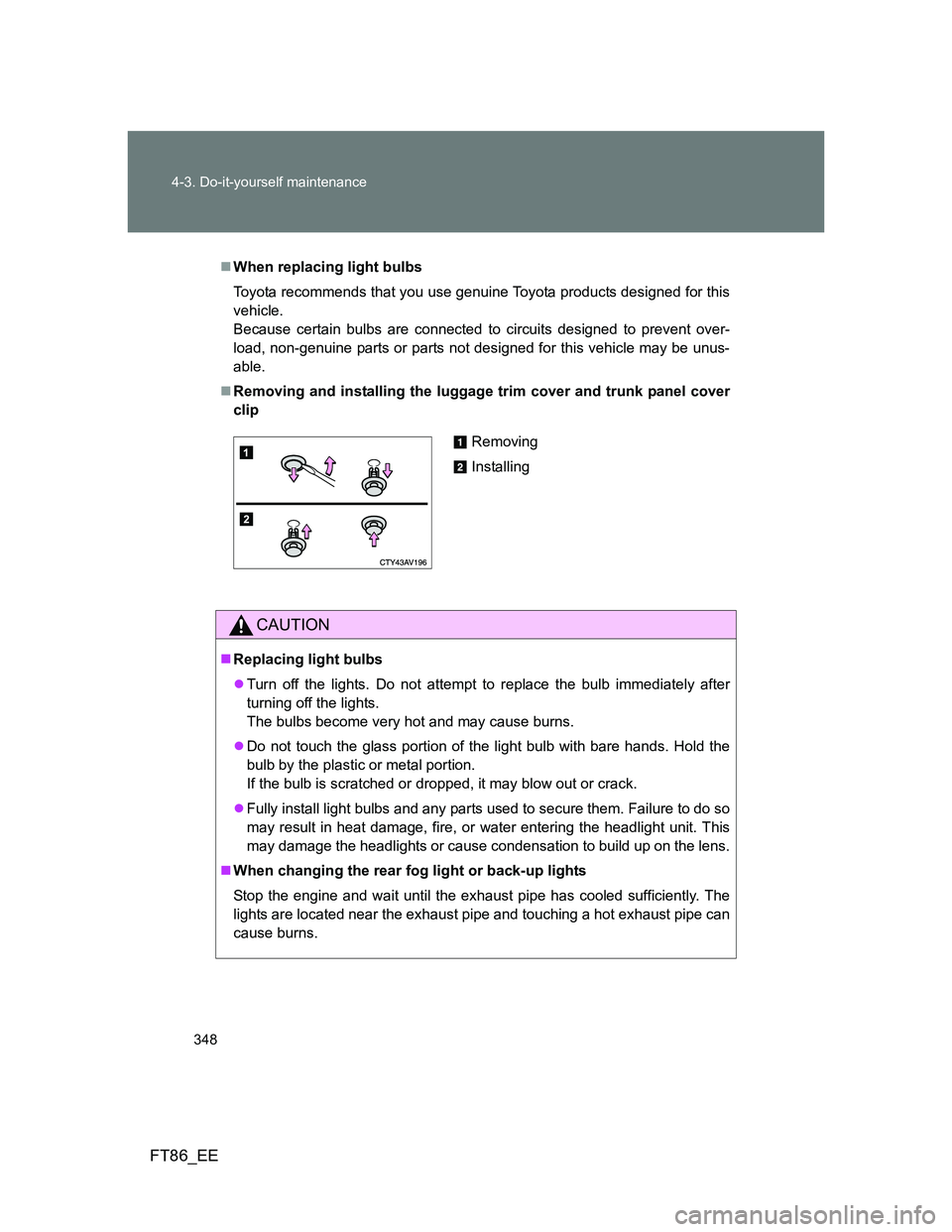

When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle.
Because certain bulbs are connected to circuits designed to prevent over-
load, non-genuine parts or parts not designed for this vehicle may be unus-
able.
Removing and installing the luggage trim cover and trunk panel cover
clip
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
When changing the rear fog light or back-up lights
Stop the engine and wait until the exhaust pipe has cooled sufficiently. The
lights are located near the exhaust pipe and touching a hot exhaust pipe can
cause burns.
Removing
Installing

349 4-3. Do-it-yourself maintenance
4
Maintenance and care
FT86_EE

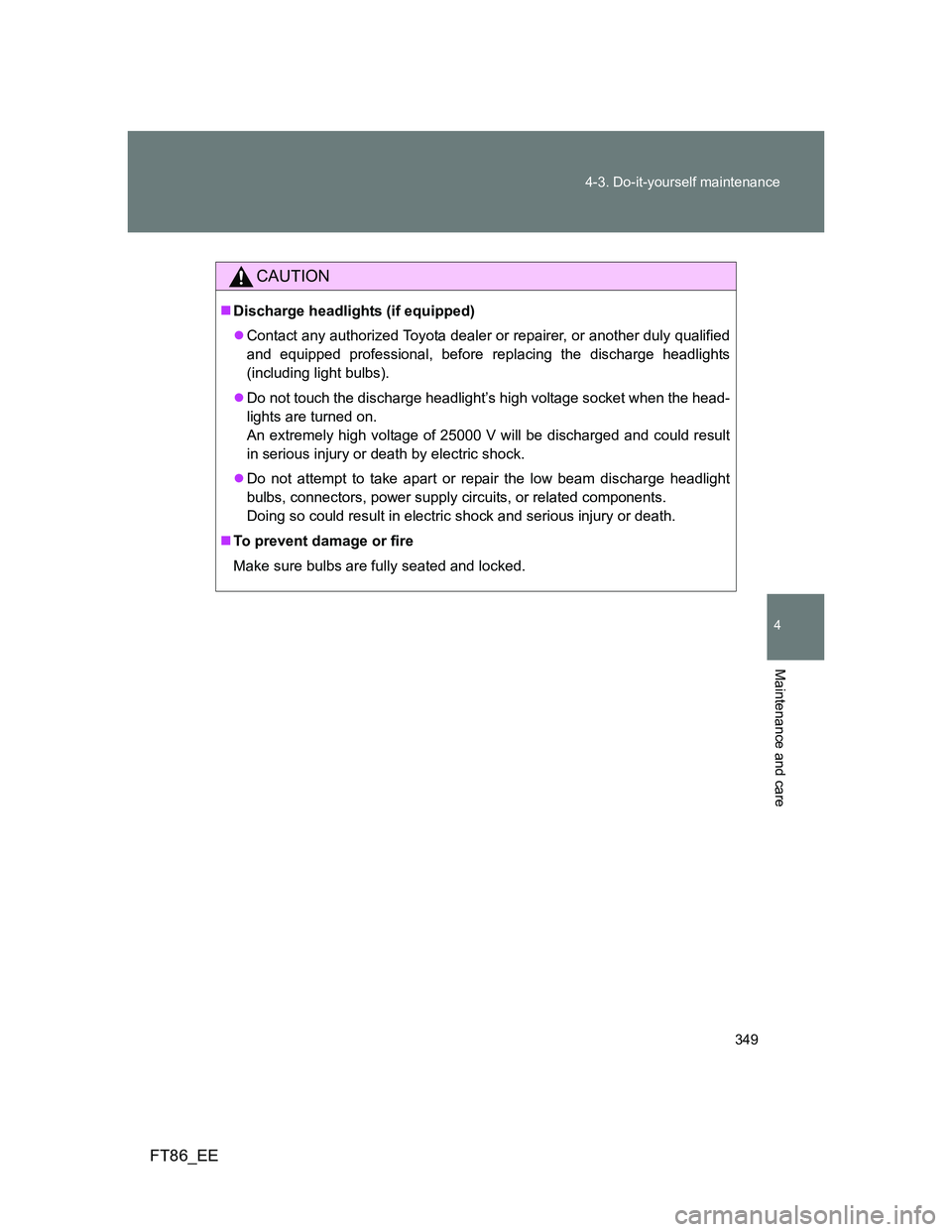

CAUTION
Discharge headlights (if equipped)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 25000 V will be discharged and could result
in serious injury or death by electric shock.
Do not attempt to take apart or repair the low beam discharge headlight
bulbs, connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
To prevent damage or fire
Make sure bulbs are fully seated and locked.

350 4-3. Do-it-yourself maintenance
