191 2-2. Instrument cluster
2
When driving
FT86_EE

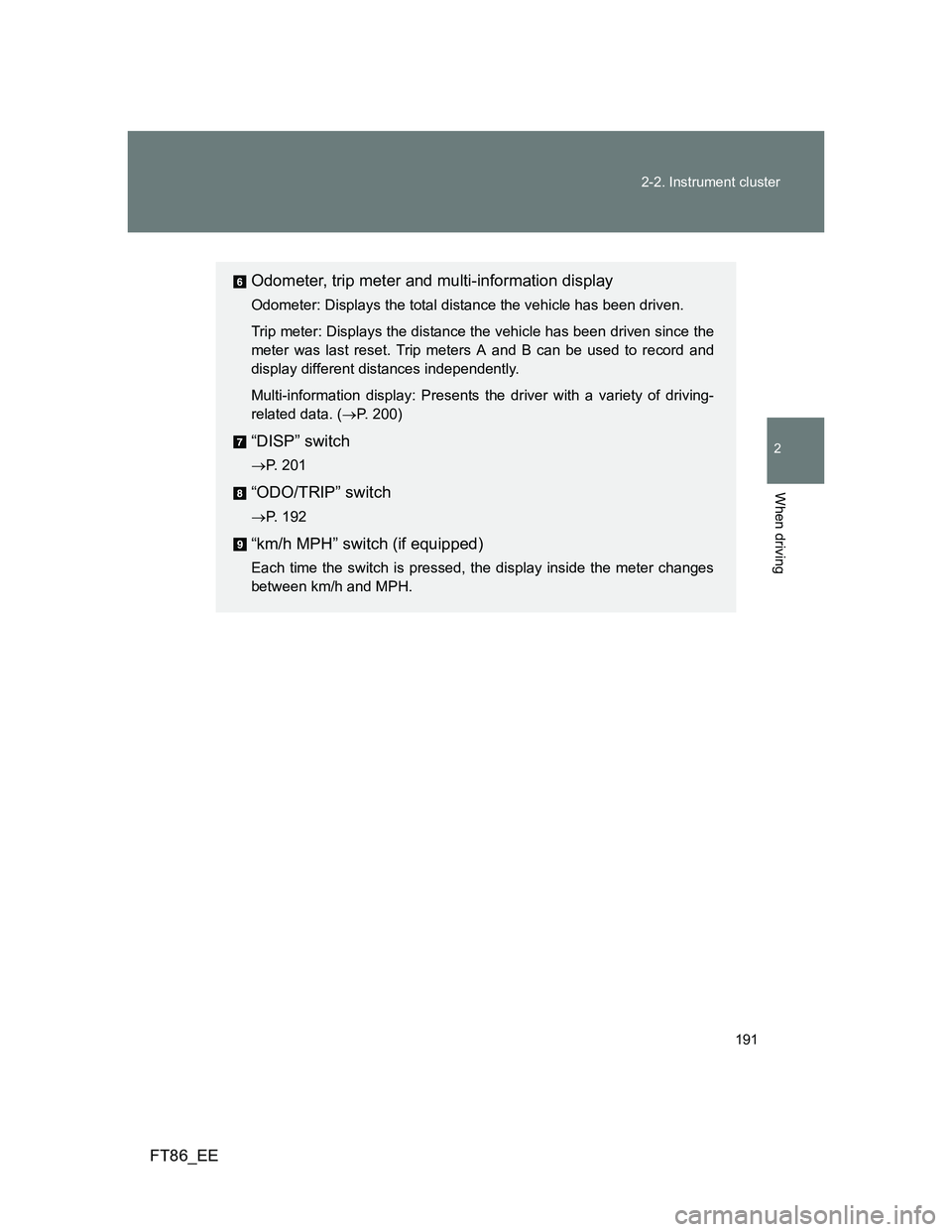

Odometer, trip meter and multi-information display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Multi-information display: Presents the driver with a variety of driving-
related data. (P. 200)
“DISP” switch
P. 201
“ODO/TRIP” switch
P. 192
“km/h MPH” switch (if equipped)
Each time the switch is pressed, the display inside the meter changes
between km/h and MPH.

192 2-2. Instrument cluster
FT86_EE
Switch the display
Each time the “ODO/TRIP” switch is pressed, the display changes as
follows.
Odometer
Trip meter A
*1
Trip meter B*1
Setting screen for the shift position indicator and shift-up indica-
tor*2 (vehicles with a manual transmission)
*1: Pressing and holding the “ODO/TRIP” switch will reset the trip meter that
is currently displayed.
*2: Only displayed when the engine switch is in the “ACC” or “LOCK” position
(vehicles without a smart entry & start system), or when the “ENGINE
START STOP” switch is in ACCESSORY mode or turned off (vehicles
with a smart entry & start system).

193 2-2. Instrument cluster
2
When driving
FT86_EE

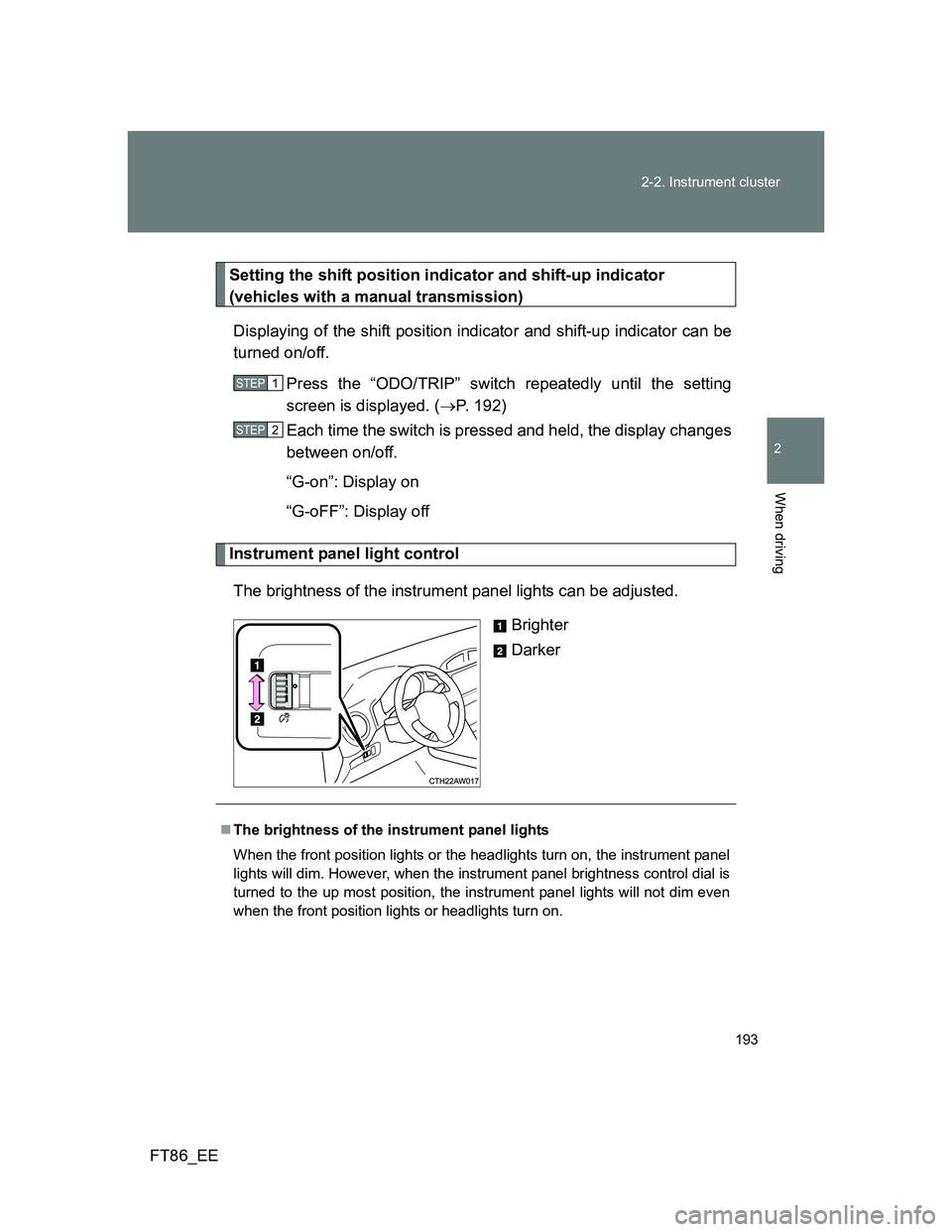

Setting the shift position indicator and shift-up indicator
(vehicles with a manual transmission)
Displaying of the shift position indicator and shift-up indicator can be
turned on/off.
Press the “ODO/TRIP” switch repeatedly until the setting
screen is displayed. (P. 192)
Each time the switch is pressed and held, the display changes
between on/off.
“G-on”: Display on
“G-oFF”: Display off
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
STEP 1
STEP 2
The brightness of the instrument panel lights
When the front position lights or the headlights turn on, the instrument panel
lights will dim. However, when the instrument panel brightness control dial is
turned to the up most position, the instrument panel lights will not dim even
when the front position lights or headlights turn on.

194 2-2. Instrument cluster
FT86_EE
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and
check the engine after it has cooled completely. (
P. 408)

195
2-2. Instrument cluster
2
When driving
FT86_EE

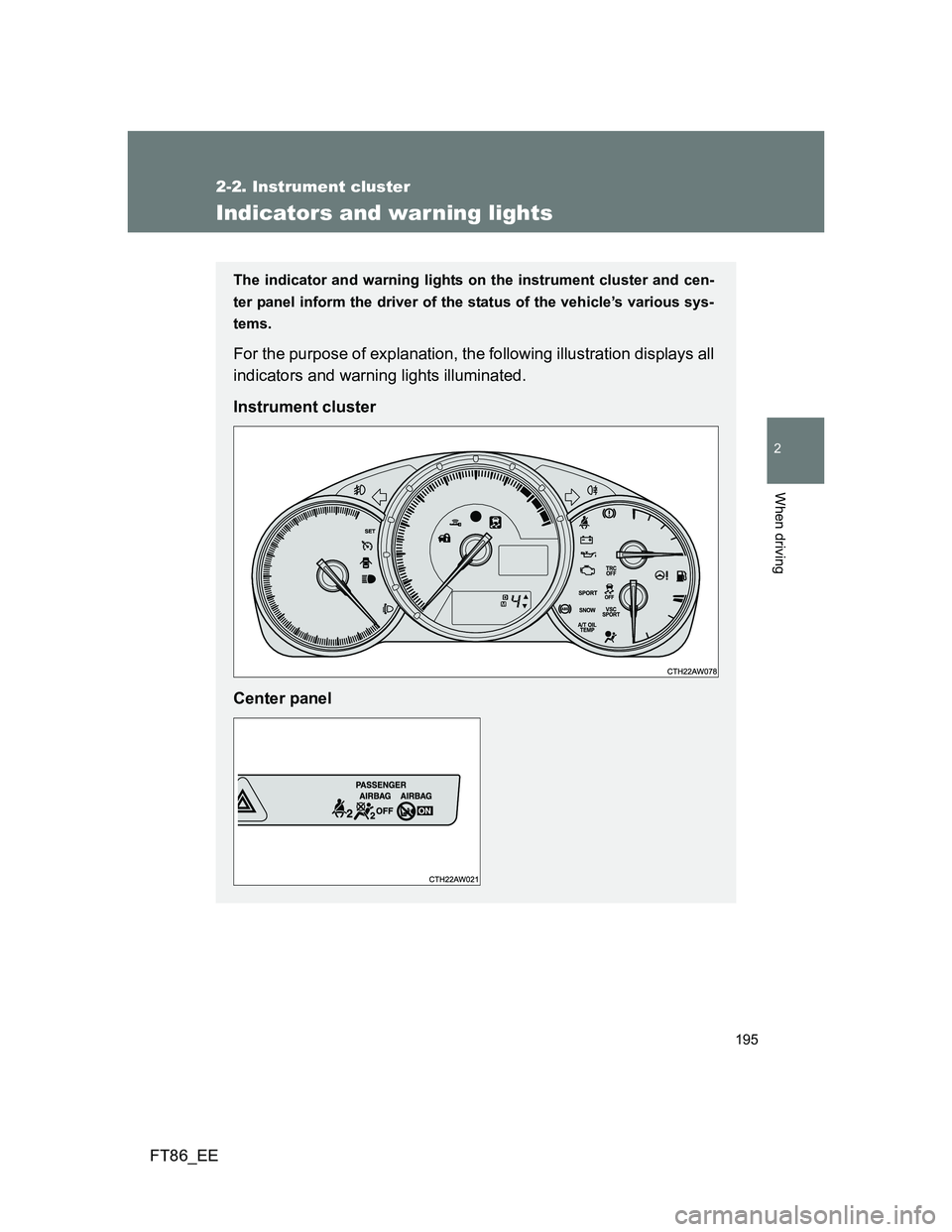

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster
Center panel

196 2-2. Instrument cluster
FT86_EE

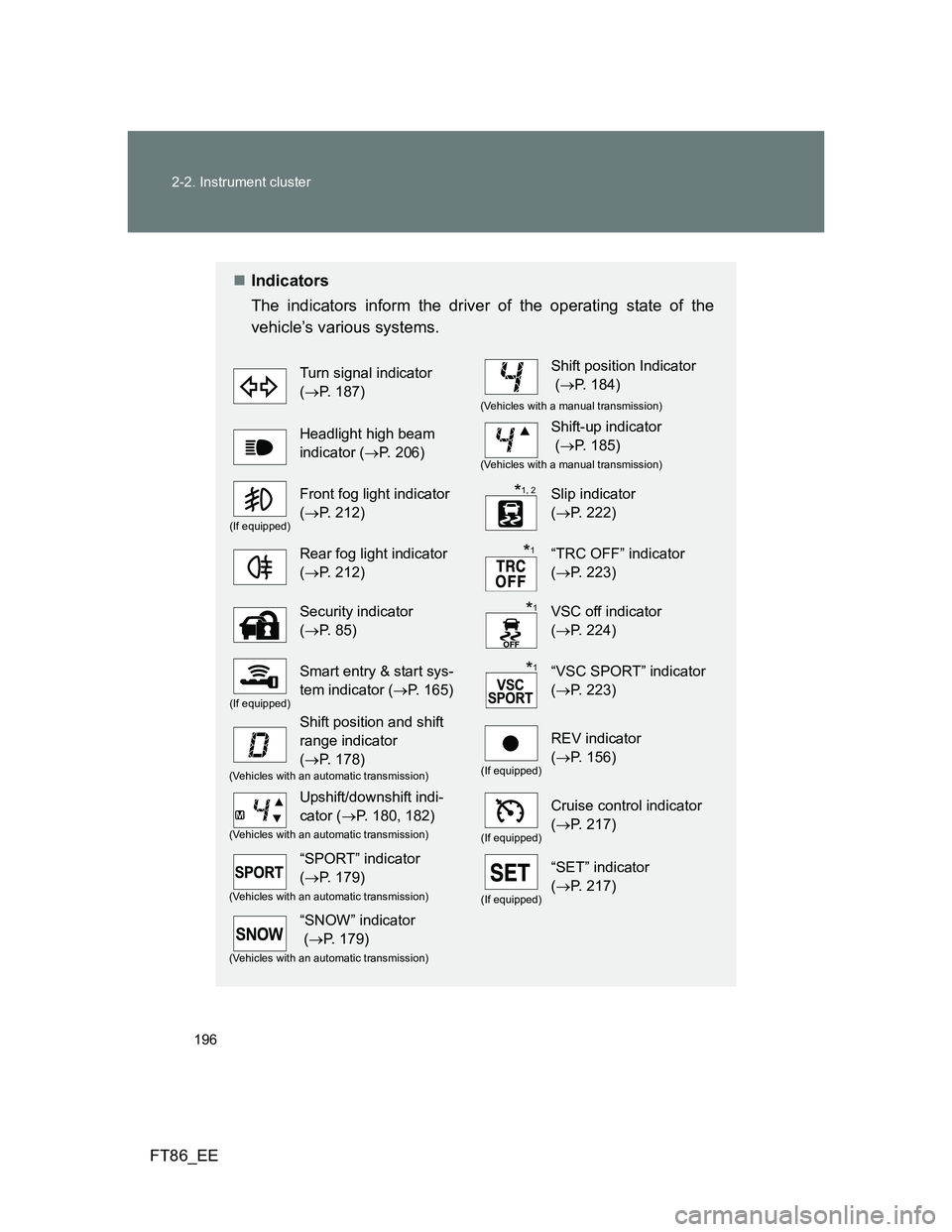

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 187)Shift position Indicator
(P. 184)
(Vehicles with a manual transmission)
Headlight high beam
indicator (P. 206)Shift-up indicator
(P. 185)
(Vehicles with a manual transmission)
(If equipped)
Front fog light indicator
(P. 212)Slip indicator
(P. 222)
Rear fog light indicator
(P. 212)“TRC OFF” indicator
(P. 223)
Security indicator
(P. 85)VSC off indicator
(P. 224)
(If equipped)
Smart entry & start sys-
tem indicator (P. 165)“VSC SPORT” indicator
(P. 223)
Shift position and shift
range indicator
(P. 178)
(If equipped)
REV indicator
(P. 156)
(Vehicles with an automatic transmission)
Upshift/downshift indi-
cator (P. 180, 182)
(If equipped)
Cruise control indicator
(P. 217)
(Vehicles with an automatic transmission)
“SPORT” indicator
(P. 179)
(If equipped)
“SET” indicator
(P. 217)
(Vehicles with an automatic transmission)
“SNOW” indicator
(P. 179)
(Vehicles with an automatic transmission)
*1, 2
*1
*1
*1

197 2-2. Instrument cluster
2
When driving
FT86_EE
*1:Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The light flashes to indicate that the system is operating.

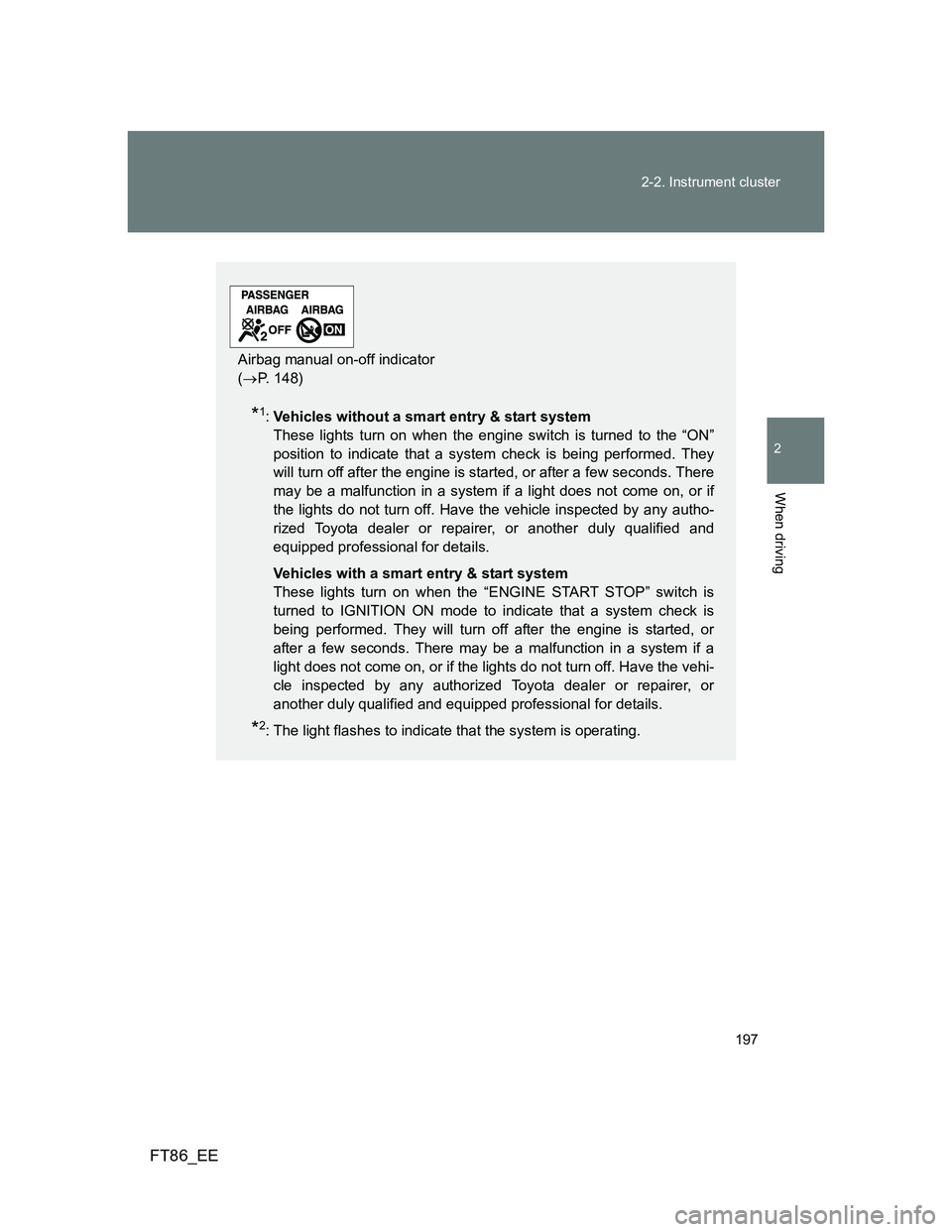

Airbag manual on-off indicator
(P. 148)

198 2-2. Instrument cluster
FT86_EE

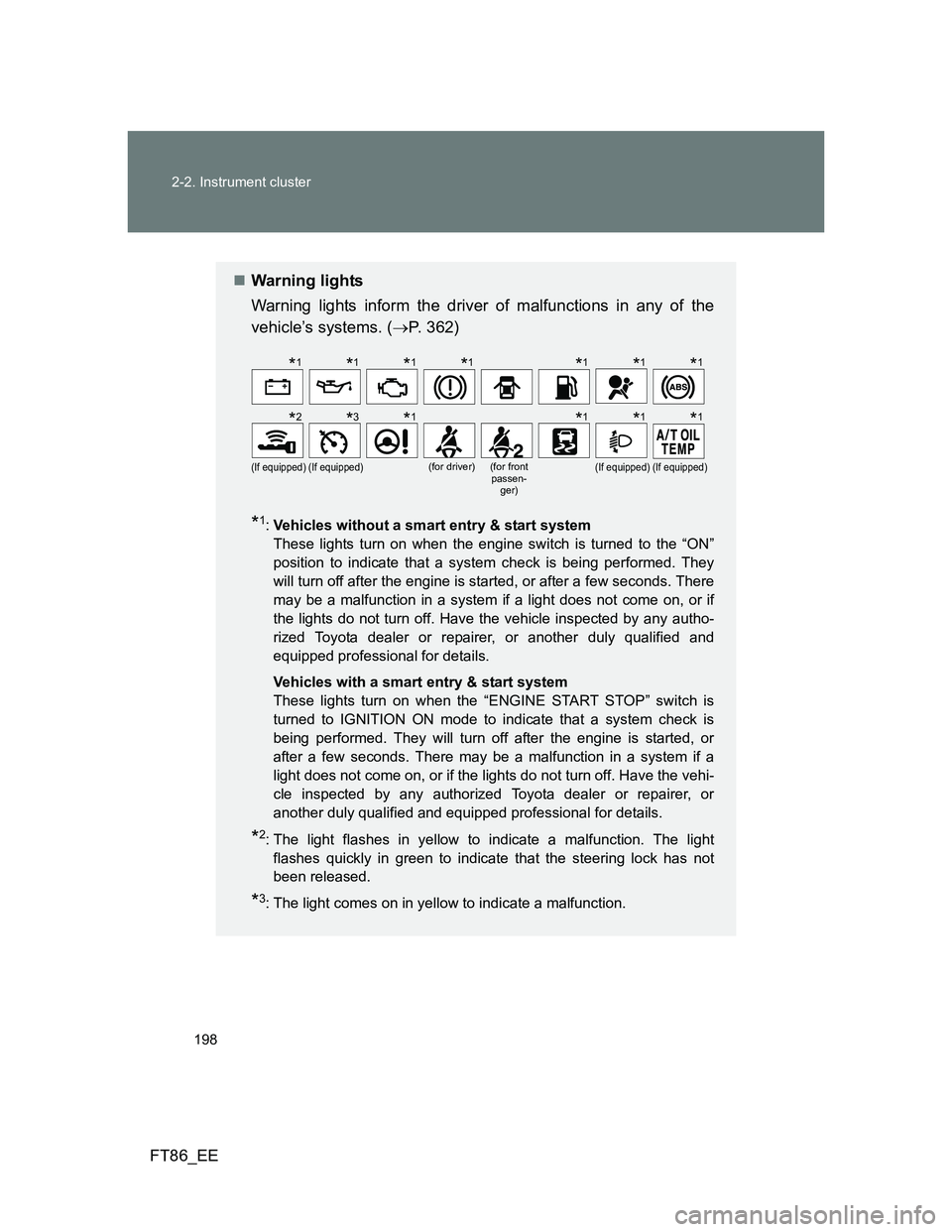

Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 362)
*1:Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*3: The light comes on in yellow to indicate a malfunction.
(If equipped)(If equipped)(for driver)(for front
passen-
ger)(If equipped)(If equipped)
*1*1*1*1*1*1*1
*2*3*1*1*1*1

199 2-2. Instrument cluster
2
When driving
FT86_EE

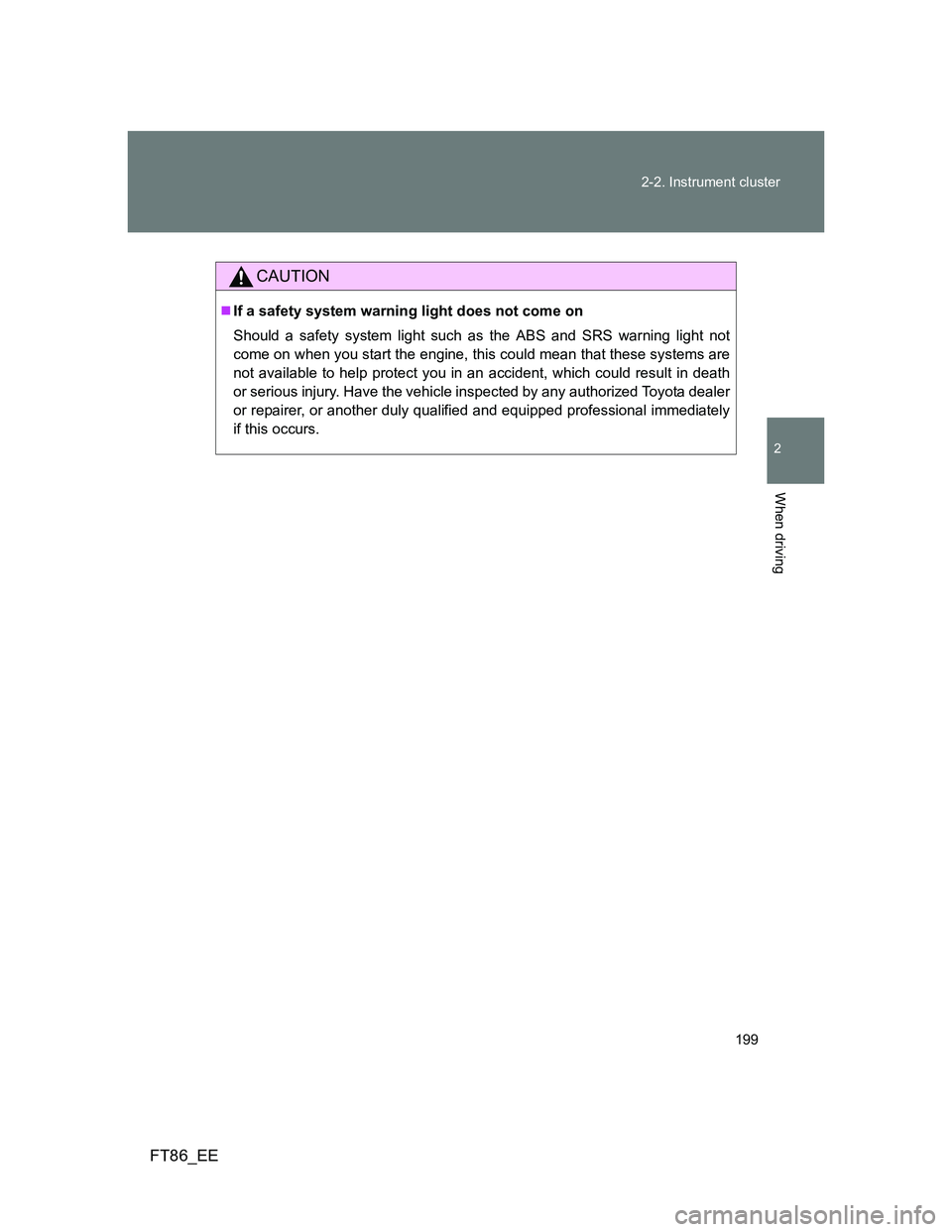

CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.

200
2-2. Instrument cluster
FT86_EE

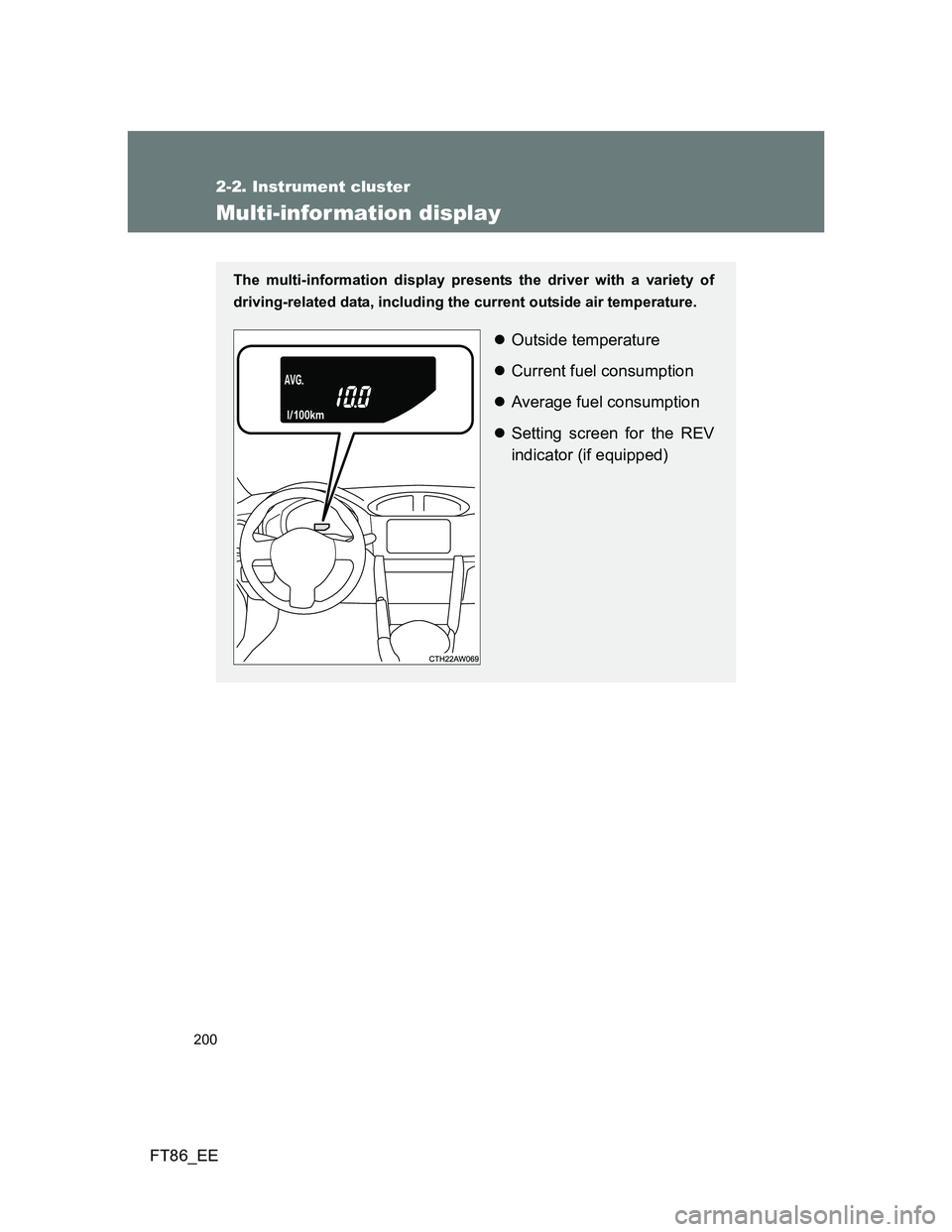

Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data, including the current outside air temperature.
Outside temperature
Current fuel consumption
Average fuel consumption
Setting screen for the REV
indicator (if equipped)
