FT86_EE

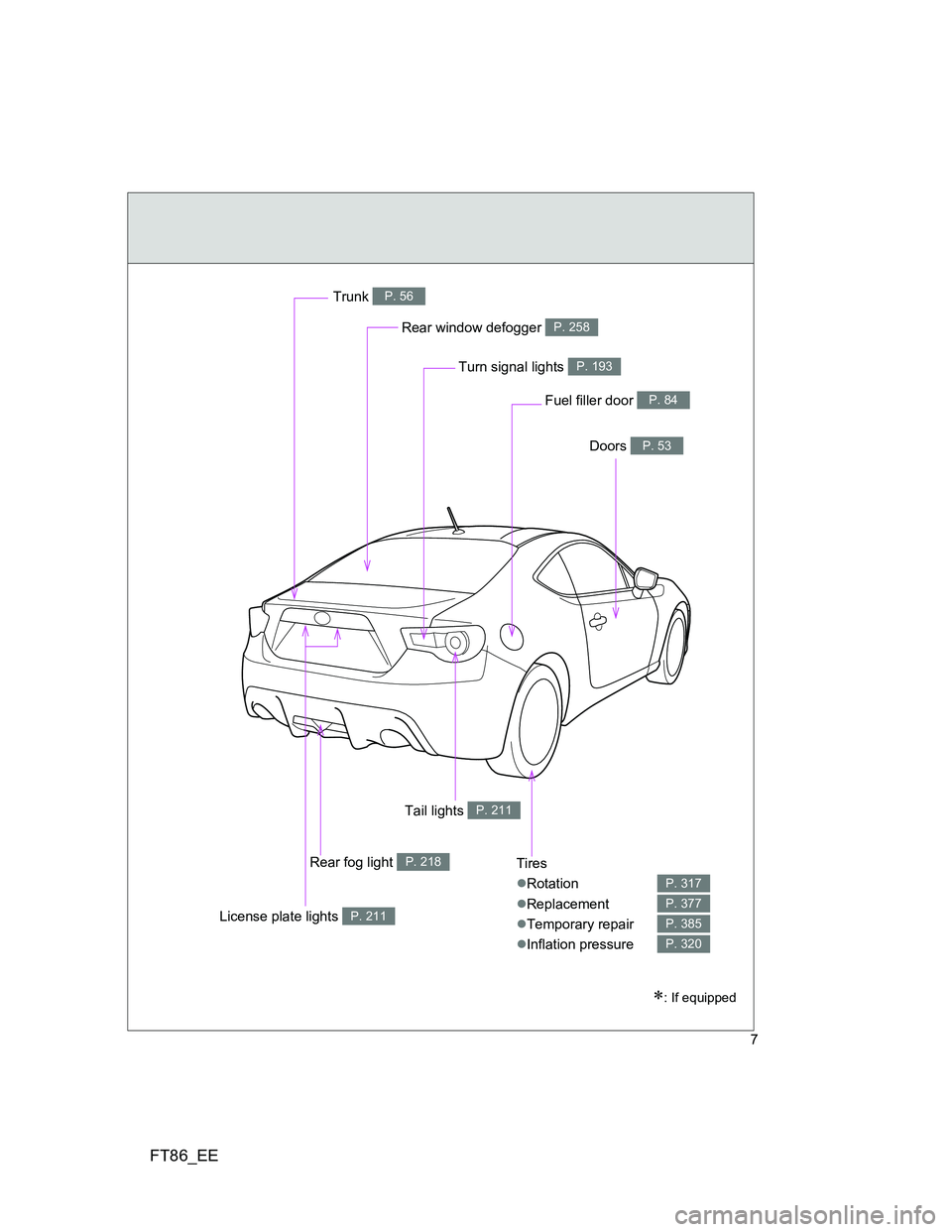

7
Tires
Rotation
Replacement
Temporary repair
Inflation pressure
P. 317
P. 377
P. 385
P. 320
Rear window defogger P. 258
Trunk P. 56
Doors P. 53
Fuel filler door P. 84
Turn signal lights P. 193
: If equipped
License plate lights P. 211
Tail lights P. 211
Rear fog light P. 218

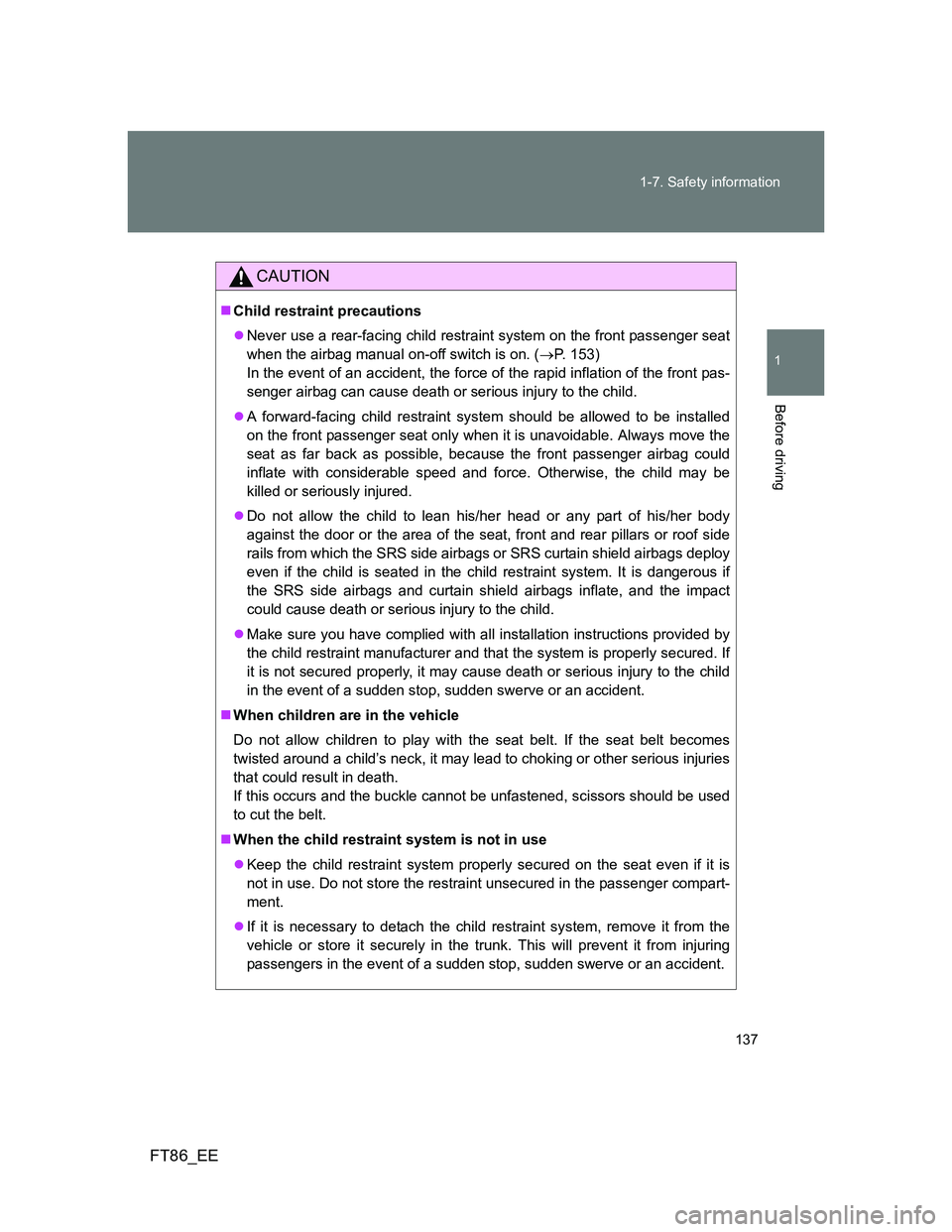

137 1-7. Safety information
1
Before driving
FT86_EE
CAUTION
Child restraint precautions
Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 153)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
A forward-facing child restraint system should be allowed to be installed
on the front passenger seat only when it is unavoidable. Always move the
seat as far back as possible, because the front passenger airbag could
inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or an accident.

5

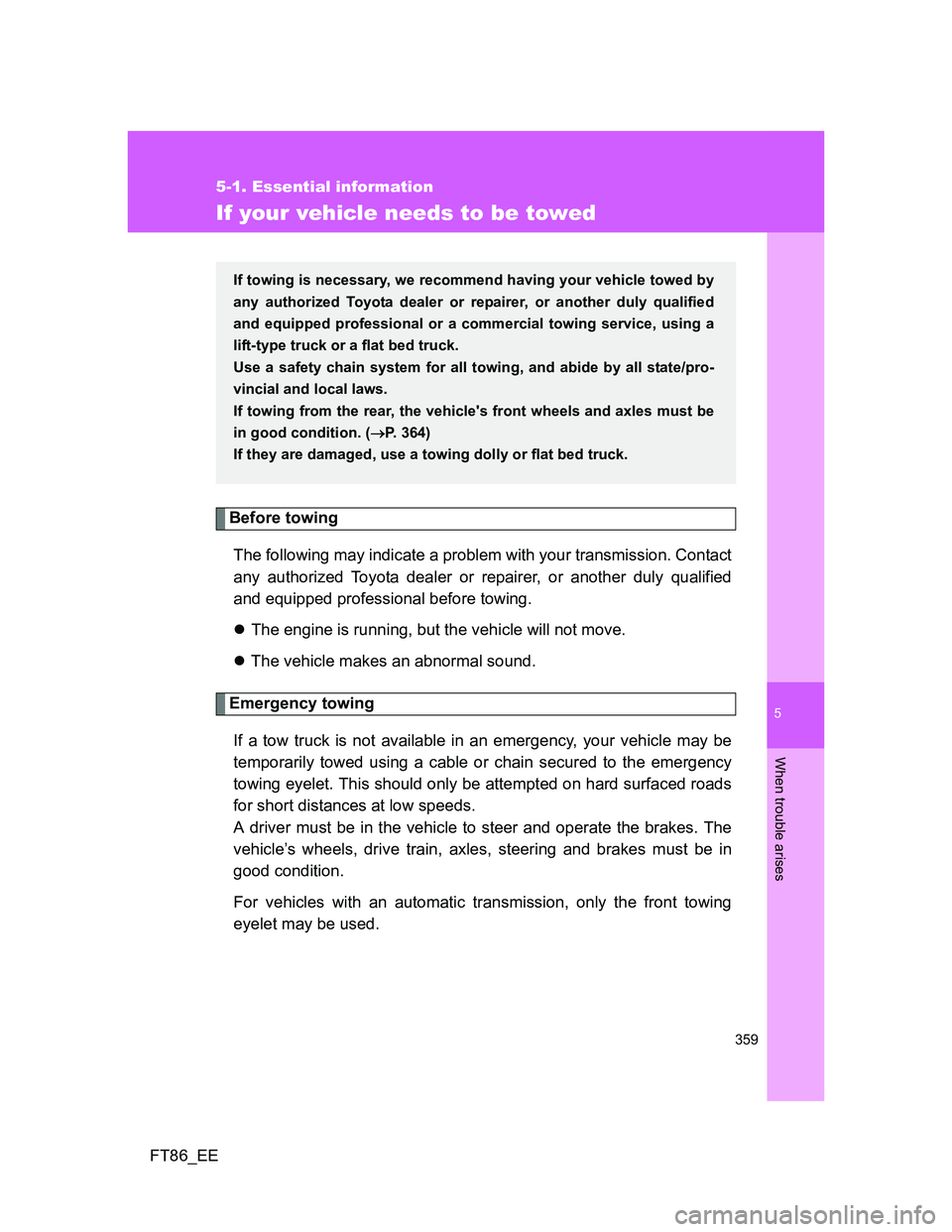

359
5-1. Essential information
When trouble arises
FT86_EE
If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional before towing.
The engine is running, but the vehicle will not move.
The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available in an emergency, your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only be attempted on hard surfaced roads
for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
For vehicles with an automatic transmission, only the front towing
eyelet may be used.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional or a commercial towing service, using a
lift-type truck or a flat bed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
If towing from the rear, the vehicle's front wheels and axles must be
in good condition. (P. 364)
If they are damaged, use a towing dolly or flat bed truck.

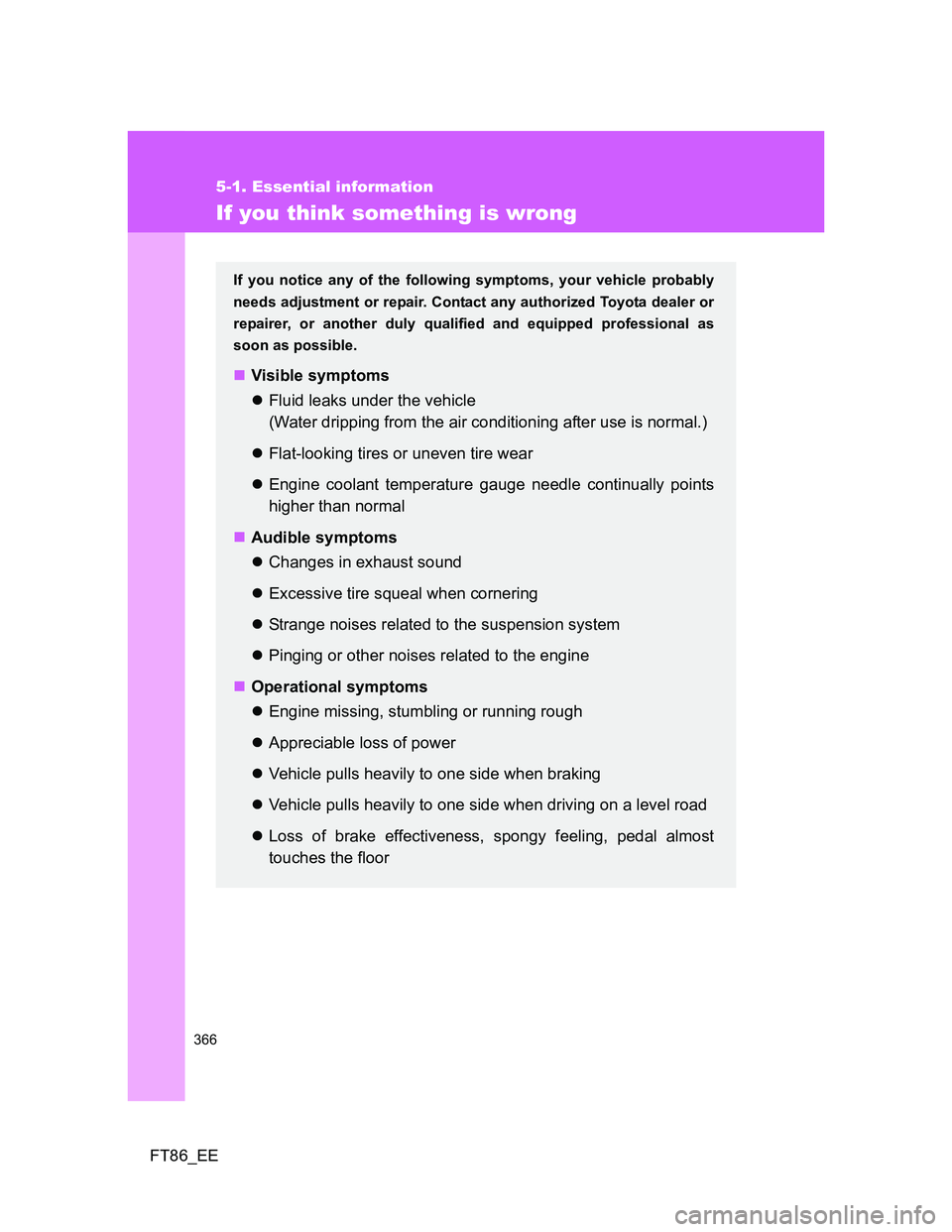

366
5-1. Essential information
FT86_EE
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional as
soon as possible.
Visible symptoms
Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
Engine coolant temperature gauge needle continually points
higher than normal
Audible symptoms
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the engine
Operational symptoms
Engine missing, stumbling or running rough
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor

5

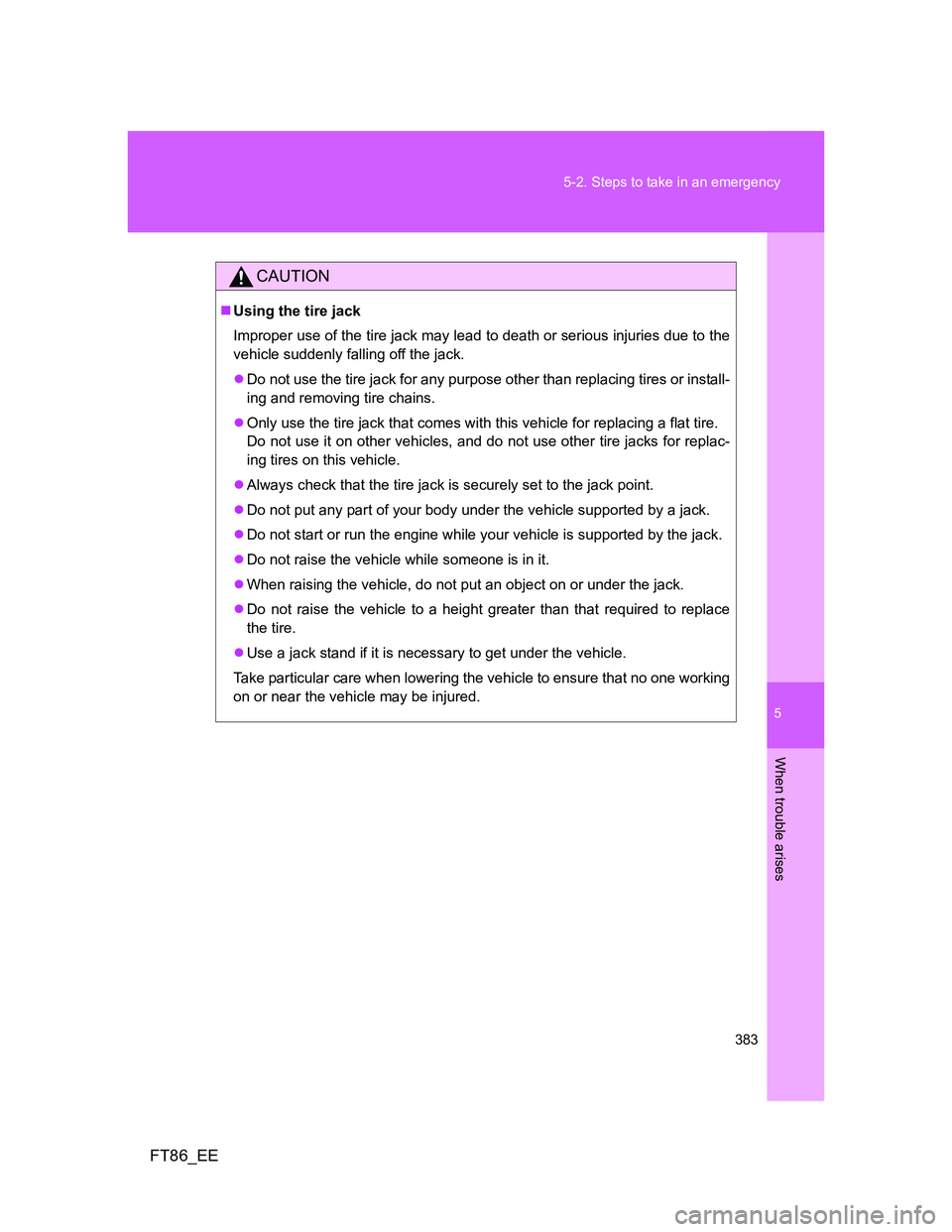

383 5-2. Steps to take in an emergency
When trouble arises
FT86_EE
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle may be injured.

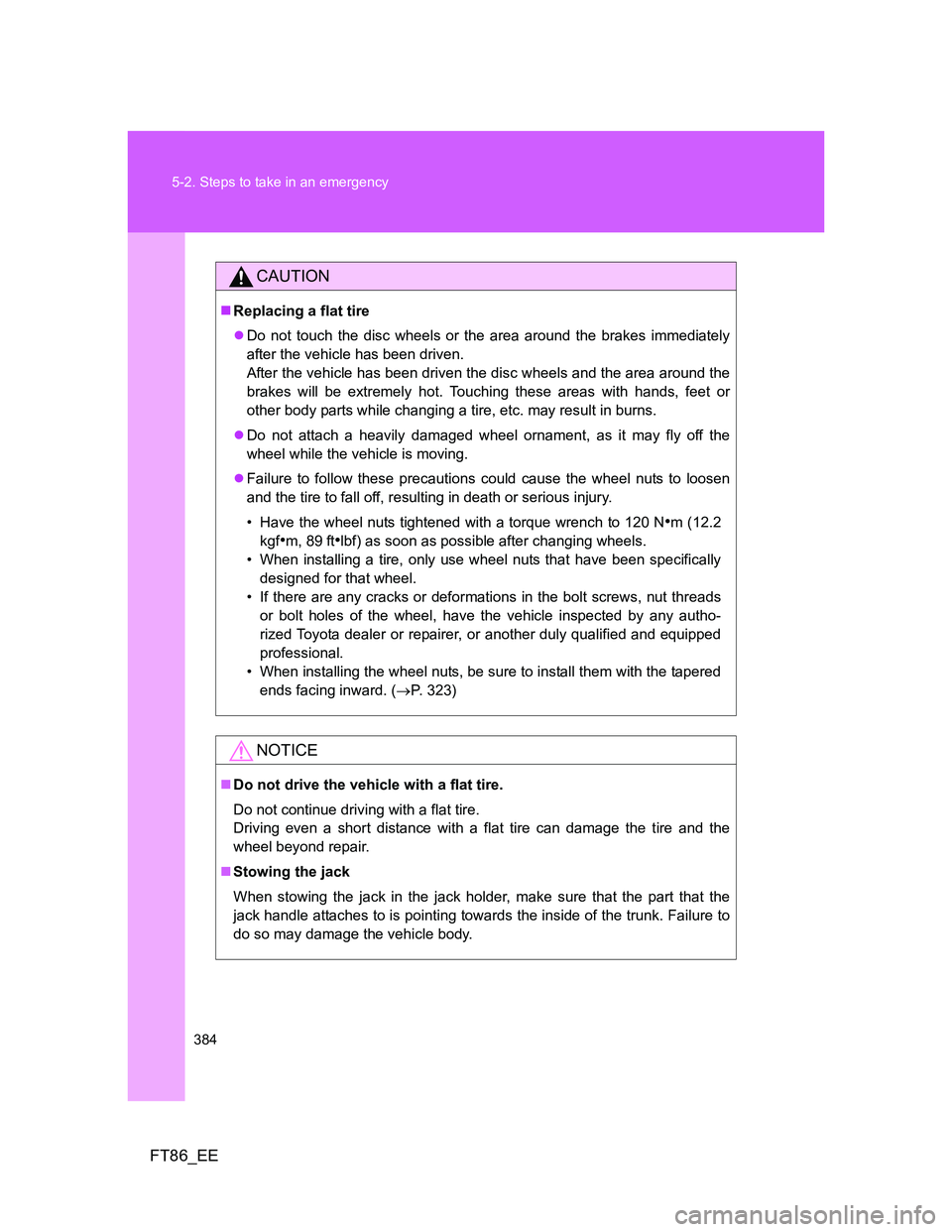

384 5-2. Steps to take in an emergency
FT86_EE
CAUTION
Replacing a flat tire
Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 120 N
•m (12.2
kgf
•m, 89 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads
or bolt holes of the wheel, have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional.
• When installing the wheel nuts, be sure to install them with the tapered
ends facing inward. (P. 323)
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Stowing the jack
When stowing the jack in the jack holder, make sure that the part that the
jack handle attaches to is pointing towards the inside of the trunk. Failure to
do so may damage the vehicle body.

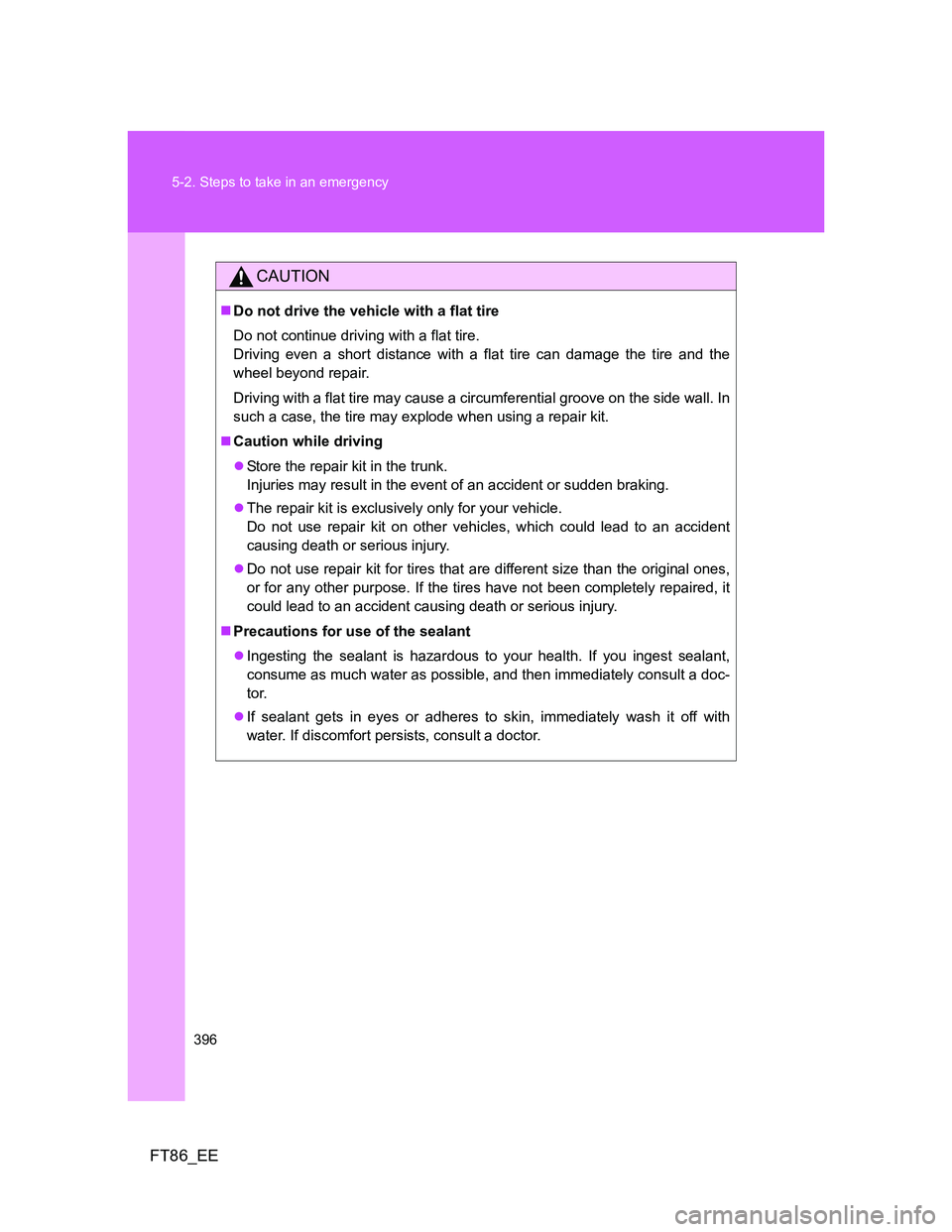

396 5-2. Steps to take in an emergency
FT86_EE
CAUTION
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Driving with a flat tire may cause a circumferential groove on the side wall. In
such a case, the tire may explode when using a repair kit.
Caution while driving
Store the repair kit in the trunk.
Injuries may result in the event of an accident or sudden braking.
The repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehicles, which could lead to an accident
causing death or serious injury.
Do not use repair kit for tires that are different size than the original ones,
or for any other purpose. If the tires have not been completely repaired, it
could lead to an accident causing death or serious injury.
Precautions for use of the sealant
Ingesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possible, and then immediately consult a doc-
tor.
If sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.

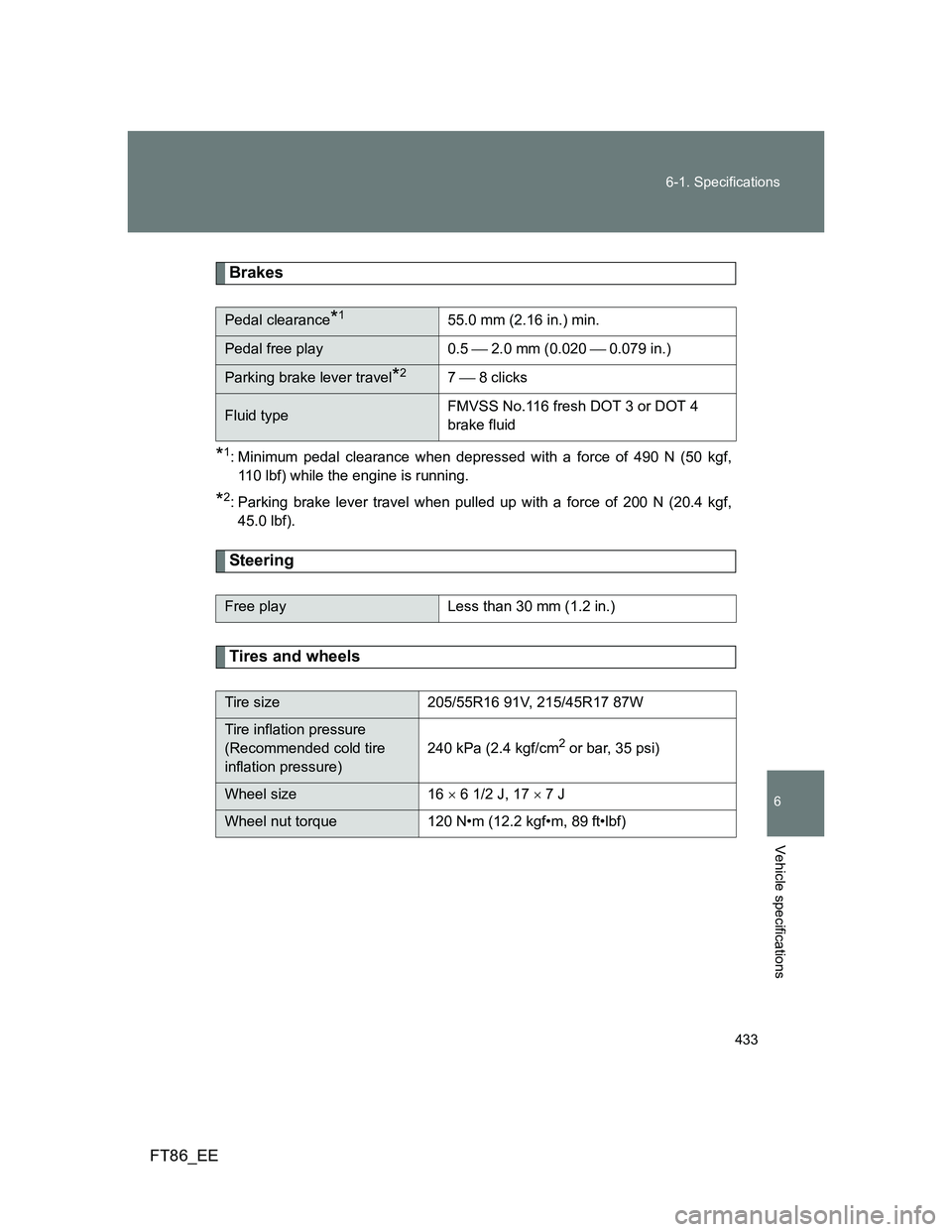

433 6-1. Specifications
6
Vehicle specifications
FT86_EE
Brakes
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf,
110 lbf) while the engine is running.
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf).
Steering
Tires and wheels
Pedal clearance*155.0 mm (2.16 in.) min.
Pedal free play 0.5  2.0 mm (0.020  0.079 in.)
Parking brake lever travel*27  8 clicks
Fluid typeFMVSS No.116 fresh DOT 3 or DOT 4
brake fluid
Free play Less than 30 mm (1.2 in.)
Tire size 205/55R16 91V, 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure)240 kPa (2.4 kgf/cm2 or bar, 35 psi)
Wheel size 16  6 1/2 J, 17  7 J
Wheel nut torque 120 N•m (12.2 kgf•m, 89 ft•lbf)

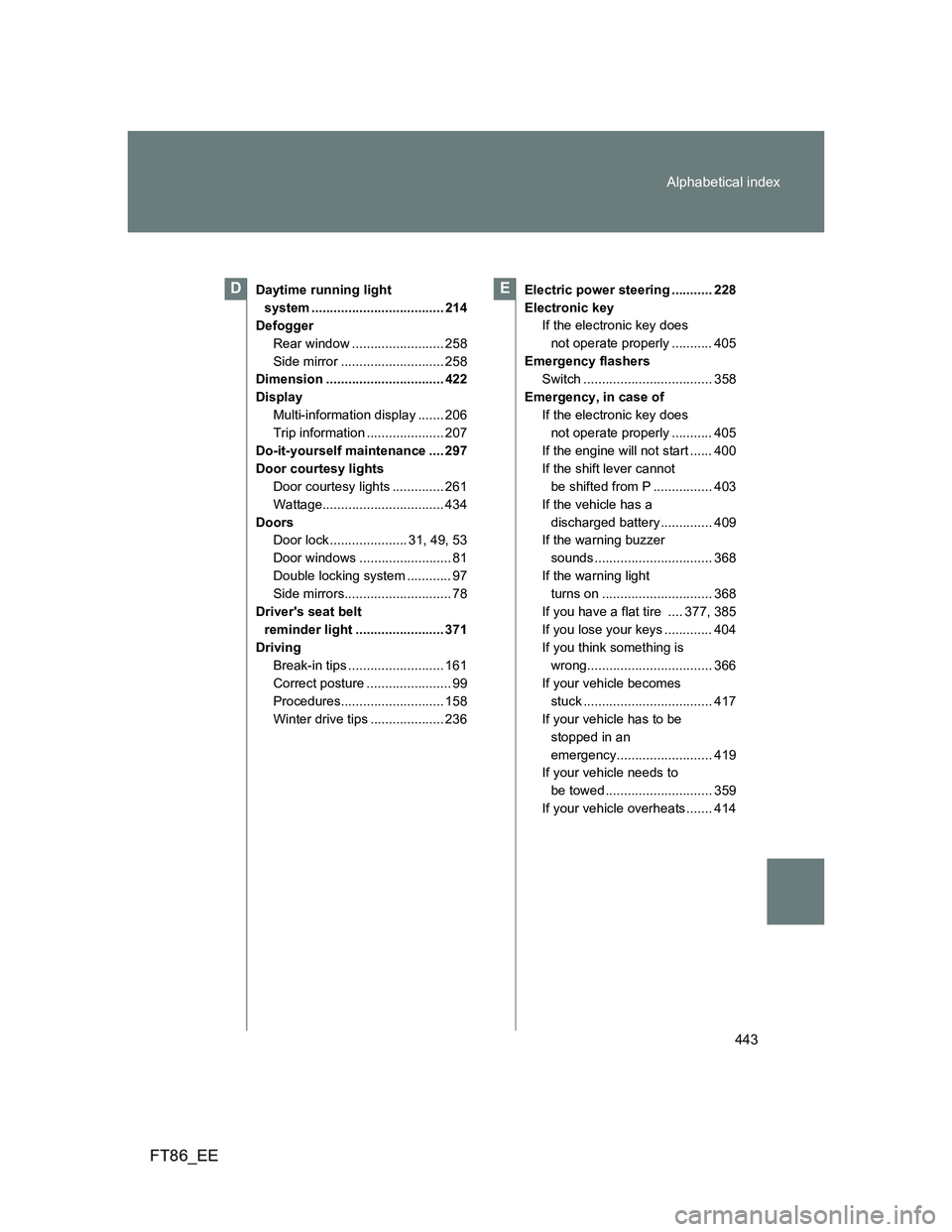

443 Alphabetical index
FT86_EE
Daytime running light
system .................................... 214
Defogger
Rear window ......................... 258
Side mirror ............................ 258
Dimension ................................ 422
Display
Multi-information display ....... 206
Trip information ..................... 207
Do-it-yourself maintenance .... 297
Door courtesy lights
Door courtesy lights .............. 261
Wattage................................. 434
Doors
Door lock ..................... 31, 49, 53
Door windows ......................... 81
Double locking system ............ 97
Side mirrors............................. 78
Driver's seat belt
reminder light ........................ 371
Driving
Break-in tips .......................... 161
Correct posture ....................... 99
Procedures............................ 158
Winter drive tips .................... 236Electric power steering ........... 228
Electronic key
If the electronic key does
not operate properly ........... 405
Emergency flashers
Switch ................................... 358
Emergency, in case of
If the electronic key does
not operate properly ........... 405
If the engine will not start ...... 400
If the shift lever cannot
be shifted from P ................ 403
If the vehicle has a
discharged battery .............. 409
If the warning buzzer
sounds ................................ 368
If the warning light
turns on .............................. 368
If you have a flat tire .... 377, 385
If you lose your keys ............. 404
If you think something is
wrong.................................. 366
If your vehicle becomes
stuck ................................... 417
If your vehicle has to be
stopped in an
emergency.......................... 419
If your vehicle needs to
be towed ............................. 359
If your vehicle overheats ....... 414DE

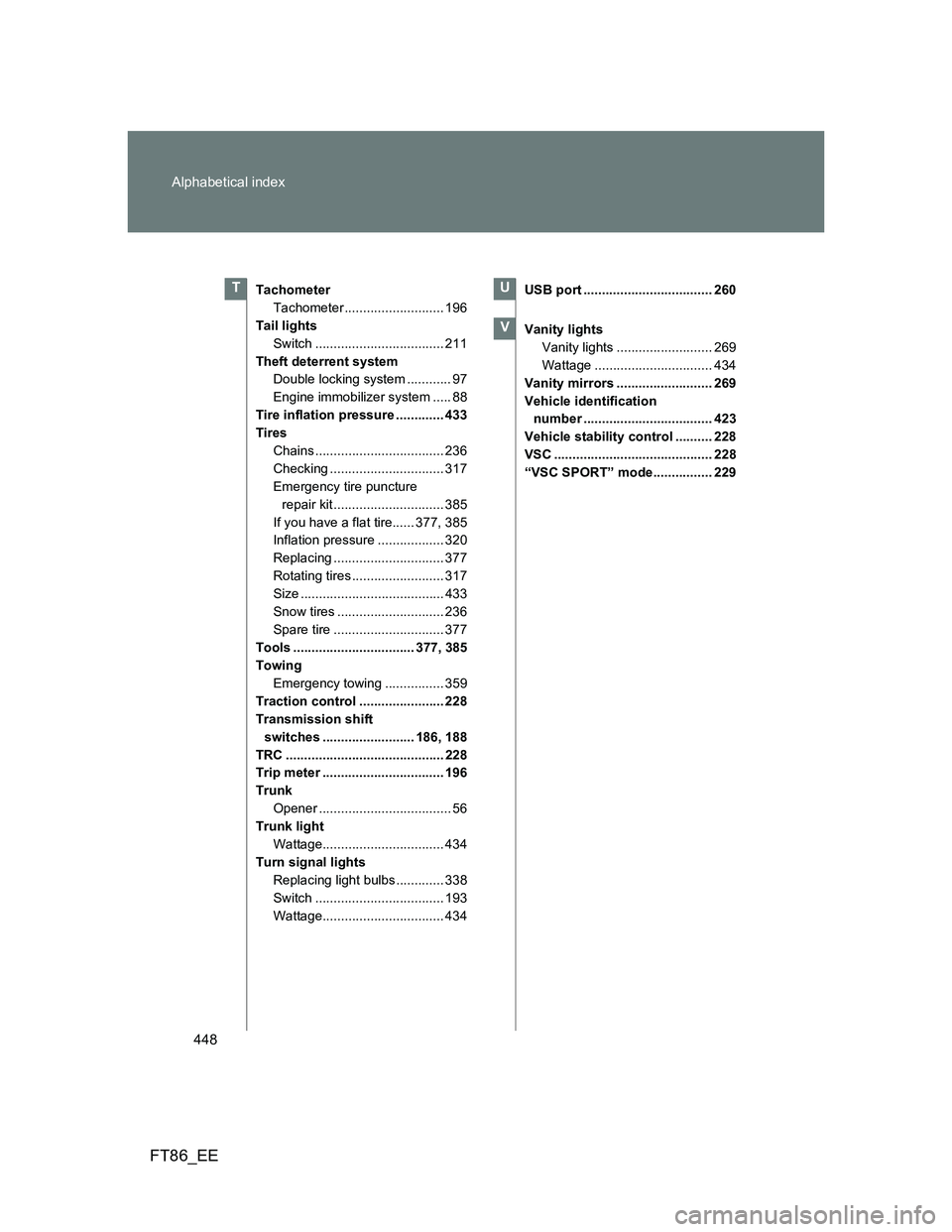

448 Alphabetical index
FT86_EE
Tachometer
Tachometer ........................... 196
Tail lights
Switch ................................... 211
Theft deterrent system
Double locking system ............ 97
Engine immobilizer system ..... 88
Tire inflation pressure ............. 433
Tires
Chains ................................... 236
Checking ............................... 317
Emergency tire puncture
repair kit .............................. 385
If you have a flat tire...... 377, 385
Inflation pressure .................. 320
Replacing .............................. 377
Rotating tires ......................... 317
Size ....................................... 433
Snow tires ............................. 236
Spare tire .............................. 377
Tools ................................. 377, 385
Towing
Emergency towing ................ 359
Traction control ....................... 228
Transmission shift
switches ......................... 186, 188
TRC ........................................... 228
Trip meter ................................. 196
Trunk
Opener .................................... 56
Trunk light
Wattage................................. 434
Turn signal lights
Replacing light bulbs ............. 338
Switch ................................... 193
Wattage................................. 434USB port ................................... 260
Vanity lights
Vanity lights .......................... 269
Wattage ................................ 434
Vanity mirrors .......................... 269
Vehicle identification
number ................................... 423
Vehicle stability control .......... 228
VSC ........................................... 228
“VSC SPORT” mode................ 229TU
V
