1-1. Key information
Keys ...................................... 28
1-2. Opening, closing and
locking the doors and
trunk
Smart entry & start system ... 31
Wireless remote control ........ 49
Doors .................................... 53
Trunk..................................... 56
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ............................ 61
Rear seats ............................ 65
Head restraints ..................... 67
Seat belts .............................. 69
Steering wheel ...................... 76
Anti-glare inside rear
view mirror .......................... 77
Outside rear view mirrors...... 78
1-4. Opening and closing
the windows
Power windows ..................... 81
1-5. Refueling
Opening the fuel tank
cap ...................................... 841-6. Theft deterrent system
Engine immobilizer
system................................ 88
Double locking system ......... 97
1-7. Safety information
Correct driving posture ......... 99
SRS airbag (Supplemental
Restraint System
airbag) .............................. 101
Child restraint systems ....... 130
Installing child restraints ..... 138
Airbag manual on-off
system.............................. 153
2-1. Driving procedures
Driving the vehicle .............. 158
Engine (ignition) switch
(vehicles with a smart
entry & start system) ........ 171
Engine (ignition) switch
(vehicles without a smart
entry & start system) ........ 180
Automatic transmission ...... 183
Manual Transmission ......... 190
Turn signal lever................. 193
Parking brake ..................... 194
Horn ................................... 195
1Before driving
2When Driving

FT86_EE
6
Outside rear view mirrors P. 78
Pictorial indexExterior
Hood P. 300
Windshield wipers P. 220
Headlights (high beam) P. 211
Front position lights P. 211
Headlights (low beam) P. 211
Turn signal lights
P. 193
Turn signal lights
P. 193
Front fog lights 
Daytime running lights (vehicles with
halogen headlights) P. 218
P. 211
Daytime running lights (vehicle with
discharge headlights)
P. 211

FT86_EE
7
Tires
Rotation
Replacement
Temporary repair
Inflation pressure
P. 317
P. 377
P. 385
P. 320
Rear window defogger P. 258
Trunk P. 56
Doors P. 53
Fuel filler door P. 84
Turn signal lights P. 193
: If equipped
License plate lights P. 211
Tail lights P. 211
Rear fog light P. 218

FT86_EE
11
Headlight switch
Turn signal lever
Fog light switch P. 211
P. 193
P. 218
Gauges and meters
Multi-information display P. 196
P. 206
Clock P. 270
Windshield wiper and washer switch P. 220
Emergency flasher
switch
P. 358
Tilt and telescopic steering
lock release lever
P. 76
Floor mat P. 277
Hood lock release lever P. 300
Fuel filler door opener P. 84
SRS driver knee airbag P. 101Engine (ignition) switch (vehicles with a
smart entry & start system)
P. 171
AUX/USB port 
P. 260

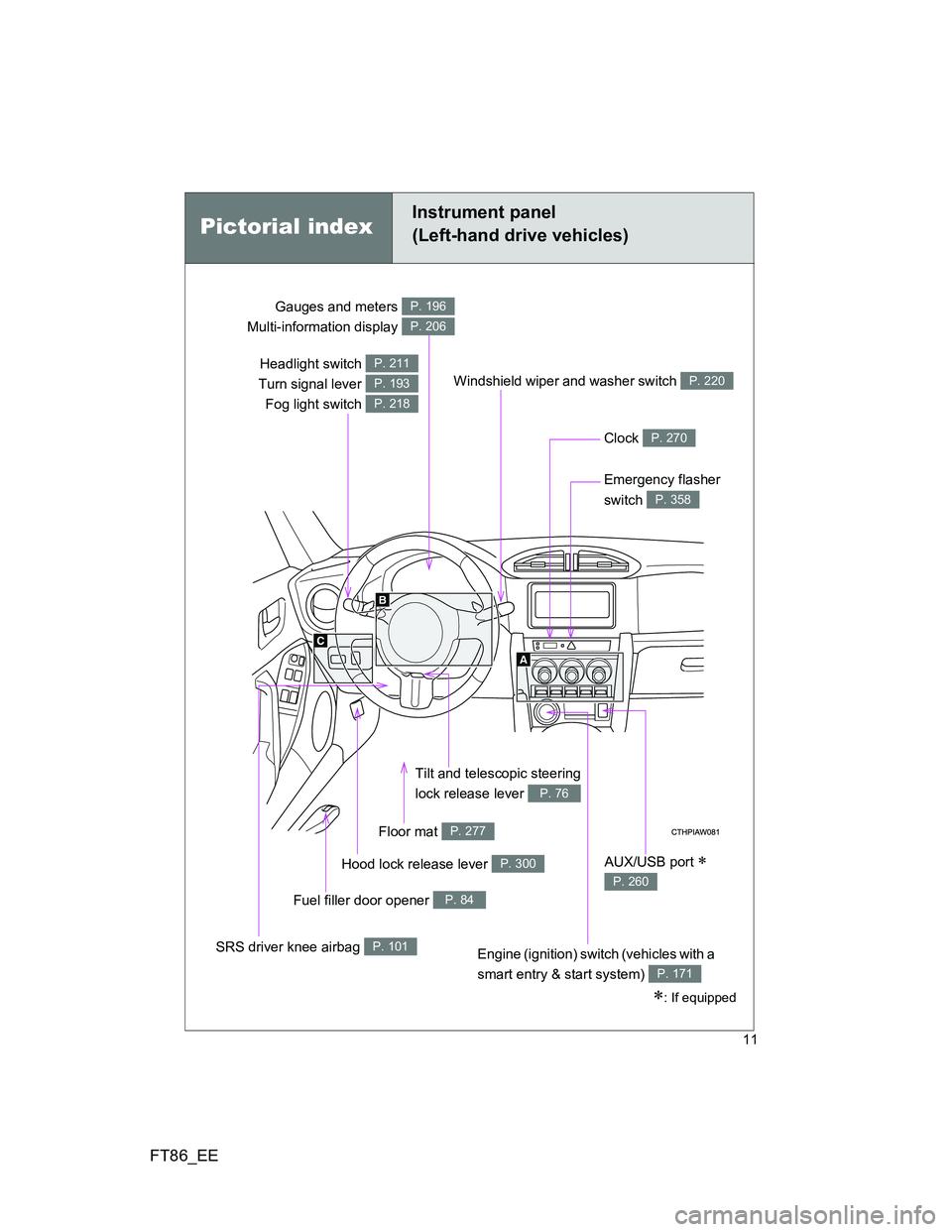

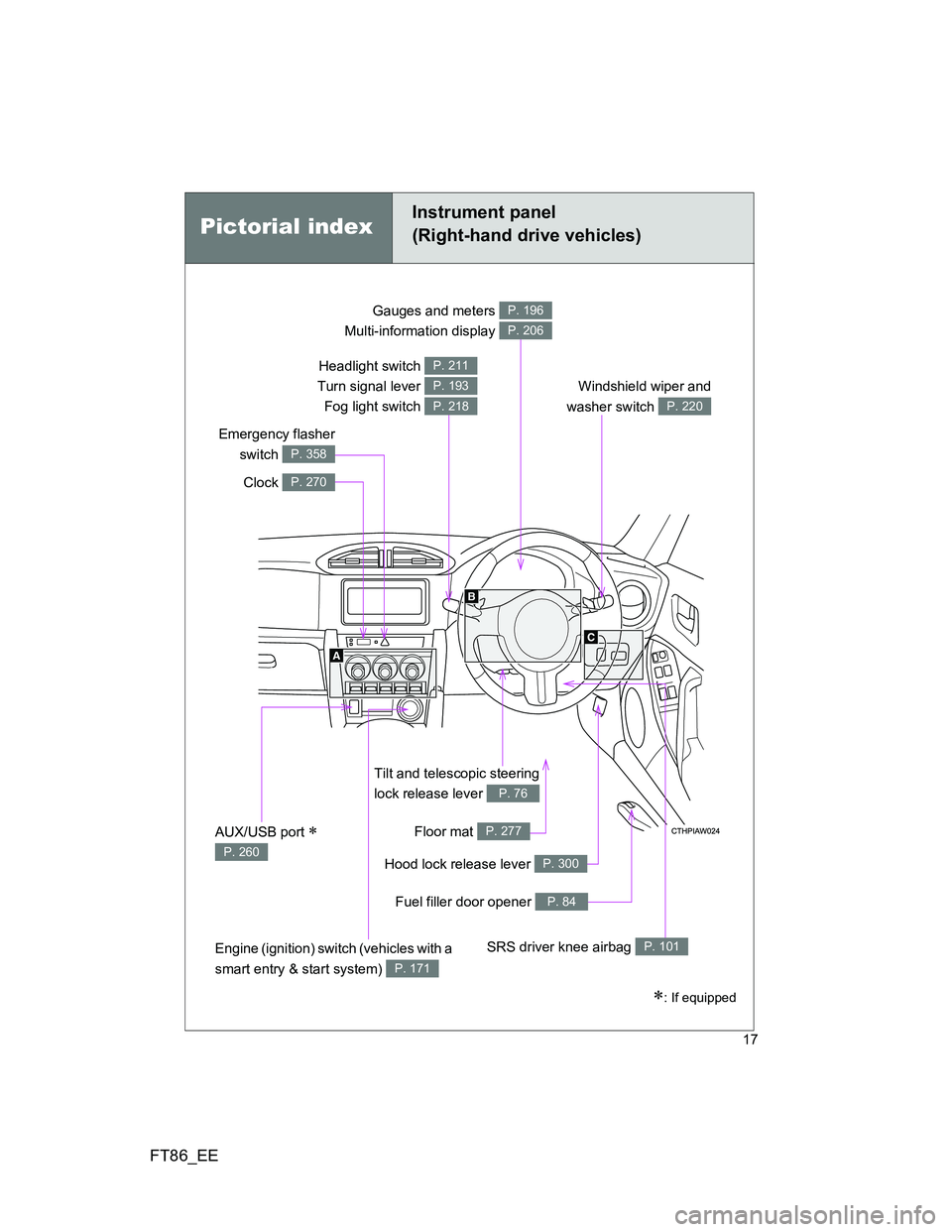

Pictorial index
Instrument panel
(Left-hand drive vehicles)
: If equipped

FT86_EE
17
Tilt and telescopic steering
lock release lever
P. 76
Gauges and meters
Multi-information display P. 196
P. 206
Clock P. 270
Windshield wiper and
washer switch
P. 220
Emergency flasher
switch
P. 358
Floor mat P. 277
Hood lock release lever P. 300
Fuel filler door opener P. 84
Engine (ignition) switch (vehicles with a
smart entry & start system)
P. 171
SRS driver knee airbag P. 101
Headlight switch
Turn signal lever
Fog light switch P. 211
P. 193
P. 218
AUX/USB port 
P. 260
: If equipped
Pictorial index
Instrument panel
(Right-hand drive vehicles)

40 1-2. Opening, closing and locking the doors and trunk
FT86_EE

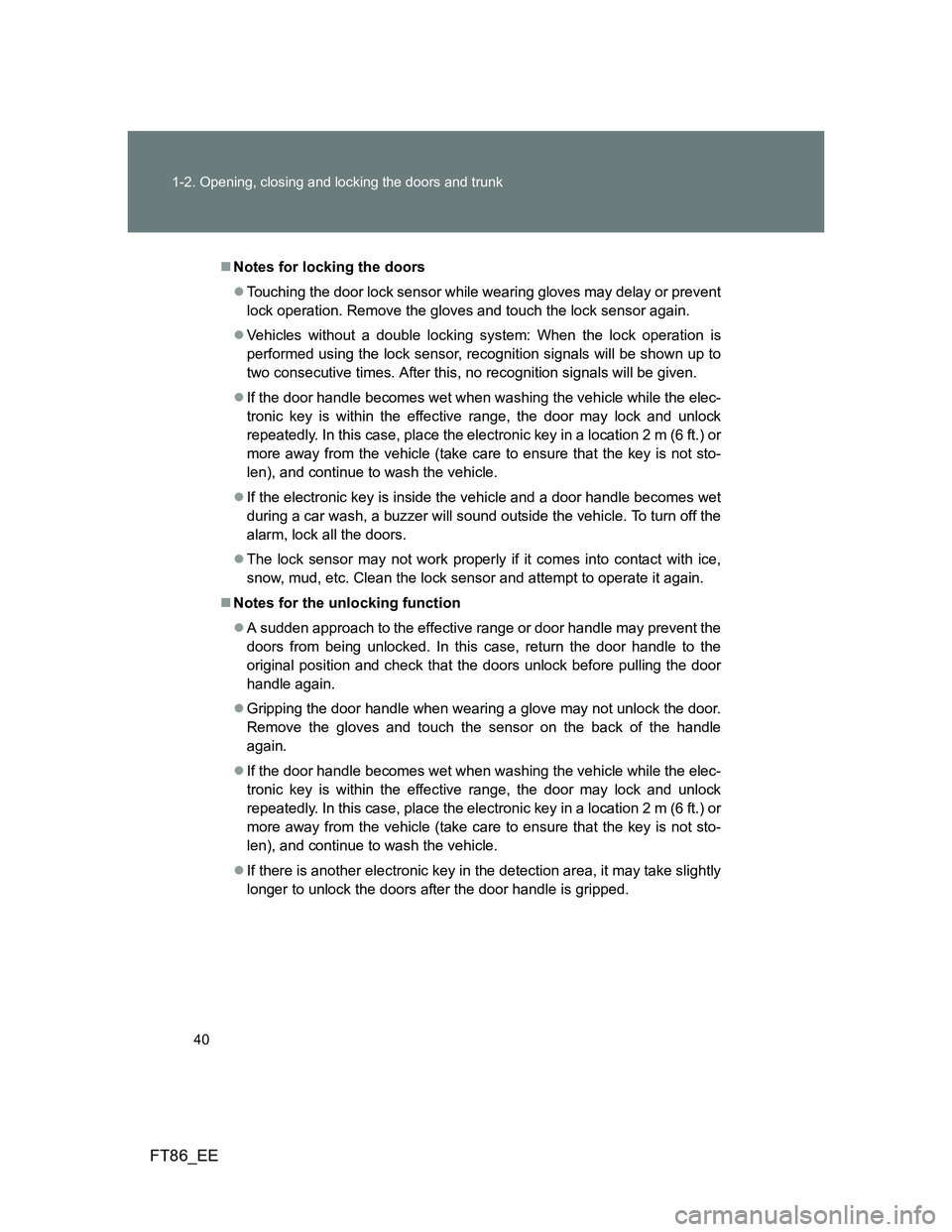

Notes for locking the doors
Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
Vehicles without a double locking system: When the lock operation is
performed using the lock sensor, recognition signals will be shown up to
two consecutive times. After this, no recognition signals will be given.
If the door handle becomes wet when washing the vehicle while the elec-
tronic key is within the effective range, the door may lock and unlock
repeatedly. In this case, place the electronic key in a location 2 m (6 ft.) or
more away from the vehicle (take care to ensure that the key is not sto-
len), and continue to wash the vehicle.
If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
The lock sensor may not work properly if it comes into contact with ice,
snow, mud, etc. Clean the lock sensor and attempt to operate it again.
Notes for the unlocking function
A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door
handle again.
Gripping the door handle when wearing a glove may not unlock the door.
Remove the gloves and touch the sensor on the back of the handle
again.
If the door handle becomes wet when washing the vehicle while the elec-
tronic key is within the effective range, the door may lock and unlock
repeatedly. In this case, place the electronic key in a location 2 m (6 ft.) or
more away from the vehicle (take care to ensure that the key is not sto-
len), and continue to wash the vehicle.
If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.

2When driving
157
FT86_EE

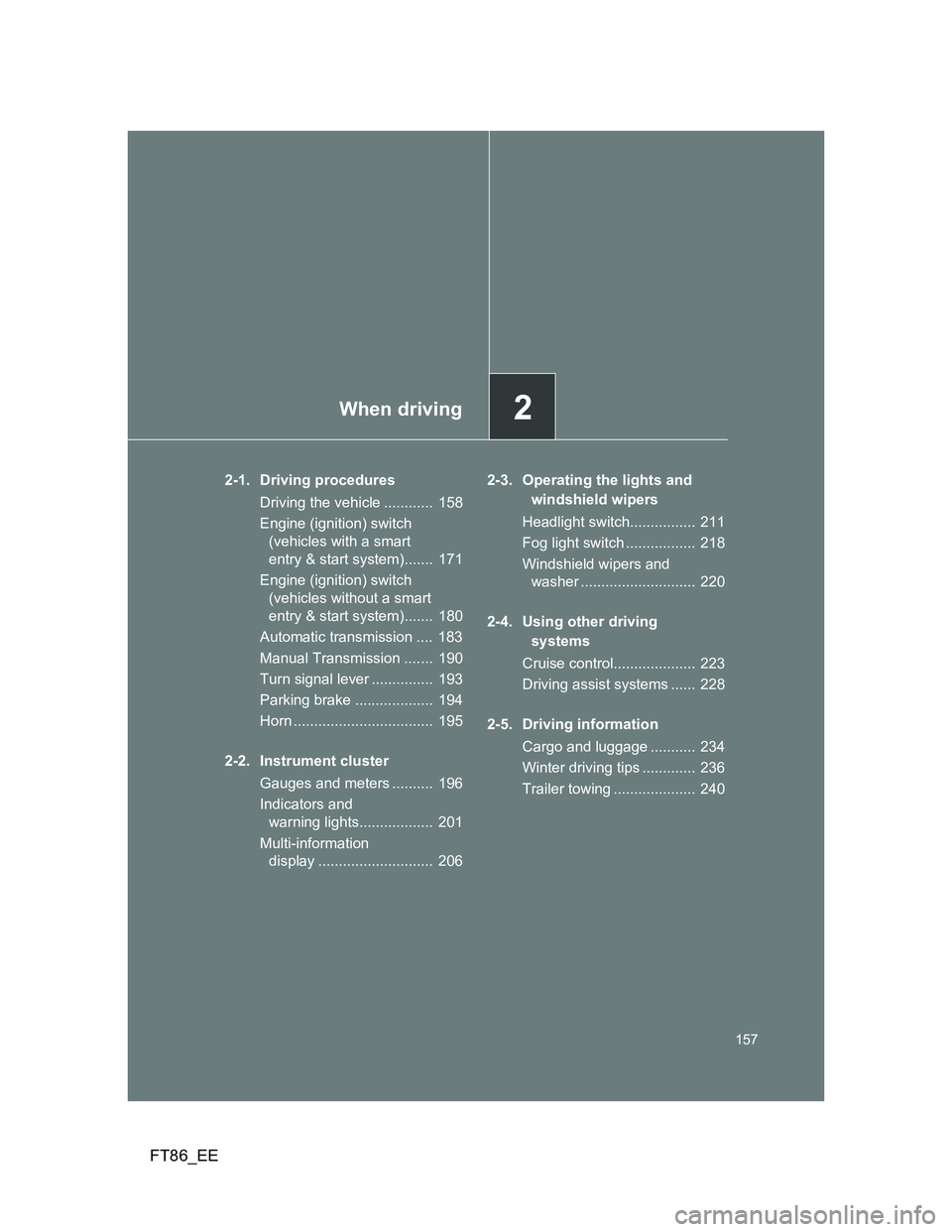

2-1. Driving procedures
Driving the vehicle ............ 158
Engine (ignition) switch
(vehicles with a smart
entry & start system)....... 171
Engine (ignition) switch
(vehicles without a smart
entry & start system)....... 180
Automatic transmission .... 183
Manual Transmission ....... 190
Turn signal lever ............... 193
Parking brake ................... 194
Horn .................................. 195
2-2. Instrument cluster
Gauges and meters .......... 196
Indicators and
warning lights.................. 201
Multi-information
display ............................ 2062-3. Operating the lights and
windshield wipers
Headlight switch................ 211
Fog light switch ................. 218
Windshield wipers and
washer ............................ 220
2-4. Using other driving
systems
Cruise control.................... 223
Driving assist systems ...... 228
2-5. Driving information
Cargo and luggage ........... 234
Winter driving tips ............. 236
Trailer towing .................... 240

193
2-1. Driving procedures
2
When driving
FT86_EE

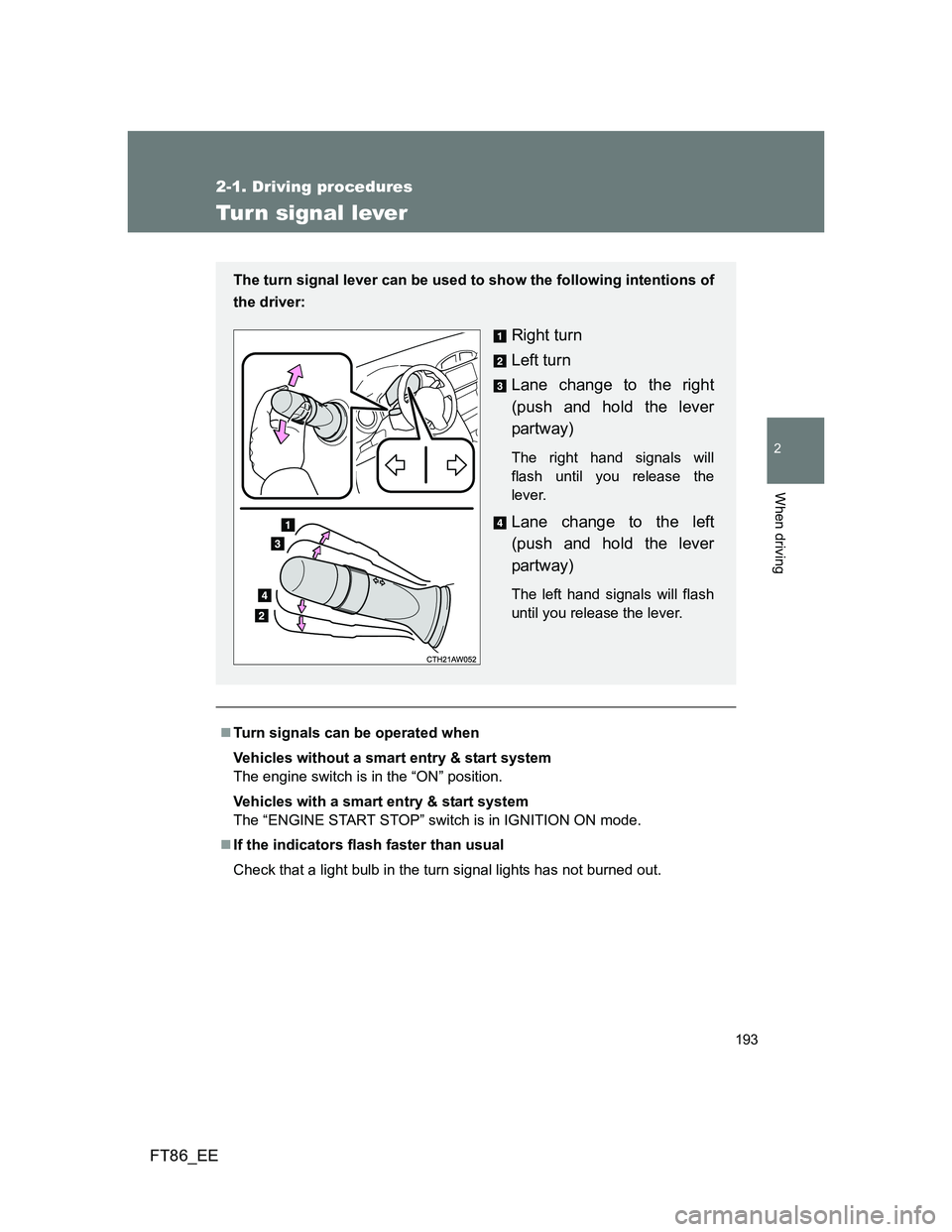

Turn signal lever
Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the turn signal lights has not burned out.
The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

202 2-2. Instrument cluster
FT86_EE

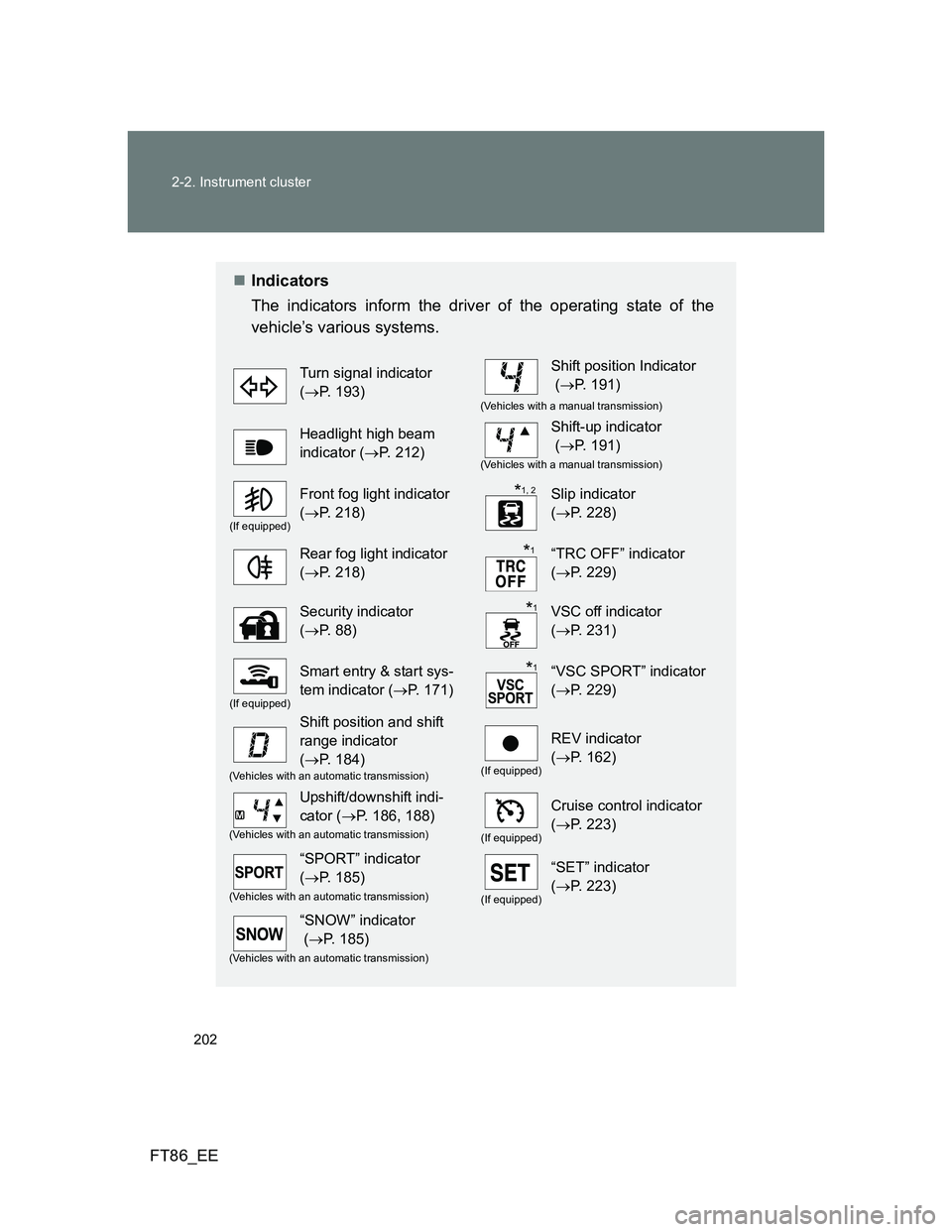

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 193)Shift position Indicator
(P. 191)
(Vehicles with a manual transmission)
Headlight high beam
indicator (P. 212)Shift-up indicator
(P. 191)
(Vehicles with a manual transmission)
(If equipped)
Front fog light indicator
(P. 218)Slip indicator
(P. 228)
Rear fog light indicator
(P. 218)“TRC OFF” indicator
(P. 229)
Security indicator
(P. 88)VSC off indicator
(P. 231)
(If equipped)
Smart entry & start sys-
tem indicator (P. 171)“VSC SPORT” indicator
(P. 229)
Shift position and shift
range indicator
(P. 184)
(If equipped)
REV indicator
(P. 162)
(Vehicles with an automatic transmission)
Upshift/downshift indi-
cator (P. 186, 188)
(If equipped)
Cruise control indicator
(P. 223)
(Vehicles with an automatic transmission)
“SPORT” indicator
(P. 185)
(If equipped)
“SET” indicator
(P. 223)
(Vehicles with an automatic transmission)
“SNOW” indicator
(P. 185)
(Vehicles with an automatic transmission)
*1, 2
*1
*1
*1

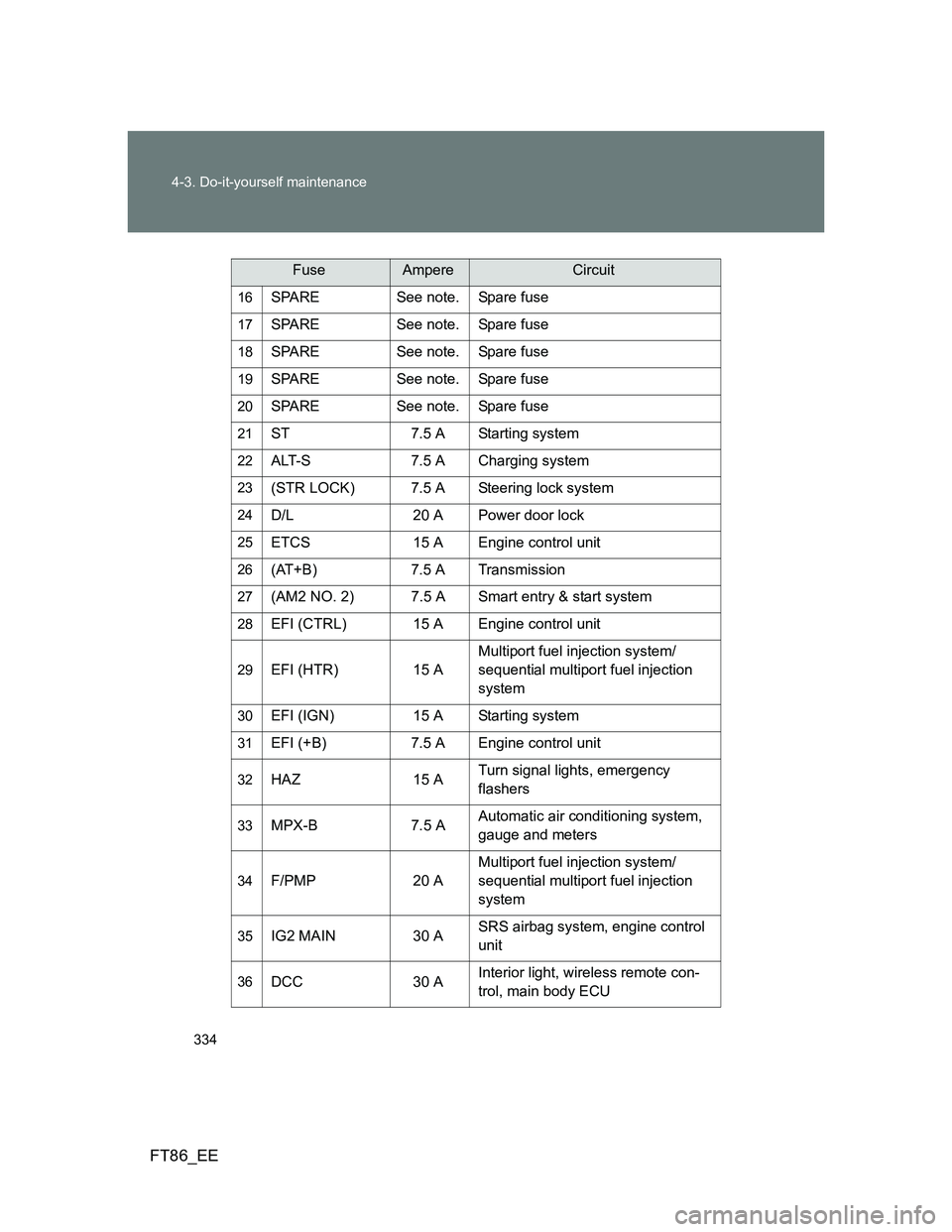

334 4-3. Do-it-yourself maintenance
