Side airbag sensor
• Center pillar right-hand side
• Center pillar left-hand side
Side airbag module
• Driver’s side
• Front passenger’s side
Curtain shield airbag sensor
• Rear wheel house right-hand side
• Rear wheel house left-hand side
Curtain shield airbag module
• Right-hand side
• Left-hand side
Satellite safing sensor (under the center of the rear seats)
Seat belt pretensioner
• Driver’s side
• Front passenger’s side
All related wiring
Door impact sensor
• Right-hand side
• Left-hand side
Front passenger’s front airbag cut off switch (passenger's side of
instrument panel)
Front passenger’s front airbag ON and OFF indicator

132 1-7. Safety information
CAUTION
SRS warning light
If the warning light exhibits any of the following conditions, there may be a
malfunction in the seat belt pretensioners and/or SRS airbag system. We
recommend that you have the system checked immediately by your nearest
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional. Unless checked and properly repaired, the seat belt
pretensioners and/or SRS airbags will operate improperly (e.g. SRS airbags
may inflate in a very minor collision or not inflate in a severe collision), which
may increase the risk of injury.
Flashing or flickering of the warning light
No illumination of the warning light when the engine switch is first turned to
the “ON” position (vehicles without a smart entry & start system), or the
“ENGINE START STOP” switch is turned to IGNITION ON mode (vehicles
with a smart entry & start system).
Continuous illumination of the warning light
Illumination of the warning light while driving

133
1
1-7. Safety information
Before driving
Child restraint systems
Points to remember
Studies have shown that installing a child restraint on a rear seat is
safer than installing one to the front passenger seat.
Choose a child restraint system appropriate to the age and size of
the child.
For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
(P. 141)
If child restraint system regulations exist in the country where you
reside, please contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for the child
restraint system installation.
Toyota recommends that you use a child restraint system which
conforms to the regulation “ECE No.44”.
Types of child restraints
Child restraint systems are classified into the following 5 groups
according to the regulation ECE No.44:
Group 0: Up to 10 kg (22 lb.) (0 - 9 months)
Group 0
+: Up to 13 kg (28 lb.) (0 - 2 years)
Group I: 9 to 18 kg (20 to 39 lb.) (9 months - 4 years)
Group II: 15 to 25 kg (34 to 55 lb.) (4 years - 7 years)
Group III: 22 to 36 kg (49 to 79 lb.) (6 years - 12 years)
In this owner's manual, the following popular 3 types of child restraint
systems that can be secured with the seat belts are explained.
Toyota strongly urges the use of child restraint systems.

134 1-7. Safety information

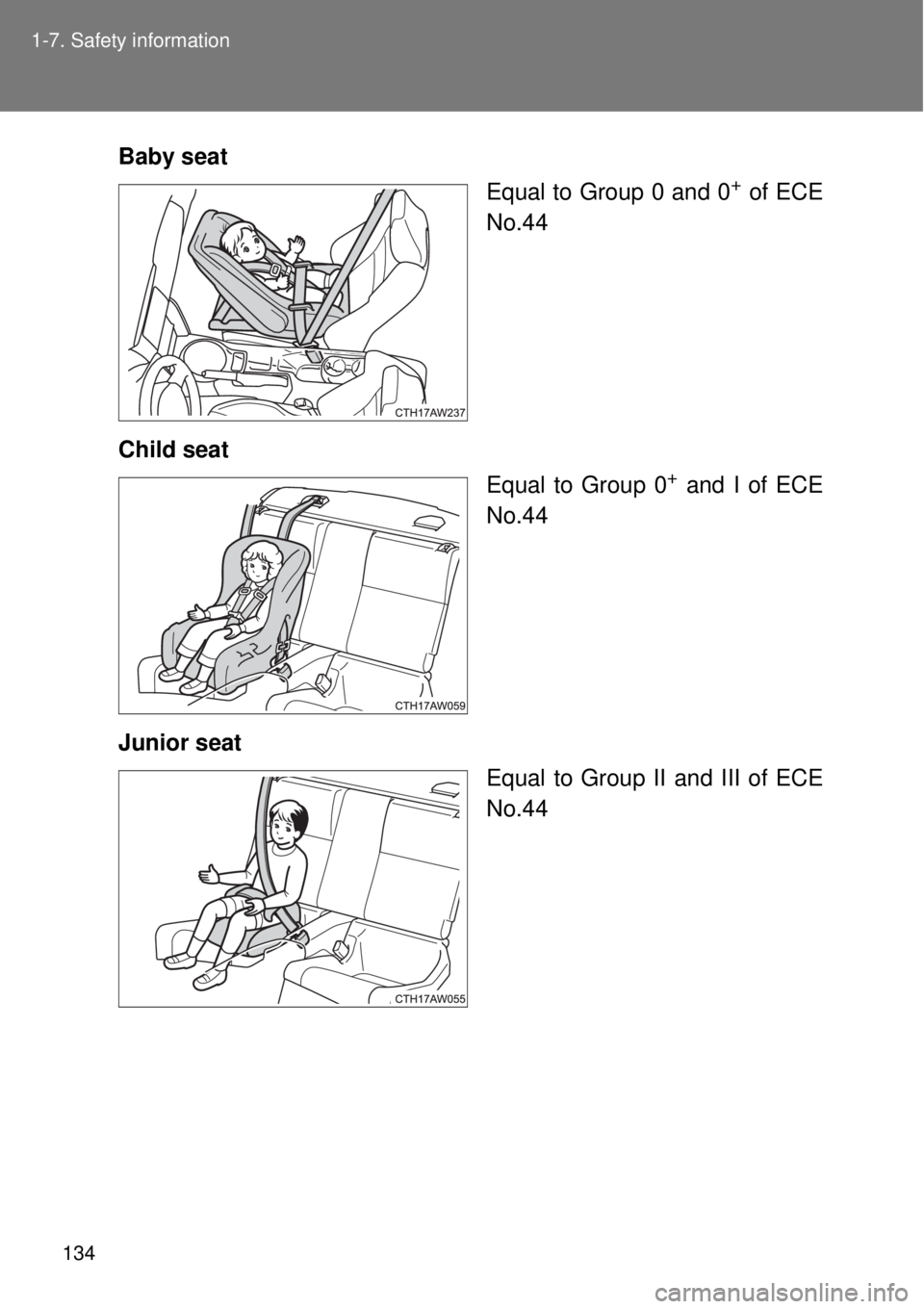

Baby seat
Equal to Group 0 and 0
+ of ECE
No.44
Child seat
Equal to Group 0
+ and I of ECE
No.44
Junior seat
Equal to Group II and III of ECE
No.44

135 1-7. Safety information
1
Before driving
Child restraint system suitability for various seating positions
Provided information in the table shows your child restraint system
suitability for various seating positions.
Front passenger seat
Rear seat Airbag manual on-off
switch
ON
OFF
0 (up to 10 kg [22 lb.])X
Never putL3, L4 X
0
+ (up to 13 kg [28 lb.])X
Never putL3, L4 X
I (9 to 18 kg [20 to 39 lb.])Rear-facing
X
Never put
L1 U
Forward-
facing
L1
II, III (15 to 36 kg [34 to 79 lb.]) L2, L5L2, L5
U, L2
Mass groupsSeating position

136 1-7. Safety information
Note
When you use child restraint system on the front passenger seat, you
must turn off the airbag manual on-off switch.
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
L1: Suitable for “TOYOTA DUO+” (9 to 18 kg [20 to 39 lb.]) approved
for the use in this mass group.
L2: Suitable for “TOYOTA KID FIX” (15 to 36 kg [34 to 79 lb.])
approved for the use in this mass group.
L3: Suitable for “TOYOTA G 0+,BABY SAFE PLUS” (up to 13 kg [28
lb.]) approved for the use in this mass group.
L4: Suitable for “TOYOTA G 0+,BABY SAFE PLUS with SEAT BELT
FIXATION, BASE PLATFORM” (up to 13 kg [28 lb.]) approved for
the use in this mass group.
L5: Suitable for “TOYOTA KID” (15 to 36 kg [34 to 79 lb.]) approved
for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

137 1-7. Safety information
1
Before driving
Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Provided information in the table shows your child restraint system
suitability for various seating positions.
Mass groupsSize
classFixtureVehicle ISOFIX positions
Rear seat
CarrycotF
ISO/L1X
G
ISO/L2X
(1) X
0 (up to 10 kg
[22 lb.])E
ISO/R1X
(1) X
0
+ (up to 13 kg
[28 lb.])E
ISO/R1X
D
ISO/R2X
C
ISO/R3X
(1) X
I (9 to 18 kg
[20 to 39 lb.])D
ISO/R2X
C
ISO/R3X
B
ISO/F2IUF
B1
ISO/F2XIUF
A
ISO/F3X
(1) X
II (15 to 25 kg
[34 to 55 lb.])(1) X
III (22 to 36 kg
[49 to 79 lb.])(1) X

138 1-7. Safety information
(1) For the CRS which do not carry the ISO/XX size class identifica-
tion (A to G), for the applicable mass group, the car manufac-
turer shall indicate the vehicle specific ISOFIX child restraint
system(s) recommended for each position.
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward child restraint systems of universal
category approved for use in this mass group.
X: ISOFIX position not suitable for ISOFIX child restraint systems
in this mass group and/or this size class.
The child restraint systems mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint systems different from the systems mentioned in
the table can be used, but the suitability of the systems must be care-
fully checked with the child restraint system manufacturer and
retailer.

139 1-7. Safety information
1
Before driving
When installing the child restraint system on the front passenger seat
When you have to use a child restraint system on the front passenger seat,
adjust the following:
Selecting an appropriate child restraint system
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
If a child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle's seat belt. (P. 71)
CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle's interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.

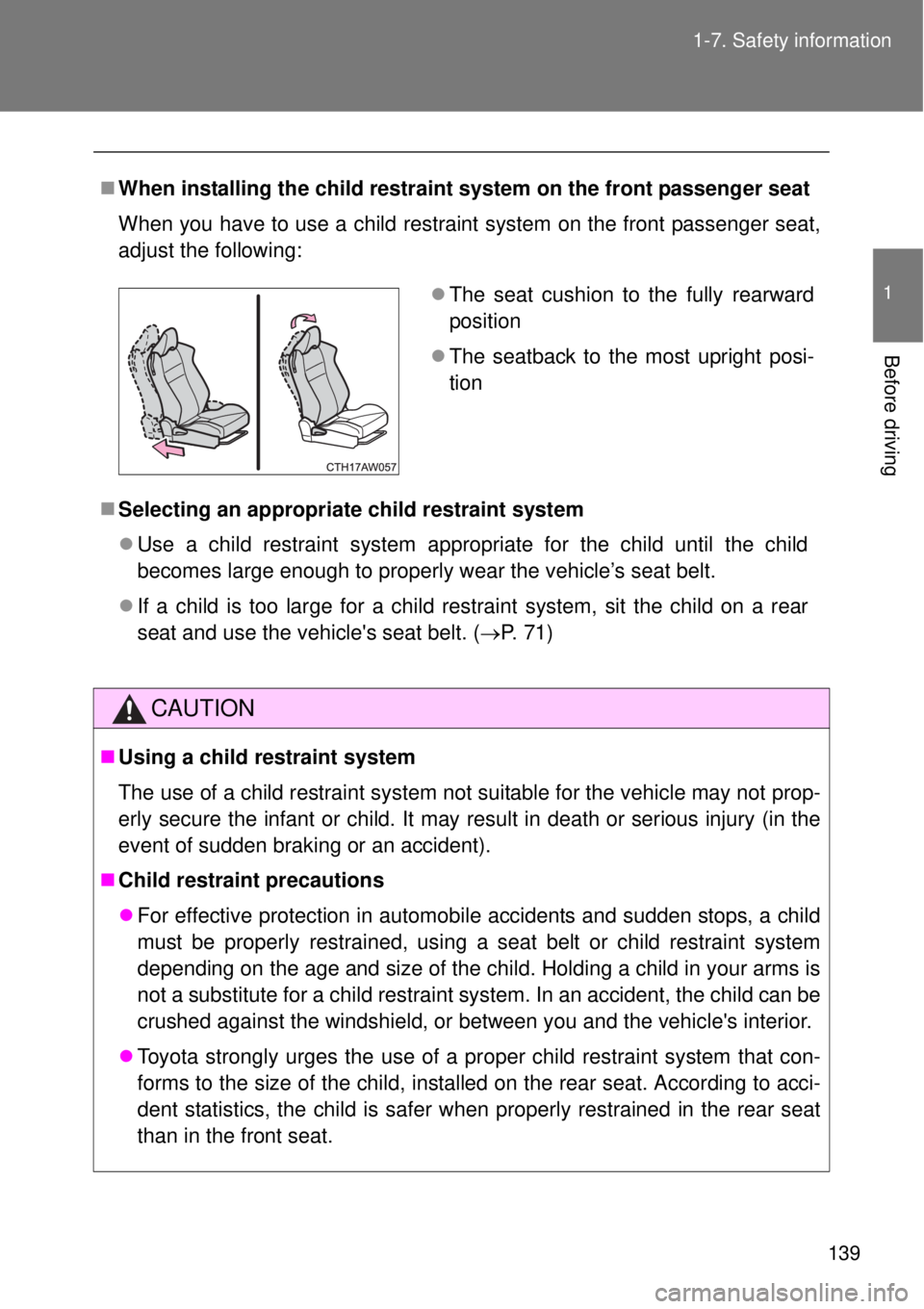

The seat cushion to the fully rearward
position
The seatback to the most upright posi-
tion

140 1-7. Safety information
CAUTION
Child restraint precautions
Never use a rear-facing child restraint system on the front passenger seat
when the airbag manual on-off switch is on. (P. 151)
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child.
A forward-facing child restraint system should be allowed to be installed
on the front passenger seat only when it is unavoidable. Always move the
seat as far back as possible, because the front passenger airbag could
inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front and rear pillars or roof side
rails from which the SRS side airbags or SRS curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the SRS side airbags and curtain shield airbags inflate, and the impact
could cause death or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the trunk. This will prevent it from injuring
passengers in the event of a sudden stop, sudden swerve or an accident.
