TOYOTA GT86 2014 Owners Manual

191
2-1. Driving procedures
2
When driving
Turn signal lever
Turn signals can be operated when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the turn signal lights has not burned out.
The turn signal lever can be used to show the following intentions of
the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

192
2-1. Driving procedures
Parking brake
Usage in winter time
P. 233
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake, fully pull the parking brake lever while
depressing the brake pedal.
To release the parking brake, slightly raise the lever and lower it
completely while pressing the button.

193
2-1. Driving procedures
2
When driving
Horn
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 78)
To sound the horn, press on or
close to the mark.

194
2-2. Instrument cluster
Gauges and meters
The illustration below is for left-hand drive vehicles.
The switch positions may differ slightly for right-hand drive vehi-
cles.
Analog Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Digital Speedometer (if equipped)
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.

195 2-2. Instrument cluster
2
When driving
Odometer, trip meter and multi-information display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Multi-information display: Presents the driver with a variety of driving-
related data. (P. 203)
“DISP” switch
P. 204
“ODO/TRIP” switch
P. 196
“km/h MPH” switch (if equipped)
Each time the switch is pressed, the display inside the meter changes
between km/h and MPH.

196 2-2. Instrument cluster
Switch the display
Each time the “ODO/TRIP” switch is pressed, the display changes as
follows.
Odometer
Trip meter A
*
Trip meter B*
*: Pressing and holding the “ODO/TRIP” switch will reset the trip meter that
is currently displayed.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker

197 2-2. Instrument cluster
2
When driving
The brightness of the instrument panel lights
When the front position lights or the headlights turn on, the instrument panel
lights will dim. However, when the instrument panel brightness control dial is
turned to the up most position, the instrument panel lights will not dim even
when the front position lights or headlights turn on.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and
check the engine after it has cooled completely. (
P. 423)

198
2-2. Instrument cluster

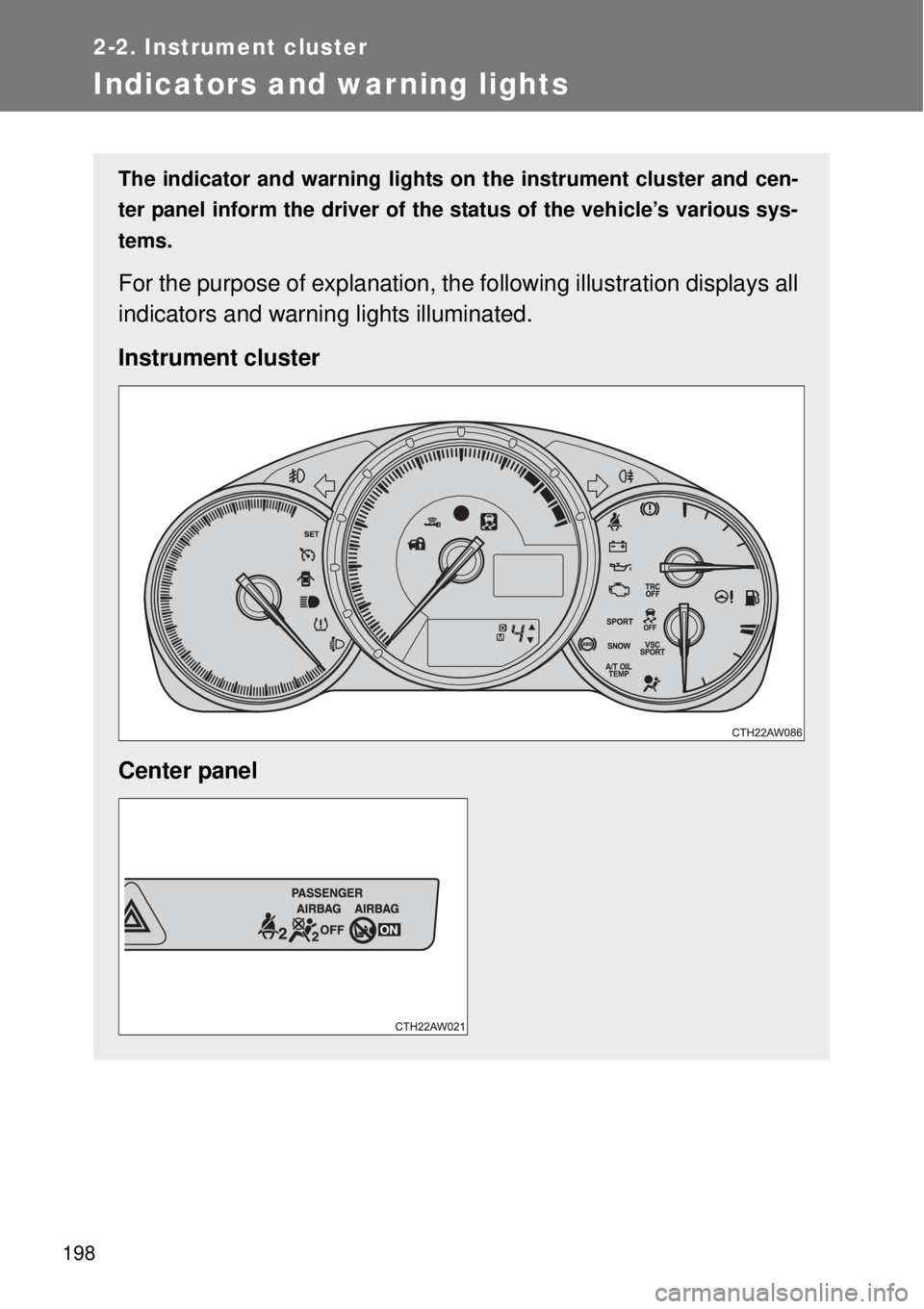

Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
For the purpose of explanation, the following illustration displays all
indicators and warning lights illuminated.
Instrument cluster
Center panel

199 2-2. Instrument cluster
2
When driving

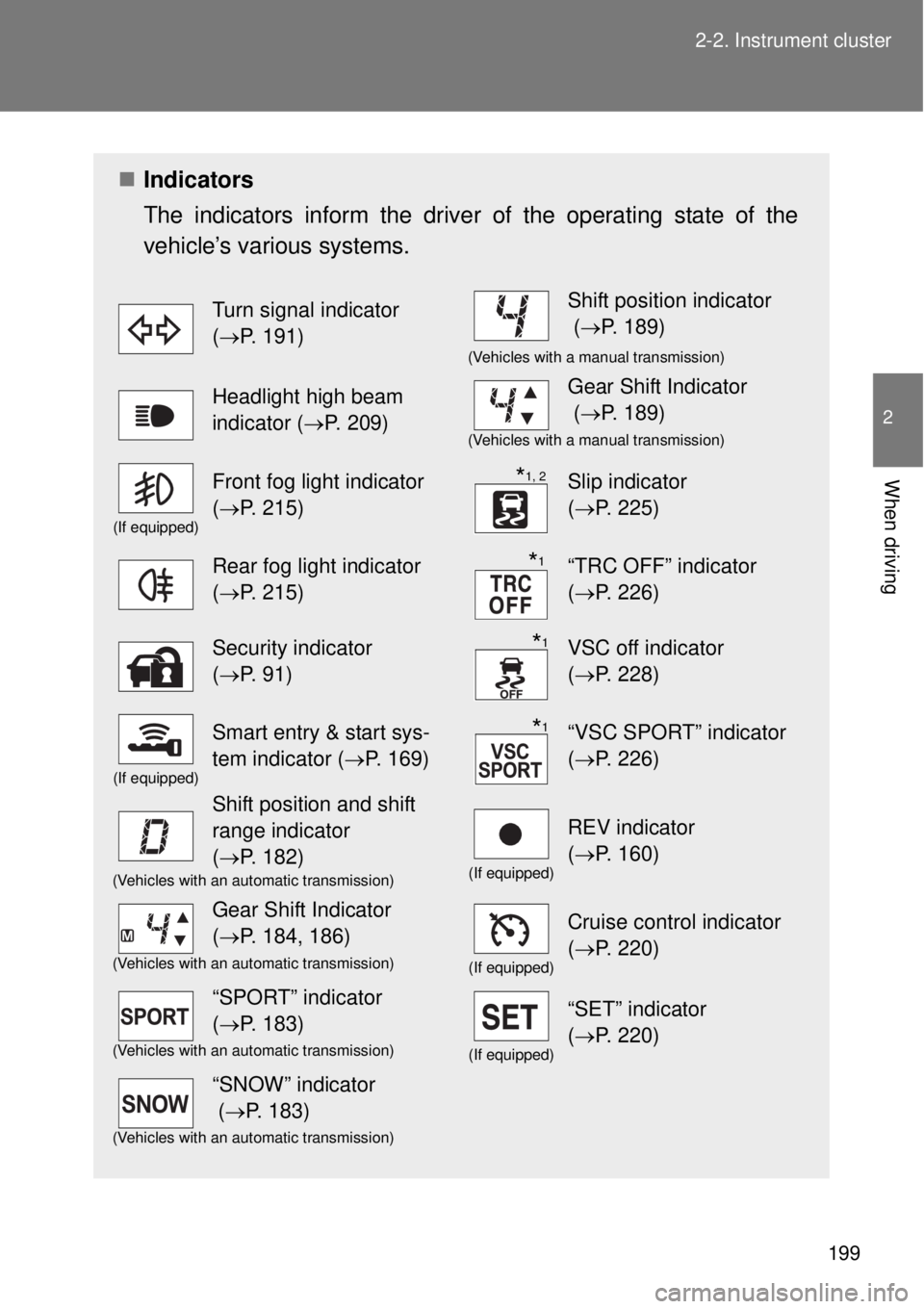

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 191)Shift position indicator
(P. 189)
(Vehicles with a manual transmission)
Headlight high beam
indicator (P. 209)Gear Shift Indicator
(P. 189)
(Vehicles with a manual transmission)
(If equipped)
Front fog light indicator
(P. 215)Slip indicator
(P. 225)
Rear fog light indicator
(P. 215)“TRC OFF” indicator
(P. 226)
Security indicator
(P. 91)VSC off indicator
(P. 228)
(If equipped)
Smart entry & start sys-
tem indicator (P. 169)“VSC SPORT” indicator
(P. 226)
Shift position and shift
range indicator
(P. 182)
(If equipped)
REV indicator
(P. 160)
(Vehicles with an automatic transmission)
Gear Shift Indicator
(P. 184, 186)
(If equipped)
Cruise control indicator
(P. 220)
(Vehicles with an automatic transmission)
“SPORT” indicator
(P. 183)
(If equipped)
“SET” indicator
(P. 220)
(Vehicles with an automatic transmission)
“SNOW” indicator
(P. 183)
(Vehicles with an automatic transmission)
*1, 2
*1
*1
*1

200 2-2. Instrument cluster
*1:Vehicles without a smart entry & start system
These lights turn on when the engine switch is turned to the “ON”
position to indicate that a system check is being performed. They
will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
Vehicles with a smart entry & start system
These lights turn on when the “ENGINE START STOP” switch is
turned to IGNITION ON mode to indicate that a system check is
being performed. They will turn off after the engine is started, or
after a few seconds. There may be a malfunction in a system if a
light does not come on, or if the lights do not turn off. Have the vehi-
cle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional for details.
*2: The light flashes to indicate that the system is operating.

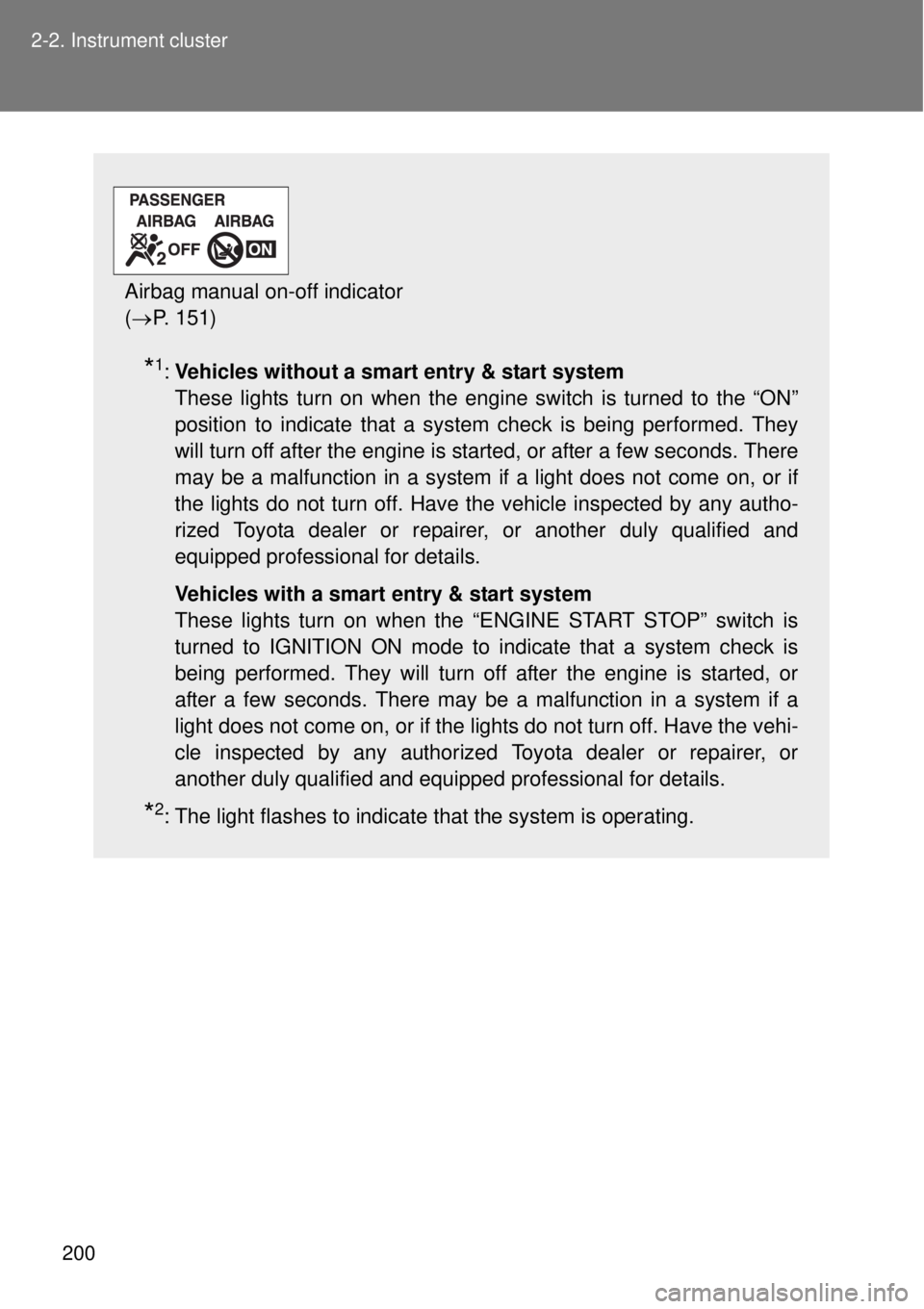

Airbag manual on-off indicator
(P. 151)
