TOYOTA HIGHLANDER 2001 Service Repair Manual

E72975

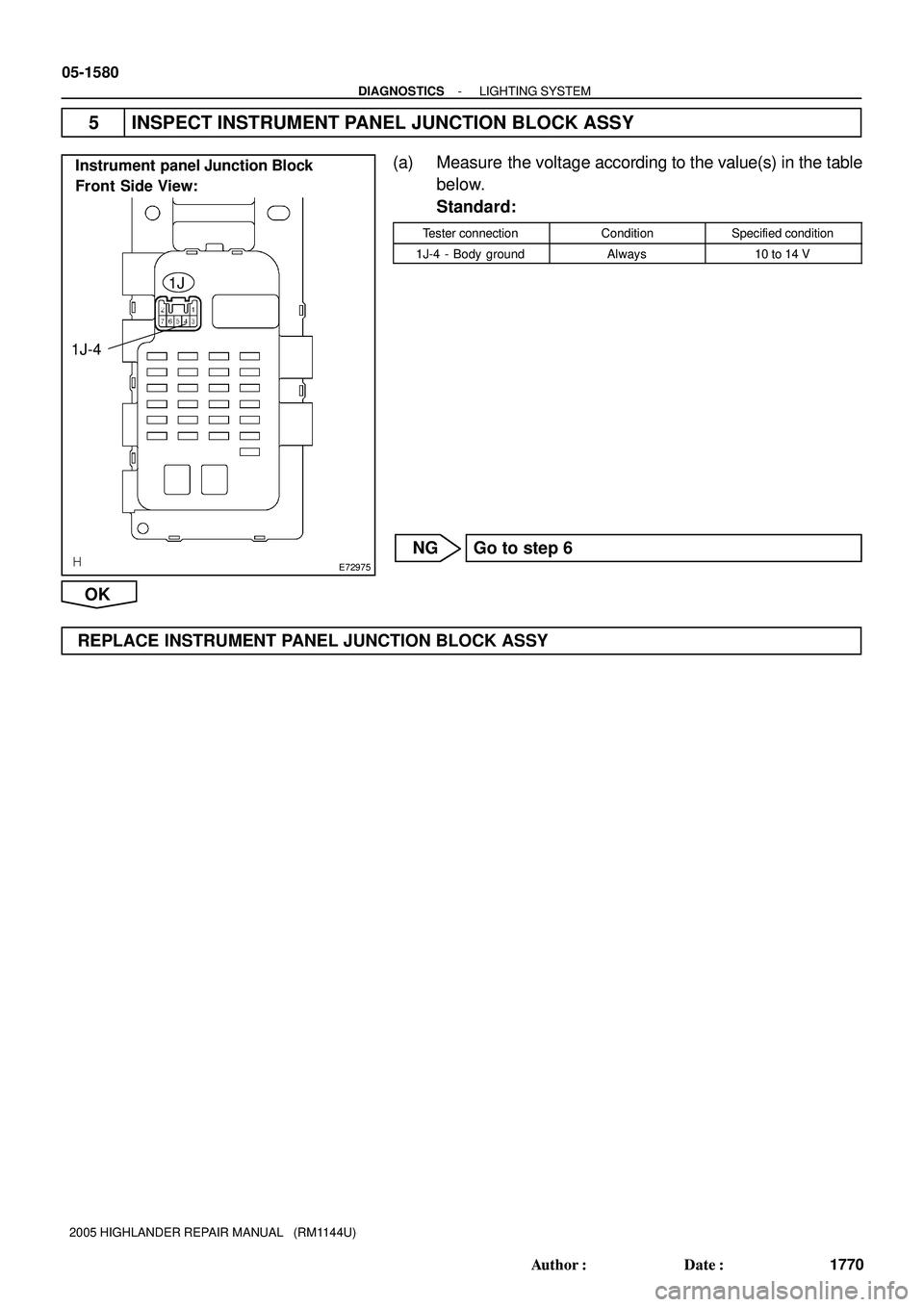

Instrument panel Junction Block
Front Side View:
1J
1J-4
05-1580
- DIAGNOSTICSLIGHTING SYSTEM
1770 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
5 INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSY
(a) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
1J-4 - Body groundAlways10 to 14 V
NG Go to step 6
OK
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY

E72976
Instrument Panel Junction Block
Back Side View:
1A
1A-1
- DIAGNOSTICSLIGHTING SYSTEM
05-1581
1771 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

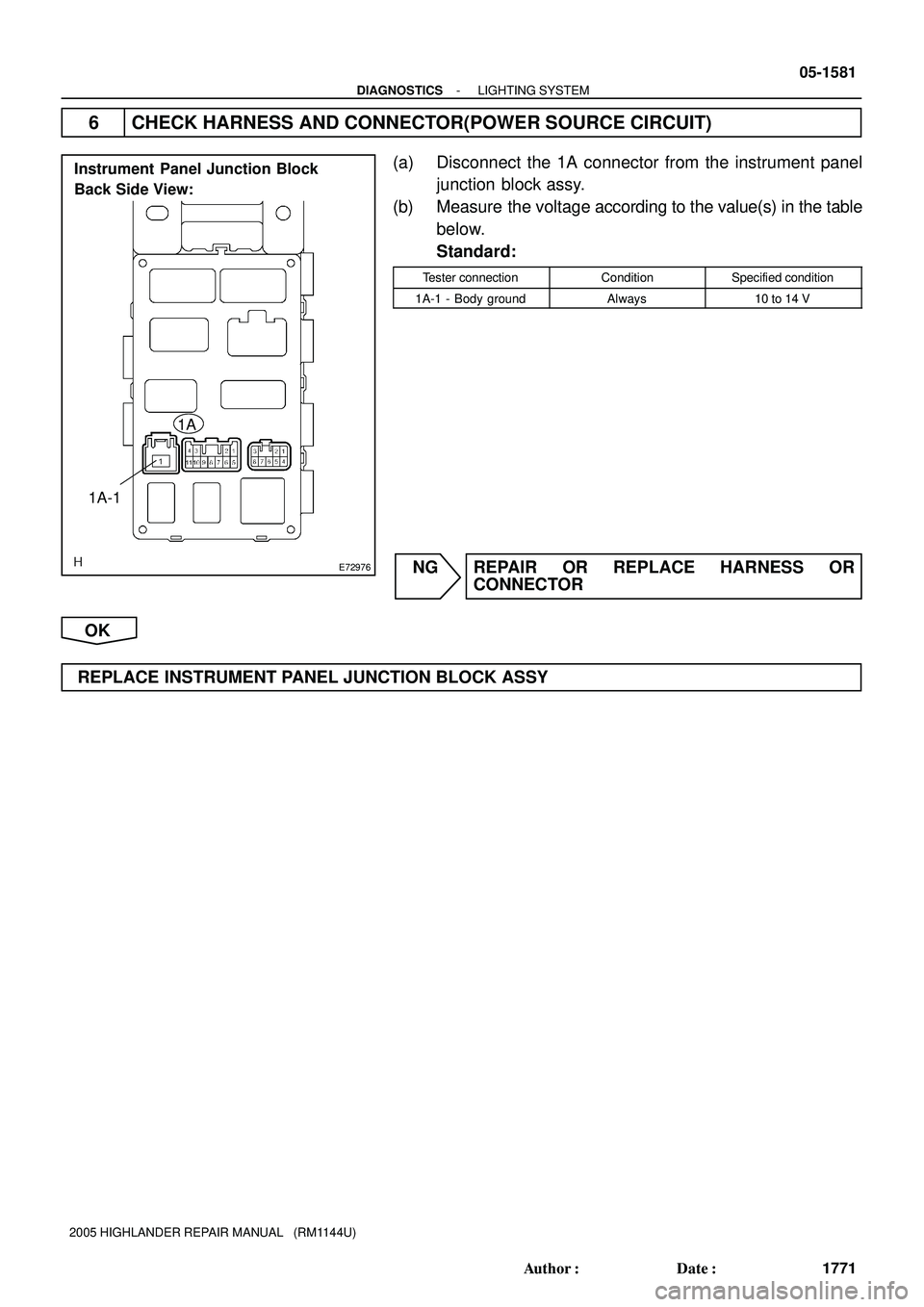

6 CHECK HARNESS AND CONNECTOR(POWER SOURCE CIRCUIT)
(a) Disconnect the 1A connector from the instrument panel
junction block assy.
(b) Measure the voltage according to the value(s) in the table
below.
Standard:
Tester connectionConditionSpecified condition
1A-1 - Body groundAlways10 to 14 V
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSY

05IQ2-01
SettingLIGHT2 LIGHT1 NORMAL DARK2
DARK1
Lighting brightnessDark Bright
OLD
CURRENTBrightness of the sur-
rounding when lightingLighting delayDelay of turn-
ing light off**2
Old logic
New logic **1
('97/8-)6 sec.
15 sec.6 sec.
15 sec.3 sec.
15 sec.
**1: The new one has the logic to light up two times brighter than the old logic.
**2: Delay time until the headlamp is turned on when it suddenly gets dark.
- DIAGNOSTICSLIGHTING SYSTEM
05-1537
1727 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

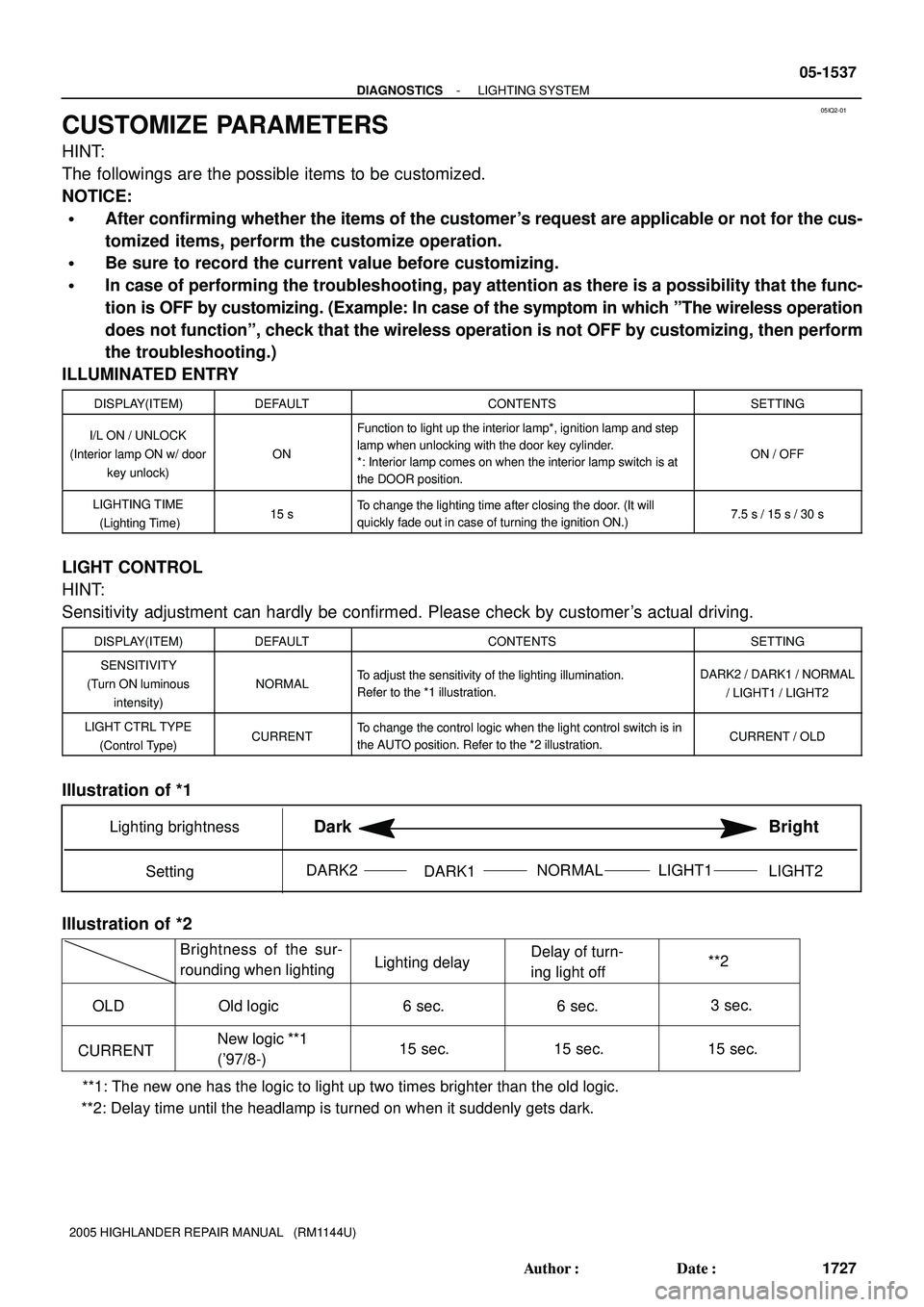

CUSTOMIZE PARAMETERS
HINT:
The followings are the possible items to be customized.
NOTICE:

After confirming whether the items of the customer's request are applicable or not for the cus-
tomized items, perform the customize operation.

Be sure to record the current value before customizing.

In case of performing the troubleshooting, pay attention as there is a possibility that the func-
tion is OFF by customizing. (Example: In case of the symptom in which ºThe wireless operation
does not functionº, check that the wireless operation is not OFF by customizing, then perform
the troubleshooting.)
ILLUMINATED ENTRY
DISPLAY(ITEM)DEFAULTCONTENTSSETTING
I/L ON / UNLOCK
(Interior lamp ON w/ door
key unlock)
ON
Function to light up the interior lamp*, ignition lamp and step
lamp when unlocking with the door key cylinder.
*: Interior lamp comes on when the interior lamp switch is at
the DOOR position.
ON / OFF
LIGHTING TIME
(Lighting Time)15 sTo change the lighting time after closing the door. (It will
quickly fade out in case of turning the ignition ON.)7.5 s / 15 s / 30 s
LIGHT CONTROL
HINT:
Sensitivity adjustment can hardly be confirmed. Please check by customer's actual driving.
DISPLAY(ITEM)DEFAULTCONTENTSSETTING
SENSITIVITY
(Turn ON luminous
intensity)
NORMALTo adjust the sensitivity of the lighting illumination.
Refer to the *1 illustration.DARK2 / DARK1 / NORMAL
/ LIGHT1 / LIGHT2
LIGHT CTRL TYPE
(Control Type)CURRENTTo change the control logic when the light control switch is in
the AUTO position. Refer to the *2 illustration.CURRENT / OLD
Illustration of *1
Illustration of *2

05IRZ-02
I38215
I38216
I38217
05-1760
- DIAGNOSTICSNAVIGATION SYSTEM
1950 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

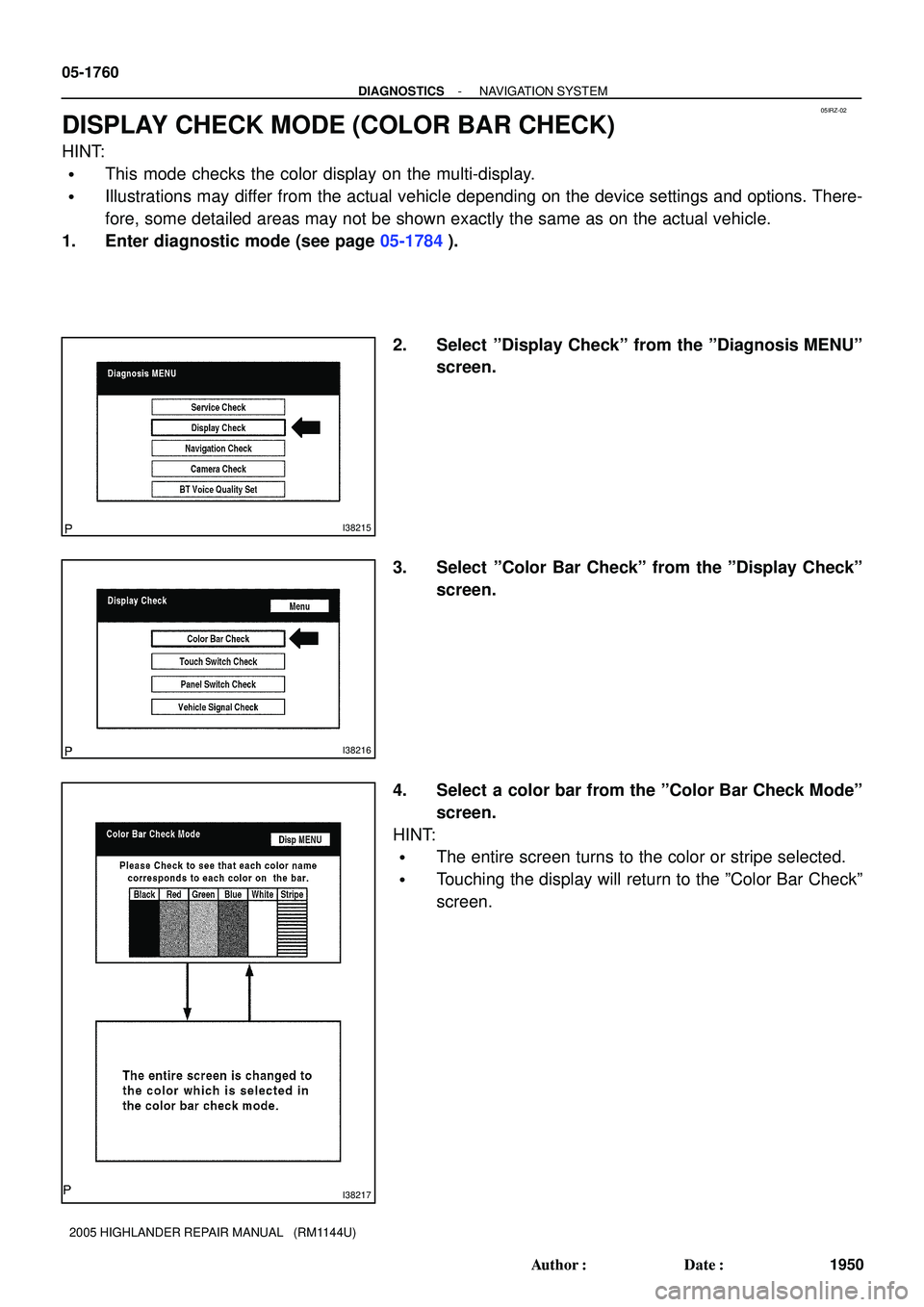

DISPLAY CHECK MODE (COLOR BAR CHECK)
HINT:

This mode checks the color display on the multi-display.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºDisplay Checkº from the ºDiagnosis MENUº
screen.
3. Select ºColor Bar Checkº from the ºDisplay Checkº
screen.
4. Select a color bar from the ºColor Bar Check Modeº
screen.
HINT:

The entire screen turns to the color or stripe selected.

Touching the display will return to the ºColor Bar Checkº
screen.

05IS1-02
I38215
I38220
I38221
*1
*2 *3
05-1762
- DIAGNOSTICSNAVIGATION SYSTEM
1952 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

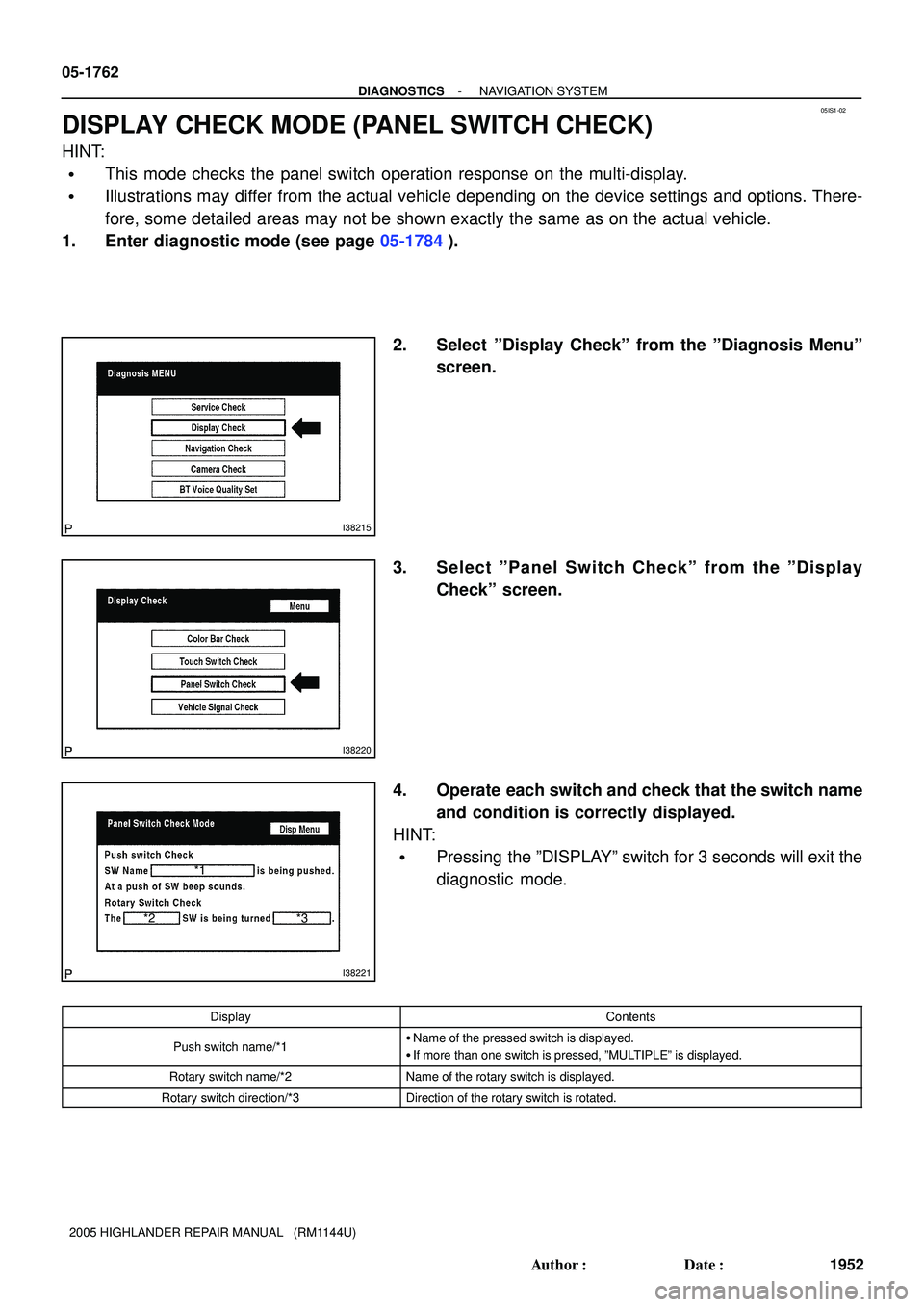

DISPLAY CHECK MODE (PANEL SWITCH CHECK)
HINT:

This mode checks the panel switch operation response on the multi-display.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºDisplay Checkº from the ºDiagnosis Menuº
screen.
3. Select ºPanel Switch Checkº from the ºDisplay
Checkº screen.
4. Operate each switch and check that the switch name
and condition is correctly displayed.
HINT:

Pressing the ºDISPLAYº switch for 3 seconds will exit the
diagnostic mode.
DisplayContents
Push switch name/*1
Name of the pressed switch is displayed.

If more than one switch is pressed, ºMULTIPLEº is displayed.
Rotary switch name/*2Name of the rotary switch is displayed.
Rotary switch direction/*3Direction of the rotary switch is rotated.

05IS0-02
I38215
I38218
I38219
- DIAGNOSTICSNAVIGATION SYSTEM
05-1761
1951 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

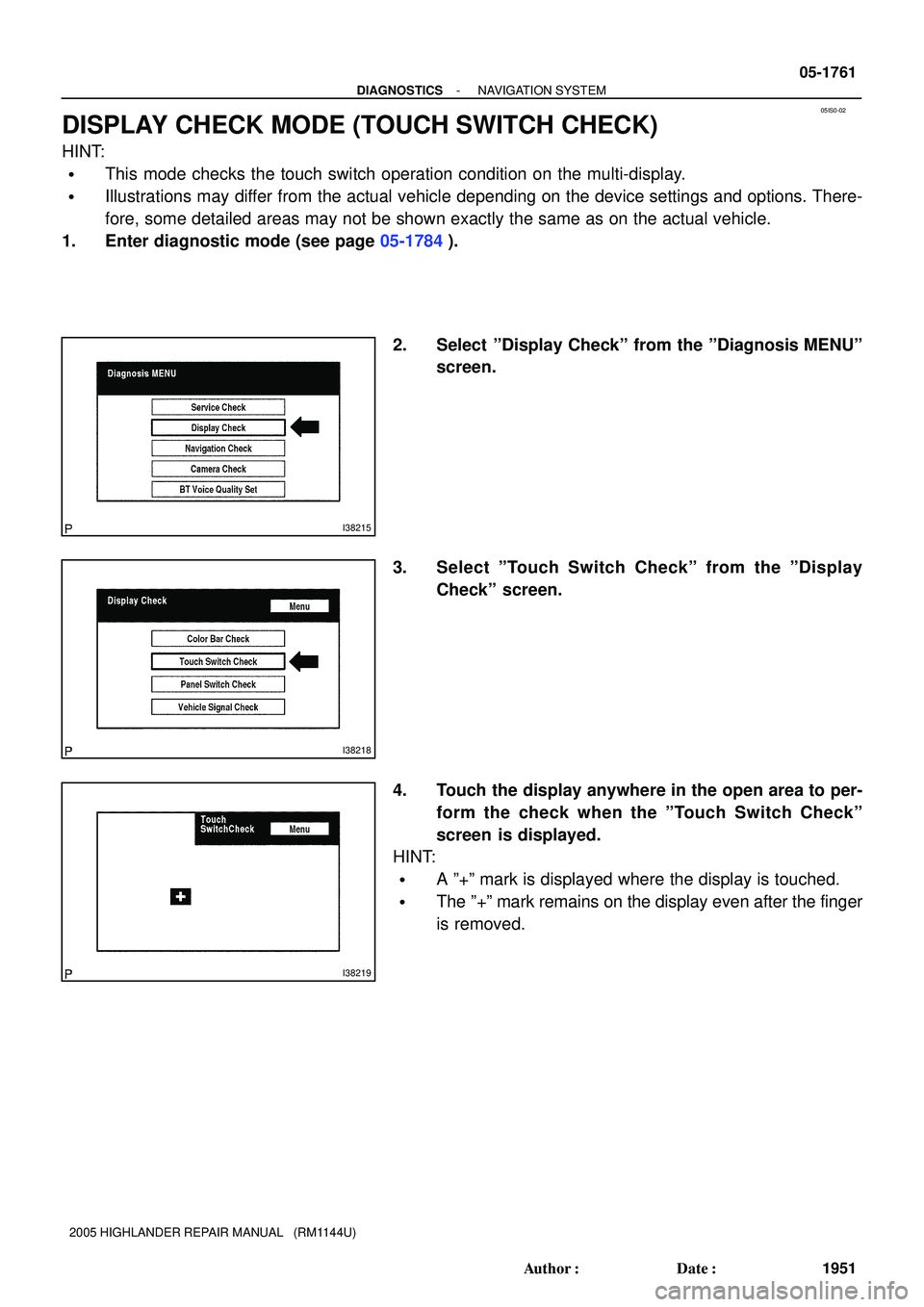

DISPLAY CHECK MODE (TOUCH SWITCH CHECK)
HINT:

This mode checks the touch switch operation condition on the multi-display.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºDisplay Checkº from the ºDiagnosis MENUº
screen.
3. Select ºTouch Switch Checkº from the ºDisplay
Checkº screen.
4. Touch the display anywhere in the open area to per-
form the check when the ºTouch Switch Checkº
screen is displayed.
HINT:

A º+º mark is displayed where the display is touched.

The º+º mark remains on the display even after the finger
is removed.

05IS2-02
I38215
I38222
I38223
- DIAGNOSTICSNAVIGATION SYSTEM
05-1763
1953 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

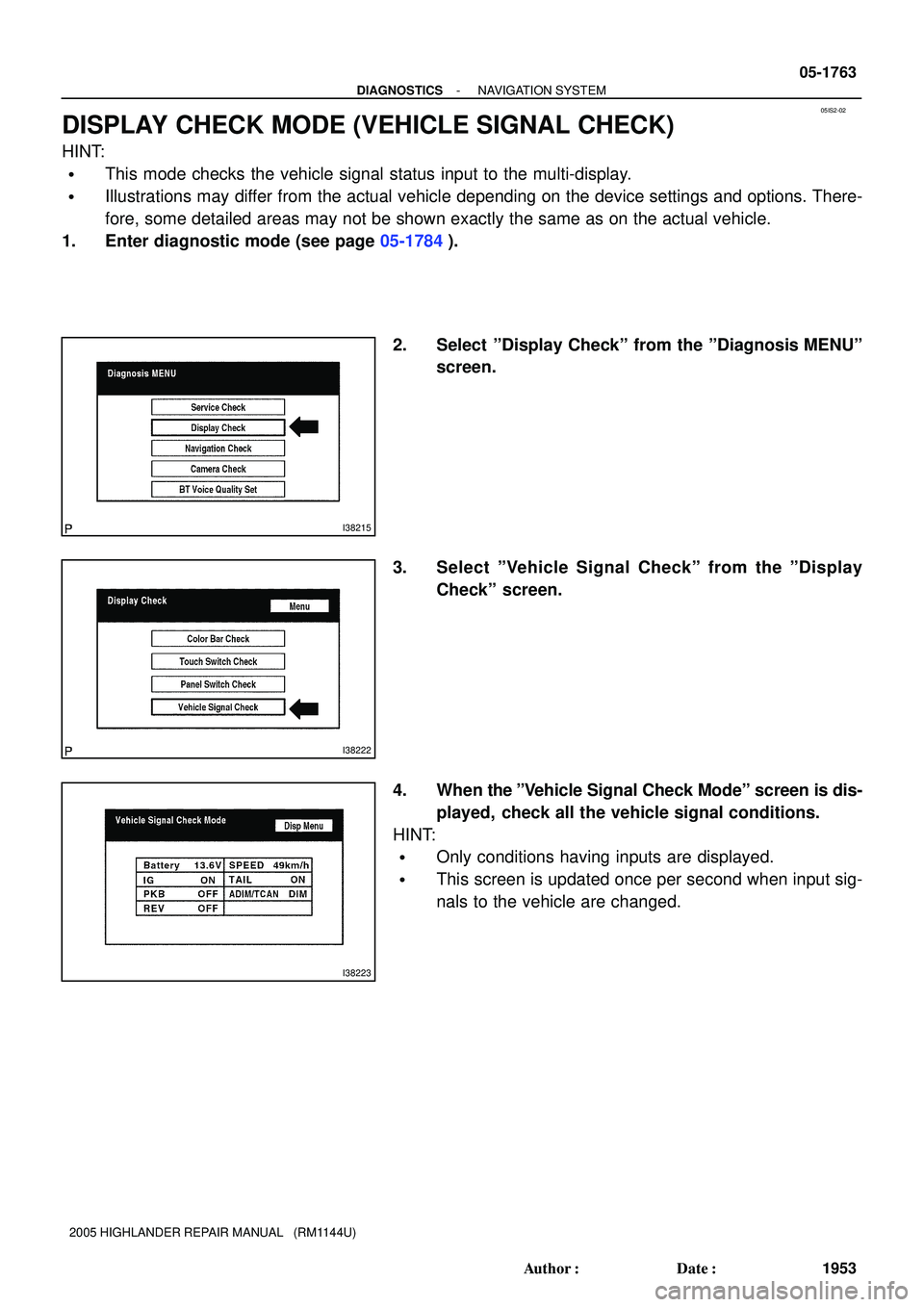

DISPLAY CHECK MODE (VEHICLE SIGNAL CHECK)
HINT:

This mode checks the vehicle signal status input to the multi-display.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. Enter diagnostic mode (see page 05-1784).
2. Select ºDisplay Checkº from the ºDiagnosis MENUº
screen.
3. Select ºVehicle Signal Checkº from the ºDisplay
Checkº screen.
4. When the ºVehicle Signal Check Modeº screen is dis-
played, check all the vehicle signal conditions.
HINT:

Only conditions having inputs are displayed.

This screen is updated once per second when input sig-
nals to the vehicle are changed.

05ESI-05
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-1
191 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
SFI SYSTEM (2AZ-FE)
DEFINITION OF TERMS
TermDefinition
Monitor descriptionDescription of what the ECM monitors and how it detects malfunctions (monitoring purpose and its details).
Related DTCsA group of diagnostic trouble codes that are output by the ECM based on the same malfunction detection logic.
Typical enabling condition
Preconditions that allow the ECM to detect malfunctions.
With all preconditions satisfied, the ECM sets the DTC when the monitored value(s) exceeds the malfunction
threshold(s).
Sequence of operation
The priority order that is applied to monitoring, if multiple sensors and components are used to detect the malfunc-
tion.
When a sensor is being monitored, the next sensor or component will not be monitored until the current sensor
monitoring is finished.
Required sensor/compo-
nentsThe sensors and components that are used by the ECM to detect malfunctions.
Frequency of operation
The number of times that the ECM checks for malfunctions per driving cycle.
ºOnce per driving cycleº means that the ECM detects the malfunction only one time during a single driving cycle.
ºContinuousº means that the ECM detects the malfunction every time an enabling condition is met.
DurationThe minimum time that the ECM must sense a continuous deviation in the monitored value(s) before setting a
DTC. This timing begins after the ºtypical enabling conditionsº are met.
Malfunction thresholdsBeyond this value, the ECM will conclude that there is a malfunction and set a DTC.
MIL operation
MIL illumination timing after a defect is detected.
ºImmediateº means that the ECM illuminates the MIL the instant the ECM determines that there is a malfunction.
º2 driving cyclesº means that the ECM illuminates the MIL if the same malfunction is detected again in the 2nd
driving cycle.

05IS7-02
I38587*1
*2*1
*2*3
*4
05-1768
- DIAGNOSTICSNAVIGATION SYSTEM
1958 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

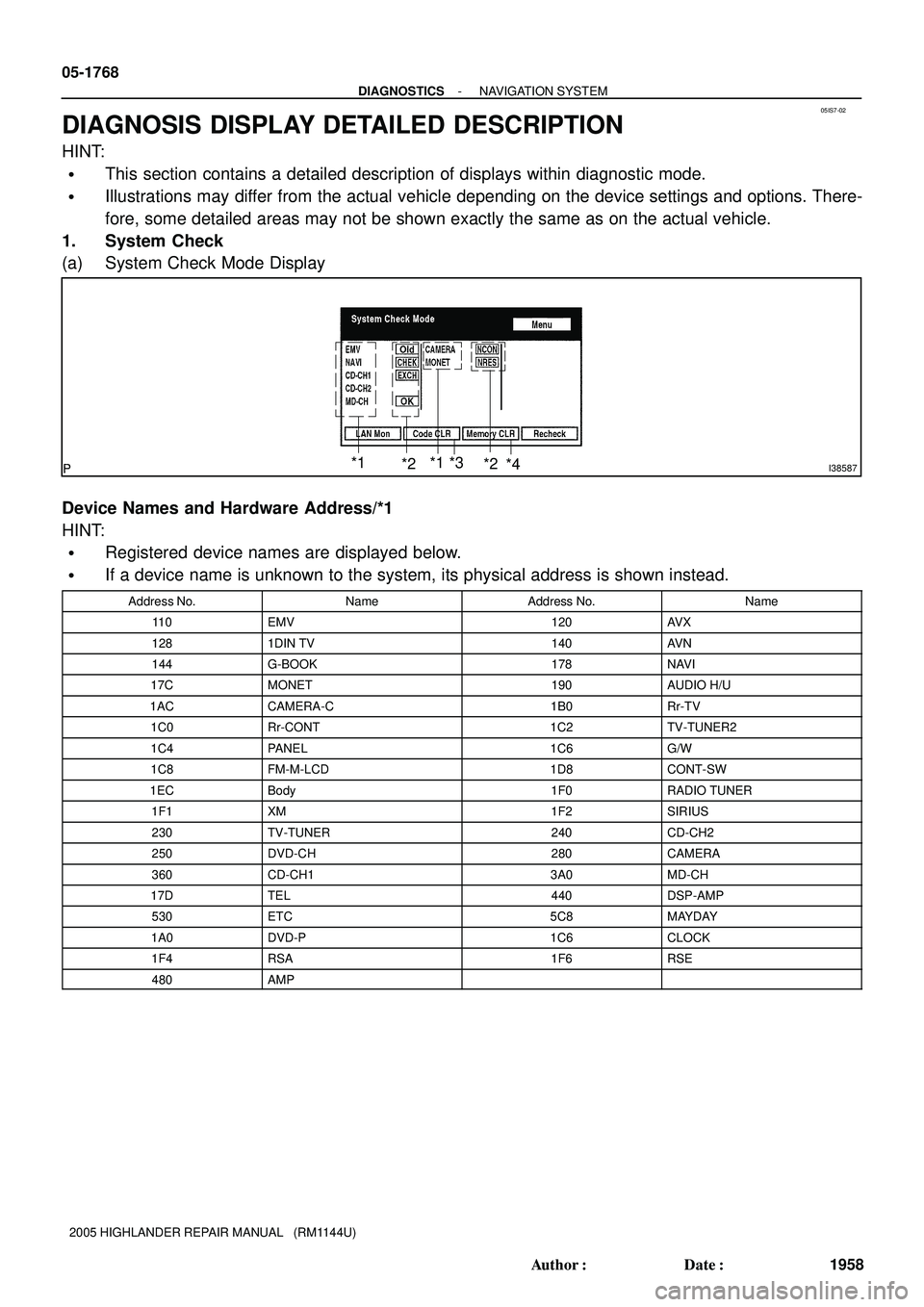

DIAGNOSIS DISPLAY DETAILED DESCRIPTION
HINT:

This section contains a detailed description of displays within diagnostic mode.

Illustrations may differ from the actual vehicle depending on the device settings and options. There-
fore, some detailed areas may not be shown exactly the same as on the actual vehicle.
1. System Check
(a) System Check Mode Display
Device Names and Hardware Address/*1
HINT:

Registered device names are displayed below.

If a device name is unknown to the system, its physical address is shown instead.
Address No.NameAddress No.Name
11 0EMV120AV X
1281DIN TV140AV N
144G-BOOK178NAVI
17CMONET190AUDIO H/U
1ACCAMERA-C1B0Rr-TV
1C0Rr-CONT1C2TV-TUNER2
1C4PANEL1C6G/W
1C8FM-M-LCD1D8CONT-SW
1ECBody1F0RADIO TUNER
1F1XM1F2SIRIUS
230TV-TUNER240CD-CH2
250DVD-CH280CAMERA
360CD-CH13A0MD-CH
17DTEL440DSP-AMP
530ETC5C8MAYDAY
1A0DVD-P1C6CLOCK
1F4RSA1F6RSE
480AMP

I38666
- DIAGNOSTICSNAVIGATION SYSTEM
05-1769
1959 Author
: Date
:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

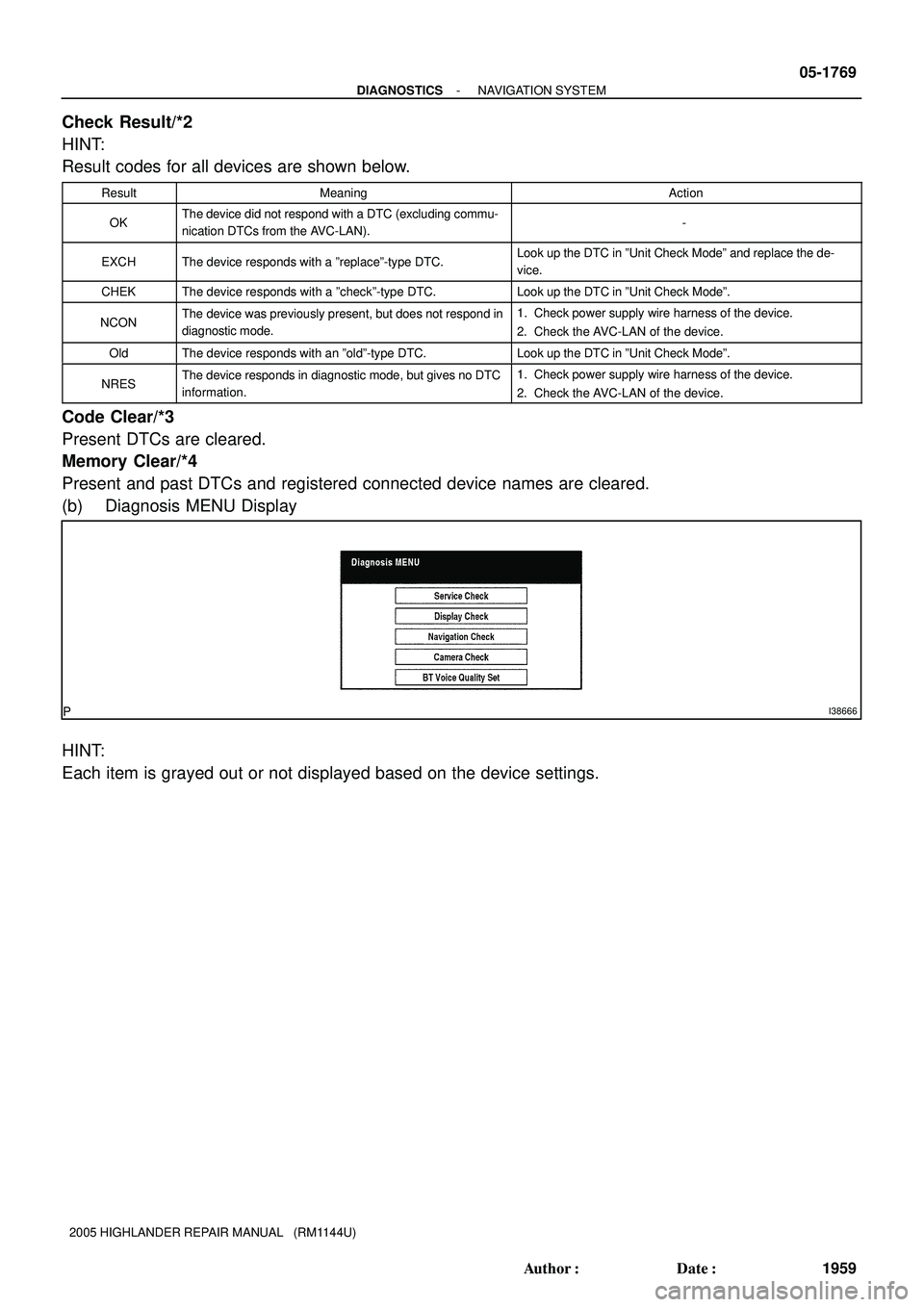

Check Result/*2
HINT:
Result codes for all devices are shown below.
ResultMeaningAction
OKThe device did not respond with a DTC (excluding commu-
nication DTCs from the AVC-LAN).-
EXCHThe device responds with a ºreplaceº-type DTC.Look up the DTC in ºUnit Check Modeº and replace the de-
vice.
CHEKThe device responds with a ºcheckº-type DTC.Look up the DTC in ºUnit Check Modeº.
NCONThe device was previously present, but does not respond in
diagnostic mode.1. Check power supply wire harness of the device.
2. Check the AVC-LAN of the device.
OldThe device responds with an ºoldº-type DTC.Look up the DTC in ºUnit Check Modeº.
NRESThe device responds in diagnostic mode, but gives no DTC
information.1. Check power supply wire harness of the device.
2. Check the AVC-LAN of the device.
Code Clear/*3
Present DTCs are cleared.
Memory Clear/*4
Present and past DTCs and registered connected device names are cleared.
(b) Diagnosis MENU Display
HINT:
Each item is grayed out or not displayed based on the device settings.
