TOYOTA HIGHLANDER 2001 Service Repair Manual
Manufacturer: TOYOTA, Model Year: 2001, Model line: HIGHLANDER, Model: TOYOTA HIGHLANDER 2001Pages: 2572, PDF Size: 34.8 MB
Page 1991 of 2572
I34947
Multi-display
Controller
Sub-assy
R30
SG6
NTS4
SGN5 (Shielded)
SLD
NTSC
SGND V13
Video (Video Adapter) Terminal
7
5
6G
R22
24
23 R30
R30 05-1742
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
1932 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
DISPLAY SIGNAL CIRCUIT (FROM VIDEO (VIDEO ADAPTER)
TERMINAL)
CIRCUIT DESCRIPTION
This is the display signal circuit from the video (video adapter) terminal to the multi-display controller sub-
assy.
WIRING DIAGRAM
05CFB-03
Page 1992 of 2572
I40833
Multi-display Controller Sub-assy:
R30
V13 Video (Video Adapter) Terminal:
SLDNTSC
SGND
NTS4
SGN5
SG6
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
05-1743
1933 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

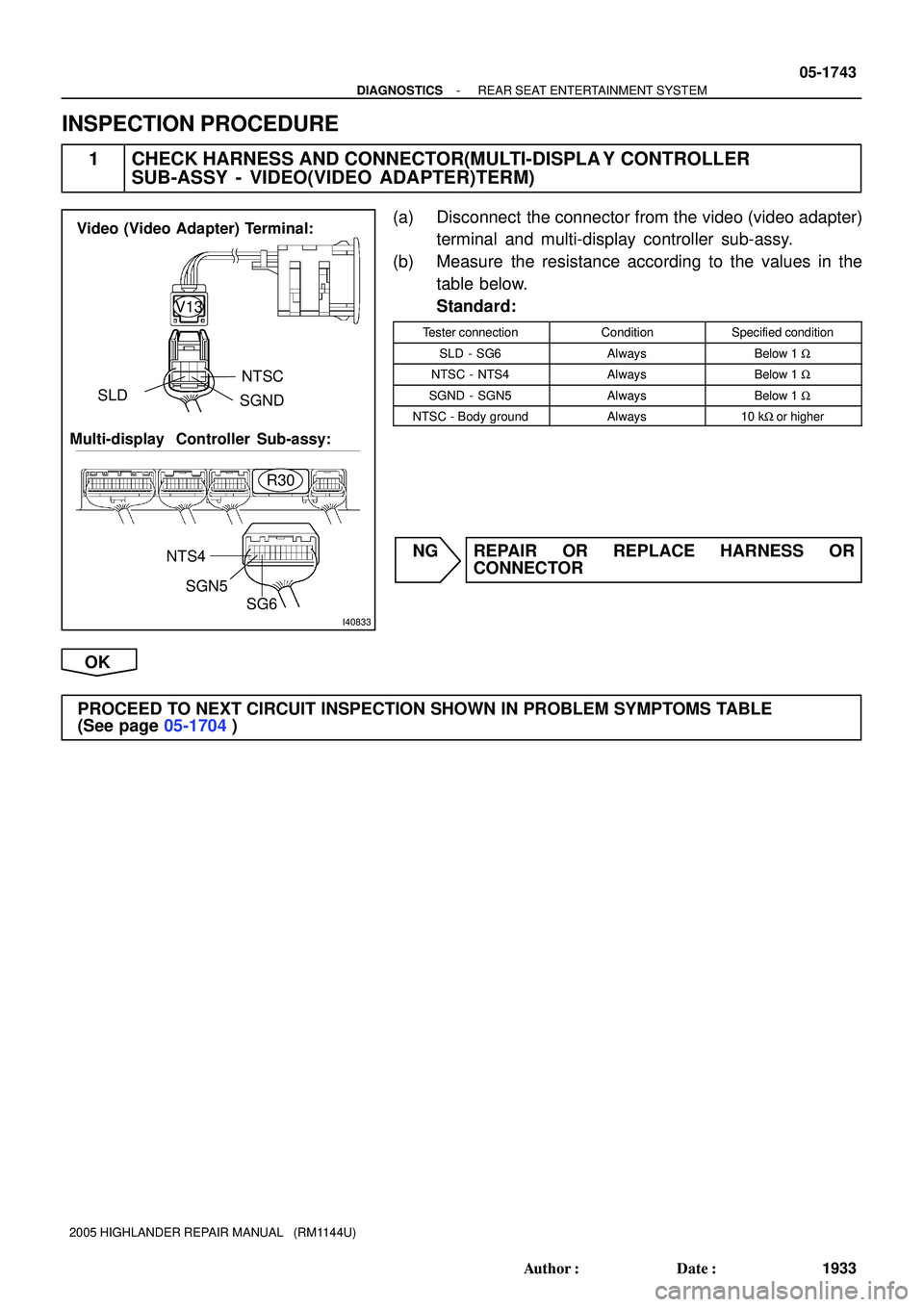

INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR(MULTI-DISPLA Y CONTROLLER
SUB-ASSY - VIDEO(VIDEO ADAPTER)TERM)
(a) Disconnect the connector from the video (video adapter)
terminal and multi-display controller sub-assy.
(b) Measure the resistance according to the values in the
table below.
Standard:
Tester connectionConditionSpecified condition
SLD - SG6AlwaysBelow 1 W
NTSC - NTS4AlwaysBelow 1 W
SGND - SGN5AlwaysBelow 1 W
NTSC - Body groundAlways10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
(See page 05-1704)
Page 1993 of 2572
I34971
Multi-display Controller
Sub-assy
R30 R28
Television Display Assy
BK1
R30TX2+
TX2- 4 5
4 5
TX+
TX-V O
P
LG 45
BK1 05-1746
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
1936 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

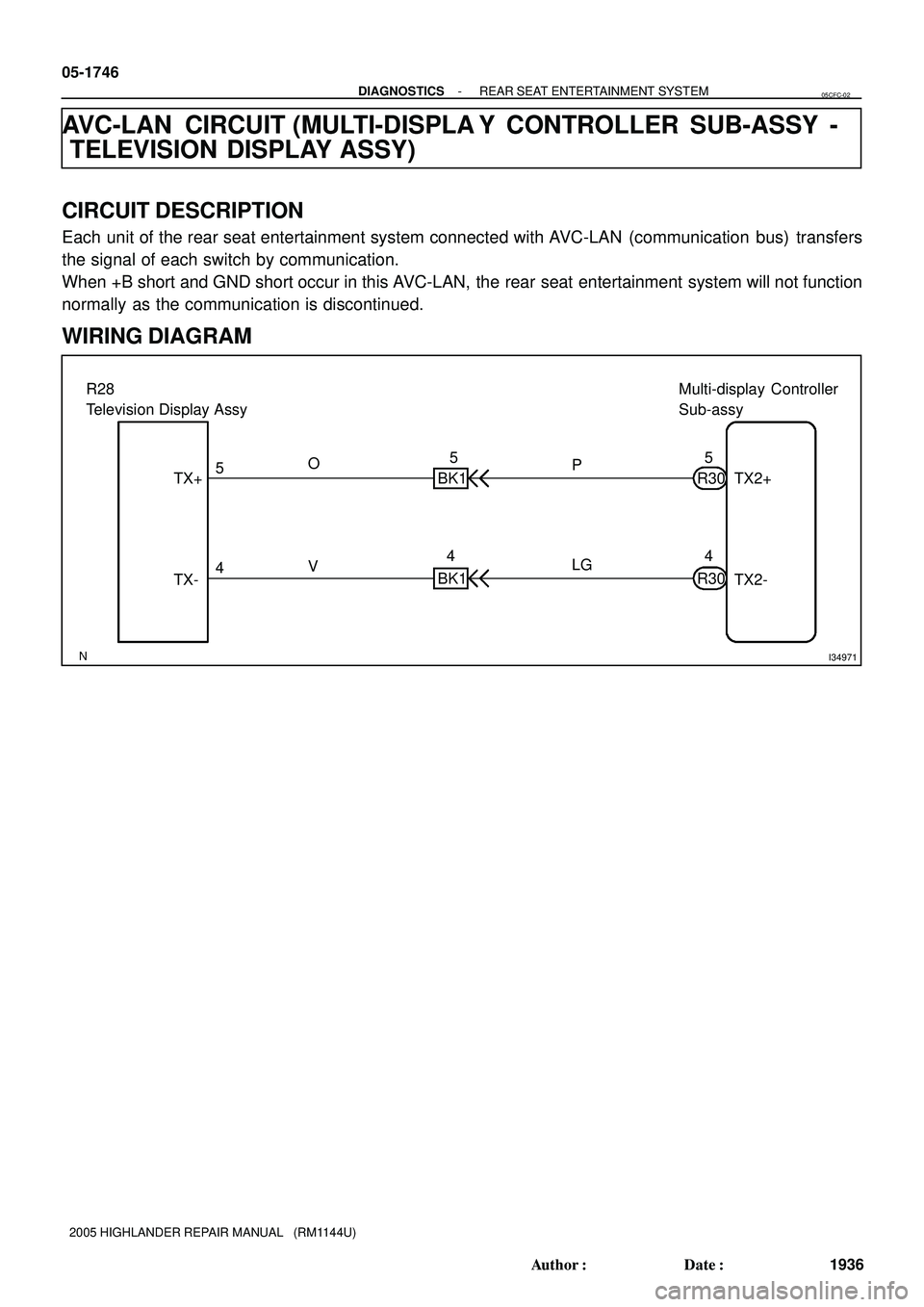

AVC-LAN CIRCUIT (MULTI-DISPLA Y CONTROLLER SUB-ASSY -
TELEVISION DISPLAY ASSY)
CIRCUIT DESCRIPTION
Each unit of the rear seat entertainment system connected with AVC-LAN (communication bus) transfers
the signal of each switch by communication.
When +B short and GND short occur in this AVC-LAN, the rear seat entertainment system will not function
normally as the communication is discontinued.
WIRING DIAGRAM
05CFC-02
Page 1994 of 2572
I37216
Television Display Assy:
TX+
TX-
Multi display Controller Sub-assy:
TX2+TX2-
R28
R30
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
05-1747
1937 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

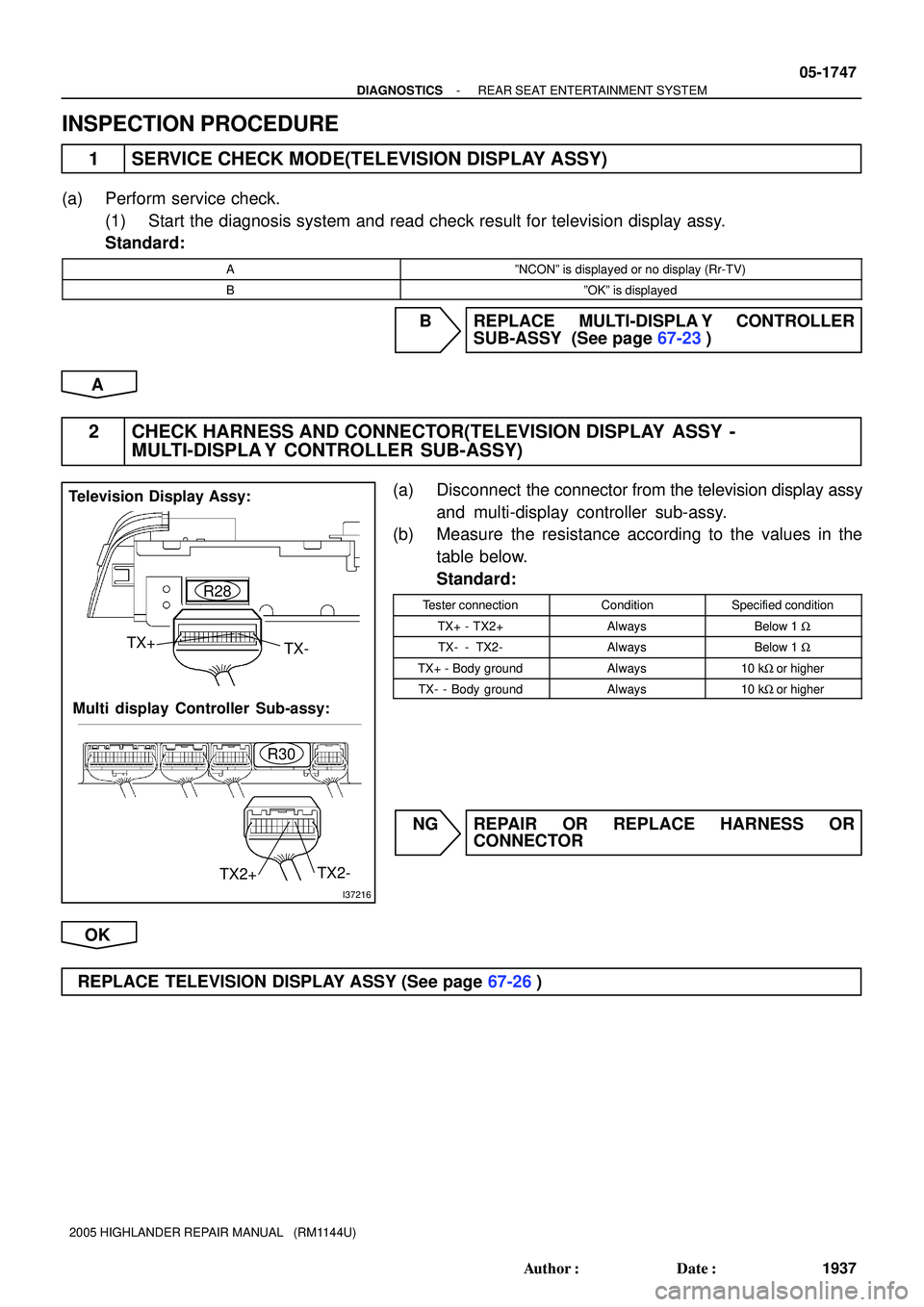

INSPECTION PROCEDURE
1 SERVICE CHECK MODE(TELEVISION DISPLAY ASSY)
(a) Perform service check.
(1) Start the diagnosis system and read check result for television display assy.
Standard:
AºNCONº is displayed or no display (Rr-TV)
BºOKº is displayed
B REPLACE MULTI-DISPLA Y CONTROLLER
SUB-ASSY (See page 67-23)
A
2 CHECK HARNESS AND CONNECTOR(TELEVISION DISPLAY ASSY -
MULTI-DISPLA Y CONTROLLER SUB-ASSY)
(a) Disconnect the connector from the television display assy
and multi-display controller sub-assy.
(b) Measure the resistance according to the values in the
table below.
Standard:
Tester connectionConditionSpecified condition
TX+ - TX2+AlwaysBelow 1 W
TX- - TX2-AlwaysBelow 1 W
TX+ - Body groundAlways10 kW or higher
TX- - Body groundAlways10 kW or higher
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
REPLACE TELEVISION DISPLAY ASSY (See page 67-26)
Page 1995 of 2572
05ITC-02
05-26
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
216 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

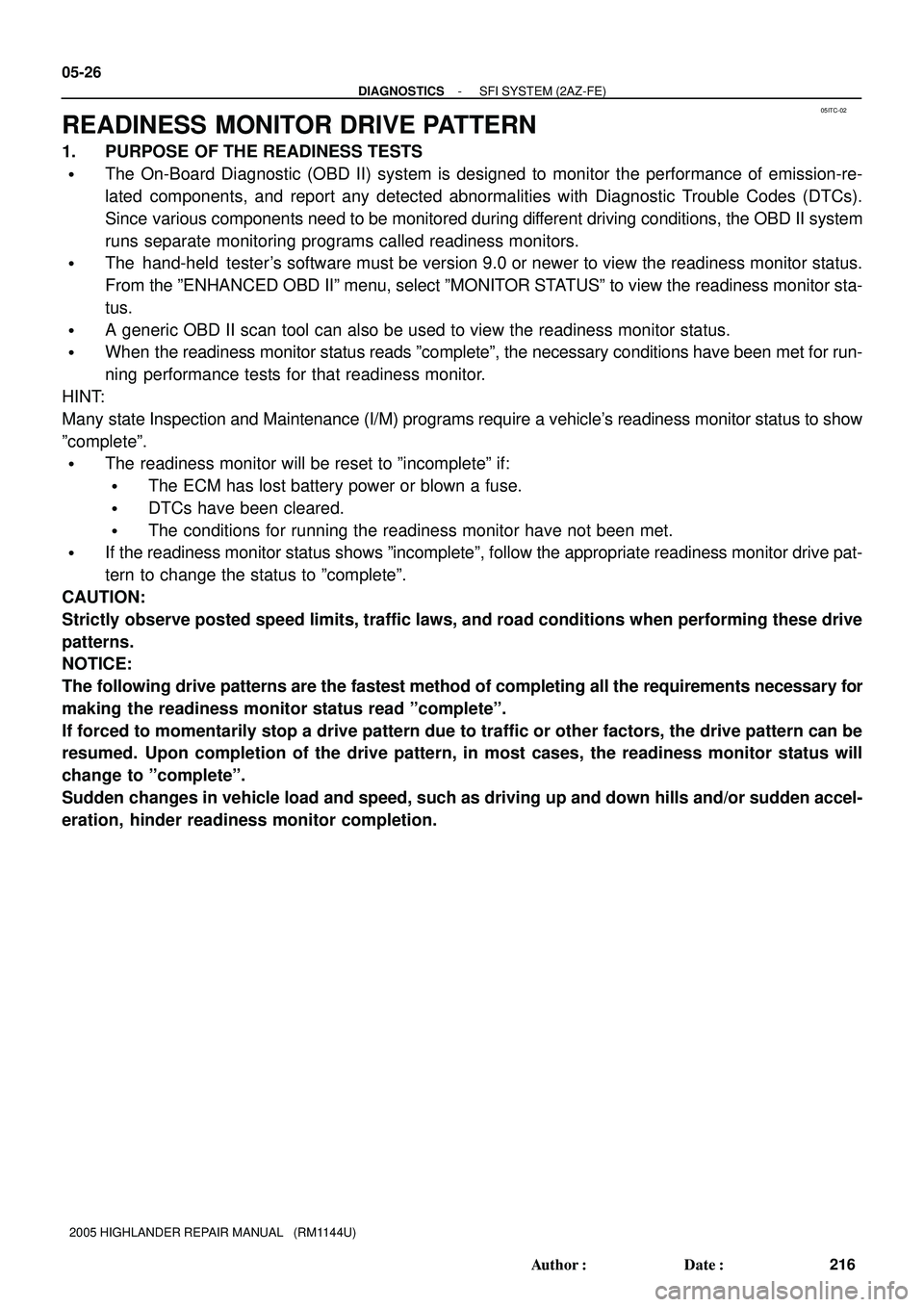

READINESS MONITOR DRIVE PATTERN
1. PURPOSE OF THE READINESS TESTS
The On-Board Diagnostic (OBD II) system is designed to monitor the performance of emission-re-
lated components, and report any detected abnormalities with Diagnostic Trouble Codes (DTCs).
Since various components need to be monitored during different driving conditions, the OBD II system
runs separate monitoring programs called readiness monitors.
The hand-held tester's software must be version 9.0 or newer to view the readiness monitor status.
From the ºENHANCED OBD IIº menu, select ºMONITOR STATUSº to view the readiness monitor sta-
tus.
A generic OBD II scan tool can also be used to view the readiness monitor status.
When the readiness monitor status reads ºcompleteº, the necessary conditions have been met for run-
ning performance tests for that readiness monitor.
HINT:
Many state Inspection and Maintenance (I/M) programs require a vehicle's readiness monitor status to show
ºcompleteº.
The readiness monitor will be reset to ºincompleteº if:
The ECM has lost battery power or blown a fuse.
DTCs have been cleared.
The conditions for running the readiness monitor have not been met.
If the readiness monitor status shows ºincompleteº, follow the appropriate readiness monitor drive pat-
tern to change the status to ºcompleteº.
CAUTION:
Strictly observe posted speed limits, traffic laws, and road conditions when performing these drive
patterns.
NOTICE:
The following drive patterns are the fastest method of completing all the requirements necessary for
making the readiness monitor status read ºcompleteº.
If forced to momentarily stop a drive pattern due to traffic or other factors, the drive pattern can be
resumed. Upon completion of the drive pattern, in most cases, the readiness monitor status will
change to ºcompleteº.
Sudden changes in vehicle load and speed, such as driving up and down hills and/or sudden accel-
eration, hinder readiness monitor completion.
Page 1996 of 2572
A82401
64 to 88 km/h
(40 to 55 mph)
64 to 80 km/h
(40 to 50 mph)
Warm up time
(idle speed)4 minutes 16 minutes Ignition Switch OFFIdling
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-27
217 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
2. CATALYST MONITOR (A/F SENSOR TYPE)
(a) Preconditions
The monitor will not run unless:
The MIL is OFF.
Engine Coolant Temperature (ECT) is 75°C (167°F) or higher.
Intake Air Temperature (IAT) is -10°C (14°F) or higher.*
NOTICE:
* 2002 and later MY vehicles:
To complete the readiness test in cold ambient conditions (less than -10°C/14°F), turn the ignition
switch OFF and then back to ON. Perform the drive pattern a second time.
(b) Drive Pattern
(1) Connect the OBD II scan tool to the DLC3 to check readiness monitor status and preconditions
(refer to step (a)).
(2) Drive the vehicle at 40 to 55
mph (64 to 88 km/h) for approximately 4 minutes.
NOTICE:
Drive with smooth throttle operation and avoid sudden acceleration.
If IAT was less than 10°C (50°F) when the engine was started, drive the vehicle at 40 to 55 mph (64
to 88 km/h) for an additional 4 minutes.
(3) Drive the vehicle allowing speed to fluctuate between 40 to 50 mph (64 to 80 km/h) for about 16
minutes.
NOTICE:
Drive with smooth throttle operation and avoid sudden closure of the throttle.
(4) Check the status of the readiness monitor on the scan tool display. If the readiness monitor status
did not switch to complete, ensure preconditions are met, turn the ignition OFF, and then repeat
steps (2) and (3).
Page 1997 of 2572
05-28
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
218 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

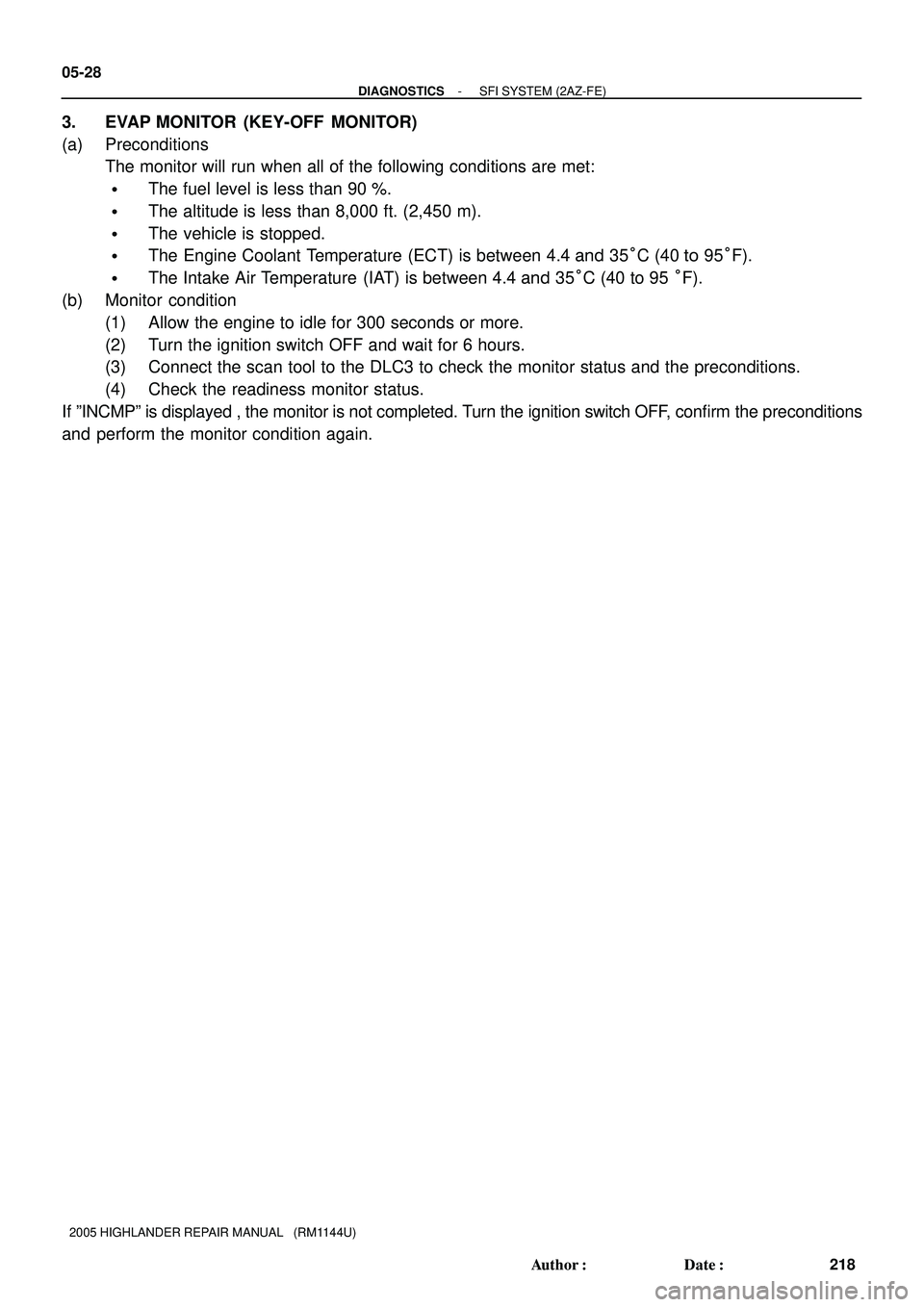

3. EVAP MONITOR (KEY-OFF MONITOR)
(a) Preconditions
The monitor will run when all of the following conditions are met:
The fuel level is less than 90 %.
The altitude is less than 8,000 ft. (2,450 m).
The vehicle is stopped.
The Engine Coolant Temperature (ECT) is between 4.4 and 35°C (40 to 95°F).
The Intake Air Temperature (IAT) is between 4.4 and 35°C (40 to 95 °F).
(b) Monitor condition
(1) Allow the engine to idle for 300 seconds or more.
(2) Turn the ignition switch OFF and wait for 6 hours.
(3) Connect the scan tool to the DLC3 to check the monitor status and the preconditions.
(4) Check the readiness monitor status.
If ºINCMPº is displayed , the monitor is not completed. Turn the ignition switch OFF, confirm the preconditions
and perform the monitor condition again.
Page 1998 of 2572
A82400
112 km/h (70 mph)
(under 3200 rpm)
64 km/h (40 mph)
(over 1400 rpm)
40 km/h (25 mph)
(over 900 rpm)
Idling
Ignition Switch OFFOnce Twice 10 times
Over
2 minutesOver
150 secondsOver
40 secondsOver
40 secondsOver
40 seconds
Over
10 secondsOver
10 secondsOver
10 seconds
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
05-29
219 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
4. OXYGEN / AIR FUEL RATIO SENSOR MONITOR (FRONT A/F SENSOR AND REAR O2S SYSTEM)
(a) Preconditions
The monitor will not run unless:
The MIL is OFF.
(b) Drive Pattern
(1) Connect the OBD II scan tool to the DLC3 to check monitor status and preconditions (refer to
step (a)).
(2) Start the engine and allow it to idle for 2 minutes or more.
(3) Drive the vehicle at 64 to 112 km/h (40 to 70 mph) for at least 150 seconds.
(4) Stop the vehicle and allow the engine to idle for 10 seconds or more.
(5) Drive the vehicle at 40 to 64 km/h (25 to 40 mph) for at least 40 seconds.
(6) Stop the vehicle and allow the engine to idle for 10 seconds or more.
(7) Perform steps (5) and (6) ten times.
(8) Check the readiness monitor status. If the readiness monitor status did not change to ºcompleteº,
check the preconditions, turn the ignition switch OFF, and repeat steps (1) to (6).
Page 1999 of 2572
A78886
Idling
Ignition Switch OFF40 km/h
(25 mph)
Over 2 minutes Over 500 seconds 05-30
- DIAGNOSTICSSFI SYSTEM (2AZ-FE)
220 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)
5. OXYGEN / A/F SENSOR HEATER MONITOR
(a) Preconditions
The monitor will not run unless:
The MIL is OFF.
(b) Drive Pattern
(1) Connect the OBD II scan tool to the DLC3 to check monitor status and preconditions (refer to
step (a)).
(2) Start the engine and allow it to idle for 500 seconds
or more.
(3) Drive the vehicle at 40 km/h (25 mph) or more for at least 2 minutes.
(4) Check the readiness monitor status. If the readiness monitor status did not change to ºcompleteº,
check preconditions, turn the ignition switch OFF, and repeat steps (2) and (3).
Page 2000 of 2572
I34950
Radio Receiver AssyMulti-display Controller
Sub-assy
RMUT R2928
IP13
R2319
OL
RMU 05-1720
- DIAGNOSTICSREAR SEAT ENTERTAINMENT SYSTEM
1910 Author: Date:
2005 HIGHLANDER REPAIR MANUAL (RM1144U)

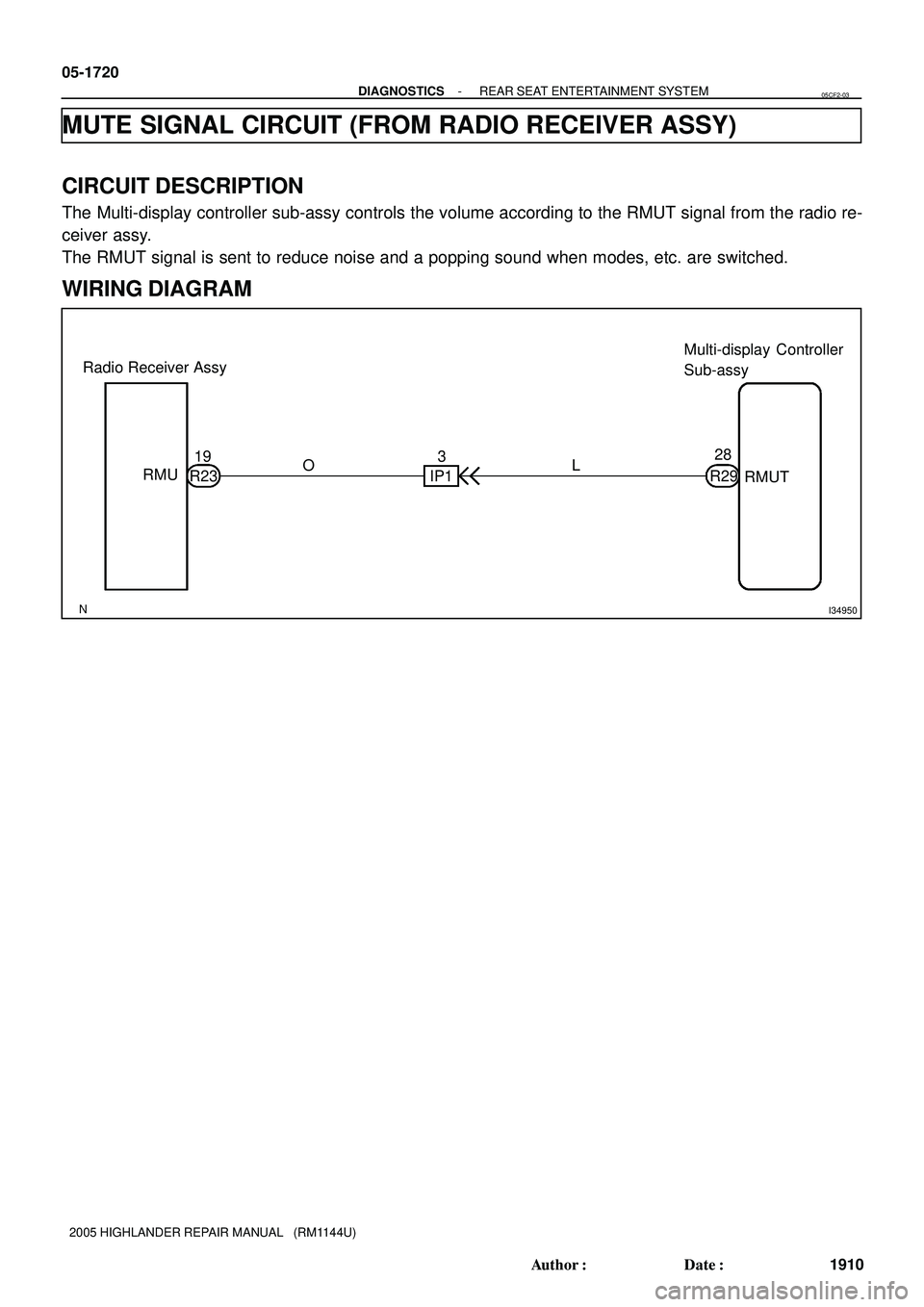

MUTE SIGNAL CIRCUIT (FROM RADIO RECEIVER ASSY)
CIRCUIT DESCRIPTION
The Multi-display controller sub-assy controls the volume according to the RMUT signal from the radio re-
ceiver assy.
The RMUT signal is sent to reduce noise and a popping sound when modes, etc. are switched.
WIRING DIAGRAM
05CF2-03
